kcenon::pacs::services Namespace Reference

Namespaces
namespace	cache
namespace	monitoring
namespace	mpps_tags
namespace	pir
namespace	print_tags
namespace	sop_classes
namespace	ups_tags
namespace	validation
namespace	xds

Classes
struct	commitment_result
	Result of a Storage Commitment verification. More...
struct	film_box
	Film box data created by N-CREATE. More...
struct	film_session
	Film session data created by N-CREATE. More...
struct	image_box
	Image box data set by N-SET. More...
struct	instance_query_keys
	Query keys for IMAGE (Instance) level queries. More...
struct	mpps_create_data
	Data for N-CREATE operation (start procedure) More...
struct	mpps_instance
	MPPS instance data structure. More...
struct	mpps_result
	Result of an MPPS operation. More...
class	mpps_scp
class	mpps_scu
struct	mpps_scu_config
	Configuration for MPPS SCU service. More...
struct	mpps_set_data
	Data for N-SET operation (update/complete procedure) More...
struct	n_get_result
	Result of an N-GET operation. More...
class	n_get_scp
class	n_get_scu
struct	n_get_scu_config
	Configuration for N-GET SCU service. More...
struct	patient_query_keys
	Query keys for PATIENT level queries. More...
struct	performed_series_info
	Information about a performed series for N-SET COMPLETED. More...
struct	print_film_box_data
	Data for creating a Film Box via N-CREATE. More...
struct	print_image_data
	Data for setting an Image Box via N-SET. More...
struct	print_result
	Result of a Print DIMSE-N operation. More...
class	print_scp
	Print Management SCP service. More...
class	print_scu
struct	print_scu_config
	Configuration for Print SCU service. More...
struct	print_session_data
	Data for creating a Film Session via N-CREATE. More...
struct	query_result
	Result of a C-FIND query operation. More...
class	query_scp
class	query_scu
struct	query_scu_config
	Configuration for Query SCU service. More...
struct	retrieve_progress
	Progress information for a retrieve operation. More...
struct	retrieve_result
	Result of a retrieve operation (C-MOVE or C-GET) More...
class	retrieve_scp
class	retrieve_scu
struct	retrieve_scu_config
	Configuration for Retrieve SCU service. More...
class	scp_service
struct	series_query_keys
	Query keys for SERIES level queries. More...
struct	sop_class_info
	Complete information about a SOP Class. More...
class	sop_class_registry
struct	sop_reference
	Reference to a SOP Instance in a commitment request. More...
class	storage_commitment_scp
	Storage Commitment Push Model SCP. More...
class	storage_commitment_scu
	Storage Commitment Push Model SCU. More...
class	storage_scp
struct	storage_scp_config
	Configuration for Storage SCP service. More...
class	storage_scu
struct	storage_scu_config
	Configuration for Storage SCU service. More...
struct	store_result
	Result of a C-STORE operation. More...
struct	stream_config
	Configuration for query result streaming. More...
struct	study_query_keys
	Query keys for STUDY level queries. More...
struct	sub_operation_stats
	Statistics for C-MOVE/C-GET sub-operations. More...
struct	ups_change_state_data
	Data for N-ACTION Type 1 (change UPS state) More...
struct	ups_create_data
	Data for N-CREATE operation (create new workitem) More...
struct	ups_get_data
	Data for N-GET operation (retrieve workitem) More...
class	ups_push_scp
class	ups_push_scu
struct	ups_push_scu_config
	Configuration for UPS Push SCU service. More...
class	ups_query_scp
	UPS Query SCP service for handling workitem C-FIND requests. More...
struct	ups_request_cancel_data
	Data for N-ACTION Type 3 (request cancellation) More...
struct	ups_result
	Result of a UPS SCU operation. More...
struct	ups_set_data
	Data for N-SET operation (modify workitem attributes) More...
struct	ups_subscribe_data
	Data for N-ACTION subscribe request. More...
struct	ups_unsubscribe_data
	Data for N-ACTION unsubscribe request. More...
struct	ups_watch_event
	Parsed UPS event notification received from SCP. More...
class	ups_watch_scp
	UPS Watch SCP service for subscription and event notification. More...
class	ups_watch_scu
	UPS Watch SCU service for subscribing to events on remote systems. More...
struct	ups_watch_scu_config
	Configuration for UPS Watch SCU service. More...
class	verification_scp
struct	worklist_item
	Parsed worklist item from MWL query response. More...
struct	worklist_query_keys
	Typed query keys for Modality Worklist queries. More...
struct	worklist_result
	Result of a Modality Worklist query operation. More...
class	worklist_scp
class	worklist_scu
struct	worklist_scu_config
	Configuration for Worklist SCU service. More...

Typedefs
template<typename T >
using	Result = kcenon::common::Result<T>
	Result type alias for operations returning a value.
using	mpps_create_handler
	N-CREATE handler function type.
using	mpps_set_handler
	N-SET handler function type.
using	n_get_handler
	N-GET handler function type.
using	print_session_handler
	Handler for film session creation.
using	print_action_handler
	Handler for print action (film box print)
using	printer_status_handler
	Handler for printer status query.
using	query_handler
	Query handler function type.
using	cancel_check = std::function<bool()>
	Cancel check function type.
using	query_streaming_callback = std::function<bool(const core::dicom_dataset&)>
	Callback type for streaming query results.
using	retrieve_handler
	Retrieve handler function type.
using	destination_resolver
	Destination resolver function type.
using	store_sub_operation
	Store sub-operation function type.
using	retrieve_cancel_check = std::function<bool()>
	Cancel check function type.
using	retrieve_progress_callback = std::function<void(const retrieve_progress&)>
	Callback type for retrieve progress updates.
using	instance_receive_callback = std::function<bool(const core::dicom_dataset&)>
	Callback type for receiving instances during C-GET.
using	scp_service_ptr = std::shared_ptr<scp_service>
	Shared pointer type for SCP services.
using	storage_handler
	Callback type for handling received DICOM images.
using	pre_store_handler = std::function<bool(const core::dicom_dataset& dataset)>
	Callback type for pre-store validation.
using	post_store_handler
	Callback type for post-store notification.
using	store_progress_callback = std::function<void(size_t completed, size_t total)>
	Progress callback type for batch operations.
using	ups_create_handler
	N-CREATE handler function type.
using	ups_set_handler
	N-SET handler function type.
using	ups_get_handler
	N-GET handler function type.
using	ups_change_state_handler
	N-ACTION Type 1 handler: Change UPS State.
using	ups_request_cancel_handler
	N-ACTION Type 3 handler: Request Cancellation.
using	ups_query_handler
	UPS query handler function type.
using	ups_query_cancel_check = std::function<bool()>
	Cancel check function type for UPS queries.
using	ups_subscribe_handler
	Subscribe handler function type.
using	ups_unsubscribe_handler
	Unsubscribe handler function type.
using	ups_get_subscribers_handler
	Get subscribers handler function type.
using	ups_event_callback
	Event notification callback type.
using	worklist_handler
using	worklist_cancel_check = std::function<bool()>
	Cancel check function type.
using	worklist_streaming_callback = std::function<bool(const worklist_item&)>
	Callback type for streaming worklist query results.

Enumerations
enum class	mpps_status { in_progress , completed , discontinued }
	MPPS status enumeration. More...
enum class	printer_status { normal , warning , failure }
	Printer status enumeration (PS3.4 H.4.17) More...
enum class	print_job_status { pending , printing , done , failure }
	Print job status. More...
enum class	query_level { patient , study , series , image }
	DICOM Query/Retrieve level enumeration. More...
enum class	query_model { patient_root , study_root }
	DICOM Query/Retrieve Information Model. More...
enum class	retrieve_mode { c_move , c_get }
	DICOM Retrieve Mode (C-MOVE vs C-GET) More...
enum class	sop_class_category {   storage , query_retrieve , worklist , mpps ,   storage_commitment , ups , verification , print ,   media , other }
	Category of SOP Class. More...
enum class	modality_type {   ct , mr , us , xa ,   xrf , cr , dx , mg ,   nm , pet , rt , sc ,   sr , seg , sm , op ,   pmap , other }
	Modality type for storage SOP classes. More...
enum class	commitment_failure_reason : uint16_t {   processing_failure = 0x0110 , no_such_object_instance = 0x0112 , resource_limitation = 0x0213 , referenced_sop_class_not_supported = 0x0122 ,   class_instance_conflict = 0x0119 , duplicate_transaction_uid = 0xA770 }
	Failure reason codes for Storage Commitment. More...
enum class	duplicate_policy { reject , replace , ignore }
	Policy for handling duplicate SOP instances. More...
enum class	storage_status : uint16_t {   success = 0x0000 , coercion_of_data_elements = 0xB000 , data_set_does_not_match_sop_class_warning = 0xB007 , elements_discarded = 0xB006 ,   duplicate_sop_instance = 0x0111 , out_of_resources = 0xA700 , out_of_resources_unable_to_store = 0xA701 , data_set_does_not_match_sop_class = 0xA900 ,   cannot_understand = 0xC000 , storage_error = 0xC001 }
	Storage operation status codes. More...

Functions
auto	to_string (mpps_status status) -> std::string_view
	Convert mpps_status to DICOM string representation.

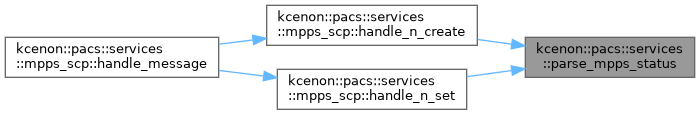

auto	parse_mpps_status (std::string_view str) -> std::optional< mpps_status >
	Parse DICOM string to mpps_status enum.
auto	to_string (printer_status status) -> std::string_view
	Convert printer_status to DICOM string representation.
constexpr std::string_view	to_string (query_level level) noexcept
	Convert query_level to string representation.
std::optional< query_level >	parse_query_level (std::string_view level_str) noexcept
	Parse query level from DICOM string.
constexpr std::string_view	to_string (query_model model) noexcept
	Convert query_model to string representation.

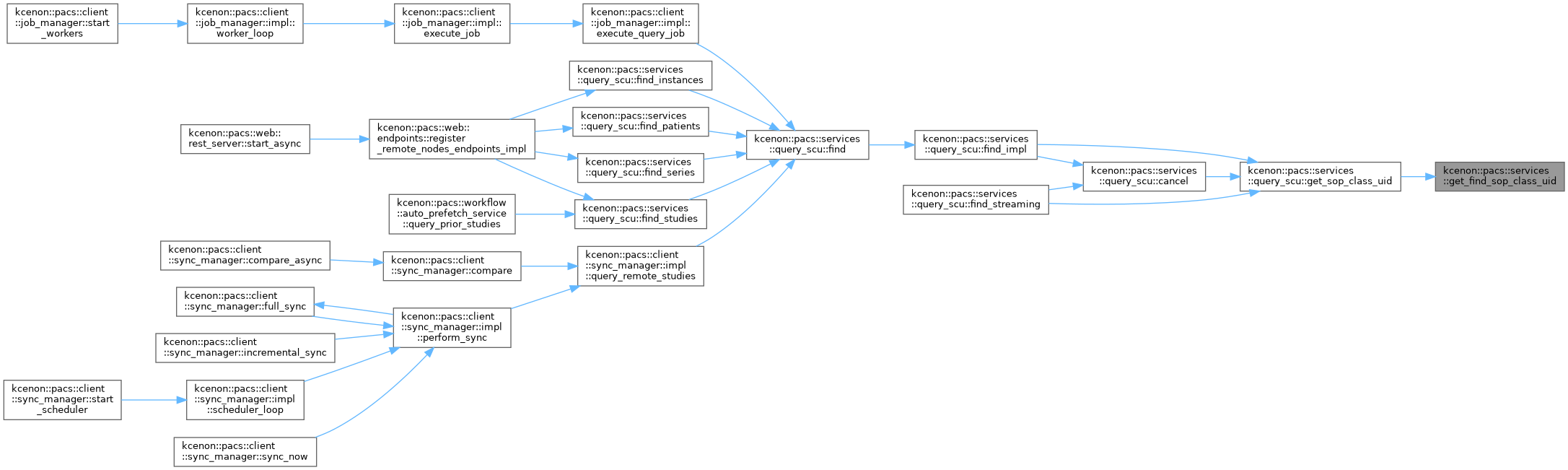

constexpr std::string_view	get_find_sop_class_uid (query_model model) noexcept
	Get the FIND SOP Class UID for a query model.
constexpr std::string_view	to_string (retrieve_mode mode) noexcept
	Convert retrieve_mode to string representation.
bool	is_storage_sop_class (std::string_view uid)
	Check if a SOP Class UID is a storage class.

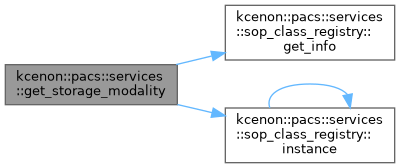

modality_type	get_storage_modality (std::string_view uid)
	Get the modality for a storage SOP Class.
std::string_view	get_sop_class_name (std::string_view uid)
	Get human-readable name for a SOP Class.
std::string_view	to_string (commitment_failure_reason reason) noexcept
	Convert failure reason to human-readable string.
std::vector< std::string >	get_standard_storage_sop_classes ()
	Get a list of all standard Storage SOP Class UIDs.
constexpr bool	is_success (storage_status status) noexcept
	Check if the status indicates success.

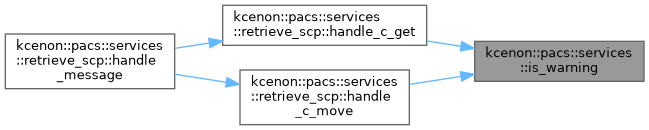

constexpr bool	is_warning (storage_status status) noexcept
	Check if the status indicates a warning.
constexpr bool	is_failure (storage_status status) noexcept
	Check if the status indicates a failure.
constexpr std::string_view	to_string (storage_status status) noexcept
	Get a human-readable description of the storage status.
constexpr uint16_t	to_status_code (storage_status status) noexcept
	Convert storage_status to DIMSE status_code.

Variables
constexpr std::string_view	mpps_sop_class_uid = "1.2.840.10008.3.1.2.3.3"
	MPPS (Modality Performed Procedure Step) SOP Class UID.
constexpr std::string_view	basic_film_session_sop_class_uid
	Basic Film Session SOP Class UID.
constexpr std::string_view	basic_film_box_sop_class_uid
	Basic Film Box SOP Class UID.
constexpr std::string_view	basic_grayscale_image_box_sop_class_uid
	Basic Grayscale Image Box SOP Class UID.
constexpr std::string_view	basic_color_image_box_sop_class_uid
	Basic Color Image Box SOP Class UID.
constexpr std::string_view	printer_sop_class_uid
	Printer SOP Class UID.
constexpr std::string_view	basic_grayscale_print_meta_sop_class_uid
	Basic Grayscale Print Management Meta SOP Class UID.
constexpr std::string_view	basic_color_print_meta_sop_class_uid
	Basic Color Print Management Meta SOP Class UID.
constexpr std::string_view	patient_root_find_sop_class_uid
	Patient Root Query/Retrieve Information Model - FIND.
constexpr std::string_view	study_root_find_sop_class_uid
	Study Root Query/Retrieve Information Model - FIND.
constexpr std::string_view	patient_study_only_find_sop_class_uid
	Patient/Study Only Query/Retrieve Information Model - FIND (Retired)
constexpr std::string_view	modality_worklist_find_sop_class_uid
	Modality Worklist Information Model - FIND.
constexpr std::string_view	patient_root_move_sop_class_uid
	Patient Root Query/Retrieve Information Model - MOVE.
constexpr std::string_view	study_root_move_sop_class_uid
	Study Root Query/Retrieve Information Model - MOVE.
constexpr std::string_view	patient_root_get_sop_class_uid
	Patient Root Query/Retrieve Information Model - GET.
constexpr std::string_view	study_root_get_sop_class_uid
	Study Root Query/Retrieve Information Model - GET.
constexpr std::string_view	storage_commitment_push_model_sop_class_uid
	Storage Commitment Push Model SOP Class UID (PS3.4 Table J.3-1)
constexpr std::string_view	storage_commitment_push_model_sop_instance_uid
	Storage Commitment Push Model SOP Instance UID (Well-Known)
constexpr uint16_t	storage_commitment_action_type_request = 1
	N-ACTION: Request Storage Commitment (Action Type ID = 1)
constexpr uint16_t	storage_commitment_event_type_success = 1
	N-EVENT-REPORT: Storage Commitment Request Successful (Event Type ID = 1)
constexpr uint16_t	storage_commitment_event_type_failure = 2
	N-EVENT-REPORT: Storage Commitment Request Complete - Failures Exist (Event Type ID = 2)
constexpr std::string_view	ups_push_sop_class_uid
	UPS Push SOP Class UID (PS3.4 Table CC.2-1)
constexpr uint16_t	ups_action_change_state = 1
	N-ACTION Type 1: Change UPS State (PS3.4 CC.2.4)
constexpr uint16_t	ups_action_request_cancel = 3
	N-ACTION Type 3: Request Cancellation (PS3.4 CC.2.5)
constexpr std::string_view	ups_query_find_sop_class_uid
	UPS Query Information Model - FIND SOP Class UID (PS3.4 Table CC.2-1)
constexpr std::string_view	ups_watch_sop_class_uid
	UPS Watch SOP Class UID (PS3.4 Table CC.2-1)
constexpr std::string_view	ups_global_subscription_instance_uid
	UPS Global Subscription SOP Instance UID Used as the SOP Instance UID for global (non-workitem-specific) subscriptions.
constexpr uint16_t	ups_watch_action_subscribe = 3
	N-ACTION Type 3: Subscribe to Receive UPS Event Reports (PS3.4 CC.2.3.3)
constexpr uint16_t	ups_watch_action_unsubscribe = 4
	N-ACTION Type 4: Unsubscribe from Receiving UPS Event Reports (PS3.4 CC.2.3.4)
constexpr uint16_t	ups_watch_action_suspend_global = 5
	N-ACTION Type 5: Suspend Global Subscription (PS3.4 CC.2.3.5)
constexpr uint16_t	ups_event_state_report = 1
	Event Type 1: UPS State Report — workitem state changed.
constexpr uint16_t	ups_event_cancel_requested = 2
	Event Type 2: UPS Cancel Requested — performer should stop processing.
constexpr uint16_t	ups_event_progress_report = 3
	Event Type 3: UPS Progress Report — progress percentage update.
constexpr uint16_t	ups_event_scp_status_change = 4
	Event Type 4: SCP Status Change — SCP going down/restarting.
constexpr std::string_view	verification_sop_class_uid = "1.2.840.10008.1.1"
	Verification SOP Class UID (1.2.840.10008.1.1)
constexpr std::string_view	worklist_find_sop_class_uid
	Modality Worklist Information Model - FIND SOP Class UID.
Common Storage SOP Class UIDs
constexpr std::string_view	ct_image_storage_uid
	CT Image Storage.
constexpr std::string_view	enhanced_ct_image_storage_uid
	Enhanced CT Image Storage.
constexpr std::string_view	mr_image_storage_uid
	MR Image Storage.
constexpr std::string_view	enhanced_mr_image_storage_uid
	Enhanced MR Image Storage.
constexpr std::string_view	cr_image_storage_uid
	CR Image Storage.
constexpr std::string_view	dx_image_storage_presentation_uid
	Digital X-Ray Image Storage - For Presentation.
constexpr std::string_view	dx_image_storage_processing_uid
	Digital X-Ray Image Storage - For Processing.
constexpr std::string_view	us_image_storage_uid
	US Image Storage.
constexpr std::string_view	secondary_capture_image_storage_uid
	Secondary Capture Image Storage.
constexpr std::string_view	rt_image_storage_uid
	RT Image Storage.
constexpr std::string_view	rt_dose_storage_uid
	RT Dose Storage.
constexpr std::string_view	rt_structure_set_storage_uid
	RT Structure Set Storage.
constexpr std::string_view	rt_plan_storage_uid
	RT Plan Storage.

Typedef Documentation

cancel_check

using kcenon::pacs::services::cancel_check = std::function<bool()>

Cancel check function type.

Called periodically during query processing to check if a C-CANCEL request has been received.

Returns

true if cancel has been requested

Definition at line 126 of file query_scp.h.

destination_resolver

using kcenon::pacs::services::destination_resolver

Initial value:

 std::function<
    std::optional<std::pair<std::string, uint16_t>>(
        const std::string& ae_title)>

Destination resolver function type.

Called by retrieve_scp to resolve a Move Destination AE title to a network address (host and port).

Parameters

ae_title

The AE title of the destination

Returns

Optional pair of (host, port) if resolved, std::nullopt if unknown

Definition at line 114 of file retrieve_scp.h.

instance_receive_callback

using kcenon::pacs::services::instance_receive_callback = std::function<bool(const core::dicom_dataset&)>

Callback type for receiving instances during C-GET.

Called for each C-STORE sub-operation received during C-GET.

Parameters

dataset

The received DICOM dataset

Returns

true to continue receiving, false to cancel

Definition at line 198 of file retrieve_scu.h.

mpps_create_handler

using kcenon::pacs::services::mpps_create_handler

Initial value:

 std::function<network::Result<std::monostate>(
    const mpps_instance& instance)>

N-CREATE handler function type.

Called when an N-CREATE request is received to create a new MPPS instance.

Parameters

instance

The MPPS instance data from the N-CREATE request

Returns

Success if the instance was created, error description otherwise

Definition at line 124 of file mpps_scp.h.

mpps_set_handler

using kcenon::pacs::services::mpps_set_handler

Initial value:

 std::function<network::Result<std::monostate>(
    const std::string& sop_instance_uid,
    const core::dicom_dataset& modifications,
    mpps_status new_status)>

N-SET handler function type.

Called when an N-SET request is received to update an existing MPPS instance.

Parameters

sop_instance_uid	The SOP Instance UID of the MPPS to update
modifications	The dataset containing the modifications
new_status	The new status (COMPLETED or DISCONTINUED)

Returns

Success if the instance was updated, error description otherwise

Definition at line 137 of file mpps_scp.h.

n_get_handler

using kcenon::pacs::services::n_get_handler

Initial value:

 std::function<network::Result<core::dicom_dataset>(
    const std::string& sop_class_uid,
    const std::string& sop_instance_uid,
    const std::vector<core::dicom_tag>& attribute_tags)>

N-GET handler function type.

Called when an N-GET request is received to retrieve attributes from a managed SOP Instance.

The handler should:

1. Look up the SOP Instance by its UID
2. If attribute_tags is empty, return all attributes
3. If attribute_tags is not empty, return only the requested attributes
4. Return the dataset containing the requested attributes

Parameters

sop_class_uid	The SOP Class UID of the instance
sop_instance_uid	The SOP Instance UID to look up
attribute_tags	Tags to retrieve (empty = all attributes)

Returns

Dataset containing the requested attributes, or error

Definition at line 51 of file n_get_scp.h.

post_store_handler

using kcenon::pacs::services::post_store_handler

Initial value:

 std::function<void(
    const core::dicom_dataset& dataset,
    const std::string& patient_id,
    const std::string& study_uid,
    const std::string& series_uid,
    const std::string& sop_instance_uid)>

Callback type for post-store notification.

Called after successful storage. Useful for cache invalidation, notifications, or other post-processing tasks.

Parameters

dataset	The stored DICOM dataset
patient_id	The patient ID from the dataset
study_uid	The Study Instance UID
series_uid	The Series Instance UID
sop_instance_uid	The SOP Instance UID

Definition at line 95 of file storage_scp.h.

pre_store_handler

using kcenon::pacs::services::pre_store_handler = std::function<bool(const core::dicom_dataset& dataset)>

Callback type for pre-store validation.

Called before the storage handler to validate incoming datasets. Return false to reject the storage request.

Parameters

dataset

The received DICOM dataset

Returns

true to proceed with storage, false to reject

Definition at line 81 of file storage_scp.h.

print_action_handler

using kcenon::pacs::services::print_action_handler

Initial value:

 std::function<network::Result<std::monostate>(
    const std::string& film_box_uid)>

Handler for print action (film box print)

Parameters

film_box_uid

The film box UID to print

Returns

Success or error

Definition at line 197 of file print_scp.h.

print_session_handler

using kcenon::pacs::services::print_session_handler

Initial value:

 std::function<network::Result<std::monostate>(
    const film_session& session)>

Handler for film session creation.

Parameters

session

The film session data

Returns

Success or error

Definition at line 188 of file print_scp.h.

printer_status_handler

using kcenon::pacs::services::printer_status_handler

Initial value:

 std::function<
    network::Result<std::pair<printer_status, core::dicom_dataset>>()>

Handler for printer status query.

Returns

Printer status and info dataset

Definition at line 205 of file print_scp.h.

query_handler

using kcenon::pacs::services::query_handler

Initial value:

 std::function<std::vector<core::dicom_dataset>(
    query_level level,
    const core::dicom_dataset& query_keys,
    const std::string& calling_ae)>

Query handler function type.

Called by query_scp to retrieve matching records for a C-FIND query.

Parameters

level	The query level (Patient/Study/Series/Image)
query_keys	The query dataset containing search criteria
calling_ae	The calling AE title of the requesting SCU

Returns

Vector of matching datasets (empty if no matches)

Definition at line 113 of file query_scp.h.

query_streaming_callback

using kcenon::pacs::services::query_streaming_callback = std::function<bool(const core::dicom_dataset&)>

Callback type for streaming query results.

Called for each pending response received from the SCP.

Parameters

dataset

The matching dataset from the SCP

Returns

true to continue receiving, false to cancel the query

Definition at line 197 of file query_scu.h.

Result

template<typename T >

using kcenon::pacs::services::Result = kcenon::common::Result<T>

Result type alias for operations returning a value.

Definition at line 50 of file parallel_query_executor.h.

retrieve_cancel_check

using kcenon::pacs::services::retrieve_cancel_check = std::function<bool()>

Cancel check function type.

Called periodically during retrieve processing to check if a C-CANCEL request has been received.

Returns

true if cancel has been requested

Definition at line 147 of file retrieve_scp.h.

retrieve_handler

using kcenon::pacs::services::retrieve_handler

Initial value:

 std::function<std::vector<core::dicom_file>(
    const core::dicom_dataset& query_keys)>

Retrieve handler function type.

Called by retrieve_scp to get matching DICOM files for a retrieve query.

Parameters

query_keys

The query dataset containing search criteria

Returns

Vector of matching DICOM files (empty if no matches)

Definition at line 102 of file retrieve_scp.h.

retrieve_progress_callback

using kcenon::pacs::services::retrieve_progress_callback = std::function<void(const retrieve_progress&)>

Callback type for retrieve progress updates.

Called periodically during retrieve operations with current progress.

Parameters

progress

Current progress information

Definition at line 184 of file retrieve_scu.h.

scp_service_ptr

using kcenon::pacs::services::scp_service_ptr = std::shared_ptr<scp_service>

Shared pointer type for SCP services.

Definition at line 162 of file scp_service.h.

storage_handler

using kcenon::pacs::services::storage_handler

Initial value:

 std::function<storage_status(
    const core::dicom_dataset& dataset,
    const std::string& calling_ae,
    const std::string& sop_class_uid,
    const std::string& sop_instance_uid)>

Callback type for handling received DICOM images.

Parameters

dataset	The received DICOM dataset
calling_ae	The AE title of the sending application
sop_class_uid	The SOP Class UID of the instance
sop_instance_uid	The unique identifier of the instance

Returns

Status indicating success/failure of storage operation

Definition at line 66 of file storage_scp.h.

store_progress_callback

using kcenon::pacs::services::store_progress_callback = std::function<void(size_t completed, size_t total)>

Progress callback type for batch operations.

Parameters

completed	Number of completed operations
total	Total number of operations

Definition at line 75 of file storage_scu.h.

store_sub_operation

using kcenon::pacs::services::store_sub_operation

Initial value:

 std::function<network::dimse::status_code(
    network::association& assoc,
    uint8_t context_id,
    const core::dicom_file& file,
    const std::string& move_originator_ae,
    uint16_t move_originator_msg_id)>

Store sub-operation function type.

Called by retrieve_scp to perform a C-STORE sub-operation. This is used for both C-MOVE (to external destination) and C-GET (back to requesting SCU on the same association).

Parameters

assoc	The association to use for C-STORE
context_id	The presentation context ID
file	The DICOM file to store
move_originator_ae	The original requester's AE title (for C-MOVE)
move_originator_msg_id	The original message ID (for C-MOVE)

Returns

Status code from the C-STORE operation

Definition at line 132 of file retrieve_scp.h.

ups_change_state_handler

using kcenon::pacs::services::ups_change_state_handler

Initial value:

 std::function<network::Result<std::monostate>(
    const std::string& workitem_uid,
    const std::string& new_state,
    const std::string& transaction_uid)>

N-ACTION Type 1 handler: Change UPS State.

Called when an N-ACTION request with Action Type ID 1 is received.

Parameters

workitem_uid	The SOP Instance UID of the workitem
new_state	The requested new state
transaction_uid	The transaction UID for claiming

Returns

Success if the state was changed, error otherwise

Definition at line 97 of file ups_push_scp.h.

ups_create_handler

using kcenon::pacs::services::ups_create_handler

Initial value:

 std::function<network::Result<std::monostate>(
    const storage::ups_workitem& workitem)>

N-CREATE handler function type.

Called when an N-CREATE request is received to create a new UPS workitem. The workitem will always have state=SCHEDULED.

Parameters

workitem

The UPS workitem data from the N-CREATE request

Returns

Success if the workitem was created, error description otherwise

Definition at line 60 of file ups_push_scp.h.

ups_event_callback

using kcenon::pacs::services::ups_event_callback

Initial value:

 std::function<void(
    const std::string& subscriber_ae,
    uint16_t event_type_id,
    const std::string& workitem_uid,
    const core::dicom_dataset& event_info)>

Event notification callback type.

Called by the Watch SCP when an event needs to be dispatched to subscribers. The application layer is responsible for establishing the network connection and sending the N-EVENT-REPORT to each subscriber.

Parameters

subscriber_ae	The AE Title of the subscriber to notify
event_type_id	The event type (ups_event_state_report, etc.)
workitem_uid	The workitem UID that triggered the event
event_info	Dataset containing event details

Definition at line 131 of file ups_watch_scp.h.

ups_get_handler

using kcenon::pacs::services::ups_get_handler

Initial value:

 std::function<network::Result<storage::ups_workitem>(
    const std::string& workitem_uid)>

N-GET handler function type.

Called when an N-GET request is received to retrieve a UPS workitem.

Parameters

workitem_uid

The SOP Instance UID of the workitem to retrieve

Returns

The workitem if found, error otherwise

Definition at line 84 of file ups_push_scp.h.

ups_get_subscribers_handler

using kcenon::pacs::services::ups_get_subscribers_handler

Initial value:

 std::function<
    network::Result<std::vector<std::string>>(
        const std::string& workitem_uid)>

Get subscribers handler function type.

Called to retrieve subscriber AE titles for a specific workitem. Used when sending N-EVENT-REPORT notifications.

Parameters

workitem_uid

The workitem UID to find subscribers for

Returns

Vector of subscriber AE titles

Definition at line 115 of file ups_watch_scp.h.

ups_query_cancel_check

using kcenon::pacs::services::ups_query_cancel_check = std::function<bool()>

Cancel check function type for UPS queries.

Called periodically during query processing to check if a C-CANCEL request has been received.

Returns

true if cancel has been requested

Definition at line 65 of file ups_query_scp.h.

ups_query_handler

using kcenon::pacs::services::ups_query_handler

Initial value:

 std::function<std::vector<core::dicom_dataset>(
    const core::dicom_dataset& query_keys,
    const std::string& calling_ae)>

UPS query handler function type.

Called by ups_query_scp to retrieve matching UPS workitems for a C-FIND query. The handler should query the database using the provided query keys and return matching workitem datasets.

Parameters

query_keys	The query dataset containing search criteria: Procedure Step State (0074,1000) Scheduled Procedure Step Priority (0074,1200) Procedure Step Label (0074,1204) Worklist Label (0074,1202) SOP Instance UID (0008,0018) for unique key match
calling_ae	The calling AE title of the requesting system

Returns

Vector of matching workitem datasets (empty if no matches)

Definition at line 53 of file ups_query_scp.h.

ups_request_cancel_handler

using kcenon::pacs::services::ups_request_cancel_handler

Initial value:

 std::function<network::Result<std::monostate>(
    const std::string& workitem_uid,
    const std::string& reason)>

N-ACTION Type 3 handler: Request Cancellation.

Called when an N-ACTION request with Action Type ID 3 is received.

Parameters

workitem_uid	The SOP Instance UID of the workitem
reason	The cancellation reason (may be empty)

Returns

Success if the cancellation request was accepted, error otherwise

Definition at line 111 of file ups_push_scp.h.

ups_set_handler

using kcenon::pacs::services::ups_set_handler

Initial value:

 std::function<network::Result<std::monostate>(
    const std::string& workitem_uid,
    const core::dicom_dataset& modifications)>

N-SET handler function type.

Called when an N-SET request is received to update an existing UPS workitem.

Parameters

workitem_uid	The SOP Instance UID of the workitem to update
modifications	The dataset containing the modifications

Returns

Success if the workitem was updated, error description otherwise

Definition at line 72 of file ups_push_scp.h.

ups_subscribe_handler

using kcenon::pacs::services::ups_subscribe_handler

Initial value:

 std::function<network::Result<std::monostate>(
    const std::string& subscriber_ae,
    const std::string& workitem_uid,
    bool deletion_lock)>

Subscribe handler function type.

Called when an N-ACTION subscribe request is received. The handler should persist the subscription (e.g., to the ups_subscriptions database table).

Parameters

subscriber_ae	The AE Title of the subscribing system
workitem_uid	The specific workitem UID (empty for global subscription)
deletion_lock	Whether deletion lock is requested

Returns

Success if the subscription was created, error otherwise

Definition at line 87 of file ups_watch_scp.h.

ups_unsubscribe_handler

using kcenon::pacs::services::ups_unsubscribe_handler

Initial value:

 std::function<network::Result<std::monostate>(
    const std::string& subscriber_ae,
    const std::string& workitem_uid)>

Unsubscribe handler function type.

Called when an N-ACTION unsubscribe request is received. The handler should remove the subscription from persistence.

Parameters

subscriber_ae	The AE Title of the unsubscribing system
workitem_uid	The specific workitem UID (empty for global unsubscription)

Returns

Success if the subscription was removed, error otherwise

Definition at line 102 of file ups_watch_scp.h.

worklist_cancel_check

using kcenon::pacs::services::worklist_cancel_check = std::function<bool()>

Cancel check function type.

Called periodically during query processing to check if a C-CANCEL request has been received.

Returns

true if cancel has been requested

Definition at line 97 of file worklist_scp.h.

worklist_handler

using kcenon::pacs::services::worklist_handler

Initial value:

 std::function<std::vector<core::dicom_dataset>(
    const core::dicom_dataset& query_keys,
    const std::string& calling_ae)>

Definition at line 85 of file worklist_scp.h.

worklist_streaming_callback

using kcenon::pacs::services::worklist_streaming_callback = std::function<bool(const worklist_item&)>

Callback type for streaming worklist query results.

Called for each pending response received from the SCP.

Parameters

item	The parsed worklist item from the SCP

Returns

true to continue receiving, false to cancel the query

Definition at line 259 of file worklist_scu.h.

Enumeration Type Documentation

commitment_failure_reason

enum class kcenon::pacs::services::commitment_failure_reason : uint16_t

strong

Failure reason codes for Storage Commitment.

As defined in DICOM PS3.4 Table J.3-2 (Failure Reason values). These codes appear in the Failure Reason (0008,1197) attribute within the Failed SOP Sequence.

Enumerator
processing_failure	General processing failure.
no_such_object_instance	Referenced SOP Instance not found in storage.
resource_limitation	Storage resource limitation (e.g., disk full)
referenced_sop_class_not_supported	Referenced SOP Class not supported by SCP.
class_instance_conflict	SOP Class / Instance UID mismatch.
duplicate_transaction_uid	Duplicate Transaction UID.

Definition at line 81 of file storage_commitment_types.h.

                                     : uint16_t {
    processing_failure = 0x0110,

    no_such_object_instance = 0x0112,

    resource_limitation = 0x0213,

    referenced_sop_class_not_supported = 0x0122,

    class_instance_conflict = 0x0119,

    duplicate_transaction_uid = 0xA770
};

duplicate_policy

enum class kcenon::pacs::services::duplicate_policy

strong

Policy for handling duplicate SOP instances.

Enumerator
reject	Reject duplicates with error status.
replace	Replace existing instance with new one.
ignore	Silently accept duplicate (return success)

Definition at line 40 of file storage_scp.h.

                            {
    reject,
    replace,
    ignore
};

modality_type

enum class kcenon::pacs::services::modality_type

strong

Modality type for storage SOP classes.

Enumerator
ct	Computed Tomography.
mr	Magnetic Resonance.
us	Ultrasound.
xa	X-Ray Angiographic.
xrf	X-Ray Radiofluoroscopic.
cr	Computed Radiography.
dx	Digital Radiography.
mg	Mammography.
nm	Nuclear Medicine.
pet	Positron Emission Tomography.
rt	Radiation Therapy.
sc	Secondary Capture.
sr	Structured Report.
seg	Segmentation.
sm	Slide Microscopy (Whole Slide Imaging)
op	Ophthalmic Photography / Tomography.
pmap	Parametric Map.
other	Other modalities.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/sop_class_registry.h.

Definition at line 53 of file sop_class_registry.h.

                         {
    ct,
    mr,
    us,
    xa,
    xrf,
    cr,
    dx,
    mg,
    nm,
    pet,
    rt,
    sc,
    sr,
    seg,
    sm,
    op,
    pmap,
    other
};

mpps_status

enum class kcenon::pacs::services::mpps_status

strong

MPPS status enumeration.

Defines valid states for a Modality Performed Procedure Step. COMPLETED and DISCONTINUED are final (terminal) states.

Enumerator
in_progress	Procedure is currently being performed.
completed	Procedure completed successfully.
discontinued	Procedure was stopped/cancelled.

Definition at line 48 of file mpps_scp.h.

                       {
    in_progress,
    completed,
    discontinued
};

print_job_status

enum class kcenon::pacs::services::print_job_status

strong

Print job status.

Enumerator
pending	Job is queued.
printing	Job is being printed.
done	Job completed successfully.
failure	Job failed.

Definition at line 99 of file print_scp.h.

                            {
    pending,
    printing,
    done,
    failure
};

printer_status

enum class kcenon::pacs::services::printer_status

strong

Printer status enumeration (PS3.4 H.4.17)

Enumerator
normal	Printer is operating normally.
warning	Printer has a non-critical issue.
failure	Printer has a critical error.

Definition at line 74 of file print_scp.h.

                          {
    normal,
    warning,
    failure
};

query_level

enum class kcenon::pacs::services::query_level

strong

DICOM Query/Retrieve level enumeration.

Defines the hierarchical levels at which queries can be performed in the DICOM Query/Retrieve Information Model.

Enumerator
patient	Patient level - query patient demographics.
study	Study level - query study information.
series	Series level - query series information.
image	Image (Instance) level - query instance information.

Examples

/home/runner/work/pacs_system/pacs_system/examples/query_scu/query_builder.h.

Definition at line 63 of file query_scp.h.

                       {
    patient,
    study,
    series,
};

query_model

enum class kcenon::pacs::services::query_model

strong

DICOM Query/Retrieve Information Model.

Defines which information model to use for queries.

Enumerator
patient_root	Patient Root Query/Retrieve Information Model.
study_root	Study Root Query/Retrieve Information Model.

Definition at line 47 of file query_scu.h.

                       {
    patient_root,
    study_root
};

retrieve_mode

enum class kcenon::pacs::services::retrieve_mode

strong

DICOM Retrieve Mode (C-MOVE vs C-GET)

Defines which retrieve operation to use.

Enumerator
c_move	Request SCP to send to third party (requires move destination)
c_get	Receive directly from SCP on same association.

Definition at line 50 of file retrieve_scu.h.

                         {
    c_move,
    c_get
};

sop_class_category

enum class kcenon::pacs::services::sop_class_category

strong

Category of SOP Class.

Enumerator
storage	Storage Service Class.
query_retrieve	Query/Retrieve Service Class.
worklist	Modality Worklist Service Class.
mpps	Modality Performed Procedure Step.
storage_commitment	Storage Commitment Push Model Service Class.
ups	Unified Procedure Step Service Class.
verification	Verification Service Class.
print	Print Management Service Class.
media	Media Storage Service Class.
other	Other service classes.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/sop_class_registry.h.

Definition at line 37 of file sop_class_registry.h.

                              {
    storage,
    query_retrieve,
    worklist,
    mpps,
    storage_commitment,
    ups,
    verification,
    print,
    media,
    other
};

storage_status

enum class kcenon::pacs::services::storage_status : uint16_t

strong

Storage operation status codes.

These status codes are returned by the storage handler to indicate the result of a C-STORE operation. They map to DICOM status codes defined in PS3.4 Annex B.

Enumerator
success	Success - image stored successfully (0x0000)
coercion_of_data_elements	Warning: Coercion of data elements (0xB000)
data_set_does_not_match_sop_class_warning	Warning: Data set does not match SOP class (0xB007)
elements_discarded	Warning: Elements discarded (0xB006)
duplicate_sop_instance	Failure: Duplicate SOP instance - already exists (0x0111)
out_of_resources	Failure: Out of resources (0xA700)
out_of_resources_unable_to_store	Failure: Out of resources - Unable to store (0xA701)
data_set_does_not_match_sop_class	Failure: Data set does not match SOP class (0xA900)
cannot_understand	Failure: Cannot understand - processing failure (0xC000)
storage_error	Failure: Unable to process - storage error (0xC001)

Definition at line 33 of file storage_status.h.

                          : uint16_t {
    success = 0x0000,

    coercion_of_data_elements = 0xB000,

    data_set_does_not_match_sop_class_warning = 0xB007,

    elements_discarded = 0xB006,

    duplicate_sop_instance = 0x0111,

    out_of_resources = 0xA700,

    out_of_resources_unable_to_store = 0xA701,

    data_set_does_not_match_sop_class = 0xA900,

    cannot_understand = 0xC000,

    storage_error = 0xC001
};

Function Documentation

get_find_sop_class_uid()

std::string_view kcenon::pacs::services::get_find_sop_class_uid ( query_model model )

nodiscardconstexprnoexcept

Get the FIND SOP Class UID for a query model.

Parameters

model

The query model

Returns

The corresponding SOP Class UID

Definition at line 70 of file query_scu.h.

                                {
    switch (model) {
        case query_model::patient_root:
            return patient_root_find_sop_class_uid;
        case query_model::study_root:
            return study_root_find_sop_class_uid;
        default:
            return patient_root_find_sop_class_uid;
    }
}

References patient_root, patient_root_find_sop_class_uid, study_root, and study_root_find_sop_class_uid.

Referenced by kcenon::pacs::services::query_scu::get_sop_class_uid().

Here is the caller graph for this function:

get_sop_class_name()

std::string_view kcenon::pacs::services::get_sop_class_name ( std::string_view uid )

nodiscard

Get human-readable name for a SOP Class.

Parameters

uid	The SOP Class UID

Returns

The SOP Class name, or "Unknown" if not found

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/sop_class_registry.h.

Definition at line 1183 of file sop_class_registry.cpp.

                                                      {
    const auto* info = sop_class_registry::instance().get_info(uid);
    if (info != nullptr) {
        return info->name;
    }
    return "Unknown";
}

References kcenon::pacs::services::sop_class_registry::get_info(), kcenon::pacs::services::sop_class_registry::instance(), and uid.

Here is the call graph for this function:

get_standard_storage_sop_classes()

std::vector< std::string > kcenon::pacs::services::get_standard_storage_sop_classes ( )

nodiscard

Get a list of all standard Storage SOP Class UIDs.

This function returns a comprehensive list of commonly supported storage SOP classes for a typical PACS implementation.

Returns

Vector of standard Storage SOP Class UIDs

Definition at line 222 of file storage_scp.cpp.

                                                        {
    return {
        // CT
        std::string(ct_image_storage_uid),
        std::string(enhanced_ct_image_storage_uid),

        // MR
        std::string(mr_image_storage_uid),
        std::string(enhanced_mr_image_storage_uid),

        // CR/DX
        std::string(cr_image_storage_uid),
        std::string(dx_image_storage_presentation_uid),
        std::string(dx_image_storage_processing_uid),

        // US
        std::string(us_image_storage_uid),

        // Secondary Capture
        std::string(secondary_capture_image_storage_uid),

        // RT
        std::string(rt_image_storage_uid),
        std::string(rt_dose_storage_uid),
        std::string(rt_structure_set_storage_uid),
        std::string(rt_plan_storage_uid),

        // NM/PET
        "1.2.840.10008.5.1.4.1.1.20",      // NM Image Storage
        "1.2.840.10008.5.1.4.1.1.128",     // PET Image Storage
        "1.2.840.10008.5.1.4.1.1.130",     // Enhanced PET Image Storage

        // XA/RF
        "1.2.840.10008.5.1.4.1.1.12.1",    // XA Image Storage
        "1.2.840.10008.5.1.4.1.1.12.2",    // XRF Image Storage

        // Mammography
        "1.2.840.10008.5.1.4.1.1.1.2",     // Digital Mammography X-Ray - Presentation
        "1.2.840.10008.5.1.4.1.1.1.2.1",   // Digital Mammography X-Ray - Processing

        // Multi-frame
        "1.2.840.10008.5.1.4.1.1.7.1",     // Multi-frame Single Bit SC
        "1.2.840.10008.5.1.4.1.1.7.2",     // Multi-frame Grayscale Byte SC
        "1.2.840.10008.5.1.4.1.1.7.3",     // Multi-frame Grayscale Word SC
        "1.2.840.10008.5.1.4.1.1.7.4",     // Multi-frame True Color SC

        // SR (Structured Reports)
        "1.2.840.10008.5.1.4.1.1.88.11",   // Basic Text SR
        "1.2.840.10008.5.1.4.1.1.88.22",   // Enhanced SR
        "1.2.840.10008.5.1.4.1.1.88.33",   // Comprehensive SR
        "1.2.840.10008.5.1.4.1.1.88.34",   // Comprehensive 3D SR

        // Other common types
        "1.2.840.10008.5.1.4.1.1.104.1",   // Encapsulated PDF
        "1.2.840.10008.5.1.4.1.1.104.2",   // Encapsulated CDA
    };
}

References cr_image_storage_uid, ct_image_storage_uid, dx_image_storage_presentation_uid, dx_image_storage_processing_uid, enhanced_ct_image_storage_uid, enhanced_mr_image_storage_uid, mr_image_storage_uid, rt_dose_storage_uid, rt_image_storage_uid, rt_plan_storage_uid, rt_structure_set_storage_uid, secondary_capture_image_storage_uid, and us_image_storage_uid.

Referenced by kcenon::pacs::services::storage_scp::supported_sop_classes().

Here is the caller graph for this function:

get_storage_modality()

modality_type kcenon::pacs::services::get_storage_modality ( std::string_view uid )

nodiscard

Get the modality for a storage SOP Class.

Parameters

uid	The SOP Class UID

Returns

The modality type, or modality_type::other if not a storage class

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/sop_class_registry.h.

Definition at line 1175 of file sop_class_registry.cpp.

                                                       {
    const auto* info = sop_class_registry::instance().get_info(uid);
    if (info != nullptr && info->category == sop_class_category::storage) {
        return info->modality;
    }
    return modality_type::other;
}

References kcenon::pacs::services::sop_class_registry::get_info(), kcenon::pacs::services::sop_class_registry::instance(), other, storage, and uid.

Here is the call graph for this function:

is_failure()

bool kcenon::pacs::services::is_failure ( storage_status status )

nodiscardconstexprnoexcept

Check if the status indicates a failure.

Parameters

status

The status to check

Returns

true if the operation failed

Definition at line 89 of file storage_status.h.

                                                                        {
    const auto value = static_cast<uint16_t>(status);
    const auto high_nibble = (value & 0xF000) >> 12;
    return high_nibble == 0xA || high_nibble == 0xC ||
           (value >= 0x0100 && value <= 0x01FF);
}

Referenced by kcenon::pacs::services::storage_scp::handle_message().

Here is the caller graph for this function:

is_storage_sop_class()

bool kcenon::pacs::services::is_storage_sop_class ( std::string_view uid )

nodiscard

Check if a SOP Class UID is a storage class.

Parameters

uid	The SOP Class UID

Returns

true if this is any storage SOP class

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/sop_class_registry.h.

Definition at line 1170 of file sop_class_registry.cpp.

                                              {
    const auto* info = sop_class_registry::instance().get_info(uid);
    return info != nullptr && info->category == sop_class_category::storage;
}

References kcenon::pacs::services::sop_class_registry::get_info(), kcenon::pacs::services::sop_class_registry::instance(), storage, and uid.

Here is the call graph for this function:

is_success()

bool kcenon::pacs::services::is_success ( storage_status status )

nodiscardconstexprnoexcept

Check if the status indicates success.

Parameters

status

The status to check

Returns

true if the operation was successful

Definition at line 70 of file storage_status.h.

                                                                        {
    return status == storage_status::success;
}

References success.

Referenced by kcenon::pacs::services::retrieve_scp::handle_c_get(), and kcenon::pacs::services::retrieve_scp::handle_c_move().

Here is the caller graph for this function:

is_warning()

bool kcenon::pacs::services::is_warning ( storage_status status )

nodiscardconstexprnoexcept

Check if the status indicates a warning.

Parameters

status

The status to check

Returns

true if the operation completed with a warning

Definition at line 79 of file storage_status.h.

                                                                        {
    const auto value = static_cast<uint16_t>(status);
    return (value & 0xF000) == 0xB000;
}

Referenced by kcenon::pacs::services::retrieve_scp::handle_c_get(), and kcenon::pacs::services::retrieve_scp::handle_c_move().

Here is the caller graph for this function:

parse_mpps_status()

auto kcenon::pacs::services::parse_mpps_status ( std::string_view str ) -> std::optional<mpps_status>

inlinenodiscard

Parse DICOM string to mpps_status enum.

Parameters

str	The DICOM string representation

Returns

Optional containing the status if valid, nullopt otherwise

Definition at line 79 of file mpps_scp.h.

                                {
    if (str == "IN PROGRESS") {
        return mpps_status::in_progress;
    }
    if (str == "COMPLETED") {
        return mpps_status::completed;
    }
    if (str == "DISCONTINUED") {
        return mpps_status::discontinued;
    }
    return std::nullopt;
}

References completed, discontinued, and in_progress.

Referenced by kcenon::pacs::services::mpps_scp::handle_n_create(), and kcenon::pacs::services::mpps_scp::handle_n_set().

Here is the caller graph for this function:

parse_query_level()

std::optional< query_level > kcenon::pacs::services::parse_query_level ( std::string_view level_str )

inlinenodiscardnoexcept

Parse query level from DICOM string.

Parameters

level_str

The DICOM string (PATIENT, STUDY, SERIES, IMAGE)

Returns

Parsed query level, or std::nullopt if invalid

Definition at line 90 of file query_scp.h.

                                       {
    if (level_str == "PATIENT") return query_level::patient;
    if (level_str == "STUDY") return query_level::study;
    if (level_str == "SERIES") return query_level::series;
    if (level_str == "IMAGE") return query_level::image;
    return std::nullopt;
}

References image, patient, series, and study.

Referenced by kcenon::pacs::services::query_scp::extract_query_level().

Here is the caller graph for this function:

to_status_code()

uint16_t kcenon::pacs::services::to_status_code ( storage_status status )

nodiscardconstexprnoexcept

Convert storage_status to DIMSE status_code.

Parameters

status

The storage status

Returns

Equivalent DIMSE status code

Definition at line 133 of file storage_status.h.

                                                                                {
    return static_cast<uint16_t>(status);
}

to_string() [1/7]

std::string_view kcenon::pacs::services::to_string ( commitment_failure_reason reason )

inlinenodiscardnoexcept

Convert failure reason to human-readable string.

Parameters

reason

The failure reason code

Returns

Description string

Definition at line 107 of file storage_commitment_types.h.

                                                     {
    switch (reason) {
        case commitment_failure_reason::processing_failure:
            return "Processing failure";
        case commitment_failure_reason::no_such_object_instance:
            return "No such object instance";
        case commitment_failure_reason::resource_limitation:
            return "Resource limitation";
        case commitment_failure_reason::referenced_sop_class_not_supported:
            return "Referenced SOP Class not supported";
        case commitment_failure_reason::class_instance_conflict:
            return "Class/Instance conflict";
        case commitment_failure_reason::duplicate_transaction_uid:
            return "Duplicate Transaction UID";
    }
    return "Unknown failure reason";
}

References class_instance_conflict, duplicate_transaction_uid, no_such_object_instance, processing_failure, referenced_sop_class_not_supported, and resource_limitation.

to_string() [2/7]

auto kcenon::pacs::services::to_string ( mpps_status status ) -> std::string_view

inlinenodiscard

Convert mpps_status to DICOM string representation.

Parameters

status

The status enum value

Returns

DICOM-compliant string ("IN PROGRESS", "COMPLETED", "DISCONTINUED")

Examples

/home/runner/work/pacs_system/pacs_system/examples/query_scu/query_builder.h, and mpps_scp/main.cpp.

Definition at line 60 of file mpps_scp.h.

                                                                          {
    switch (status) {
        case mpps_status::in_progress:
            return "IN PROGRESS";
        case mpps_status::completed:
            return "COMPLETED";
        case mpps_status::discontinued:
            return "DISCONTINUED";
        default:
            return "IN PROGRESS";
    }
}

References completed, discontinued, and in_progress.

Referenced by query_scu::query_builder::build(), kcenon::pacs::services::mpps_scu::build_set_dataset(), kcenon::pacs::services::ups_push_scu::change_state(), kcenon::pacs::services::mpps_scu::create(), kcenon::pacs::services::ups_push_scu::create(), kcenon::pacs::services::print_scu::create_film_box(), kcenon::pacs::services::print_scu::create_film_session(), kcenon::pacs::services::print_scu::delete_film_box(), kcenon::pacs::services::print_scu::delete_film_session(), kcenon::pacs::services::query_scu::find_impl(), kcenon::pacs::services::query_scu::find_streaming(), query_scu::result_formatter::format_json(), query_scu::result_formatter::format_table(), kcenon::pacs::services::n_get_scu::get(), kcenon::pacs::services::ups_push_scu::get(), kcenon::pacs::services::storage_commitment_scu::handle_event_report(), kcenon::pacs::services::ups_watch_scu::handle_event_report(), kcenon::pacs::services::mpps_scp::handle_message(), kcenon::pacs::services::n_get_scp::handle_message(), kcenon::pacs::services::print_scp::handle_message(), kcenon::pacs::services::query_scp::handle_message(), kcenon::pacs::services::retrieve_scp::handle_message(), kcenon::pacs::services::storage_commitment_scp::handle_message(), kcenon::pacs::services::storage_scp::handle_message(), kcenon::pacs::services::ups_push_scp::handle_message(), kcenon::pacs::services::ups_query_scp::handle_message(), kcenon::pacs::services::ups_watch_scp::handle_message(), kcenon::pacs::services::verification_scp::handle_message(), kcenon::pacs::services::worklist_scp::handle_message(), kcenon::pacs::example::pacs_server_app::handle_mpps_set(), kcenon::pacs::services::print_scp::handle_n_get(), kcenon::pacs::example::pacs_server_app::handle_query(), kcenon::pacs::services::retrieve_scu::perform_move(), kcenon::pacs::services::print_scu::print_film_box(), kcenon::pacs::services::worklist_scu::query_impl(), kcenon::pacs::services::print_scu::query_printer_status(), kcenon::pacs::services::worklist_scu::query_streaming(), kcenon::pacs::services::ups_push_scu::request_cancel(), kcenon::pacs::services::ups_watch_scu::send_watch_action(), kcenon::pacs::services::mpps_scu::set(), kcenon::pacs::services::ups_push_scu::set(), kcenon::pacs::services::print_scu::set_image_box(), and kcenon::pacs::services::storage_scu::store_impl().

Here is the caller graph for this function:

to_string() [3/7]

auto kcenon::pacs::services::to_string ( printer_status status ) -> std::string_view

inlinenodiscard

Convert printer_status to DICOM string representation.

Definition at line 83 of file print_scp.h.

                                                                             {
    switch (status) {
        case printer_status::normal:
            return "NORMAL";
        case printer_status::warning:
            return "WARNING";
        case printer_status::failure:
            return "FAILURE";
        default:
            return "NORMAL";
    }
}

References failure, normal, and warning.

to_string() [4/7]

std::string_view kcenon::pacs::services::to_string ( query_level level )

nodiscardconstexprnoexcept

Convert query_level to string representation.

Parameters

level

The query level to convert

Returns

DICOM string representation (PATIENT, STUDY, SERIES, IMAGE)

Definition at line 75 of file query_scp.h.

                                                                             {
    switch (level) {
        case query_level::patient: return "PATIENT";
        case query_level::study: return "STUDY";
        case query_level::series: return "SERIES";
        case query_level::image: return "IMAGE";
        default: return "UNKNOWN";
    }
}

References image, patient, series, and study.

to_string() [5/7]

std::string_view kcenon::pacs::services::to_string ( query_model model )

nodiscardconstexprnoexcept

Convert query_model to string representation.

Parameters

model

The query model to convert

Returns

String representation

Definition at line 57 of file query_scu.h.

                                                                             {
    switch (model) {
        case query_model::patient_root: return "Patient Root";
        case query_model::study_root: return "Study Root";
        default: return "Unknown";
    }
}

References patient_root, and study_root.

to_string() [6/7]

std::string_view kcenon::pacs::services::to_string ( retrieve_mode mode )

nodiscardconstexprnoexcept

Convert retrieve_mode to string representation.

Parameters

mode	The retrieve mode to convert

Returns

String representation

Definition at line 60 of file retrieve_scu.h.

                                                                              {
    switch (mode) {
        case retrieve_mode::c_move: return "C-MOVE";
        case retrieve_mode::c_get: return "C-GET";
        default: return "Unknown";
    }
}

References c_get, and c_move.

to_string() [7/7]

std::string_view kcenon::pacs::services::to_string ( storage_status status )

nodiscardconstexprnoexcept

Get a human-readable description of the storage status.

Parameters

status

The status to describe

Returns

Description string

Definition at line 101 of file storage_status.h.

                                                                                 {
    switch (status) {
        case storage_status::success:
            return "Success";
        case storage_status::coercion_of_data_elements:
            return "Warning: Coercion of data elements";
        case storage_status::data_set_does_not_match_sop_class_warning:
            return "Warning: Data set does not match SOP class";
        case storage_status::elements_discarded:
            return "Warning: Elements discarded";
        case storage_status::duplicate_sop_instance:
            return "Failure: Duplicate SOP instance";
        case storage_status::out_of_resources:
            return "Failure: Out of resources";
        case storage_status::out_of_resources_unable_to_store:
            return "Failure: Out of resources - Unable to store";
        case storage_status::data_set_does_not_match_sop_class:
            return "Failure: Data set does not match SOP class";
        case storage_status::cannot_understand:
            return "Failure: Cannot understand";
        case storage_status::storage_error:
            return "Failure: Storage error";
        default:
            return "Unknown status";
    }
}

References cannot_understand, coercion_of_data_elements, data_set_does_not_match_sop_class, data_set_does_not_match_sop_class_warning, duplicate_sop_instance, elements_discarded, out_of_resources, out_of_resources_unable_to_store, storage_error, and success.

Variable Documentation

basic_color_image_box_sop_class_uid

std::string_view kcenon::pacs::services::basic_color_image_box_sop_class_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.1.4.1"

Basic Color Image Box SOP Class UID.

Definition at line 52 of file print_scp.h.

Referenced by kcenon::pacs::services::print_scp::handle_n_set(), kcenon::pacs::services::print_scu::set_image_box(), and kcenon::pacs::services::print_scp::supported_sop_classes().

basic_color_print_meta_sop_class_uid

std::string_view kcenon::pacs::services::basic_color_print_meta_sop_class_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.1.18"

Basic Color Print Management Meta SOP Class UID.

Definition at line 64 of file print_scp.h.

Referenced by kcenon::pacs::services::print_scu::find_print_context(), and kcenon::pacs::services::print_scp::supported_sop_classes().

basic_film_box_sop_class_uid

std::string_view kcenon::pacs::services::basic_film_box_sop_class_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.1.2"

Basic Film Box SOP Class UID.

Definition at line 44 of file print_scp.h.

Referenced by kcenon::pacs::services::print_scp::create_film_box(), kcenon::pacs::services::print_scu::create_film_box(), kcenon::pacs::services::print_scu::delete_film_box(), kcenon::pacs::services::print_scp::handle_n_action(), kcenon::pacs::services::print_scp::handle_n_create(), kcenon::pacs::services::print_scp::handle_n_delete(), kcenon::pacs::services::print_scp::handle_n_set(), kcenon::pacs::services::print_scu::print_film_box(), and kcenon::pacs::services::print_scp::supported_sop_classes().

basic_film_session_sop_class_uid

std::string_view kcenon::pacs::services::basic_film_session_sop_class_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.1.1"

Basic Film Session SOP Class UID.

Definition at line 40 of file print_scp.h.

Referenced by kcenon::pacs::services::print_scu::create_film_box(), kcenon::pacs::services::print_scp::create_film_session(), kcenon::pacs::services::print_scu::create_film_session(), kcenon::pacs::services::print_scu::delete_film_session(), kcenon::pacs::services::print_scp::handle_n_action(), kcenon::pacs::services::print_scp::handle_n_create(), kcenon::pacs::services::print_scp::handle_n_delete(), kcenon::pacs::services::print_scp::handle_n_set(), and kcenon::pacs::services::print_scp::supported_sop_classes().

basic_grayscale_image_box_sop_class_uid

std::string_view kcenon::pacs::services::basic_grayscale_image_box_sop_class_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.1.4"

Basic Grayscale Image Box SOP Class UID.

Definition at line 48 of file print_scp.h.

Referenced by kcenon::pacs::services::print_scp::create_film_box(), kcenon::pacs::services::print_scp::handle_n_set(), kcenon::pacs::services::print_scu::set_image_box(), and kcenon::pacs::services::print_scp::supported_sop_classes().

basic_grayscale_print_meta_sop_class_uid

std::string_view kcenon::pacs::services::basic_grayscale_print_meta_sop_class_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.1.9"

Basic Grayscale Print Management Meta SOP Class UID.

Definition at line 60 of file print_scp.h.

Referenced by kcenon::pacs::services::print_scu::find_print_context(), and kcenon::pacs::services::print_scp::supported_sop_classes().

cr_image_storage_uid

std::string_view kcenon::pacs::services::cr_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.1"

CR Image Storage.

Definition at line 361 of file storage_scp.h.

Referenced by get_standard_storage_sop_classes().

ct_image_storage_uid

std::string_view kcenon::pacs::services::ct_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.2"

CT Image Storage.

Definition at line 345 of file storage_scp.h.

Referenced by get_standard_storage_sop_classes().

dx_image_storage_presentation_uid

std::string_view kcenon::pacs::services::dx_image_storage_presentation_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.1.1"

Digital X-Ray Image Storage - For Presentation.

Definition at line 365 of file storage_scp.h.

Referenced by get_standard_storage_sop_classes().

dx_image_storage_processing_uid

std::string_view kcenon::pacs::services::dx_image_storage_processing_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.1.1.1"

Digital X-Ray Image Storage - For Processing.

Definition at line 369 of file storage_scp.h.

Referenced by get_standard_storage_sop_classes().

enhanced_ct_image_storage_uid

std::string_view kcenon::pacs::services::enhanced_ct_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.2.1"

Enhanced CT Image Storage.

Definition at line 349 of file storage_scp.h.

Referenced by get_standard_storage_sop_classes().

enhanced_mr_image_storage_uid

std::string_view kcenon::pacs::services::enhanced_mr_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.4.1"

Enhanced MR Image Storage.

Definition at line 357 of file storage_scp.h.

Referenced by get_standard_storage_sop_classes().

modality_worklist_find_sop_class_uid

std::string_view kcenon::pacs::services::modality_worklist_find_sop_class_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.31"

Modality Worklist Information Model - FIND.

Definition at line 50 of file query_scp.h.

mpps_sop_class_uid

std::string_view kcenon::pacs::services::mpps_sop_class_uid = "1.2.840.10008.3.1.2.3.3"

inlineconstexpr

MPPS (Modality Performed Procedure Step) SOP Class UID.

Definition at line 36 of file mpps_scp.h.

Referenced by kcenon::pacs::services::mpps_scu::create(), kcenon::pacs::services::mpps_scp::handle_n_create(), kcenon::pacs::services::mpps_scp::handle_n_set(), kcenon::pacs::services::mpps_scp::send_n_create_response(), kcenon::pacs::services::mpps_scp::send_n_set_response(), kcenon::pacs::services::mpps_scu::set(), kcenon::pacs::services::mpps_scp::supported_sop_classes(), TEST_CASE(), TEST_CASE(), and TEST_CASE().

mr_image_storage_uid

std::string_view kcenon::pacs::services::mr_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.4"

MR Image Storage.

Definition at line 353 of file storage_scp.h.

Referenced by get_standard_storage_sop_classes().

patient_root_find_sop_class_uid

std::string_view kcenon::pacs::services::patient_root_find_sop_class_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.2.1.1"

Patient Root Query/Retrieve Information Model - FIND.

Examples

find_scu/main.cpp, and query_scu/main.cpp.

Definition at line 38 of file query_scp.h.

Referenced by get_find_sop_class_uid(), and kcenon::pacs::services::query_scp::supported_sop_classes().

patient_root_get_sop_class_uid

std::string_view kcenon::pacs::services::patient_root_get_sop_class_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.2.1.3"

Patient Root Query/Retrieve Information Model - GET.

Examples

get_scu/main.cpp, and retrieve_scu/main.cpp.

Definition at line 51 of file retrieve_scp.h.

Referenced by kcenon::pacs::services::retrieve_scu::get_get_sop_class_uid(), and kcenon::pacs::services::retrieve_scp::supported_sop_classes().

patient_root_move_sop_class_uid

std::string_view kcenon::pacs::services::patient_root_move_sop_class_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.2.1.2"

Patient Root Query/Retrieve Information Model - MOVE.

Examples

move_scu/main.cpp, and retrieve_scu/main.cpp.

Definition at line 43 of file retrieve_scp.h.

Referenced by kcenon::pacs::services::retrieve_scu::get_move_sop_class_uid(), and kcenon::pacs::services::retrieve_scp::supported_sop_classes().

patient_study_only_find_sop_class_uid

std::string_view kcenon::pacs::services::patient_study_only_find_sop_class_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.2.3.1"

Patient/Study Only Query/Retrieve Information Model - FIND (Retired)

Definition at line 46 of file query_scp.h.

printer_sop_class_uid

std::string_view kcenon::pacs::services::printer_sop_class_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.1.16"

Printer SOP Class UID.

Definition at line 56 of file print_scp.h.

Referenced by kcenon::pacs::services::print_scp::handle_n_get(), kcenon::pacs::services::print_scu::query_printer_status(), and kcenon::pacs::services::print_scp::supported_sop_classes().

rt_dose_storage_uid

std::string_view kcenon::pacs::services::rt_dose_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.481.2"

RT Dose Storage.

Definition at line 385 of file storage_scp.h.

Referenced by get_standard_storage_sop_classes().

rt_image_storage_uid

std::string_view kcenon::pacs::services::rt_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.481.1"

RT Image Storage.

Definition at line 381 of file storage_scp.h.

Referenced by get_standard_storage_sop_classes().

rt_plan_storage_uid

std::string_view kcenon::pacs::services::rt_plan_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.481.5"

RT Plan Storage.

Definition at line 393 of file storage_scp.h.

Referenced by get_standard_storage_sop_classes().

rt_structure_set_storage_uid

std::string_view kcenon::pacs::services::rt_structure_set_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.481.3"

RT Structure Set Storage.

Definition at line 389 of file storage_scp.h.

Referenced by get_standard_storage_sop_classes().

secondary_capture_image_storage_uid

std::string_view kcenon::pacs::services::secondary_capture_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.7"

Secondary Capture Image Storage.

Definition at line 377 of file storage_scp.h.

Referenced by get_standard_storage_sop_classes().

storage_commitment_action_type_request

uint16_t kcenon::pacs::services::storage_commitment_action_type_request = 1

inlineconstexpr

N-ACTION: Request Storage Commitment (Action Type ID = 1)

Definition at line 47 of file storage_commitment_types.h.

Referenced by kcenon::pacs::services::storage_commitment_scp::handle_n_action(), kcenon::pacs::services::storage_commitment_scu::request_commitment(), and kcenon::pacs::services::storage_commitment_scp::send_n_action_response().

storage_commitment_event_type_failure

uint16_t kcenon::pacs::services::storage_commitment_event_type_failure = 2

inlineconstexpr

N-EVENT-REPORT: Storage Commitment Request Complete - Failures Exist (Event Type ID = 2)

Definition at line 53 of file storage_commitment_types.h.

Referenced by kcenon::pacs::services::storage_commitment_scp::send_event_report().

storage_commitment_event_type_success

uint16_t kcenon::pacs::services::storage_commitment_event_type_success = 1

inlineconstexpr

N-EVENT-REPORT: Storage Commitment Request Successful (Event Type ID = 1)

Definition at line 50 of file storage_commitment_types.h.

Referenced by kcenon::pacs::services::storage_commitment_scp::send_event_report().

storage_commitment_push_model_sop_class_uid

std::string_view kcenon::pacs::services::storage_commitment_push_model_sop_class_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.1.20.1"

Storage Commitment Push Model SOP Class UID (PS3.4 Table J.3-1)

Definition at line 35 of file storage_commitment_types.h.

Referenced by kcenon::pacs::services::storage_commitment_scp::handle_n_action(), kcenon::pacs::services::sop_class_registry::register_other_sop_classes(), kcenon::pacs::services::storage_commitment_scu::request_commitment(), kcenon::pacs::services::storage_commitment_scp::send_event_report(), kcenon::pacs::services::storage_commitment_scp::send_n_action_response(), and kcenon::pacs::services::storage_commitment_scp::supported_sop_classes().

storage_commitment_push_model_sop_instance_uid

std::string_view kcenon::pacs::services::storage_commitment_push_model_sop_instance_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.1.20.1.1"

Storage Commitment Push Model SOP Instance UID (Well-Known)

Definition at line 39 of file storage_commitment_types.h.

Referenced by kcenon::pacs::services::storage_commitment_scu::request_commitment(), kcenon::pacs::services::storage_commitment_scp::send_event_report(), and kcenon::pacs::services::storage_commitment_scp::send_n_action_response().

study_root_find_sop_class_uid

std::string_view kcenon::pacs::services::study_root_find_sop_class_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.2.2.1"

Study Root Query/Retrieve Information Model - FIND.

Examples

find_scu/main.cpp, and query_scu/main.cpp.

Definition at line 42 of file query_scp.h.

Referenced by kcenon::pacs::client::job_manager::impl::execute_prefetch_job(), kcenon::pacs::client::job_manager::impl::execute_query_job(), kcenon::pacs::client::job_manager::impl::execute_sync_job(), get_find_sop_class_uid(), kcenon::pacs::workflow::auto_prefetch_service::query_prior_studies(), kcenon::pacs::client::sync_manager::impl::query_remote_studies(), kcenon::pacs::web::endpoints::register_remote_nodes_endpoints_impl(), kcenon::pacs::services::query_scp::supported_sop_classes(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), and TEST_CASE().

study_root_get_sop_class_uid

std::string_view kcenon::pacs::services::study_root_get_sop_class_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.2.2.3"

Study Root Query/Retrieve Information Model - GET.

Examples

get_scu/main.cpp, and retrieve_scu/main.cpp.

Definition at line 55 of file retrieve_scp.h.

Referenced by kcenon::pacs::client::job_manager::impl::execute_retrieve_job(), kcenon::pacs::services::retrieve_scu::get_get_sop_class_uid(), and kcenon::pacs::services::retrieve_scp::supported_sop_classes().

study_root_move_sop_class_uid

std::string_view kcenon::pacs::services::study_root_move_sop_class_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.2.2.2"

Study Root Query/Retrieve Information Model - MOVE.

Examples

move_scu/main.cpp, and retrieve_scu/main.cpp.

Definition at line 47 of file retrieve_scp.h.

Referenced by kcenon::pacs::client::job_manager::impl::execute_retrieve_job(), kcenon::pacs::services::retrieve_scu::get_move_sop_class_uid(), kcenon::pacs::workflow::auto_prefetch_service::prefetch_study(), kcenon::pacs::services::retrieve_scp::supported_sop_classes(), and TEST_CASE().

ups_action_change_state

uint16_t kcenon::pacs::services::ups_action_change_state = 1

inlineconstexpr

N-ACTION Type 1: Change UPS State (PS3.4 CC.2.4)

Definition at line 42 of file ups_push_scp.h.

Referenced by kcenon::pacs::services::ups_push_scu::change_state(), and kcenon::pacs::services::ups_push_scp::handle_n_action().

ups_action_request_cancel

uint16_t kcenon::pacs::services::ups_action_request_cancel = 3

inlineconstexpr

N-ACTION Type 3: Request Cancellation (PS3.4 CC.2.5)

Definition at line 45 of file ups_push_scp.h.

Referenced by kcenon::pacs::services::ups_push_scp::handle_n_action(), and kcenon::pacs::services::ups_push_scu::request_cancel().

ups_event_cancel_requested

uint16_t kcenon::pacs::services::ups_event_cancel_requested = 2

inlineconstexpr

Event Type 2: UPS Cancel Requested — performer should stop processing.

Definition at line 64 of file ups_watch_scp.h.

Referenced by kcenon::pacs::services::ups_watch_scp::notify_cancel_requested(), and kcenon::pacs::services::ups_watch_scu::parse_event_dataset().

ups_event_progress_report

uint16_t kcenon::pacs::services::ups_event_progress_report = 3

inlineconstexpr

Event Type 3: UPS Progress Report — progress percentage update.

Definition at line 67 of file ups_watch_scp.h.

Referenced by kcenon::pacs::services::ups_watch_scp::notify_progress(), and kcenon::pacs::services::ups_watch_scu::parse_event_dataset().

ups_event_scp_status_change

uint16_t kcenon::pacs::services::ups_event_scp_status_change = 4

inlineconstexpr

Event Type 4: SCP Status Change — SCP going down/restarting.

Definition at line 70 of file ups_watch_scp.h.

ups_event_state_report

uint16_t kcenon::pacs::services::ups_event_state_report = 1

inlineconstexpr

Event Type 1: UPS State Report — workitem state changed.

Definition at line 61 of file ups_watch_scp.h.

Referenced by kcenon::pacs::services::ups_watch_scp::notify_state_change(), and kcenon::pacs::services::ups_watch_scu::parse_event_dataset().

ups_global_subscription_instance_uid

std::string_view kcenon::pacs::services::ups_global_subscription_instance_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.34.5"

UPS Global Subscription SOP Instance UID Used as the SOP Instance UID for global (non-workitem-specific) subscriptions.

Definition at line 40 of file ups_watch_scp.h.

Referenced by kcenon::pacs::services::ups_watch_scp::handle_subscribe(), kcenon::pacs::services::ups_watch_scp::handle_suspend_global(), kcenon::pacs::services::ups_watch_scp::handle_unsubscribe(), kcenon::pacs::services::ups_watch_scu::subscribe(), kcenon::pacs::services::ups_watch_scu::suspend_global(), and kcenon::pacs::services::ups_watch_scu::unsubscribe().

ups_push_sop_class_uid

std::string_view kcenon::pacs::services::ups_push_sop_class_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.34.6.1"

UPS Push SOP Class UID (PS3.4 Table CC.2-1)

Definition at line 34 of file ups_push_scp.h.

Referenced by kcenon::pacs::services::ups_push_scu::change_state(), kcenon::pacs::services::ups_push_scu::create(), kcenon::pacs::services::ups_push_scu::get(), kcenon::pacs::services::ups_push_scp::handle_n_create(), kcenon::pacs::services::ups_push_scu::request_cancel(), kcenon::pacs::services::ups_push_scp::send_n_action_response(), kcenon::pacs::services::ups_push_scp::send_n_create_response(), kcenon::pacs::services::ups_push_scp::send_n_get_response(), kcenon::pacs::services::ups_push_scp::send_n_set_response(), kcenon::pacs::services::ups_push_scu::set(), and kcenon::pacs::services::ups_push_scp::supported_sop_classes().

ups_query_find_sop_class_uid

std::string_view kcenon::pacs::services::ups_query_find_sop_class_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.34.6.4"

UPS Query Information Model - FIND SOP Class UID (PS3.4 Table CC.2-1)

Definition at line 30 of file ups_query_scp.h.

Referenced by kcenon::pacs::services::ups_query_scp::handle_message(), kcenon::pacs::services::ups_query_scp::send_final_response(), kcenon::pacs::services::ups_query_scp::send_pending_response(), and kcenon::pacs::services::ups_query_scp::supported_sop_classes().

ups_watch_action_subscribe

uint16_t kcenon::pacs::services::ups_watch_action_subscribe = 3

inlineconstexpr

N-ACTION Type 3: Subscribe to Receive UPS Event Reports (PS3.4 CC.2.3.3)

Definition at line 48 of file ups_watch_scp.h.

Referenced by kcenon::pacs::services::ups_watch_scp::handle_n_action(), kcenon::pacs::services::ups_watch_scp::handle_subscribe(), and kcenon::pacs::services::ups_watch_scu::subscribe().

ups_watch_action_suspend_global

uint16_t kcenon::pacs::services::ups_watch_action_suspend_global = 5

inlineconstexpr

N-ACTION Type 5: Suspend Global Subscription (PS3.4 CC.2.3.5)

Definition at line 54 of file ups_watch_scp.h.

Referenced by kcenon::pacs::services::ups_watch_scp::handle_n_action(), kcenon::pacs::services::ups_watch_scp::handle_suspend_global(), and kcenon::pacs::services::ups_watch_scu::suspend_global().

ups_watch_action_unsubscribe

uint16_t kcenon::pacs::services::ups_watch_action_unsubscribe = 4

inlineconstexpr

N-ACTION Type 4: Unsubscribe from Receiving UPS Event Reports (PS3.4 CC.2.3.4)

Definition at line 51 of file ups_watch_scp.h.

Referenced by kcenon::pacs::services::ups_watch_scp::handle_n_action(), kcenon::pacs::services::ups_watch_scp::handle_unsubscribe(), and kcenon::pacs::services::ups_watch_scu::unsubscribe().

ups_watch_sop_class_uid

std::string_view kcenon::pacs::services::ups_watch_sop_class_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.34.6.2"

UPS Watch SOP Class UID (PS3.4 Table CC.2-1)

Definition at line 31 of file ups_watch_scp.h.

Referenced by kcenon::pacs::services::ups_watch_scp::send_n_action_response(), kcenon::pacs::services::ups_watch_scu::send_watch_action(), and kcenon::pacs::services::ups_watch_scp::supported_sop_classes().

us_image_storage_uid

std::string_view kcenon::pacs::services::us_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.6.1"

US Image Storage.

Definition at line 373 of file storage_scp.h.

Referenced by get_standard_storage_sop_classes().

verification_sop_class_uid

std::string_view kcenon::pacs::services::verification_sop_class_uid = "1.2.840.10008.1.1"

inlineconstexpr

Verification SOP Class UID (1.2.840.10008.1.1)

Definition at line 28 of file verification_scp.h.

Referenced by kcenon::pacs::services::verification_scp::handle_message(), kcenon::pacs::services::verification_scp::supported_sop_classes(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), and TEST_CASE().

worklist_find_sop_class_uid

std::string_view kcenon::pacs::services::worklist_find_sop_class_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.31"

Modality Worklist Information Model - FIND SOP Class UID.

Definition at line 35 of file worklist_scp.h.

Referenced by kcenon::pacs::services::worklist_scu::cancel(), kcenon::pacs::services::worklist_scp::handle_message(), kcenon::pacs::services::worklist_scu::query_impl(), kcenon::pacs::services::worklist_scu::query_streaming(), kcenon::pacs::services::worklist_scp::send_final_response(), kcenon::pacs::services::worklist_scp::send_pending_response(), kcenon::pacs::services::worklist_scp::supported_sop_classes(), TEST_CASE(), and TEST_CASE().
