kcenon::pacs::services::n_get_scp Class Reference

#include <n_get_scp.h>

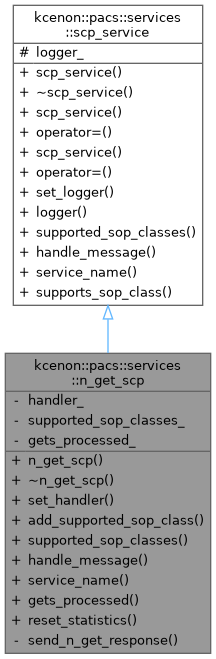

Inheritance diagram for kcenon::pacs::services::n_get_scp:

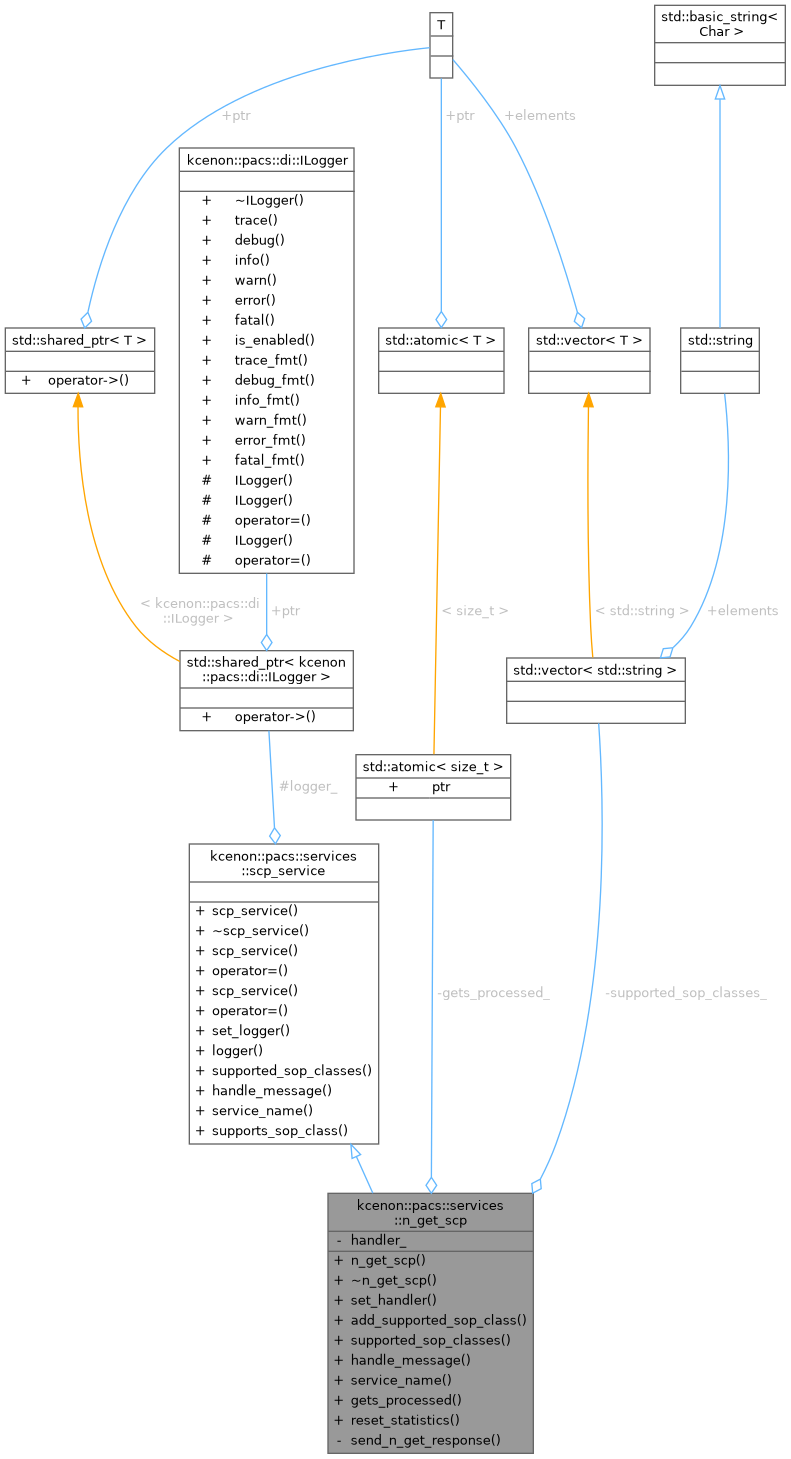

Collaboration diagram for kcenon::pacs::services::n_get_scp:

Public Member Functions
	n_get_scp (std::shared_ptr< di::ILogger > logger=nullptr)
	Construct N-GET SCP with optional logger.
	~n_get_scp () override=default
void	set_handler (n_get_handler handler)
	Set the N-GET handler function.
void	add_supported_sop_class (std::string sop_class_uid)
	Add a SOP Class UID that this SCP supports.
std::vector< std::string >	supported_sop_classes () const override
	Get supported SOP Class UIDs.
network::Result< std::monostate >	handle_message (network::association &assoc, uint8_t context_id, const network::dimse::dimse_message &request) override
	Handle an incoming N-GET-RQ message.
std::string_view	service_name () const noexcept override
	Get the service name.
size_t	gets_processed () const noexcept
	Get total number of N-GET requests processed.
void	reset_statistics () noexcept
	Reset statistics counters.
Public Member Functions inherited from kcenon::pacs::services::scp_service
	scp_service (std::shared_ptr< di::ILogger > logger=nullptr)
	Construct SCP service with optional logger.
virtual	~scp_service ()=default
	scp_service (const scp_service &)=delete
scp_service &	operator= (const scp_service &)=delete
	scp_service (scp_service &&)=default
scp_service &	operator= (scp_service &&)=default
void	set_logger (std::shared_ptr< di::ILogger > logger)
	Set the logger instance.
const std::shared_ptr< di::ILogger > &	logger () const noexcept
	Get the current logger instance.
bool	supports_sop_class (std::string_view sop_class_uid) const
	Check if this service supports a specific SOP Class.

Private Member Functions
network::Result< std::monostate >	send_n_get_response (network::association &assoc, uint8_t context_id, uint16_t message_id, const std::string &sop_class_uid, const std::string &sop_instance_uid, network::dimse::status_code status, core::dicom_dataset *dataset=nullptr)
	Send N-GET response.

Private Attributes
n_get_handler	handler_
std::vector< std::string >	supported_sop_classes_
std::atomic< size_t >	gets_processed_ {0}

Additional Inherited Members
Protected Attributes inherited from kcenon::pacs::services::scp_service
std::shared_ptr< di::ILogger >	logger_
	Logger instance for service logging.

Detailed Description

Definition at line 105 of file n_get_scp.h.

Constructor & Destructor Documentation

n_get_scp()

kcenon::pacs::services::n_get_scp::n_get_scp ( std::shared_ptr< di::ILogger > logger = nullptr )

explicit

Construct N-GET SCP with optional logger.

Parameters

logger

Logger instance (nullptr uses null_logger)

Definition at line 25 of file n_get_scp.cpp.

    : scp_service(std::move(logger)) {}

~n_get_scp()

kcenon::pacs::services::n_get_scp::~n_get_scp ( )

overridedefault

Member Function Documentation

add_supported_sop_class()

void kcenon::pacs::services::n_get_scp::add_supported_sop_class

(

std::string

sop_class_uid

)

Add a SOP Class UID that this SCP supports.

N-GET can be used with multiple SOP Classes (e.g., MPPS, Printer). By default, no SOP Classes are registered. Call this method to add supported SOP Classes.

Parameters

sop_class_uid

The SOP Class UID to support

Definition at line 36 of file n_get_scp.cpp.

                                                               {
    supported_sop_classes_.push_back(std::move(sop_class_uid));
}

References supported_sop_classes_.

gets_processed()

size_t kcenon::pacs::services::n_get_scp::gets_processed ( ) const

nodiscardnoexcept

Get total number of N-GET requests processed.

Definition at line 131 of file n_get_scp.cpp.

                                                {
    return gets_processed_.load();
}

References gets_processed_.

handle_message()

network::Result< std::monostate > kcenon::pacs::services::n_get_scp::handle_message ( network::association & assoc, uint8_t context_id, const network::dimse::dimse_message & request )

nodiscardoverridevirtual

Handle an incoming N-GET-RQ message.

Parameters

assoc	The association on which the message was received
context_id	The presentation context ID
request	The incoming N-GET-RQ message

Returns

Success or error

Implements kcenon::pacs::services::scp_service.

Definition at line 48 of file n_get_scp.cpp.

                                              {

    using namespace network::dimse;

    // Verify command type is N-GET-RQ
    if (request.command() != command_field::n_get_rq) {
        return kcenon::pacs::pacs_void_error(
            kcenon::pacs::error_codes::n_get_unexpected_command,
            "Unexpected command for N-GET SCP: " +
            std::string(to_string(request.command())));
    }

    // Verify we have a handler configured
    if (!handler_) {
        return kcenon::pacs::pacs_void_error(
            kcenon::pacs::error_codes::n_get_handler_not_set,
            "No N-GET handler configured");
    }

    // Extract Requested SOP Class UID
    auto sop_class_uid = request.requested_sop_class_uid();
    if (sop_class_uid.empty()) {
        return send_n_get_response(
            assoc, context_id, request.message_id(),
            "", "", status_error_missing_attribute);
    }

    // Verify the SOP Class is supported
    if (!supports_sop_class(sop_class_uid)) {
        return send_n_get_response(
            assoc, context_id, request.message_id(),
            sop_class_uid, "", status_refused_sop_class_not_supported);
    }

    // Extract Requested SOP Instance UID
    auto sop_instance_uid = request.requested_sop_instance_uid();
    if (sop_instance_uid.empty()) {
        return send_n_get_response(
            assoc, context_id, request.message_id(),
            sop_class_uid, "", status_error_missing_attribute);
    }

    // Extract Attribute Identifier List (empty = all attributes)
    auto attribute_tags = request.attribute_identifier_list();

    logger_->debug("N-GET request for instance: " + sop_instance_uid +
                   " (attributes requested: " +
                   (attribute_tags.empty() ? "all" :
                    std::to_string(attribute_tags.size())) + ")");

    // Call the handler to retrieve attributes
    auto result = handler_(sop_class_uid, sop_instance_uid, attribute_tags);
    if (result.is_err()) {
        logger_->warn("N-GET handler failed for instance: " + sop_instance_uid +
                       " - " + result.error().message);
        return send_n_get_response(
            assoc, context_id, request.message_id(),
            sop_class_uid, sop_instance_uid,
            status_error_invalid_object_instance);
    }

    // Update statistics
    ++gets_processed_;

    // Send success response with dataset
    auto dataset = std::move(result.value());
    return send_n_get_response(
        assoc, context_id, request.message_id(),
        sop_class_uid, sop_instance_uid,
        status_success, &dataset);
}

References kcenon::pacs::network::dimse::dimse_message::attribute_identifier_list(), kcenon::pacs::network::dimse::dimse_message::command(), gets_processed_, handler_, kcenon::pacs::services::scp_service::logger_, kcenon::pacs::network::dimse::dimse_message::message_id(), kcenon::pacs::error_codes::n_get_handler_not_set, kcenon::pacs::error_codes::n_get_unexpected_command, kcenon::pacs::pacs_void_error(), kcenon::pacs::network::dimse::dimse_message::requested_sop_class_uid(), kcenon::pacs::network::dimse::dimse_message::requested_sop_instance_uid(), send_n_get_response(), kcenon::pacs::services::scp_service::supports_sop_class(), and kcenon::pacs::services::to_string().

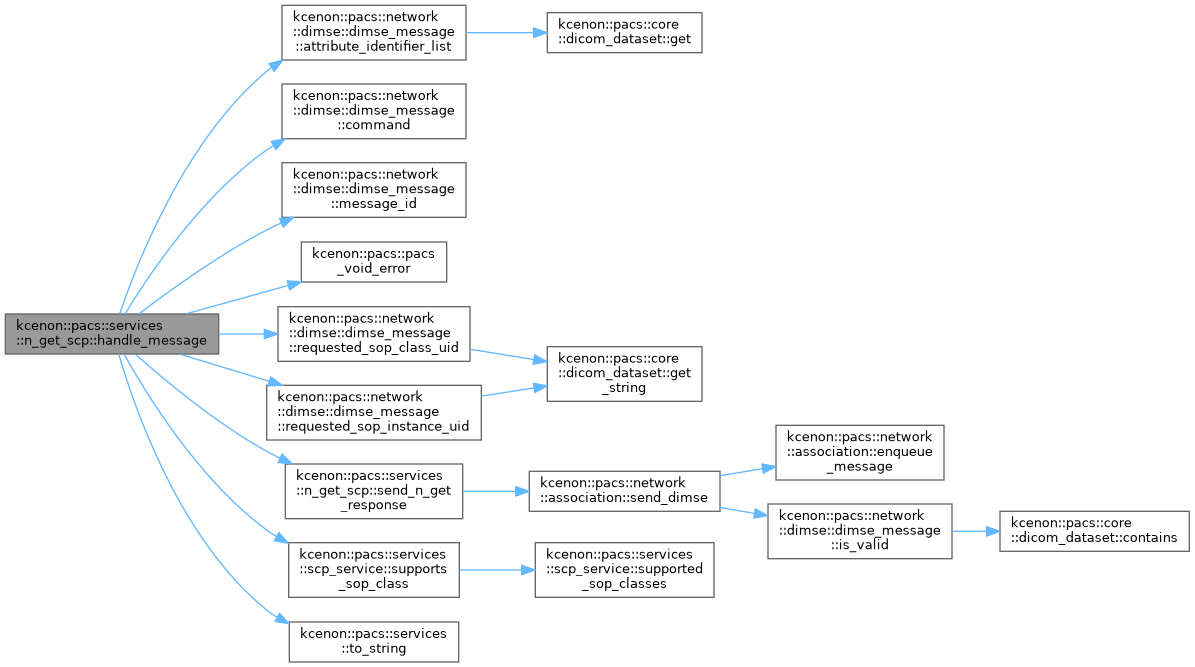

Here is the call graph for this function:

reset_statistics()

void kcenon::pacs::services::n_get_scp::reset_statistics ( )

noexcept

Reset statistics counters.

Definition at line 135 of file n_get_scp.cpp.

                                          {
    gets_processed_ = 0;
}

References gets_processed_.

send_n_get_response()

network::Result< std::monostate > kcenon::pacs::services::n_get_scp::send_n_get_response ( network::association & assoc, uint8_t context_id, uint16_t message_id, const std::string & sop_class_uid, const std::string & sop_instance_uid, network::dimse::status_code status, core::dicom_dataset * dataset = nullptr )

nodiscardprivate

Send N-GET response.

Definition at line 143 of file n_get_scp.cpp.

                                {

    using namespace network::dimse;

    // Create N-GET response using factory function
    auto response = make_n_get_rsp(
        message_id, sop_class_uid, sop_instance_uid, status);

    // Attach dataset if provided (successful responses include attributes)
    if (dataset != nullptr) {
        response.set_dataset(std::move(*dataset));
    }

    // Send the response
    return assoc.send_dimse(context_id, response);
}

References kcenon::pacs::network::association::send_dimse().

Referenced by handle_message().

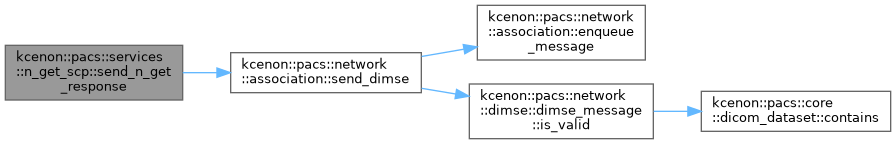

Here is the call graph for this function:

Here is the caller graph for this function:

service_name()

std::string_view kcenon::pacs::services::n_get_scp::service_name ( ) const

nodiscardoverridevirtualnoexcept

Get the service name.

Returns

"N-GET SCP"

Implements kcenon::pacs::services::scp_service.

Definition at line 123 of file n_get_scp.cpp.

                                                      {
    return "N-GET SCP";
}

set_handler()

void kcenon::pacs::services::n_get_scp::set_handler

(

n_get_handler

handler

)

Set the N-GET handler function.

The handler is called for each N-GET request to retrieve attributes from a managed SOP Instance.

Parameters

handler

The N-GET handler function

Definition at line 32 of file n_get_scp.cpp.

                                                 {
    handler_ = std::move(handler);
}

References handler_.

supported_sop_classes()

std::vector< std::string > kcenon::pacs::services::n_get_scp::supported_sop_classes ( ) const

nodiscardoverridevirtual

Get supported SOP Class UIDs.

Returns

Vector of registered SOP Class UIDs

Implements kcenon::pacs::services::scp_service.

Definition at line 44 of file n_get_scp.cpp.

                                                            {
    return supported_sop_classes_;
}

References supported_sop_classes_.

Member Data Documentation

gets_processed_

std::atomic<size_t> kcenon::pacs::services::n_get_scp::gets_processed_ {0}

private

Definition at line 214 of file n_get_scp.h.

{0};

Referenced by gets_processed(), handle_message(), and reset_statistics().

handler_

n_get_handler kcenon::pacs::services::n_get_scp::handler_

private

Definition at line 211 of file n_get_scp.h.

Referenced by handle_message(), and set_handler().

supported_sop_classes_

std::vector<std::string> kcenon::pacs::services::n_get_scp::supported_sop_classes_

private

Definition at line 212 of file n_get_scp.h.

Referenced by add_supported_sop_class(), and supported_sop_classes().

---

The documentation for this class was generated from the following files:

• include/kcenon/pacs/services/n_get_scp.h
• src/services/n_get_scp.cpp
