kcenon::pacs::services::mpps_create_data Struct Reference

Data for N-CREATE operation (start procedure) More...

#include <mpps_scu.h>

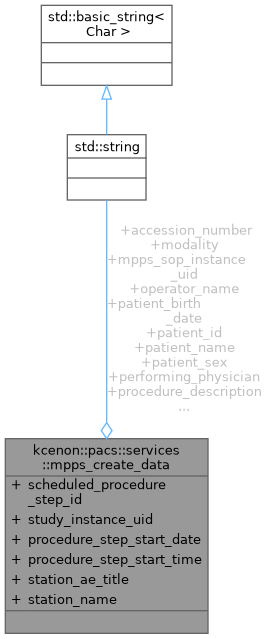

Collaboration diagram for kcenon::pacs::services::mpps_create_data:

Public Attributes
std::string	scheduled_procedure_step_id
std::string	study_instance_uid
std::string	accession_number
std::string	patient_name
std::string	patient_id
std::string	patient_birth_date
std::string	patient_sex
std::string	mpps_sop_instance_uid
	Generated if empty.
std::string	procedure_step_start_date
	DICOM DA format (YYYYMMDD)
std::string	procedure_step_start_time
	DICOM TM format (HHMMSS)
std::string	modality
std::string	station_ae_title
std::string	station_name
std::string	procedure_description
std::string	performing_physician
std::string	operator_name

Detailed Description

Data for N-CREATE operation (start procedure)

Contains all attributes required to create a new MPPS instance with IN PROGRESS status.

Examples

mpps_scu/main.cpp.

Definition at line 75 of file mpps_scu.h.

Member Data Documentation

accession_number

std::string kcenon::pacs::services::mpps_create_data::accession_number

Definition at line 79 of file mpps_scu.h.

Referenced by kcenon::pacs::services::mpps_scu::build_create_dataset().

modality

std::string kcenon::pacs::services::mpps_create_data::modality

Examples

mpps_scu/main.cpp.

Definition at line 91 of file mpps_scu.h.

Referenced by kcenon::pacs::services::mpps_scu::build_create_dataset().

mpps_sop_instance_uid

std::string kcenon::pacs::services::mpps_create_data::mpps_sop_instance_uid

Generated if empty.

Definition at line 88 of file mpps_scu.h.

Referenced by kcenon::pacs::services::mpps_scu::create().

operator_name

std::string kcenon::pacs::services::mpps_create_data::operator_name

Definition at line 98 of file mpps_scu.h.

Referenced by kcenon::pacs::services::mpps_scu::build_create_dataset().

patient_birth_date

std::string kcenon::pacs::services::mpps_create_data::patient_birth_date

Definition at line 84 of file mpps_scu.h.

Referenced by kcenon::pacs::services::mpps_scu::build_create_dataset().

patient_id

std::string kcenon::pacs::services::mpps_create_data::patient_id

Examples

mpps_scu/main.cpp.

Definition at line 83 of file mpps_scu.h.

Referenced by kcenon::pacs::services::mpps_scu::build_create_dataset().

patient_name

std::string kcenon::pacs::services::mpps_create_data::patient_name

Examples

mpps_scu/main.cpp.

Definition at line 82 of file mpps_scu.h.

Referenced by kcenon::pacs::services::mpps_scu::build_create_dataset().

patient_sex

std::string kcenon::pacs::services::mpps_create_data::patient_sex

Definition at line 85 of file mpps_scu.h.

Referenced by kcenon::pacs::services::mpps_scu::build_create_dataset().

performing_physician

std::string kcenon::pacs::services::mpps_create_data::performing_physician

Definition at line 97 of file mpps_scu.h.

Referenced by kcenon::pacs::services::mpps_scu::build_create_dataset().

procedure_description

std::string kcenon::pacs::services::mpps_create_data::procedure_description

Definition at line 94 of file mpps_scu.h.

Referenced by kcenon::pacs::services::mpps_scu::build_create_dataset().

procedure_step_start_date

std::string kcenon::pacs::services::mpps_create_data::procedure_step_start_date

DICOM DA format (YYYYMMDD)

Definition at line 89 of file mpps_scu.h.

Referenced by kcenon::pacs::services::mpps_scu::build_create_dataset().

procedure_step_start_time

std::string kcenon::pacs::services::mpps_create_data::procedure_step_start_time

DICOM TM format (HHMMSS)

Definition at line 90 of file mpps_scu.h.

Referenced by kcenon::pacs::services::mpps_scu::build_create_dataset().

scheduled_procedure_step_id

std::string kcenon::pacs::services::mpps_create_data::scheduled_procedure_step_id

Examples

mpps_scu/main.cpp.

Definition at line 77 of file mpps_scu.h.

Referenced by kcenon::pacs::services::mpps_scu::build_create_dataset().

station_ae_title

std::string kcenon::pacs::services::mpps_create_data::station_ae_title

Examples

mpps_scu/main.cpp.

Definition at line 92 of file mpps_scu.h.

Referenced by kcenon::pacs::services::mpps_scu::build_create_dataset().

station_name

std::string kcenon::pacs::services::mpps_create_data::station_name

Definition at line 93 of file mpps_scu.h.

Referenced by kcenon::pacs::services::mpps_scu::build_create_dataset().

study_instance_uid

std::string kcenon::pacs::services::mpps_create_data::study_instance_uid

Examples

mpps_scu/main.cpp.

Definition at line 78 of file mpps_scu.h.

Referenced by kcenon::pacs::services::mpps_scu::build_create_dataset().

---

The documentation for this struct was generated from the following file:

• include/kcenon/pacs/services/mpps_scu.h
