#include <query_scu.h>

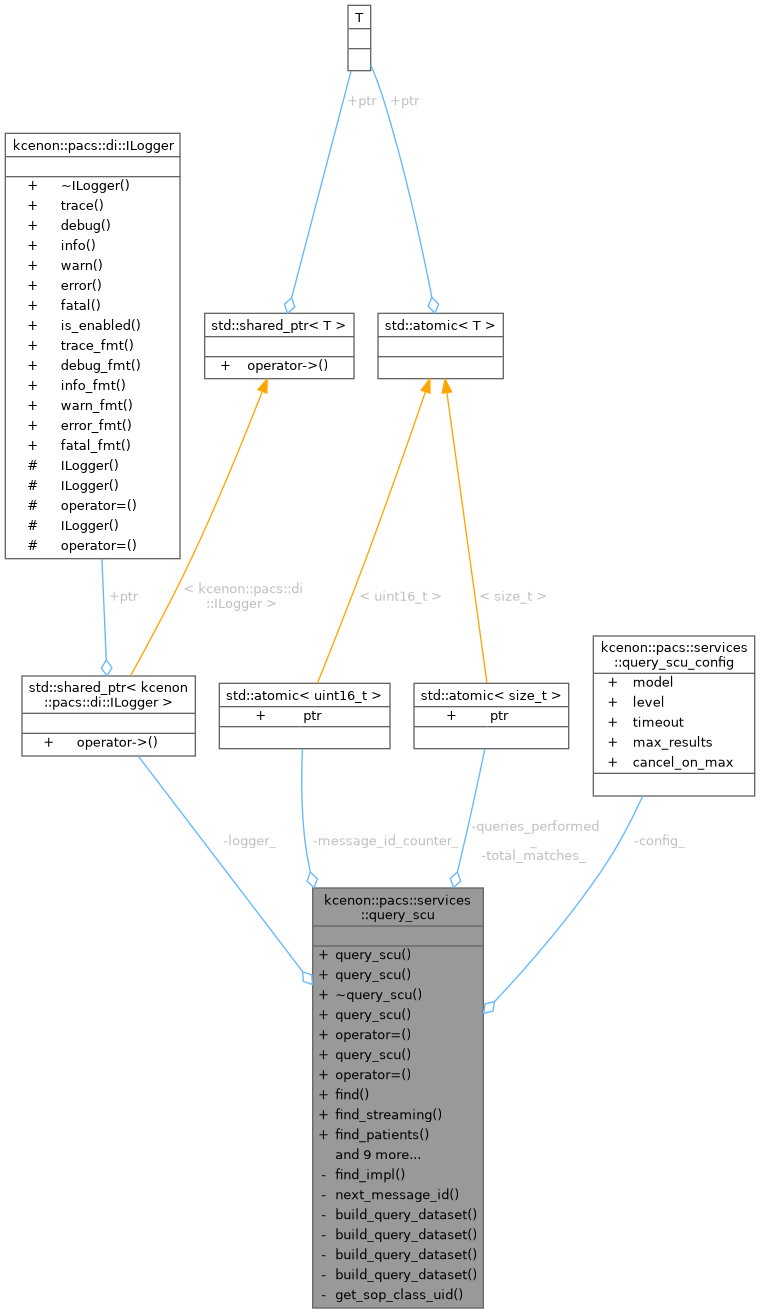

Collaboration diagram for kcenon::pacs::services::query_scu:

Public Member Functions
	query_scu (std::shared_ptr< di::ILogger > logger=nullptr)
	Construct a Query SCU with default configuration.

	query_scu (const query_scu_config &config, std::shared_ptr< di::ILogger > logger=nullptr)
	Construct a Query SCU with custom configuration.

	~query_scu ()=default

	query_scu (const query_scu &)=delete

query_scu &	operator= (const query_scu &)=delete

	query_scu (query_scu &&)=delete

query_scu &	operator= (query_scu &&)=delete

network::Result< query_result >	find (network::association &assoc, const core::dicom_dataset &query_keys)
	Perform a C-FIND query with raw dataset.

network::Result< size_t >	find_streaming (network::association &assoc, const core::dicom_dataset &query_keys, query_streaming_callback callback)
	Perform a streaming C-FIND query for large result sets.

network::Result< query_result >	find_patients (network::association &assoc, const patient_query_keys &keys)
	Query for patients.

network::Result< query_result >	find_studies (network::association &assoc, const study_query_keys &keys)
	Query for studies.

network::Result< query_result >	find_series (network::association &assoc, const series_query_keys &keys)
	Query for series within a study.

network::Result< query_result >	find_instances (network::association &assoc, const instance_query_keys &keys)
	Query for instances within a series.

network::Result< std::monostate >	cancel (network::association &assoc, uint16_t message_id)
	Send a C-CANCEL request to stop an ongoing query.

void	set_config (const query_scu_config &config)
	Update the SCU configuration.

const query_scu_config &	config () const noexcept
	Get the current configuration.

size_t	queries_performed () const noexcept
	Get the number of queries performed since construction.

size_t	total_matches () const noexcept
	Get the total number of matches received since construction.

void	reset_statistics () noexcept
	Reset statistics counters to zero.

Private Member Functions
network::Result< query_result >	find_impl (network::association &assoc, const core::dicom_dataset &query_keys, uint16_t message_id)
	Internal query implementation.

uint16_t	next_message_id () noexcept
	Get the next message ID for DIMSE operations.

core::dicom_dataset	build_query_dataset (const patient_query_keys &keys) const
	Build query dataset from patient keys.

core::dicom_dataset	build_query_dataset (const study_query_keys &keys) const
	Build query dataset from study keys.

core::dicom_dataset	build_query_dataset (const series_query_keys &keys) const
	Build query dataset from series keys.

core::dicom_dataset	build_query_dataset (const instance_query_keys &keys) const
	Build query dataset from instance keys.

std::string_view	get_sop_class_uid () const noexcept
	Get SOP Class UID based on current configuration.

Private Attributes
std::shared_ptr< di::ILogger >	logger_
	Logger instance for service logging.

query_scu_config	config_
	Configuration.

std::atomic< uint16_t >	message_id_counter_ {1}
	Message ID counter.

std::atomic< size_t >	queries_performed_ {0}
	Statistics: number of queries performed.

std::atomic< size_t >	total_matches_ {0}
	Statistics: total number of matches received.

Detailed Description

Definition at line 294 of file query_scu.h.

Constructor & Destructor Documentation

◆ query_scu() [1/4]

kcenon::pacs::services::query_scu::query_scu ( std::shared_ptr< di::ILogger > logger = nullptr )

explicit

Construct a Query SCU with default configuration.

Parameters

logger Logger instance for service logging (nullptr uses null_logger)

Definition at line 25 of file query_scu.cpp.

26 : logger_(logger ? std::move(logger) : di::null_logger()) {}

kcenon::pacs::services::query_scu::logger_

std::shared_ptr< di::ILogger > logger_

Logger instance for service logging.

Definition query_scu.h:512

kcenon::pacs::di::null_logger

std::shared_ptr< ILogger > null_logger()

Get a shared null logger instance.

Definition ilogger.h:271

◆ query_scu() [2/4]

kcenon::pacs::services::query_scu::query_scu	(	const query_scu_config &	config,
		std::shared_ptr< di::ILogger >	logger = nullptr )

explicit

Construct a Query SCU with custom configuration.

Parameters

config	Configuration options
logger	Logger instance for service logging (nullptr uses null_logger)

Definition at line 28 of file query_scu.cpp.

30 : logger_(logger ? std::move(logger) : di::null_logger()), config_(config) {}

kcenon::pacs::services::query_scu::config_

query_scu_config config_

Configuration.

Definition query_scu.h:515

kcenon::pacs::services::query_scu::config

const query_scu_config & config() const noexcept

Get the current configuration.

Definition query_scu.cpp:369

◆ ~query_scu()

kcenon::pacs::services::query_scu::~query_scu ( )

default

◆ query_scu() [3/4]

kcenon::pacs::services::query_scu::query_scu ( const query_scu & )

delete

◆ query_scu() [4/4]

kcenon::pacs::services::query_scu::query_scu ( query_scu && )

delete

Member Function Documentation

◆ build_query_dataset() [1/4]

core::dicom_dataset kcenon::pacs::services::query_scu::build_query_dataset ( const instance_query_keys & keys ) const

nodiscardprivate

Build query dataset from instance keys.

Definition at line 485 of file query_scu.cpp.

                                           {

    using namespace core;
    using namespace encoding;

    dicom_dataset ds;

    // Set Query/Retrieve Level
    ds.set_string(tags::query_retrieve_level, vr_type::CS, "IMAGE");

    // Series UID (required for instance query)
    ds.set_string(tags::series_instance_uid, vr_type::UI, keys.series_uid);

    // Instance keys
    ds.set_string(tags::sop_instance_uid, vr_type::UI, keys.sop_instance_uid);
    ds.set_string(tags::sop_class_uid, vr_type::UI, "");
    ds.set_string(tags::instance_number, vr_type::IS, keys.instance_number);

    return ds;
}

References kcenon::pacs::core::tags::instance_number, kcenon::pacs::services::instance_query_keys::instance_number, kcenon::pacs::core::tags::query_retrieve_level, kcenon::pacs::core::tags::series_instance_uid, kcenon::pacs::services::instance_query_keys::series_uid, kcenon::pacs::core::tags::sop_class_uid, kcenon::pacs::core::tags::sop_instance_uid, and kcenon::pacs::services::instance_query_keys::sop_instance_uid.

◆ build_query_dataset() [2/4]

core::dicom_dataset kcenon::pacs::services::query_scu::build_query_dataset ( const patient_query_keys & keys ) const

nodiscardprivate

Build query dataset from patient keys.

Definition at line 403 of file query_scu.cpp.

                                          {

    using namespace core;
    using namespace encoding;

    dicom_dataset ds;

    // Set Query/Retrieve Level
    ds.set_string(tags::query_retrieve_level, vr_type::CS, "PATIENT");

    // Set query keys (empty string = return key, non-empty = match key)
    ds.set_string(tags::patient_name, vr_type::PN, keys.patient_name);
    ds.set_string(tags::patient_id, vr_type::LO, keys.patient_id);
    ds.set_string(tags::patient_birth_date, vr_type::DA, keys.birth_date);
    ds.set_string(tags::patient_sex, vr_type::CS, keys.sex);

    // Add standard return keys
    ds.set_string(tags::number_of_patient_related_studies, vr_type::IS, "");
    ds.set_string(tags::number_of_patient_related_series, vr_type::IS, "");
    ds.set_string(tags::number_of_patient_related_instances, vr_type::IS, "");

    return ds;
}

Referenced by find_instances(), find_patients(), find_series(), and find_studies().

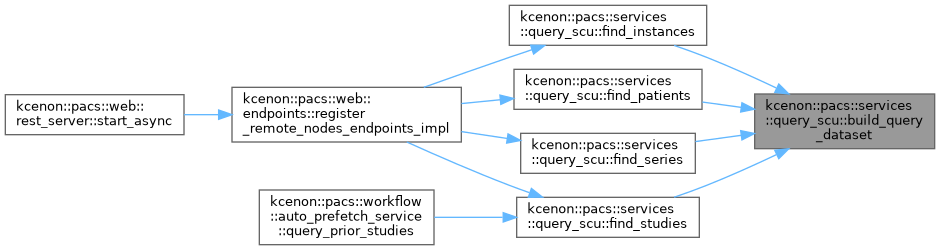

Here is the caller graph for this function:

◆ build_query_dataset() [3/4]

core::dicom_dataset kcenon::pacs::services::query_scu::build_query_dataset ( const series_query_keys & keys ) const

nodiscardprivate

Build query dataset from series keys.

Definition at line 459 of file query_scu.cpp.

                                         {

    using namespace core;
    using namespace encoding;

    dicom_dataset ds;

    // Set Query/Retrieve Level
    ds.set_string(tags::query_retrieve_level, vr_type::CS, "SERIES");

    // Study UID (required for series query)
    ds.set_string(tags::study_instance_uid, vr_type::UI, keys.study_uid);

    // Series keys
    ds.set_string(tags::series_instance_uid, vr_type::UI, keys.series_uid);
    ds.set_string(tags::modality, vr_type::CS, keys.modality);
    ds.set_string(tags::series_number, vr_type::IS, keys.series_number);
    ds.set_string(tags::series_description, vr_type::LO, "");

    // Standard return keys
    ds.set_string(tags::number_of_series_related_instances, vr_type::IS, "");

    return ds;
}

References kcenon::pacs::core::tags::modality, kcenon::pacs::services::series_query_keys::modality, kcenon::pacs::core::tags::number_of_series_related_instances, kcenon::pacs::core::tags::query_retrieve_level, kcenon::pacs::core::tags::series_description, kcenon::pacs::core::tags::series_instance_uid, kcenon::pacs::core::tags::series_number, kcenon::pacs::services::series_query_keys::series_number, kcenon::pacs::services::series_query_keys::series_uid, kcenon::pacs::core::tags::study_instance_uid, and kcenon::pacs::services::series_query_keys::study_uid.

◆ build_query_dataset() [4/4]

core::dicom_dataset kcenon::pacs::services::query_scu::build_query_dataset ( const study_query_keys & keys ) const

nodiscardprivate

Build query dataset from study keys.

Definition at line 428 of file query_scu.cpp.

                                        {

    using namespace core;
    using namespace encoding;

    dicom_dataset ds;

    // Set Query/Retrieve Level
    ds.set_string(tags::query_retrieve_level, vr_type::CS, "STUDY");

    // Patient info (return keys)
    ds.set_string(tags::patient_name, vr_type::PN, "");
    ds.set_string(tags::patient_id, vr_type::LO, keys.patient_id);

    // Study keys
    ds.set_string(tags::study_instance_uid, vr_type::UI, keys.study_uid);
    ds.set_string(tags::study_date, vr_type::DA, keys.study_date);
    ds.set_string(tags::study_time, vr_type::TM, "");
    ds.set_string(tags::accession_number, vr_type::SH, keys.accession_number);
    ds.set_string(tags::study_id, vr_type::SH, "");
    ds.set_string(tags::study_description, vr_type::LO, keys.study_description);
    ds.set_string(tags::modalities_in_study, vr_type::CS, keys.modality);

    // Standard return keys
    ds.set_string(tags::number_of_study_related_series, vr_type::IS, "");
    ds.set_string(tags::number_of_study_related_instances, vr_type::IS, "");

    return ds;
}

◆ cancel()

network::Result< std::monostate > kcenon::pacs::services::query_scu::cancel	(	network::association &	assoc,
		uint16_t	message_id )

nodiscard

Send a C-CANCEL request to stop an ongoing query.

Parameters

assoc	The association on which the query is running
message_id	The message ID of the query to cancel

Returns: Success or error

Definition at line 341 of file query_scu.cpp.

                         {

    using namespace network::dimse;

    auto sop_class_uid = get_sop_class_uid();

    auto context_id = assoc.accepted_context_id(sop_class_uid);
    if (!context_id) {
        return kcenon::pacs::pacs_error<std::monostate>(
            kcenon::pacs::error_codes::no_acceptable_context,
            "No accepted presentation context for cancel");
    }

    // Build C-CANCEL-RQ manually since there's no factory function
    dimse_message cancel_rq{command_field::c_cancel_rq, message_id};
    return assoc.send_dimse(*context_id, cancel_rq);
}

References kcenon::pacs::network::association::accepted_context_id(), get_sop_class_uid(), kcenon::pacs::error_codes::no_acceptable_context, kcenon::pacs::pacs_error(), and kcenon::pacs::network::association::send_dimse().

Referenced by find_impl(), and find_streaming().

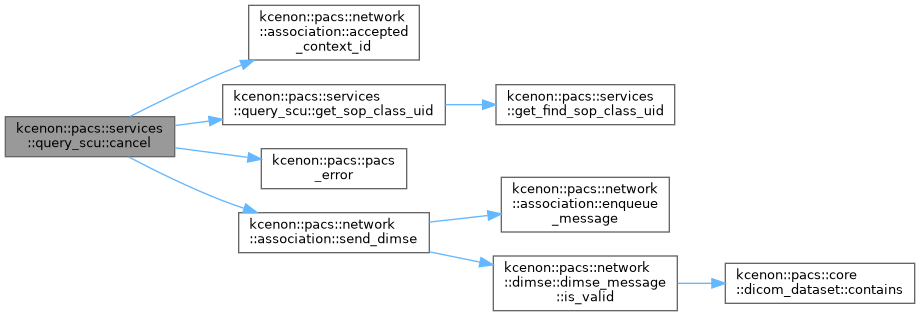

Here is the call graph for this function:

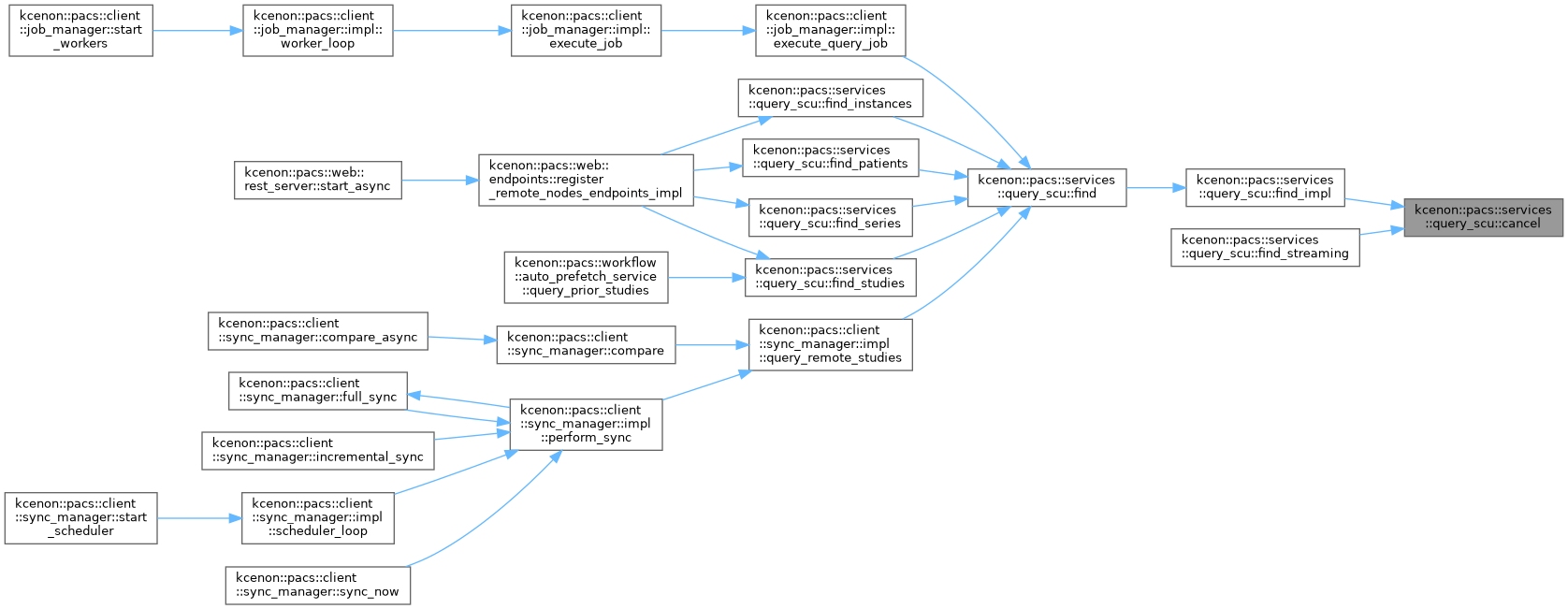

Here is the caller graph for this function:

◆ config()

const query_scu_config & kcenon::pacs::services::query_scu::config ( ) const

nodiscardnoexcept

Get the current configuration.

Returns: Reference to the current configuration

Definition at line 369 of file query_scu.cpp.

                                                         {
    return config_;
}

References config_.

Referenced by set_config().

Here is the caller graph for this function:

◆ find()

network::Result< query_result > kcenon::pacs::services::query_scu::find	(	network::association &	assoc,
		const core::dicom_dataset &	query_keys )

nodiscard

Perform a C-FIND query with raw dataset.

Sends a C-FIND request with the provided query keys and collects all matching datasets from the SCP.

Parameters

assoc	The established association to use
query_keys	The DICOM dataset containing query keys

Returns: Result containing query_result on success, or error message

Definition at line 36 of file query_scu.cpp.

                                         {

    return find_impl(assoc, query_keys, next_message_id());
}

References find_impl(), and next_message_id().

Referenced by kcenon::pacs::client::job_manager::impl::execute_query_job(), find_instances(), find_patients(), find_series(), find_studies(), and kcenon::pacs::client::sync_manager::impl::query_remote_studies().

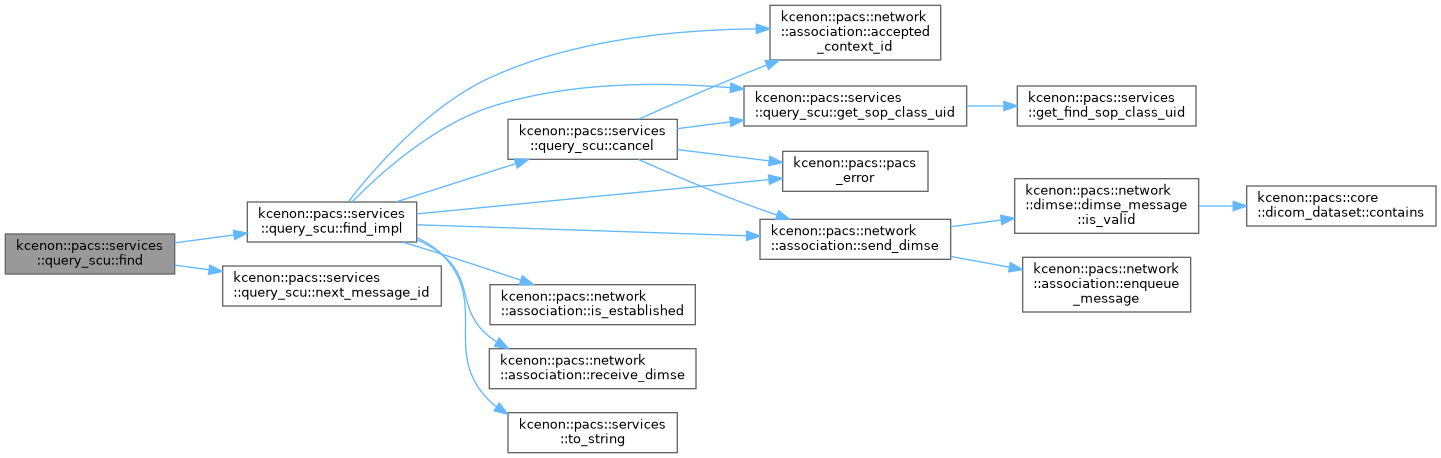

Here is the call graph for this function:

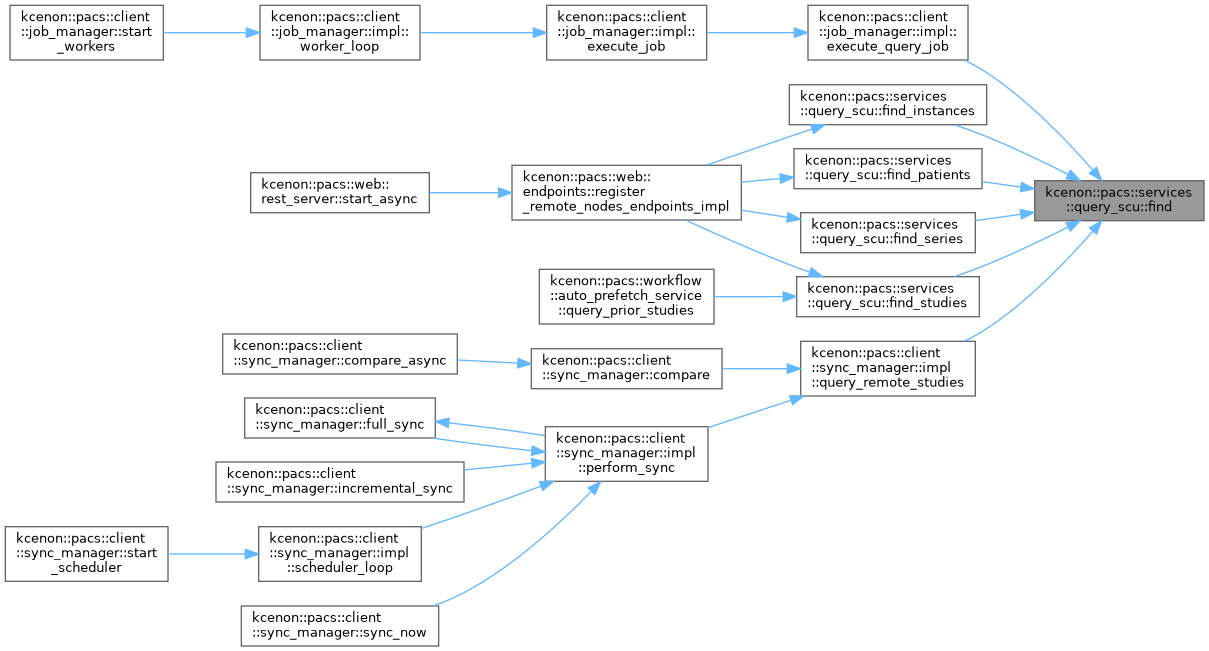

Here is the caller graph for this function:

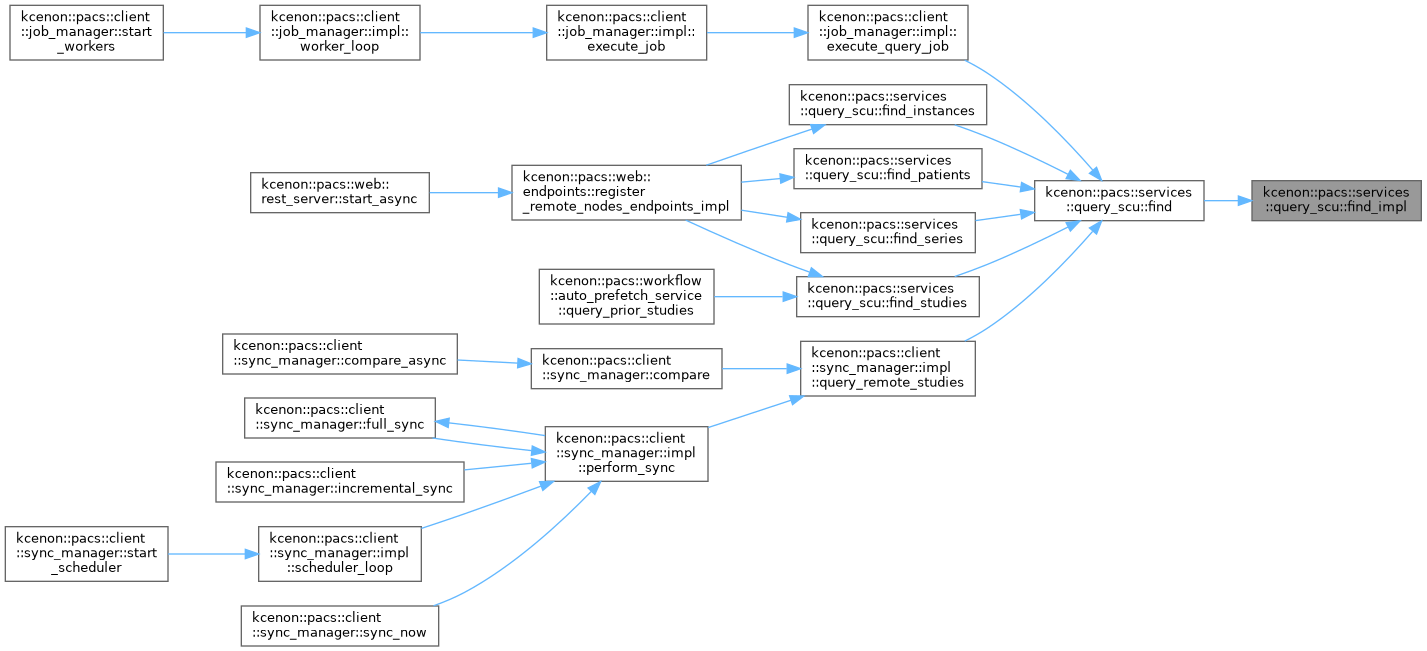

◆ find_impl()

network::Result< query_result > kcenon::pacs::services::query_scu::find_impl	(	network::association &	assoc,
		const core::dicom_dataset &	query_keys,
		uint16_t	message_id )

nodiscardprivate

Internal query implementation.

Definition at line 43 of file query_scu.cpp.

                         {

    using namespace network::dimse;

    auto start_time = std::chrono::steady_clock::now();

    // Verify association is established
    if (!assoc.is_established()) {
        return kcenon::pacs::pacs_error<query_result>(
            kcenon::pacs::error_codes::association_not_established,
            "Association not established");
    }

    // Get SOP Class UID
    auto sop_class_uid = get_sop_class_uid();

    // Get accepted presentation context for this SOP class
    auto context_id = assoc.accepted_context_id(sop_class_uid);
    if (!context_id) {
        return kcenon::pacs::pacs_error<query_result>(
            kcenon::pacs::error_codes::no_acceptable_context,
            "No accepted presentation context for SOP Class: " +
            std::string(sop_class_uid));
    }

    // Build C-FIND-RQ message
    auto request = make_c_find_rq(message_id, sop_class_uid);
    request.set_dataset(query_keys);

    logger_->debug_fmt("Sending C-FIND request (message_id={}, sop_class={})",
                       message_id, sop_class_uid);

    // Send the request
    auto send_result = assoc.send_dimse(*context_id, request);
    if (send_result.is_err()) {
        return send_result.error();
    }

    // Receive responses
    query_result result;
    bool query_complete = false;

    while (!query_complete) {
        auto recv_result = assoc.receive_dimse(config_.timeout);
        if (recv_result.is_err()) {
            return recv_result.error();
        }

        const auto& [recv_context_id, response] = recv_result.value();

        // Verify it's a C-FIND response
        if (response.command() != command_field::c_find_rsp) {
            return kcenon::pacs::pacs_error<query_result>(
                kcenon::pacs::error_codes::find_unexpected_command,
                "Expected C-FIND-RSP but received " +
                std::string(to_string(response.command())));
        }

        auto status = response.status();

        if (status == status_pending || status == status_pending_warning) {
            ++result.total_pending;

            if (response.has_dataset()) {
                // Check if we should collect this result
                if (config_.max_results == 0 ||
                    result.matches.size() < config_.max_results) {

                    auto dataset_result = response.dataset();
                    if (dataset_result.is_ok()) {
                        result.matches.push_back(dataset_result.value().get());
                    }
                }

                // Check if we should cancel due to max_results
                if (config_.max_results > 0 &&
                    result.matches.size() >= config_.max_results &&
                    config_.cancel_on_max) {

                    logger_->debug_fmt(
                        "Max results ({}) reached, sending C-CANCEL",
                        config_.max_results);

                    // Send C-CANCEL
                    auto cancel_result = cancel(assoc, message_id);
                    if (cancel_result.is_err()) {
                        logger_->warn_fmt("Failed to send C-CANCEL: {}",
                                          cancel_result.error().message);
                    }
                }
            }
        } else if (status == status_success) {
            query_complete = true;
            result.status = static_cast<uint16_t>(status);
        } else if (status == status_cancel) {
            query_complete = true;
            result.status = static_cast<uint16_t>(status);
        } else {
            // Error status
            query_complete = true;
            result.status = static_cast<uint16_t>(status);
        }
    }

    auto end_time = std::chrono::steady_clock::now();
    result.elapsed = std::chrono::duration_cast<std::chrono::milliseconds>(
        end_time - start_time);

    // Update statistics
    queries_performed_.fetch_add(1, std::memory_order_relaxed);
    total_matches_.fetch_add(result.matches.size(), std::memory_order_relaxed);

    logger_->debug_fmt("C-FIND completed: {} matches in {} ms",
                       result.matches.size(), result.elapsed.count());

    return result;
}

Referenced by find().

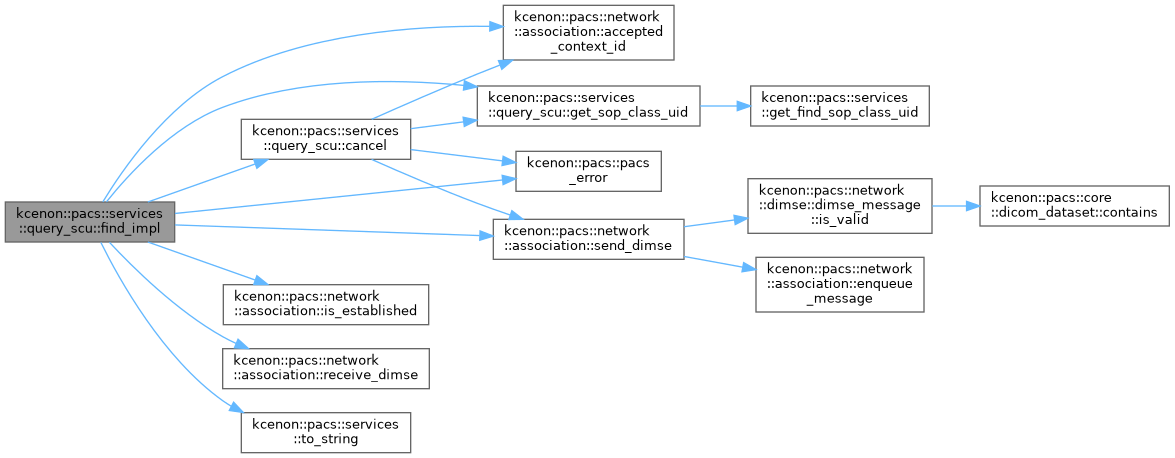

Here is the call graph for this function:

Here is the caller graph for this function:

◆ find_instances()

network::Result< query_result > kcenon::pacs::services::query_scu::find_instances	(	network::association &	assoc,
		const instance_query_keys &	keys )

nodiscard

Query for instances within a series.

Parameters

assoc	The established association to use
keys	Instance-level query keys (series_uid required)

Returns: Result containing query_result on success

Definition at line 323 of file query_scu.cpp.

                                     {

    auto saved_level = config_.level;
    config_.level = query_level::image;

    auto query_ds = build_query_dataset(keys);
    auto result = find(assoc, query_ds);

    config_.level = saved_level;
    return result;
}

References build_query_dataset(), config_, find(), kcenon::pacs::services::image, and kcenon::pacs::services::query_scu_config::level.

Referenced by kcenon::pacs::web::endpoints::register_remote_nodes_endpoints_impl().

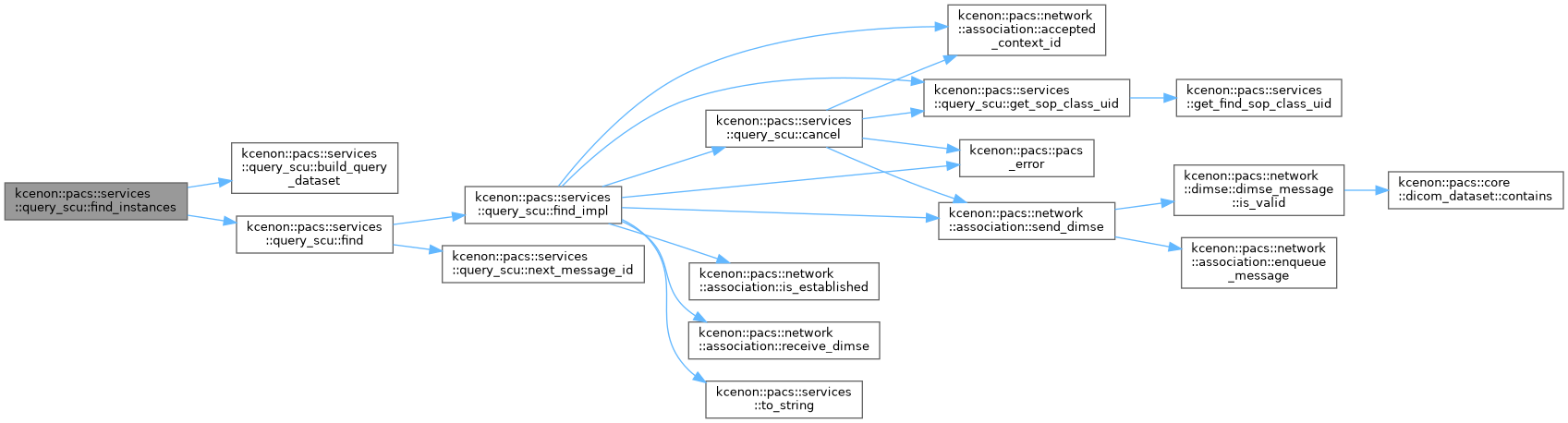

Here is the call graph for this function:

Here is the caller graph for this function:

◆ find_patients()

network::Result< query_result > kcenon::pacs::services::query_scu::find_patients	(	network::association &	assoc,
		const patient_query_keys &	keys )

nodiscard

Query for patients.

Parameters

assoc	The established association to use
keys	Patient-level query keys

Returns: Result containing query_result on success

Definition at line 281 of file query_scu.cpp.

                                    {

    auto saved_level = config_.level;
    config_.level = query_level::patient;

    auto query_ds = build_query_dataset(keys);
    auto result = find(assoc, query_ds);

    config_.level = saved_level;
    return result;
}

References build_query_dataset(), config_, find(), kcenon::pacs::services::query_scu_config::level, and kcenon::pacs::services::patient.

Referenced by kcenon::pacs::web::endpoints::register_remote_nodes_endpoints_impl().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ find_series()

network::Result< query_result > kcenon::pacs::services::query_scu::find_series	(	network::association &	assoc,
		const series_query_keys &	keys )

nodiscard

Query for series within a study.

Parameters

assoc	The established association to use
keys	Series-level query keys (study_uid required)

Returns: Result containing query_result on success

Definition at line 309 of file query_scu.cpp.

                                   {

    auto saved_level = config_.level;
    config_.level = query_level::series;

    auto query_ds = build_query_dataset(keys);
    auto result = find(assoc, query_ds);

    config_.level = saved_level;
    return result;
}

References build_query_dataset(), config_, find(), kcenon::pacs::services::query_scu_config::level, and kcenon::pacs::services::series.

Referenced by kcenon::pacs::web::endpoints::register_remote_nodes_endpoints_impl().

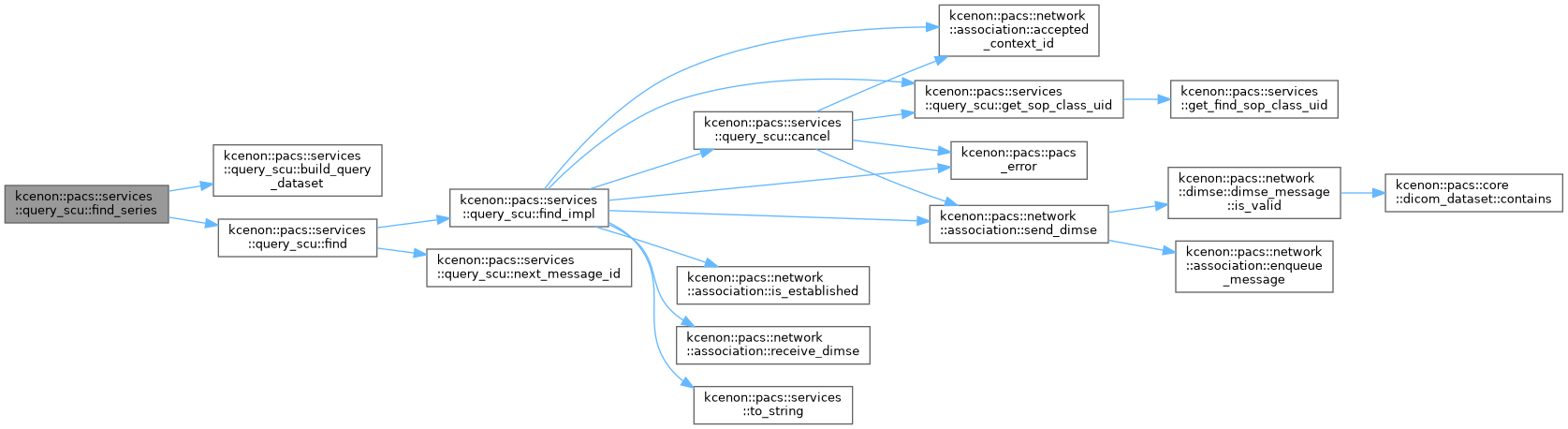

Here is the call graph for this function:

Here is the caller graph for this function:

◆ find_streaming()

network::Result< size_t > kcenon::pacs::services::query_scu::find_streaming	(	network::association &	assoc,
		const core::dicom_dataset &	query_keys,
		query_streaming_callback	callback )

nodiscard

Perform a streaming C-FIND query for large result sets.

Sends a C-FIND request and calls the callback for each pending response. This is more memory-efficient for large result sets.

Parameters

assoc	The established association to use
query_keys	The DICOM dataset containing query keys
callback	Called for each matching dataset; return false to cancel

Returns: Result containing the number of results processed, or error

Definition at line 164 of file query_scu.cpp.

                                       {

    using namespace network::dimse;

    auto message_id = next_message_id();
    auto start_time = std::chrono::steady_clock::now();

    // Verify association is established
    if (!assoc.is_established()) {
        return kcenon::pacs::pacs_error<size_t>(
            kcenon::pacs::error_codes::association_not_established,
            "Association not established");
    }

    // Get SOP Class UID
    auto sop_class_uid = get_sop_class_uid();

    // Get accepted presentation context for this SOP class
    auto context_id = assoc.accepted_context_id(sop_class_uid);
    if (!context_id) {
        return kcenon::pacs::pacs_error<size_t>(
            kcenon::pacs::error_codes::no_acceptable_context,
            "No accepted presentation context for SOP Class: " +
            std::string(sop_class_uid));
    }

    // Build C-FIND-RQ message
    auto request = make_c_find_rq(message_id, sop_class_uid);
    request.set_dataset(query_keys);

    logger_->debug_fmt("Sending streaming C-FIND request (message_id={})",
                       message_id);

    // Send the request
    auto send_result = assoc.send_dimse(*context_id, request);
    if (send_result.is_err()) {
        return send_result.error();
    }

    // Receive responses
    size_t count = 0;
    bool query_complete = false;
    bool should_cancel = false;

    while (!query_complete) {
        auto recv_result = assoc.receive_dimse(config_.timeout);
        if (recv_result.is_err()) {
            return recv_result.error();
        }

        const auto& [recv_context_id, response] = recv_result.value();

        // Verify it's a C-FIND response
        if (response.command() != command_field::c_find_rsp) {
            return kcenon::pacs::pacs_error<size_t>(
                kcenon::pacs::error_codes::find_unexpected_command,
                "Expected C-FIND-RSP but received " +
                std::string(to_string(response.command())));
        }

        auto status = response.status();

        if (status == status_pending || status == status_pending_warning) {
            if (response.has_dataset()) {
                auto dataset_result = response.dataset();
                if (dataset_result.is_ok()) {
                    ++count;

                    // Call the callback
                    if (callback) {
                        if (!callback(dataset_result.value().get())) {
                            should_cancel = true;
                        }
                    }

                    // Check if we need to cancel
                    if (should_cancel ||
                        (config_.max_results > 0 &&
                         count >= config_.max_results &&
                         config_.cancel_on_max)) {

                        logger_->debug("Cancelling streaming query");
                        auto cancel_result = cancel(assoc, message_id);
                        if (cancel_result.is_err()) {
                            logger_->warn_fmt("Failed to send C-CANCEL: {}",
                                              cancel_result.error().message);
                        }
                        should_cancel = false;  // Already sent cancel
                    }
                }
            }
        } else {
            query_complete = true;
        }
    }

    // Update statistics
    queries_performed_.fetch_add(1, std::memory_order_relaxed);
    total_matches_.fetch_add(count, std::memory_order_relaxed);

    auto end_time = std::chrono::steady_clock::now();
    auto elapsed = std::chrono::duration_cast<std::chrono::milliseconds>(
        end_time - start_time);

    logger_->debug_fmt("Streaming C-FIND completed: {} results in {} ms",
                       count, elapsed.count());

    return count;
}

References kcenon::pacs::network::association::accepted_context_id(), kcenon::pacs::error_codes::association_not_established, cancel(), kcenon::pacs::services::query_scu_config::cancel_on_max, config_, kcenon::pacs::error_codes::find_unexpected_command, get_sop_class_uid(), kcenon::pacs::network::association::is_established(), logger_, kcenon::pacs::services::query_scu_config::max_results, next_message_id(), kcenon::pacs::error_codes::no_acceptable_context, kcenon::pacs::pacs_error(), queries_performed_, kcenon::pacs::network::association::receive_dimse(), kcenon::pacs::network::association::send_dimse(), kcenon::pacs::services::query_scu_config::timeout, kcenon::pacs::services::to_string(), and total_matches_.

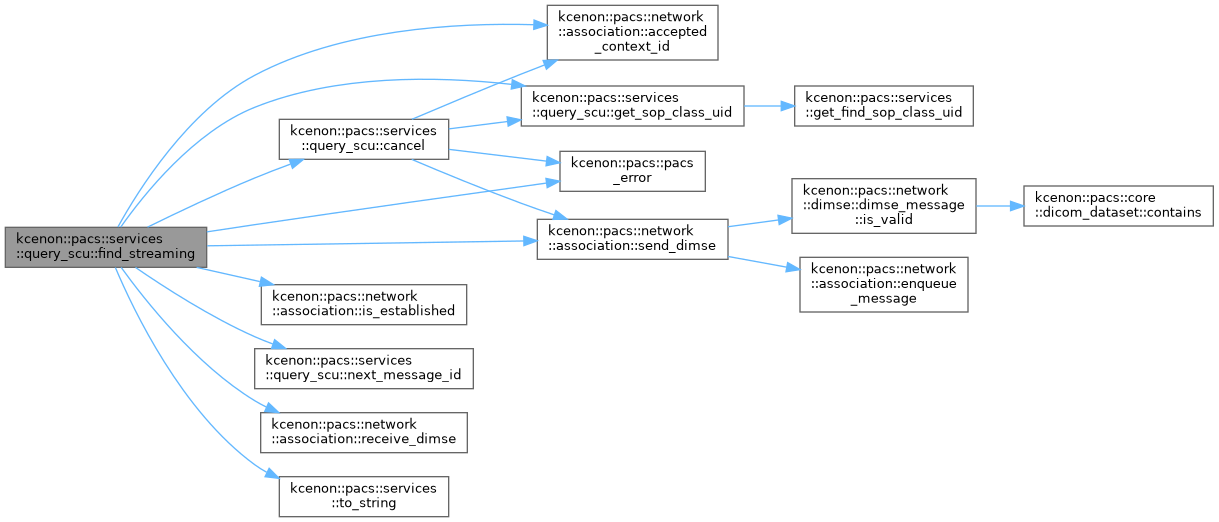

Here is the call graph for this function:

◆ find_studies()

network::Result< query_result > kcenon::pacs::services::query_scu::find_studies	(	network::association &	assoc,
		const study_query_keys &	keys )

nodiscard

Query for studies.

Parameters

assoc	The established association to use
keys	Study-level query keys

Returns: Result containing query_result on success

Definition at line 295 of file query_scu.cpp.

                                  {

    auto saved_level = config_.level;
    config_.level = query_level::study;

    auto query_ds = build_query_dataset(keys);
    auto result = find(assoc, query_ds);

    config_.level = saved_level;
    return result;
}

References build_query_dataset(), config_, find(), kcenon::pacs::services::query_scu_config::level, and kcenon::pacs::services::study.

Referenced by kcenon::pacs::workflow::auto_prefetch_service::query_prior_studies(), and kcenon::pacs::web::endpoints::register_remote_nodes_endpoints_impl().

Here is the call graph for this function:

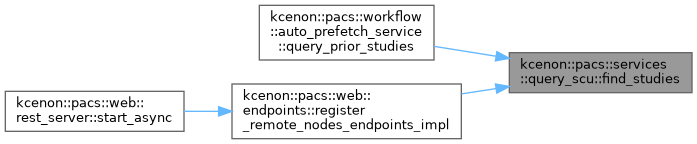

Here is the caller graph for this function:

◆ get_sop_class_uid()

std::string_view kcenon::pacs::services::query_scu::get_sop_class_uid ( ) const

nodiscardprivatenoexcept

Get SOP Class UID based on current configuration.

Definition at line 507 of file query_scu.cpp.

                                                           {
    return get_find_sop_class_uid(config_.model);
}

References config_, kcenon::pacs::services::get_find_sop_class_uid(), and kcenon::pacs::services::query_scu_config::model.

Referenced by cancel(), find_impl(), and find_streaming().

Here is the call graph for this function:

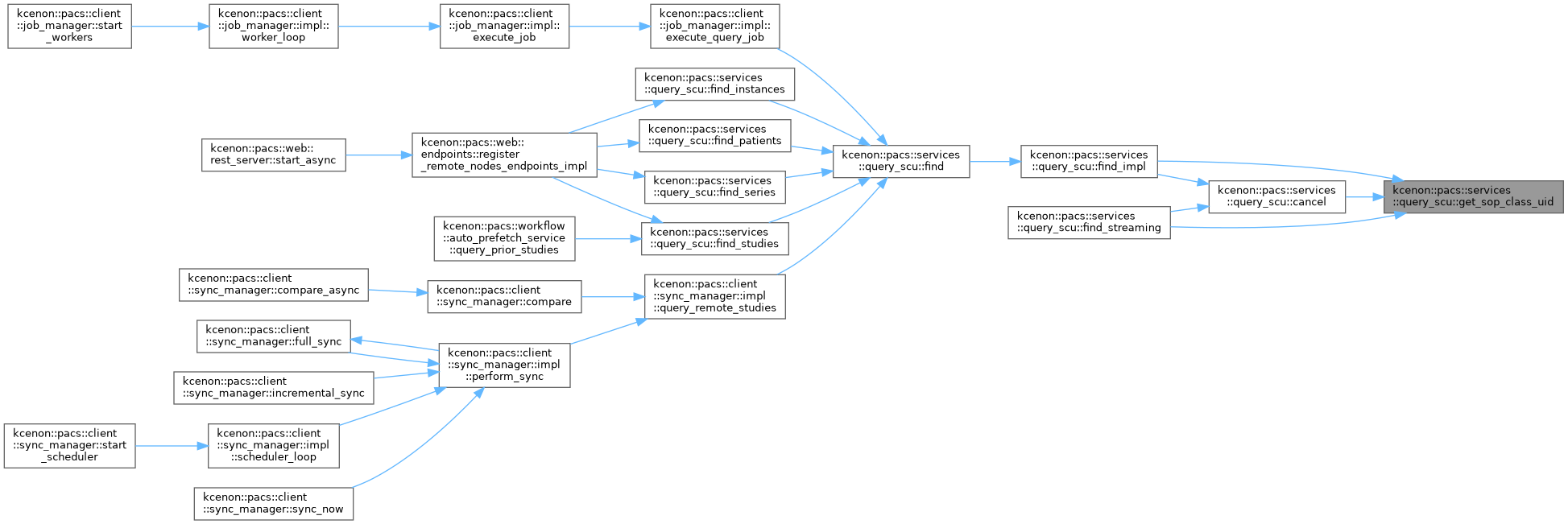

Here is the caller graph for this function:

◆ next_message_id()

uint16_t kcenon::pacs::services::query_scu::next_message_id ( )

nodiscardprivatenoexcept

Get the next message ID for DIMSE operations.

Definition at line 394 of file query_scu.cpp.

                                             {
    uint16_t id = message_id_counter_.fetch_add(1, std::memory_order_relaxed);
    // Wrap around at 0xFFFF, skip 0 (reserved)
    if (id == 0) {
        id = message_id_counter_.fetch_add(1, std::memory_order_relaxed);
    }
    return id;
}

References message_id_counter_.

Referenced by find(), and find_streaming().

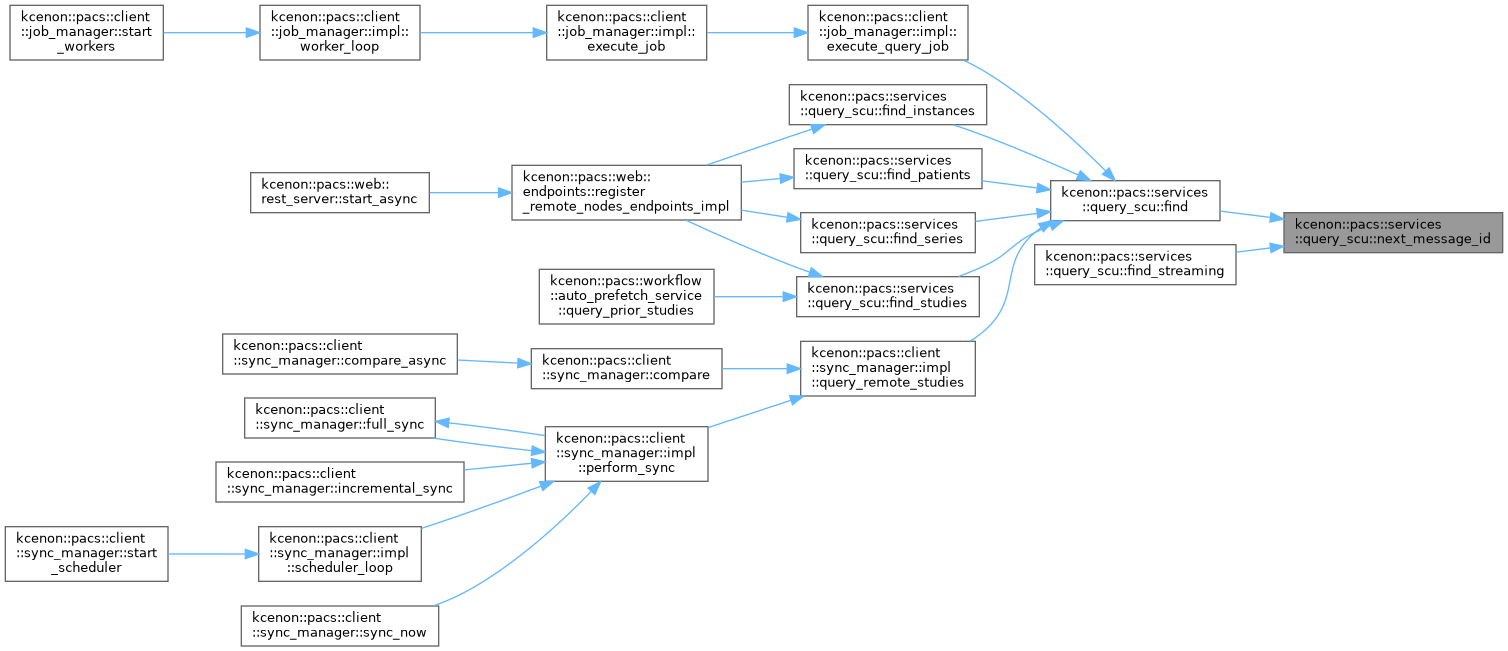

Here is the caller graph for this function:

◆ operator=() [1/2]

query_scu & kcenon::pacs::services::query_scu::operator= ( const query_scu & )

delete

◆ operator=() [2/2]

query_scu & kcenon::pacs::services::query_scu::operator= ( query_scu && )

delete

◆ queries_performed()

size_t kcenon::pacs::services::query_scu::queries_performed ( ) const

nodiscardnoexcept

Get the number of queries performed since construction.

Returns: Count of C-FIND requests sent

Definition at line 377 of file query_scu.cpp.

                                                   {
    return queries_performed_.load(std::memory_order_relaxed);
}

References queries_performed_.

◆ reset_statistics()

void kcenon::pacs::services::query_scu::reset_statistics ( )

noexcept

Reset statistics counters to zero.

Definition at line 385 of file query_scu.cpp.

                                          {
    queries_performed_.store(0, std::memory_order_relaxed);
    total_matches_.store(0, std::memory_order_relaxed);
}

References queries_performed_, and total_matches_.

◆ set_config()

void kcenon::pacs::services::query_scu::set_config ( const query_scu_config & config )

Update the SCU configuration.

Parameters

config New configuration options

Definition at line 365 of file query_scu.cpp.

                                                         {
    config_ = config;
}

References config(), and config_.

Here is the call graph for this function:

◆ total_matches()

size_t kcenon::pacs::services::query_scu::total_matches ( ) const

nodiscardnoexcept

Get the total number of matches received since construction.

Returns: Total count of matching datasets received

Definition at line 381 of file query_scu.cpp.

                                               {
    return total_matches_.load(std::memory_order_relaxed);
}

References total_matches_.

Member Data Documentation

◆ config_

query_scu_config kcenon::pacs::services::query_scu::config_

private

Configuration.

Definition at line 515 of file query_scu.h.

Referenced by config(), find_impl(), find_instances(), find_patients(), find_series(), find_streaming(), find_studies(), get_sop_class_uid(), and set_config().

◆ logger_

std::shared_ptr<di::ILogger> kcenon::pacs::services::query_scu::logger_

private

Logger instance for service logging.

Definition at line 512 of file query_scu.h.

Referenced by find_impl(), and find_streaming().

◆ message_id_counter_

std::atomic<uint16_t> kcenon::pacs::services::query_scu::message_id_counter_ {1}

private

Message ID counter.

Definition at line 518 of file query_scu.h.

518{1};

Referenced by next_message_id().

◆ queries_performed_

std::atomic<size_t> kcenon::pacs::services::query_scu::queries_performed_ {0}

private

Statistics: number of queries performed.

Definition at line 521 of file query_scu.h.

521{0};

Referenced by find_impl(), find_streaming(), queries_performed(), and reset_statistics().

◆ total_matches_

std::atomic<size_t> kcenon::pacs::services::query_scu::total_matches_ {0}

private

Statistics: total number of matches received.

Definition at line 524 of file query_scu.h.

524{0};

Referenced by find_impl(), find_streaming(), reset_statistics(), and total_matches().

The documentation for this class was generated from the following files:

include/kcenon/pacs/services/query_scu.h
src/services/query_scu.cpp

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ query_scu() [1/4]

◆ query_scu() [2/4]

◆ ~query_scu()

◆ query_scu() [3/4]

◆ query_scu() [4/4]

Member Function Documentation

◆ build_query_dataset() [1/4]

◆ build_query_dataset() [2/4]

◆ build_query_dataset() [3/4]

◆ build_query_dataset() [4/4]

◆ cancel()

◆ config()

◆ find()

◆ find_impl()

◆ find_instances()

◆ find_patients()

◆ find_series()

◆ find_streaming()

◆ find_studies()

◆ get_sop_class_uid()

◆ next_message_id()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ queries_performed()

◆ reset_statistics()

◆ set_config()

◆ total_matches()

Member Data Documentation

◆ config_

◆ logger_

◆ message_id_counter_

◆ queries_performed_

◆ total_matches_
