#include <mpps_scp.h>

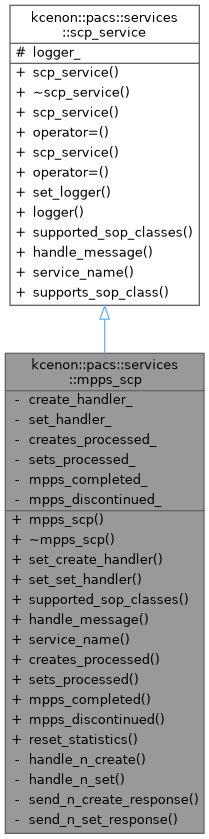

Inheritance diagram for kcenon::pacs::services::mpps_scp:

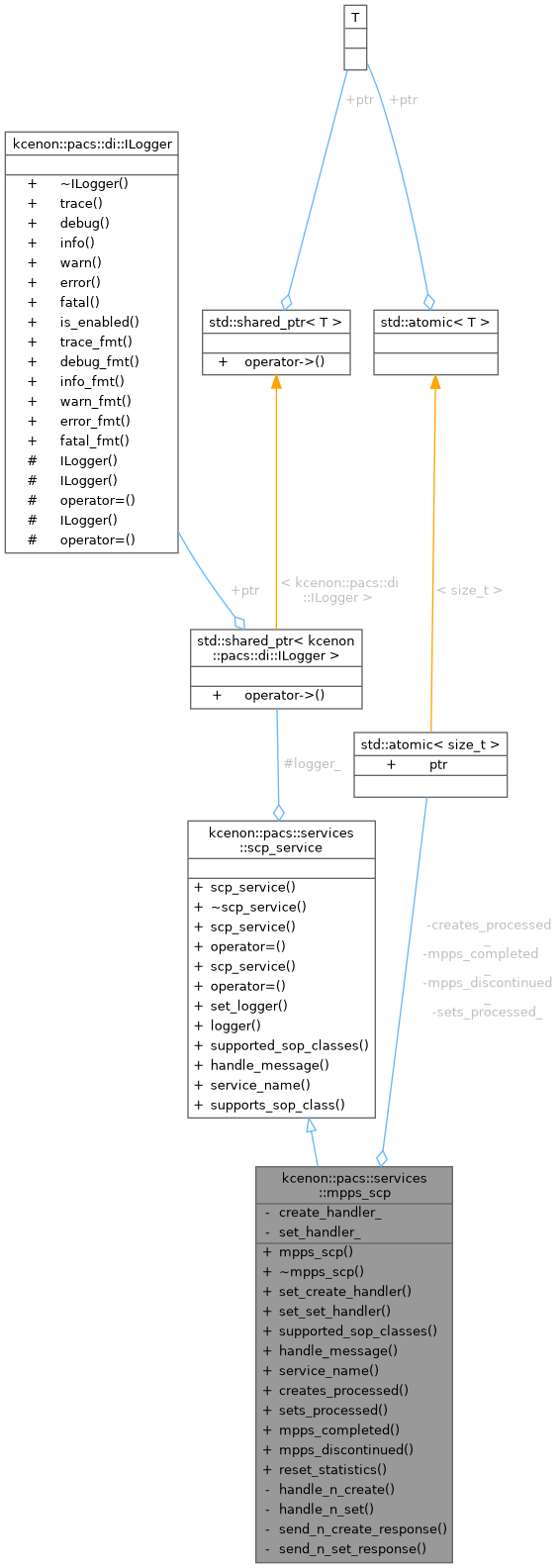

Collaboration diagram for kcenon::pacs::services::mpps_scp:

Public Member Functions
	mpps_scp (std::shared_ptr< di::ILogger > logger=nullptr)
	Construct MPPS SCP with optional logger.

	~mpps_scp () override=default

void	set_create_handler (mpps_create_handler handler)
	Set the N-CREATE handler function.

void	set_set_handler (mpps_set_handler handler)
	Set the N-SET handler function.

std::vector< std::string >	supported_sop_classes () const override
	Get supported SOP Class UIDs.

network::Result< std::monostate >	handle_message (network::association &assoc, uint8_t context_id, const network::dimse::dimse_message &request) override
	Handle an incoming DIMSE message (N-CREATE-RQ or N-SET-RQ)

std::string_view	service_name () const noexcept override
	Get the service name.

size_t	creates_processed () const noexcept
	Get total number of N-CREATE requests processed.

size_t	sets_processed () const noexcept
	Get total number of N-SET requests processed.

size_t	mpps_completed () const noexcept
	Get number of MPPS completed successfully.

size_t	mpps_discontinued () const noexcept
	Get number of MPPS discontinued.

void	reset_statistics () noexcept
	Reset statistics counters.

Public Member Functions inherited from kcenon::pacs::services::scp_service
	scp_service (std::shared_ptr< di::ILogger > logger=nullptr)
	Construct SCP service with optional logger.

virtual	~scp_service ()=default

	scp_service (const scp_service &)=delete

scp_service &	operator= (const scp_service &)=delete

	scp_service (scp_service &&)=default

scp_service &	operator= (scp_service &&)=default

void	set_logger (std::shared_ptr< di::ILogger > logger)
	Set the logger instance.

const std::shared_ptr< di::ILogger > &	logger () const noexcept
	Get the current logger instance.

bool	supports_sop_class (std::string_view sop_class_uid) const
	Check if this service supports a specific SOP Class.

Private Member Functions
network::Result< std::monostate >	handle_n_create (network::association &assoc, uint8_t context_id, const network::dimse::dimse_message &request)
	Handle N-CREATE request.

network::Result< std::monostate >	handle_n_set (network::association &assoc, uint8_t context_id, const network::dimse::dimse_message &request)
	Handle N-SET request.

network::Result< std::monostate >	send_n_create_response (network::association &assoc, uint8_t context_id, uint16_t message_id, const std::string &sop_instance_uid, network::dimse::status_code status)
	Send N-CREATE response.

network::Result< std::monostate >	send_n_set_response (network::association &assoc, uint8_t context_id, uint16_t message_id, const std::string &sop_instance_uid, network::dimse::status_code status)
	Send N-SET response.

Private Attributes
mpps_create_handler	create_handler_

mpps_set_handler	set_handler_

std::atomic< size_t >	creates_processed_ {0}

std::atomic< size_t >	sets_processed_ {0}

std::atomic< size_t >	mpps_completed_ {0}

std::atomic< size_t >	mpps_discontinued_ {0}

Additional Inherited Members
Protected Attributes inherited from kcenon::pacs::services::scp_service
std::shared_ptr< di::ILogger >	logger_
	Logger instance for service logging.

Detailed Description

Definition at line 231 of file mpps_scp.h.

Constructor & Destructor Documentation

◆ mpps_scp()

kcenon::pacs::services::mpps_scp::mpps_scp ( std::shared_ptr< di::ILogger > logger = nullptr )

explicit

Construct MPPS SCP with optional logger.

Parameters

logger Logger instance for service logging (nullptr uses null_logger)

Definition at line 23 of file mpps_scp.cpp.

24 : scp_service(std::move(logger)) {}

kcenon::pacs::services::scp_service::logger

const std::shared_ptr< di::ILogger > & logger() const noexcept

Get the current logger instance.

Definition scp_service.h:93

kcenon::pacs::services::scp_service::scp_service

scp_service(std::shared_ptr< di::ILogger > logger=nullptr)

Construct SCP service with optional logger.

Definition scp_service.h:64

◆ ~mpps_scp()

kcenon::pacs::services::mpps_scp::~mpps_scp ( )

overridedefault

Member Function Documentation

◆ creates_processed()

size_t kcenon::pacs::services::mpps_scp::creates_processed ( ) const

nodiscardnoexcept

Get total number of N-CREATE requests processed.

Returns: Number of MPPS instances created

Definition at line 77 of file mpps_scp.cpp.

                                                  {
    return creates_processed_.load();
}

References creates_processed_.

◆ handle_message()

network::Result< std::monostate > kcenon::pacs::services::mpps_scp::handle_message	(	network::association &	assoc,
		uint8_t	context_id,
		const network::dimse::dimse_message &	request )

nodiscardoverridevirtual

Handle an incoming DIMSE message (N-CREATE-RQ or N-SET-RQ)

Processes N-CREATE and N-SET requests for MPPS management.

Parameters

assoc	The association on which the message was received
context_id	The presentation context ID for the message
request	The incoming N-CREATE-RQ or N-SET-RQ message

Returns: Success or error if the message cannot be processed

Implements kcenon::pacs::services::scp_service.

Definition at line 46 of file mpps_scp.cpp.

                                              {

    using namespace network::dimse;

    // Route to appropriate handler based on command type
    switch (request.command()) {
        case command_field::n_create_rq:
            return handle_n_create(assoc, context_id, request);

        case command_field::n_set_rq:
            return handle_n_set(assoc, context_id, request);

        default:
            return kcenon::pacs::pacs_void_error(
                kcenon::pacs::error_codes::mpps_unexpected_command,
                "Unexpected command for MPPS SCP: " +
                std::string(to_string(request.command())));
    }
}

References kcenon::pacs::network::dimse::dimse_message::command(), handle_n_create(), handle_n_set(), kcenon::pacs::error_codes::mpps_unexpected_command, kcenon::pacs::pacs_void_error(), and kcenon::pacs::services::to_string().

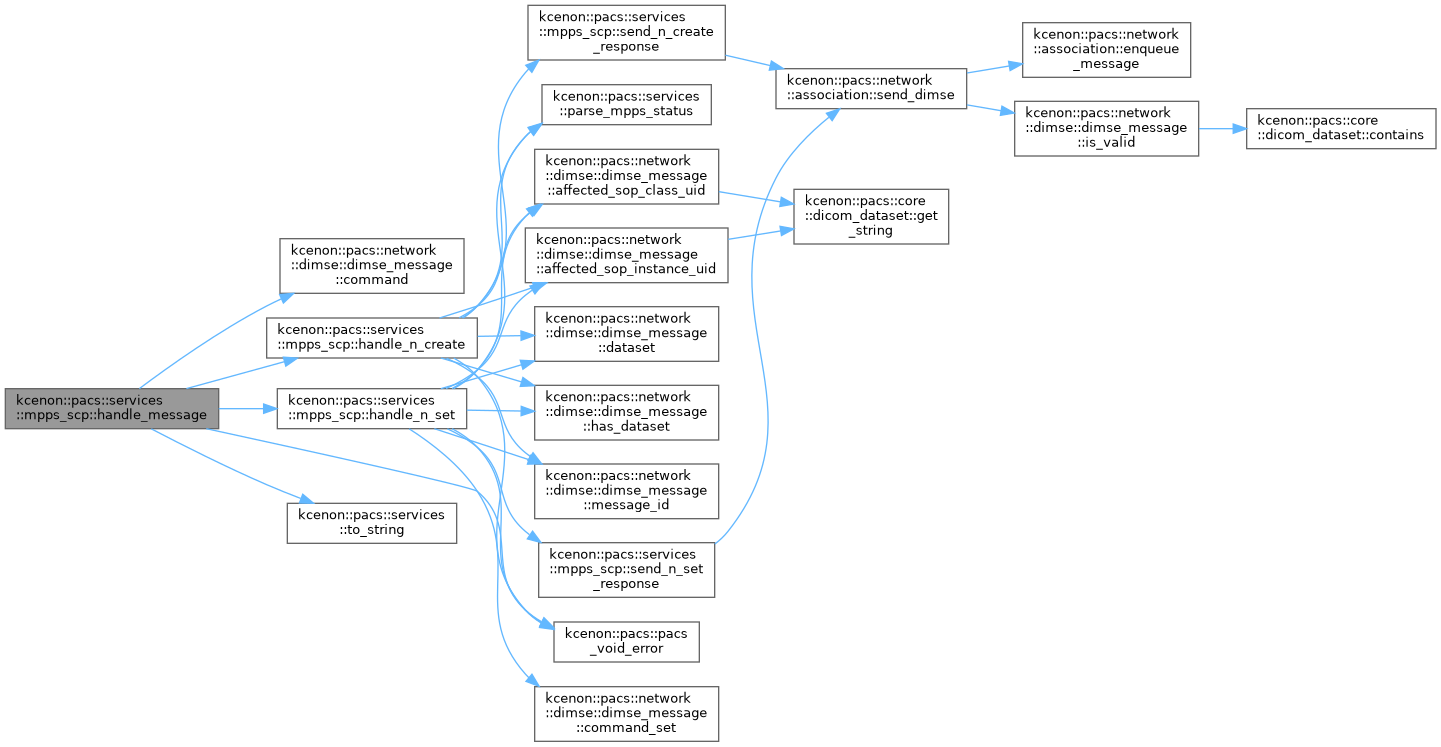

Here is the call graph for this function:

◆ handle_n_create()

network::Result< std::monostate > kcenon::pacs::services::mpps_scp::handle_n_create	(	network::association &	assoc,
		uint8_t	context_id,
		const network::dimse::dimse_message &	request )

nodiscardprivate

Handle N-CREATE request.

Creates a new MPPS instance with IN PROGRESS status.

Parameters

assoc	The association
context_id	The presentation context ID
request	The N-CREATE-RQ message

Returns: Success or error

Definition at line 104 of file mpps_scp.cpp.

                                              {

    using namespace network::dimse;

    // Verify we have a handler configured
    if (!create_handler_) {
        return kcenon::pacs::pacs_void_error(
            kcenon::pacs::error_codes::mpps_handler_not_set,
            "No N-CREATE handler configured for MPPS SCP");
    }

    // Verify the SOP Class is MPPS
    auto sop_class_uid = request.affected_sop_class_uid();
    if (sop_class_uid != mpps_sop_class_uid) {
        return send_n_create_response(
            assoc, context_id, request.message_id(),
            "", status_refused_sop_class_not_supported);
    }

    // Get the SOP Instance UID from the request
    auto sop_instance_uid = request.affected_sop_instance_uid();
    if (sop_instance_uid.empty()) {
        return send_n_create_response(
            assoc, context_id, request.message_id(),
            "", status_error_missing_attribute);
    }

    // Verify we have a dataset
    if (!request.has_dataset()) {
        return send_n_create_response(
            assoc, context_id, request.message_id(),
            sop_instance_uid, status_error_cannot_understand);
    }

    const auto& dataset = request.dataset().value().get();

    // Build MPPS instance from request data
    mpps_instance instance;
    instance.sop_instance_uid = sop_instance_uid;
    instance.status = mpps_status::in_progress;
    instance.data = dataset;

    // Extract Performed Station AE Title if present
    if (dataset.contains(mpps_tags::performed_station_ae_title)) {
        instance.station_ae = dataset.get_string(mpps_tags::performed_station_ae_title);
    }

    // Validate initial status is IN PROGRESS
    if (dataset.contains(mpps_tags::performed_procedure_step_status)) {
        auto status_str = dataset.get_string(mpps_tags::performed_procedure_step_status);
        auto parsed_status = parse_mpps_status(status_str);

        if (!parsed_status.has_value() ||
            parsed_status.value() != mpps_status::in_progress) {
            // N-CREATE must have IN PROGRESS status
            return send_n_create_response(
                assoc, context_id, request.message_id(),
                sop_instance_uid, status_error_cannot_understand);
        }
    }

    // Call the handler to create the MPPS instance
    auto result = create_handler_(instance);
    if (result.is_err()) {
        return send_n_create_response(
            assoc, context_id, request.message_id(),
            sop_instance_uid, status_error_unable_to_process);
    }

    // Update statistics
    ++creates_processed_;

    // Send success response
    return send_n_create_response(
        assoc, context_id, request.message_id(),
        sop_instance_uid, status_success);
}

Referenced by handle_message().

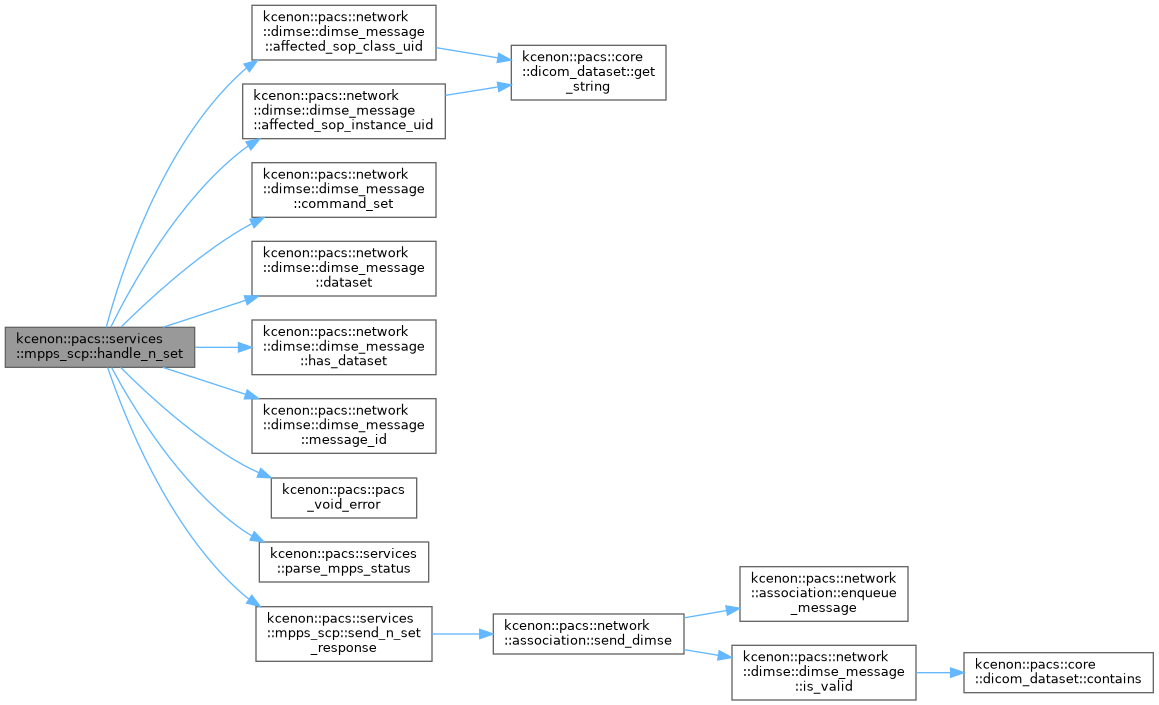

Here is the call graph for this function:

Here is the caller graph for this function:

◆ handle_n_set()

network::Result< std::monostate > kcenon::pacs::services::mpps_scp::handle_n_set	(	network::association &	assoc,
		uint8_t	context_id,
		const network::dimse::dimse_message &	request )

nodiscardprivate

Handle N-SET request.

Updates an existing MPPS instance to COMPLETED or DISCONTINUED.

Parameters

assoc	The association
context_id	The presentation context ID
request	The N-SET-RQ message

Returns: Success or error

Definition at line 189 of file mpps_scp.cpp.

                                              {

    using namespace network::dimse;

    // Verify we have a handler configured
    if (!set_handler_) {
        return kcenon::pacs::pacs_void_error(
            kcenon::pacs::error_codes::mpps_handler_not_set,
            "No N-SET handler configured for MPPS SCP");
    }

    // Verify the SOP Class is MPPS
    auto sop_class_uid = request.affected_sop_class_uid();
    if (sop_class_uid.empty()) {
        // For N-SET, use requested SOP class if affected is empty
        sop_class_uid = request.command_set().get_string(
            tag_requested_sop_class_uid);
    }

    if (sop_class_uid != mpps_sop_class_uid) {
        return send_n_set_response(
            assoc, context_id, request.message_id(),
            "", status_refused_sop_class_not_supported);
    }

    // Get the SOP Instance UID (from Requested SOP Instance UID for N-SET)
    auto sop_instance_uid = request.command_set().get_string(
        tag_requested_sop_instance_uid);

    if (sop_instance_uid.empty()) {
        // Try affected SOP instance UID as fallback
        sop_instance_uid = request.affected_sop_instance_uid();
    }

    if (sop_instance_uid.empty()) {
        return send_n_set_response(
            assoc, context_id, request.message_id(),
            "", status_error_missing_attribute);
    }

    // Verify we have a dataset with modifications
    if (!request.has_dataset()) {
        return send_n_set_response(
            assoc, context_id, request.message_id(),
            sop_instance_uid, status_error_cannot_understand);
    }

    const auto& dataset = request.dataset().value().get();

    // Extract and validate the new status
    if (!dataset.contains(mpps_tags::performed_procedure_step_status)) {
        return send_n_set_response(
            assoc, context_id, request.message_id(),
            sop_instance_uid, status_error_missing_attribute);
    }

    auto status_str = dataset.get_string(mpps_tags::performed_procedure_step_status);
    auto new_status = parse_mpps_status(status_str);

    if (!new_status.has_value()) {
        return send_n_set_response(
            assoc, context_id, request.message_id(),
            sop_instance_uid, status_error_cannot_understand);
    }

    // Validate status transition (must be to COMPLETED or DISCONTINUED)
    if (new_status.value() == mpps_status::in_progress) {
        // Cannot set back to IN PROGRESS
        return send_n_set_response(
            assoc, context_id, request.message_id(),
            sop_instance_uid, status_error_cannot_understand);
    }

    // Call the handler to update the MPPS instance
    auto result = set_handler_(sop_instance_uid, dataset, new_status.value());
    if (result.is_err()) {
        return send_n_set_response(
            assoc, context_id, request.message_id(),
            sop_instance_uid, status_error_unable_to_process);
    }

    // Update statistics
    ++sets_processed_;
    if (new_status.value() == mpps_status::completed) {
        ++mpps_completed_;
    } else if (new_status.value() == mpps_status::discontinued) {
        ++mpps_discontinued_;
    }

    // Send success response
    return send_n_set_response(
        assoc, context_id, request.message_id(),
        sop_instance_uid, status_success);
}

References kcenon::pacs::network::dimse::dimse_message::affected_sop_class_uid(), kcenon::pacs::network::dimse::dimse_message::affected_sop_instance_uid(), kcenon::pacs::network::dimse::dimse_message::command_set(), kcenon::pacs::services::completed, kcenon::pacs::network::dimse::dimse_message::dataset(), kcenon::pacs::services::discontinued, kcenon::pacs::network::dimse::dimse_message::has_dataset(), kcenon::pacs::services::in_progress, kcenon::pacs::network::dimse::dimse_message::message_id(), mpps_completed_, mpps_discontinued_, kcenon::pacs::error_codes::mpps_handler_not_set, kcenon::pacs::services::mpps_sop_class_uid, kcenon::pacs::pacs_void_error(), kcenon::pacs::services::parse_mpps_status(), kcenon::pacs::services::mpps_tags::performed_procedure_step_status, send_n_set_response(), set_handler_, and sets_processed_.

Referenced by handle_message().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mpps_completed()

size_t kcenon::pacs::services::mpps_scp::mpps_completed ( ) const

nodiscardnoexcept

Get number of MPPS completed successfully.

Returns: Number of MPPS with COMPLETED status

Definition at line 85 of file mpps_scp.cpp.

                                               {
    return mpps_completed_.load();
}

References mpps_completed_.

◆ mpps_discontinued()

size_t kcenon::pacs::services::mpps_scp::mpps_discontinued ( ) const

nodiscardnoexcept

Get number of MPPS discontinued.

Returns: Number of MPPS with DISCONTINUED status

Definition at line 89 of file mpps_scp.cpp.

                                                  {
    return mpps_discontinued_.load();
}

References mpps_discontinued_.

◆ reset_statistics()

void kcenon::pacs::services::mpps_scp::reset_statistics ( )

noexcept

Reset statistics counters.

Definition at line 93 of file mpps_scp.cpp.

                                         {
    creates_processed_ = 0;
    sets_processed_ = 0;
    mpps_completed_ = 0;
    mpps_discontinued_ = 0;
}

References creates_processed_, mpps_completed_, mpps_discontinued_, and sets_processed_.

◆ send_n_create_response()

network::Result< std::monostate > kcenon::pacs::services::mpps_scp::send_n_create_response	(	network::association &	assoc,
		uint8_t	context_id,
		uint16_t	message_id,
		const std::string &	sop_instance_uid,
		network::dimse::status_code	status )

nodiscardprivate

Send N-CREATE response.

Parameters

assoc	The association
context_id	The presentation context ID
message_id	The original request message ID
sop_instance_uid	The SOP Instance UID
status	The response status code

Returns: Success or error

Definition at line 291 of file mpps_scp.cpp.

                                    {

    using namespace network::dimse;

    // Create N-CREATE response message
    dimse_message response{command_field::n_create_rsp, 0};
    response.set_message_id_responded_to(message_id);
    response.set_affected_sop_class_uid(mpps_sop_class_uid);
    response.set_status(status);

    if (!sop_instance_uid.empty()) {
        response.set_affected_sop_instance_uid(sop_instance_uid);
    }

    // Send the response
    return assoc.send_dimse(context_id, response);
}

References kcenon::pacs::services::mpps_sop_class_uid, and kcenon::pacs::network::association::send_dimse().

Referenced by handle_n_create().

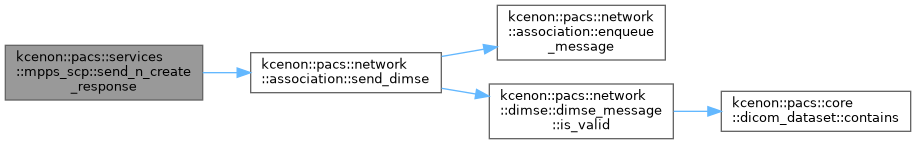

Here is the call graph for this function:

Here is the caller graph for this function:

◆ send_n_set_response()

network::Result< std::monostate > kcenon::pacs::services::mpps_scp::send_n_set_response	(	network::association &	assoc,
		uint8_t	context_id,
		uint16_t	message_id,
		const std::string &	sop_instance_uid,
		network::dimse::status_code	status )

nodiscardprivate

Send N-SET response.

Parameters

assoc	The association
context_id	The presentation context ID
message_id	The original request message ID
sop_instance_uid	The SOP Instance UID
status	The response status code

Returns: Success or error

Definition at line 314 of file mpps_scp.cpp.

                                    {

    using namespace network::dimse;

    // Create N-SET response message
    dimse_message response{command_field::n_set_rsp, 0};
    response.set_message_id_responded_to(message_id);
    response.set_affected_sop_class_uid(mpps_sop_class_uid);
    response.set_status(status);

    if (!sop_instance_uid.empty()) {
        response.set_affected_sop_instance_uid(sop_instance_uid);
    }

    // Send the response
    return assoc.send_dimse(context_id, response);
}

References kcenon::pacs::services::mpps_sop_class_uid, and kcenon::pacs::network::association::send_dimse().

Referenced by handle_n_set().

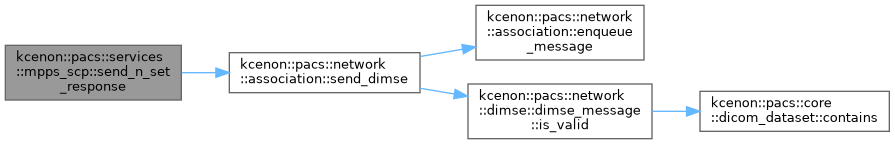

Here is the call graph for this function:

Here is the caller graph for this function:

◆ service_name()

std::string_view kcenon::pacs::services::mpps_scp::service_name ( ) const

nodiscardoverridevirtualnoexcept

Get the service name.

Returns: "MPPS SCP"

Implements kcenon::pacs::services::scp_service.

Definition at line 69 of file mpps_scp.cpp.

                                                     {
    return "MPPS SCP";
}

◆ set_create_handler()

void kcenon::pacs::services::mpps_scp::set_create_handler ( mpps_create_handler handler )

Set the N-CREATE handler function.

The handler is called for each N-CREATE request to create a new MPPS instance in the database or forward to RIS/HIS.

Parameters

handler The N-CREATE handler function

Definition at line 30 of file mpps_scp.cpp.

                                                             {
    create_handler_ = std::move(handler);
}

References create_handler_.

◆ set_set_handler()

void kcenon::pacs::services::mpps_scp::set_set_handler ( mpps_set_handler handler )

Set the N-SET handler function.

The handler is called for each N-SET request to update an existing MPPS instance with COMPLETED or DISCONTINUED status.

Parameters

handler The N-SET handler function

Definition at line 34 of file mpps_scp.cpp.

                                                       {
    set_handler_ = std::move(handler);
}

References set_handler_.

◆ sets_processed()

size_t kcenon::pacs::services::mpps_scp::sets_processed ( ) const

nodiscardnoexcept

Get total number of N-SET requests processed.

Returns: Number of MPPS instances updated

Definition at line 81 of file mpps_scp.cpp.

                                               {
    return sets_processed_.load();
}

References sets_processed_.

◆ supported_sop_classes()

std::vector< std::string > kcenon::pacs::services::mpps_scp::supported_sop_classes ( ) const

nodiscardoverridevirtual

Get supported SOP Class UIDs.

Returns: Vector containing MPPS SOP Class UID

Implements kcenon::pacs::services::scp_service.

Definition at line 42 of file mpps_scp.cpp.

                                                           {
    return {std::string(mpps_sop_class_uid)};
}

References kcenon::pacs::services::mpps_sop_class_uid.

Member Data Documentation

◆ create_handler_

mpps_create_handler kcenon::pacs::services::mpps_scp::create_handler_

private

Definition at line 413 of file mpps_scp.h.

Referenced by handle_n_create(), and set_create_handler().

◆ creates_processed_

std::atomic<size_t> kcenon::pacs::services::mpps_scp::creates_processed_ {0}

private

Definition at line 416 of file mpps_scp.h.

416{0};

Referenced by creates_processed(), handle_n_create(), and reset_statistics().

◆ mpps_completed_

std::atomic<size_t> kcenon::pacs::services::mpps_scp::mpps_completed_ {0}

private

Definition at line 418 of file mpps_scp.h.

418{0};

Referenced by handle_n_set(), mpps_completed(), and reset_statistics().

◆ mpps_discontinued_

std::atomic<size_t> kcenon::pacs::services::mpps_scp::mpps_discontinued_ {0}

private

Definition at line 419 of file mpps_scp.h.

419{0};

Referenced by handle_n_set(), mpps_discontinued(), and reset_statistics().

◆ set_handler_

mpps_set_handler kcenon::pacs::services::mpps_scp::set_handler_

private

Definition at line 414 of file mpps_scp.h.

Referenced by handle_n_set(), and set_set_handler().

◆ sets_processed_

std::atomic<size_t> kcenon::pacs::services::mpps_scp::sets_processed_ {0}

private

Definition at line 417 of file mpps_scp.h.

417{0};

Referenced by handle_n_set(), reset_statistics(), and sets_processed().

The documentation for this class was generated from the following files:

include/kcenon/pacs/services/mpps_scp.h
src/services/mpps_scp.cpp

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ mpps_scp()

◆ ~mpps_scp()

Member Function Documentation

◆ creates_processed()

◆ handle_message()

◆ handle_n_create()

◆ handle_n_set()

◆ mpps_completed()

◆ mpps_discontinued()

◆ reset_statistics()

◆ send_n_create_response()

◆ send_n_set_response()

◆ service_name()

◆ set_create_handler()

◆ set_set_handler()

◆ sets_processed()

◆ supported_sop_classes()

Member Data Documentation

◆ create_handler_

◆ creates_processed_

◆ mpps_completed_

◆ mpps_discontinued_

◆ set_handler_

◆ sets_processed_
