kcenon::pacs::services::storage_scp Class Reference

#include <storage_scp.h>

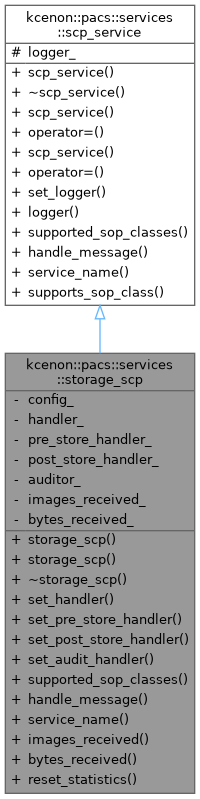

Inheritance diagram for kcenon::pacs::services::storage_scp:

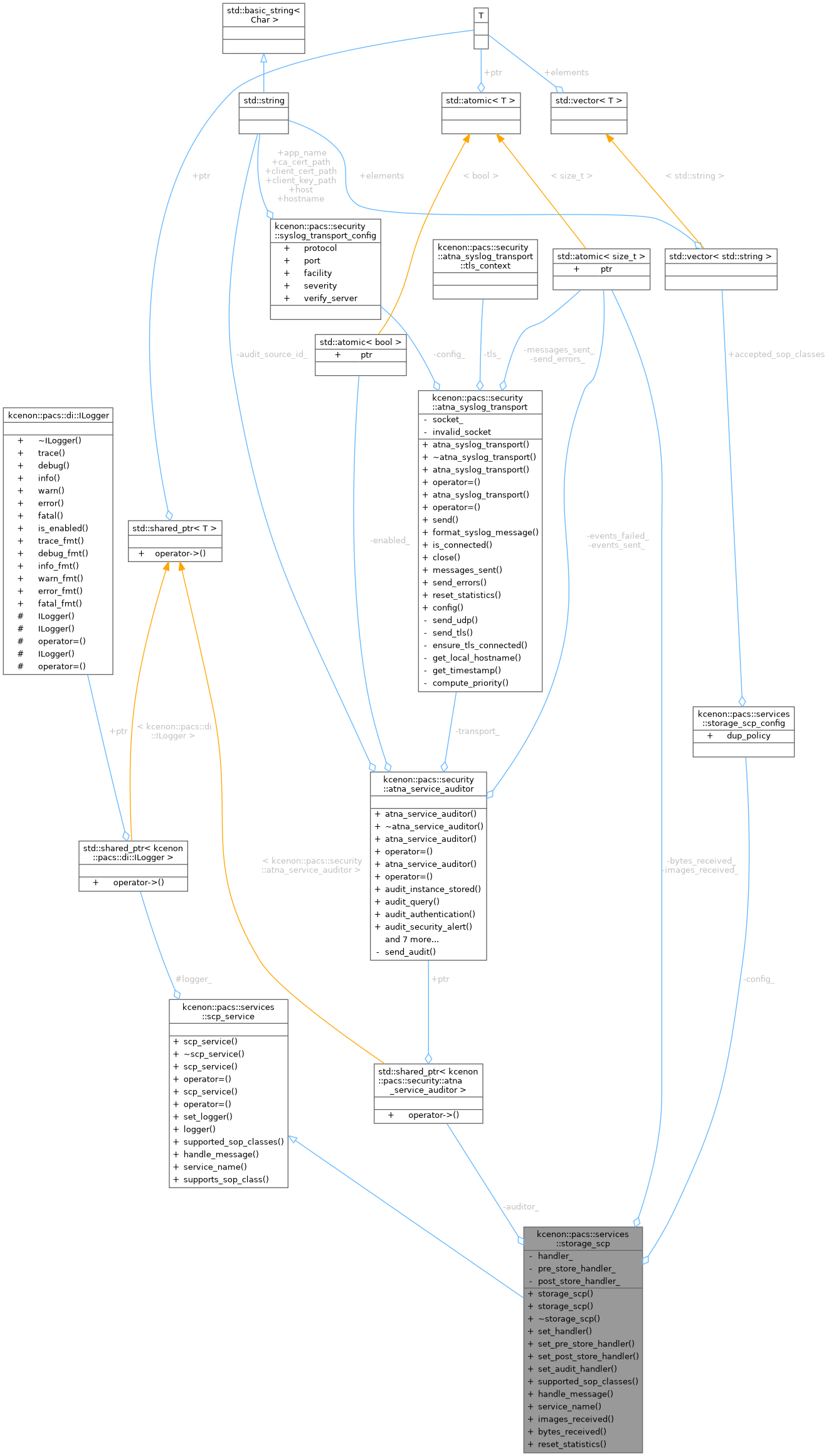

Collaboration diagram for kcenon::pacs::services::storage_scp:

Public Member Functions
	storage_scp (std::shared_ptr< di::ILogger > logger=nullptr)
	Construct a Storage SCP with default configuration.
	storage_scp (const storage_scp_config &config, std::shared_ptr< di::ILogger > logger=nullptr)
	Construct a Storage SCP with custom configuration.
	~storage_scp () override=default
void	set_handler (storage_handler handler)
	Set the storage handler callback.
void	set_pre_store_handler (pre_store_handler handler)
	Set the pre-store validation handler.
void	set_post_store_handler (post_store_handler handler)
void	set_audit_handler (std::shared_ptr< kcenon::pacs::security::atna_service_auditor > auditor)
	Set the ATNA audit handler for C-STORE operations.
std::vector< std::string >	supported_sop_classes () const override
	Get supported SOP Class UIDs.
network::Result< std::monostate >	handle_message (network::association &assoc, uint8_t context_id, const network::dimse::dimse_message &request) override
	Handle an incoming DIMSE message (C-STORE-RQ)
std::string_view	service_name () const noexcept override
	Get the service name.
size_t	images_received () const noexcept
	Get the number of images received since construction.
size_t	bytes_received () const noexcept
	Get the total bytes received since construction.
void	reset_statistics () noexcept
	Reset statistics counters to zero.
Public Member Functions inherited from kcenon::pacs::services::scp_service
	scp_service (std::shared_ptr< di::ILogger > logger=nullptr)
	Construct SCP service with optional logger.
virtual	~scp_service ()=default
	scp_service (const scp_service &)=delete
scp_service &	operator= (const scp_service &)=delete
	scp_service (scp_service &&)=default
scp_service &	operator= (scp_service &&)=default
void	set_logger (std::shared_ptr< di::ILogger > logger)
	Set the logger instance.
const std::shared_ptr< di::ILogger > &	logger () const noexcept
	Get the current logger instance.
bool	supports_sop_class (std::string_view sop_class_uid) const
	Check if this service supports a specific SOP Class.

Private Attributes
storage_scp_config	config_
	Configuration.
storage_handler	handler_
	Main storage handler.
pre_store_handler	pre_store_handler_
	Pre-store validation handler.
post_store_handler	post_store_handler_
	Post-store notification handler.
std::shared_ptr< kcenon::pacs::security::atna_service_auditor >	auditor_
	ATNA audit handler.
std::atomic< size_t >	images_received_ {0}
	Statistics: number of images received.
std::atomic< size_t >	bytes_received_ {0}
	Statistics: total bytes received.

Additional Inherited Members
Protected Attributes inherited from kcenon::pacs::services::scp_service
std::shared_ptr< di::ILogger >	logger_
	Logger instance for service logging.

Detailed Description

Definition at line 161 of file storage_scp.h.

Constructor & Destructor Documentation

storage_scp() [1/2]

kcenon::pacs::services::storage_scp::storage_scp ( std::shared_ptr< di::ILogger > logger = nullptr )

explicit

Construct a Storage SCP with default configuration.

Parameters

logger

Logger instance for service logging (nullptr uses null_logger)

Definition at line 26 of file storage_scp.cpp.

    : scp_service(std::move(logger)) {}

storage_scp() [2/2]

kcenon::pacs::services::storage_scp::storage_scp ( const storage_scp_config & config, std::shared_ptr< di::ILogger > logger = nullptr )

explicit

Construct a Storage SCP with custom configuration.

Parameters

config	Configuration options
logger	Logger instance for service logging (nullptr uses null_logger)

Definition at line 29 of file storage_scp.cpp.

    : scp_service(std::move(logger)), config_(config) {}

~storage_scp()

kcenon::pacs::services::storage_scp::~storage_scp ( )

overridedefault

Member Function Documentation

bytes_received()

size_t kcenon::pacs::services::storage_scp::bytes_received ( ) const

nodiscardnoexcept

Get the total bytes received since construction.

Returns

Total bytes of dataset data received

Definition at line 209 of file storage_scp.cpp.

                                                  {
    return bytes_received_.load(std::memory_order_relaxed);
}

References bytes_received_.

handle_message()

network::Result< std::monostate > kcenon::pacs::services::storage_scp::handle_message ( network::association & assoc, uint8_t context_id, const network::dimse::dimse_message & request )

nodiscardoverridevirtual

Handle an incoming DIMSE message (C-STORE-RQ)

Processes the C-STORE request:

1. Validates the message is a C-STORE-RQ
2. Extracts SOP Class/Instance UIDs
3. Calls pre-store handler (if registered)
4. Calls storage handler
5. Sends C-STORE-RSP with appropriate status

Parameters

assoc	The association on which the message was received
context_id	The presentation context ID for the message
request	The incoming C-STORE-RQ message

Returns

Success or error

Implements kcenon::pacs::services::scp_service.

Definition at line 65 of file storage_scp.cpp.

                                              {

    using namespace network::dimse;

    // Verify the message is a C-STORE request
    if (request.command() != command_field::c_store_rq) {
        return kcenon::pacs::pacs_void_error(
            kcenon::pacs::error_codes::store_unexpected_command,
            "Expected C-STORE-RQ but received " +
            std::string(to_string(request.command())));
    }

    // Extract SOP Class and Instance UIDs from the command set
    const auto sop_class_uid = request.affected_sop_class_uid();
    const auto sop_instance_uid = request.affected_sop_instance_uid();

    // Verify the request has a dataset
    if (!request.has_dataset()) {
        auto response = make_c_store_rsp(
            request.message_id(),
            sop_class_uid,
            sop_instance_uid,
            static_cast<status_code>(storage_status::cannot_understand)
        );
        return assoc.send_dimse(context_id, response);
    }

    // Get dataset reference (already validated above)
    const auto& dataset = request.dataset().value().get();

    // Pre-store validation
    if (pre_store_handler_ && !pre_store_handler_(dataset)) {
        auto response = make_c_store_rsp(
            request.message_id(),
            sop_class_uid,
            sop_instance_uid,
            static_cast<status_code>(storage_status::cannot_understand)
        );
        return assoc.send_dimse(context_id, response);
    }

    // Determine storage status
    storage_status status = storage_status::success;

    if (handler_) {
        // Call the registered storage handler
        status = handler_(
            dataset,
            std::string(assoc.calling_ae()),
            sop_class_uid,
            sop_instance_uid
        );
    }

    // Update statistics and notify on success or warning
    if (!is_failure(status)) {
        images_received_.fetch_add(1, std::memory_order_relaxed);
        // Estimate dataset size - use element count as approximation
        // In production, this would use actual serialized size
        bytes_received_.fetch_add(
            dataset.size() * sizeof(uint32_t),
            std::memory_order_relaxed
        );

        // Call post-store handler for cache invalidation and notifications
        auto patient_id = dataset.get_string(core::tags::patient_id);
        auto study_uid = dataset.get_string(core::tags::study_instance_uid);
        auto series_uid = dataset.get_string(core::tags::series_instance_uid);

        if (post_store_handler_) {
            post_store_handler_(
                dataset,
                patient_id,
                study_uid,
                series_uid,
                sop_instance_uid
            );
        }

        // Publish image received event
        kcenon::common::get_event_bus().publish(
            kcenon::pacs::events::image_received_event{
                patient_id,
                study_uid,
                series_uid,
                sop_instance_uid,
                sop_class_uid,
                std::string(assoc.calling_ae()),
                bytes_received_.load(std::memory_order_relaxed)
            }
        );
    } else {
        // Storage failed - publish failure event
        auto patient_id = dataset.get_string(core::tags::patient_id);

        kcenon::common::get_event_bus().publish(
            kcenon::pacs::events::storage_failed_event{
                patient_id,
                sop_instance_uid,
                std::string(assoc.calling_ae()),
                static_cast<int>(status),
                "C-STORE operation failed"
            }
        );
    }

    // Emit ATNA audit event
    if (auditor_) {
        auto audit_study_uid = dataset.get_string(core::tags::study_instance_uid);
        auto audit_patient_id = dataset.get_string(core::tags::patient_id);
        auditor_->audit_instance_stored(
            std::string(assoc.calling_ae()),
            std::string(assoc.called_ae()),
            audit_study_uid,
            audit_patient_id,
            !is_failure(status));
    }

    // Build and send the response
    auto response = make_c_store_rsp(
        request.message_id(),
        sop_class_uid,
        sop_instance_uid,
        static_cast<status_code>(status)
    );

    return assoc.send_dimse(context_id, response);
}

References kcenon::pacs::network::dimse::dimse_message::affected_sop_class_uid(), kcenon::pacs::network::dimse::dimse_message::affected_sop_instance_uid(), kcenon::pacs::security::atna_service_auditor::audit_instance_stored(), auditor_, bytes_received_, kcenon::pacs::network::association::called_ae(), kcenon::pacs::network::association::calling_ae(), kcenon::pacs::services::cannot_understand, kcenon::pacs::network::dimse::dimse_message::command(), kcenon::pacs::network::dimse::dimse_message::dataset(), handler_, kcenon::pacs::network::dimse::dimse_message::has_dataset(), images_received_, kcenon::pacs::services::is_failure(), kcenon::pacs::network::dimse::dimse_message::message_id(), kcenon::pacs::pacs_void_error(), kcenon::pacs::core::tags::patient_id, post_store_handler_, pre_store_handler_, kcenon::pacs::network::association::send_dimse(), kcenon::pacs::core::tags::series_instance_uid, kcenon::pacs::error_codes::store_unexpected_command, kcenon::pacs::core::tags::study_instance_uid, kcenon::pacs::services::success, and kcenon::pacs::services::to_string().

Here is the call graph for this function:

images_received()

size_t kcenon::pacs::services::storage_scp::images_received ( ) const

nodiscardnoexcept

Get the number of images received since construction.

Returns

Count of successfully received images

Definition at line 205 of file storage_scp.cpp.

                                                   {
    return images_received_.load(std::memory_order_relaxed);
}

References images_received_.

reset_statistics()

void kcenon::pacs::services::storage_scp::reset_statistics ( )

noexcept

Reset statistics counters to zero.

Definition at line 213 of file storage_scp.cpp.

                                            {
    images_received_.store(0, std::memory_order_relaxed);
    bytes_received_.store(0, std::memory_order_relaxed);
}

References bytes_received_, and images_received_.

service_name()

std::string_view kcenon::pacs::services::storage_scp::service_name ( ) const

nodiscardoverridevirtualnoexcept

Get the service name.

Returns

"Storage SCP"

Implements kcenon::pacs::services::scp_service.

Definition at line 197 of file storage_scp.cpp.

                                                        {
    return "Storage SCP";
}

set_audit_handler()

void kcenon::pacs::services::storage_scp::set_audit_handler

(

std::shared_ptr< kcenon::pacs::security::atna_service_auditor >

auditor

)

Set the ATNA audit handler for C-STORE operations.

When set, audit events are emitted for each C-STORE operation (both success and failure).

Parameters

auditor

Shared pointer to an ATNA service auditor

Definition at line 49 of file storage_scp.cpp.

                                                                   {
    auditor_ = std::move(auditor);
}

References auditor_.

set_handler()

void kcenon::pacs::services::storage_scp::set_handler

(

storage_handler

handler

)

Set the storage handler callback.

This handler is called for each received C-STORE request after pre-validation passes. It should perform the actual storage operation.

Parameters

handler

The storage callback function

Definition at line 37 of file storage_scp.cpp.

                                                     {
    handler_ = std::move(handler);
}

References handler_.

set_post_store_handler()

void kcenon::pacs::services::storage_scp::set_post_store_handler

(

post_store_handler

handler

)

Definition at line 45 of file storage_scp.cpp.

                                                                   {
    post_store_handler_ = std::move(handler);
}

References post_store_handler_.

Referenced by kcenon::pacs::client::routing_manager::attach_to_storage_scp(), and kcenon::pacs::client::routing_manager::detach_from_storage_scp().

Here is the caller graph for this function:

set_pre_store_handler()

void kcenon::pacs::services::storage_scp::set_pre_store_handler

(

pre_store_handler

handler

)

Set the pre-store validation handler.

This handler is called before the main storage handler to validate incoming datasets. Return false to reject the storage request.

Parameters

handler

The pre-validation callback function

Definition at line 41 of file storage_scp.cpp.

                                                                 {
    pre_store_handler_ = std::move(handler);
}

References pre_store_handler_.

supported_sop_classes()

std::vector< std::string > kcenon::pacs::services::storage_scp::supported_sop_classes ( ) const

nodiscardoverridevirtual

Get supported SOP Class UIDs.

Returns the list of Storage SOP Classes this service accepts. If no specific classes are configured, returns all standard storage classes.

Returns

Vector of accepted SOP Class UIDs

Implements kcenon::pacs::services::scp_service.

Definition at line 58 of file storage_scp.cpp.

                                                              {
    if (!config_.accepted_sop_classes.empty()) {
        return config_.accepted_sop_classes;
    }
    return get_standard_storage_sop_classes();
}

References kcenon::pacs::services::storage_scp_config::accepted_sop_classes, config_, and kcenon::pacs::services::get_standard_storage_sop_classes().

Here is the call graph for this function:

Member Data Documentation

auditor_

std::shared_ptr<kcenon::pacs::security::atna_service_auditor> kcenon::pacs::services::storage_scp::auditor_

private

ATNA audit handler.

Definition at line 328 of file storage_scp.h.

Referenced by handle_message(), and set_audit_handler().

bytes_received_

std::atomic<size_t> kcenon::pacs::services::storage_scp::bytes_received_ {0}

private

Statistics: total bytes received.

Definition at line 334 of file storage_scp.h.

{0};

Referenced by bytes_received(), handle_message(), and reset_statistics().

config_

storage_scp_config kcenon::pacs::services::storage_scp::config_

private

Configuration.

Definition at line 316 of file storage_scp.h.

Referenced by supported_sop_classes().

handler_

storage_handler kcenon::pacs::services::storage_scp::handler_

private

Main storage handler.

Definition at line 319 of file storage_scp.h.

Referenced by handle_message(), and set_handler().

images_received_

std::atomic<size_t> kcenon::pacs::services::storage_scp::images_received_ {0}

private

Statistics: number of images received.

Definition at line 331 of file storage_scp.h.

{0};

Referenced by handle_message(), images_received(), and reset_statistics().

post_store_handler_

post_store_handler kcenon::pacs::services::storage_scp::post_store_handler_

private

Post-store notification handler.

Definition at line 325 of file storage_scp.h.

Referenced by handle_message(), and set_post_store_handler().

pre_store_handler_

pre_store_handler kcenon::pacs::services::storage_scp::pre_store_handler_

private

Pre-store validation handler.

Definition at line 322 of file storage_scp.h.

Referenced by handle_message(), and set_pre_store_handler().

---

The documentation for this class was generated from the following files:

• include/kcenon/pacs/services/storage_scp.h
• src/services/storage_scp.cpp
