kcenon::pacs::services::verification_scp Class Reference

#include <verification_scp.h>

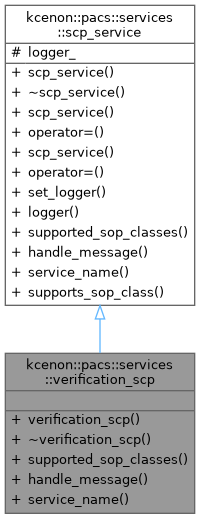

Inheritance diagram for kcenon::pacs::services::verification_scp:

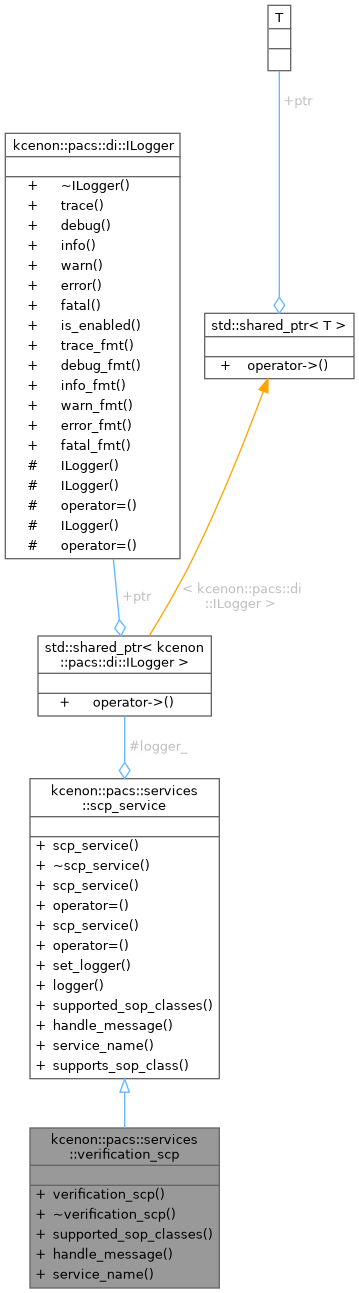

Collaboration diagram for kcenon::pacs::services::verification_scp:

Public Member Functions
	verification_scp (std::shared_ptr< di::ILogger > logger=nullptr)
	Construct Verification SCP with optional logger.
	~verification_scp () override=default
std::vector< std::string >	supported_sop_classes () const override
	Get supported SOP Class UIDs.
network::Result< std::monostate >	handle_message (network::association &assoc, uint8_t context_id, const network::dimse::dimse_message &request) override
	Handle an incoming DIMSE message (C-ECHO-RQ)
std::string_view	service_name () const noexcept override
	Get the service name.
Public Member Functions inherited from kcenon::pacs::services::scp_service
	scp_service (std::shared_ptr< di::ILogger > logger=nullptr)
	Construct SCP service with optional logger.
virtual	~scp_service ()=default
	scp_service (const scp_service &)=delete
scp_service &	operator= (const scp_service &)=delete
	scp_service (scp_service &&)=default
scp_service &	operator= (scp_service &&)=default
void	set_logger (std::shared_ptr< di::ILogger > logger)
	Set the logger instance.
const std::shared_ptr< di::ILogger > &	logger () const noexcept
	Get the current logger instance.
bool	supports_sop_class (std::string_view sop_class_uid) const
	Check if this service supports a specific SOP Class.

Additional Inherited Members
Protected Attributes inherited from kcenon::pacs::services::scp_service
std::shared_ptr< di::ILogger >	logger_
	Logger instance for service logging.

Detailed Description

Definition at line 74 of file verification_scp.h.

Constructor & Destructor Documentation

verification_scp()

kcenon::pacs::services::verification_scp::verification_scp ( std::shared_ptr< di::ILogger > logger = nullptr )

inlineexplicit

Construct Verification SCP with optional logger.

Parameters

logger

Logger instance for service logging (nullptr uses null_logger)

Definition at line 85 of file verification_scp.h.

        : scp_service(std::move(logger)) {}

~verification_scp()

kcenon::pacs::services::verification_scp::~verification_scp ( )

overridedefault

Member Function Documentation

handle_message()

network::Result< std::monostate > kcenon::pacs::services::verification_scp::handle_message ( network::association & assoc, uint8_t context_id, const network::dimse::dimse_message & request )

nodiscardoverridevirtual

Handle an incoming DIMSE message (C-ECHO-RQ)

Processes the C-ECHO request and sends a C-ECHO response with success status.

Parameters

assoc	The association on which the message was received
context_id	The presentation context ID for the message
request	The incoming C-ECHO-RQ message

Returns

Success or error if the message is not a valid C-ECHO-RQ

Note

This method rejects any message that is not a C-ECHO-RQ

Implements kcenon::pacs::services::scp_service.

Definition at line 21 of file verification_scp.cpp.

                                              {

    using namespace network::dimse;

    // Verify the message is a C-ECHO request
    if (request.command() != command_field::c_echo_rq) {
        return kcenon::pacs::pacs_void_error(
            kcenon::pacs::error_codes::echo_unexpected_command,
            "Expected C-ECHO-RQ but received " +
            std::string(to_string(request.command())));
    }

    // Build C-ECHO response using the factory function
    auto response = make_c_echo_rsp(
        request.message_id(),
        status_success,
        verification_sop_class_uid
    );

    // Send the response
    return assoc.send_dimse(context_id, response);
}

References kcenon::pacs::network::dimse::dimse_message::command(), kcenon::pacs::error_codes::echo_unexpected_command, kcenon::pacs::network::dimse::dimse_message::message_id(), kcenon::pacs::pacs_void_error(), kcenon::pacs::network::association::send_dimse(), kcenon::pacs::services::to_string(), and kcenon::pacs::services::verification_sop_class_uid.

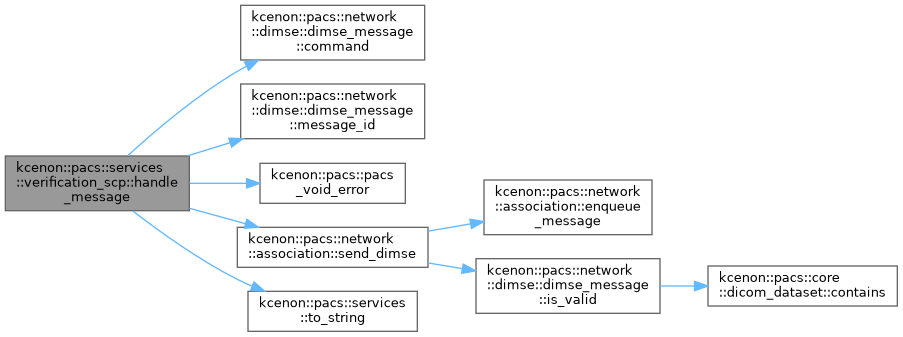

Here is the call graph for this function:

service_name()

std::string_view kcenon::pacs::services::verification_scp::service_name ( ) const

nodiscardoverridevirtualnoexcept

Get the service name.

Returns

"Verification SCP"

Implements kcenon::pacs::services::scp_service.

Definition at line 47 of file verification_scp.cpp.

                                                             {
    return "Verification SCP";
}

supported_sop_classes()

std::vector< std::string > kcenon::pacs::services::verification_scp::supported_sop_classes ( ) const

nodiscardoverridevirtual

Get supported SOP Class UIDs.

Returns

Vector containing only the Verification SOP Class UID

Implements kcenon::pacs::services::scp_service.

Definition at line 17 of file verification_scp.cpp.

                                                                   {
    return {std::string(verification_sop_class_uid)};
}

References kcenon::pacs::services::verification_sop_class_uid.

---

The documentation for this class was generated from the following files:

• include/kcenon/pacs/services/verification_scp.h
• src/services/verification_scp.cpp
