kcenon::pacs::services::mpps_result Struct Reference

Result of an MPPS operation. More...

#include <mpps_scu.h>

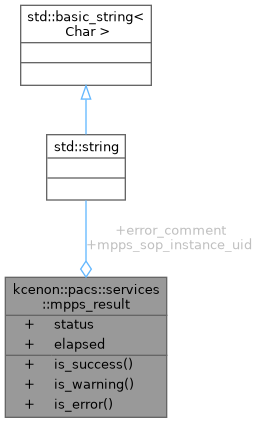

Collaboration diagram for kcenon::pacs::services::mpps_result:

Public Member Functions
bool	is_success () const noexcept
	Check if the operation was successful.
bool	is_warning () const noexcept
	Check if this was a warning status.
bool	is_error () const noexcept
	Check if this was an error status.

Public Attributes
std::string	mpps_sop_instance_uid
	MPPS SOP Instance UID.
uint16_t	status {0}
	DIMSE status code (0x0000 = success)
std::string	error_comment
	Error comment from the SCP (if any)
std::chrono::milliseconds	elapsed {0}
	Time taken for the operation.

Detailed Description

Result of an MPPS operation.

Contains information about the outcome of N-CREATE or N-SET operations.

Definition at line 132 of file mpps_scu.h.

Member Function Documentation

is_error()

bool kcenon::pacs::services::mpps_result::is_error ( ) const

inlinenodiscardnoexcept

Check if this was an error status.

Definition at line 156 of file mpps_scu.h.

                                                 {
        return !is_success() && !is_warning();
    }

References is_success(), and is_warning().

Here is the call graph for this function:

is_success()

bool kcenon::pacs::services::mpps_result::is_success ( ) const

inlinenodiscardnoexcept

Check if the operation was successful.

Definition at line 146 of file mpps_scu.h.

                                                   {
        return status == 0x0000;
    }

References status.

Referenced by kcenon::pacs::services::mpps_scu::create(), is_error(), and kcenon::pacs::services::mpps_scu::set().

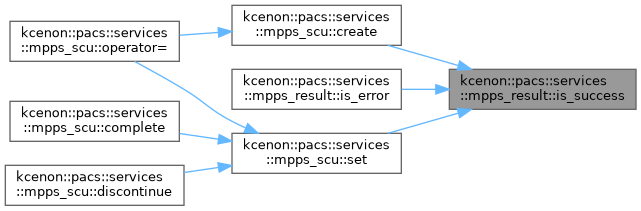

Here is the caller graph for this function:

is_warning()

bool kcenon::pacs::services::mpps_result::is_warning ( ) const

inlinenodiscardnoexcept

Check if this was a warning status.

Definition at line 151 of file mpps_scu.h.

                                                   {
        return (status & 0xF000) == 0xB000;
    }

References status.

Referenced by is_error().

Here is the caller graph for this function:

Member Data Documentation

elapsed

std::chrono::milliseconds kcenon::pacs::services::mpps_result::elapsed {0}

Time taken for the operation.

Definition at line 143 of file mpps_scu.h.

{0};

Referenced by kcenon::pacs::services::mpps_scu::create(), and kcenon::pacs::services::mpps_scu::set().

error_comment

std::string kcenon::pacs::services::mpps_result::error_comment

Error comment from the SCP (if any)

Definition at line 140 of file mpps_scu.h.

Referenced by kcenon::pacs::services::mpps_scu::create(), and kcenon::pacs::services::mpps_scu::set().

mpps_sop_instance_uid

std::string kcenon::pacs::services::mpps_result::mpps_sop_instance_uid

MPPS SOP Instance UID.

Definition at line 134 of file mpps_scu.h.

Referenced by kcenon::pacs::services::mpps_scu::create(), and kcenon::pacs::services::mpps_scu::set().

status

uint16_t kcenon::pacs::services::mpps_result::status {0}

DIMSE status code (0x0000 = success)

Definition at line 137 of file mpps_scu.h.

{0};

Referenced by kcenon::pacs::services::mpps_scu::create(), is_success(), is_warning(), and kcenon::pacs::services::mpps_scu::set().

---

The documentation for this struct was generated from the following file:

• include/kcenon/pacs/services/mpps_scu.h
