#include <query_scp.h>

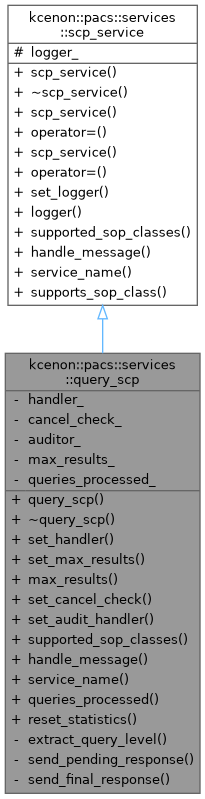

Inheritance diagram for kcenon::pacs::services::query_scp:

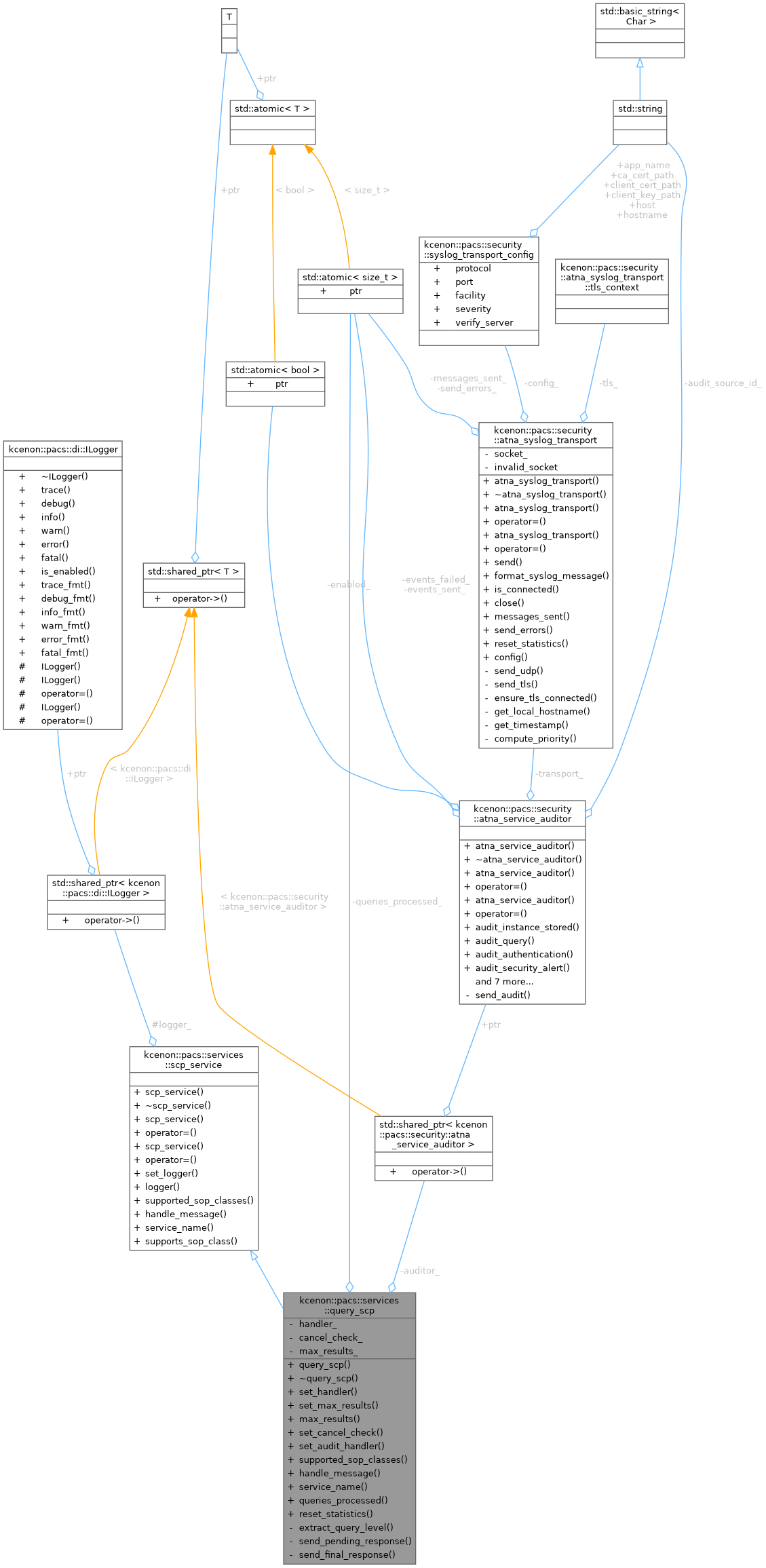

Collaboration diagram for kcenon::pacs::services::query_scp:

Public Member Functions
	query_scp (std::shared_ptr< di::ILogger > logger=nullptr)
	Construct Query SCP with optional logger.

	~query_scp () override=default

void	set_handler (query_handler handler)
	Set the query handler function.

void	set_max_results (size_t max) noexcept
	Set maximum number of results to return.

size_t	max_results () const noexcept
	Get maximum number of results.

void	set_cancel_check (cancel_check check)
	Set the cancel check function.

void	set_audit_handler (std::shared_ptr< kcenon::pacs::security::atna_service_auditor > auditor)
	Set the ATNA audit handler for C-FIND operations.

std::vector< std::string >	supported_sop_classes () const override
	Get supported SOP Class UIDs.

network::Result< std::monostate >	handle_message (network::association &assoc, uint8_t context_id, const network::dimse::dimse_message &request) override
	Handle an incoming DIMSE message (C-FIND-RQ)

std::string_view	service_name () const noexcept override
	Get the service name.

size_t	queries_processed () const noexcept
	Get total number of queries processed.

void	reset_statistics () noexcept
	Reset statistics counters.

Public Member Functions inherited from kcenon::pacs::services::scp_service
	scp_service (std::shared_ptr< di::ILogger > logger=nullptr)
	Construct SCP service with optional logger.

virtual	~scp_service ()=default

	scp_service (const scp_service &)=delete

scp_service &	operator= (const scp_service &)=delete

	scp_service (scp_service &&)=default

scp_service &	operator= (scp_service &&)=default

void	set_logger (std::shared_ptr< di::ILogger > logger)
	Set the logger instance.

const std::shared_ptr< di::ILogger > &	logger () const noexcept
	Get the current logger instance.

bool	supports_sop_class (std::string_view sop_class_uid) const
	Check if this service supports a specific SOP Class.

Private Member Functions
std::optional< query_level >	extract_query_level (const core::dicom_dataset &dataset) const
	Extract query level from request dataset.

network::Result< std::monostate >	send_pending_response (network::association &assoc, uint8_t context_id, uint16_t message_id, std::string_view sop_class_uid, const core::dicom_dataset &result)
	Send a pending C-FIND response with matching dataset.

network::Result< std::monostate >	send_final_response (network::association &assoc, uint8_t context_id, uint16_t message_id, std::string_view sop_class_uid, network::dimse::status_code status)
	Send the final C-FIND response (success or cancel)

Private Attributes
query_handler	handler_

cancel_check	cancel_check_

std::shared_ptr< kcenon::pacs::security::atna_service_auditor >	auditor_

size_t	max_results_ {0}

std::atomic< size_t >	queries_processed_ {0}

Additional Inherited Members
Protected Attributes inherited from kcenon::pacs::services::scp_service
std::shared_ptr< di::ILogger >	logger_
	Logger instance for service logging.

Detailed Description

Definition at line 189 of file query_scp.h.

Constructor & Destructor Documentation

◆ query_scp()

kcenon::pacs::services::query_scp::query_scp ( std::shared_ptr< di::ILogger > logger = nullptr )

explicit

Construct Query SCP with optional logger.

Parameters

logger Logger instance for service logging (nullptr uses null_logger)

Definition at line 40 of file query_scp.cpp.

41 : scp_service(std::move(logger)) {}

kcenon::pacs::services::scp_service::logger

const std::shared_ptr< di::ILogger > & logger() const noexcept

Get the current logger instance.

Definition scp_service.h:93

kcenon::pacs::services::scp_service::scp_service

scp_service(std::shared_ptr< di::ILogger > logger=nullptr)

Construct SCP service with optional logger.

Definition scp_service.h:64

◆ ~query_scp()

kcenon::pacs::services::query_scp::~query_scp ( )

overridedefault

Member Function Documentation

◆ extract_query_level()

std::optional< query_level > kcenon::pacs::services::query_scp::extract_query_level ( const core::dicom_dataset & dataset ) const

nodiscardprivate

Extract query level from request dataset.

Parameters

dataset The query dataset

Returns: Parsed query level, or std::nullopt if invalid

Definition at line 215 of file query_scp.cpp.

                                            {

    // Get Query/Retrieve Level tag (0008,0052)
    auto level_str = dataset.get_string(core::tags::query_retrieve_level);

    if (level_str.empty()) {
        return std::nullopt;
    }

    return parse_query_level(level_str);
}

References kcenon::pacs::core::dicom_dataset::get_string(), kcenon::pacs::services::parse_query_level(), and kcenon::pacs::core::tags::query_retrieve_level.

Referenced by handle_message().

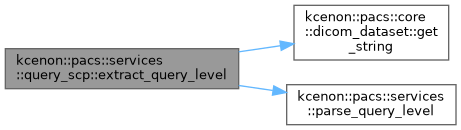

Here is the call graph for this function:

Here is the caller graph for this function:

◆ handle_message()

network::Result< std::monostate > kcenon::pacs::services::query_scp::handle_message	(	network::association &	assoc,
		uint8_t	context_id,
		const network::dimse::dimse_message &	request )

nodiscardoverridevirtual

Handle an incoming DIMSE message (C-FIND-RQ)

Processes the C-FIND request, queries the database through the handler, and sends pending responses for each match followed by a final success.

Parameters

assoc	The association on which the message was received
context_id	The presentation context ID for the message
request	The incoming C-FIND-RQ message

Returns: Success or error if the message is not a valid C-FIND-RQ

Implements kcenon::pacs::services::scp_service.

Definition at line 79 of file query_scp.cpp.

                                              {

    using namespace network::dimse;
    auto start_time = std::chrono::steady_clock::now();
    std::string calling_ae{assoc.calling_ae()};

    // Verify the message is a C-FIND request
    if (request.command() != command_field::c_find_rq) {
        return kcenon::pacs::pacs_void_error(
            kcenon::pacs::error_codes::find_unexpected_command,
            "Expected C-FIND-RQ but received " +
            std::string(to_string(request.command())));
    }

    // Verify we have a handler
    if (!handler_) {
        kcenon::common::get_event_bus().publish(
            kcenon::pacs::events::query_failed_event{
                calling_ae,
                static_cast<int>(kcenon::pacs::error_codes::find_handler_not_set),
                "No query handler configured"
            }
        );
        return kcenon::pacs::pacs_void_error(
            kcenon::pacs::error_codes::find_handler_not_set,
            "No query handler configured");
    }

    // Get the SOP Class UID from the request
    auto sop_class_uid = request.affected_sop_class_uid();

    // Verify we have a dataset
    if (!request.has_dataset()) {
        return send_final_response(
            assoc, context_id, request.message_id(),
            sop_class_uid, status_error_cannot_understand);
    }

    // Extract query level
    const auto& query_keys = request.dataset().value().get();
    auto level = extract_query_level(query_keys);

    if (!level.has_value()) {
        // Invalid or missing query level
        return send_final_response(
            assoc, context_id, request.message_id(),
            sop_class_uid, status_error_cannot_understand);
    }

    // Call the handler to get matching results
    auto results = handler_(level.value(), query_keys, calling_ae);

    // Apply max results limit if configured
    if (max_results_ > 0 && results.size() > max_results_) {
        results.resize(max_results_);
    }

    // Send pending responses for each result
    for (const auto& result : results) {
        // Check for cancel request
        if (cancel_check_ && cancel_check_()) {
            // Increment statistics
            ++queries_processed_;

            // Send cancel response
            return send_final_response(
                assoc, context_id, request.message_id(),
                sop_class_uid, status_cancel);
        }

        // Send pending response with matching dataset
        auto send_result = send_pending_response(
            assoc, context_id, request.message_id(),
            sop_class_uid, result);

        if (send_result.is_err()) {
            return send_result;
        }
    }

    // Increment statistics
    ++queries_processed_;

    // Calculate execution time
    auto end_time = std::chrono::steady_clock::now();
    auto execution_time_ms = std::chrono::duration_cast<std::chrono::milliseconds>(
        end_time - start_time).count();

    // Publish query executed event
    kcenon::common::get_event_bus().publish(
        kcenon::pacs::events::query_executed_event{
            to_event_level(level.value()),
            calling_ae,
            results.size(),
            static_cast<uint64_t>(execution_time_ms)
        }
    );

    // Emit ATNA audit event
    if (auditor_) {
        auditor_->audit_query(
            calling_ae,
            std::string(assoc.called_ae()),
            std::string(to_string(level.value())),
            true);
    }

    // Send final success response (no dataset)
    return send_final_response(
        assoc, context_id, request.message_id(),
        sop_class_uid, status_success);
}

References kcenon::pacs::network::dimse::dimse_message::affected_sop_class_uid(), kcenon::pacs::security::atna_service_auditor::audit_query(), auditor_, kcenon::pacs::network::association::called_ae(), kcenon::pacs::network::association::calling_ae(), cancel_check_, kcenon::pacs::network::dimse::dimse_message::command(), kcenon::pacs::network::dimse::dimse_message::dataset(), extract_query_level(), kcenon::pacs::error_codes::find_handler_not_set, kcenon::pacs::error_codes::find_unexpected_command, handler_, kcenon::pacs::network::dimse::dimse_message::has_dataset(), max_results_, kcenon::pacs::network::dimse::dimse_message::message_id(), kcenon::pacs::pacs_void_error(), queries_processed_, send_final_response(), send_pending_response(), and kcenon::pacs::services::to_string().

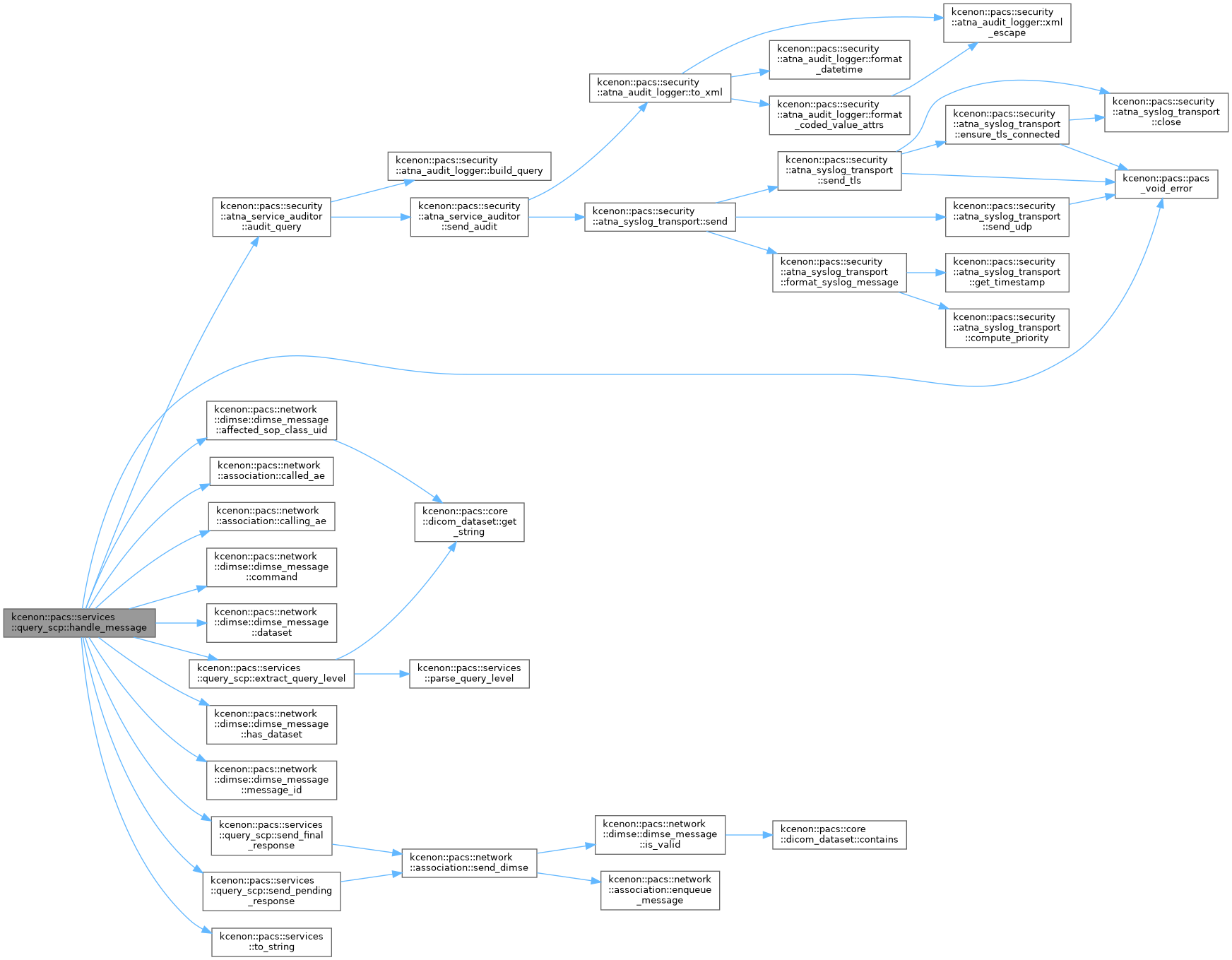

Here is the call graph for this function:

◆ max_results()

size_t kcenon::pacs::services::query_scp::max_results ( ) const

nodiscardnoexcept

Get maximum number of results.

Returns: Maximum results (0 = unlimited)

Definition at line 55 of file query_scp.cpp.

                                             {
    return max_results_;
}

References max_results_.

◆ queries_processed()

size_t kcenon::pacs::services::query_scp::queries_processed ( ) const

nodiscardnoexcept

Get total number of queries processed.

Returns: Number of C-FIND requests handled

Definition at line 203 of file query_scp.cpp.

                                                   {
    return queries_processed_.load();
}

References queries_processed_.

◆ reset_statistics()

void kcenon::pacs::services::query_scp::reset_statistics ( )

noexcept

Reset statistics counters.

Definition at line 207 of file query_scp.cpp.

                                          {
    queries_processed_ = 0;
}

References queries_processed_.

◆ send_final_response()

network::Result< std::monostate > kcenon::pacs::services::query_scp::send_final_response	(	network::association &	assoc,
		uint8_t	context_id,
		uint16_t	message_id,
		std::string_view	sop_class_uid,
		network::dimse::status_code	status )

nodiscardprivate

Send the final C-FIND response (success or cancel)

Parameters

assoc	The association
context_id	The presentation context ID
message_id	The original request message ID
sop_class_uid	The SOP Class UID
status	The final status code

Returns: Success or error

Definition at line 251 of file query_scp.cpp.

                                    {

    using namespace network::dimse;

    // Create C-FIND response with final status (no dataset)
    auto response = make_c_find_rsp(
        message_id,
        sop_class_uid,
        status
    );

    // Send the response
    return assoc.send_dimse(context_id, response);
}

References kcenon::pacs::network::association::send_dimse().

Referenced by handle_message().

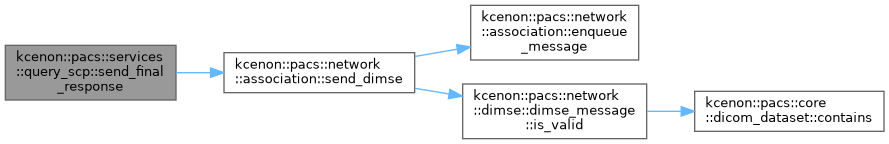

Here is the call graph for this function:

Here is the caller graph for this function:

◆ send_pending_response()

network::Result< std::monostate > kcenon::pacs::services::query_scp::send_pending_response	(	network::association &	assoc,
		uint8_t	context_id,
		uint16_t	message_id,
		std::string_view	sop_class_uid,
		const core::dicom_dataset &	result )

nodiscardprivate

Send a pending C-FIND response with matching dataset.

Parameters

assoc	The association
context_id	The presentation context ID
message_id	The original request message ID
sop_class_uid	The SOP Class UID
result	The matching dataset

Returns: Success or error

Definition at line 228 of file query_scp.cpp.

                                     {

    using namespace network::dimse;

    // Create C-FIND response with pending status
    auto response = make_c_find_rsp(
        message_id,
        sop_class_uid,
        status_pending
    );

    // Attach the matching dataset
    response.set_dataset(result);

    // Send the response
    return assoc.send_dimse(context_id, response);
}

References kcenon::pacs::network::association::send_dimse().

Referenced by handle_message().

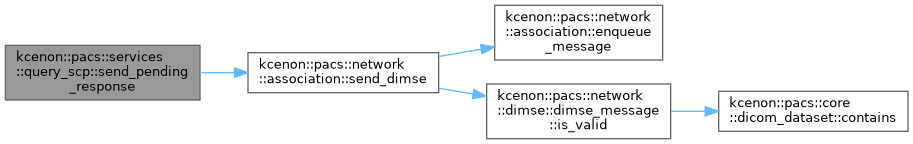

Here is the call graph for this function:

Here is the caller graph for this function:

◆ service_name()

std::string_view kcenon::pacs::services::query_scp::service_name ( ) const

nodiscardoverridevirtualnoexcept

Get the service name.

Returns: "Query SCP"

Implements kcenon::pacs::services::scp_service.

Definition at line 195 of file query_scp.cpp.

                                                      {
    return "Query SCP";
}

◆ set_audit_handler()

void kcenon::pacs::services::query_scp::set_audit_handler ( std::shared_ptr< kcenon::pacs::security::atna_service_auditor > auditor )

Set the ATNA audit handler for C-FIND operations.

When set, audit events are emitted for each completed C-FIND operation.

Parameters

auditor Shared pointer to an ATNA service auditor

Definition at line 63 of file query_scp.cpp.

                                                                   {
    auditor_ = std::move(auditor);
}

References auditor_.

◆ set_cancel_check()

void kcenon::pacs::services::query_scp::set_cancel_check ( cancel_check check )

Set the cancel check function.

The cancel check is called periodically during query processing to check if a C-CANCEL has been received.

Parameters

check The cancel check function

Definition at line 59 of file query_scp.cpp.

                                                   {
    cancel_check_ = std::move(check);
}

References cancel_check_.

◆ set_handler()

void kcenon::pacs::services::query_scp::set_handler ( query_handler handler )

Set the query handler function.

The handler is called for each C-FIND request to retrieve matching records from the database.

Parameters

handler The query handler function

Definition at line 47 of file query_scp.cpp.

                                                 {
    handler_ = std::move(handler);
}

References handler_.

◆ set_max_results()

void kcenon::pacs::services::query_scp::set_max_results ( size_t max )

noexcept

Set maximum number of results to return.

Parameters

max	Maximum results (0 = unlimited)

Definition at line 51 of file query_scp.cpp.

                                                   {
    max_results_ = max;
}

◆ supported_sop_classes()

std::vector< std::string > kcenon::pacs::services::query_scp::supported_sop_classes ( ) const

nodiscardoverridevirtual

Get supported SOP Class UIDs.

Returns: Vector containing Patient Root and Study Root Find SOP Classes

Implements kcenon::pacs::services::scp_service.

Definition at line 72 of file query_scp.cpp.

                                                            {
    return {
        std::string(patient_root_find_sop_class_uid),
        std::string(study_root_find_sop_class_uid)
    };
}

References kcenon::pacs::services::patient_root_find_sop_class_uid, and kcenon::pacs::services::study_root_find_sop_class_uid.

Member Data Documentation

◆ auditor_

std::shared_ptr<kcenon::pacs::security::atna_service_auditor> kcenon::pacs::services::query_scp::auditor_

private

Definition at line 356 of file query_scp.h.

Referenced by handle_message(), and set_audit_handler().

◆ cancel_check_

cancel_check kcenon::pacs::services::query_scp::cancel_check_

private

Definition at line 355 of file query_scp.h.

Referenced by handle_message(), and set_cancel_check().

◆ handler_

query_handler kcenon::pacs::services::query_scp::handler_

private

Definition at line 354 of file query_scp.h.

Referenced by handle_message(), and set_handler().

◆ max_results_

size_t kcenon::pacs::services::query_scp::max_results_ {0}

private

Definition at line 357 of file query_scp.h.

357{0}; // 0 = unlimited

Referenced by handle_message(), and max_results().

◆ queries_processed_

std::atomic<size_t> kcenon::pacs::services::query_scp::queries_processed_ {0}

private

Definition at line 358 of file query_scp.h.

358{0};

Referenced by handle_message(), queries_processed(), and reset_statistics().

The documentation for this class was generated from the following files:

include/kcenon/pacs/services/query_scp.h
src/services/query_scp.cpp

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ query_scp()

◆ ~query_scp()

Member Function Documentation

◆ extract_query_level()

◆ handle_message()

◆ max_results()

◆ queries_processed()

◆ reset_statistics()

◆ send_final_response()

◆ send_pending_response()

◆ service_name()

◆ set_audit_handler()

◆ set_cancel_check()

◆ set_handler()

◆ set_max_results()

◆ supported_sop_classes()

Member Data Documentation

◆ auditor_

◆ cancel_check_

◆ handler_

◆ max_results_

◆ queries_processed_
