kcenon::pacs::services::print_result Struct Reference

Result of a Print DIMSE-N operation. More...

#include <print_scu.h>

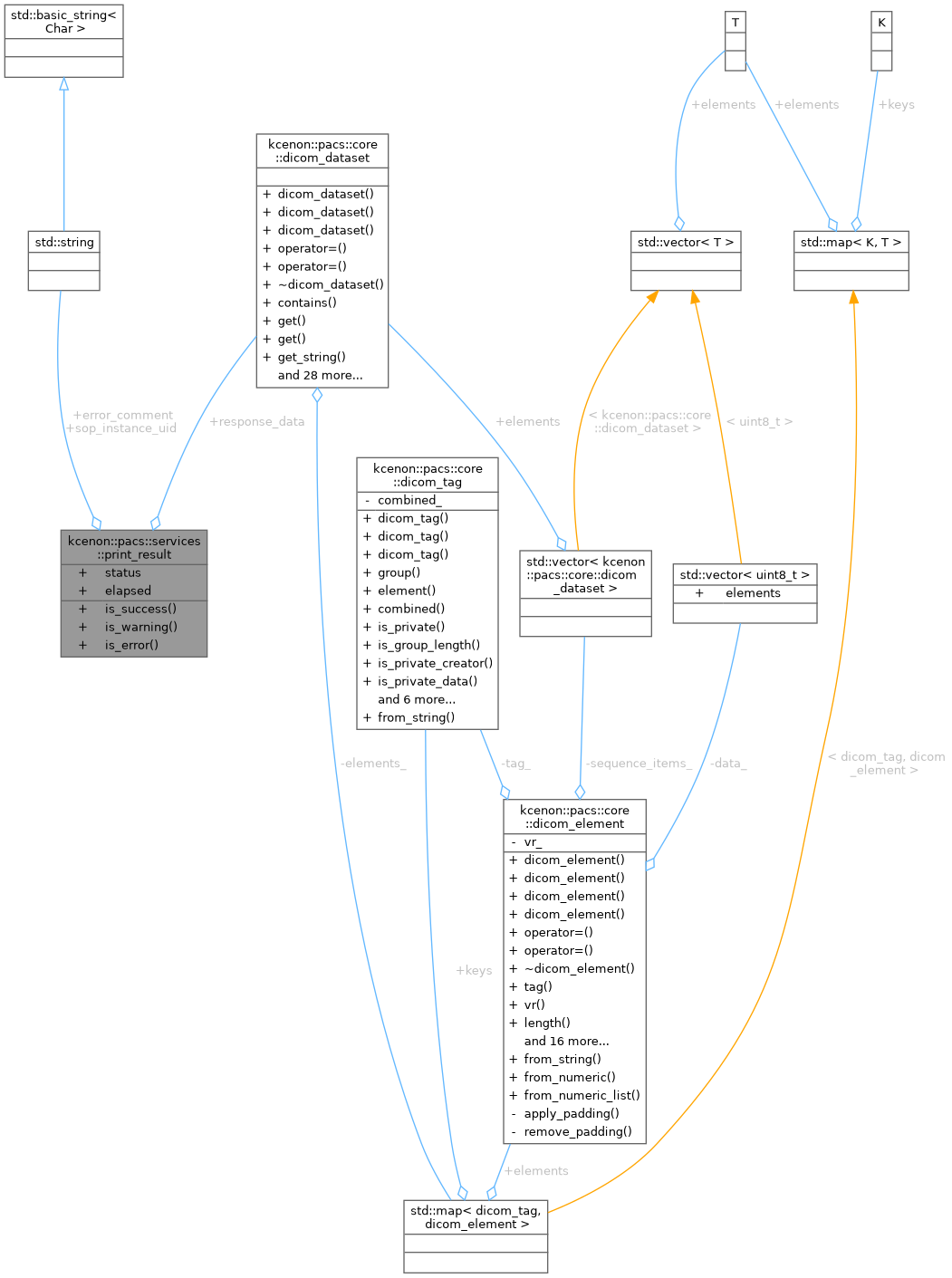

Collaboration diagram for kcenon::pacs::services::print_result:

Public Member Functions
bool	is_success () const noexcept
	Check if the operation was successful.
bool	is_warning () const noexcept
	Check if this was a warning status.
bool	is_error () const noexcept
	Check if this was an error status.

Public Attributes
std::string	sop_instance_uid
	SOP Instance UID (session, film box, image box, or printer)
uint16_t	status {0}
	DIMSE status code (0x0000 = success)
std::string	error_comment
	Error comment from the SCP (if any)
std::chrono::milliseconds	elapsed {0}
	Time taken for the operation.
core::dicom_dataset	response_data
	Response dataset (e.g., printer status, referenced image box UIDs)

Detailed Description

Result of a Print DIMSE-N operation.

Contains outcome information from N-CREATE, N-SET, N-GET, N-ACTION, or N-DELETE operations.

Definition at line 47 of file print_scu.h.

Member Function Documentation

is_error()

bool kcenon::pacs::services::print_result::is_error ( ) const

inlinenodiscardnoexcept

Check if this was an error status.

Definition at line 74 of file print_scu.h.

                                                 {
        return !is_success() && !is_warning();
    }

References is_success(), and is_warning().

Here is the call graph for this function:

is_success()

bool kcenon::pacs::services::print_result::is_success ( ) const

inlinenodiscardnoexcept

Check if the operation was successful.

Definition at line 64 of file print_scu.h.

                                                   {
        return status == 0x0000;
    }

References status.

Referenced by kcenon::pacs::services::print_scu::create_film_box(), kcenon::pacs::services::print_scu::create_film_session(), kcenon::pacs::services::print_scu::delete_film_box(), kcenon::pacs::services::print_scu::delete_film_session(), is_error(), kcenon::pacs::services::print_scu::print_film_box(), kcenon::pacs::services::print_scu::query_printer_status(), and kcenon::pacs::services::print_scu::set_image_box().

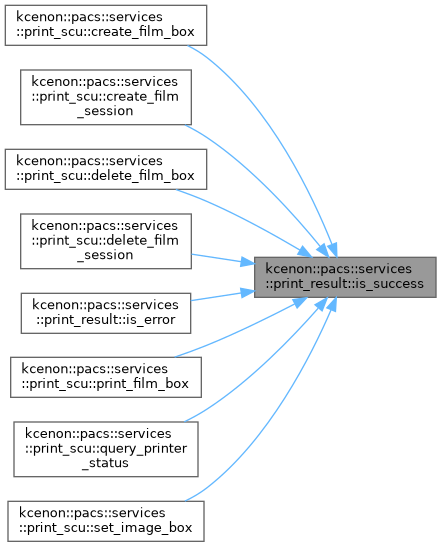

Here is the caller graph for this function:

is_warning()

bool kcenon::pacs::services::print_result::is_warning ( ) const

inlinenodiscardnoexcept

Check if this was a warning status.

Definition at line 69 of file print_scu.h.

                                                   {
        return (status & 0xF000) == 0xB000;
    }

References status.

Referenced by is_error().

Here is the caller graph for this function:

Member Data Documentation

elapsed

std::chrono::milliseconds kcenon::pacs::services::print_result::elapsed {0}

Time taken for the operation.

Definition at line 58 of file print_scu.h.

{0};

Referenced by kcenon::pacs::services::print_scu::create_film_box(), kcenon::pacs::services::print_scu::create_film_session(), kcenon::pacs::services::print_scu::delete_film_box(), kcenon::pacs::services::print_scu::delete_film_session(), kcenon::pacs::services::print_scu::print_film_box(), kcenon::pacs::services::print_scu::query_printer_status(), and kcenon::pacs::services::print_scu::set_image_box().

error_comment

std::string kcenon::pacs::services::print_result::error_comment

Error comment from the SCP (if any)

Definition at line 55 of file print_scu.h.

Referenced by kcenon::pacs::services::print_scu::create_film_box(), kcenon::pacs::services::print_scu::create_film_session(), kcenon::pacs::services::print_scu::delete_film_box(), kcenon::pacs::services::print_scu::delete_film_session(), kcenon::pacs::services::print_scu::print_film_box(), kcenon::pacs::services::print_scu::query_printer_status(), and kcenon::pacs::services::print_scu::set_image_box().

response_data

core::dicom_dataset kcenon::pacs::services::print_result::response_data

Response dataset (e.g., printer status, referenced image box UIDs)

Definition at line 61 of file print_scu.h.

Referenced by kcenon::pacs::services::print_scu::create_film_box(), and kcenon::pacs::services::print_scu::query_printer_status().

sop_instance_uid

std::string kcenon::pacs::services::print_result::sop_instance_uid

SOP Instance UID (session, film box, image box, or printer)

Definition at line 49 of file print_scu.h.

Referenced by kcenon::pacs::services::print_scu::create_film_box(), kcenon::pacs::services::print_scu::create_film_session(), kcenon::pacs::services::print_scu::delete_film_box(), kcenon::pacs::services::print_scu::delete_film_session(), kcenon::pacs::services::print_scu::print_film_box(), kcenon::pacs::services::print_scu::query_printer_status(), and kcenon::pacs::services::print_scu::set_image_box().

status

uint16_t kcenon::pacs::services::print_result::status {0}

DIMSE status code (0x0000 = success)

Definition at line 52 of file print_scu.h.

{0};

Referenced by kcenon::pacs::services::print_scu::create_film_box(), kcenon::pacs::services::print_scu::create_film_session(), kcenon::pacs::services::print_scu::delete_film_box(), kcenon::pacs::services::print_scu::delete_film_session(), is_success(), is_warning(), kcenon::pacs::services::print_scu::print_film_box(), kcenon::pacs::services::print_scu::query_printer_status(), and kcenon::pacs::services::print_scu::set_image_box().

---

The documentation for this struct was generated from the following file:

• include/kcenon/pacs/services/print_scu.h
