#include <worklist_scp.h>

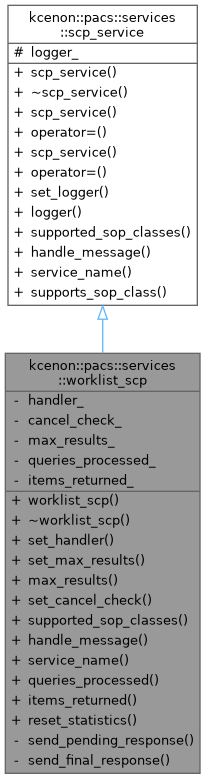

Inheritance diagram for kcenon::pacs::services::worklist_scp:

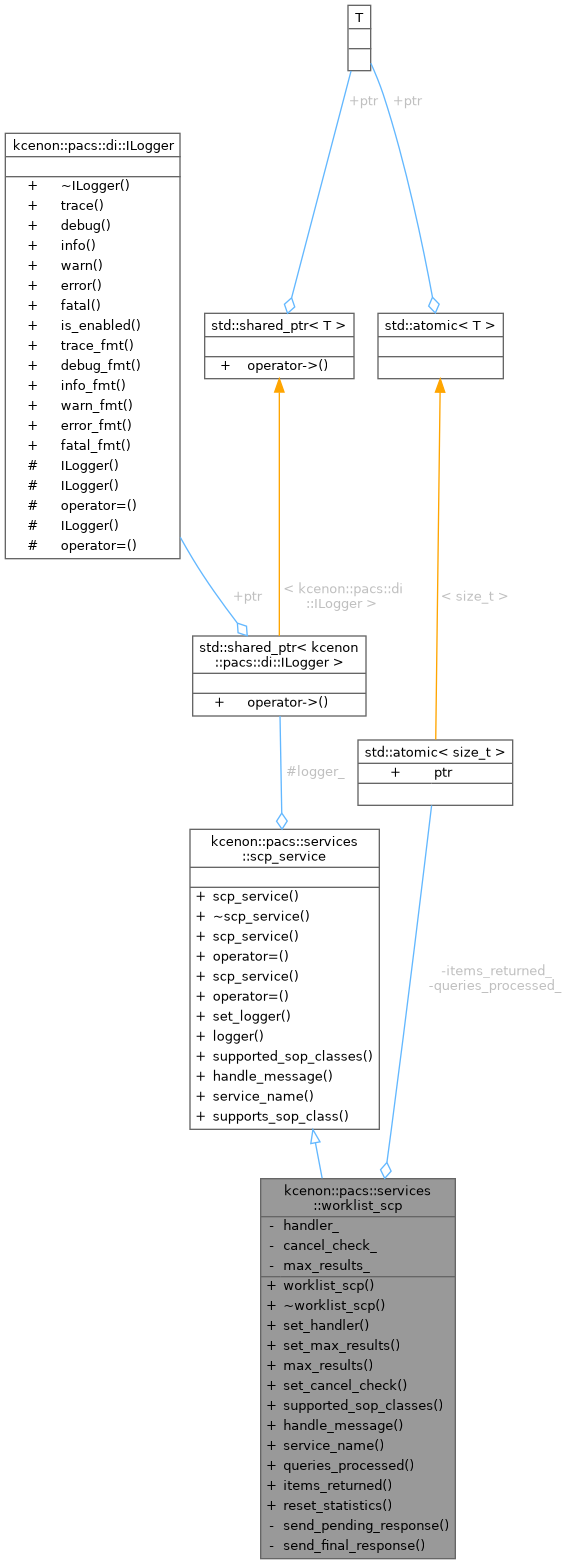

Collaboration diagram for kcenon::pacs::services::worklist_scp:

Public Member Functions
	worklist_scp (std::shared_ptr< di::ILogger > logger=nullptr)
	Construct Worklist SCP with optional logger.

	~worklist_scp () override=default

void	set_handler (worklist_handler handler)
	Set the worklist handler function.

void	set_max_results (size_t max) noexcept
	Set maximum number of results to return.

size_t	max_results () const noexcept
	Get maximum number of results.

void	set_cancel_check (worklist_cancel_check check)
	Set the cancel check function.

std::vector< std::string >	supported_sop_classes () const override
	Get supported SOP Class UIDs.

network::Result< std::monostate >	handle_message (network::association &assoc, uint8_t context_id, const network::dimse::dimse_message &request) override
	Handle an incoming DIMSE message (MWL C-FIND-RQ)

std::string_view	service_name () const noexcept override
	Get the service name.

size_t	queries_processed () const noexcept
	Get total number of worklist queries processed.

size_t	items_returned () const noexcept
	Get total number of worklist items returned.

void	reset_statistics () noexcept
	Reset statistics counters.

Public Member Functions inherited from kcenon::pacs::services::scp_service
	scp_service (std::shared_ptr< di::ILogger > logger=nullptr)
	Construct SCP service with optional logger.

virtual	~scp_service ()=default

	scp_service (const scp_service &)=delete

scp_service &	operator= (const scp_service &)=delete

	scp_service (scp_service &&)=default

scp_service &	operator= (scp_service &&)=default

void	set_logger (std::shared_ptr< di::ILogger > logger)
	Set the logger instance.

const std::shared_ptr< di::ILogger > &	logger () const noexcept
	Get the current logger instance.

bool	supports_sop_class (std::string_view sop_class_uid) const
	Check if this service supports a specific SOP Class.

Private Member Functions
network::Result< std::monostate >	send_pending_response (network::association &assoc, uint8_t context_id, uint16_t message_id, const core::dicom_dataset &result)
	Send a pending C-FIND response with matching worklist item.

network::Result< std::monostate >	send_final_response (network::association &assoc, uint8_t context_id, uint16_t message_id, network::dimse::status_code status)
	Send the final C-FIND response (success or cancel)

Private Attributes
worklist_handler	handler_

worklist_cancel_check	cancel_check_

size_t	max_results_ {0}

std::atomic< size_t >	queries_processed_ {0}

std::atomic< size_t >	items_returned_ {0}

Additional Inherited Members
Protected Attributes inherited from kcenon::pacs::services::scp_service
std::shared_ptr< di::ILogger >	logger_
	Logger instance for service logging.

Detailed Description

Definition at line 192 of file worklist_scp.h.

Constructor & Destructor Documentation

◆ worklist_scp()

kcenon::pacs::services::worklist_scp::worklist_scp ( std::shared_ptr< di::ILogger > logger = nullptr )

explicit

Construct Worklist SCP with optional logger.

Parameters

logger Logger instance for service logging (nullptr uses null_logger)

Definition at line 23 of file worklist_scp.cpp.

24 : scp_service(std::move(logger)) {}

kcenon::pacs::services::scp_service::logger

const std::shared_ptr< di::ILogger > & logger() const noexcept

Get the current logger instance.

Definition scp_service.h:93

kcenon::pacs::services::scp_service::scp_service

scp_service(std::shared_ptr< di::ILogger > logger=nullptr)

Construct SCP service with optional logger.

Definition scp_service.h:64

◆ ~worklist_scp()

kcenon::pacs::services::worklist_scp::~worklist_scp ( )

overridedefault

Member Function Documentation

◆ handle_message()

network::Result< std::monostate > kcenon::pacs::services::worklist_scp::handle_message	(	network::association &	assoc,
		uint8_t	context_id,
		const network::dimse::dimse_message &	request )

nodiscardoverridevirtual

Handle an incoming DIMSE message (MWL C-FIND-RQ)

Processes the Modality Worklist C-FIND request, queries the worklist repository through the handler, and sends pending responses for each match followed by a final success.

Parameters

assoc	The association on which the message was received
context_id	The presentation context ID for the message
request	The incoming C-FIND-RQ message

Returns: Success or error if the message is not a valid MWL C-FIND-RQ

Implements kcenon::pacs::services::scp_service.

Definition at line 56 of file worklist_scp.cpp.

                                              {

    using namespace network::dimse;

    // Verify the message is a C-FIND request
    if (request.command() != command_field::c_find_rq) {
        return kcenon::pacs::pacs_void_error(
            kcenon::pacs::error_codes::worklist_unexpected_command,
            "Expected C-FIND-RQ but received " +
            std::string(to_string(request.command())));
    }

    // Verify we have a handler
    if (!handler_) {
        return kcenon::pacs::pacs_void_error(
            kcenon::pacs::error_codes::worklist_handler_not_set,
            "No worklist handler configured");
    }

    // Get the SOP Class UID from the request
    auto sop_class_uid = request.affected_sop_class_uid();

    // Verify the SOP Class is Modality Worklist
    if (sop_class_uid != worklist_find_sop_class_uid) {
        return send_final_response(
            assoc, context_id, request.message_id(),
            status_refused_sop_class_not_supported);
    }

    // Verify we have a dataset (query keys)
    if (!request.has_dataset()) {
        return send_final_response(
            assoc, context_id, request.message_id(),
            status_error_cannot_understand);
    }

    // Get the query keys from the request
    const auto& query_keys = request.dataset().value().get();

    // Get calling AE for logging and access control
    std::string calling_ae{assoc.calling_ae()};

    // Call the handler to get matching worklist items
    auto results = handler_(query_keys, calling_ae);

    // Apply max results limit if configured
    if (max_results_ > 0 && results.size() > max_results_) {
        results.resize(max_results_);
    }

    // Send pending responses for each result
    for (const auto& result : results) {
        // Check for cancel request
        if (cancel_check_ && cancel_check_()) {
            // Increment statistics
            ++queries_processed_;

            // Send cancel response
            return send_final_response(
                assoc, context_id, request.message_id(),
                status_cancel);
        }

        // Send pending response with matching worklist item
        auto send_result = send_pending_response(
            assoc, context_id, request.message_id(),
            result);

        if (send_result.is_err()) {
            return send_result;
        }

        // Track items returned
        ++items_returned_;
    }

    // Increment statistics
    ++queries_processed_;

    // Send final success response (no dataset)
    return send_final_response(
        assoc, context_id, request.message_id(),
        status_success);
}

References kcenon::pacs::network::dimse::dimse_message::affected_sop_class_uid(), kcenon::pacs::network::association::calling_ae(), cancel_check_, kcenon::pacs::network::dimse::dimse_message::command(), kcenon::pacs::network::dimse::dimse_message::dataset(), handler_, kcenon::pacs::network::dimse::dimse_message::has_dataset(), items_returned_, max_results_, kcenon::pacs::network::dimse::dimse_message::message_id(), kcenon::pacs::pacs_void_error(), queries_processed_, send_final_response(), send_pending_response(), kcenon::pacs::services::to_string(), kcenon::pacs::services::worklist_find_sop_class_uid, kcenon::pacs::error_codes::worklist_handler_not_set, and kcenon::pacs::error_codes::worklist_unexpected_command.

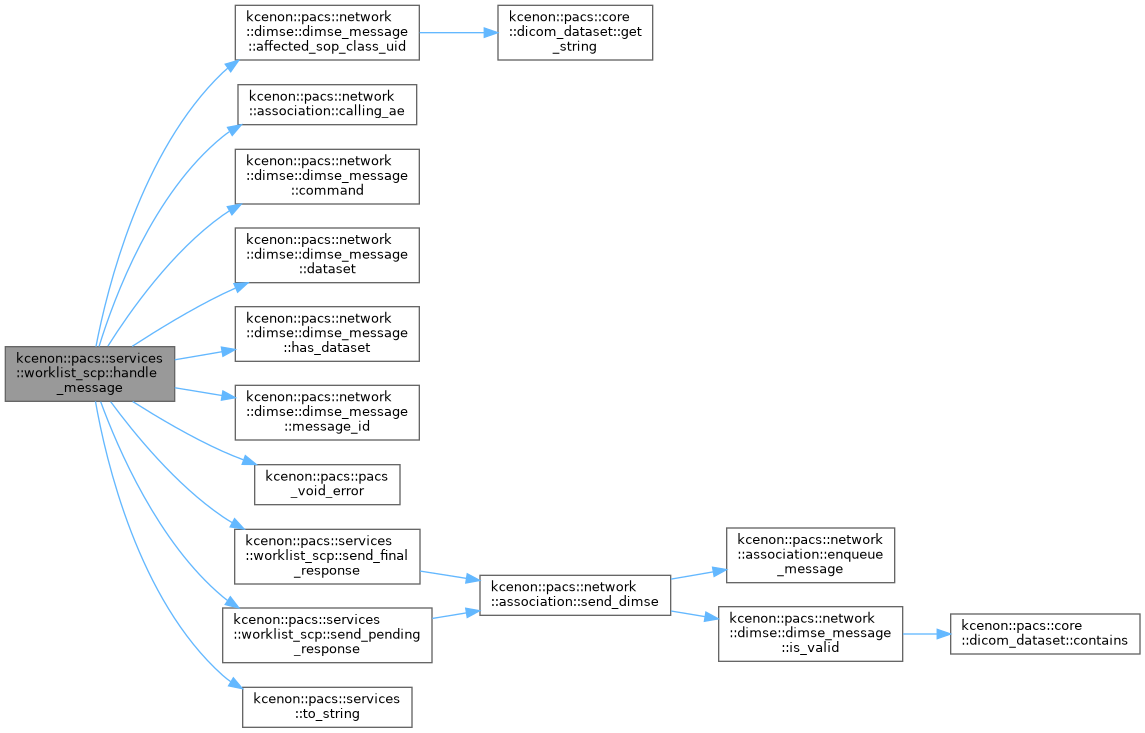

Here is the call graph for this function:

◆ items_returned()

size_t kcenon::pacs::services::worklist_scp::items_returned ( ) const

nodiscardnoexcept

Get total number of worklist items returned.

Returns: Total count of scheduled procedure items returned

Definition at line 156 of file worklist_scp.cpp.

                                                   {
    return items_returned_.load();
}

References items_returned_.

◆ max_results()

size_t kcenon::pacs::services::worklist_scp::max_results ( ) const

nodiscardnoexcept

Get maximum number of results.

Returns: Maximum results (0 = unlimited)

Definition at line 38 of file worklist_scp.cpp.

                                                {
    return max_results_;
}

References max_results_.

◆ queries_processed()

size_t kcenon::pacs::services::worklist_scp::queries_processed ( ) const

nodiscardnoexcept

Get total number of worklist queries processed.

Returns: Number of MWL C-FIND requests handled

Definition at line 152 of file worklist_scp.cpp.

                                                      {
    return queries_processed_.load();
}

References queries_processed_.

◆ reset_statistics()

void kcenon::pacs::services::worklist_scp::reset_statistics ( )

noexcept

Reset statistics counters.

Definition at line 160 of file worklist_scp.cpp.

                                             {
    queries_processed_ = 0;
    items_returned_ = 0;
}

References items_returned_, and queries_processed_.

◆ send_final_response()

network::Result< std::monostate > kcenon::pacs::services::worklist_scp::send_final_response	(	network::association &	assoc,
		uint8_t	context_id,
		uint16_t	message_id,
		network::dimse::status_code	status )

nodiscardprivate

Send the final C-FIND response (success or cancel)

Parameters

assoc	The association
context_id	The presentation context ID
message_id	The original request message ID
status	The final status code

Returns: Success or error

Definition at line 191 of file worklist_scp.cpp.

                                    {

    using namespace network::dimse;

    // Create C-FIND response with final status (no dataset)
    auto response = make_c_find_rsp(
        message_id,
        worklist_find_sop_class_uid,
        status
    );

    // Send the response
    return assoc.send_dimse(context_id, response);
}

References kcenon::pacs::network::association::send_dimse(), and kcenon::pacs::services::worklist_find_sop_class_uid.

Referenced by handle_message().

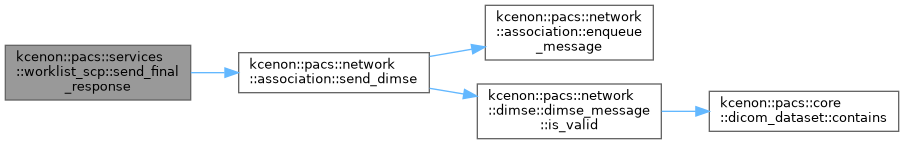

Here is the call graph for this function:

Here is the caller graph for this function:

◆ send_pending_response()

network::Result< std::monostate > kcenon::pacs::services::worklist_scp::send_pending_response	(	network::association &	assoc,
		uint8_t	context_id,
		uint16_t	message_id,
		const core::dicom_dataset &	result )

nodiscardprivate

Send a pending C-FIND response with matching worklist item.

Parameters

assoc	The association
context_id	The presentation context ID
message_id	The original request message ID
result	The matching worklist item dataset

Returns: Success or error

Definition at line 169 of file worklist_scp.cpp.

                                     {

    using namespace network::dimse;

    // Create C-FIND response with pending status
    auto response = make_c_find_rsp(
        message_id,
        worklist_find_sop_class_uid,
        status_pending
    );

    // Attach the matching worklist item dataset
    response.set_dataset(result);

    // Send the response
    return assoc.send_dimse(context_id, response);
}

References kcenon::pacs::network::association::send_dimse(), and kcenon::pacs::services::worklist_find_sop_class_uid.

Referenced by handle_message().

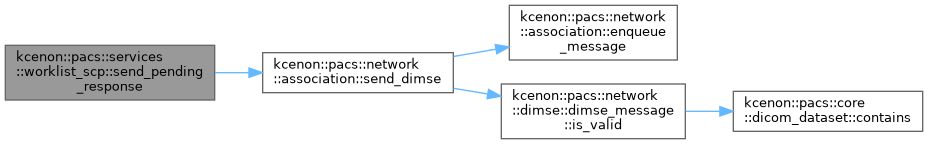

Here is the call graph for this function:

Here is the caller graph for this function:

◆ service_name()

std::string_view kcenon::pacs::services::worklist_scp::service_name ( ) const

nodiscardoverridevirtualnoexcept

Get the service name.

Returns: "Worklist SCP"

Implements kcenon::pacs::services::scp_service.

Definition at line 144 of file worklist_scp.cpp.

                                                         {
    return "Worklist SCP";
}

◆ set_cancel_check()

void kcenon::pacs::services::worklist_scp::set_cancel_check ( worklist_cancel_check check )

Set the cancel check function.

The cancel check is called periodically during query processing to check if a C-CANCEL has been received.

Parameters

check The cancel check function

Definition at line 42 of file worklist_scp.cpp.

                                                               {
    cancel_check_ = std::move(check);
}

References cancel_check_.

◆ set_handler()

void kcenon::pacs::services::worklist_scp::set_handler ( worklist_handler handler )

Set the worklist handler function.

The handler is called for each MWL C-FIND request to retrieve matching scheduled procedure items from the RIS/HIS database.

Parameters

handler The worklist handler function

Definition at line 30 of file worklist_scp.cpp.

                                                       {
    handler_ = std::move(handler);
}

References handler_.

◆ set_max_results()

void kcenon::pacs::services::worklist_scp::set_max_results ( size_t max )

noexcept

Set maximum number of results to return.

Parameters

max	Maximum results (0 = unlimited)

Definition at line 34 of file worklist_scp.cpp.

                                                      {
    max_results_ = max;
}

◆ supported_sop_classes()

std::vector< std::string > kcenon::pacs::services::worklist_scp::supported_sop_classes ( ) const

nodiscardoverridevirtual

Get supported SOP Class UIDs.

Returns: Vector containing Modality Worklist Find SOP Class UID

Implements kcenon::pacs::services::scp_service.

Definition at line 50 of file worklist_scp.cpp.

                                                               {
    return {
        std::string(worklist_find_sop_class_uid)
    };
}

References kcenon::pacs::services::worklist_find_sop_class_uid.

Member Data Documentation

◆ cancel_check_

worklist_cancel_check kcenon::pacs::services::worklist_scp::cancel_check_

private

Definition at line 343 of file worklist_scp.h.

Referenced by handle_message(), and set_cancel_check().

◆ handler_

worklist_handler kcenon::pacs::services::worklist_scp::handler_

private

Definition at line 342 of file worklist_scp.h.

Referenced by handle_message(), and set_handler().

◆ items_returned_

std::atomic<size_t> kcenon::pacs::services::worklist_scp::items_returned_ {0}

private

Definition at line 346 of file worklist_scp.h.

346{0};

Referenced by handle_message(), items_returned(), and reset_statistics().

◆ max_results_

size_t kcenon::pacs::services::worklist_scp::max_results_ {0}

private

Definition at line 344 of file worklist_scp.h.

344{0}; // 0 = unlimited

Referenced by handle_message(), and max_results().

◆ queries_processed_

std::atomic<size_t> kcenon::pacs::services::worklist_scp::queries_processed_ {0}

private

Definition at line 345 of file worklist_scp.h.

345{0};

Referenced by handle_message(), queries_processed(), and reset_statistics().

The documentation for this class was generated from the following files:

include/kcenon/pacs/services/worklist_scp.h
src/services/worklist_scp.cpp

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ worklist_scp()

◆ ~worklist_scp()

Member Function Documentation

◆ handle_message()

◆ items_returned()

◆ max_results()

◆ queries_processed()

◆ reset_statistics()

◆ send_final_response()

◆ send_pending_response()

◆ service_name()

◆ set_cancel_check()

◆ set_handler()

◆ set_max_results()

◆ supported_sop_classes()

Member Data Documentation

◆ cancel_check_

◆ handler_

◆ items_returned_

◆ max_results_

◆ queries_processed_
