kcenon::pacs::services::mpps_set_data Struct Reference

Data for N-SET operation (update/complete procedure) More...

#include <mpps_scu.h>

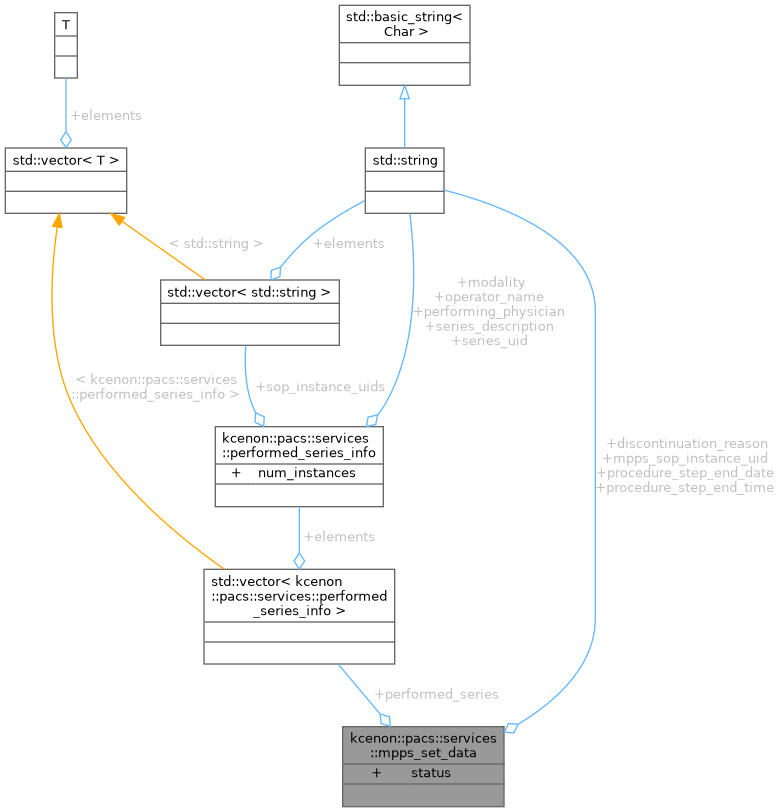

Collaboration diagram for kcenon::pacs::services::mpps_set_data:

Public Attributes
std::string	mpps_sop_instance_uid
	MPPS SOP Instance UID (required)
mpps_status	status {mpps_status::completed}
	New status (COMPLETED or DISCONTINUED)
std::string	procedure_step_end_date
	Procedure Step End Date (required for COMPLETED/DISCONTINUED)
std::string	procedure_step_end_time
	Procedure Step End Time (required for COMPLETED/DISCONTINUED)
std::vector< performed_series_info >	performed_series
	Performed Series Sequence (for COMPLETED status)
std::string	discontinuation_reason
	Discontinuation reason (for DISCONTINUED status)

Detailed Description

Data for N-SET operation (update/complete procedure)

Contains attributes to update an existing MPPS instance to COMPLETED or DISCONTINUED status.

Definition at line 107 of file mpps_scu.h.

Member Data Documentation

discontinuation_reason

std::string kcenon::pacs::services::mpps_set_data::discontinuation_reason

Discontinuation reason (for DISCONTINUED status)

Definition at line 124 of file mpps_scu.h.

Referenced by kcenon::pacs::services::mpps_scu::discontinue().

mpps_sop_instance_uid

std::string kcenon::pacs::services::mpps_set_data::mpps_sop_instance_uid

MPPS SOP Instance UID (required)

Definition at line 109 of file mpps_scu.h.

Referenced by kcenon::pacs::services::mpps_scu::complete(), kcenon::pacs::services::mpps_scu::discontinue(), and kcenon::pacs::services::mpps_scu::set().

performed_series

std::vector<performed_series_info> kcenon::pacs::services::mpps_set_data::performed_series

Performed Series Sequence (for COMPLETED status)

Definition at line 121 of file mpps_scu.h.

Referenced by kcenon::pacs::services::mpps_scu::build_set_dataset(), and kcenon::pacs::services::mpps_scu::complete().

procedure_step_end_date

std::string kcenon::pacs::services::mpps_set_data::procedure_step_end_date

Procedure Step End Date (required for COMPLETED/DISCONTINUED)

Definition at line 115 of file mpps_scu.h.

Referenced by kcenon::pacs::services::mpps_scu::build_set_dataset(), kcenon::pacs::services::mpps_scu::complete(), and kcenon::pacs::services::mpps_scu::discontinue().

procedure_step_end_time

std::string kcenon::pacs::services::mpps_set_data::procedure_step_end_time

Procedure Step End Time (required for COMPLETED/DISCONTINUED)

Definition at line 118 of file mpps_scu.h.

Referenced by kcenon::pacs::services::mpps_scu::build_set_dataset(), kcenon::pacs::services::mpps_scu::complete(), and kcenon::pacs::services::mpps_scu::discontinue().

status

mpps_status kcenon::pacs::services::mpps_set_data::status {mpps_status::completed}

New status (COMPLETED or DISCONTINUED)

Definition at line 112 of file mpps_scu.h.

{mpps_status::completed};

Referenced by kcenon::pacs::services::mpps_scu::build_set_dataset(), kcenon::pacs::services::mpps_scu::complete(), kcenon::pacs::services::mpps_scu::discontinue(), and kcenon::pacs::services::mpps_scu::set().

---

The documentation for this struct was generated from the following file:

• include/kcenon/pacs/services/mpps_scu.h
