kcenon::pacs::services::store_result Struct Reference

Result of a C-STORE operation. More...

#include <storage_scu.h>

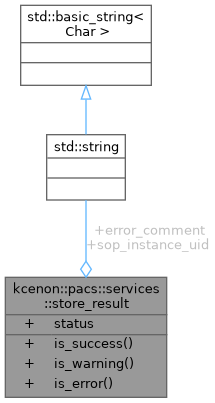

Collaboration diagram for kcenon::pacs::services::store_result:

Public Member Functions
bool	is_success () const noexcept
	Check if the store operation was successful.
bool	is_warning () const noexcept
	Check if this was a warning status.
bool	is_error () const noexcept
	Check if this was an error status.

Public Attributes
std::string	sop_instance_uid
	SOP Instance UID of the stored instance.
uint16_t	status {0}
	DIMSE status code (0x0000 = success)
std::string	error_comment
	Error comment from the SCP (if any)

Detailed Description

Result of a C-STORE operation.

Contains information about the outcome of storing a single DICOM instance.

Examples

store_scu/main.cpp.

Definition at line 43 of file storage_scu.h.

Member Function Documentation

is_error()

bool kcenon::pacs::services::store_result::is_error ( ) const

inlinenodiscardnoexcept

Check if this was an error status.

Definition at line 64 of file storage_scu.h.

                                                 {
        return !is_success() && !is_warning();
    }

References is_success(), and is_warning().

Here is the call graph for this function:

is_success()

bool kcenon::pacs::services::store_result::is_success ( ) const

inlinenodiscardnoexcept

Check if the store operation was successful.

Examples

store_scu/main.cpp.

Definition at line 54 of file storage_scu.h.

                                                   {
        return status == 0x0000;
    }

References status.

Referenced by is_error(), kcenon::pacs::services::storage_scu::store_impl(), TEST_CASE(), and TEST_CASE().

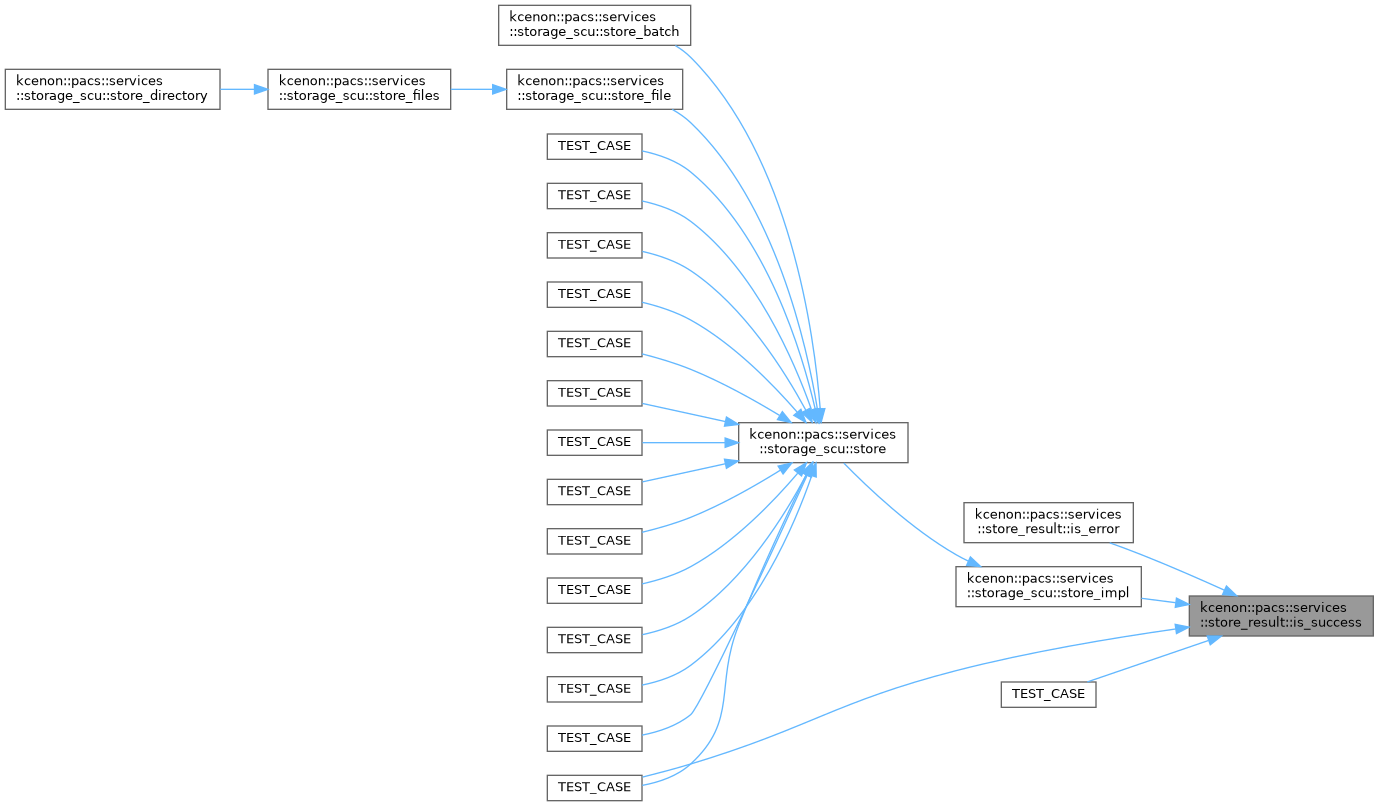

Here is the caller graph for this function:

is_warning()

bool kcenon::pacs::services::store_result::is_warning ( ) const

inlinenodiscardnoexcept

Check if this was a warning status.

Examples

store_scu/main.cpp.

Definition at line 59 of file storage_scu.h.

                                                   {
        return (status & 0xF000) == 0xB000;
    }

References status.

Referenced by is_error(), and kcenon::pacs::services::storage_scu::store_impl().

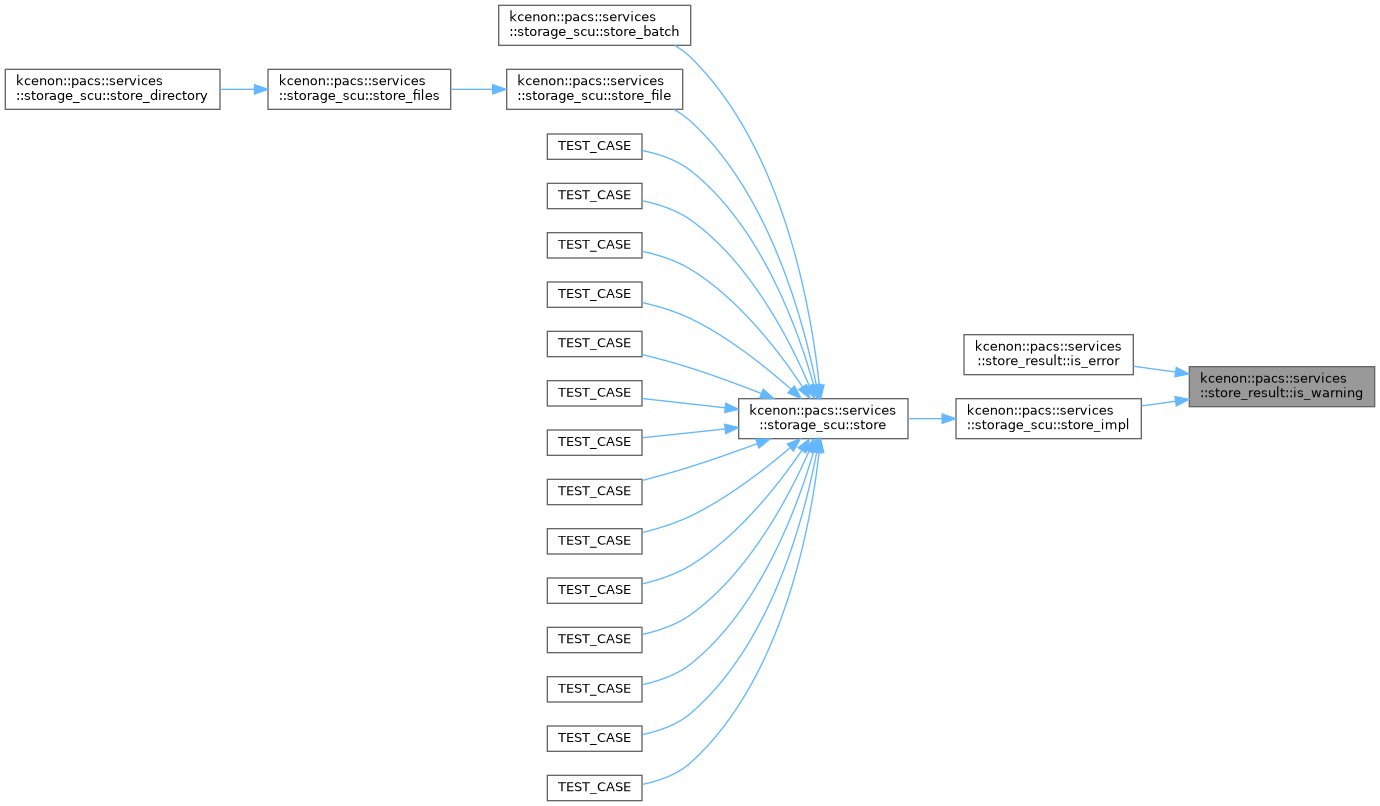

Here is the caller graph for this function:

Member Data Documentation

error_comment

std::string kcenon::pacs::services::store_result::error_comment

Error comment from the SCP (if any)

Examples

store_scu/main.cpp.

Definition at line 51 of file storage_scu.h.

Referenced by kcenon::pacs::services::storage_scu::store_batch(), kcenon::pacs::services::storage_scu::store_files(), and kcenon::pacs::services::storage_scu::store_impl().

sop_instance_uid

std::string kcenon::pacs::services::store_result::sop_instance_uid

SOP Instance UID of the stored instance.

Examples

store_scu/main.cpp.

Definition at line 45 of file storage_scu.h.

Referenced by kcenon::pacs::services::storage_scu::store_batch(), kcenon::pacs::services::storage_scu::store_files(), and kcenon::pacs::services::storage_scu::store_impl().

status

uint16_t kcenon::pacs::services::store_result::status {0}

DIMSE status code (0x0000 = success)

Examples

store_scu/main.cpp.

Definition at line 48 of file storage_scu.h.

{0};

Referenced by is_success(), is_warning(), kcenon::pacs::services::storage_scu::store_batch(), kcenon::pacs::services::storage_scu::store_files(), and kcenon::pacs::services::storage_scu::store_impl().

---

The documentation for this struct was generated from the following file:

• include/kcenon/pacs/services/storage_scu.h
