kcenon::pacs::services::retrieve_scu Class Reference

#include <retrieve_scu.h>

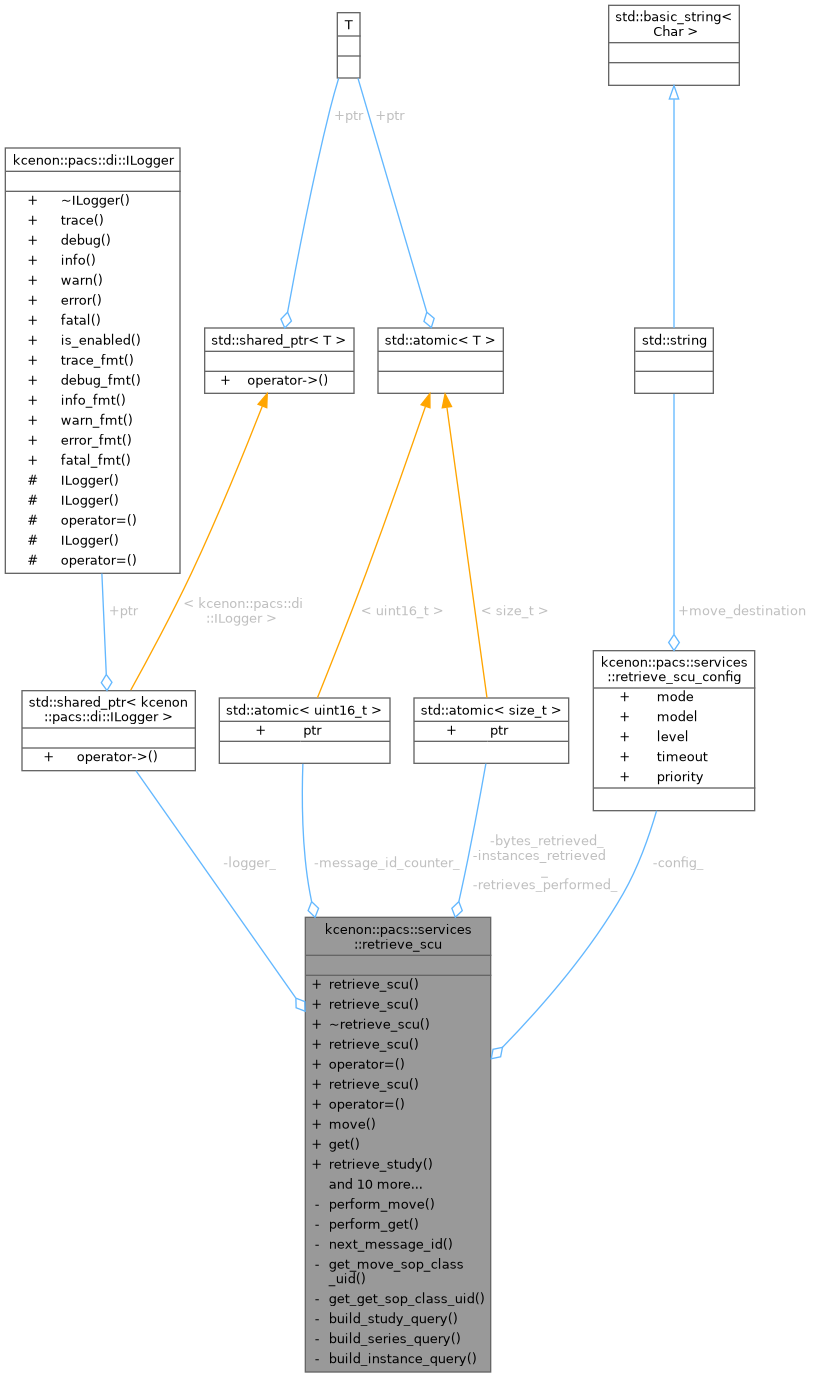

Collaboration diagram for kcenon::pacs::services::retrieve_scu:

Public Member Functions
	retrieve_scu (std::shared_ptr< di::ILogger > logger=nullptr)
	Construct a Retrieve SCU with default configuration.
	retrieve_scu (const retrieve_scu_config &config, std::shared_ptr< di::ILogger > logger=nullptr)
	Construct a Retrieve SCU with custom configuration.
	~retrieve_scu ()=default
	retrieve_scu (const retrieve_scu &)=delete
retrieve_scu &	operator= (const retrieve_scu &)=delete
	retrieve_scu (retrieve_scu &&)=delete
retrieve_scu &	operator= (retrieve_scu &&)=delete
network::Result< retrieve_result >	move (network::association &assoc, const core::dicom_dataset &query_keys, std::string_view destination_ae, retrieve_progress_callback progress=nullptr)
	Perform a C-MOVE operation with raw dataset.
network::Result< retrieve_result >	get (network::association &assoc, const core::dicom_dataset &query_keys, retrieve_progress_callback progress=nullptr)
	Perform a C-GET operation with raw dataset.
network::Result< retrieve_result >	retrieve_study (network::association &assoc, std::string_view study_uid, retrieve_progress_callback progress=nullptr)
	Retrieve a study by Study Instance UID.
network::Result< retrieve_result >	retrieve_series (network::association &assoc, std::string_view series_uid, retrieve_progress_callback progress=nullptr)
	Retrieve a series by Series Instance UID.
network::Result< retrieve_result >	retrieve_instance (network::association &assoc, std::string_view sop_instance_uid, retrieve_progress_callback progress=nullptr)
	Retrieve a single instance by SOP Instance UID.
network::Result< std::monostate >	cancel (network::association &assoc, uint16_t message_id)
	Send a C-CANCEL request to stop an ongoing retrieve.
void	set_config (const retrieve_scu_config &config)
	Update the SCU configuration.
void	set_move_destination (std::string_view ae_title)
	Set the move destination AE title.
const retrieve_scu_config &	config () const noexcept
	Get the current configuration.
size_t	retrieves_performed () const noexcept
	Get the number of retrieves performed since construction.
size_t	instances_retrieved () const noexcept
	Get the total number of instances retrieved since construction.
size_t	bytes_retrieved () const noexcept
	Get the total bytes retrieved since construction (C-GET only)
void	reset_statistics () noexcept
	Reset statistics counters to zero.

Private Member Functions
network::Result< retrieve_result >	perform_move (network::association &assoc, const core::dicom_dataset &query_keys, std::string_view destination_ae, retrieve_progress_callback progress)
	Internal C-MOVE implementation.
network::Result< retrieve_result >	perform_get (network::association &assoc, const core::dicom_dataset &query_keys, retrieve_progress_callback progress)
	Internal C-GET implementation.
uint16_t	next_message_id () noexcept
	Get the next message ID for DIMSE operations.
std::string_view	get_move_sop_class_uid () const noexcept
	Get MOVE SOP Class UID based on current configuration.
std::string_view	get_get_sop_class_uid () const noexcept
	Get GET SOP Class UID based on current configuration.
core::dicom_dataset	build_study_query (std::string_view study_uid) const
	Build query dataset for study retrieval.
core::dicom_dataset	build_series_query (std::string_view series_uid) const
	Build query dataset for series retrieval.
core::dicom_dataset	build_instance_query (std::string_view sop_instance_uid) const
	Build query dataset for instance retrieval.

Private Attributes
std::shared_ptr< di::ILogger >	logger_
	Logger instance for service logging.
retrieve_scu_config	config_
	Configuration.
std::atomic< uint16_t >	message_id_counter_ {1}
	Message ID counter.
std::atomic< size_t >	retrieves_performed_ {0}
	Statistics: number of retrieves performed.
std::atomic< size_t >	instances_retrieved_ {0}
	Statistics: total number of instances retrieved.
std::atomic< size_t >	bytes_retrieved_ {0}
	Statistics: total bytes retrieved.

Detailed Description

Definition at line 352 of file retrieve_scu.h.

Constructor & Destructor Documentation

retrieve_scu() [1/4]

kcenon::pacs::services::retrieve_scu::retrieve_scu ( std::shared_ptr< di::ILogger > logger = nullptr )

explicit

Construct a Retrieve SCU with default configuration.

Parameters

logger

Logger instance for service logging (nullptr uses null_logger)

Definition at line 25 of file retrieve_scu.cpp.

    : logger_(logger ? std::move(logger) : di::null_logger()) {}

retrieve_scu() [2/4]

kcenon::pacs::services::retrieve_scu::retrieve_scu ( const retrieve_scu_config & config, std::shared_ptr< di::ILogger > logger = nullptr )

explicit

Construct a Retrieve SCU with custom configuration.

Parameters

config	Configuration options
logger	Logger instance for service logging (nullptr uses null_logger)

Definition at line 28 of file retrieve_scu.cpp.

    : logger_(logger ? std::move(logger) : di::null_logger()), config_(config) {}

~retrieve_scu()

kcenon::pacs::services::retrieve_scu::~retrieve_scu ( )

default

retrieve_scu() [3/4]

kcenon::pacs::services::retrieve_scu::retrieve_scu ( const retrieve_scu & )

delete

retrieve_scu() [4/4]

kcenon::pacs::services::retrieve_scu::retrieve_scu ( retrieve_scu && )

delete

Member Function Documentation

build_instance_query()

core::dicom_dataset kcenon::pacs::services::retrieve_scu::build_instance_query ( std::string_view sop_instance_uid ) const

nodiscardprivate

Build query dataset for instance retrieval.

Definition at line 526 of file retrieve_scu.cpp.

                                           {

    using namespace core;
    using namespace encoding;

    dicom_dataset ds;
    ds.set_string(tags::query_retrieve_level, vr_type::CS, "IMAGE");
    ds.set_string(tags::sop_instance_uid, vr_type::UI, std::string(sop_instance_uid));

    return ds;
}

References kcenon::pacs::core::tags::query_retrieve_level, and kcenon::pacs::core::tags::sop_instance_uid.

Referenced by retrieve_instance().

Here is the caller graph for this function:

build_series_query()

core::dicom_dataset kcenon::pacs::services::retrieve_scu::build_series_query ( std::string_view series_uid ) const

nodiscardprivate

Build query dataset for series retrieval.

Definition at line 513 of file retrieve_scu.cpp.

                                     {

    using namespace core;
    using namespace encoding;

    dicom_dataset ds;
    ds.set_string(tags::query_retrieve_level, vr_type::CS, "SERIES");
    ds.set_string(tags::series_instance_uid, vr_type::UI, std::string(series_uid));

    return ds;
}

References kcenon::pacs::core::tags::query_retrieve_level, and kcenon::pacs::core::tags::series_instance_uid.

Referenced by retrieve_series().

Here is the caller graph for this function:

build_study_query()

core::dicom_dataset kcenon::pacs::services::retrieve_scu::build_study_query ( std::string_view study_uid ) const

nodiscardprivate

Build query dataset for study retrieval.

Definition at line 500 of file retrieve_scu.cpp.

                                    {

    using namespace core;
    using namespace encoding;

    dicom_dataset ds;
    ds.set_string(tags::query_retrieve_level, vr_type::CS, "STUDY");
    ds.set_string(tags::study_instance_uid, vr_type::UI, std::string(study_uid));

    return ds;
}

References kcenon::pacs::core::tags::query_retrieve_level, and kcenon::pacs::core::tags::study_instance_uid.

Referenced by retrieve_study().

Here is the caller graph for this function:

bytes_retrieved()

size_t kcenon::pacs::services::retrieve_scu::bytes_retrieved ( ) const

nodiscardnoexcept

Get the total bytes retrieved since construction (C-GET only)

Returns

Total bytes of dataset data received

Definition at line 455 of file retrieve_scu.cpp.

                                                    {
    return bytes_retrieved_.load(std::memory_order_relaxed);
}

References bytes_retrieved_.

cancel()

network::Result< std::monostate > kcenon::pacs::services::retrieve_scu::cancel ( network::association & assoc, uint16_t message_id )

nodiscard

Send a C-CANCEL request to stop an ongoing retrieve.

Parameters

assoc	The association on which the retrieve is running
message_id	The message ID of the retrieve to cancel

Returns

Success or error

Definition at line 405 of file retrieve_scu.cpp.

                         {

    using namespace network::dimse;

    auto sop_class_uid = (config_.mode == retrieve_mode::c_move)
        ? get_move_sop_class_uid()
        : get_get_sop_class_uid();

    auto context_id = assoc.accepted_context_id(sop_class_uid);
    if (!context_id) {
        return kcenon::pacs::pacs_error<std::monostate>(
            kcenon::pacs::error_codes::no_acceptable_context,
            "No accepted presentation context for cancel");
    }

    // Build C-CANCEL-RQ message
    dimse_message cancel_rq{command_field::c_cancel_rq, message_id};
    return assoc.send_dimse(*context_id, cancel_rq);
}

References kcenon::pacs::network::association::accepted_context_id(), kcenon::pacs::services::c_move, config_, get_get_sop_class_uid(), get_move_sop_class_uid(), kcenon::pacs::services::retrieve_scu_config::mode, kcenon::pacs::error_codes::no_acceptable_context, kcenon::pacs::pacs_error(), and kcenon::pacs::network::association::send_dimse().

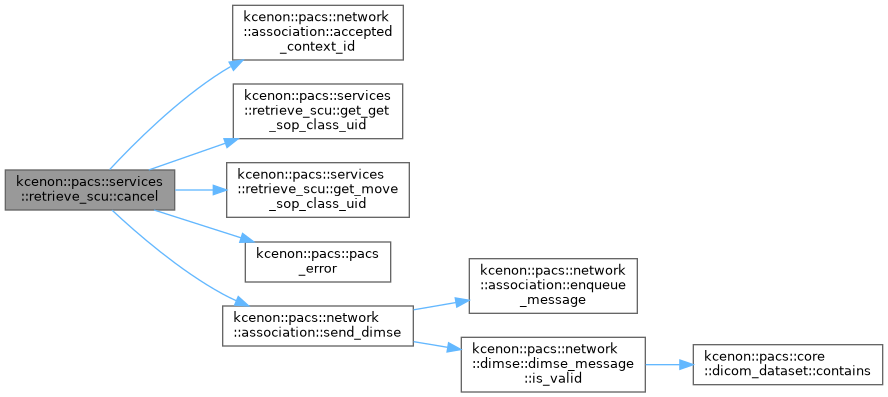

Here is the call graph for this function:

config()

const retrieve_scu_config & kcenon::pacs::services::retrieve_scu::config ( ) const

nodiscardnoexcept

Get the current configuration.

Returns

Reference to the current configuration

Definition at line 439 of file retrieve_scu.cpp.

                                                               {
    return config_;
}

References config_.

Referenced by set_config().

Here is the caller graph for this function:

get()

network::Result< retrieve_result > kcenon::pacs::services::retrieve_scu::get ( network::association & assoc, const core::dicom_dataset & query_keys, retrieve_progress_callback progress = nullptr )

nodiscard

Perform a C-GET operation with raw dataset.

Sends a C-GET request with the provided query keys to retrieve matching images. The images are received directly on the same association via C-STORE sub-operations.

Parameters

assoc	The established association to use
query_keys	The DICOM dataset containing query keys
progress	Optional callback for progress updates

Returns

Result containing retrieve_result on success, or error message

Definition at line 186 of file retrieve_scu.cpp.

                                         {

    return perform_get(assoc, query_keys, progress);
}

References perform_get().

Referenced by retrieve_instance(), retrieve_series(), and retrieve_study().

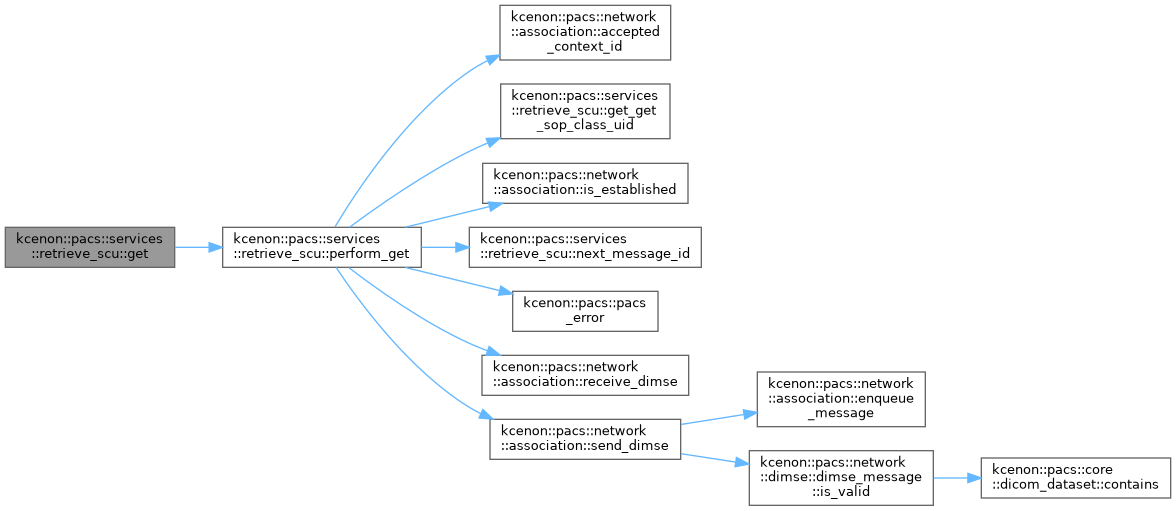

Here is the call graph for this function:

Here is the caller graph for this function:

get_get_sop_class_uid()

std::string_view kcenon::pacs::services::retrieve_scu::get_get_sop_class_uid ( ) const

nodiscardprivatenoexcept

Get GET SOP Class UID based on current configuration.

Definition at line 489 of file retrieve_scu.cpp.

                                                                  {
    switch (config_.model) {
        case query_model::patient_root:
            return patient_root_get_sop_class_uid;
        case query_model::study_root:
            return study_root_get_sop_class_uid;
        default:
            return study_root_get_sop_class_uid;
    }
}

References config_, kcenon::pacs::services::retrieve_scu_config::model, kcenon::pacs::services::patient_root, kcenon::pacs::services::patient_root_get_sop_class_uid, kcenon::pacs::services::study_root, and kcenon::pacs::services::study_root_get_sop_class_uid.

Referenced by cancel(), and perform_get().

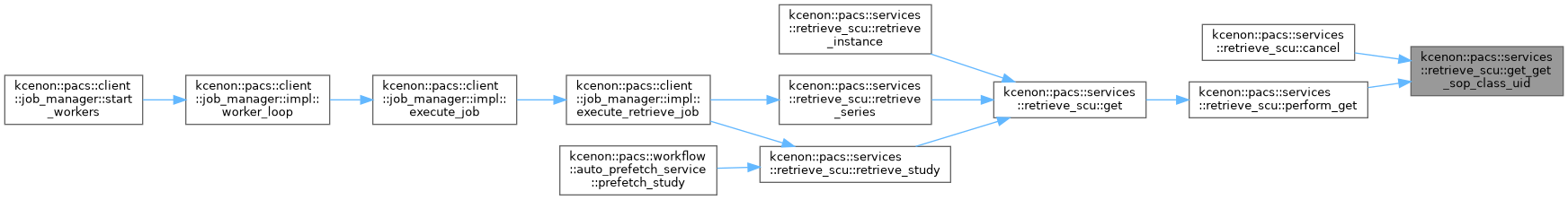

Here is the caller graph for this function:

get_move_sop_class_uid()

std::string_view kcenon::pacs::services::retrieve_scu::get_move_sop_class_uid ( ) const

nodiscardprivatenoexcept

Get MOVE SOP Class UID based on current configuration.

Definition at line 478 of file retrieve_scu.cpp.

                                                                   {
    switch (config_.model) {
        case query_model::patient_root:
            return patient_root_move_sop_class_uid;
        case query_model::study_root:
            return study_root_move_sop_class_uid;
        default:
            return study_root_move_sop_class_uid;
    }
}

References config_, kcenon::pacs::services::retrieve_scu_config::model, kcenon::pacs::services::patient_root, kcenon::pacs::services::patient_root_move_sop_class_uid, kcenon::pacs::services::study_root, and kcenon::pacs::services::study_root_move_sop_class_uid.

Referenced by cancel(), and perform_move().

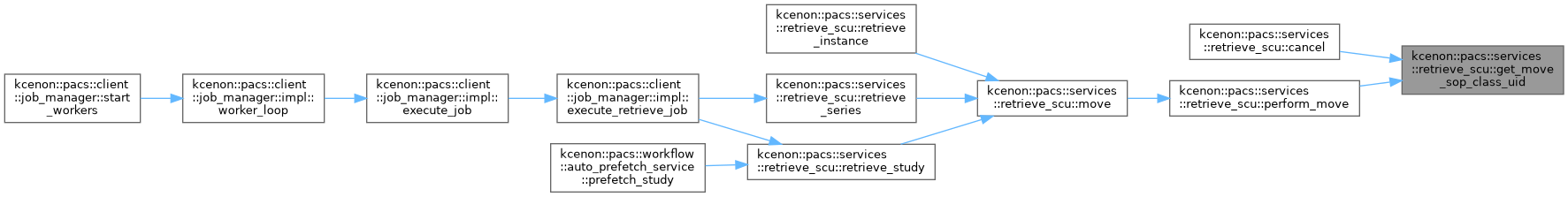

Here is the caller graph for this function:

instances_retrieved()

size_t kcenon::pacs::services::retrieve_scu::instances_retrieved ( ) const

nodiscardnoexcept

Get the total number of instances retrieved since construction.

Returns

Total count of successful sub-operations

Definition at line 451 of file retrieve_scu.cpp.

                                                        {
    return instances_retrieved_.load(std::memory_order_relaxed);
}

References instances_retrieved_.

move()

network::Result< retrieve_result > kcenon::pacs::services::retrieve_scu::move ( network::association & assoc, const core::dicom_dataset & query_keys, std::string_view destination_ae, retrieve_progress_callback progress = nullptr )

nodiscard

Perform a C-MOVE operation with raw dataset.

Sends a C-MOVE request with the provided query keys to retrieve matching images. The SCP will send the images to the specified destination AE title.

Parameters

assoc	The established association to use
query_keys	The DICOM dataset containing query keys
destination_ae	The destination AE title to send images to
progress	Optional callback for progress updates

Returns

Result containing retrieve_result on success, or error message

Definition at line 36 of file retrieve_scu.cpp.

                                         {

    return perform_move(assoc, query_keys, destination_ae, progress);
}

References perform_move().

Referenced by retrieve_instance(), retrieve_series(), and retrieve_study().

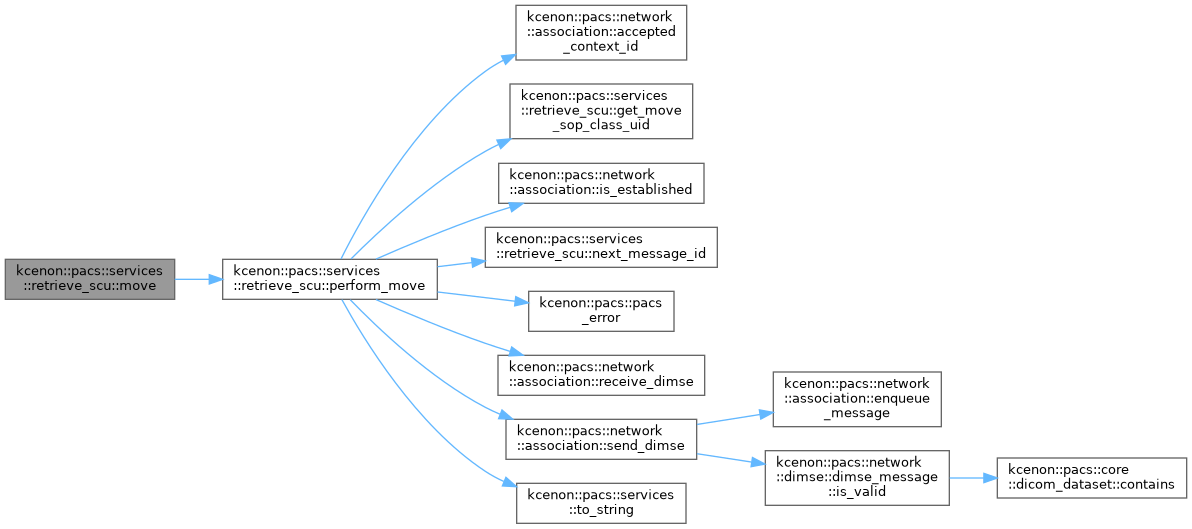

Here is the call graph for this function:

Here is the caller graph for this function:

next_message_id()

uint16_t kcenon::pacs::services::retrieve_scu::next_message_id ( )

nodiscardprivatenoexcept

Get the next message ID for DIMSE operations.

Definition at line 469 of file retrieve_scu.cpp.

                                                {
    uint16_t id = message_id_counter_.fetch_add(1, std::memory_order_relaxed);
    // Wrap around at 0xFFFF, skip 0 (reserved)
    if (id == 0) {
        id = message_id_counter_.fetch_add(1, std::memory_order_relaxed);
    }
    return id;
}

References message_id_counter_.

Referenced by perform_get(), and perform_move().

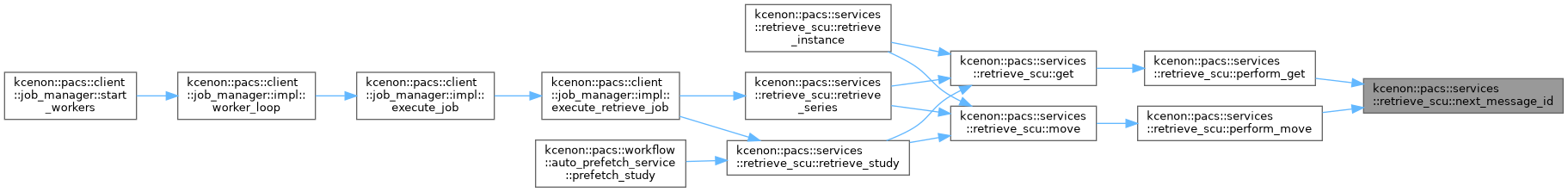

Here is the caller graph for this function:

operator=() [1/2]

retrieve_scu & kcenon::pacs::services::retrieve_scu::operator= ( const retrieve_scu & )

delete

operator=() [2/2]

retrieve_scu & kcenon::pacs::services::retrieve_scu::operator= ( retrieve_scu && )

delete

perform_get()

network::Result< retrieve_result > kcenon::pacs::services::retrieve_scu::perform_get ( network::association & assoc, const core::dicom_dataset & query_keys, retrieve_progress_callback progress )

nodiscardprivate

Internal C-GET implementation.

Definition at line 194 of file retrieve_scu.cpp.

                                         {

    using namespace network::dimse;

    auto start_time = std::chrono::steady_clock::now();
    auto message_id = next_message_id();

    // Verify association is established
    if (!assoc.is_established()) {
        return kcenon::pacs::pacs_error<retrieve_result>(
            kcenon::pacs::error_codes::association_not_established,
            "Association not established");
    }

    // Get SOP Class UID
    auto sop_class_uid = get_get_sop_class_uid();

    // Get accepted presentation context for this SOP class
    auto context_id = assoc.accepted_context_id(sop_class_uid);
    if (!context_id) {
        return kcenon::pacs::pacs_error<retrieve_result>(
            kcenon::pacs::error_codes::no_acceptable_context,
            "No accepted presentation context for SOP Class: " +
            std::string(sop_class_uid));
    }

    // Build C-GET-RQ message
    dimse_message request{command_field::c_get_rq, message_id};
    request.set_affected_sop_class_uid(sop_class_uid);
    request.set_priority(config_.priority);
    request.set_dataset(query_keys);

    logger_->debug_fmt("Sending C-GET request (message_id={}, sop_class={})",
                       message_id, sop_class_uid);

    // Send the request
    auto send_result = assoc.send_dimse(*context_id, request);
    if (send_result.is_err()) {
        return send_result.error();
    }

    // Initialize progress tracking
    retrieve_progress prog;
    prog.start_time = start_time;

    // Receive responses (C-GET-RSP and C-STORE-RQ interleaved)
    retrieve_result result;
    bool retrieve_complete = false;

    while (!retrieve_complete) {
        auto recv_result = assoc.receive_dimse(config_.timeout);
        if (recv_result.is_err()) {
            return recv_result.error();
        }

        auto& [recv_context_id, msg] = recv_result.value();
        auto cmd = msg.command();

        if (cmd == command_field::c_get_rsp) {
            auto status = msg.status();

            // Extract sub-operation counts
            if (auto remaining = msg.remaining_subops()) {
                prog.remaining = *remaining;
            }
            if (auto completed = msg.completed_subops()) {
                prog.completed = *completed;
                result.completed = *completed;
            }
            if (auto failed = msg.failed_subops()) {
                prog.failed = *failed;
                result.failed = *failed;
            }
            if (auto warning = msg.warning_subops()) {
                prog.warning = *warning;
                result.warning = *warning;
            }

            // Call progress callback
            if (progress) {
                progress(prog);
            }

            // Check completion status
            if (status == status_success) {
                retrieve_complete = true;
                result.final_status = static_cast<uint16_t>(status);
            } else if (status == status_cancel) {
                retrieve_complete = true;
                result.final_status = static_cast<uint16_t>(status);
            } else if ((status & 0xF000) == 0xA000 ||
                       (status & 0xF000) == 0xC000) {
                // Error status
                retrieve_complete = true;
                result.final_status = static_cast<uint16_t>(status);
            }

        } else if (cmd == command_field::c_store_rq) {
            // Incoming C-STORE sub-operation - store the received instance
            if (msg.has_dataset()) {
                auto dataset_result = msg.dataset();
                if (dataset_result.is_ok()) {
                    result.received_instances.push_back(dataset_result.value().get());

                    // Update bytes transferred (approximate)
                    bytes_retrieved_.fetch_add(1024, std::memory_order_relaxed);
                }
            }

            // Send C-STORE response
            auto sop_class = msg.affected_sop_class_uid();
            auto sop_instance = msg.affected_sop_instance_uid();

            auto store_rsp = make_c_store_rsp(
                msg.message_id(),
                sop_class,
                sop_instance,
                status_success
            );

            auto send_rsp_result = assoc.send_dimse(recv_context_id, store_rsp);
            if (send_rsp_result.is_err()) {
                logger_->warn_fmt("Failed to send C-STORE response: {}",
                                  send_rsp_result.error().message);
            }
        }
    }

    auto end_time = std::chrono::steady_clock::now();
    result.elapsed = std::chrono::duration_cast<std::chrono::milliseconds>(
        end_time - start_time);

    // Update statistics
    retrieves_performed_.fetch_add(1, std::memory_order_relaxed);
    instances_retrieved_.fetch_add(result.completed, std::memory_order_relaxed);

    logger_->debug_fmt("C-GET completed: {} completed, {} failed, {} received in {} ms",
                       result.completed, result.failed,
                       result.received_instances.size(), result.elapsed.count());

    return result;
}

References kcenon::pacs::network::association::accepted_context_id(), kcenon::pacs::error_codes::association_not_established, bytes_retrieved_, kcenon::pacs::services::completed, kcenon::pacs::services::retrieve_progress::completed, kcenon::pacs::services::retrieve_result::completed, config_, kcenon::pacs::services::retrieve_result::elapsed, kcenon::pacs::services::retrieve_progress::failed, kcenon::pacs::services::retrieve_result::failed, kcenon::pacs::services::retrieve_result::final_status, get_get_sop_class_uid(), instances_retrieved_, kcenon::pacs::network::association::is_established(), logger_, next_message_id(), kcenon::pacs::error_codes::no_acceptable_context, kcenon::pacs::pacs_error(), kcenon::pacs::services::retrieve_scu_config::priority, kcenon::pacs::network::association::receive_dimse(), kcenon::pacs::services::retrieve_result::received_instances, kcenon::pacs::services::retrieve_progress::remaining, retrieves_performed_, kcenon::pacs::network::association::send_dimse(), kcenon::pacs::services::retrieve_progress::start_time, kcenon::pacs::services::retrieve_scu_config::timeout, kcenon::pacs::services::warning, kcenon::pacs::services::retrieve_progress::warning, and kcenon::pacs::services::retrieve_result::warning.

Referenced by get().

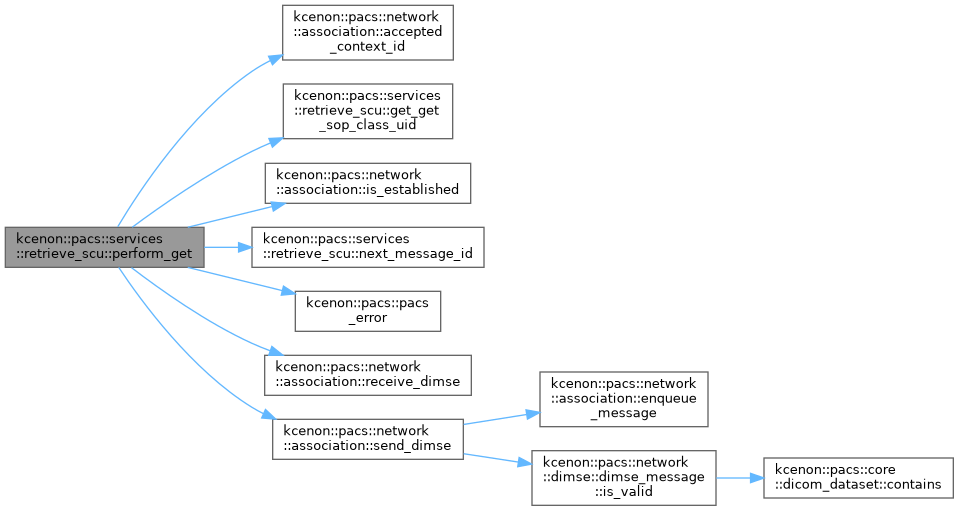

Here is the call graph for this function:

Here is the caller graph for this function:

perform_move()

network::Result< retrieve_result > kcenon::pacs::services::retrieve_scu::perform_move ( network::association & assoc, const core::dicom_dataset & query_keys, std::string_view destination_ae, retrieve_progress_callback progress )

nodiscardprivate

Internal C-MOVE implementation.

Definition at line 45 of file retrieve_scu.cpp.

                                         {

    using namespace network::dimse;

    auto start_time = std::chrono::steady_clock::now();
    auto message_id = next_message_id();

    // Verify association is established
    if (!assoc.is_established()) {
        return kcenon::pacs::pacs_error<retrieve_result>(
            kcenon::pacs::error_codes::association_not_established,
            "Association not established");
    }

    // Validate move destination
    if (destination_ae.empty()) {
        return kcenon::pacs::pacs_error<retrieve_result>(
            kcenon::pacs::error_codes::retrieve_missing_destination,
            "Move destination AE title is required");
    }

    // Get SOP Class UID
    auto sop_class_uid = get_move_sop_class_uid();

    // Get accepted presentation context for this SOP class
    auto context_id = assoc.accepted_context_id(sop_class_uid);
    if (!context_id) {
        return kcenon::pacs::pacs_error<retrieve_result>(
            kcenon::pacs::error_codes::no_acceptable_context,
            "No accepted presentation context for SOP Class: " +
            std::string(sop_class_uid));
    }

    // Build C-MOVE-RQ message
    dimse_message request{command_field::c_move_rq, message_id};
    request.set_affected_sop_class_uid(sop_class_uid);
    request.set_priority(config_.priority);

    // Set Move Destination
    request.command_set().set_string(
        tag_move_destination,
        encoding::vr_type::AE,
        std::string(destination_ae));

    request.set_dataset(query_keys);

    logger_->debug_fmt("Sending C-MOVE request (message_id={}, dest={}, sop_class={})",
                       message_id, destination_ae, sop_class_uid);

    // Send the request
    auto send_result = assoc.send_dimse(*context_id, request);
    if (send_result.is_err()) {
        return send_result.error();
    }

    // Initialize progress tracking
    retrieve_progress prog;
    prog.start_time = start_time;

    // Receive responses
    retrieve_result result;
    bool move_complete = false;

    while (!move_complete) {
        auto recv_result = assoc.receive_dimse(config_.timeout);
        if (recv_result.is_err()) {
            return recv_result.error();
        }

        const auto& [recv_context_id, response] = recv_result.value();

        // Verify it's a C-MOVE response
        if (response.command() != command_field::c_move_rsp) {
            return kcenon::pacs::pacs_error<retrieve_result>(
                kcenon::pacs::error_codes::retrieve_unexpected_command,
                "Expected C-MOVE-RSP but received " +
                std::string(to_string(response.command())));
        }

        auto status = response.status();

        // Extract sub-operation counts
        if (auto remaining = response.remaining_subops()) {
            prog.remaining = *remaining;
        }
        if (auto completed = response.completed_subops()) {
            prog.completed = *completed;
            result.completed = *completed;
        }
        if (auto failed = response.failed_subops()) {
            prog.failed = *failed;
            result.failed = *failed;
        }
        if (auto warning = response.warning_subops()) {
            prog.warning = *warning;
            result.warning = *warning;
        }

        // Call progress callback
        if (progress) {
            progress(prog);
        }

        // Check completion status
        if (status == status_success) {
            move_complete = true;
            result.final_status = static_cast<uint16_t>(status);
        } else if (status == status_cancel) {
            move_complete = true;
            result.final_status = static_cast<uint16_t>(status);
        } else if ((status & 0xF000) == 0xA000 ||
                   (status & 0xF000) == 0xC000) {
            // Error status (Refused or Failed)
            move_complete = true;
            result.final_status = static_cast<uint16_t>(status);
        }
        // status_pending (0xFF00) continues the loop
    }

    auto end_time = std::chrono::steady_clock::now();
    result.elapsed = std::chrono::duration_cast<std::chrono::milliseconds>(
        end_time - start_time);

    // Update statistics
    retrieves_performed_.fetch_add(1, std::memory_order_relaxed);
    instances_retrieved_.fetch_add(result.completed, std::memory_order_relaxed);

    logger_->debug_fmt("C-MOVE completed: {} completed, {} failed in {} ms",
                       result.completed, result.failed, result.elapsed.count());

    return result;
}

References kcenon::pacs::network::association::accepted_context_id(), kcenon::pacs::encoding::AE, kcenon::pacs::error_codes::association_not_established, kcenon::pacs::services::completed, kcenon::pacs::services::retrieve_progress::completed, kcenon::pacs::services::retrieve_result::completed, config_, kcenon::pacs::services::retrieve_result::elapsed, kcenon::pacs::services::retrieve_progress::failed, kcenon::pacs::services::retrieve_result::failed, kcenon::pacs::services::retrieve_result::final_status, get_move_sop_class_uid(), instances_retrieved_, kcenon::pacs::network::association::is_established(), logger_, next_message_id(), kcenon::pacs::error_codes::no_acceptable_context, kcenon::pacs::pacs_error(), kcenon::pacs::services::retrieve_scu_config::priority, kcenon::pacs::network::association::receive_dimse(), kcenon::pacs::services::retrieve_progress::remaining, kcenon::pacs::error_codes::retrieve_missing_destination, kcenon::pacs::error_codes::retrieve_unexpected_command, retrieves_performed_, kcenon::pacs::network::association::send_dimse(), kcenon::pacs::services::retrieve_progress::start_time, kcenon::pacs::services::retrieve_scu_config::timeout, kcenon::pacs::services::to_string(), kcenon::pacs::services::warning, kcenon::pacs::services::retrieve_progress::warning, and kcenon::pacs::services::retrieve_result::warning.

Referenced by move().

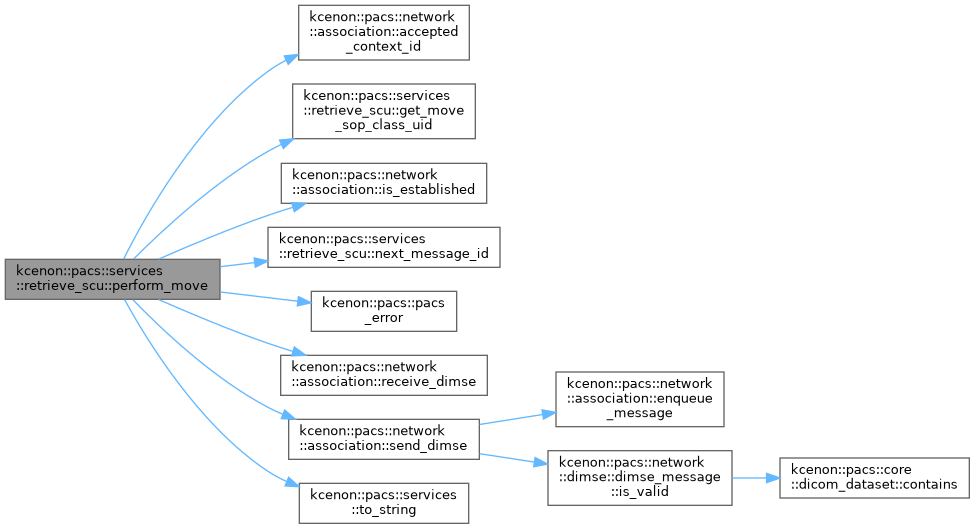

Here is the call graph for this function:

Here is the caller graph for this function:

reset_statistics()

void kcenon::pacs::services::retrieve_scu::reset_statistics ( )

noexcept

Reset statistics counters to zero.

Definition at line 459 of file retrieve_scu.cpp.

                                             {
    retrieves_performed_.store(0, std::memory_order_relaxed);
    instances_retrieved_.store(0, std::memory_order_relaxed);
    bytes_retrieved_.store(0, std::memory_order_relaxed);
}

References bytes_retrieved_, instances_retrieved_, and retrieves_performed_.

retrieve_instance()

network::Result< retrieve_result > kcenon::pacs::services::retrieve_scu::retrieve_instance ( network::association & assoc, std::string_view sop_instance_uid, retrieve_progress_callback progress = nullptr )

nodiscard

Retrieve a single instance by SOP Instance UID.

Uses C-MOVE or C-GET based on current configuration.

Parameters

assoc	The established association to use
sop_instance_uid	The SOP Instance UID to retrieve
progress	Optional callback for progress updates

Returns

Result containing retrieve_result on success

Definition at line 382 of file retrieve_scu.cpp.

                                         {

    auto query_ds = build_instance_query(sop_instance_uid);

    if (config_.mode == retrieve_mode::c_move) {
        if (config_.move_destination.empty()) {
            return kcenon::pacs::pacs_error<retrieve_result>(
                kcenon::pacs::error_codes::retrieve_missing_destination,
                "Move destination is required for C-MOVE mode");
        }
        return move(assoc, query_ds, config_.move_destination, progress);
    } else {
        return get(assoc, query_ds, progress);
    }
}

References build_instance_query(), kcenon::pacs::services::c_move, config_, get(), kcenon::pacs::services::retrieve_scu_config::mode, move(), kcenon::pacs::services::retrieve_scu_config::move_destination, kcenon::pacs::pacs_error(), and kcenon::pacs::error_codes::retrieve_missing_destination.

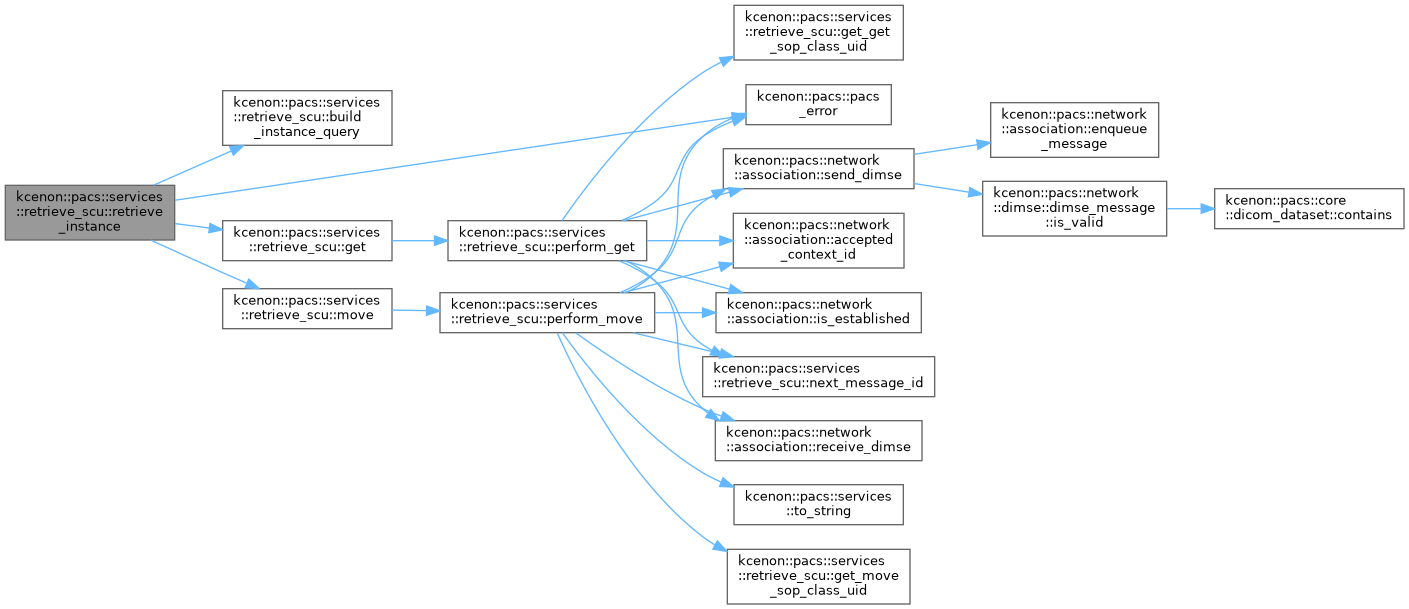

Here is the call graph for this function:

retrieve_series()

network::Result< retrieve_result > kcenon::pacs::services::retrieve_scu::retrieve_series ( network::association & assoc, std::string_view series_uid, retrieve_progress_callback progress = nullptr )

nodiscard

Retrieve a series by Series Instance UID.

Uses C-MOVE or C-GET based on current configuration.

Parameters

assoc	The established association to use
series_uid	The Series Instance UID to retrieve
progress	Optional callback for progress updates

Returns

Result containing retrieve_result on success

Definition at line 363 of file retrieve_scu.cpp.

                                         {

    auto query_ds = build_series_query(series_uid);

    if (config_.mode == retrieve_mode::c_move) {
        if (config_.move_destination.empty()) {
            return kcenon::pacs::pacs_error<retrieve_result>(
                kcenon::pacs::error_codes::retrieve_missing_destination,
                "Move destination is required for C-MOVE mode");
        }
        return move(assoc, query_ds, config_.move_destination, progress);
    } else {
        return get(assoc, query_ds, progress);
    }
}

References build_series_query(), kcenon::pacs::services::c_move, config_, get(), kcenon::pacs::services::retrieve_scu_config::mode, move(), kcenon::pacs::services::retrieve_scu_config::move_destination, kcenon::pacs::pacs_error(), and kcenon::pacs::error_codes::retrieve_missing_destination.

Referenced by kcenon::pacs::client::job_manager::impl::execute_retrieve_job().

Here is the call graph for this function:

Here is the caller graph for this function:

retrieve_study()

network::Result< retrieve_result > kcenon::pacs::services::retrieve_scu::retrieve_study ( network::association & assoc, std::string_view study_uid, retrieve_progress_callback progress = nullptr )

nodiscard

Retrieve a study by Study Instance UID.

Uses C-MOVE or C-GET based on current configuration.

Parameters

assoc	The established association to use
study_uid	The Study Instance UID to retrieve
progress	Optional callback for progress updates

Returns

Result containing retrieve_result on success

Definition at line 344 of file retrieve_scu.cpp.

                                         {

    auto query_ds = build_study_query(study_uid);

    if (config_.mode == retrieve_mode::c_move) {
        if (config_.move_destination.empty()) {
            return kcenon::pacs::pacs_error<retrieve_result>(
                kcenon::pacs::error_codes::retrieve_missing_destination,
                "Move destination is required for C-MOVE mode");
        }
        return move(assoc, query_ds, config_.move_destination, progress);
    } else {
        return get(assoc, query_ds, progress);
    }
}

References build_study_query(), kcenon::pacs::services::c_move, config_, get(), kcenon::pacs::services::retrieve_scu_config::mode, move(), kcenon::pacs::services::retrieve_scu_config::move_destination, kcenon::pacs::pacs_error(), and kcenon::pacs::error_codes::retrieve_missing_destination.

Referenced by kcenon::pacs::client::job_manager::impl::execute_retrieve_job(), and kcenon::pacs::workflow::auto_prefetch_service::prefetch_study().

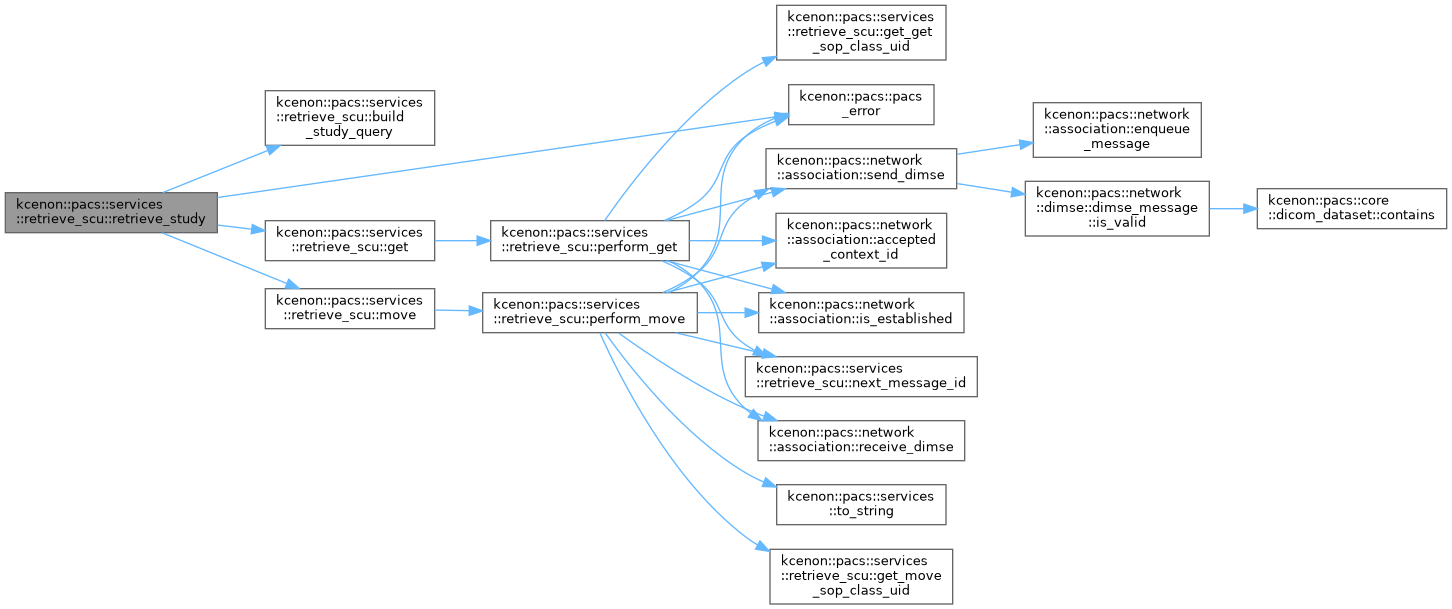

Here is the call graph for this function:

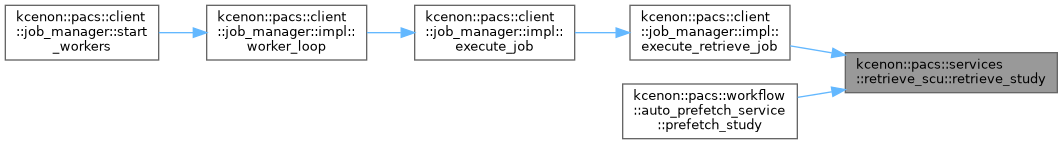

Here is the caller graph for this function:

retrieves_performed()

size_t kcenon::pacs::services::retrieve_scu::retrieves_performed ( ) const

nodiscardnoexcept

Get the number of retrieves performed since construction.

Returns

Count of C-MOVE/C-GET requests sent

Definition at line 447 of file retrieve_scu.cpp.

                                                        {
    return retrieves_performed_.load(std::memory_order_relaxed);
}

References retrieves_performed_.

set_config()

void kcenon::pacs::services::retrieve_scu::set_config

(

const retrieve_scu_config &

config

)

Update the SCU configuration.

Parameters

config

New configuration options

Definition at line 431 of file retrieve_scu.cpp.

                                                               {
    config_ = config;
}

References config(), and config_.

Here is the call graph for this function:

set_move_destination()

void kcenon::pacs::services::retrieve_scu::set_move_destination

(

std::string_view

ae_title

)

Set the move destination AE title.

Parameters

ae_title

The destination AE title for C-MOVE operations

Definition at line 435 of file retrieve_scu.cpp.

                                                               {
    config_.move_destination = std::string(ae_title);
}

References config_, and kcenon::pacs::services::retrieve_scu_config::move_destination.

Member Data Documentation

bytes_retrieved_

std::atomic<size_t> kcenon::pacs::services::retrieve_scu::bytes_retrieved_ {0}

private

Statistics: total bytes retrieved.

Definition at line 617 of file retrieve_scu.h.

{0};

Referenced by bytes_retrieved(), perform_get(), and reset_statistics().

config_

retrieve_scu_config kcenon::pacs::services::retrieve_scu::config_

private

Configuration.

Definition at line 605 of file retrieve_scu.h.

Referenced by cancel(), config(), get_get_sop_class_uid(), get_move_sop_class_uid(), perform_get(), perform_move(), retrieve_instance(), retrieve_series(), retrieve_study(), set_config(), and set_move_destination().

instances_retrieved_

std::atomic<size_t> kcenon::pacs::services::retrieve_scu::instances_retrieved_ {0}

private

Statistics: total number of instances retrieved.

Definition at line 614 of file retrieve_scu.h.

{0};

Referenced by instances_retrieved(), perform_get(), perform_move(), and reset_statistics().

logger_

std::shared_ptr<di::ILogger> kcenon::pacs::services::retrieve_scu::logger_

private

Logger instance for service logging.

Definition at line 602 of file retrieve_scu.h.

Referenced by perform_get(), and perform_move().

message_id_counter_

std::atomic<uint16_t> kcenon::pacs::services::retrieve_scu::message_id_counter_ {1}

private

Message ID counter.

Definition at line 608 of file retrieve_scu.h.

{1};

Referenced by next_message_id().

retrieves_performed_

std::atomic<size_t> kcenon::pacs::services::retrieve_scu::retrieves_performed_ {0}

private

Statistics: number of retrieves performed.

Definition at line 611 of file retrieve_scu.h.

{0};

Referenced by perform_get(), perform_move(), reset_statistics(), and retrieves_performed().

---

The documentation for this class was generated from the following files:

• include/kcenon/pacs/services/retrieve_scu.h
• src/services/retrieve_scu.cpp
