kcenon::pacs::services::sop_classes Namespace Reference

Namespaces
namespace	ophthalmic_tags
namespace	parametric_map_tags
namespace	sr_template
	Common SR Template IDs (TID)
namespace	wsi_tags

Classes
struct	dx_sop_class_info
	Information about a DX Storage SOP Class. More...
struct	mg_acquisition_params
	Mammography acquisition parameters structure. More...
struct	mg_sop_class_info
	Information about a Mammography Storage SOP Class. More...
struct	nm_energy_window_info
	Energy window information for NM acquisition. More...
struct	nm_sop_class_info
	Information about a NM Storage SOP Class. More...
struct	parametric_map_sop_class_info
	Information about the Parametric Map Storage SOP Class. More...
struct	pet_sop_class_info
	Information about a PET Storage SOP Class. More...
struct	rt_sop_class_info
	Information about an RT Storage SOP Class. More...
struct	seg_sop_class_info
	Information about a SEG Storage SOP Class. More...
struct	segment_color
	Standard segment colors for common anatomical structures. More...
struct	sr_sop_class_info
	Information about an SR Storage SOP Class. More...
struct	us_sop_class_info
	Information about an US Storage SOP Class. More...
struct	waveform_sop_class_info
	Information about a Waveform Storage SOP Class. More...
struct	xa_calibration_data
	XA calibration data for quantitative analysis. More...
struct	xa_positioner_angles
	Positioner angle information. More...
struct	xa_sop_class_info
	Information about an XA/XRF Storage SOP Class. More...

Enumerations
enum class	dx_photometric_interpretation { monochrome1 , monochrome2 }
	Supported photometric interpretations for DX images. More...
enum class	dx_image_type { for_presentation , for_processing }
	DX image purpose classification. More...
enum class	dx_view_position {   ap , pa , lateral , oblique ,   other }
	Common radiographic view positions for DX images. More...
enum class	dx_detector_type { direct , indirect , storage , film }
	DX detector technology types. More...
enum class	dx_body_part {   chest , abdomen , pelvis , spine ,   skull , hand , foot , knee ,   elbow , shoulder , hip , wrist ,   ankle , extremity , breast , other }
	Common body parts for DX imaging. More...
enum class	breast_laterality { left , right , bilateral , unknown }
	Breast laterality enumeration. More...
enum class	mg_view_position {   cc , mlo , ml , lm ,   xccl , xccm , fb , sio ,   iso , cv , at , spot ,   mag , spot_mag , rl , rm ,   rs , ri , tangen , implant ,   id , other }
	Mammography-specific view positions. More...
enum class	mg_image_type { for_presentation , for_processing }
	Mammography image purpose classification. More...
enum class	cad_processing_status {   not_processed , processed_no_findings , processed_findings , processing_failed ,   pending }
	CAD (Computer-Aided Detection) processing status. More...
enum class	nm_photometric_interpretation { monochrome2 , palette_color }
	Supported photometric interpretations for NM images. More...
enum class	nm_type_of_data {   static_image , dynamic , gated , whole_body ,   recon_tomo , recon_gated_tomo , tomo , gated_tomo }
	NM image type (Type of Data) More...
enum class	nm_detector_geometry {   planar , ring , partial_ring , curved ,   cylindrical }
	NM detector geometry type. More...
enum class	nm_collimator_type {   parallel , fan_beam , cone_beam , pinhole ,   diverging , converging , none }
	NM collimator type. More...
enum class	nm_radioisotope {   tc99m , i131 , i123 , tl201 ,   ga67 , in111 , f18 , other }
	Common radioisotopes used in NM imaging. More...
enum class	nm_rotation_direction { cw , cc }
	NM rotation direction for SPECT. More...
enum class	nm_scan_arc { arc_180 , arc_360 }
	NM scan arc for SPECT. More...
enum class	nm_whole_body_technique { single_pass , multi_pass , stepping }
	Patient orientation for whole body scan. More...
enum class	pixel_value_representation { float32 , float64 }
	Pixel value representation for parametric map data. More...
enum class	pet_photometric_interpretation { monochrome2 }
	Supported photometric interpretations for PET images. More...
enum class	pet_image_type { original , derived , primary , secondary }
	PET image type indicating the nature of the image. More...
enum class	pet_series_type { static_image , dynamic , gated , whole_body }
	PET series type code. More...
enum class	pet_attenuation_correction { none , measured , calculated , ct_based }
	Attenuation correction method. More...
enum class	pet_scatter_correction { none , single_scatter , convolution , model_based }
	Scatter correction method. More...
enum class	pet_reconstruction_type {   fbp , osem , mlem , tof_osem ,   psf_osem , other }
	PET reconstruction algorithm type. More...
enum class	pet_units {   cnts , bqml , gml , suv_bw ,   suv_lbm , suv_bsa , percent_id_gram , other }
	PET units type (Units attribute 0054,1001) More...
enum class	pet_radiotracer {   fdg , naf , flt , fdopa ,   ammonia , rubidium , gallium_dotatate , psma ,   other }
	Common PET radiotracers. More...
enum class	rt_plan_intent {   curative , palliative , prophylactic , verification ,   machine_qa , research , service }
	RT Plan Intent. More...
enum class	rt_plan_geometry { patient , treatment_device }
	RT Plan Geometry. More...
enum class	rt_dose_type { physical , effective , error }
	RT Dose Type. More...
enum class	rt_dose_summation_type {   plan , multi_plan , fraction , beam ,   brachy , fraction_session , beam_session , brachy_session ,   control_point , record }
	RT Dose Summation Type. More...
enum class	rt_dose_units { gy , relative }
	RT Dose Units. More...
enum class	rt_roi_interpreted_type {   external , ptv , ctv , gtv ,   organ , avoidance , treated_volume , irrad_volume ,   bolus , brachy_channel , brachy_accessory , brachy_src_appl ,   brachy_chnl_shld , support , fixation , dose_region ,   contrast_agent , cavity , marker , registration ,   isocenter , control_point }
	RT ROI Interpreted Type. More...
enum class	rt_roi_generation_algorithm { automatic , semiautomatic , manual }
	RT ROI Generation Algorithm. More...
enum class	rt_beam_type { static_beam , dynamic }
	RT Beam Type. More...
enum class	rt_radiation_type {   photon , electron , neutron , proton ,   ion }
	RT Radiation Type. More...
enum class	rt_treatment_delivery_type {   treatment , open_portfilm , trmt_portfilm , continuation ,   setup }
	RT Treatment Delivery Type. More...
enum class	rt_image_plane {   axial , localizer , drr , portal ,   fluence }
	RT Image Type values (as used in Image Type attribute) More...
enum class	segmentation_type { binary , fractional }
	Segmentation type (0062,0001) More...
enum class	segmentation_fractional_type { probability , occupancy }
	Segmentation fractional type (0062,0010) More...
enum class	segment_algorithm_type { automatic , semiautomatic , manual }
	Segment algorithm type (0062,0008) More...
enum class	segment_category {   tissue , anatomical_structure , physical_object , morphologically_abnormal ,   function , spatial , body_substance }
	Common anatomical property categories (CID 7150) More...
enum class	sr_document_type {   basic_text , enhanced , comprehensive , comprehensive_3d ,   extensible , key_object_selection , cad , dose_report ,   procedure_log , other }
	SR Document type classification. More...
enum class	sr_value_type {   text , code , num , datetime ,   date , time , uidref , pname ,   composite , image , waveform , scoord ,   scoord3d , tcoord , container , table ,   unknown }
	SR Content Item Value Type (0040,A040) More...
enum class	sr_relationship_type {   contains , has_obs_context , has_acq_context , has_concept_mod ,   has_properties , inferred_from , selected_from , unknown }
	SR Content Item Relationship Type (0040,A010) More...
enum class	sr_completion_flag { partial , complete }
	SR Completion Flag (0040,A491) More...
enum class	sr_verification_flag { unverified , verified }
	SR Verification Flag (0040,A493) More...
enum class	us_photometric_interpretation {   monochrome1 , monochrome2 , palette_color , rgb ,   ybr_full , ybr_full_422 }
	Supported photometric interpretations for US images. More...
enum class	us_region_spatial_format : uint16_t {   none = 0x0000 , two_d = 0x0001 , m_mode = 0x0002 , spectral = 0x0003 ,   wave_form = 0x0004 , graphics = 0x0005 }
	US Region spatial format. More...
enum class	us_region_data_type : uint16_t {   tissue = 0x0001 , blood = 0x0002 , color_flow = 0x0003 , elastography = 0x0004 ,   b_mode = 0x0005 }
	US Region data type. More...
enum class	waveform_type {   ecg_12lead , ecg_general , ecg_ambulatory , hemodynamic ,   cardiac_ep , audio_basic , audio_general , arterial_pulse ,   respiratory , respiratory_multi , eeg_routine , emg ,   eog , eeg_sleep , body_position , presentation_state ,   annotation , unknown }
	Waveform type classification. More...
enum class	xa_photometric_interpretation { monochrome1 , monochrome2 }
	Supported photometric interpretations for XA/XRF images. More...
enum class	xa_positioner_motion { stationary , dynamic }
	Positioner motion type. More...
enum class	xa_frame_rate : uint16_t { fps_7_5 = 8 , fps_15 = 15 , fps_30 = 30 }
	Common XA frame rates in frames per second. More...

Functions
std::vector< std::string >	get_ct_storage_sop_classes ()
	Get all CT Storage SOP Class UIDs.
bool	is_ct_storage_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a CT Storage SOP Class.

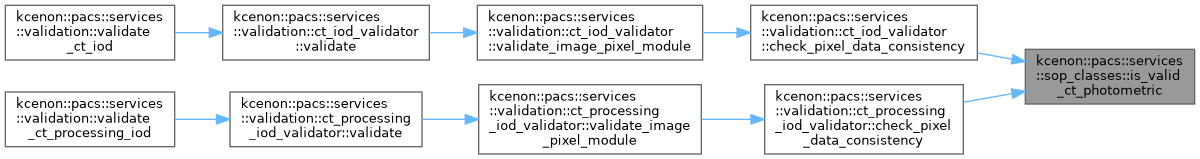

bool	is_valid_ct_photometric (std::string_view value) noexcept
	Check if photometric interpretation is valid for CT.
std::vector< std::string >	get_dx_transfer_syntaxes ()
	Get recommended transfer syntaxes for DX images.
std::string_view	to_string (dx_photometric_interpretation interp) noexcept
	Convert photometric interpretation enum to DICOM string.
dx_photometric_interpretation	parse_dx_photometric_interpretation (std::string_view value) noexcept
	Parse DICOM photometric interpretation string for DX.

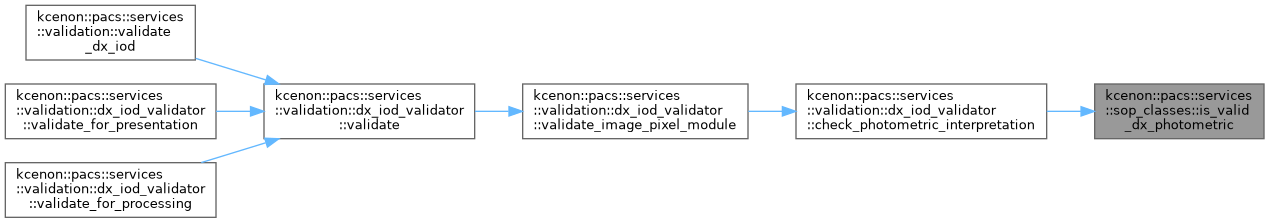

bool	is_valid_dx_photometric (std::string_view value) noexcept
	Check if photometric interpretation is valid for DX.
std::string_view	to_string (dx_image_type type) noexcept
	Convert DX image type to string.
std::string_view	to_string (dx_view_position position) noexcept
	Convert view position enum to DICOM string.
dx_view_position	parse_view_position (std::string_view value) noexcept
	Parse DICOM view position string.
std::string_view	to_string (dx_detector_type type) noexcept
	Convert detector type enum to DICOM string.
dx_detector_type	parse_detector_type (std::string_view value) noexcept
	Parse DICOM detector type string.
std::vector< std::string >	get_dx_storage_sop_classes (bool include_mammography=true, bool include_intraoral=true)
	Get all DX Storage SOP Class UIDs.

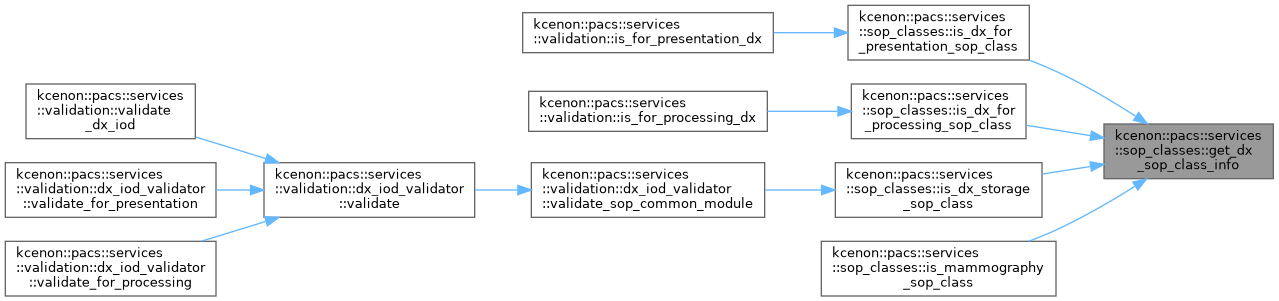

const dx_sop_class_info *	get_dx_sop_class_info (std::string_view uid) noexcept
	Get information about a specific DX SOP Class.

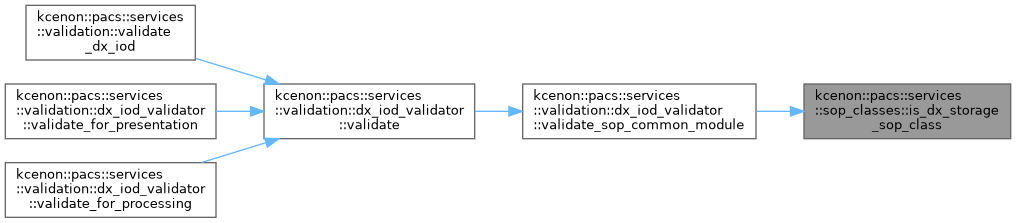

bool	is_dx_storage_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a DX Storage SOP Class.
bool	is_dx_for_processing_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a For Processing SOP Class.
bool	is_dx_for_presentation_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a For Presentation SOP Class.
bool	is_mammography_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a mammography SOP Class.
std::string_view	to_string (dx_body_part part) noexcept
	Convert body part enum to DICOM string.
dx_body_part	parse_body_part (std::string_view value) noexcept
	Parse DICOM body part examined string.
std::string_view	to_string (breast_laterality laterality) noexcept
	Convert breast laterality enum to DICOM string.
breast_laterality	parse_breast_laterality (std::string_view value) noexcept
	Parse DICOM laterality string to enum.
bool	is_valid_breast_laterality (std::string_view value) noexcept
	Check if a laterality value is valid for mammography.
std::string_view	to_string (mg_view_position position) noexcept
	Convert mammography view position enum to DICOM string.
mg_view_position	parse_mg_view_position (std::string_view value) noexcept
	Parse DICOM view position string to mammography view enum.
bool	is_screening_view (mg_view_position position) noexcept
	Check if a view position is a standard screening view.
bool	is_magnification_view (mg_view_position position) noexcept
	Check if a view position requires magnification.
bool	is_spot_compression_view (mg_view_position position) noexcept
	Check if a view position involves spot compression.

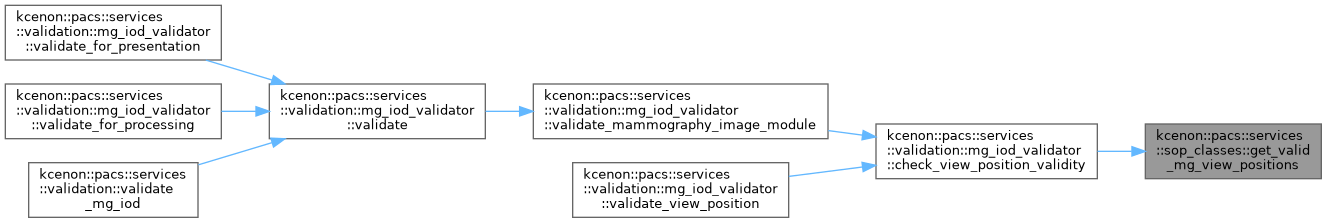

std::vector< std::string_view >	get_valid_mg_view_positions () noexcept
	Get all valid mammography view position strings.
bool	is_valid_compression_force (double force_n) noexcept
	Validate compression force value.
std::pair< double, double >	get_typical_compression_force_range () noexcept
	Get typical compression force range.

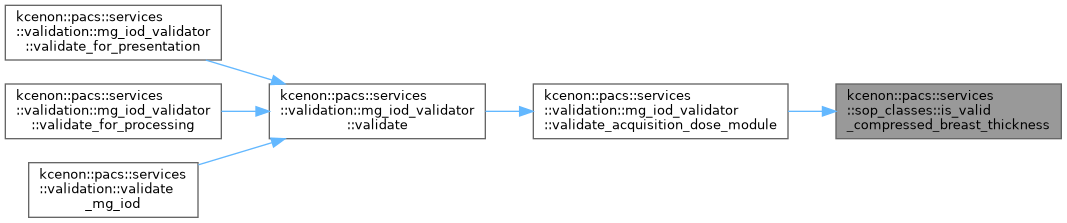

bool	is_valid_compressed_breast_thickness (double thickness_mm) noexcept
	Validate compressed breast thickness.
std::string_view	to_string (mg_image_type type) noexcept
	Convert mammography image type to string.
std::string_view	to_string (cad_processing_status status) noexcept
	Convert CAD processing status to display string.
std::vector< std::string >	get_mg_storage_sop_classes (bool include_tomosynthesis=true)
	Get all Mammography Storage SOP Class UIDs.

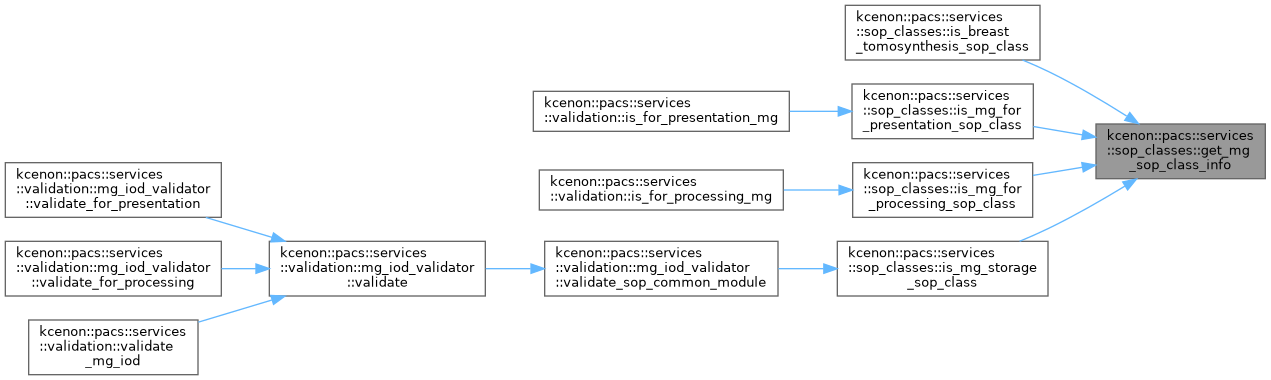

const mg_sop_class_info *	get_mg_sop_class_info (std::string_view uid) noexcept
	Get information about a specific Mammography SOP Class.

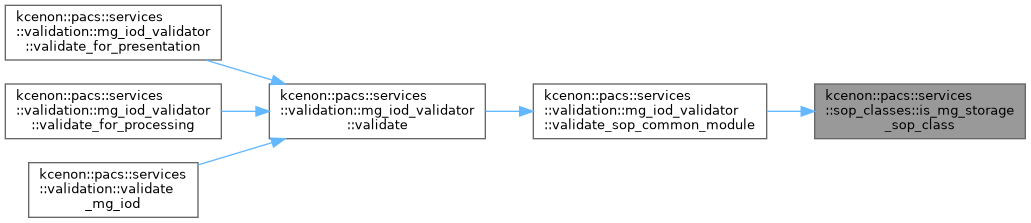

bool	is_mg_storage_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a Mammography Storage SOP Class.
bool	is_breast_tomosynthesis_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a breast tomosynthesis SOP Class.
bool	is_mg_for_processing_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a For Processing mammography SOP Class.
bool	is_mg_for_presentation_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a For Presentation mammography SOP Class.
std::vector< std::string >	get_mg_transfer_syntaxes ()
	Get recommended transfer syntaxes for mammography images.

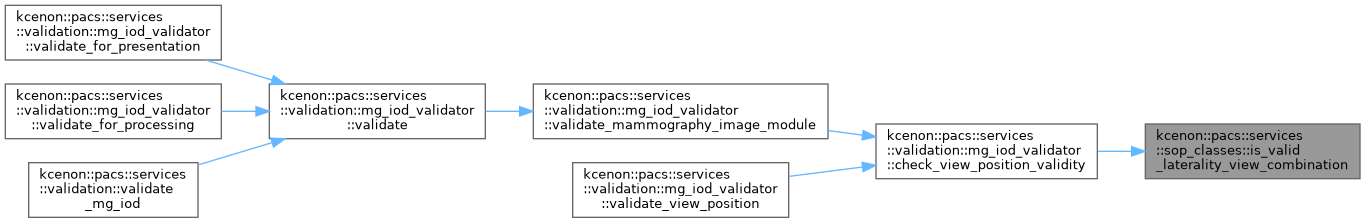

bool	is_valid_laterality_view_combination (breast_laterality laterality, mg_view_position view) noexcept
	Check if laterality and view position are consistent.
std::vector< std::pair< breast_laterality, mg_view_position > >	get_standard_screening_views () noexcept
	Get standard four-view screening exam views.
std::string	create_mg_image_type (bool is_original, bool is_primary, mg_image_type type)
	Create DICOM-compliant image type value for mammography.
std::vector< std::string >	get_mr_storage_sop_classes ()
	Get all MR Storage SOP Class UIDs.
bool	is_mr_storage_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is an MR Storage SOP Class.
bool	is_valid_mr_photometric (std::string_view value) noexcept
	Check if photometric interpretation is valid for MR.
std::vector< std::string >	get_nm_transfer_syntaxes ()
	Get recommended transfer syntaxes for NM images.
std::string_view	to_string (nm_photometric_interpretation interp) noexcept
	Convert photometric interpretation enum to DICOM string.
nm_photometric_interpretation	parse_nm_photometric_interpretation (std::string_view value) noexcept
	Parse DICOM photometric interpretation string.
bool	is_valid_nm_photometric (std::string_view value) noexcept
	Check if photometric interpretation is valid for NM.
std::vector< std::string >	get_nm_storage_sop_classes (bool include_retired=true)
	Get all NM Storage SOP Class UIDs.

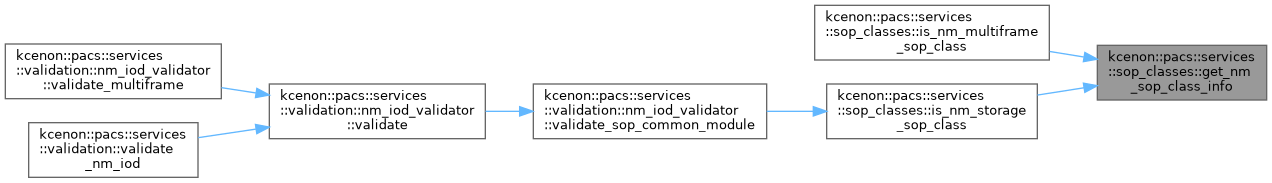

const nm_sop_class_info *	get_nm_sop_class_info (std::string_view uid) noexcept
	Get information about a specific NM SOP Class.

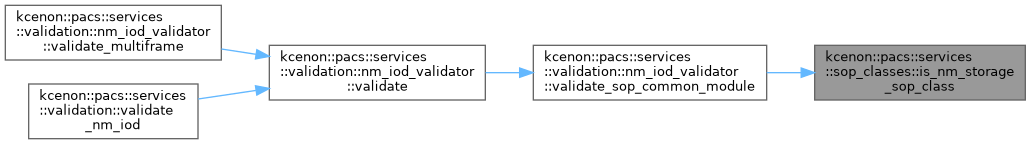

bool	is_nm_storage_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a NM Storage SOP Class.
bool	is_nm_multiframe_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID supports multi-frame.
std::string_view	to_string (nm_type_of_data type) noexcept
	Convert NM type of data to DICOM string.
nm_type_of_data	parse_nm_type_of_data (std::string_view value) noexcept
	Parse NM type of data from DICOM string.
std::string_view	to_string (nm_collimator_type collimator) noexcept
	Convert collimator type to DICOM string.
nm_collimator_type	parse_nm_collimator_type (std::string_view value) noexcept
	Parse collimator type from DICOM string.
std::string_view	to_string (nm_radioisotope isotope) noexcept
	Get radioisotope name string.
double	get_primary_energy_kev (nm_radioisotope isotope) noexcept
	Get primary photopeak energy for radioisotope.
std::string_view	to_string (nm_whole_body_technique technique) noexcept
	Convert whole body technique to string.
std::vector< std::string >	get_ophthalmic_storage_sop_classes ()
	Get all Ophthalmic Storage SOP Class UIDs.
bool	is_ophthalmic_storage_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is an Ophthalmic Storage SOP Class.
bool	is_valid_ophthalmic_photometric (std::string_view value) noexcept
	Check if photometric interpretation is valid for ophthalmic imaging.
std::vector< std::string >	get_parametric_map_transfer_syntaxes ()
	Get recommended transfer syntaxes for Parametric Map objects.
uint16_t	get_bits_allocated (pixel_value_representation repr) noexcept
	Get bits allocated for a pixel value representation.
pixel_value_representation	parse_pixel_value_representation (uint16_t bits_allocated) noexcept
	Parse pixel value representation from BitsAllocated value.
bool	is_valid_parametric_map_bits_allocated (uint16_t bits_allocated) noexcept
	Check if a BitsAllocated value is valid for parametric maps.
std::vector< std::string >	get_parametric_map_storage_sop_classes ()
	Get all Parametric Map Storage SOP Class UIDs.
const parametric_map_sop_class_info *	get_parametric_map_sop_class_info (std::string_view uid) noexcept
	Get information about the Parametric Map SOP Class.

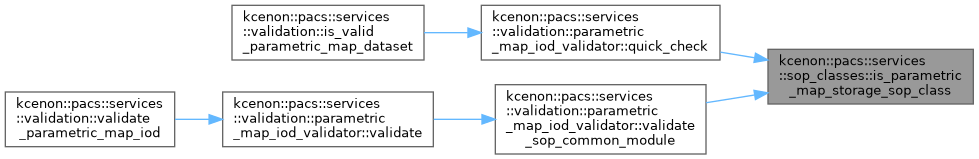

bool	is_parametric_map_storage_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is Parametric Map Storage.
bool	is_valid_parametric_map_photometric (std::string_view value) noexcept
	Check if photometric interpretation is valid for parametric maps.
std::vector< std::string >	get_pet_transfer_syntaxes ()
	Get recommended transfer syntaxes for PET images.
std::string_view	to_string (pet_photometric_interpretation interp) noexcept
	Convert photometric interpretation enum to DICOM string.
pet_photometric_interpretation	parse_pet_photometric_interpretation (std::string_view value) noexcept
	Parse DICOM photometric interpretation string.
bool	is_valid_pet_photometric (std::string_view value) noexcept
	Check if photometric interpretation is valid for PET.
std::vector< std::string >	get_pet_storage_sop_classes (bool include_retired=true)
	Get all PET Storage SOP Class UIDs.

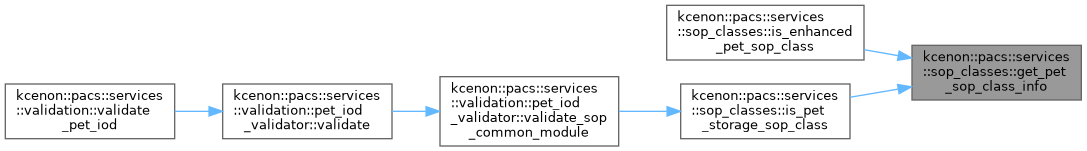

const pet_sop_class_info *	get_pet_sop_class_info (std::string_view uid) noexcept
	Get information about a specific PET SOP Class.
bool	is_pet_storage_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a PET Storage SOP Class.
bool	is_enhanced_pet_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is an Enhanced PET Storage SOP Class.
std::string_view	to_string (pet_reconstruction_type recon) noexcept
	Convert PET reconstruction type to string.
pet_reconstruction_type	parse_pet_reconstruction_type (std::string_view value) noexcept
	Parse PET reconstruction type from string.
std::string_view	to_string (pet_units units) noexcept
	Convert PET units to DICOM string.
pet_units	parse_pet_units (std::string_view value) noexcept
	Parse PET units from DICOM string.
std::string_view	to_string (pet_radiotracer tracer) noexcept
	Get radiotracer name string.
std::vector< std::string >	get_rt_transfer_syntaxes ()
	Get recommended transfer syntaxes for RT objects.
std::vector< std::string >	get_rt_storage_sop_classes (bool include_retired=true)
	Get all RT Storage SOP Class UIDs.

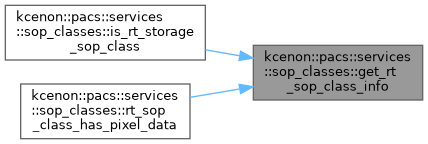

const rt_sop_class_info *	get_rt_sop_class_info (std::string_view uid) noexcept
	Get information about a specific RT SOP Class.
bool	is_rt_storage_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is an RT Storage SOP Class.

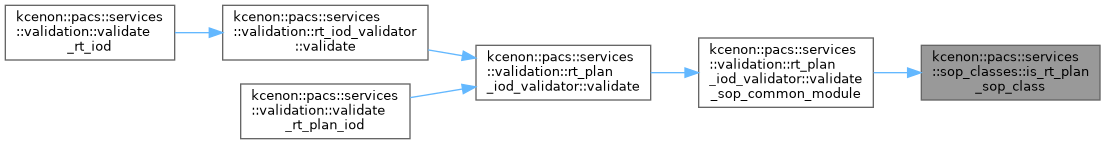

bool	is_rt_plan_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is an RT Plan type.
bool	rt_sop_class_has_pixel_data (std::string_view uid) noexcept
	Check if a SOP Class UID contains pixel data.
std::string_view	to_string (rt_plan_intent intent) noexcept
	Convert RT plan intent to DICOM string.
rt_plan_intent	parse_rt_plan_intent (std::string_view value) noexcept
	Parse RT plan intent from DICOM string.
std::string_view	to_string (rt_plan_geometry geometry) noexcept
	Convert RT plan geometry to DICOM string.
rt_plan_geometry	parse_rt_plan_geometry (std::string_view value) noexcept
	Parse RT plan geometry from DICOM string.
std::string_view	to_string (rt_dose_type type) noexcept
	Convert RT dose type to DICOM string.
rt_dose_type	parse_rt_dose_type (std::string_view value) noexcept
	Parse RT dose type from DICOM string.
std::string_view	to_string (rt_dose_summation_type type) noexcept
	Convert RT dose summation type to DICOM string.
rt_dose_summation_type	parse_rt_dose_summation_type (std::string_view value) noexcept
	Parse RT dose summation type from DICOM string.
std::string_view	to_string (rt_dose_units units) noexcept
	Convert RT dose units to DICOM string.
rt_dose_units	parse_rt_dose_units (std::string_view value) noexcept
	Parse RT dose units from DICOM string.
std::string_view	to_string (rt_roi_interpreted_type type) noexcept
	Convert RT ROI interpreted type to DICOM string.
rt_roi_interpreted_type	parse_rt_roi_interpreted_type (std::string_view value) noexcept
	Parse RT ROI interpreted type from DICOM string.
std::string_view	to_string (rt_roi_generation_algorithm algorithm) noexcept
	Convert RT ROI generation algorithm to DICOM string.
rt_roi_generation_algorithm	parse_rt_roi_generation_algorithm (std::string_view value) noexcept
	Parse RT ROI generation algorithm from DICOM string.
std::string_view	to_string (rt_beam_type type) noexcept
	Convert RT beam type to DICOM string.
rt_beam_type	parse_rt_beam_type (std::string_view value) noexcept
	Parse RT beam type from DICOM string.
std::string_view	to_string (rt_radiation_type type) noexcept
	Convert RT radiation type to DICOM string.
rt_radiation_type	parse_rt_radiation_type (std::string_view value) noexcept
	Parse RT radiation type from DICOM string.
std::string_view	to_string (rt_treatment_delivery_type type) noexcept
	Convert RT treatment delivery type to DICOM string.
rt_treatment_delivery_type	parse_rt_treatment_delivery_type (std::string_view value) noexcept
	Parse RT treatment delivery type from DICOM string.
std::string_view	to_string (rt_image_plane plane) noexcept
	Convert RT image plane to DICOM string.
rt_image_plane	parse_rt_image_plane (std::string_view value) noexcept
	Parse RT image plane from DICOM string.
std::vector< std::string >	get_seg_transfer_syntaxes ()
	Get recommended transfer syntaxes for SEG objects.
std::string_view	to_string (segmentation_type type) noexcept
	Convert segmentation type to DICOM string.
segmentation_type	parse_segmentation_type (std::string_view value) noexcept
	Parse segmentation type from DICOM string.
bool	is_valid_segmentation_type (std::string_view value) noexcept
	Check if segmentation type string is valid.
std::string_view	to_string (segmentation_fractional_type type) noexcept
	Convert segmentation fractional type to DICOM string.
segmentation_fractional_type	parse_segmentation_fractional_type (std::string_view value) noexcept
	Parse segmentation fractional type from DICOM string.
std::string_view	to_string (segment_algorithm_type type) noexcept
	Convert segment algorithm type to DICOM string.
segment_algorithm_type	parse_segment_algorithm_type (std::string_view value) noexcept
	Parse segment algorithm type from DICOM string.

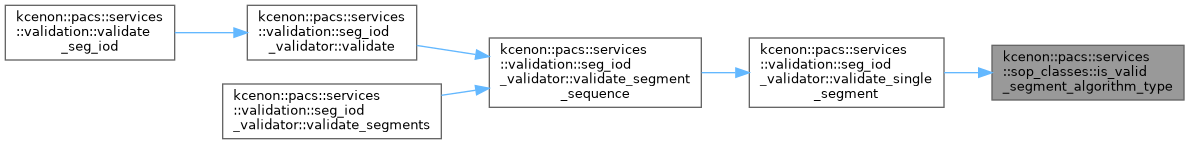

bool	is_valid_segment_algorithm_type (std::string_view value) noexcept
	Check if segment algorithm type string is valid.
segment_color	get_recommended_segment_color (std::string_view segment_label) noexcept
	Get recommended color for common segment types.
std::vector< std::string >	get_seg_storage_sop_classes (bool include_surface=true)
	Get all SEG Storage SOP Class UIDs.

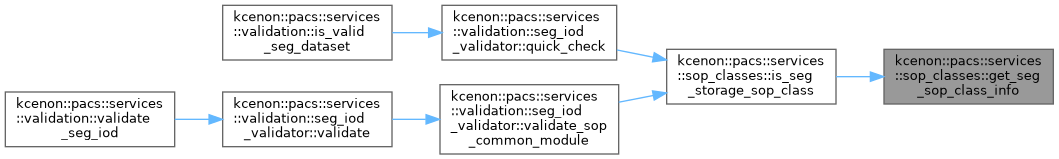

const seg_sop_class_info *	get_seg_sop_class_info (std::string_view uid) noexcept
	Get information about a specific SEG SOP Class.

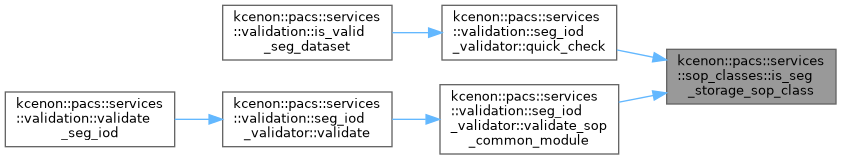

bool	is_seg_storage_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a SEG Storage SOP Class.
bool	is_surface_segmentation_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is Surface Segmentation.
std::string_view	get_segment_category_code (segment_category category) noexcept
	Get SNOMED CT code for segment category.
std::string_view	get_segment_category_meaning (segment_category category) noexcept
	Get code meaning for segment category.
std::vector< std::string >	get_sr_transfer_syntaxes ()
	Get recommended transfer syntaxes for SR objects.
sr_document_type	get_sr_document_type (std::string_view uid) noexcept
	Get SR document type for a SOP Class UID.
std::string_view	to_string (sr_document_type type) noexcept
	Get human-readable name for SR document type.
std::string_view	to_string (sr_value_type type) noexcept
	Convert SR value type to DICOM string.

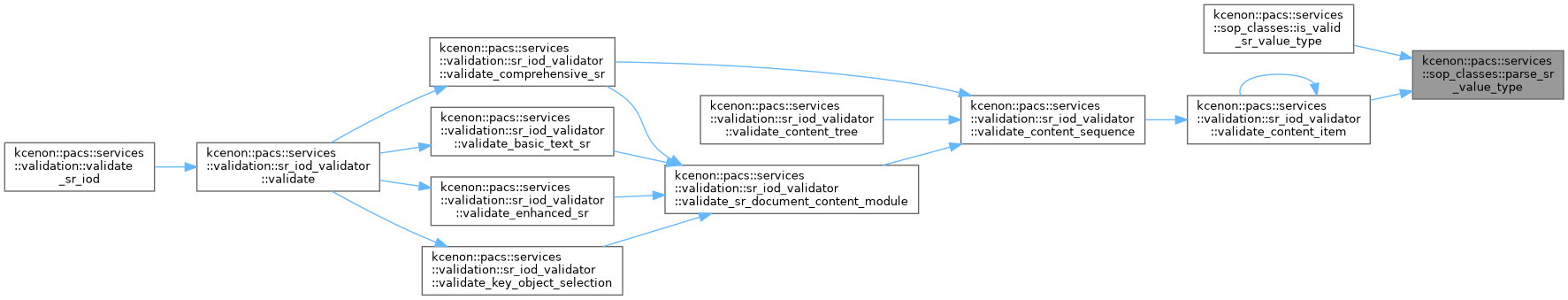

sr_value_type	parse_sr_value_type (std::string_view value) noexcept
	Parse SR value type from DICOM string.
bool	is_valid_sr_value_type (std::string_view value) noexcept
	Check if SR value type string is valid.
std::string_view	to_string (sr_relationship_type type) noexcept
	Convert SR relationship type to DICOM string.
sr_relationship_type	parse_sr_relationship_type (std::string_view value) noexcept
	Parse SR relationship type from DICOM string.
std::string_view	to_string (sr_completion_flag flag) noexcept
	Convert SR completion flag to DICOM string.
sr_completion_flag	parse_sr_completion_flag (std::string_view value) noexcept
	Parse SR completion flag from DICOM string.
std::string_view	to_string (sr_verification_flag flag) noexcept
	Convert SR verification flag to DICOM string.
sr_verification_flag	parse_sr_verification_flag (std::string_view value) noexcept
	Parse SR verification flag from DICOM string.
std::vector< std::string >	get_sr_storage_sop_classes (bool include_cad=true, bool include_dose=true)
	Get all SR Storage SOP Class UIDs.

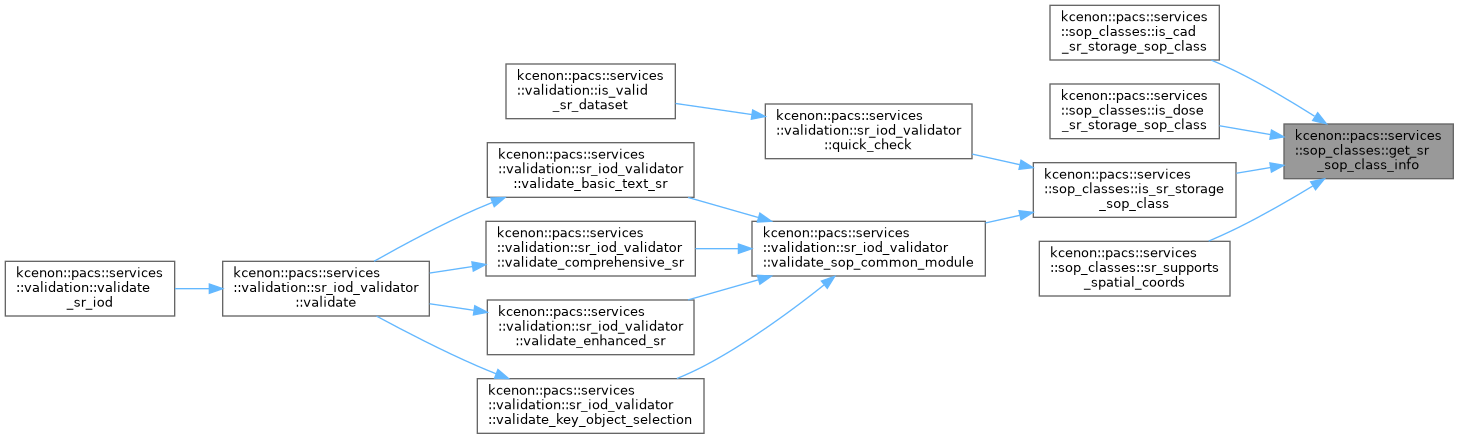

const sr_sop_class_info *	get_sr_sop_class_info (std::string_view uid) noexcept
	Get information about a specific SR SOP Class.

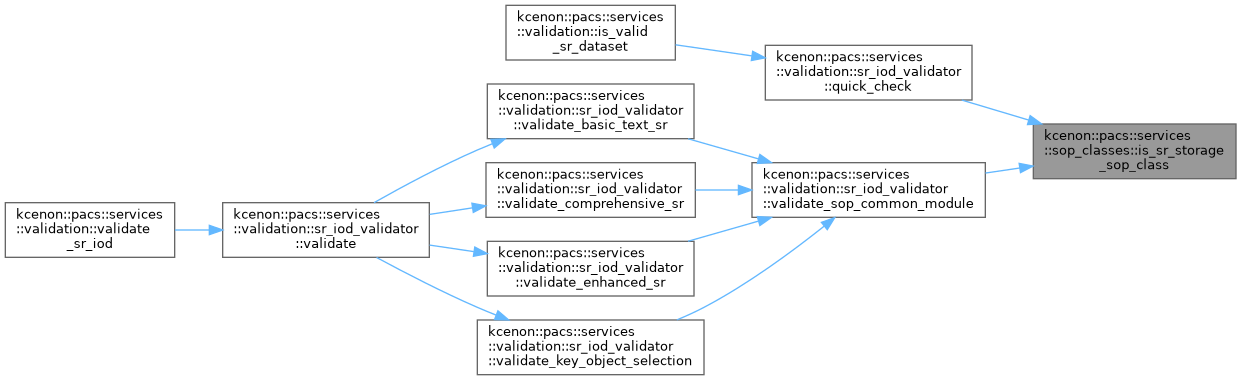

bool	is_sr_storage_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is an SR Storage SOP Class.
bool	is_cad_sr_storage_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a CAD SR Storage SOP Class.
bool	is_dose_sr_storage_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a Dose Report SR Storage SOP Class.
bool	sr_supports_spatial_coords (std::string_view uid) noexcept
	Check if an SR SOP Class supports spatial coordinates.
std::string_view	get_recommended_sr_template (std::string_view uid) noexcept
	Get recommended template ID for an SR SOP Class.
std::vector< std::string >	get_us_transfer_syntaxes ()
	Get recommended transfer syntaxes for US images.
std::string_view	to_string (us_photometric_interpretation interp) noexcept
	Convert photometric interpretation enum to DICOM string.
us_photometric_interpretation	parse_photometric_interpretation (std::string_view value) noexcept
	Parse DICOM photometric interpretation string.

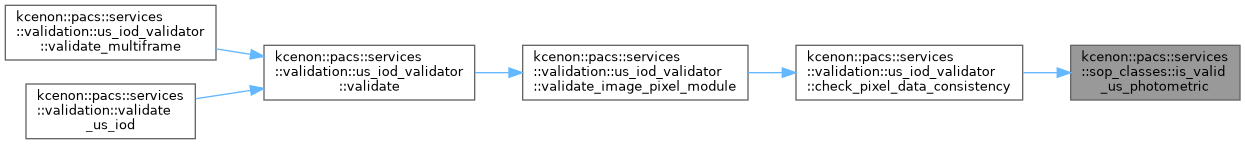

bool	is_valid_us_photometric (std::string_view value) noexcept
	Check if photometric interpretation is valid for US.
std::vector< std::string >	get_us_storage_sop_classes (bool include_retired=true)
	Get all US Storage SOP Class UIDs.

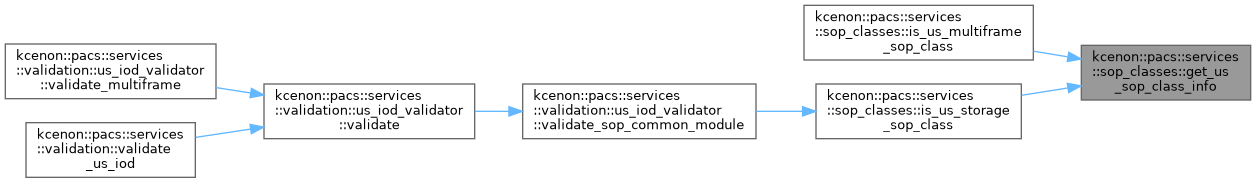

const us_sop_class_info *	get_us_sop_class_info (std::string_view uid) noexcept
	Get information about a specific US SOP Class.
bool	is_us_storage_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a US Storage SOP Class.
bool	is_us_multiframe_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a multi-frame US Storage SOP Class.
waveform_type	get_waveform_type (std::string_view uid) noexcept
	Get waveform type from SOP Class UID.
std::string_view	to_string (waveform_type type) noexcept
	Get human-readable name for waveform type.
std::vector< std::string >	get_waveform_storage_sop_classes (bool include_presentation_state=true, bool include_annotation=true)
	Get all Waveform Storage SOP Class UIDs.

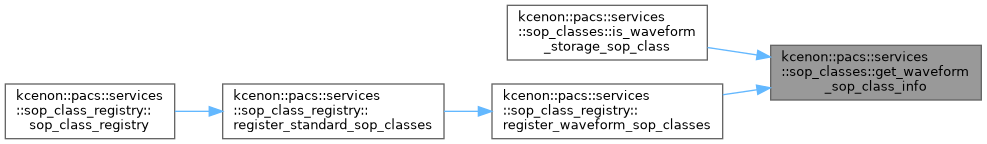

const waveform_sop_class_info *	get_waveform_sop_class_info (std::string_view uid) noexcept
	Get information about a specific Waveform SOP Class.
bool	is_waveform_storage_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a Waveform Storage SOP Class.

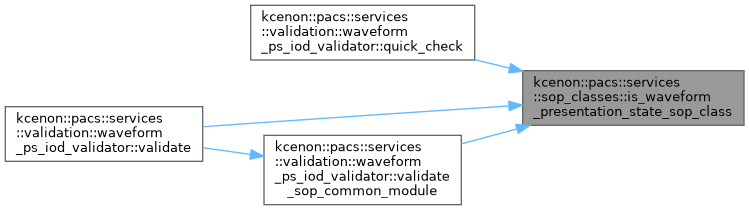

bool	is_waveform_presentation_state_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a Waveform Presentation State SOP Class.

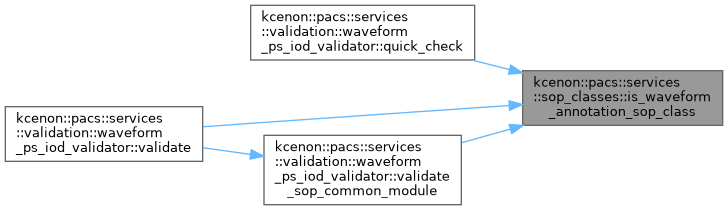

bool	is_waveform_annotation_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a Waveform Annotation SOP Class.
std::vector< std::string >	get_waveform_transfer_syntaxes ()
	Get recommended transfer syntaxes for waveform objects.
std::vector< std::string >	get_wsi_storage_sop_classes ()
	Get all WSI Storage SOP Class UIDs.
bool	is_wsi_storage_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a WSI Storage SOP Class.
bool	is_valid_wsi_photometric (std::string_view value) noexcept
	Check if photometric interpretation is valid for WSI.
std::vector< std::string >	get_xa_transfer_syntaxes ()
	Get recommended transfer syntaxes for XA images.
std::string_view	to_string (xa_photometric_interpretation interp) noexcept
	Convert photometric interpretation enum to DICOM string.
xa_photometric_interpretation	parse_xa_photometric_interpretation (std::string_view value) noexcept
	Parse DICOM photometric interpretation string for XA.

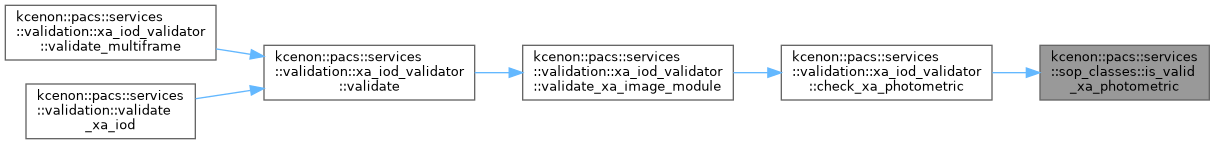

bool	is_valid_xa_photometric (std::string_view value) noexcept
	Check if photometric interpretation is valid for XA.
std::vector< std::string >	get_xa_storage_sop_classes (bool include_3d=true)
	Get all XA/XRF Storage SOP Class UIDs.

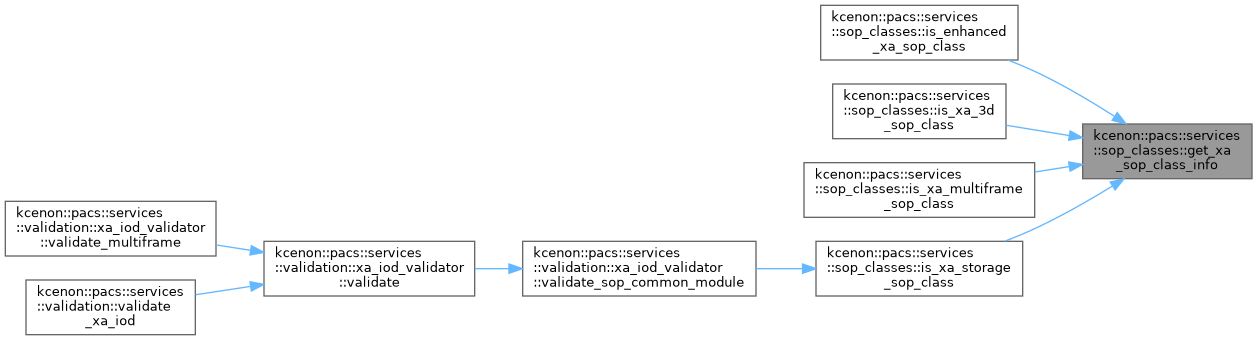

const xa_sop_class_info *	get_xa_sop_class_info (std::string_view uid) noexcept
	Get information about a specific XA SOP Class.

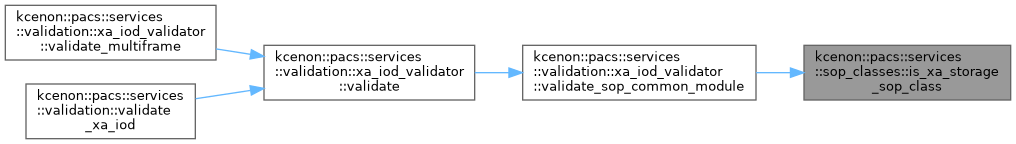

bool	is_xa_storage_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is an XA/XRF Storage SOP Class.
bool	is_xa_multiframe_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a multi-frame XA Storage SOP Class.
bool	is_enhanced_xa_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is an enhanced XA SOP Class.
bool	is_xa_3d_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a 3D XA SOP Class.
std::string_view	to_string (xa_positioner_motion motion) noexcept
	Convert positioner motion enum to DICOM string.
constexpr uint16_t	get_default_xa_cine_rate () noexcept
	Get typical cine rate for cardiac XA.
constexpr size_t	get_max_xa_frame_count () noexcept
	Get maximum recommended frame count for XA acquisitions.

Variables
constexpr std::string_view	ct_image_storage_uid
	CT Image Storage SOP Class UID.
constexpr std::string_view	enhanced_ct_image_storage_uid
	Enhanced CT Image Storage SOP Class UID.
constexpr std::string_view	ct_for_processing_image_storage_uid
	CT For Processing Image Storage SOP Class UID Multi-energy/spectral CT basis material decomposition images.
constexpr std::string_view	mr_image_storage_uid
	MR Image Storage SOP Class UID.
constexpr std::string_view	enhanced_mr_image_storage_uid
	Enhanced MR Image Storage SOP Class UID.
constexpr std::string_view	ophthalmic_photo_8bit_storage_uid
	Ophthalmic Photography 8 Bit Image Storage.
constexpr std::string_view	ophthalmic_photo_16bit_storage_uid
	Ophthalmic Photography 16 Bit Image Storage.
constexpr std::string_view	ophthalmic_tomography_storage_uid
	Ophthalmic Tomography Image Storage (OCT)
constexpr std::string_view	wide_field_ophthalmic_photo_storage_uid
	Wide Field Ophthalmic Photography SOP Class Storage.
constexpr std::string_view	ophthalmic_oct_bscan_analysis_storage_uid
	Ophthalmic Optical Coherence Tomography B-scan Volume Analysis Storage.
constexpr std::string_view	parametric_map_storage_uid
	Parametric Map Storage SOP Class UID.
constexpr std::string_view	wsi_image_storage_uid
	VL Whole Slide Microscopy Image Storage SOP Class UID.
Primary DX SOP Classes
constexpr std::string_view	dx_image_storage_for_presentation_uid
	Digital X-Ray Image Storage - For Presentation SOP Class UID Used for images ready for display and clinical review.
constexpr std::string_view	dx_image_storage_for_processing_uid
	Digital X-Ray Image Storage - For Processing SOP Class UID Used for raw detector data requiring additional processing.
Digital Mammography X-Ray SOP Classes
constexpr std::string_view	mammography_image_storage_for_presentation_uid
	Digital Mammography X-Ray Image Storage - For Presentation.
constexpr std::string_view	mammography_image_storage_for_processing_uid
	Digital Mammography X-Ray Image Storage - For Processing.
constexpr std::string_view	mg_image_storage_for_presentation_uid
	Digital Mammography X-Ray Image Storage - For Presentation SOP Class UID.
constexpr std::string_view	mg_image_storage_for_processing_uid
	Digital Mammography X-Ray Image Storage - For Processing SOP Class UID.
constexpr std::string_view	breast_tomosynthesis_image_storage_uid
	Breast Tomosynthesis Image Storage SOP Class UID.
constexpr std::string_view	breast_projection_image_storage_for_presentation_uid
	Breast Projection X-Ray Image Storage - For Presentation SOP Class UID.
constexpr std::string_view	breast_projection_image_storage_for_processing_uid
	Breast Projection X-Ray Image Storage - For Processing SOP Class UID.
Digital Intra-Oral X-Ray SOP Classes
constexpr std::string_view	intraoral_image_storage_for_presentation_uid
	Digital Intra-Oral X-Ray Image Storage - For Presentation.
constexpr std::string_view	intraoral_image_storage_for_processing_uid
	Digital Intra-Oral X-Ray Image Storage - For Processing.
Primary NM SOP Classes
constexpr std::string_view	nm_image_storage_uid
	Nuclear Medicine Image Storage SOP Class UID.
Retired NM SOP Classes (Legacy Support)
constexpr std::string_view	nm_image_storage_retired_uid
	Nuclear Medicine Image Storage (Retired) - for legacy systems.
Primary PET SOP Classes
constexpr std::string_view	pet_image_storage_uid
	PET Image Storage SOP Class UID.
constexpr std::string_view	enhanced_pet_image_storage_uid
	Enhanced PET Image Storage SOP Class UID.
constexpr std::string_view	legacy_converted_enhanced_pet_image_storage_uid
	Legacy Converted Enhanced PET Image Storage SOP Class UID.
Primary RT SOP Classes
constexpr std::string_view	rt_plan_storage_uid
	RT Plan Storage SOP Class UID.
constexpr std::string_view	rt_dose_storage_uid
	RT Dose Storage SOP Class UID.
constexpr std::string_view	rt_structure_set_storage_uid
	RT Structure Set Storage SOP Class UID.
constexpr std::string_view	rt_image_storage_uid
	RT Image Storage SOP Class UID.
constexpr std::string_view	rt_beams_treatment_record_storage_uid
	RT Beams Treatment Record Storage SOP Class UID.
constexpr std::string_view	rt_brachy_treatment_record_storage_uid
	RT Brachy Treatment Record Storage SOP Class UID.
constexpr std::string_view	rt_treatment_summary_record_storage_uid
	RT Treatment Summary Record Storage SOP Class UID.
constexpr std::string_view	rt_ion_plan_storage_uid
	RT Ion Plan Storage SOP Class UID.
constexpr std::string_view	rt_ion_beams_treatment_record_storage_uid
	RT Ion Beams Treatment Record Storage SOP Class UID.
Primary SEG SOP Classes
constexpr std::string_view	segmentation_storage_uid
	Segmentation Storage SOP Class UID.
constexpr std::string_view	surface_segmentation_storage_uid
	Surface Segmentation Storage SOP Class UID.
constexpr std::string_view	heightmap_segmentation_storage_uid
	Heightmap Segmentation Storage SOP Class UID (Supplement 240)
constexpr std::string_view	label_map_segmentation_storage_uid
	Label Map Segmentation Storage SOP Class UID (Supplement 243)
Basic SR SOP Classes
constexpr std::string_view	basic_text_sr_storage_uid
	Basic Text SR Storage SOP Class UID.
constexpr std::string_view	enhanced_sr_storage_uid
	Enhanced SR Storage SOP Class UID.
constexpr std::string_view	comprehensive_sr_storage_uid
	Comprehensive SR Storage SOP Class UID.
constexpr std::string_view	comprehensive_3d_sr_storage_uid
	Comprehensive 3D SR Storage SOP Class UID.
constexpr std::string_view	extensible_sr_storage_uid
	Extensible SR Storage SOP Class UID.
Specialized SR SOP Classes
constexpr std::string_view	mammography_cad_sr_storage_uid
	Mammography CAD SR Storage SOP Class UID.
constexpr std::string_view	chest_cad_sr_storage_uid
	Chest CAD SR Storage SOP Class UID.
constexpr std::string_view	colon_cad_sr_storage_uid
	Colon CAD SR Storage SOP Class UID.
constexpr std::string_view	xray_radiation_dose_sr_storage_uid
	X-Ray Radiation Dose SR Storage SOP Class UID.
constexpr std::string_view	radiopharmaceutical_radiation_dose_sr_storage_uid
	Radiopharmaceutical Radiation Dose SR Storage SOP Class UID.
constexpr std::string_view	acquisition_context_sr_storage_uid
	Acquisition Context SR Storage SOP Class UID.
constexpr std::string_view	simplified_adult_echo_sr_storage_uid
	Simplified Adult Echo SR Storage SOP Class UID.
constexpr std::string_view	patient_radiation_dose_sr_storage_uid
	Patient Radiation Dose SR Storage SOP Class UID.
constexpr std::string_view	planned_imaging_agent_admin_sr_storage_uid
	Planned Imaging Agent Administration SR Storage SOP Class UID.
constexpr std::string_view	performed_imaging_agent_admin_sr_storage_uid
	Performed Imaging Agent Administration SR Storage SOP Class UID.
constexpr std::string_view	enhanced_xray_radiation_dose_sr_storage_uid
	Enhanced X-Ray Radiation Dose SR Storage SOP Class UID.
Key Object Selection Document
constexpr std::string_view	key_object_selection_document_storage_uid
	Key Object Selection Document Storage SOP Class UID.
Primary US SOP Classes
constexpr std::string_view	us_image_storage_uid
	US Image Storage SOP Class UID (single-frame)
constexpr std::string_view	us_multiframe_image_storage_uid
	US Multi-frame Image Storage SOP Class UID (cine loops)
Retired US SOP Classes (Legacy Support)
constexpr std::string_view	us_image_storage_retired_uid
	US Image Storage (Retired) - for legacy systems.
constexpr std::string_view	us_multiframe_image_storage_retired_uid
	US Multi-frame Image Storage (Retired) - for legacy systems.
Base Waveform Storage SOP Classes
constexpr std::string_view	twelve_lead_ecg_storage_uid
	12-lead ECG Waveform Storage SOP Class UID
constexpr std::string_view	general_ecg_storage_uid
	General ECG Waveform Storage SOP Class UID.
constexpr std::string_view	ambulatory_ecg_storage_uid
	Ambulatory ECG Waveform Storage SOP Class UID.
constexpr std::string_view	hemodynamic_waveform_storage_uid
	Hemodynamic Waveform Storage SOP Class UID.
constexpr std::string_view	cardiac_ep_waveform_storage_uid
	Basic Cardiac Electrophysiology Waveform Storage SOP Class UID.
constexpr std::string_view	basic_voice_audio_storage_uid
	Basic Voice Audio Waveform Storage SOP Class UID.
constexpr std::string_view	general_audio_waveform_storage_uid
	General Audio Waveform Storage SOP Class UID.
constexpr std::string_view	arterial_pulse_waveform_storage_uid
	Arterial Pulse Waveform Storage SOP Class UID.
constexpr std::string_view	respiratory_waveform_storage_uid
	Respiratory Waveform Storage SOP Class UID.
constexpr std::string_view	multichannel_respiratory_waveform_storage_uid
	Multi-channel Respiratory Waveform Storage SOP Class UID.
constexpr std::string_view	routine_scalp_eeg_storage_uid
	Routine Scalp Electroencephalogram Waveform Storage SOP Class UID.
constexpr std::string_view	emg_waveform_storage_uid
	Electromyogram Waveform Storage SOP Class UID.
constexpr std::string_view	eog_waveform_storage_uid
	Electrooculogram Waveform Storage SOP Class UID.
constexpr std::string_view	sleep_eeg_storage_uid
	Sleep Electroencephalogram Waveform Storage SOP Class UID.
constexpr std::string_view	body_position_waveform_storage_uid
	Body Position Waveform Storage SOP Class UID.
Waveform Presentation State and Annotation SOP Classes
constexpr std::string_view	waveform_presentation_state_storage_uid
	Waveform Presentation State Storage SOP Class UID.
constexpr std::string_view	waveform_annotation_storage_uid
	Waveform Annotation Storage SOP Class UID.
Primary XA/XRF SOP Classes
constexpr std::string_view	xa_image_storage_uid
	XA Image Storage SOP Class UID (single/multi-frame)
constexpr std::string_view	enhanced_xa_image_storage_uid
	Enhanced XA Image Storage SOP Class UID (enhanced IOD)
constexpr std::string_view	xrf_image_storage_uid
	XRF Image Storage SOP Class UID (X-Ray Radiofluoroscopic)
3D Angiographic SOP Classes
constexpr std::string_view	xray_3d_angiographic_image_storage_uid
	X-Ray 3D Angiographic Image Storage SOP Class UID (3D rotational)
constexpr std::string_view	xray_3d_craniofacial_image_storage_uid
	X-Ray 3D Craniofacial Image Storage SOP Class UID.

Enumeration Type Documentation

breast_laterality

enum class kcenon::pacs::services::sop_classes::breast_laterality

strong

Breast laterality enumeration.

Specifies which breast is being imaged. This is a critical attribute for mammography workflow and helps prevent laterality errors in clinical practice.

See also

DICOM Tag (0020,0060) - Laterality

DICOM Tag (0020,0062) - Image Laterality

Enumerator
left	Left breast (DICOM value: "L")
right	Right breast (DICOM value: "R")
bilateral	Both breasts (DICOM value: "B") - used for comparison views.
unknown	Unknown or unspecified laterality.

Definition at line 80 of file mg_storage.h.

                             {
    left,
    right,
    bilateral,
    unknown
};

cad_processing_status

enum class kcenon::pacs::services::sop_classes::cad_processing_status

strong

CAD (Computer-Aided Detection) processing status.

Indicates whether and how CAD analysis has been performed on the image.

Enumerator
not_processed	CAD has not been run on this image.
processed_no_findings	CAD completed with no findings.
processed_findings	CAD completed with findings.
processing_failed	CAD processing failed.
pending	CAD processing is pending.

Definition at line 325 of file mg_storage.h.

                                 {
    not_processed,
    processed_no_findings,
    processed_findings,
    processing_failed,
    pending
};

dx_body_part

enum class kcenon::pacs::services::sop_classes::dx_body_part

strong

Common body parts for DX imaging.

These correspond to standard DICOM Body Part Examined (0018,0015) values.

Enumerator
chest	CHEST.
abdomen	ABDOMEN.
pelvis	PELVIS.
spine	SPINE.
skull	SKULL.
hand	HAND.
foot	FOOT.
knee	KNEE.
elbow	ELBOW.
shoulder	SHOULDER.
hip	HIP.
wrist	WRIST.
ankle	ANKLE.
extremity	EXTREMITY (general)
breast	BREAST (for mammography)
other	Other/unspecified.

Definition at line 300 of file dx_storage.h.

                        {
    chest,
    abdomen,
    pelvis,
    spine,
    skull,
    hand,
    foot,
    knee,
    elbow,
    shoulder,
    hip,
    wrist,
    ankle,
    extremity,
    breast,
    other
};

dx_detector_type

enum class kcenon::pacs::services::sop_classes::dx_detector_type

strong

DX detector technology types.

Indicates the type of digital detector used for image acquisition.

Enumerator
direct	Direct conversion (a-Se based)
indirect	Indirect conversion (scintillator + photodiode)
storage	Storage phosphor (CR-like)
film	Film digitizer (rare for DX)

Definition at line 192 of file dx_storage.h.

                            {
    direct,
    indirect,
    storage,
    film
};

dx_image_type

enum class kcenon::pacs::services::sop_classes::dx_image_type

strong

DX image purpose classification.

Enumerator
for_presentation	Ready for display and diagnosis.
for_processing	Raw data requiring further processing.

Definition at line 139 of file dx_storage.h.

                         {
    for_presentation,
    for_processing
};

dx_photometric_interpretation

enum class kcenon::pacs::services::sop_classes::dx_photometric_interpretation

strong

Supported photometric interpretations for DX images.

DX images are always grayscale. MONOCHROME1 means high values are dark (as on film), while MONOCHROME2 means high values are bright.

Enumerator
monochrome1	Minimum pixel value = white (inverted)
monochrome2	Minimum pixel value = black (standard)

Definition at line 105 of file dx_storage.h.

                                         {
    monochrome1,
    monochrome2
};

dx_view_position

enum class kcenon::pacs::services::sop_classes::dx_view_position

strong

Common radiographic view positions for DX images.

View position indicates the direction of the X-ray beam relative to the patient and detector.

Enumerator
ap	Anterior-Posterior.
pa	Posterior-Anterior.
lateral	Lateral (left or right)
oblique	Oblique projection.
other	Other/unspecified.

Definition at line 161 of file dx_storage.h.

                            {
    ap,
    pa,
    lateral,
    oblique,
    other
};

mg_image_type

enum class kcenon::pacs::services::sop_classes::mg_image_type

strong

Mammography image purpose classification.

Mammography images can be either for presentation (display-ready with applied processing) or for processing (raw data requiring additional image processing).

Enumerator
for_presentation	Ready for display and diagnosis.
for_processing	Raw data requiring further processing.

Definition at line 304 of file mg_storage.h.

                         {
    for_presentation,
    for_processing
};

mg_view_position

enum class kcenon::pacs::services::sop_classes::mg_view_position

strong

Mammography-specific view positions.

Standard mammography views as defined by the ACR (American College of Radiology) and used in DICOM. View position is essential for proper image interpretation and comparison studies.

See also

DICOM Tag (0018,5101) - View Position

ACR BI-RADS Mammography Atlas

Enumerator
cc	Craniocaudal - standard superior-inferior view.
mlo	Mediolateral Oblique - angled lateral view (most common)
ml	Mediolateral - true lateral (medial to lateral)
lm	Lateromedial - true lateral (lateral to medial)
xccl	Exaggerated CC Laterally - for lateral breast tissue.
xccm	Exaggerated CC Medially - for medial breast tissue.
fb	From Below - inferior to superior view.
sio	Superolateral to Inferomedial Oblique.
iso	Inferomedial to Superolateral Oblique.
cv	Cleavage View - for medial breast tissue.
at	Axillary Tail - for axillary extension.
spot	Spot compression view.
mag	Magnification view.
spot_mag	Spot compression with magnification.
rl	Rolled Lateral.
rm	Rolled Medial.
rs	Rolled Superior.
ri	Rolled Inferior.
tangen	Tangential view.
implant	Implant displaced view (Eklund technique)
id	Implant Displaced (alternate code)
other	Other or unspecified view.

Definition at line 122 of file mg_storage.h.

                            {
    // Standard screening views
    cc,
    mlo,

    // Additional diagnostic views
    ml,
    lm,
    xccl,
    xccm,
    fb,
    sio,
    iso,
    cv,
    at,

    // Spot/magnification views
    spot,
    mag,
    spot_mag,
    rl,
    rm,
    rs,
    ri,

    // Specialized views
    tangen,
    implant,
    id,

    // Other
    other
};

nm_collimator_type

enum class kcenon::pacs::services::sop_classes::nm_collimator_type

strong

NM collimator type.

Enumerator
parallel	PARA - Parallel hole.
fan_beam	FANB - Fan beam.
cone_beam	CONE - Cone beam.
pinhole	PINH - Pinhole.
diverging	DIVG - Diverging.
converging	CVGB - Converging.
none	NONE - No collimator.

Definition at line 205 of file nm_storage.h.

                              {
    parallel,
    fan_beam,
    cone_beam,
    pinhole,
    diverging,
    converging,
    none
};

nm_detector_geometry

enum class kcenon::pacs::services::sop_classes::nm_detector_geometry

strong

NM detector geometry type.

Enumerator
planar	Planar detector (2D)
ring	Ring detector (PET-like)
partial_ring	Partial ring.
curved	Curved detector.
cylindrical	Cylindrical detector.

Definition at line 194 of file nm_storage.h.

                                {
    planar,
    ring,
    partial_ring,
    curved,
    cylindrical
};

nm_photometric_interpretation

enum class kcenon::pacs::services::sop_classes::nm_photometric_interpretation

strong

Supported photometric interpretations for NM images.

NM images are typically grayscale, representing count or activity values.

Enumerator
monochrome2	Minimum pixel = black (standard)
palette_color	Pseudo-color via lookup table (for display)

Definition at line 76 of file nm_storage.h.

                                         {
    monochrome2,
    palette_color
};

nm_radioisotope

enum class kcenon::pacs::services::sop_classes::nm_radioisotope

strong

Common radioisotopes used in NM imaging.

Enumerator
tc99m	Technetium-99m (140 keV)
i131	Iodine-131 (364 keV)
i123	Iodine-123 (159 keV)
tl201	Thallium-201 (71, 167 keV)
ga67	Gallium-67 (93, 185, 300 keV)
in111	Indium-111 (171, 245 keV)
f18	Fluorine-18 (511 keV - for PET)
other	Other radioisotope.

Definition at line 245 of file nm_storage.h.

                           {
    tc99m,
    i131,
    i123,
    tl201,
    ga67,
    in111,
    f18,
    other
};

nm_rotation_direction

enum class kcenon::pacs::services::sop_classes::nm_rotation_direction

strong

NM rotation direction for SPECT.

Enumerator
cw	CW - Clockwise.
cc	CC - Counter-clockwise.

Definition at line 277 of file nm_storage.h.

                                 {
    cw,
    cc
};

nm_scan_arc

enum class kcenon::pacs::services::sop_classes::nm_scan_arc

strong

NM scan arc for SPECT.

Enumerator
arc_180	180 degree arc
arc_360	360 degree arc (full rotation)

Definition at line 285 of file nm_storage.h.

                       {
    arc_180,
    arc_360
};

nm_type_of_data

enum class kcenon::pacs::services::sop_classes::nm_type_of_data

strong

NM image type (Type of Data)

Enumerator
static_image	STATIC - static planar image.
dynamic	DYNAMIC - dynamic study (time series)
gated	GATED - cardiac gated acquisition.
whole_body	WHOLE BODY - whole body scan.
recon_tomo	RECON TOMO - reconstructed SPECT.
recon_gated_tomo	RECON GATED TOMO - reconstructed gated SPECT.
tomo	TOMO - SPECT raw projection data.
gated_tomo	GATED TOMO - gated SPECT projections.

Definition at line 162 of file nm_storage.h.

                           {
    static_image,
    dynamic,
    gated,
    whole_body,
    recon_tomo,
    recon_gated_tomo,
    tomo,
    gated_tomo
};

nm_whole_body_technique

enum class kcenon::pacs::services::sop_classes::nm_whole_body_technique

strong

Patient orientation for whole body scan.

Enumerator
single_pass	1PASS - Single pass
multi_pass	2PASS - Multiple pass (anterior/posterior)
stepping	STEP - Stepping acquisition.

Definition at line 293 of file nm_storage.h.

                                   {
    single_pass,
    multi_pass,
    stepping
};

pet_attenuation_correction

enum class kcenon::pacs::services::sop_classes::pet_attenuation_correction

strong

Attenuation correction method.

Enumerator
none	No attenuation correction.
measured	Measured (transmission scan)
calculated	Calculated from CT.
ct_based	CT-based attenuation correction (PET/CT)

Definition at line 181 of file pet_storage.h.

                                      {
    none,
    measured,
    calculated,
    ct_based
};

pet_image_type

enum class kcenon::pacs::services::sop_classes::pet_image_type

strong

PET image type indicating the nature of the image.

Enumerator
original	ORIGINAL - directly acquired.
derived	DERIVED - post-processed.
primary	PRIMARY - primary image.
secondary	SECONDARY - secondary reconstruction.

Definition at line 161 of file pet_storage.h.

                          {
    original,
    derived,
    primary,
    secondary
};

pet_photometric_interpretation

enum class kcenon::pacs::services::sop_classes::pet_photometric_interpretation

strong

Supported photometric interpretations for PET images.

PET images are typically grayscale, representing radiotracer uptake values.

Enumerator
monochrome2	Minimum pixel = black (standard for PET)

Definition at line 75 of file pet_storage.h.

                                          {
    monochrome2
};

pet_radiotracer

enum class kcenon::pacs::services::sop_classes::pet_radiotracer

strong

Common PET radiotracers.

Enumerator
fdg	18F-FDG (Fluorodeoxyglucose)
naf	18F-NaF (Sodium Fluoride)
flt	18F-FLT (Fluorothymidine)
fdopa	18F-FDOPA
ammonia	13N-Ammonia
rubidium	82Rb (Rubidium-82)
gallium_dotatate	68Ga-DOTATATE
psma	PSMA agents.
other	Other tracers.

Definition at line 264 of file pet_storage.h.

                           {
    fdg,
    naf,
    flt,
    fdopa,
    ammonia,
    rubidium,
    gallium_dotatate,
    psma,
    other
};

pet_reconstruction_type

enum class kcenon::pacs::services::sop_classes::pet_reconstruction_type

strong

PET reconstruction algorithm type.

Enumerator
fbp	Filtered Back Projection.
osem	Ordered Subset Expectation Maximization.
mlem	Maximum Likelihood Expectation Maximization.
tof_osem	Time-of-Flight OSEM.
psf_osem	Point Spread Function OSEM.
other	Other algorithm.

Definition at line 201 of file pet_storage.h.

                                   {
    fbp,
    osem,
    mlem,
    tof_osem,
    psf_osem,
    other
};

pet_scatter_correction

enum class kcenon::pacs::services::sop_classes::pet_scatter_correction

strong

Scatter correction method.

Enumerator
none	No scatter correction.
single_scatter	Single scatter simulation.
convolution	Convolution-subtraction method.
model_based	Model-based scatter correction.

Definition at line 191 of file pet_storage.h.

                                  {
    none,
    single_scatter,
    convolution,
    model_based
};

pet_series_type

enum class kcenon::pacs::services::sop_classes::pet_series_type

strong

PET series type code.

Enumerator
static_image	STATIC - static acquisition.
dynamic	DYNAMIC - dynamic (time series)
gated	GATED - cardiac/respiratory gated.
whole_body	WHOLE BODY - whole body scan.

Definition at line 171 of file pet_storage.h.

                           {
    static_image,
    dynamic,
    gated,
    whole_body
};

pet_units

enum class kcenon::pacs::services::sop_classes::pet_units

strong

PET units type (Units attribute 0054,1001)

Enumerator
cnts	Counts.
bqml	Bq/ml (Becquerels per milliliter)
gml	g/ml (SUVbw)
suv_bw	Standardized Uptake Value (body weight)
suv_lbm	SUV (lean body mass)
suv_bsa	SUV (body surface area)
percent_id_gram	Percent injected dose per gram.
other	Other units.

Definition at line 232 of file pet_storage.h.

                     {
    cnts,
    bqml,
    gml,
    suv_bw,
    suv_lbm,
    suv_bsa,
    percent_id_gram,
    other
};

pixel_value_representation

enum class kcenon::pacs::services::sop_classes::pixel_value_representation

strong

Pixel value representation for parametric map data.

Defines how the pixel data is encoded in the Parametric Map. Per DICOM PS3.3 C.7.6.16.2.17, parametric maps use float or double.

Enumerator
float32	32-bit IEEE 754 floating point (BitsAllocated=32)
float64	64-bit IEEE 754 floating point (BitsAllocated=64)

Definition at line 63 of file parametric_map_storage.h.

                                      {
    float32,
    float64
};

rt_beam_type

enum class kcenon::pacs::services::sop_classes::rt_beam_type

strong

RT Beam Type.

Enumerator
static_beam	STATIC - Static beam.
dynamic	DYNAMIC - Dynamic beam (IMRT, VMAT)

Definition at line 360 of file rt_storage.h.

                        {
    static_beam,
    dynamic
};

rt_dose_summation_type

enum class kcenon::pacs::services::sop_classes::rt_dose_summation_type

strong

RT Dose Summation Type.

Enumerator
plan	PLAN - Single plan dose.
multi_plan	MULTI_PLAN - Multi-plan sum.
fraction	FRACTION - Single fraction dose.
beam	BEAM - Single beam dose.
brachy	BRACHY - Brachytherapy dose.
fraction_session	FRACTION_SESSION - Single fraction session dose.
beam_session	BEAM_SESSION - Single beam session dose.
brachy_session	BRACHY_SESSION - Brachytherapy session dose.
control_point	CONTROL_POINT - Single control point dose.
record	RECORD - Treatment record dose.

Definition at line 234 of file rt_storage.h.

                                  {
    plan,
    multi_plan,
    fraction,
    beam,
    brachy,
    fraction_session,
    beam_session,
    brachy_session,
    control_point,
    record
};

rt_dose_type

enum class kcenon::pacs::services::sop_classes::rt_dose_type

strong

RT Dose Type.

Enumerator
physical	PHYSICAL - Physical dose.
effective	EFFECTIVE - Effective dose (RBE weighted)
error	ERROR - Dose error/uncertainty.

Definition at line 211 of file rt_storage.h.

                        {
    physical,
    effective,
    error
};

rt_dose_units

enum class kcenon::pacs::services::sop_classes::rt_dose_units

strong

RT Dose Units.

Enumerator
gy	GY - Gray (absorbed dose)
relative	RELATIVE - Relative dose.

Definition at line 264 of file rt_storage.h.

                         {
    gy,
    relative
};

rt_image_plane

enum class kcenon::pacs::services::sop_classes::rt_image_plane

strong

RT Image Type values (as used in Image Type attribute)

Enumerator
axial	AXIAL - Axial plane.
localizer	LOCALIZER - Localizer/scout image.
drr	DRR - Digitally Reconstructed Radiograph.
portal	PORTAL - Portal image.
fluence	FLUENCE - Fluence map.

Definition at line 437 of file rt_storage.h.

                          {
    axial,
    localizer,
    drr,
    portal,
    fluence
};

rt_plan_geometry

enum class kcenon::pacs::services::sop_classes::rt_plan_geometry

strong

RT Plan Geometry.

Enumerator
patient	PATIENT - Patient-based plan.
treatment_device	TREATMENT_DEVICE - Device-based plan.

Definition at line 185 of file rt_storage.h.

                            {
    patient,
    treatment_device
};

rt_plan_intent

enum class kcenon::pacs::services::sop_classes::rt_plan_intent

strong

RT Plan Intent.

Enumerator
curative	CURATIVE - Treatment with curative intent.
palliative	PALLIATIVE - Treatment for symptom relief.
prophylactic	PROPHYLACTIC - Preventive treatment.
verification	VERIFICATION - Plan verification.
machine_qa	MACHINE_QA - Machine quality assurance.
research	RESEARCH - Research protocol.
service	SERVICE - Equipment service.

Definition at line 158 of file rt_storage.h.

                          {
    curative,
    palliative,
    prophylactic,
    verification,
    machine_qa,
    research,
    service
};

rt_radiation_type

enum class kcenon::pacs::services::sop_classes::rt_radiation_type

strong

RT Radiation Type.

Enumerator
photon	PHOTON - X-ray photons.
electron	ELECTRON - Electrons.
neutron	NEUTRON - Neutrons.
proton	PROTON - Protons.
ion	ION - Heavy ions (carbon, etc.)

Definition at line 382 of file rt_storage.h.

                             {
    photon,
    electron,
    neutron,
    proton,
    ion
};

rt_roi_generation_algorithm

enum class kcenon::pacs::services::sop_classes::rt_roi_generation_algorithm

strong

RT ROI Generation Algorithm.

Enumerator
automatic	AUTOMATIC - Automated segmentation.
semiautomatic	SEMIAUTOMATIC - Semi-automated with user input.
manual	MANUAL - Manual contouring.

Definition at line 332 of file rt_storage.h.

                                       {
    automatic,
    semiautomatic,
    manual
};

rt_roi_interpreted_type

enum class kcenon::pacs::services::sop_classes::rt_roi_interpreted_type

strong

RT ROI Interpreted Type.

Enumerator
external	EXTERNAL - External patient surface.
ptv	PTV - Planning Target Volume.
ctv	CTV - Clinical Target Volume.
gtv	GTV - Gross Tumor Volume.
organ	ORGAN - Organ at risk.
avoidance	AVOIDANCE - Avoidance structure.
treated_volume	TREATED_VOLUME - Treated volume.
irrad_volume	IRRAD_VOLUME - Irradiated volume.
bolus	BOLUS - Bolus material.
brachy_channel	BRACHY_CHANNEL - Brachytherapy channel.
brachy_accessory	BRACHY_ACCESSORY - Brachytherapy accessory.
brachy_src_appl	BRACHY_SRC_APPL - Brachytherapy source applicator.
brachy_chnl_shld	BRACHY_CHNL_SHLD - Brachytherapy channel shield.
support	SUPPORT - Patient support structure.
fixation	FIXATION - Patient fixation device.
dose_region	DOSE_REGION - Dose reference region.
contrast_agent	CONTRAST_AGENT - Contrast agent region.
cavity	CAVITY - Cavity structure.
marker	MARKER - Marker structure.
registration	REGISTRATION - Registration structure.
isocenter	ISOCENTER - Isocenter point.
control_point	CONTROL - Control point marker.

Definition at line 290 of file rt_storage.h.

                                   {
    external,
    ptv,
    ctv,
    gtv,
    organ,
    avoidance,
    treated_volume,
    irrad_volume,
    bolus,
    brachy_channel,
    brachy_accessory,
    brachy_src_appl,
    brachy_chnl_shld,
    support,
    fixation,
    dose_region,
    contrast_agent,
    cavity,
    marker,
    registration,
    isocenter,
    control_point
};

rt_treatment_delivery_type

enum class kcenon::pacs::services::sop_classes::rt_treatment_delivery_type

strong

RT Treatment Delivery Type.

Enumerator
treatment	TREATMENT - Actual treatment.
open_portfilm	OPEN_PORTFILM - Open field portal image.
trmt_portfilm	TRMT_PORTFILM - Treatment field portal image.
continuation	CONTINUATION - Continuation of interrupted treatment.
setup	SETUP - Setup verification.

Definition at line 407 of file rt_storage.h.

                                      {
    treatment,
    open_portfilm,
    trmt_portfilm,
    continuation,
    setup
};

segment_algorithm_type

enum class kcenon::pacs::services::sop_classes::segment_algorithm_type

strong

Segment algorithm type (0062,0008)

Defines how the segment was created.

Enumerator
automatic	AUTOMATIC - Fully automated segmentation.
semiautomatic	SEMIAUTOMATIC - Semi-automated with user input.
manual	MANUAL - Manual segmentation.

Definition at line 143 of file seg_storage.h.

                                  {
    automatic,
    semiautomatic,
    manual
};

segment_category

enum class kcenon::pacs::services::sop_classes::segment_category

strong

Common anatomical property categories (CID 7150)

Predefined category codes for segment categorization

Enumerator
tissue	Tissue type (organ, muscle, etc.)
anatomical_structure	Named anatomical structure.
physical_object	Physical object (implant, etc.)
morphologically_abnormal	Tumor, lesion, etc.
function	Functional region.
spatial	Spatial reference.
body_substance	Body fluid, substance.

Definition at line 251 of file seg_storage.h.

                            {
    tissue,
    anatomical_structure,
    physical_object,
    morphologically_abnormal,
    function,
    spatial,
    body_substance
};

segmentation_fractional_type

enum class kcenon::pacs::services::sop_classes::segmentation_fractional_type

strong

Segmentation fractional type (0062,0010)

Defines the meaning of fractional values when Segmentation Type is FRACTIONAL.

Enumerator
probability	PROBABILITY - Values represent probability (0.0-1.0)
occupancy	OCCUPANCY - Values represent fractional occupancy.

Definition at line 114 of file seg_storage.h.

                                        {
    probability,
    occupancy
};

segmentation_type

enum class kcenon::pacs::services::sop_classes::segmentation_type

strong

Segmentation type (0062,0001)

Defines whether the segmentation is binary or fractional.

Enumerator
binary	BINARY - Binary segmentation (0 or 1)
fractional	FRACTIONAL - Fractional/probabilistic segmentation.

Definition at line 79 of file seg_storage.h.

                             {
    binary,
    fractional
};

sr_completion_flag

enum class kcenon::pacs::services::sop_classes::sr_completion_flag

strong

SR Completion Flag (0040,A491)

Enumerator
partial	PARTIAL - Document is not complete.
complete	COMPLETE - Document is complete.

Definition at line 259 of file sr_storage.h.

                              {
    partial,
    complete
};

sr_document_type

enum class kcenon::pacs::services::sop_classes::sr_document_type

strong

SR Document type classification.

Categorizes SR documents by their primary purpose.

Enumerator
basic_text	Basic Text SR - Simple text reports.
enhanced	Enhanced SR - References to images/waveforms.
comprehensive	Comprehensive SR - Complex with spatial coords.
comprehensive_3d	Comprehensive 3D SR - 3D spatial coordinates.
extensible	Extensible SR - Template-based.
key_object_selection	Key Object Selection - Image selection.
cad	CAD SR - Computer-aided detection results.
dose_report	Dose Report - Radiation dose information.
procedure_log	Procedure Log - Procedure documentation.
other	Other specialized SR types.

Definition at line 141 of file sr_storage.h.

                            {
    basic_text,
    enhanced,
    comprehensive,
    comprehensive_3d,
    extensible,
    key_object_selection,
    cad,
    dose_report,
    procedure_log,
    other
};

sr_relationship_type

enum class kcenon::pacs::services::sop_classes::sr_relationship_type

strong

SR Content Item Relationship Type (0040,A010)

Defines the relationship between content items in the SR tree.

Enumerator
contains	CONTAINS - Parent contains child.
has_obs_context	HAS OBS CONTEXT - Observation context.
has_acq_context	HAS ACQ CONTEXT - Acquisition context.
has_concept_mod	HAS CONCEPT MOD - Concept modifier.
has_properties	HAS PROPERTIES - Property value.
inferred_from	INFERRED FROM - Inference source.
selected_from	SELECTED FROM - Selection source.
unknown	Unknown relationship.

Definition at line 227 of file sr_storage.h.

                                {
    contains,
    has_obs_context,
    has_acq_context,
    has_concept_mod,
    has_properties,
    inferred_from,
    selected_from,
    unknown
};

sr_value_type

enum class kcenon::pacs::services::sop_classes::sr_value_type

strong

SR Content Item Value Type (0040,A040)

Defines the type of value contained in a content item.

Enumerator
text	TEXT - Free text.
code	CODE - Coded entry.
num	NUM - Numeric measurement.
datetime	DATETIME - Date/time value.
date	DATE - Date value.
time	TIME - Time value.
uidref	UIDREF - UID reference.
pname	PNAME - Person name.
composite	COMPOSITE - Reference to composite object.
image	IMAGE - Reference to image.
waveform	WAVEFORM - Reference to waveform.
scoord	SCOORD - Spatial coordinates (2D)
scoord3d	SCOORD3D - Spatial coordinates (3D)
tcoord	TCOORD - Temporal coordinates.
container	CONTAINER - Container for other items.
table	TABLE - Tabular data (Extensible SR)
unknown	Unknown value type.

Definition at line 177 of file sr_storage.h.

                         {
    text,
    code,
    num,
    datetime,
    date,
    time,
    uidref,
    pname,
    composite,
    image,
    waveform,
    scoord,
    scoord3d,
    tcoord,
    container,
    table,
    unknown
};

sr_verification_flag

enum class kcenon::pacs::services::sop_classes::sr_verification_flag

strong

SR Verification Flag (0040,A493)

Enumerator
unverified	UNVERIFIED - Not verified.
verified	VERIFIED - Verified by authorized person.

Definition at line 281 of file sr_storage.h.

                                {
    unverified,
    verified
};

us_photometric_interpretation

enum class kcenon::pacs::services::sop_classes::us_photometric_interpretation

strong

Supported photometric interpretations for US images.

Enumerator
monochrome1	Minimum pixel = white.
monochrome2	Minimum pixel = black (most common)
palette_color	Pseudo-color via lookup table.
rgb	Full color RGB.
ybr_full	YCbCr full range.
ybr_full_422	YCbCr 4:2:2 subsampled.

Definition at line 83 of file us_storage.h.

                                         {
    monochrome1,
    monochrome2,
    palette_color,
    rgb,
    ybr_full,
    ybr_full_422
};

us_region_data_type

enum class kcenon::pacs::services::sop_classes::us_region_data_type : uint16_t

strong

US Region data type.

Defines the type of data in an ultrasound region

Enumerator
tissue	Tissue characterization.
blood	Blood/flow.
color_flow	Color flow Doppler.
elastography	Tissue stiffness.
b_mode	B-mode amplitude.

Definition at line 190 of file us_storage.h.

                               : uint16_t {
    tissue = 0x0001,
    blood = 0x0002,
    color_flow = 0x0003,
    elastography = 0x0004,
    b_mode = 0x0005
};

us_region_spatial_format

enum class kcenon::pacs::services::sop_classes::us_region_spatial_format : uint16_t

strong

US Region spatial format.

Defines the spatial organization of ultrasound regions as specified in DICOM PS3.3 Section C.8.5.5

Enumerator
none	No geometric information.
two_d	2D format (sector, linear, etc.)
m_mode	M-mode (time-motion)
spectral	Spectral Doppler.
wave_form	Physiological waveform.
graphics	Graphics overlay.

Definition at line 176 of file us_storage.h.

                                    : uint16_t {
    none = 0x0000,
    two_d = 0x0001,
    m_mode = 0x0002,
    spectral = 0x0003,
    wave_form = 0x0004,
    graphics = 0x0005
};

waveform_type

enum class kcenon::pacs::services::sop_classes::waveform_type

strong

Waveform type classification.

Enumerator
ecg_12lead	12-lead ECG
ecg_general	General ECG.
ecg_ambulatory	Ambulatory ECG (Holter)
hemodynamic	Hemodynamic monitoring.
cardiac_ep	Cardiac electrophysiology.
audio_basic	Basic voice audio.
audio_general	General audio.
arterial_pulse	Arterial pulse waveform.
respiratory	Single-channel respiratory.
respiratory_multi	Multi-channel respiratory.
eeg_routine	Routine scalp EEG.
emg	Electromyogram.
eog	Electrooculogram.
eeg_sleep	Sleep EEG.
body_position	Body position.
presentation_state	Waveform Presentation State.
annotation	Waveform Annotation.
unknown	Unknown waveform type.

Definition at line 118 of file waveform_storage.h.

                         {
    ecg_12lead,
    ecg_general,
    ecg_ambulatory,
    hemodynamic,
    cardiac_ep,
    audio_basic,
    audio_general,
    arterial_pulse,
    respiratory,
    respiratory_multi,
    eeg_routine,
    emg,
    eog,
    eeg_sleep,
    body_position,
    presentation_state,
    annotation,
    unknown
};

xa_frame_rate

enum class kcenon::pacs::services::sop_classes::xa_frame_rate : uint16_t

strong

Common XA frame rates in frames per second.

XA acquisitions typically use specific standardized frame rates for cardiac and vascular imaging.

Enumerator
fps_7_5	7.5 fps (low dose)
fps_15	15 fps (standard)
fps_30	30 fps (high temporal resolution)

Definition at line 243 of file xa_storage.h.

                         : uint16_t {
    fps_7_5 = 8,
    fps_15 = 15,
    fps_30 = 30
};

xa_photometric_interpretation

enum class kcenon::pacs::services::sop_classes::xa_photometric_interpretation

strong

Supported photometric interpretations for XA/XRF images.

XA images are grayscale-only. MONOCHROME1 is traditional for XA (minimum pixel = white, like a lightbox view), while MONOCHROME2 is also supported.

Enumerator
monochrome1	Minimum pixel = white (traditional X-ray view)
monochrome2	Minimum pixel = black.

Definition at line 99 of file xa_storage.h.

                                         {
    monochrome1,
    monochrome2
};

xa_positioner_motion

enum class kcenon::pacs::services::sop_classes::xa_positioner_motion

strong

Positioner motion type.

Describes the type of positioner movement during acquisition.

Enumerator
stationary	No movement during acquisition.
dynamic	Positioner moves during acquisition (e.g., rotational)

Definition at line 204 of file xa_storage.h.

                                {
    stationary,
    dynamic
};

Function Documentation

create_mg_image_type()

std::string kcenon::pacs::services::sop_classes::create_mg_image_type ( bool is_original, bool is_primary, mg_image_type type )

nodiscard

Create DICOM-compliant image type value for mammography.

Constructs the Image Type (0008,0008) value for mammography images according to DICOM specifications.

Parameters

is_original	true if ORIGINAL, false if DERIVED
is_primary	true if PRIMARY, false if SECONDARY
type	For Presentation or For Processing

Returns

Properly formatted Image Type value

Definition at line 383 of file mg_storage.cpp.

                        {

    std::string result;

    // Value 1: ORIGINAL or DERIVED
    result += is_original ? "ORIGINAL" : "DERIVED";
    result += "\\";

    // Value 2: PRIMARY or SECONDARY
    result += is_primary ? "PRIMARY" : "SECONDARY";
    result += "\\";

    // Value 3: Image flavor - empty for mammography typically
    result += "\\";

    // Value 4: Derived Pixel Contrast - specific for For Presentation/Processing
    if (type == mg_image_type::for_presentation) {
        result += "NONE";  // or specific processing type
    } else {
        result += "";  // empty for processing images
    }

    return result;
}

References for_presentation.

get_bits_allocated()

uint16_t kcenon::pacs::services::sop_classes::get_bits_allocated ( pixel_value_representation repr )

nodiscardnoexcept

Get bits allocated for a pixel value representation.

Parameters

repr	The pixel value representation

Returns

BitsAllocated value (32 or 64)

Definition at line 41 of file parametric_map_storage.cpp.

                                                                      {
    switch (repr) {
        case pixel_value_representation::float32:
            return 32;
        case pixel_value_representation::float64:
            return 64;
    }
    return 32;
}

References float32, and float64.

get_ct_storage_sop_classes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_ct_storage_sop_classes ( )

nodiscard

Get all CT Storage SOP Class UIDs.

Returns

Vector of CT Storage SOP Class UIDs

Definition at line 17 of file ct_storage.cpp.

                                                  {
    return {
        std::string(ct_image_storage_uid),
        std::string(enhanced_ct_image_storage_uid),
        std::string(ct_for_processing_image_storage_uid),
    };
}

References ct_for_processing_image_storage_uid, ct_image_storage_uid, and enhanced_ct_image_storage_uid.

get_default_xa_cine_rate()

uint16_t kcenon::pacs::services::sop_classes::get_default_xa_cine_rate ( )

nodiscardconstexprnoexcept

Get typical cine rate for cardiac XA.

Returns

Default cine rate in frames per second

Definition at line 253 of file xa_storage.h.

                                                                     {
    return 15;
}

get_dx_sop_class_info()

const dx_sop_class_info * kcenon::pacs::services::sop_classes::get_dx_sop_class_info ( std::string_view uid )

nodiscardnoexcept

Get information about a specific DX SOP Class.

Parameters

uid	The SOP Class UID to look up

Returns

Pointer to sop class info, or nullptr if not a DX storage class

Definition at line 277 of file dx_storage.cpp.

                                                   {
    auto it = std::find_if(
        dx_sop_classes.begin(),
        dx_sop_classes.end(),
        [uid](const auto& info) { return info.uid == uid; }
    );

    if (it != dx_sop_classes.end()) {
        return &(*it);
    }
    return nullptr;
}

References uid.

Referenced by is_dx_for_presentation_sop_class(), is_dx_for_processing_sop_class(), is_dx_storage_sop_class(), and is_mammography_sop_class().

Here is the caller graph for this function:

get_dx_storage_sop_classes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_dx_storage_sop_classes ( bool include_mammography = true, bool include_intraoral = true )

nodiscard

Get all DX Storage SOP Class UIDs.

Returns all DX-related SOP Class UIDs including general radiography, mammography, and intra-oral imaging.

Parameters

include_mammography	Include mammography SOP classes (default: true)
include_intraoral	Include intra-oral SOP classes (default: true)

Returns

Vector of DX Storage SOP Class UIDs

Definition at line 253 of file dx_storage.cpp.

                                                                             {
    std::vector<std::string> result;
    result.reserve(6);

    for (const auto& info : dx_sop_classes) {
        // Always include general DX
        if (!info.is_mammography && !info.is_intraoral) {
            result.emplace_back(info.uid);
        }
        // Include mammography if requested
        else if (info.is_mammography && include_mammography) {
            result.emplace_back(info.uid);
        }
        // Include intra-oral if requested
        else if (info.is_intraoral && include_intraoral) {
            result.emplace_back(info.uid);
        }
    }

    return result;
}

get_dx_transfer_syntaxes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_dx_transfer_syntaxes ( )

nodiscard

Get recommended transfer syntaxes for DX images.

Returns a prioritized list of transfer syntaxes suitable for digital X-ray image storage. DX images are typically grayscale with high bit depth (12-16 bits).

Returns

Vector of transfer syntax UIDs in priority order

Definition at line 21 of file dx_storage.cpp.

                                                {
    return {
        // Explicit VR Little Endian (preferred for interoperability)
        "1.2.840.10008.1.2.1",
        // Implicit VR Little Endian (universal baseline)
        "1.2.840.10008.1.2",
        // HTJ2K Lossless (high-throughput lossless for large DX images)
        "1.2.840.10008.1.2.4.201",
        // JPEG Lossless (for diagnostic quality - most important for DX)
        "1.2.840.10008.1.2.4.70",
        // JPEG 2000 Lossless (better compression, good for large DX images)
        "1.2.840.10008.1.2.4.90",
        // JPEG 2000 Lossy (for archival with acceptable quality loss)
        "1.2.840.10008.1.2.4.91",
        // RLE Lossless (simple lossless compression)
        "1.2.840.10008.1.2.5"
    };
}

get_max_xa_frame_count()

size_t kcenon::pacs::services::sop_classes::get_max_xa_frame_count ( )

nodiscardconstexprnoexcept

Get maximum recommended frame count for XA acquisitions.

Large XA acquisitions can have many frames. This returns a reasonable upper limit for memory pre-allocation.

Returns

Maximum expected frame count

Definition at line 265 of file xa_storage.h.

                                                                 {
    return 2000;  // Typical max for long cardiac runs
}

get_mg_sop_class_info()

const mg_sop_class_info * kcenon::pacs::services::sop_classes::get_mg_sop_class_info ( std::string_view uid )

nodiscardnoexcept

Get information about a specific Mammography SOP Class.

Parameters

uid	The SOP Class UID to look up

Returns

Pointer to sop class info, or nullptr if not a mammography storage class

Definition at line 292 of file mg_storage.cpp.

                                                                            {
    auto it = std::find_if(mg_sop_classes.begin(), mg_sop_classes.end(),
        [uid](const mg_sop_class_info& info) {
            return info.uid == uid;
        });

    if (it != mg_sop_classes.end()) {
        return &(*it);
    }
    return nullptr;
}

References uid.

Referenced by is_breast_tomosynthesis_sop_class(), is_mg_for_presentation_sop_class(), is_mg_for_processing_sop_class(), and is_mg_storage_sop_class().

Here is the caller graph for this function:

get_mg_storage_sop_classes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_mg_storage_sop_classes ( bool include_tomosynthesis = true )

nodiscard

Get all Mammography Storage SOP Class UIDs.

Returns all mammography-related SOP Class UIDs including standard 2D mammography and breast tomosynthesis.

Parameters

include_tomosynthesis

Include breast tomosynthesis SOP classes (default: true)

Returns

Vector of Mammography Storage SOP Class UIDs

Definition at line 278 of file mg_storage.cpp.

                                                                            {
    std::vector<std::string> result;
    result.reserve(mg_sop_classes.size());

    for (const auto& info : mg_sop_classes) {
        if (!include_tomosynthesis && info.is_tomosynthesis) {
            continue;
        }
        result.emplace_back(info.uid);
    }

    return result;
}

get_mg_transfer_syntaxes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_mg_transfer_syntaxes ( )

nodiscard

Get recommended transfer syntaxes for mammography images.

Returns a prioritized list of transfer syntaxes suitable for mammography image storage. Mammography images typically have very high spatial resolution and benefit from specific compression approaches.

Returns

Vector of transfer syntax UIDs in priority order

Definition at line 327 of file mg_storage.cpp.

                                                {
    return {
        // HTJ2K Lossless - high-throughput lossless for large mammography images
        "1.2.840.10008.1.2.4.201",
        // JPEG 2000 Lossless - excellent for high-resolution mammography
        "1.2.840.10008.1.2.4.90",
        // JPEG Lossless - widely supported
        "1.2.840.10008.1.2.4.70",
        // JPEG 2000 Lossy - good compression for storage
        "1.2.840.10008.1.2.4.91",
        // Explicit VR Little Endian - universal compatibility
        "1.2.840.10008.1.2.1",
        // Implicit VR Little Endian - legacy support
        "1.2.840.10008.1.2"
    };
}

get_mr_storage_sop_classes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_mr_storage_sop_classes ( )

nodiscard

Get all MR Storage SOP Class UIDs.

Returns

Vector of MR Storage SOP Class UIDs

Definition at line 16 of file mr_storage.cpp.

                                                  {
    return {
        std::string(mr_image_storage_uid),
        std::string(enhanced_mr_image_storage_uid),
    };
}

References enhanced_mr_image_storage_uid, and mr_image_storage_uid.

get_nm_sop_class_info()

const nm_sop_class_info * kcenon::pacs::services::sop_classes::get_nm_sop_class_info ( std::string_view uid )

nodiscardnoexcept

Get information about a specific NM SOP Class.

Parameters

uid	The SOP Class UID to look up

Returns

Pointer to SOP class info, or nullptr if not a NM storage class

Definition at line 104 of file nm_storage.cpp.

                                                   {
    auto it = std::find_if(
        nm_sop_classes.begin(),
        nm_sop_classes.end(),
        [uid](const auto& info) { return info.uid == uid; }
    );

    if (it != nm_sop_classes.end()) {
        return &(*it);
    }
    return nullptr;
}

References uid.

Referenced by is_nm_multiframe_sop_class(), and is_nm_storage_sop_class().

Here is the caller graph for this function:

get_nm_storage_sop_classes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_nm_storage_sop_classes ( bool include_retired = true )

nodiscard

Get all NM Storage SOP Class UIDs.

Returns both current and retired SOP Class UIDs for comprehensive nuclear medicine storage support.

Parameters

include_retired

Include retired SOP classes (default: true)

Returns

Vector of NM Storage SOP Class UIDs

Definition at line 90 of file nm_storage.cpp.

                                                                      {
    std::vector<std::string> result;
    result.reserve(nm_sop_classes.size());

    for (const auto& info : nm_sop_classes) {
        if (!info.is_retired || include_retired) {
            result.emplace_back(info.uid);
        }
    }

    return result;
}

get_nm_transfer_syntaxes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_nm_transfer_syntaxes ( )

nodiscard

Get recommended transfer syntaxes for NM images.

Returns a prioritized list of transfer syntaxes suitable for nuclear medicine image storage, considering multi-frame support and quantitative accuracy requirements.

Returns

Vector of transfer syntax UIDs in priority order

Definition at line 21 of file nm_storage.cpp.

                                                {
    return {
        // Explicit VR Little Endian (preferred for interoperability)
        "1.2.840.10008.1.2.1",
        // Implicit VR Little Endian (universal baseline)
        "1.2.840.10008.1.2",
        // HTJ2K Lossless (high-throughput lossless, preserves count values)
        "1.2.840.10008.1.2.4.201",
        // JPEG Lossless (for diagnostic quality - important for quantitative data)
        "1.2.840.10008.1.2.4.70",
        // JPEG 2000 Lossless (better compression, preserves count values)
        "1.2.840.10008.1.2.4.90",
        // RLE Lossless
        "1.2.840.10008.1.2.5"
    };
}

get_ophthalmic_storage_sop_classes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_ophthalmic_storage_sop_classes ( )

nodiscard

Get all Ophthalmic Storage SOP Class UIDs.

Returns

Vector of Ophthalmic Storage SOP Class UIDs

Definition at line 16 of file ophthalmic_storage.cpp.

                                                          {
    return {
        std::string(ophthalmic_photo_8bit_storage_uid),
        std::string(ophthalmic_photo_16bit_storage_uid),
        std::string(ophthalmic_tomography_storage_uid),
        std::string(wide_field_ophthalmic_photo_storage_uid),
        std::string(ophthalmic_oct_bscan_analysis_storage_uid),
    };
}

References ophthalmic_oct_bscan_analysis_storage_uid, ophthalmic_photo_16bit_storage_uid, ophthalmic_photo_8bit_storage_uid, ophthalmic_tomography_storage_uid, and wide_field_ophthalmic_photo_storage_uid.

get_parametric_map_sop_class_info()

const parametric_map_sop_class_info * kcenon::pacs::services::sop_classes::get_parametric_map_sop_class_info ( std::string_view uid )

nodiscardnoexcept

Get information about the Parametric Map SOP Class.

Parameters

uid	The SOP Class UID to look up

Returns

Pointer to SOP class info, or nullptr if not a Parametric Map class

Definition at line 87 of file parametric_map_storage.cpp.

                                                               {
    if (uid == parametric_map_storage_uid) {
        return &pmap_sop_classes[0];
    }
    return nullptr;
}

References parametric_map_storage_uid, and uid.

get_parametric_map_storage_sop_classes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_parametric_map_storage_sop_classes ( )

nodiscard

Get all Parametric Map Storage SOP Class UIDs.

Returns

Vector of Parametric Map Storage SOP Class UIDs

Definition at line 80 of file parametric_map_storage.cpp.

                                                              {
    return {
        std::string(parametric_map_storage_uid)
    };
}

References parametric_map_storage_uid.

get_parametric_map_transfer_syntaxes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_parametric_map_transfer_syntaxes ( )

nodiscard

Get recommended transfer syntaxes for Parametric Map objects.

Returns a prioritized list of transfer syntaxes suitable for parametric map storage. Float pixel data requires uncompressed or lossless transfer syntaxes to preserve quantitative accuracy.

Returns

Vector of transfer syntax UIDs in priority order

Definition at line 22 of file parametric_map_storage.cpp.

                                                            {
    return {
        // Explicit VR Little Endian (preferred for interoperability)
        "1.2.840.10008.1.2.1",
        // Implicit VR Little Endian (universal baseline)
        "1.2.840.10008.1.2",
        // JPEG 2000 Lossless (preserves float data integrity)
        "1.2.840.10008.1.2.4.90",
        // HTJ2K Lossless (high-throughput lossless)
        "1.2.840.10008.1.2.4.201",
        // RLE Lossless
        "1.2.840.10008.1.2.5"
    };
}

get_pet_sop_class_info()

const pet_sop_class_info * kcenon::pacs::services::sop_classes::get_pet_sop_class_info ( std::string_view uid )

nodiscardnoexcept

Get information about a specific PET SOP Class.

Parameters

uid	The SOP Class UID to look up

Returns

Pointer to SOP class info, or nullptr if not a PET storage class

Definition at line 110 of file pet_storage.cpp.

                                                    {
    auto it = std::find_if(
        pet_sop_classes.begin(),
        pet_sop_classes.end(),
        [uid](const auto& info) { return info.uid == uid; }
    );

    if (it != pet_sop_classes.end()) {
        return &(*it);
    }
    return nullptr;
}

References uid.

Referenced by is_enhanced_pet_sop_class(), and is_pet_storage_sop_class().

Here is the caller graph for this function:

get_pet_storage_sop_classes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_pet_storage_sop_classes ( bool include_retired = true )

nodiscard

Get all PET Storage SOP Class UIDs.

Returns both current and legacy SOP Class UIDs for comprehensive PET storage support.

Parameters

include_retired

Include retired SOP classes (default: true)

Returns

Vector of PET Storage SOP Class UIDs

Definition at line 96 of file pet_storage.cpp.

                                                                       {
    std::vector<std::string> result;
    result.reserve(pet_sop_classes.size());

    for (const auto& info : pet_sop_classes) {
        if (!info.is_retired || include_retired) {
            result.emplace_back(info.uid);
        }
    }

    return result;
}

get_pet_transfer_syntaxes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_pet_transfer_syntaxes ( )

nodiscard

Get recommended transfer syntaxes for PET images.

Returns a prioritized list of transfer syntaxes suitable for PET image storage, considering compression requirements and quantitative accuracy.

Returns

Vector of transfer syntax UIDs in priority order

Definition at line 21 of file pet_storage.cpp.

                                                 {
    return {
        // Explicit VR Little Endian (preferred for interoperability)
        "1.2.840.10008.1.2.1",
        // Implicit VR Little Endian (universal baseline)
        "1.2.840.10008.1.2",
        // HTJ2K Lossless (high-throughput lossless, preserves quantitative data)
        "1.2.840.10008.1.2.4.201",
        // JPEG Lossless (for diagnostic quality - recommended for quantitative data)
        "1.2.840.10008.1.2.4.70",
        // JPEG 2000 Lossless (better compression, preserves quantitative values)
        "1.2.840.10008.1.2.4.90",
        // RLE Lossless
        "1.2.840.10008.1.2.5"
    };
}

get_primary_energy_kev()

double kcenon::pacs::services::sop_classes::get_primary_energy_kev ( nm_radioisotope isotope )

nodiscardnoexcept

Get primary photopeak energy for radioisotope.

Parameters

isotope

The radioisotope type

Returns

Primary photopeak energy in keV

Definition at line 255 of file nm_storage.cpp.

                                                                {
    switch (isotope) {
        case nm_radioisotope::tc99m:
            return 140.0;
        case nm_radioisotope::i131:
            return 364.0;
        case nm_radioisotope::i123:
            return 159.0;
        case nm_radioisotope::tl201:
            return 71.0;  // Primary peak (also 167 keV)
        case nm_radioisotope::ga67:
            return 93.0;  // Primary peak (also 185, 300 keV)
        case nm_radioisotope::in111:
            return 171.0; // Primary peak (also 245 keV)
        case nm_radioisotope::f18:
            return 511.0; // Annihilation photons
        case nm_radioisotope::other:
            return 0.0;
    }
    return 0.0;
}

References f18, ga67, i123, i131, in111, other, tc99m, and tl201.

get_recommended_segment_color()

segment_color kcenon::pacs::services::sop_classes::get_recommended_segment_color ( std::string_view segment_label )

nodiscardnoexcept

Get recommended color for common segment types.

Parameters

segment_label

The segment label (e.g., "Liver", "Tumor")

Returns

Recommended CIELab color, or default gray if unknown

Definition at line 160 of file seg_storage.cpp.

                                                                                   {
    auto it = standard_colors.find(segment_label);
    if (it != standard_colors.end()) {
        return it->second;
    }
    // Return default gray for unknown structures
    return standard_colors.at("Default");
}

get_recommended_sr_template()

std::string_view kcenon::pacs::services::sop_classes::get_recommended_sr_template ( std::string_view uid )

nodiscardnoexcept

Get recommended template ID for an SR SOP Class.

Parameters

uid	The SR SOP Class UID

Returns

Template ID string, or empty if no specific template recommended

Definition at line 462 of file sr_storage.cpp.

                                                                        {
    if (uid == mammography_cad_sr_storage_uid) {
        return sr_template::mammography_cad_report;
    }
    if (uid == chest_cad_sr_storage_uid) {
        return sr_template::chest_cad_report;
    }
    if (uid == colon_cad_sr_storage_uid) {
        return sr_template::colon_cad_report;
    }
    if (uid == xray_radiation_dose_sr_storage_uid ||
        uid == enhanced_xray_radiation_dose_sr_storage_uid) {
        return sr_template::xray_radiation_dose_report;
    }
    if (uid == key_object_selection_document_storage_uid) {
        return sr_template::key_object_selection;
    }
    if (uid == basic_text_sr_storage_uid ||
        uid == enhanced_sr_storage_uid ||
        uid == comprehensive_sr_storage_uid) {
        return sr_template::basic_diagnostic_imaging_report;
    }
    return "";
}

References kcenon::pacs::services::sop_classes::sr_template::basic_diagnostic_imaging_report, basic_text_sr_storage_uid, kcenon::pacs::services::sop_classes::sr_template::chest_cad_report, chest_cad_sr_storage_uid, kcenon::pacs::services::sop_classes::sr_template::colon_cad_report, colon_cad_sr_storage_uid, comprehensive_sr_storage_uid, enhanced_sr_storage_uid, enhanced_xray_radiation_dose_sr_storage_uid, kcenon::pacs::services::sop_classes::sr_template::key_object_selection, key_object_selection_document_storage_uid, kcenon::pacs::services::sop_classes::sr_template::mammography_cad_report, mammography_cad_sr_storage_uid, uid, kcenon::pacs::services::sop_classes::sr_template::xray_radiation_dose_report, and xray_radiation_dose_sr_storage_uid.

get_rt_sop_class_info()

const rt_sop_class_info * kcenon::pacs::services::sop_classes::get_rt_sop_class_info ( std::string_view uid )

nodiscardnoexcept

Get information about a specific RT SOP Class.

Parameters

uid	The SOP Class UID to look up

Returns

Pointer to SOP class info, or nullptr if not an RT storage class

Definition at line 139 of file rt_storage.cpp.

                                                   {
    for (size_t i = 0; i < rt_sop_class_count; ++i) {
        if (rt_sop_classes[i].uid == uid) {
            return &rt_sop_classes[i];
        }
    }
    return nullptr;
}

References uid.

Referenced by is_rt_storage_sop_class(), and rt_sop_class_has_pixel_data().

Here is the caller graph for this function:

get_rt_storage_sop_classes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_rt_storage_sop_classes ( bool include_retired = true )

nodiscard

Get all RT Storage SOP Class UIDs.

Returns all RT Storage SOP Class UIDs for comprehensive radiation therapy support.

Parameters

include_retired

Include retired SOP classes (default: true)

Returns

Vector of RT Storage SOP Class UIDs

Definition at line 124 of file rt_storage.cpp.

                                                                      {
    std::vector<std::string> result;
    result.reserve(rt_sop_class_count);

    for (size_t i = 0; i < rt_sop_class_count; ++i) {
        const auto& info = rt_sop_classes[i];
        if (!info.is_retired || include_retired) {
            result.emplace_back(info.uid);
        }
    }

    return result;
}

get_rt_transfer_syntaxes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_rt_transfer_syntaxes ( )

nodiscard

Get recommended transfer syntaxes for RT objects.

Returns a prioritized list of transfer syntaxes suitable for radiation therapy object storage. RT objects typically don't contain pixel data (except RT Image and RT Dose), so compression is less critical.

Returns

Vector of transfer syntax UIDs in priority order

Definition at line 21 of file rt_storage.cpp.

                                                {
    return {
        // Explicit VR Little Endian (preferred for interoperability)
        "1.2.840.10008.1.2.1",
        // Implicit VR Little Endian (universal baseline)
        "1.2.840.10008.1.2",
        // HTJ2K Lossless (high-throughput lossless for dose grids)
        "1.2.840.10008.1.2.4.201",
        // JPEG Lossless (for RT Image and RT Dose with pixel data)
        "1.2.840.10008.1.2.4.70",
        // JPEG 2000 Lossless (better compression for dose grids)
        "1.2.840.10008.1.2.4.90",
        // RLE Lossless
        "1.2.840.10008.1.2.5"
    };
}

get_seg_sop_class_info()

const seg_sop_class_info * kcenon::pacs::services::sop_classes::get_seg_sop_class_info ( std::string_view uid )

nodiscardnoexcept

Get information about a specific SEG SOP Class.

Parameters

uid	The SOP Class UID to look up

Returns

Pointer to SOP class info, or nullptr if not a SEG storage class

Definition at line 222 of file seg_storage.cpp.

                                                    {
    auto it = std::find_if(
        seg_sop_classes.begin(),
        seg_sop_classes.end(),
        [uid](const auto& info) { return info.uid == uid; }
    );

    if (it != seg_sop_classes.end()) {
        return &(*it);
    }
    return nullptr;
}

References uid.

Referenced by is_seg_storage_sop_class().

Here is the caller graph for this function:

get_seg_storage_sop_classes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_seg_storage_sop_classes ( bool include_surface = true )

nodiscard

Get all SEG Storage SOP Class UIDs.

Parameters

include_surface

Include surface segmentation (default: true)

Returns

Vector of SEG Storage SOP Class UIDs

Definition at line 208 of file seg_storage.cpp.

                                                                       {
    std::vector<std::string> result;
    result.reserve(include_surface ? 4 : 3);

    for (const auto& info : seg_sop_classes) {
        if (!info.is_surface || include_surface) {
            result.emplace_back(info.uid);
        }
    }

    return result;
}

get_seg_transfer_syntaxes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_seg_transfer_syntaxes ( )

nodiscard

Get recommended transfer syntaxes for SEG objects.

Returns a prioritized list of transfer syntaxes suitable for segmentation object storage. Binary segmentations benefit from lossless compression.

Returns

Vector of transfer syntax UIDs in priority order

Definition at line 22 of file seg_storage.cpp.

                                                 {
    return {
        // Explicit VR Little Endian (preferred for interoperability)
        "1.2.840.10008.1.2.1",
        // Implicit VR Little Endian (universal baseline)
        "1.2.840.10008.1.2",
        // HTJ2K Lossless (high-throughput lossless for segmentation data)
        "1.2.840.10008.1.2.4.201",
        // JPEG 2000 Lossless (good for binary data)
        "1.2.840.10008.1.2.4.90",
        // RLE Lossless (excellent for binary segmentations)
        "1.2.840.10008.1.2.5",
        // JPEG Lossless
        "1.2.840.10008.1.2.4.70"
    };
}

get_segment_category_code()

std::string_view kcenon::pacs::services::sop_classes::get_segment_category_code ( segment_category category )

nodiscardnoexcept

Get SNOMED CT code for segment category.

Parameters

category

The segment category

Returns

SNOMED CT code string

Definition at line 266 of file seg_storage.cpp.

                                                                             {
    auto index = static_cast<size_t>(category);
    if (index < category_codes.size()) {
        return category_codes[index].code;
    }
    return category_codes[0].code;  // Default to tissue
}

get_segment_category_meaning()

std::string_view kcenon::pacs::services::sop_classes::get_segment_category_meaning ( segment_category category )

nodiscardnoexcept

Get code meaning for segment category.

Parameters

category

The segment category

Returns

Human-readable category name

Definition at line 274 of file seg_storage.cpp.

                                                                                {
    auto index = static_cast<size_t>(category);
    if (index < category_codes.size()) {
        return category_codes[index].meaning;
    }
    return category_codes[0].meaning;
}

get_sr_document_type()

sr_document_type kcenon::pacs::services::sop_classes::get_sr_document_type ( std::string_view uid )

nodiscardnoexcept

Get SR document type for a SOP Class UID.

Parameters

uid	The SOP Class UID

Returns

The SR document type

Definition at line 36 of file sr_storage.cpp.

                                                                   {
    if (uid == basic_text_sr_storage_uid) {
        return sr_document_type::basic_text;
    }
    if (uid == enhanced_sr_storage_uid) {
        return sr_document_type::enhanced;
    }
    if (uid == comprehensive_sr_storage_uid) {
        return sr_document_type::comprehensive;
    }
    if (uid == comprehensive_3d_sr_storage_uid) {
        return sr_document_type::comprehensive_3d;
    }
    if (uid == extensible_sr_storage_uid) {
        return sr_document_type::extensible;
    }
    if (uid == key_object_selection_document_storage_uid) {
        return sr_document_type::key_object_selection;
    }
    if (uid == mammography_cad_sr_storage_uid ||
        uid == chest_cad_sr_storage_uid ||
        uid == colon_cad_sr_storage_uid) {
        return sr_document_type::cad;
    }
    if (uid == xray_radiation_dose_sr_storage_uid ||
        uid == radiopharmaceutical_radiation_dose_sr_storage_uid ||
        uid == patient_radiation_dose_sr_storage_uid ||
        uid == enhanced_xray_radiation_dose_sr_storage_uid) {
        return sr_document_type::dose_report;
    }
    return sr_document_type::other;
}

References basic_text, basic_text_sr_storage_uid, cad, chest_cad_sr_storage_uid, colon_cad_sr_storage_uid, comprehensive, comprehensive_3d, comprehensive_3d_sr_storage_uid, comprehensive_sr_storage_uid, dose_report, enhanced, enhanced_sr_storage_uid, enhanced_xray_radiation_dose_sr_storage_uid, extensible, extensible_sr_storage_uid, key_object_selection, key_object_selection_document_storage_uid, mammography_cad_sr_storage_uid, other, patient_radiation_dose_sr_storage_uid, radiopharmaceutical_radiation_dose_sr_storage_uid, uid, and xray_radiation_dose_sr_storage_uid.

Referenced by kcenon::pacs::services::validation::sr_iod_validator::validate().

Here is the caller graph for this function:

get_sr_sop_class_info()

const sr_sop_class_info * kcenon::pacs::services::sop_classes::get_sr_sop_class_info ( std::string_view uid )

nodiscardnoexcept

Get information about a specific SR SOP Class.

Parameters

uid	The SOP Class UID to look up

Returns

Pointer to SOP class info, or nullptr if not an SR storage class

Definition at line 426 of file sr_storage.cpp.

                                                   {
    auto it = std::find_if(
        sr_sop_classes.begin(),
        sr_sop_classes.end(),
        [uid](const auto& info) { return info.uid == uid; }
    );

    if (it != sr_sop_classes.end()) {
        return &(*it);
    }
    return nullptr;
}

References uid.

Referenced by is_cad_sr_storage_sop_class(), is_dose_sr_storage_sop_class(), is_sr_storage_sop_class(), and sr_supports_spatial_coords().

Here is the caller graph for this function:

get_sr_storage_sop_classes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_sr_storage_sop_classes ( bool include_cad = true, bool include_dose = true )

nodiscard

Get all SR Storage SOP Class UIDs.

Parameters

include_cad	Include CAD-specific SR classes (default: true)
include_dose	Include dose report SR classes (default: true)

Returns

Vector of SR Storage SOP Class UIDs

Definition at line 403 of file sr_storage.cpp.

                                                                {
    std::vector<std::string> result;
    result.reserve(sr_sop_classes.size());

    for (const auto& info : sr_sop_classes) {
        bool include = true;

        if (!include_cad && info.document_type == sr_document_type::cad) {
            include = false;
        }
        if (!include_dose && info.document_type == sr_document_type::dose_report) {
            include = false;
        }

        if (include) {
            result.emplace_back(info.uid);
        }
    }

    return result;
}

References cad, and dose_report.

get_sr_transfer_syntaxes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_sr_transfer_syntaxes ( )

nodiscard

Get recommended transfer syntaxes for SR objects.

Returns a prioritized list of transfer syntaxes suitable for structured report storage. SR objects are typically small and don't benefit from compression.

Returns

Vector of transfer syntax UIDs in priority order

Definition at line 21 of file sr_storage.cpp.

                                                {
    return {
        // Explicit VR Little Endian (preferred for interoperability)
        "1.2.840.10008.1.2.1",
        // Implicit VR Little Endian (universal baseline)
        "1.2.840.10008.1.2",
        // Deflated Explicit VR Little Endian (good for large SRs)
        "1.2.840.10008.1.2.1.99"
    };
}

get_standard_screening_views()

std::vector< std::pair< breast_laterality, mg_view_position > > kcenon::pacs::services::sop_classes::get_standard_screening_views ( )

nodiscardnoexcept

Get standard four-view screening exam views.

Returns the standard four views for screening mammography:

• Right CC, Left CC, Right MLO, Left MLO

Returns

Vector of (laterality, view) pairs

Definition at line 374 of file mg_storage.cpp.

                                        {
    return {
        {breast_laterality::right, mg_view_position::cc},
        {breast_laterality::left, mg_view_position::cc},
        {breast_laterality::right, mg_view_position::mlo},
        {breast_laterality::left, mg_view_position::mlo}
    };
}

References cc, left, mlo, and right.

get_typical_compression_force_range()

std::pair< double, double > kcenon::pacs::services::sop_classes::get_typical_compression_force_range ( )

nodiscardnoexcept

Get typical compression force range.

Returns

Pair of (minimum, maximum) typical compression force in Newtons

Definition at line 184 of file mg_storage.cpp.

                                                                       {
    return {50.0, 200.0};  // Newtons
}

Referenced by kcenon::pacs::services::validation::mg_iod_validator::check_compression_force_range().

Here is the caller graph for this function:

get_us_sop_class_info()

const us_sop_class_info * kcenon::pacs::services::sop_classes::get_us_sop_class_info ( std::string_view uid )

nodiscardnoexcept

Get information about a specific US SOP Class.

Parameters

uid	The SOP Class UID to look up

Returns

Pointer to sop class info, or nullptr if not a US storage class

Definition at line 154 of file us_storage.cpp.

                                                   {
    auto it = std::find_if(
        us_sop_classes.begin(),
        us_sop_classes.end(),
        [uid](const auto& info) { return info.uid == uid; }
    );

    if (it != us_sop_classes.end()) {
        return &(*it);
    }
    return nullptr;
}

References uid.

Referenced by is_us_multiframe_sop_class(), and is_us_storage_sop_class().

Here is the caller graph for this function:

get_us_storage_sop_classes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_us_storage_sop_classes ( bool include_retired = true )

nodiscard

Get all US Storage SOP Class UIDs.

Returns both current and retired SOP Class UIDs for comprehensive ultrasound storage support.

Parameters

include_retired

Include retired SOP classes (default: true)

Returns

Vector of US Storage SOP Class UIDs

Definition at line 140 of file us_storage.cpp.

                                                                      {
    std::vector<std::string> result;
    result.reserve(include_retired ? 4 : 2);

    for (const auto& info : us_sop_classes) {
        if (!info.is_retired || include_retired) {
            result.emplace_back(info.uid);
        }
    }

    return result;
}

get_us_transfer_syntaxes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_us_transfer_syntaxes ( )

nodiscard

Get recommended transfer syntaxes for US images.

Returns a prioritized list of transfer syntaxes suitable for ultrasound image storage, considering color support and compression requirements.

Returns

Vector of transfer syntax UIDs in priority order

Definition at line 21 of file us_storage.cpp.

                                                {
    return {
        // Explicit VR Little Endian (preferred for interoperability)
        "1.2.840.10008.1.2.1",
        // Implicit VR Little Endian (universal baseline)
        "1.2.840.10008.1.2",
        // JPEG Baseline (lossy, good for color US)
        "1.2.840.10008.1.2.4.50",
        // HTJ2K Lossless (high-throughput lossless)
        "1.2.840.10008.1.2.4.201",
        // JPEG Lossless (for diagnostic quality)
        "1.2.840.10008.1.2.4.70",
        // JPEG 2000 Lossless (better compression)
        "1.2.840.10008.1.2.4.90",
        // JPEG 2000 Lossy (for archival)
        "1.2.840.10008.1.2.4.91",
        // RLE Lossless
        "1.2.840.10008.1.2.5"
    };
}

get_valid_mg_view_positions()

std::vector< std::string_view > kcenon::pacs::services::sop_classes::get_valid_mg_view_positions ( )

nodiscardnoexcept

Get all valid mammography view position strings.

Returns

Vector of valid DICOM view position codes

Definition at line 166 of file mg_storage.cpp.

                                                                 {
    return {
        "CC", "MLO", "ML", "LM", "XCCL", "XCCM", "FB", "SIO", "ISO",
        "CV", "AT", "SPOT", "MAG", "SPOT MAG", "RL", "RM", "RS", "RI",
        "TAN", "ID"
    };
}

Referenced by kcenon::pacs::services::validation::mg_iod_validator::check_view_position_validity().

Here is the caller graph for this function:

get_waveform_sop_class_info()

const waveform_sop_class_info * kcenon::pacs::services::sop_classes::get_waveform_sop_class_info ( std::string_view uid )

nodiscardnoexcept

Get information about a specific Waveform SOP Class.

Parameters

uid	The SOP Class UID to look up

Returns

Pointer to SOP class info, or nullptr if not a waveform storage class

Definition at line 144 of file waveform_storage.cpp.

                                                         {
    auto it = std::find_if(kWaveformRegistry.begin(), kWaveformRegistry.end(),
                           [&uid](const waveform_sop_class_info& info) {
                               return info.uid == uid;
                           });
    return (it != kWaveformRegistry.end()) ? &(*it) : nullptr;
}

References uid.

Referenced by is_waveform_storage_sop_class(), and kcenon::pacs::services::sop_class_registry::register_waveform_sop_classes().

Here is the caller graph for this function:

get_waveform_storage_sop_classes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_waveform_storage_sop_classes ( bool include_presentation_state = true, bool include_annotation = true )

nodiscard

Get all Waveform Storage SOP Class UIDs.

Parameters

include_presentation_state	Include presentation state class (default: true)
include_annotation	Include annotation class (default: true)

Returns

Vector of Waveform Storage SOP Class UIDs

Definition at line 125 of file waveform_storage.cpp.

                                                           {
    std::vector<std::string> result;
    result.reserve(kWaveformRegistry.size());

    for (const auto& entry : kWaveformRegistry) {
        if (entry.type == waveform_type::presentation_state &&
            !include_presentation_state) {
            continue;
        }
        if (entry.type == waveform_type::annotation && !include_annotation) {
            continue;
        }
        result.emplace_back(entry.uid);
    }
    return result;
}

References annotation, and presentation_state.

Referenced by kcenon::pacs::services::sop_class_registry::register_waveform_sop_classes().

Here is the caller graph for this function:

get_waveform_transfer_syntaxes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_waveform_transfer_syntaxes ( )

nodiscard

Get recommended transfer syntaxes for waveform objects.

Returns

Vector of transfer syntax UIDs in priority order

Definition at line 21 of file waveform_storage.cpp.

                                                      {
    return {
        // Explicit VR Little Endian (preferred for interoperability)
        "1.2.840.10008.1.2.1",
        // Implicit VR Little Endian (universal baseline)
        "1.2.840.10008.1.2",
    };
}

get_waveform_type()

waveform_type kcenon::pacs::services::sop_classes::get_waveform_type ( std::string_view uid )

nodiscardnoexcept

Get waveform type from SOP Class UID.

Parameters

uid	The SOP Class UID

Returns

The waveform type

Definition at line 34 of file waveform_storage.cpp.

                                                             {
    if (uid == twelve_lead_ecg_storage_uid) return waveform_type::ecg_12lead;
    if (uid == general_ecg_storage_uid) return waveform_type::ecg_general;
    if (uid == ambulatory_ecg_storage_uid) return waveform_type::ecg_ambulatory;
    if (uid == hemodynamic_waveform_storage_uid) return waveform_type::hemodynamic;
    if (uid == cardiac_ep_waveform_storage_uid) return waveform_type::cardiac_ep;
    if (uid == basic_voice_audio_storage_uid) return waveform_type::audio_basic;
    if (uid == general_audio_waveform_storage_uid) return waveform_type::audio_general;
    if (uid == arterial_pulse_waveform_storage_uid) return waveform_type::arterial_pulse;
    if (uid == respiratory_waveform_storage_uid) return waveform_type::respiratory;
    if (uid == multichannel_respiratory_waveform_storage_uid) return waveform_type::respiratory_multi;
    if (uid == routine_scalp_eeg_storage_uid) return waveform_type::eeg_routine;
    if (uid == emg_waveform_storage_uid) return waveform_type::emg;
    if (uid == eog_waveform_storage_uid) return waveform_type::eog;
    if (uid == sleep_eeg_storage_uid) return waveform_type::eeg_sleep;
    if (uid == body_position_waveform_storage_uid) return waveform_type::body_position;
    if (uid == waveform_presentation_state_storage_uid) return waveform_type::presentation_state;
    if (uid == waveform_annotation_storage_uid) return waveform_type::annotation;
    return waveform_type::unknown;
}

References ambulatory_ecg_storage_uid, annotation, arterial_pulse, arterial_pulse_waveform_storage_uid, audio_basic, audio_general, basic_voice_audio_storage_uid, body_position, body_position_waveform_storage_uid, cardiac_ep, cardiac_ep_waveform_storage_uid, ecg_12lead, ecg_ambulatory, ecg_general, eeg_routine, eeg_sleep, emg, emg_waveform_storage_uid, eog, eog_waveform_storage_uid, general_audio_waveform_storage_uid, general_ecg_storage_uid, hemodynamic, hemodynamic_waveform_storage_uid, multichannel_respiratory_waveform_storage_uid, presentation_state, respiratory, respiratory_multi, respiratory_waveform_storage_uid, routine_scalp_eeg_storage_uid, sleep_eeg_storage_uid, twelve_lead_ecg_storage_uid, uid, unknown, waveform_annotation_storage_uid, and waveform_presentation_state_storage_uid.

get_wsi_storage_sop_classes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_wsi_storage_sop_classes ( )

nodiscard

Get all WSI Storage SOP Class UIDs.

Returns

Vector of WSI Storage SOP Class UIDs

Definition at line 16 of file wsi_storage.cpp.

                                                   {
    return {
        std::string(wsi_image_storage_uid),
    };
}

References wsi_image_storage_uid.

get_xa_sop_class_info()

const xa_sop_class_info * kcenon::pacs::services::sop_classes::get_xa_sop_class_info ( std::string_view uid )

nodiscardnoexcept

Get information about a specific XA SOP Class.

Parameters

uid	The SOP Class UID to look up

Returns

Pointer to sop class info, or nullptr if not an XA storage class

Definition at line 130 of file xa_storage.cpp.

                                                   {
    auto it = std::find_if(
        xa_sop_classes.begin(),
        xa_sop_classes.end(),
        [uid](const auto& info) { return info.uid == uid; }
    );

    if (it != xa_sop_classes.end()) {
        return &(*it);
    }
    return nullptr;
}

References uid.

Referenced by is_enhanced_xa_sop_class(), is_xa_3d_sop_class(), is_xa_multiframe_sop_class(), and is_xa_storage_sop_class().

Here is the caller graph for this function:

get_xa_storage_sop_classes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_xa_storage_sop_classes ( bool include_3d = true )

nodiscard

Get all XA/XRF Storage SOP Class UIDs.

Returns all supported X-Ray angiographic SOP Class UIDs including standard, enhanced, and 3D variants.

Parameters

include_3d

Include 3D angiographic SOP classes (default: true)

Returns

Vector of XA Storage SOP Class UIDs

Definition at line 116 of file xa_storage.cpp.

                                                                 {
    std::vector<std::string> result;
    result.reserve(include_3d ? 5 : 3);

    for (const auto& info : xa_sop_classes) {
        if (!info.is_3d || include_3d) {
            result.emplace_back(info.uid);
        }
    }

    return result;
}

get_xa_transfer_syntaxes()

std::vector< std::string > kcenon::pacs::services::sop_classes::get_xa_transfer_syntaxes ( )

nodiscard

Get recommended transfer syntaxes for XA images.

Returns a prioritized list of transfer syntaxes suitable for X-Ray angiographic image storage. XA images are typically grayscale with high bit depth (8-16 bits).

Returns

Vector of transfer syntax UIDs in priority order

Definition at line 22 of file xa_storage.cpp.

                                                {
    return {
        // Explicit VR Little Endian (preferred for interoperability)
        "1.2.840.10008.1.2.1",
        // Implicit VR Little Endian (universal baseline)
        "1.2.840.10008.1.2",
        // HTJ2K Lossless (high-throughput lossless for multi-frame)
        "1.2.840.10008.1.2.4.201",
        // JPEG Lossless (for diagnostic quality)
        "1.2.840.10008.1.2.4.70",
        // RLE Lossless (for multi-frame)
        "1.2.840.10008.1.2.5"
    };
}

is_breast_tomosynthesis_sop_class()

bool kcenon::pacs::services::sop_classes::is_breast_tomosynthesis_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is a breast tomosynthesis SOP Class.

Parameters

uid	The SOP Class UID to check

Returns

true if this is a breast tomosynthesis storage SOP class

Definition at line 308 of file mg_storage.cpp.

                                                                    {
    auto info = get_mg_sop_class_info(uid);
    return info && info->is_tomosynthesis;
}

References get_mg_sop_class_info(), and uid.

Here is the call graph for this function:

is_cad_sr_storage_sop_class()

bool kcenon::pacs::services::sop_classes::is_cad_sr_storage_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is a CAD SR Storage SOP Class.

Parameters

uid	The SOP Class UID to check

Returns

true if this is a CAD SR storage SOP class

Definition at line 443 of file sr_storage.cpp.

                                                              {
    const auto* info = get_sr_sop_class_info(uid);
    return info != nullptr && info->document_type == sr_document_type::cad;
}

References cad, get_sr_sop_class_info(), and uid.

Here is the call graph for this function:

is_ct_storage_sop_class()

bool kcenon::pacs::services::sop_classes::is_ct_storage_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is a CT Storage SOP Class.

Parameters

uid	The SOP Class UID to check

Returns

true if this is a CT storage SOP class

Definition at line 25 of file ct_storage.cpp.

                                                          {
    return uid == ct_image_storage_uid ||
           uid == enhanced_ct_image_storage_uid ||
           uid == ct_for_processing_image_storage_uid;
}

References ct_for_processing_image_storage_uid, ct_image_storage_uid, enhanced_ct_image_storage_uid, and uid.

Referenced by kcenon::pacs::services::validation::ct_iod_validator::validate_sop_common_module().

Here is the caller graph for this function:

is_dose_sr_storage_sop_class()

bool kcenon::pacs::services::sop_classes::is_dose_sr_storage_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is a Dose Report SR Storage SOP Class.

Parameters

uid	The SOP Class UID to check

Returns

true if this is a dose report SR storage SOP class

Definition at line 448 of file sr_storage.cpp.

                                                               {
    const auto* info = get_sr_sop_class_info(uid);
    return info != nullptr && info->document_type == sr_document_type::dose_report;
}

References dose_report, get_sr_sop_class_info(), and uid.

Here is the call graph for this function:

is_dx_for_presentation_sop_class()

bool kcenon::pacs::services::sop_classes::is_dx_for_presentation_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is a For Presentation SOP Class.

For Presentation images are ready for display and clinical review.

Parameters

uid	The SOP Class UID to check

Returns

true if this is a For Presentation DX storage SOP class

Definition at line 299 of file dx_storage.cpp.

                                                                   {
    const auto* info = get_dx_sop_class_info(uid);
    return info != nullptr && info->image_type == dx_image_type::for_presentation;
}

References for_presentation, get_dx_sop_class_info(), and uid.

Referenced by kcenon::pacs::services::validation::is_for_presentation_dx().

Here is the call graph for this function:

Here is the caller graph for this function:

is_dx_for_processing_sop_class()

bool kcenon::pacs::services::sop_classes::is_dx_for_processing_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is a For Processing SOP Class.

For Processing images contain raw detector data and typically require additional image processing before display.

Parameters

uid	The SOP Class UID to check

Returns

true if this is a For Processing DX storage SOP class

Definition at line 294 of file dx_storage.cpp.

                                                                 {
    const auto* info = get_dx_sop_class_info(uid);
    return info != nullptr && info->image_type == dx_image_type::for_processing;
}

References for_processing, get_dx_sop_class_info(), and uid.

Referenced by kcenon::pacs::services::validation::is_for_processing_dx().

Here is the call graph for this function:

Here is the caller graph for this function:

is_dx_storage_sop_class()

bool kcenon::pacs::services::sop_classes::is_dx_storage_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is a DX Storage SOP Class.

Includes general DX, mammography, and intra-oral X-ray classes.

Parameters

uid	The SOP Class UID to check

Returns

true if this is any DX-related storage SOP class

Definition at line 290 of file dx_storage.cpp.

                                                          {
    return get_dx_sop_class_info(uid) != nullptr;
}

References get_dx_sop_class_info(), and uid.

Referenced by kcenon::pacs::services::validation::dx_iod_validator::validate_sop_common_module().

Here is the call graph for this function:

Here is the caller graph for this function:

is_enhanced_pet_sop_class()

bool kcenon::pacs::services::sop_classes::is_enhanced_pet_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is an Enhanced PET Storage SOP Class.

Parameters

uid	The SOP Class UID to check

Returns

true if this is an enhanced PET storage SOP class

Definition at line 127 of file pet_storage.cpp.

                                                            {
    const auto* info = get_pet_sop_class_info(uid);
    return info != nullptr && info->is_enhanced;
}

References get_pet_sop_class_info(), and uid.

Here is the call graph for this function:

is_enhanced_xa_sop_class()

bool kcenon::pacs::services::sop_classes::is_enhanced_xa_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is an enhanced XA SOP Class.

Parameters

uid	The SOP Class UID to check

Returns

true if this is an enhanced XA SOP class

Definition at line 152 of file xa_storage.cpp.

                                                           {
    const auto* info = get_xa_sop_class_info(uid);
    return info != nullptr && info->is_enhanced;
}

References get_xa_sop_class_info(), and uid.

Here is the call graph for this function:

is_magnification_view()

bool kcenon::pacs::services::sop_classes::is_magnification_view ( mg_view_position position )

nodiscardnoexcept

Check if a view position requires magnification.

Parameters

position

The view position to check

Returns

true if this view typically involves magnification

Definition at line 156 of file mg_storage.cpp.

                                                               {
    return position == mg_view_position::mag ||
           position == mg_view_position::spot_mag;
}

References mag, and spot_mag.

is_mammography_sop_class()

bool kcenon::pacs::services::sop_classes::is_mammography_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is a mammography SOP Class.

Parameters

uid	The SOP Class UID to check

Returns

true if this is a mammography storage SOP class

Definition at line 304 of file dx_storage.cpp.

                                                           {
    const auto* info = get_dx_sop_class_info(uid);
    return info != nullptr && info->is_mammography;
}

References get_dx_sop_class_info(), and uid.

Here is the call graph for this function:

is_mg_for_presentation_sop_class()

bool kcenon::pacs::services::sop_classes::is_mg_for_presentation_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is a For Presentation mammography SOP Class.

Parameters

uid	The SOP Class UID to check

Returns

true if this is a For Presentation mammography storage SOP class

Definition at line 318 of file mg_storage.cpp.

                                                                   {
    auto info = get_mg_sop_class_info(uid);
    return info && info->image_type == mg_image_type::for_presentation;
}

References for_presentation, get_mg_sop_class_info(), and uid.

Referenced by kcenon::pacs::services::validation::is_for_presentation_mg().

Here is the call graph for this function:

Here is the caller graph for this function:

is_mg_for_processing_sop_class()

bool kcenon::pacs::services::sop_classes::is_mg_for_processing_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is a For Processing mammography SOP Class.

Parameters

uid	The SOP Class UID to check

Returns

true if this is a For Processing mammography storage SOP class

Definition at line 313 of file mg_storage.cpp.

                                                                 {
    auto info = get_mg_sop_class_info(uid);
    return info && info->image_type == mg_image_type::for_processing;
}

References for_processing, get_mg_sop_class_info(), and uid.

Referenced by kcenon::pacs::services::validation::is_for_processing_mg().

Here is the call graph for this function:

Here is the caller graph for this function:

is_mg_storage_sop_class()

bool kcenon::pacs::services::sop_classes::is_mg_storage_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is a Mammography Storage SOP Class.

Includes standard mammography and breast tomosynthesis classes.

Parameters

uid	The SOP Class UID to check

Returns

true if this is any mammography-related storage SOP class

Definition at line 304 of file mg_storage.cpp.

                                                          {
    return get_mg_sop_class_info(uid) != nullptr;
}

References get_mg_sop_class_info(), and uid.

Referenced by kcenon::pacs::services::validation::mg_iod_validator::validate_sop_common_module().

Here is the call graph for this function:

Here is the caller graph for this function:

is_mr_storage_sop_class()

bool kcenon::pacs::services::sop_classes::is_mr_storage_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is an MR Storage SOP Class.

Parameters

uid	The SOP Class UID to check

Returns

true if this is an MR storage SOP class

Definition at line 23 of file mr_storage.cpp.

                                                          {
    return uid == mr_image_storage_uid ||
           uid == enhanced_mr_image_storage_uid;
}

References enhanced_mr_image_storage_uid, mr_image_storage_uid, and uid.

Referenced by kcenon::pacs::services::validation::mr_iod_validator::validate_sop_common_module().

Here is the caller graph for this function:

is_nm_multiframe_sop_class()

bool kcenon::pacs::services::sop_classes::is_nm_multiframe_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID supports multi-frame.

Parameters

uid	The SOP Class UID to check

Returns

true if this SOP class supports multi-frame images

Definition at line 121 of file nm_storage.cpp.

                                                             {
    const auto* info = get_nm_sop_class_info(uid);
    return info != nullptr && info->supports_multiframe;
}

References get_nm_sop_class_info(), and uid.

Here is the call graph for this function:

is_nm_storage_sop_class()

bool kcenon::pacs::services::sop_classes::is_nm_storage_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is a NM Storage SOP Class.

Parameters

uid	The SOP Class UID to check

Returns

true if this is any NM storage SOP class (current or retired)

Definition at line 117 of file nm_storage.cpp.

                                                          {
    return get_nm_sop_class_info(uid) != nullptr;
}

References get_nm_sop_class_info(), and uid.

Referenced by kcenon::pacs::services::validation::nm_iod_validator::validate_sop_common_module().

Here is the call graph for this function:

Here is the caller graph for this function:

is_ophthalmic_storage_sop_class()

bool kcenon::pacs::services::sop_classes::is_ophthalmic_storage_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is an Ophthalmic Storage SOP Class.

Parameters

uid	The SOP Class UID to check

Returns

true if this is an ophthalmic storage SOP class

Definition at line 26 of file ophthalmic_storage.cpp.

                                                                  {
    return uid == ophthalmic_photo_8bit_storage_uid ||
           uid == ophthalmic_photo_16bit_storage_uid ||
           uid == ophthalmic_tomography_storage_uid ||
           uid == wide_field_ophthalmic_photo_storage_uid ||
           uid == ophthalmic_oct_bscan_analysis_storage_uid;
}

References ophthalmic_oct_bscan_analysis_storage_uid, ophthalmic_photo_16bit_storage_uid, ophthalmic_photo_8bit_storage_uid, ophthalmic_tomography_storage_uid, uid, and wide_field_ophthalmic_photo_storage_uid.

Referenced by kcenon::pacs::services::validation::ophthalmic_iod_validator::validate_sop_common_module().

Here is the caller graph for this function:

is_parametric_map_storage_sop_class()

bool kcenon::pacs::services::sop_classes::is_parametric_map_storage_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is Parametric Map Storage.

Parameters

uid	The SOP Class UID to check

Returns

true if this is the Parametric Map Storage SOP class

Definition at line 94 of file parametric_map_storage.cpp.

                                                                      {
    return uid == parametric_map_storage_uid;
}

References parametric_map_storage_uid, and uid.

Referenced by kcenon::pacs::services::validation::parametric_map_iod_validator::quick_check(), and kcenon::pacs::services::validation::parametric_map_iod_validator::validate_sop_common_module().

Here is the caller graph for this function:

is_pet_storage_sop_class()

bool kcenon::pacs::services::sop_classes::is_pet_storage_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is a PET Storage SOP Class.

Parameters

uid	The SOP Class UID to check

Returns

true if this is any PET storage SOP class

Definition at line 123 of file pet_storage.cpp.

                                                           {
    return get_pet_sop_class_info(uid) != nullptr;
}

References get_pet_sop_class_info(), and uid.

Referenced by kcenon::pacs::services::validation::pet_iod_validator::validate_sop_common_module().

Here is the call graph for this function:

Here is the caller graph for this function:

is_rt_plan_sop_class()

bool kcenon::pacs::services::sop_classes::is_rt_plan_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is an RT Plan type.

Parameters

uid	The SOP Class UID to check

Returns

true if this is RT Plan or RT Ion Plan

Definition at line 152 of file rt_storage.cpp.

                                                       {
    return uid == rt_plan_storage_uid || uid == rt_ion_plan_storage_uid;
}

References rt_ion_plan_storage_uid, rt_plan_storage_uid, and uid.

Referenced by kcenon::pacs::services::validation::rt_plan_iod_validator::validate_sop_common_module().

Here is the caller graph for this function:

is_rt_storage_sop_class()

bool kcenon::pacs::services::sop_classes::is_rt_storage_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is an RT Storage SOP Class.

Parameters

uid	The SOP Class UID to check

Returns

true if this is any RT storage SOP class

Definition at line 148 of file rt_storage.cpp.

                                                          {
    return get_rt_sop_class_info(uid) != nullptr;
}

References get_rt_sop_class_info(), and uid.

Here is the call graph for this function:

is_screening_view()

bool kcenon::pacs::services::sop_classes::is_screening_view ( mg_view_position position )

nodiscardnoexcept

Check if a view position is a standard screening view.

Standard screening mammography typically includes CC and MLO views of each breast.

Parameters

position

The view position to check

Returns

true if this is a standard screening view

Definition at line 152 of file mg_storage.cpp.

                                                           {
    return position == mg_view_position::cc || position == mg_view_position::mlo;
}

References cc, and mlo.

Referenced by kcenon::pacs::services::validation::is_screening_mammogram().

Here is the caller graph for this function:

is_seg_storage_sop_class()

bool kcenon::pacs::services::sop_classes::is_seg_storage_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is a SEG Storage SOP Class.

Parameters

uid	The SOP Class UID to check

Returns

true if this is any SEG storage SOP class

Definition at line 235 of file seg_storage.cpp.

                                                           {
    return get_seg_sop_class_info(uid) != nullptr;
}

References get_seg_sop_class_info(), and uid.

Referenced by kcenon::pacs::services::validation::seg_iod_validator::quick_check(), and kcenon::pacs::services::validation::seg_iod_validator::validate_sop_common_module().

Here is the call graph for this function:

Here is the caller graph for this function:

is_spot_compression_view()

bool kcenon::pacs::services::sop_classes::is_spot_compression_view ( mg_view_position position )

nodiscardnoexcept

Check if a view position involves spot compression.

Parameters

position

The view position to check

Returns

true if this view involves spot compression

Definition at line 161 of file mg_storage.cpp.

                                                                  {
    return position == mg_view_position::spot ||
           position == mg_view_position::spot_mag;
}

References spot, and spot_mag.

is_sr_storage_sop_class()

bool kcenon::pacs::services::sop_classes::is_sr_storage_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is an SR Storage SOP Class.

Parameters

uid	The SOP Class UID to check

Returns

true if this is any SR storage SOP class

Definition at line 439 of file sr_storage.cpp.

                                                          {
    return get_sr_sop_class_info(uid) != nullptr;
}

References get_sr_sop_class_info(), and uid.

Referenced by kcenon::pacs::services::validation::sr_iod_validator::quick_check(), and kcenon::pacs::services::validation::sr_iod_validator::validate_sop_common_module().

Here is the call graph for this function:

Here is the caller graph for this function:

is_surface_segmentation_sop_class()

bool kcenon::pacs::services::sop_classes::is_surface_segmentation_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is Surface Segmentation.

Parameters

uid	The SOP Class UID to check

Returns

true if this is Surface Segmentation SOP class

Definition at line 239 of file seg_storage.cpp.

                                                                    {
    return uid == surface_segmentation_storage_uid;
}

References surface_segmentation_storage_uid, and uid.

is_us_multiframe_sop_class()

bool kcenon::pacs::services::sop_classes::is_us_multiframe_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is a multi-frame US Storage SOP Class.

Parameters

uid	The SOP Class UID to check

Returns

true if this is a multi-frame US storage SOP class

Definition at line 171 of file us_storage.cpp.

                                                             {
    const auto* info = get_us_sop_class_info(uid);
    return info != nullptr && info->supports_multiframe;
}

References get_us_sop_class_info(), and uid.

Here is the call graph for this function:

is_us_storage_sop_class()

bool kcenon::pacs::services::sop_classes::is_us_storage_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is a US Storage SOP Class.

Parameters

uid	The SOP Class UID to check

Returns

true if this is any US storage SOP class (current or retired)

Definition at line 167 of file us_storage.cpp.

                                                          {
    return get_us_sop_class_info(uid) != nullptr;
}

References get_us_sop_class_info(), and uid.

Referenced by kcenon::pacs::services::validation::us_iod_validator::validate_sop_common_module().

Here is the call graph for this function:

Here is the caller graph for this function:

is_valid_breast_laterality()

bool kcenon::pacs::services::sop_classes::is_valid_breast_laterality ( std::string_view value )

nodiscardnoexcept

Check if a laterality value is valid for mammography.

Parameters

value

The DICOM string value

Returns

true if this is a valid mammography laterality value

Definition at line 62 of file mg_storage.cpp.

                                                               {
    return value == "L" || value == "R" || value == "B";
}

Referenced by kcenon::pacs::services::validation::mg_iod_validator::check_laterality_consistency().

Here is the caller graph for this function:

is_valid_compressed_breast_thickness()

bool kcenon::pacs::services::sop_classes::is_valid_compressed_breast_thickness ( double thickness_mm )

nodiscardnoexcept

Validate compressed breast thickness.

Parameters

thickness_mm

Compressed breast thickness in mm

Returns

true if the thickness is within reasonable range

Definition at line 188 of file mg_storage.cpp.

                                                                        {
    // Typical compressed breast thickness: 20-100 mm
    // Extended range: 10-150 mm
    return thickness_mm >= 10.0 && thickness_mm <= 150.0;
}

Referenced by kcenon::pacs::services::validation::mg_iod_validator::validate_acquisition_dose_module().

Here is the caller graph for this function:

is_valid_compression_force()

bool kcenon::pacs::services::sop_classes::is_valid_compression_force ( double force_n )

nodiscardnoexcept

Validate compression force value.

Typical compression force for mammography is between 50-200 Newtons. Values outside this range may indicate measurement errors or non-standard technique.

Parameters

force_n

Compression force in Newtons

Returns

true if the force is within typical mammography range

Definition at line 178 of file mg_storage.cpp.

                                                         {
    // Typical mammography compression force: 50-200 N
    // Extended range to account for variations: 20-300 N
    return force_n >= 20.0 && force_n <= 300.0;
}

Referenced by kcenon::pacs::services::validation::mg_iod_validator::check_compression_force_range().

Here is the caller graph for this function:

is_valid_ct_photometric()

bool kcenon::pacs::services::sop_classes::is_valid_ct_photometric ( std::string_view value )

nodiscardnoexcept

Check if photometric interpretation is valid for CT.

CT images are always grayscale (MONOCHROME1 or MONOCHROME2).

Parameters

value

The photometric interpretation string

Returns

true if valid for CT images

Definition at line 31 of file ct_storage.cpp.

                                                            {
    return value == "MONOCHROME1" || value == "MONOCHROME2";
}

Referenced by kcenon::pacs::services::validation::ct_iod_validator::check_pixel_data_consistency(), and kcenon::pacs::services::validation::ct_processing_iod_validator::check_pixel_data_consistency().

Here is the caller graph for this function:

is_valid_dx_photometric()

bool kcenon::pacs::services::sop_classes::is_valid_dx_photometric ( std::string_view value )

nodiscardnoexcept

Check if photometric interpretation is valid for DX.

Parameters

value

The DICOM string value

Returns

true if this is a valid DX photometric interpretation

Definition at line 63 of file dx_storage.cpp.

                                                            {
    return value == "MONOCHROME1" || value == "MONOCHROME2";
}

Referenced by kcenon::pacs::services::validation::dx_iod_validator::check_photometric_interpretation().

Here is the caller graph for this function:

is_valid_laterality_view_combination()

bool kcenon::pacs::services::sop_classes::is_valid_laterality_view_combination ( breast_laterality laterality, mg_view_position view )

nodiscardnoexcept

Check if laterality and view position are consistent.

Validates that the laterality and view position make clinical sense (e.g., bilateral laterality shouldn't be used with single-breast views).

Parameters

laterality	The breast laterality
view	The view position

Returns

true if the combination is clinically valid

Definition at line 348 of file mg_storage.cpp.

                                    {

    // Bilateral laterality should only be used for comparison views
    // or special study types, not for standard single-breast views
    if (laterality == breast_laterality::bilateral) {
        // CV (cleavage view) can legitimately be bilateral
        if (view == mg_view_position::cv) {
            return true;
        }
        // Most standard views should specify L or R
        return false;
    }

    // Unknown laterality with a specific view is problematic
    if (laterality == breast_laterality::unknown) {
        // Allow if view is also unspecified
        return view == mg_view_position::other;
    }

    // Left or Right with any view is valid
    return true;
}

References bilateral, cv, other, and unknown.

Referenced by kcenon::pacs::services::validation::mg_iod_validator::check_view_position_validity().

Here is the caller graph for this function:

is_valid_mr_photometric()

bool kcenon::pacs::services::sop_classes::is_valid_mr_photometric ( std::string_view value )

nodiscardnoexcept

Check if photometric interpretation is valid for MR.

MR images are always grayscale (MONOCHROME1 or MONOCHROME2).

Parameters

value

The photometric interpretation string

Returns

true if valid for MR images

Definition at line 28 of file mr_storage.cpp.

                                                            {
    return value == "MONOCHROME1" || value == "MONOCHROME2";
}

Referenced by kcenon::pacs::services::validation::mr_iod_validator::check_pixel_data_consistency().

Here is the caller graph for this function:

is_valid_nm_photometric()

bool kcenon::pacs::services::sop_classes::is_valid_nm_photometric ( std::string_view value )

nodiscardnoexcept

Check if photometric interpretation is valid for NM.

Parameters

value

The DICOM string value

Returns

true if this is a valid NM photometric interpretation

Definition at line 60 of file nm_storage.cpp.

                                                            {
    return value == "MONOCHROME2" || value == "PALETTE COLOR";
}

Referenced by kcenon::pacs::services::validation::nm_iod_validator::check_pixel_data_consistency().

Here is the caller graph for this function:

is_valid_ophthalmic_photometric()

bool kcenon::pacs::services::sop_classes::is_valid_ophthalmic_photometric ( std::string_view value )

nodiscardnoexcept

Check if photometric interpretation is valid for ophthalmic imaging.

Ophthalmic Photography supports RGB (color fundus) and MONOCHROME2 (fluorescein angiography, ICG). OCT supports MONOCHROME2. MONOCHROME1 is also valid for certain ophthalmic applications.

Parameters

value

The photometric interpretation string

Returns

true if valid for ophthalmic images

Definition at line 34 of file ophthalmic_storage.cpp.

                                                                    {
    return value == "MONOCHROME1" || value == "MONOCHROME2" ||
           value == "RGB" || value == "YBR_FULL_422" ||
           value == "PALETTE COLOR";
}

Referenced by kcenon::pacs::services::validation::ophthalmic_iod_validator::check_pixel_data_consistency().

Here is the caller graph for this function:

is_valid_parametric_map_bits_allocated()

bool kcenon::pacs::services::sop_classes::is_valid_parametric_map_bits_allocated ( uint16_t bits_allocated )

nodiscardnoexcept

Check if a BitsAllocated value is valid for parametric maps.

Parameters

bits_allocated

The BitsAllocated value to check

Returns

true if 32 or 64

Definition at line 59 of file parametric_map_storage.cpp.

                                                                              {
    return bits_allocated == 32 || bits_allocated == 64;
}

Referenced by kcenon::pacs::services::validation::parametric_map_iod_validator::check_pixel_data_consistency().

Here is the caller graph for this function:

is_valid_parametric_map_photometric()

bool kcenon::pacs::services::sop_classes::is_valid_parametric_map_photometric ( std::string_view value )

nodiscardnoexcept

Check if photometric interpretation is valid for parametric maps.

Parametric Maps use MONOCHROME2 for single-component float/double data.

Parameters

value

The photometric interpretation string

Returns

true if valid for parametric maps

Definition at line 102 of file parametric_map_storage.cpp.

                                                                        {
    return value == "MONOCHROME2";
}

Referenced by kcenon::pacs::services::validation::parametric_map_iod_validator::check_pixel_data_consistency().

Here is the caller graph for this function:

is_valid_pet_photometric()

bool kcenon::pacs::services::sop_classes::is_valid_pet_photometric ( std::string_view value )

nodiscardnoexcept

Check if photometric interpretation is valid for PET.

Parameters

value

The DICOM string value

Returns

true if this is a valid PET photometric interpretation

Definition at line 56 of file pet_storage.cpp.

                                                             {
    return value == "MONOCHROME2";
}

Referenced by kcenon::pacs::services::validation::pet_iod_validator::check_pixel_data_consistency().

Here is the caller graph for this function:

is_valid_segment_algorithm_type()

bool kcenon::pacs::services::sop_classes::is_valid_segment_algorithm_type ( std::string_view value )

nodiscardnoexcept

Check if segment algorithm type string is valid.

Parameters

value

The DICOM string value

Returns

true if this is a valid segment algorithm type

Definition at line 113 of file seg_storage.cpp.

                                                                    {
    return value == "AUTOMATIC" ||
           value == "SEMIAUTOMATIC" ||
           value == "MANUAL";
}

Referenced by kcenon::pacs::services::validation::seg_iod_validator::validate_single_segment().

Here is the caller graph for this function:

is_valid_segmentation_type()

bool kcenon::pacs::services::sop_classes::is_valid_segmentation_type ( std::string_view value )

nodiscardnoexcept

Check if segmentation type string is valid.

Parameters

value

The DICOM string value

Returns

true if this is a valid segmentation type

Definition at line 60 of file seg_storage.cpp.

                                                               {
    return value == "BINARY" || value == "FRACTIONAL";
}

Referenced by kcenon::pacs::services::validation::seg_iod_validator::check_segmentation_type().

Here is the caller graph for this function:

is_valid_sr_value_type()

bool kcenon::pacs::services::sop_classes::is_valid_sr_value_type ( std::string_view value )

nodiscardnoexcept

Check if SR value type string is valid.

Parameters

value

The DICOM string value

Returns

true if this is a valid SR value type

Definition at line 150 of file sr_storage.cpp.

                                                           {
    return parse_sr_value_type(value) != sr_value_type::unknown;
}

References parse_sr_value_type(), and unknown.

Here is the call graph for this function:

is_valid_us_photometric()

bool kcenon::pacs::services::sop_classes::is_valid_us_photometric ( std::string_view value )

nodiscardnoexcept

Check if photometric interpretation is valid for US.

Parameters

value

The DICOM string value

Returns

true if this is a valid US photometric interpretation

Definition at line 91 of file us_storage.cpp.

                                                            {
    return value == "MONOCHROME1" ||
           value == "MONOCHROME2" ||
           value == "PALETTE COLOR" ||
           value == "RGB" ||
           value == "YBR_FULL" ||
           value == "YBR_FULL_422";
}

Referenced by kcenon::pacs::services::validation::us_iod_validator::check_pixel_data_consistency().

Here is the caller graph for this function:

is_valid_wsi_photometric()

bool kcenon::pacs::services::sop_classes::is_valid_wsi_photometric ( std::string_view value )

nodiscardnoexcept

Check if photometric interpretation is valid for WSI.

WSI images support RGB (brightfield), YBR variants (compressed), and MONOCHROME2 (fluorescence single-channel).

Parameters

value

The photometric interpretation string

Returns

true if valid for WSI images

Definition at line 26 of file wsi_storage.cpp.

                                                             {
    return value == "RGB" || value == "YBR_FULL_422" ||
           value == "YBR_ICT" || value == "YBR_RCT" ||
           value == "MONOCHROME2";
}

Referenced by kcenon::pacs::services::validation::wsi_iod_validator::check_pixel_data_consistency().

Here is the caller graph for this function:

is_valid_xa_photometric()

bool kcenon::pacs::services::sop_classes::is_valid_xa_photometric ( std::string_view value )

nodiscardnoexcept

Check if photometric interpretation is valid for XA.

Parameters

value

The DICOM string value

Returns

true if this is a valid XA photometric interpretation

Definition at line 60 of file xa_storage.cpp.

                                                            {
    return value == "MONOCHROME1" || value == "MONOCHROME2";
}

Referenced by kcenon::pacs::services::validation::xa_iod_validator::check_xa_photometric().

Here is the caller graph for this function:

is_waveform_annotation_sop_class()

bool kcenon::pacs::services::sop_classes::is_waveform_annotation_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is a Waveform Annotation SOP Class.

Parameters

uid	The SOP Class UID to check

Returns

true if this is the waveform annotation SOP class

Definition at line 160 of file waveform_storage.cpp.

                                                                   {
    return uid == waveform_annotation_storage_uid;
}

References uid, and waveform_annotation_storage_uid.

Referenced by kcenon::pacs::services::validation::waveform_ps_iod_validator::quick_check(), kcenon::pacs::services::validation::waveform_ps_iod_validator::validate(), and kcenon::pacs::services::validation::waveform_ps_iod_validator::validate_sop_common_module().

Here is the caller graph for this function:

is_waveform_presentation_state_sop_class()

bool kcenon::pacs::services::sop_classes::is_waveform_presentation_state_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is a Waveform Presentation State SOP Class.

Parameters

uid	The SOP Class UID to check

Returns

true if this is the waveform presentation state SOP class

Definition at line 156 of file waveform_storage.cpp.

                                                                           {
    return uid == waveform_presentation_state_storage_uid;
}

References uid, and waveform_presentation_state_storage_uid.

Referenced by kcenon::pacs::services::validation::waveform_ps_iod_validator::quick_check(), kcenon::pacs::services::validation::waveform_ps_iod_validator::validate(), and kcenon::pacs::services::validation::waveform_ps_iod_validator::validate_sop_common_module().

Here is the caller graph for this function:

is_waveform_storage_sop_class()

bool kcenon::pacs::services::sop_classes::is_waveform_storage_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is a Waveform Storage SOP Class.

Parameters

uid	The SOP Class UID to check

Returns

true if this is any waveform storage SOP class

Definition at line 152 of file waveform_storage.cpp.

                                                                {
    return get_waveform_sop_class_info(uid) != nullptr;
}

References get_waveform_sop_class_info(), and uid.

Here is the call graph for this function:

is_wsi_storage_sop_class()

bool kcenon::pacs::services::sop_classes::is_wsi_storage_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is a WSI Storage SOP Class.

Parameters

uid	The SOP Class UID to check

Returns

true if this is a WSI storage SOP class

Definition at line 22 of file wsi_storage.cpp.

                                                           {
    return uid == wsi_image_storage_uid;
}

References uid, and wsi_image_storage_uid.

Referenced by kcenon::pacs::services::validation::wsi_iod_validator::validate_sop_common_module().

Here is the caller graph for this function:

is_xa_3d_sop_class()

bool kcenon::pacs::services::sop_classes::is_xa_3d_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is a 3D XA SOP Class.

Parameters

uid	The SOP Class UID to check

Returns

true if this is a 3D XA storage SOP class

Definition at line 157 of file xa_storage.cpp.

                                                     {
    const auto* info = get_xa_sop_class_info(uid);
    return info != nullptr && info->is_3d;
}

References get_xa_sop_class_info(), and uid.

Here is the call graph for this function:

is_xa_multiframe_sop_class()

bool kcenon::pacs::services::sop_classes::is_xa_multiframe_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is a multi-frame XA Storage SOP Class.

Parameters

uid	The SOP Class UID to check

Returns

true if this is a multi-frame XA storage SOP class

Definition at line 147 of file xa_storage.cpp.

                                                             {
    const auto* info = get_xa_sop_class_info(uid);
    return info != nullptr && info->supports_multiframe;
}

References get_xa_sop_class_info(), and uid.

Here is the call graph for this function:

is_xa_storage_sop_class()

bool kcenon::pacs::services::sop_classes::is_xa_storage_sop_class ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID is an XA/XRF Storage SOP Class.

Parameters

uid	The SOP Class UID to check

Returns

true if this is any XA/XRF storage SOP class

Definition at line 143 of file xa_storage.cpp.

                                                          {
    return get_xa_sop_class_info(uid) != nullptr;
}

References get_xa_sop_class_info(), and uid.

Referenced by kcenon::pacs::services::validation::xa_iod_validator::validate_sop_common_module().

Here is the call graph for this function:

Here is the caller graph for this function:

parse_body_part()

dx_body_part kcenon::pacs::services::sop_classes::parse_body_part ( std::string_view value )

nodiscardnoexcept

Parse DICOM body part examined string.

Parameters

value

The DICOM string value

Returns

The corresponding enum value, or other if unknown

Definition at line 169 of file dx_storage.cpp.

                                                            {
    if (value == "CHEST") return dx_body_part::chest;
    if (value == "ABDOMEN") return dx_body_part::abdomen;
    if (value == "PELVIS") return dx_body_part::pelvis;
    if (value == "SPINE" || value == "CSPINE" || value == "TSPINE" ||
        value == "LSPINE" || value == "SSPINE") {
        return dx_body_part::spine;
    }
    if (value == "SKULL" || value == "HEAD") return dx_body_part::skull;
    if (value == "HAND" || value == "FINGER") return dx_body_part::hand;
    if (value == "FOOT" || value == "TOE") return dx_body_part::foot;
    if (value == "KNEE") return dx_body_part::knee;
    if (value == "ELBOW") return dx_body_part::elbow;
    if (value == "SHOULDER") return dx_body_part::shoulder;
    if (value == "HIP") return dx_body_part::hip;
    if (value == "WRIST") return dx_body_part::wrist;
    if (value == "ANKLE") return dx_body_part::ankle;
    if (value == "EXTREMITY" || value == "ARM" || value == "LEG") {
        return dx_body_part::extremity;
    }
    if (value == "BREAST") return dx_body_part::breast;
    return dx_body_part::other;
}

References abdomen, ankle, breast, chest, elbow, extremity, foot, hand, hip, knee, other, pelvis, shoulder, skull, spine, and wrist.

parse_breast_laterality()

breast_laterality kcenon::pacs::services::sop_classes::parse_breast_laterality ( std::string_view value )

nodiscardnoexcept

Parse DICOM laterality string to enum.

Parameters

value

The DICOM string value

Returns

The corresponding enum value, or unknown if not recognized

Definition at line 32 of file mg_storage.cpp.

                                                                         {
    if (value.empty()) {
        return breast_laterality::unknown;
    }

    // Handle single character codes
    if (value.size() == 1) {
        switch (std::toupper(static_cast<unsigned char>(value[0]))) {
            case 'L': return breast_laterality::left;
            case 'R': return breast_laterality::right;
            case 'B': return breast_laterality::bilateral;
        }
    }

    // Handle full words (case-insensitive)
    std::string lower_value;
    lower_value.reserve(value.size());
    for (char c : value) {
        lower_value += static_cast<char>(std::tolower(static_cast<unsigned char>(c)));
    }

    if (lower_value == "left") return breast_laterality::left;
    if (lower_value == "right") return breast_laterality::right;
    if (lower_value == "bilateral" || lower_value == "both") {
        return breast_laterality::bilateral;
    }

    return breast_laterality::unknown;
}

References bilateral, left, right, and unknown.

Referenced by kcenon::pacs::services::validation::mg_iod_validator::check_view_position_validity().

Here is the caller graph for this function:

parse_detector_type()

dx_detector_type kcenon::pacs::services::sop_classes::parse_detector_type ( std::string_view value )

nodiscardnoexcept

Parse DICOM detector type string.

Parameters

value

The DICOM string value

Returns

The corresponding enum value

Definition at line 134 of file dx_storage.cpp.

                                                                    {
    if (value == "DIRECT") return dx_detector_type::direct;
    if (value == "INDIRECT") return dx_detector_type::indirect;
    if (value == "STORAGE") return dx_detector_type::storage;
    if (value == "FILM") return dx_detector_type::film;
    // Default to direct for modern DR systems
    return dx_detector_type::direct;
}

References direct, film, indirect, and storage.

parse_dx_photometric_interpretation()

dx_photometric_interpretation kcenon::pacs::services::sop_classes::parse_dx_photometric_interpretation ( std::string_view value )

nodiscardnoexcept

Parse DICOM photometric interpretation string for DX.

Parameters

value

The DICOM string value

Returns

The corresponding enum value, or monochrome2 if unknown

Definition at line 55 of file dx_storage.cpp.

                                                                   {
    if (value == "MONOCHROME1") {
        return dx_photometric_interpretation::monochrome1;
    }
    // Default to MONOCHROME2 for DX
    return dx_photometric_interpretation::monochrome2;
}

References monochrome1, and monochrome2.

parse_mg_view_position()

mg_view_position kcenon::pacs::services::sop_classes::parse_mg_view_position ( std::string_view value )

nodiscardnoexcept

Parse DICOM view position string to mammography view enum.

Parameters

value

The DICOM string value

Returns

The corresponding enum value, or other if not recognized

Definition at line 98 of file mg_storage.cpp.

                                                                       {
    if (value.empty()) {
        return mg_view_position::other;
    }

    // Convert to uppercase for comparison
    std::string upper_value;
    upper_value.reserve(value.size());
    for (char c : value) {
        upper_value += static_cast<char>(std::toupper(static_cast<unsigned char>(c)));
    }

    // Standard views
    if (upper_value == "CC") return mg_view_position::cc;
    if (upper_value == "MLO") return mg_view_position::mlo;
    if (upper_value == "ML") return mg_view_position::ml;
    if (upper_value == "LM") return mg_view_position::lm;

    // Extended CC views
    if (upper_value == "XCCL") return mg_view_position::xccl;
    if (upper_value == "XCCM") return mg_view_position::xccm;

    // Other standard views
    if (upper_value == "FB") return mg_view_position::fb;
    if (upper_value == "SIO") return mg_view_position::sio;
    if (upper_value == "ISO") return mg_view_position::iso;
    if (upper_value == "CV") return mg_view_position::cv;
    if (upper_value == "AT") return mg_view_position::at;

    // Spot/magnification views
    if (upper_value == "SPOT") return mg_view_position::spot;
    if (upper_value == "MAG") return mg_view_position::mag;
    if (upper_value == "SPOT MAG" || upper_value == "SPOTMAG") {
        return mg_view_position::spot_mag;
    }

    // Rolled views
    if (upper_value == "RL") return mg_view_position::rl;
    if (upper_value == "RM") return mg_view_position::rm;
    if (upper_value == "RS") return mg_view_position::rs;
    if (upper_value == "RI") return mg_view_position::ri;

    // Specialized views
    if (upper_value == "TAN" || upper_value == "TANGENTIAL") {
        return mg_view_position::tangen;
    }
    if (upper_value == "ID" || upper_value == "IMPLANT DISPLACED" ||
        upper_value == "IMPLANTDISPLACED") {
        return mg_view_position::implant;
    }

    return mg_view_position::other;
}

References at, cc, cv, fb, implant, iso, lm, mag, ml, mlo, other, ri, rl, rm, rs, sio, spot, spot_mag, tangen, xccl, and xccm.

Referenced by kcenon::pacs::services::validation::mg_iod_validator::check_view_position_validity(), kcenon::pacs::services::validation::is_screening_mammogram(), and kcenon::pacs::services::validation::mg_iod_validator::validate_breast_implant_module().

Here is the caller graph for this function:

parse_nm_collimator_type()

nm_collimator_type kcenon::pacs::services::sop_classes::parse_nm_collimator_type ( std::string_view value )

nodiscardnoexcept

Parse collimator type from DICOM string.

Parameters

value

The DICOM string value

Returns

The collimator type

Definition at line 204 of file nm_storage.cpp.

                                                                           {
    if (value == "PARA" || value == "PARALLEL") {
        return nm_collimator_type::parallel;
    }
    if (value == "FANB" || value == "FAN BEAM") {
        return nm_collimator_type::fan_beam;
    }
    if (value == "CONE" || value == "CONE BEAM") {
        return nm_collimator_type::cone_beam;
    }
    if (value == "PINH" || value == "PINHOLE") {
        return nm_collimator_type::pinhole;
    }
    if (value == "DIVG" || value == "DIVERGING") {
        return nm_collimator_type::diverging;
    }
    if (value == "CVGB" || value == "CONVERGING") {
        return nm_collimator_type::converging;
    }
    if (value == "NONE") {
        return nm_collimator_type::none;
    }
    return nm_collimator_type::parallel;
}

References cone_beam, converging, diverging, fan_beam, none, parallel, and pinhole.

parse_nm_photometric_interpretation()

nm_photometric_interpretation kcenon::pacs::services::sop_classes::parse_nm_photometric_interpretation ( std::string_view value )

nodiscardnoexcept

Parse DICOM photometric interpretation string.

Parameters

value

The DICOM string value

Returns

The corresponding enum value, or monochrome2 if unknown

Definition at line 53 of file nm_storage.cpp.

                                                                   {
    if (value == "PALETTE COLOR") {
        return nm_photometric_interpretation::palette_color;
    }
    return nm_photometric_interpretation::monochrome2;
}

References monochrome2, and palette_color.

parse_nm_type_of_data()

nm_type_of_data kcenon::pacs::services::sop_classes::parse_nm_type_of_data ( std::string_view value )

nodiscardnoexcept

Parse NM type of data from DICOM string.

Parameters

value

The DICOM string value

Returns

The type of data

Definition at line 152 of file nm_storage.cpp.

                                                                     {
    if (value == "STATIC") {
        return nm_type_of_data::static_image;
    }
    if (value == "DYNAMIC") {
        return nm_type_of_data::dynamic;
    }
    if (value == "GATED") {
        return nm_type_of_data::gated;
    }
    if (value == "WHOLE BODY") {
        return nm_type_of_data::whole_body;
    }
    if (value == "RECON TOMO") {
        return nm_type_of_data::recon_tomo;
    }
    if (value == "RECON GATED TOMO") {
        return nm_type_of_data::recon_gated_tomo;
    }
    if (value == "TOMO") {
        return nm_type_of_data::tomo;
    }
    if (value == "GATED TOMO") {
        return nm_type_of_data::gated_tomo;
    }
    return nm_type_of_data::static_image;
}

References dynamic, gated, gated_tomo, recon_gated_tomo, recon_tomo, static_image, tomo, and whole_body.

parse_pet_photometric_interpretation()

pet_photometric_interpretation kcenon::pacs::services::sop_classes::parse_pet_photometric_interpretation ( std::string_view value )

nodiscardnoexcept

Parse DICOM photometric interpretation string.

Parameters

value

The DICOM string value

Returns

The corresponding enum value, or monochrome2 if unknown

Definition at line 51 of file pet_storage.cpp.

                                                                                     {
    // PET images are always MONOCHROME2
    return pet_photometric_interpretation::monochrome2;
}

References monochrome2.

parse_pet_reconstruction_type()

pet_reconstruction_type kcenon::pacs::services::sop_classes::parse_pet_reconstruction_type ( std::string_view value )

nodiscardnoexcept

Parse PET reconstruction type from string.

Parameters

value

The string value

Returns

The reconstruction type

Definition at line 155 of file pet_storage.cpp.

                                                             {
    if (value == "FBP" || value == "FILTERED BACK PROJECTION") {
        return pet_reconstruction_type::fbp;
    }
    if (value == "OSEM" || value == "3D-OSEM") {
        return pet_reconstruction_type::osem;
    }
    if (value == "MLEM") {
        return pet_reconstruction_type::mlem;
    }
    if (value.find("TOF") != std::string_view::npos) {
        return pet_reconstruction_type::tof_osem;
    }
    if (value.find("PSF") != std::string_view::npos) {
        return pet_reconstruction_type::psf_osem;
    }
    return pet_reconstruction_type::other;
}

References fbp, mlem, osem, other, psf_osem, and tof_osem.

parse_pet_units()

pet_units kcenon::pacs::services::sop_classes::parse_pet_units ( std::string_view value )

nodiscardnoexcept

Parse PET units from DICOM string.

Parameters

value

The DICOM string value

Returns

The units type

Definition at line 200 of file pet_storage.cpp.

                                                         {
    if (value == "CNTS") {
        return pet_units::cnts;
    }
    if (value == "BQML" || value == "BQ/ML") {
        return pet_units::bqml;
    }
    if (value == "GML" || value == "G/ML") {
        return pet_units::gml;
    }
    if (value == "SUV" || value == "SUV_BW") {
        return pet_units::suv_bw;
    }
    if (value == "SUL" || value == "SUV_LBM") {
        return pet_units::suv_lbm;
    }
    if (value == "SUV_BSA") {
        return pet_units::suv_bsa;
    }
    if (value == "%ID/G" || value == "PERCENT_ID_GRAM") {
        return pet_units::percent_id_gram;
    }
    return pet_units::other;
}

References bqml, cnts, gml, other, percent_id_gram, suv_bsa, suv_bw, and suv_lbm.

parse_photometric_interpretation()

us_photometric_interpretation kcenon::pacs::services::sop_classes::parse_photometric_interpretation ( std::string_view value )

nodiscardnoexcept

Parse DICOM photometric interpretation string.

Parameters

value

The DICOM string value

Returns

The corresponding enum value, or monochrome2 if unknown

Definition at line 68 of file us_storage.cpp.

                                                                {
    if (value == "MONOCHROME1") {
        return us_photometric_interpretation::monochrome1;
    }
    if (value == "MONOCHROME2") {
        return us_photometric_interpretation::monochrome2;
    }
    if (value == "PALETTE COLOR") {
        return us_photometric_interpretation::palette_color;
    }
    if (value == "RGB") {
        return us_photometric_interpretation::rgb;
    }
    if (value == "YBR_FULL") {
        return us_photometric_interpretation::ybr_full;
    }
    if (value == "YBR_FULL_422") {
        return us_photometric_interpretation::ybr_full_422;
    }
    // Default to MONOCHROME2 for unknown values
    return us_photometric_interpretation::monochrome2;
}

References monochrome1, monochrome2, palette_color, rgb, ybr_full, and ybr_full_422.

parse_pixel_value_representation()

pixel_value_representation kcenon::pacs::services::sop_classes::parse_pixel_value_representation ( uint16_t bits_allocated )

nodiscardnoexcept

Parse pixel value representation from BitsAllocated value.

Parameters

bits_allocated

The BitsAllocated value

Returns

The pixel value representation, defaults to float32 for unknown values

Definition at line 52 of file parametric_map_storage.cpp.

                                                                   {
    if (bits_allocated == 64) {
        return pixel_value_representation::float64;
    }
    return pixel_value_representation::float32;
}

References float32, and float64.

parse_rt_beam_type()

rt_beam_type kcenon::pacs::services::sop_classes::parse_rt_beam_type ( std::string_view value )

nodiscardnoexcept

Parse RT beam type from DICOM string.

Parameters

value

The DICOM string value

Returns

The beam type

Definition at line 507 of file rt_storage.cpp.

                                                               {
    if (value == "DYNAMIC") {
        return rt_beam_type::dynamic;
    }
    return rt_beam_type::static_beam;
}

References dynamic, and static_beam.

parse_rt_dose_summation_type()

rt_dose_summation_type kcenon::pacs::services::sop_classes::parse_rt_dose_summation_type ( std::string_view value )

nodiscardnoexcept

Parse RT dose summation type from DICOM string.

Parameters

value

The DICOM string value

Returns

The dose summation type

Definition at line 287 of file rt_storage.cpp.

                                                                                   {
    if (value == "PLAN") {
        return rt_dose_summation_type::plan;
    }
    if (value == "MULTI_PLAN") {
        return rt_dose_summation_type::multi_plan;
    }
    if (value == "FRACTION") {
        return rt_dose_summation_type::fraction;
    }
    if (value == "BEAM") {
        return rt_dose_summation_type::beam;
    }
    if (value == "BRACHY") {
        return rt_dose_summation_type::brachy;
    }
    if (value == "FRACTION_SESSION") {
        return rt_dose_summation_type::fraction_session;
    }
    if (value == "BEAM_SESSION") {
        return rt_dose_summation_type::beam_session;
    }
    if (value == "BRACHY_SESSION") {
        return rt_dose_summation_type::brachy_session;
    }
    if (value == "CONTROL_POINT") {
        return rt_dose_summation_type::control_point;
    }
    if (value == "RECORD") {
        return rt_dose_summation_type::record;
    }
    return rt_dose_summation_type::plan;
}

References beam, beam_session, brachy, brachy_session, control_point, fraction, fraction_session, multi_plan, plan, and record.

parse_rt_dose_type()

rt_dose_type kcenon::pacs::services::sop_classes::parse_rt_dose_type ( std::string_view value )

nodiscardnoexcept

Parse RT dose type from DICOM string.

Parameters

value

The DICOM string value

Returns

The dose type

Definition at line 247 of file rt_storage.cpp.

                                                               {
    if (value == "EFFECTIVE") {
        return rt_dose_type::effective;
    }
    if (value == "ERROR") {
        return rt_dose_type::error;
    }
    return rt_dose_type::physical;
}

References effective, error, and physical.

parse_rt_dose_units()

rt_dose_units kcenon::pacs::services::sop_classes::parse_rt_dose_units ( std::string_view value )

nodiscardnoexcept

Parse RT dose units from DICOM string.

Parameters

value

The DICOM string value

Returns

The dose units

Definition at line 335 of file rt_storage.cpp.

                                                                 {
    if (value == "RELATIVE") {
        return rt_dose_units::relative;
    }
    return rt_dose_units::gy;
}

References gy, and relative.

parse_rt_image_plane()

rt_image_plane kcenon::pacs::services::sop_classes::parse_rt_image_plane ( std::string_view value )

nodiscardnoexcept

Parse RT image plane from DICOM string.

Parameters

value

The DICOM string value

Returns

The image plane type

Definition at line 613 of file rt_storage.cpp.

                                                                   {
    if (value == "AXIAL") {
        return rt_image_plane::axial;
    }
    if (value == "LOCALIZER") {
        return rt_image_plane::localizer;
    }
    if (value == "DRR") {
        return rt_image_plane::drr;
    }
    if (value == "PORTAL") {
        return rt_image_plane::portal;
    }
    if (value == "FLUENCE") {
        return rt_image_plane::fluence;
    }
    return rt_image_plane::portal;
}

References axial, drr, fluence, localizer, and portal.

parse_rt_plan_geometry()

rt_plan_geometry kcenon::pacs::services::sop_classes::parse_rt_plan_geometry ( std::string_view value )

nodiscardnoexcept

Parse RT plan geometry from DICOM string.

Parameters

value

The DICOM string value

Returns

The plan geometry

Definition at line 224 of file rt_storage.cpp.

                                                                       {
    if (value == "TREATMENT_DEVICE") {
        return rt_plan_geometry::treatment_device;
    }
    return rt_plan_geometry::patient;
}

References patient, and treatment_device.

parse_rt_plan_intent()

rt_plan_intent kcenon::pacs::services::sop_classes::parse_rt_plan_intent ( std::string_view value )

nodiscardnoexcept

Parse RT plan intent from DICOM string.

Parameters

value

The DICOM string value

Returns

The plan intent

Definition at line 185 of file rt_storage.cpp.

                                                                   {
    if (value == "CURATIVE") {
        return rt_plan_intent::curative;
    }
    if (value == "PALLIATIVE") {
        return rt_plan_intent::palliative;
    }
    if (value == "PROPHYLACTIC") {
        return rt_plan_intent::prophylactic;
    }
    if (value == "VERIFICATION") {
        return rt_plan_intent::verification;
    }
    if (value == "MACHINE_QA") {
        return rt_plan_intent::machine_qa;
    }
    if (value == "RESEARCH") {
        return rt_plan_intent::research;
    }
    if (value == "SERVICE") {
        return rt_plan_intent::service;
    }
    return rt_plan_intent::curative;
}

References curative, machine_qa, palliative, prophylactic, research, service, and verification.

parse_rt_radiation_type()

rt_radiation_type kcenon::pacs::services::sop_classes::parse_rt_radiation_type ( std::string_view value )

nodiscardnoexcept

Parse RT radiation type from DICOM string.

Parameters

value

The DICOM string value

Returns

The radiation type

Definition at line 534 of file rt_storage.cpp.

                                                                         {
    if (value == "PHOTON") {
        return rt_radiation_type::photon;
    }
    if (value == "ELECTRON") {
        return rt_radiation_type::electron;
    }
    if (value == "NEUTRON") {
        return rt_radiation_type::neutron;
    }
    if (value == "PROTON") {
        return rt_radiation_type::proton;
    }
    if (value == "ION") {
        return rt_radiation_type::ion;
    }
    return rt_radiation_type::photon;
}

References electron, ion, neutron, photon, and proton.

parse_rt_roi_generation_algorithm()

rt_roi_generation_algorithm kcenon::pacs::services::sop_classes::parse_rt_roi_generation_algorithm ( std::string_view value )

nodiscardnoexcept

Parse RT ROI generation algorithm from DICOM string.

Parameters

value

The DICOM string value

Returns

The generation algorithm

Definition at line 483 of file rt_storage.cpp.

                                                                 {
    if (value == "AUTOMATIC") {
        return rt_roi_generation_algorithm::automatic;
    }
    if (value == "SEMIAUTOMATIC") {
        return rt_roi_generation_algorithm::semiautomatic;
    }
    return rt_roi_generation_algorithm::manual;
}

References automatic, manual, and semiautomatic.

parse_rt_roi_interpreted_type()

rt_roi_interpreted_type kcenon::pacs::services::sop_classes::parse_rt_roi_interpreted_type ( std::string_view value )

nodiscardnoexcept

Parse RT ROI interpreted type from DICOM string.

Parameters

value

The DICOM string value

Returns

The ROI interpreted type

Definition at line 396 of file rt_storage.cpp.

                                                                                     {
    if (value == "EXTERNAL") {
        return rt_roi_interpreted_type::external;
    }
    if (value == "PTV") {
        return rt_roi_interpreted_type::ptv;
    }
    if (value == "CTV") {
        return rt_roi_interpreted_type::ctv;
    }
    if (value == "GTV") {
        return rt_roi_interpreted_type::gtv;
    }
    if (value == "ORGAN") {
        return rt_roi_interpreted_type::organ;
    }
    if (value == "AVOIDANCE") {
        return rt_roi_interpreted_type::avoidance;
    }
    if (value == "TREATED_VOLUME") {
        return rt_roi_interpreted_type::treated_volume;
    }
    if (value == "IRRAD_VOLUME") {
        return rt_roi_interpreted_type::irrad_volume;
    }
    if (value == "BOLUS") {
        return rt_roi_interpreted_type::bolus;
    }
    if (value == "BRACHY_CHANNEL") {
        return rt_roi_interpreted_type::brachy_channel;
    }
    if (value == "BRACHY_ACCESSORY") {
        return rt_roi_interpreted_type::brachy_accessory;
    }
    if (value == "BRACHY_SRC_APPL") {
        return rt_roi_interpreted_type::brachy_src_appl;
    }
    if (value == "BRACHY_CHNL_SHLD") {
        return rt_roi_interpreted_type::brachy_chnl_shld;
    }
    if (value == "SUPPORT") {
        return rt_roi_interpreted_type::support;
    }
    if (value == "FIXATION") {
        return rt_roi_interpreted_type::fixation;
    }
    if (value == "DOSE_REGION") {
        return rt_roi_interpreted_type::dose_region;
    }
    if (value == "CONTRAST_AGENT") {
        return rt_roi_interpreted_type::contrast_agent;
    }
    if (value == "CAVITY") {
        return rt_roi_interpreted_type::cavity;
    }
    if (value == "MARKER") {
        return rt_roi_interpreted_type::marker;
    }
    if (value == "REGISTRATION") {
        return rt_roi_interpreted_type::registration;
    }
    if (value == "ISOCENTER") {
        return rt_roi_interpreted_type::isocenter;
    }
    if (value == "CONTROL") {
        return rt_roi_interpreted_type::control_point;
    }
    return rt_roi_interpreted_type::organ;
}

References avoidance, bolus, brachy_accessory, brachy_channel, brachy_chnl_shld, brachy_src_appl, cavity, contrast_agent, control_point, ctv, dose_region, external, fixation, gtv, irrad_volume, isocenter, marker, organ, ptv, registration, support, and treated_volume.

parse_rt_treatment_delivery_type()

rt_treatment_delivery_type kcenon::pacs::services::sop_classes::parse_rt_treatment_delivery_type ( std::string_view value )

nodiscardnoexcept

Parse RT treatment delivery type from DICOM string.

Parameters

value

The DICOM string value

Returns

The treatment delivery type

Definition at line 574 of file rt_storage.cpp.

                                                                {
    if (value == "TREATMENT") {
        return rt_treatment_delivery_type::treatment;
    }
    if (value == "OPEN_PORTFILM") {
        return rt_treatment_delivery_type::open_portfilm;
    }
    if (value == "TRMT_PORTFILM") {
        return rt_treatment_delivery_type::trmt_portfilm;
    }
    if (value == "CONTINUATION") {
        return rt_treatment_delivery_type::continuation;
    }
    if (value == "SETUP") {
        return rt_treatment_delivery_type::setup;
    }
    return rt_treatment_delivery_type::treatment;
}

References continuation, open_portfilm, setup, treatment, and trmt_portfilm.

parse_segment_algorithm_type()

segment_algorithm_type kcenon::pacs::services::sop_classes::parse_segment_algorithm_type ( std::string_view value )

nodiscardnoexcept

Parse segment algorithm type from DICOM string.

Parameters

value

The DICOM string value

Returns

The segment algorithm type

Definition at line 103 of file seg_storage.cpp.

                                                            {
    if (value == "AUTOMATIC") {
        return segment_algorithm_type::automatic;
    }
    if (value == "SEMIAUTOMATIC") {
        return segment_algorithm_type::semiautomatic;
    }
    return segment_algorithm_type::manual;
}

References automatic, manual, and semiautomatic.

parse_segmentation_fractional_type()

segmentation_fractional_type kcenon::pacs::services::sop_classes::parse_segmentation_fractional_type ( std::string_view value )

nodiscardnoexcept

Parse segmentation fractional type from DICOM string.

Parameters

value

The DICOM string value

Returns

The segmentation fractional type

Definition at line 79 of file seg_storage.cpp.

                                                                  {
    if (value == "OCCUPANCY") {
        return segmentation_fractional_type::occupancy;
    }
    return segmentation_fractional_type::probability;
}

References occupancy, and probability.

parse_segmentation_type()

segmentation_type kcenon::pacs::services::sop_classes::parse_segmentation_type ( std::string_view value )

nodiscardnoexcept

Parse segmentation type from DICOM string.

Parameters

value

The DICOM string value

Returns

The segmentation type

Definition at line 53 of file seg_storage.cpp.

                                                                         {
    if (value == "FRACTIONAL") {
        return segmentation_type::fractional;
    }
    return segmentation_type::binary;
}

References binary, and fractional.

parse_sr_completion_flag()

sr_completion_flag kcenon::pacs::services::sop_classes::parse_sr_completion_flag ( std::string_view value )

nodiscardnoexcept

Parse SR completion flag from DICOM string.

Parameters

value

The DICOM string value

Returns

The completion flag

Definition at line 205 of file sr_storage.cpp.

                                                                           {
    if (value == "COMPLETE") {
        return sr_completion_flag::complete;
    }
    return sr_completion_flag::partial;
}

References complete, and partial.

parse_sr_relationship_type()

sr_relationship_type kcenon::pacs::services::sop_classes::parse_sr_relationship_type ( std::string_view value )

nodiscardnoexcept

Parse SR relationship type from DICOM string.

Parameters

value

The DICOM string value

Returns

The SR relationship type

Definition at line 180 of file sr_storage.cpp.

                                                                               {
    if (value == "CONTAINS") return sr_relationship_type::contains;
    if (value == "HAS OBS CONTEXT") return sr_relationship_type::has_obs_context;
    if (value == "HAS ACQ CONTEXT") return sr_relationship_type::has_acq_context;
    if (value == "HAS CONCEPT MOD") return sr_relationship_type::has_concept_mod;
    if (value == "HAS PROPERTIES") return sr_relationship_type::has_properties;
    if (value == "INFERRED FROM") return sr_relationship_type::inferred_from;
    if (value == "SELECTED FROM") return sr_relationship_type::selected_from;
    return sr_relationship_type::unknown;
}

References contains, has_acq_context, has_concept_mod, has_obs_context, has_properties, inferred_from, selected_from, and unknown.

parse_sr_value_type()

sr_value_type kcenon::pacs::services::sop_classes::parse_sr_value_type ( std::string_view value )

nodiscardnoexcept

Parse SR value type from DICOM string.

Parameters

value

The DICOM string value

Returns

The SR value type

Definition at line 130 of file sr_storage.cpp.

                                                                 {
    if (value == "TEXT") return sr_value_type::text;
    if (value == "CODE") return sr_value_type::code;
    if (value == "NUM") return sr_value_type::num;
    if (value == "DATETIME") return sr_value_type::datetime;
    if (value == "DATE") return sr_value_type::date;
    if (value == "TIME") return sr_value_type::time;
    if (value == "UIDREF") return sr_value_type::uidref;
    if (value == "PNAME") return sr_value_type::pname;
    if (value == "COMPOSITE") return sr_value_type::composite;
    if (value == "IMAGE") return sr_value_type::image;
    if (value == "WAVEFORM") return sr_value_type::waveform;
    if (value == "SCOORD") return sr_value_type::scoord;
    if (value == "SCOORD3D") return sr_value_type::scoord3d;
    if (value == "TCOORD") return sr_value_type::tcoord;
    if (value == "CONTAINER") return sr_value_type::container;
    if (value == "TABLE") return sr_value_type::table;
    return sr_value_type::unknown;
}

References code, composite, container, date, datetime, image, num, pname, scoord, scoord3d, table, tcoord, text, time, uidref, unknown, and waveform.

Referenced by is_valid_sr_value_type(), and kcenon::pacs::services::validation::sr_iod_validator::validate_content_item().

Here is the caller graph for this function:

parse_sr_verification_flag()

sr_verification_flag kcenon::pacs::services::sop_classes::parse_sr_verification_flag ( std::string_view value )

nodiscardnoexcept

Parse SR verification flag from DICOM string.

Parameters

value

The DICOM string value

Returns

The verification flag

Definition at line 222 of file sr_storage.cpp.

                                                                               {
    if (value == "VERIFIED") {
        return sr_verification_flag::verified;
    }
    return sr_verification_flag::unverified;
}

References unverified, and verified.

parse_view_position()

dx_view_position kcenon::pacs::services::sop_classes::parse_view_position ( std::string_view value )

nodiscardnoexcept

Parse DICOM view position string.

Parameters

value

The DICOM string value

Returns

The corresponding enum value, or other if unknown

Definition at line 101 of file dx_storage.cpp.

                                                                    {
    if (value == "AP") return dx_view_position::ap;
    if (value == "PA") return dx_view_position::pa;
    if (value == "LATERAL" || value == "LAT" ||
        value == "LL" || value == "RL") {
        return dx_view_position::lateral;
    }
    if (value == "OBLIQUE" || value == "OBL" ||
        value == "LAO" || value == "RAO" ||
        value == "LPO" || value == "RPO") {
        return dx_view_position::oblique;
    }
    return dx_view_position::other;
}

References ap, lateral, oblique, other, and pa.

parse_xa_photometric_interpretation()

xa_photometric_interpretation kcenon::pacs::services::sop_classes::parse_xa_photometric_interpretation ( std::string_view value )

nodiscardnoexcept

Parse DICOM photometric interpretation string for XA.

Parameters

value

The DICOM string value

Returns

The corresponding enum value, or monochrome2 if unknown

Definition at line 52 of file xa_storage.cpp.

                                                                   {
    if (value == "MONOCHROME1") {
        return xa_photometric_interpretation::monochrome1;
    }
    // Default to MONOCHROME2 for unknown or MONOCHROME2 values
    return xa_photometric_interpretation::monochrome2;
}

References monochrome1, and monochrome2.

rt_sop_class_has_pixel_data()

bool kcenon::pacs::services::sop_classes::rt_sop_class_has_pixel_data ( std::string_view uid )

nodiscardnoexcept

Check if a SOP Class UID contains pixel data.

Parameters

uid	The SOP Class UID to check

Returns

true if this RT SOP class contains pixel data

Definition at line 156 of file rt_storage.cpp.

                                                              {
    const auto* info = get_rt_sop_class_info(uid);
    return info != nullptr && info->has_pixel_data;
}

References get_rt_sop_class_info(), and uid.

Here is the call graph for this function:

sr_supports_spatial_coords()

bool kcenon::pacs::services::sop_classes::sr_supports_spatial_coords ( std::string_view uid )

nodiscardnoexcept

Check if an SR SOP Class supports spatial coordinates.

Parameters

uid	The SOP Class UID to check

Returns

true if the SR can contain SCOORD or SCOORD3D content items

Definition at line 453 of file sr_storage.cpp.

                                                             {
    const auto* info = get_sr_sop_class_info(uid);
    return info != nullptr && info->supports_spatial_coords;
}

References get_sr_sop_class_info(), and uid.

Here is the call graph for this function:

to_string() [1/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( breast_laterality laterality )

nodiscardnoexcept

Convert breast laterality enum to DICOM string.

Parameters

laterality

The breast laterality

Returns

DICOM-compliant string representation ("L", "R", "B", or empty)

Definition at line 22 of file mg_storage.cpp.

                                                                {
    switch (laterality) {
        case breast_laterality::left:       return "L";
        case breast_laterality::right:      return "R";
        case breast_laterality::bilateral:  return "B";
        case breast_laterality::unknown:    return "";
    }
    return "";
}

References bilateral, left, right, and unknown.

to_string() [2/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( cad_processing_status status )

nodiscardnoexcept

Convert CAD processing status to display string.

Parameters

status

The CAD status

Returns

Human-readable string representation

Definition at line 210 of file mg_storage.cpp.

                                                                {
    switch (status) {
        case cad_processing_status::not_processed:
            return "NOT PROCESSED";
        case cad_processing_status::processed_no_findings:
            return "PROCESSED - NO FINDINGS";
        case cad_processing_status::processed_findings:
            return "PROCESSED - FINDINGS";
        case cad_processing_status::processing_failed:
            return "PROCESSING FAILED";
        case cad_processing_status::pending:
            return "PENDING";
    }
    return "";
}

References not_processed, pending, processed_findings, processed_no_findings, and processing_failed.

to_string() [3/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( dx_body_part part )

nodiscardnoexcept

Convert body part enum to DICOM string.

Parameters

part	The body part

Returns

DICOM-compliant string representation

Definition at line 147 of file dx_storage.cpp.

                                                     {
    switch (part) {
        case dx_body_part::chest:       return "CHEST";
        case dx_body_part::abdomen:     return "ABDOMEN";
        case dx_body_part::pelvis:      return "PELVIS";
        case dx_body_part::spine:       return "SPINE";
        case dx_body_part::skull:       return "SKULL";
        case dx_body_part::hand:        return "HAND";
        case dx_body_part::foot:        return "FOOT";
        case dx_body_part::knee:        return "KNEE";
        case dx_body_part::elbow:       return "ELBOW";
        case dx_body_part::shoulder:    return "SHOULDER";
        case dx_body_part::hip:         return "HIP";
        case dx_body_part::wrist:       return "WRIST";
        case dx_body_part::ankle:       return "ANKLE";
        case dx_body_part::extremity:   return "EXTREMITY";
        case dx_body_part::breast:      return "BREAST";
        case dx_body_part::other:       return "";
    }
    return "";
}

References abdomen, ankle, breast, chest, elbow, extremity, foot, hand, hip, knee, other, pelvis, shoulder, skull, spine, and wrist.

to_string() [4/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( dx_detector_type type )

nodiscardnoexcept

Convert detector type enum to DICOM string.

Parameters

type	The detector type

Returns

DICOM-compliant string representation

Definition at line 120 of file dx_storage.cpp.

                                                         {
    switch (type) {
        case dx_detector_type::direct:
            return "DIRECT";
        case dx_detector_type::indirect:
            return "INDIRECT";
        case dx_detector_type::storage:
            return "STORAGE";
        case dx_detector_type::film:
            return "FILM";
    }
    return "DIRECT";
}

References direct, film, indirect, and storage.

to_string() [5/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( dx_image_type type )

nodiscardnoexcept

Convert DX image type to string.

Parameters

type	The image type

Returns

String representation

Definition at line 71 of file dx_storage.cpp.

                                                      {
    switch (type) {
        case dx_image_type::for_presentation:
            return "FOR PRESENTATION";
        case dx_image_type::for_processing:
            return "FOR PROCESSING";
    }
    return "FOR PRESENTATION";
}

References for_presentation, and for_processing.

to_string() [6/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( dx_photometric_interpretation interp )

nodiscardnoexcept

Convert photometric interpretation enum to DICOM string.

Parameters

interp

The photometric interpretation

Returns

DICOM-compliant string representation

Definition at line 44 of file dx_storage.cpp.

                                                                        {
    switch (interp) {
        case dx_photometric_interpretation::monochrome1:
            return "MONOCHROME1";
        case dx_photometric_interpretation::monochrome2:
            return "MONOCHROME2";
    }
    return "MONOCHROME2";
}

References monochrome1, and monochrome2.

to_string() [7/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( dx_view_position position )

nodiscardnoexcept

Convert view position enum to DICOM string.

Parameters

position

The view position

Returns

DICOM-compliant string representation

Definition at line 85 of file dx_storage.cpp.

                                                             {
    switch (position) {
        case dx_view_position::ap:
            return "AP";
        case dx_view_position::pa:
            return "PA";
        case dx_view_position::lateral:
            return "LATERAL";
        case dx_view_position::oblique:
            return "OBLIQUE";
        case dx_view_position::other:
            return "";
    }
    return "";
}

References ap, lateral, oblique, other, and pa.

to_string() [8/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( mg_image_type type )

nodiscardnoexcept

Convert mammography image type to string.

Parameters

type	The image type

Returns

String representation

Definition at line 198 of file mg_storage.cpp.

                                                      {
    switch (type) {
        case mg_image_type::for_presentation: return "FOR PRESENTATION";
        case mg_image_type::for_processing:   return "FOR PROCESSING";
    }
    return "";
}

References for_presentation, and for_processing.

to_string() [9/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( mg_view_position position )

nodiscardnoexcept

Convert mammography view position enum to DICOM string.

Parameters

position

The view position

Returns

DICOM-compliant string representation

Definition at line 70 of file mg_storage.cpp.

                                                             {
    switch (position) {
        case mg_view_position::cc:       return "CC";
        case mg_view_position::mlo:      return "MLO";
        case mg_view_position::ml:       return "ML";
        case mg_view_position::lm:       return "LM";
        case mg_view_position::xccl:     return "XCCL";
        case mg_view_position::xccm:     return "XCCM";
        case mg_view_position::fb:       return "FB";
        case mg_view_position::sio:      return "SIO";
        case mg_view_position::iso:      return "ISO";
        case mg_view_position::cv:       return "CV";
        case mg_view_position::at:       return "AT";
        case mg_view_position::spot:     return "SPOT";
        case mg_view_position::mag:      return "MAG";
        case mg_view_position::spot_mag: return "SPOT MAG";
        case mg_view_position::rl:       return "RL";
        case mg_view_position::rm:       return "RM";
        case mg_view_position::rs:       return "RS";
        case mg_view_position::ri:       return "RI";
        case mg_view_position::tangen:   return "TAN";
        case mg_view_position::implant:  return "ID";
        case mg_view_position::id:       return "ID";
        case mg_view_position::other:    return "";
    }
    return "";
}

References at, cc, cv, fb, id, implant, iso, lm, mag, ml, mlo, other, ri, rl, rm, rs, sio, spot, spot_mag, tangen, xccl, and xccm.

to_string() [10/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( nm_collimator_type collimator )

nodiscardnoexcept

Convert collimator type to DICOM string.

Parameters

collimator

The collimator type

Returns

DICOM code string

Definition at line 184 of file nm_storage.cpp.

                                                                 {
    switch (collimator) {
        case nm_collimator_type::parallel:
            return "PARA";
        case nm_collimator_type::fan_beam:
            return "FANB";
        case nm_collimator_type::cone_beam:
            return "CONE";
        case nm_collimator_type::pinhole:
            return "PINH";
        case nm_collimator_type::diverging:
            return "DIVG";
        case nm_collimator_type::converging:
            return "CVGB";
        case nm_collimator_type::none:
            return "NONE";
    }
    return "PARA";
}

References cone_beam, converging, diverging, fan_beam, none, parallel, and pinhole.

to_string() [11/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( nm_photometric_interpretation interp )

nodiscardnoexcept

Convert photometric interpretation enum to DICOM string.

Parameters

interp

The photometric interpretation

Returns

DICOM-compliant string representation

Definition at line 42 of file nm_storage.cpp.

                                                                        {
    switch (interp) {
        case nm_photometric_interpretation::monochrome2:
            return "MONOCHROME2";
        case nm_photometric_interpretation::palette_color:
            return "PALETTE COLOR";
    }
    return "MONOCHROME2";
}

References monochrome2, and palette_color.

to_string() [12/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( nm_radioisotope isotope )

nodiscardnoexcept

Get radioisotope name string.

Parameters

isotope

The radioisotope type

Returns

Human-readable name

Definition at line 233 of file nm_storage.cpp.

                                                           {
    switch (isotope) {
        case nm_radioisotope::tc99m:
            return "Tc-99m";
        case nm_radioisotope::i131:
            return "I-131";
        case nm_radioisotope::i123:
            return "I-123";
        case nm_radioisotope::tl201:
            return "Tl-201";
        case nm_radioisotope::ga67:
            return "Ga-67";
        case nm_radioisotope::in111:
            return "In-111";
        case nm_radioisotope::f18:
            return "F-18";
        case nm_radioisotope::other:
            return "Other";
    }
    return "Other";
}

References f18, ga67, i123, i131, in111, other, tc99m, and tl201.

to_string() [13/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( nm_type_of_data type )

nodiscardnoexcept

Convert NM type of data to DICOM string.

Parameters

type	The type of data

Returns

DICOM-compliant string representation

Definition at line 130 of file nm_storage.cpp.

                                                        {
    switch (type) {
        case nm_type_of_data::static_image:
            return "STATIC";
        case nm_type_of_data::dynamic:
            return "DYNAMIC";
        case nm_type_of_data::gated:
            return "GATED";
        case nm_type_of_data::whole_body:
            return "WHOLE BODY";
        case nm_type_of_data::recon_tomo:
            return "RECON TOMO";
        case nm_type_of_data::recon_gated_tomo:
            return "RECON GATED TOMO";
        case nm_type_of_data::tomo:
            return "TOMO";
        case nm_type_of_data::gated_tomo:
            return "GATED TOMO";
    }
    return "STATIC";
}

References dynamic, gated, gated_tomo, recon_gated_tomo, recon_tomo, static_image, tomo, and whole_body.

to_string() [14/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( nm_whole_body_technique technique )

nodiscardnoexcept

Convert whole body technique to string.

Parameters

technique

The whole body technique

Returns

DICOM code string

Definition at line 281 of file nm_storage.cpp.

                                                                     {
    switch (technique) {
        case nm_whole_body_technique::single_pass:
            return "1PASS";
        case nm_whole_body_technique::multi_pass:
            return "2PASS";
        case nm_whole_body_technique::stepping:
            return "STEP";
    }
    return "1PASS";
}

References multi_pass, single_pass, and stepping.

to_string() [15/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( pet_photometric_interpretation interp )

nodiscardnoexcept

Convert photometric interpretation enum to DICOM string.

Parameters

interp

The photometric interpretation

Returns

DICOM-compliant string representation

Definition at line 42 of file pet_storage.cpp.

                                                                         {
    switch (interp) {
        case pet_photometric_interpretation::monochrome2:
            return "MONOCHROME2";
    }
    return "MONOCHROME2";
}

References monochrome2.

to_string() [16/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( pet_radiotracer tracer )

nodiscardnoexcept

Get radiotracer name string.

Parameters

tracer

The radiotracer type

Returns

Human-readable name

Definition at line 229 of file pet_storage.cpp.

                                                          {
    switch (tracer) {
        case pet_radiotracer::fdg:
            return "18F-FDG";
        case pet_radiotracer::naf:
            return "18F-NaF";
        case pet_radiotracer::flt:
            return "18F-FLT";
        case pet_radiotracer::fdopa:
            return "18F-FDOPA";
        case pet_radiotracer::ammonia:
            return "13N-Ammonia";
        case pet_radiotracer::rubidium:
            return "82Rb";
        case pet_radiotracer::gallium_dotatate:
            return "68Ga-DOTATATE";
        case pet_radiotracer::psma:
            return "PSMA";
        case pet_radiotracer::other:
            return "Other";
    }
    return "Other";
}

References ammonia, fdg, fdopa, flt, gallium_dotatate, naf, other, psma, and rubidium.

to_string() [17/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( pet_reconstruction_type recon )

nodiscardnoexcept

Convert PET reconstruction type to string.

Parameters

recon

The reconstruction type

Returns

String representation

Definition at line 136 of file pet_storage.cpp.

                                                                 {
    switch (recon) {
        case pet_reconstruction_type::fbp:
            return "FBP";
        case pet_reconstruction_type::osem:
            return "OSEM";
        case pet_reconstruction_type::mlem:
            return "MLEM";
        case pet_reconstruction_type::tof_osem:
            return "TOF-OSEM";
        case pet_reconstruction_type::psf_osem:
            return "PSF-OSEM";
        case pet_reconstruction_type::other:
            return "OTHER";
    }
    return "OTHER";
}

References fbp, mlem, osem, other, psf_osem, and tof_osem.

to_string() [18/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( pet_units units )

nodiscardnoexcept

Convert PET units to DICOM string.

Parameters

units

The units type

Returns

DICOM-compliant string representation

Definition at line 178 of file pet_storage.cpp.

                                                   {
    switch (units) {
        case pet_units::cnts:
            return "CNTS";
        case pet_units::bqml:
            return "BQML";
        case pet_units::gml:
            return "GML";
        case pet_units::suv_bw:
            return "SUV";
        case pet_units::suv_lbm:
            return "SUL";
        case pet_units::suv_bsa:
            return "SUV_BSA";
        case pet_units::percent_id_gram:
            return "%ID/G";
        case pet_units::other:
            return "OTHER";
    }
    return "OTHER";
}

References bqml, cnts, gml, other, percent_id_gram, suv_bsa, suv_bw, and suv_lbm.

to_string() [19/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( rt_beam_type type )

nodiscardnoexcept

Convert RT beam type to DICOM string.

Parameters

type	The beam type

Returns

DICOM-compliant string representation

Definition at line 497 of file rt_storage.cpp.

                                                     {
    switch (type) {
        case rt_beam_type::static_beam:
            return "STATIC";
        case rt_beam_type::dynamic:
            return "DYNAMIC";
    }
    return "STATIC";
}

References dynamic, and static_beam.

to_string() [20/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( rt_dose_summation_type type )

nodiscardnoexcept

Convert RT dose summation type to DICOM string.

Parameters

type	The dose summation type

Returns

DICOM-compliant string representation

Definition at line 261 of file rt_storage.cpp.

                                                               {
    switch (type) {
        case rt_dose_summation_type::plan:
            return "PLAN";
        case rt_dose_summation_type::multi_plan:
            return "MULTI_PLAN";
        case rt_dose_summation_type::fraction:
            return "FRACTION";
        case rt_dose_summation_type::beam:
            return "BEAM";
        case rt_dose_summation_type::brachy:
            return "BRACHY";
        case rt_dose_summation_type::fraction_session:
            return "FRACTION_SESSION";
        case rt_dose_summation_type::beam_session:
            return "BEAM_SESSION";
        case rt_dose_summation_type::brachy_session:
            return "BRACHY_SESSION";
        case rt_dose_summation_type::control_point:
            return "CONTROL_POINT";
        case rt_dose_summation_type::record:
            return "RECORD";
    }
    return "PLAN";
}

References beam, beam_session, brachy, brachy_session, control_point, fraction, fraction_session, multi_plan, plan, and record.

to_string() [21/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( rt_dose_type type )

nodiscardnoexcept

Convert RT dose type to DICOM string.

Parameters

type	The dose type

Returns

DICOM-compliant string representation

Definition at line 235 of file rt_storage.cpp.

                                                     {
    switch (type) {
        case rt_dose_type::physical:
            return "PHYSICAL";
        case rt_dose_type::effective:
            return "EFFECTIVE";
        case rt_dose_type::error:
            return "ERROR";
    }
    return "PHYSICAL";
}

References effective, error, and physical.

to_string() [22/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( rt_dose_units units )

nodiscardnoexcept

Convert RT dose units to DICOM string.

Parameters

units

The dose units

Returns

DICOM-compliant string representation

Definition at line 325 of file rt_storage.cpp.

                                                       {
    switch (units) {
        case rt_dose_units::gy:
            return "GY";
        case rt_dose_units::relative:
            return "RELATIVE";
    }
    return "GY";
}

References gy, and relative.

to_string() [23/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( rt_image_plane plane )

nodiscardnoexcept

Convert RT image plane to DICOM string.

Parameters

plane

The image plane type

Returns

DICOM-compliant string representation

Definition at line 597 of file rt_storage.cpp.

                                                        {
    switch (plane) {
        case rt_image_plane::axial:
            return "AXIAL";
        case rt_image_plane::localizer:
            return "LOCALIZER";
        case rt_image_plane::drr:
            return "DRR";
        case rt_image_plane::portal:
            return "PORTAL";
        case rt_image_plane::fluence:
            return "FLUENCE";
    }
    return "PORTAL";
}

References axial, drr, fluence, localizer, and portal.

to_string() [24/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( rt_plan_geometry geometry )

nodiscardnoexcept

Convert RT plan geometry to DICOM string.

Parameters

geometry

The plan geometry

Returns

DICOM-compliant string representation

Definition at line 214 of file rt_storage.cpp.

                                                             {
    switch (geometry) {
        case rt_plan_geometry::patient:
            return "PATIENT";
        case rt_plan_geometry::treatment_device:
            return "TREATMENT_DEVICE";
    }
    return "PATIENT";
}

References patient, and treatment_device.

to_string() [25/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( rt_plan_intent intent )

nodiscardnoexcept

Convert RT plan intent to DICOM string.

Parameters

intent

The plan intent

Returns

DICOM-compliant string representation

Definition at line 165 of file rt_storage.cpp.

                                                         {
    switch (intent) {
        case rt_plan_intent::curative:
            return "CURATIVE";
        case rt_plan_intent::palliative:
            return "PALLIATIVE";
        case rt_plan_intent::prophylactic:
            return "PROPHYLACTIC";
        case rt_plan_intent::verification:
            return "VERIFICATION";
        case rt_plan_intent::machine_qa:
            return "MACHINE_QA";
        case rt_plan_intent::research:
            return "RESEARCH";
        case rt_plan_intent::service:
            return "SERVICE";
    }
    return "CURATIVE";
}

References curative, machine_qa, palliative, prophylactic, research, service, and verification.

to_string() [26/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( rt_radiation_type type )

nodiscardnoexcept

Convert RT radiation type to DICOM string.

Parameters

type	The radiation type

Returns

DICOM-compliant string representation

Definition at line 518 of file rt_storage.cpp.

                                                          {
    switch (type) {
        case rt_radiation_type::photon:
            return "PHOTON";
        case rt_radiation_type::electron:
            return "ELECTRON";
        case rt_radiation_type::neutron:
            return "NEUTRON";
        case rt_radiation_type::proton:
            return "PROTON";
        case rt_radiation_type::ion:
            return "ION";
    }
    return "PHOTON";
}

References electron, ion, neutron, photon, and proton.

to_string() [27/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( rt_roi_generation_algorithm algorithm )

nodiscardnoexcept

Convert RT ROI generation algorithm to DICOM string.

Parameters

algorithm

The generation algorithm

Returns

DICOM-compliant string representation

Definition at line 470 of file rt_storage.cpp.

                                                                         {
    switch (algorithm) {
        case rt_roi_generation_algorithm::automatic:
            return "AUTOMATIC";
        case rt_roi_generation_algorithm::semiautomatic:
            return "SEMIAUTOMATIC";
        case rt_roi_generation_algorithm::manual:
            return "MANUAL";
    }
    return "MANUAL";
}

References automatic, manual, and semiautomatic.

to_string() [28/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( rt_roi_interpreted_type type )

nodiscardnoexcept

Convert RT ROI interpreted type to DICOM string.

Parameters

type	The ROI interpreted type

Returns

DICOM-compliant string representation

Definition at line 346 of file rt_storage.cpp.

                                                                {
    switch (type) {
        case rt_roi_interpreted_type::external:
            return "EXTERNAL";
        case rt_roi_interpreted_type::ptv:
            return "PTV";
        case rt_roi_interpreted_type::ctv:
            return "CTV";
        case rt_roi_interpreted_type::gtv:
            return "GTV";
        case rt_roi_interpreted_type::organ:
            return "ORGAN";
        case rt_roi_interpreted_type::avoidance:
            return "AVOIDANCE";
        case rt_roi_interpreted_type::treated_volume:
            return "TREATED_VOLUME";
        case rt_roi_interpreted_type::irrad_volume:
            return "IRRAD_VOLUME";
        case rt_roi_interpreted_type::bolus:
            return "BOLUS";
        case rt_roi_interpreted_type::brachy_channel:
            return "BRACHY_CHANNEL";
        case rt_roi_interpreted_type::brachy_accessory:
            return "BRACHY_ACCESSORY";
        case rt_roi_interpreted_type::brachy_src_appl:
            return "BRACHY_SRC_APPL";
        case rt_roi_interpreted_type::brachy_chnl_shld:
            return "BRACHY_CHNL_SHLD";
        case rt_roi_interpreted_type::support:
            return "SUPPORT";
        case rt_roi_interpreted_type::fixation:
            return "FIXATION";
        case rt_roi_interpreted_type::dose_region:
            return "DOSE_REGION";
        case rt_roi_interpreted_type::contrast_agent:
            return "CONTRAST_AGENT";
        case rt_roi_interpreted_type::cavity:
            return "CAVITY";
        case rt_roi_interpreted_type::marker:
            return "MARKER";
        case rt_roi_interpreted_type::registration:
            return "REGISTRATION";
        case rt_roi_interpreted_type::isocenter:
            return "ISOCENTER";
        case rt_roi_interpreted_type::control_point:
            return "CONTROL";
    }
    return "ORGAN";
}

References avoidance, bolus, brachy_accessory, brachy_channel, brachy_chnl_shld, brachy_src_appl, cavity, contrast_agent, control_point, ctv, dose_region, external, fixation, gtv, irrad_volume, isocenter, marker, organ, ptv, registration, support, and treated_volume.

to_string() [29/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( rt_treatment_delivery_type type )

nodiscardnoexcept

Convert RT treatment delivery type to DICOM string.

Parameters

type	The treatment delivery type

Returns

DICOM-compliant string representation

Definition at line 557 of file rt_storage.cpp.

                                                                   {
    switch (type) {
        case rt_treatment_delivery_type::treatment:
            return "TREATMENT";
        case rt_treatment_delivery_type::open_portfilm:
            return "OPEN_PORTFILM";
        case rt_treatment_delivery_type::trmt_portfilm:
            return "TRMT_PORTFILM";
        case rt_treatment_delivery_type::continuation:
            return "CONTINUATION";
        case rt_treatment_delivery_type::setup:
            return "SETUP";
    }
    return "TREATMENT";
}

References continuation, open_portfilm, setup, treatment, and trmt_portfilm.

to_string() [30/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( segment_algorithm_type type )

nodiscardnoexcept

Convert segment algorithm type to DICOM string.

Parameters

type	The segment algorithm type

Returns

DICOM-compliant string representation

Definition at line 90 of file seg_storage.cpp.

                                                               {
    switch (type) {
        case segment_algorithm_type::automatic:
            return "AUTOMATIC";
        case segment_algorithm_type::semiautomatic:
            return "SEMIAUTOMATIC";
        case segment_algorithm_type::manual:
            return "MANUAL";
    }
    return "MANUAL";
}

References automatic, manual, and semiautomatic.

to_string() [31/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( segmentation_fractional_type type )

nodiscardnoexcept

Convert segmentation fractional type to DICOM string.

Parameters

type	The segmentation fractional type

Returns

DICOM-compliant string representation

Definition at line 68 of file seg_storage.cpp.

                                                                     {
    switch (type) {
        case segmentation_fractional_type::probability:
            return "PROBABILITY";
        case segmentation_fractional_type::occupancy:
            return "OCCUPANCY";
    }
    return "PROBABILITY";
}

References occupancy, and probability.

to_string() [32/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( segmentation_type type )

nodiscardnoexcept

Convert segmentation type to DICOM string.

Parameters

type	The segmentation type

Returns

DICOM-compliant string representation

Definition at line 43 of file seg_storage.cpp.

                                                          {
    switch (type) {
        case segmentation_type::binary:
            return "BINARY";
        case segmentation_type::fractional:
            return "FRACTIONAL";
    }
    return "BINARY";
}

References binary, and fractional.

to_string() [33/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( sr_completion_flag flag )

nodiscardnoexcept

Convert SR completion flag to DICOM string.

Parameters

flag	The completion flag

Returns

DICOM-compliant string representation

Definition at line 195 of file sr_storage.cpp.

                                                           {
    switch (flag) {
        case sr_completion_flag::partial:
            return "PARTIAL";
        case sr_completion_flag::complete:
            return "COMPLETE";
    }
    return "PARTIAL";
}

References complete, and partial.

to_string() [34/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( sr_document_type type )

nodiscardnoexcept

Get human-readable name for SR document type.

Parameters

type	The SR document type

Returns

Human-readable type name

Definition at line 69 of file sr_storage.cpp.

                                                         {
    switch (type) {
        case sr_document_type::basic_text:
            return "Basic Text SR";
        case sr_document_type::enhanced:
            return "Enhanced SR";
        case sr_document_type::comprehensive:
            return "Comprehensive SR";
        case sr_document_type::comprehensive_3d:
            return "Comprehensive 3D SR";
        case sr_document_type::extensible:
            return "Extensible SR";
        case sr_document_type::key_object_selection:
            return "Key Object Selection";
        case sr_document_type::cad:
            return "CAD SR";
        case sr_document_type::dose_report:
            return "Dose Report SR";
        case sr_document_type::procedure_log:
            return "Procedure Log SR";
        case sr_document_type::other:
            return "Other SR";
    }
    return "Unknown SR";
}

References basic_text, cad, comprehensive, comprehensive_3d, dose_report, enhanced, extensible, key_object_selection, other, and procedure_log.

to_string() [35/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( sr_relationship_type type )

nodiscardnoexcept

Convert SR relationship type to DICOM string.

Parameters

type	The SR relationship type

Returns

DICOM-compliant string representation

Definition at line 158 of file sr_storage.cpp.

                                                             {
    switch (type) {
        case sr_relationship_type::contains:
            return "CONTAINS";
        case sr_relationship_type::has_obs_context:
            return "HAS OBS CONTEXT";
        case sr_relationship_type::has_acq_context:
            return "HAS ACQ CONTEXT";
        case sr_relationship_type::has_concept_mod:
            return "HAS CONCEPT MOD";
        case sr_relationship_type::has_properties:
            return "HAS PROPERTIES";
        case sr_relationship_type::inferred_from:
            return "INFERRED FROM";
        case sr_relationship_type::selected_from:
            return "SELECTED FROM";
        case sr_relationship_type::unknown:
            return "UNKNOWN";
    }
    return "UNKNOWN";
}

References contains, has_acq_context, has_concept_mod, has_obs_context, has_properties, inferred_from, selected_from, and unknown.

to_string() [36/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( sr_value_type type )

nodiscardnoexcept

Convert SR value type to DICOM string.

Parameters

type	The SR value type

Returns

DICOM-compliant string representation

Definition at line 122 of file sr_storage.cpp.

                                                      {
    auto index = static_cast<size_t>(type);
    if (index < std::size(value_type_strings)) {
        return value_type_strings[index];
    }
    return "UNKNOWN";
}

to_string() [37/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( sr_verification_flag flag )

nodiscardnoexcept

Convert SR verification flag to DICOM string.

Parameters

flag	The verification flag

Returns

DICOM-compliant string representation

Definition at line 212 of file sr_storage.cpp.

                                                             {
    switch (flag) {
        case sr_verification_flag::unverified:
            return "UNVERIFIED";
        case sr_verification_flag::verified:
            return "VERIFIED";
    }
    return "UNVERIFIED";
}

References unverified, and verified.

to_string() [38/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( us_photometric_interpretation interp )

nodiscardnoexcept

Convert photometric interpretation enum to DICOM string.

Parameters

interp

The photometric interpretation

Returns

DICOM-compliant string representation

Definition at line 59 of file us_storage.cpp.

                                                                        {
    auto index = static_cast<size_t>(interp);
    if (index < std::size(photometric_strings)) {
        return photometric_strings[index];
    }
    return "MONOCHROME2";
}

to_string() [39/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( waveform_type type )

nodiscardnoexcept

Get human-readable name for waveform type.

Parameters

type	The waveform type

Returns

Human-readable type name

Definition at line 55 of file waveform_storage.cpp.

                                                      {
    switch (type) {
        case waveform_type::ecg_12lead: return "12-Lead ECG";
        case waveform_type::ecg_general: return "General ECG";
        case waveform_type::ecg_ambulatory: return "Ambulatory ECG";
        case waveform_type::hemodynamic: return "Hemodynamic";
        case waveform_type::cardiac_ep: return "Cardiac Electrophysiology";
        case waveform_type::audio_basic: return "Basic Voice Audio";
        case waveform_type::audio_general: return "General Audio";
        case waveform_type::arterial_pulse: return "Arterial Pulse";
        case waveform_type::respiratory: return "Respiratory";
        case waveform_type::respiratory_multi: return "Multi-channel Respiratory";
        case waveform_type::eeg_routine: return "Routine Scalp EEG";
        case waveform_type::emg: return "Electromyogram";
        case waveform_type::eog: return "Electrooculogram";
        case waveform_type::eeg_sleep: return "Sleep EEG";
        case waveform_type::body_position: return "Body Position";
        case waveform_type::presentation_state: return "Waveform Presentation State";
        case waveform_type::annotation: return "Waveform Annotation";
        case waveform_type::unknown: return "Unknown";
    }
    return "Unknown";
}

References annotation, arterial_pulse, audio_basic, audio_general, body_position, cardiac_ep, ecg_12lead, ecg_ambulatory, ecg_general, eeg_routine, eeg_sleep, emg, eog, hemodynamic, presentation_state, respiratory, respiratory_multi, and unknown.

to_string() [40/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( xa_photometric_interpretation interp )

nodiscardnoexcept

Convert photometric interpretation enum to DICOM string.

Parameters

interp

The photometric interpretation

Returns

DICOM-compliant string representation

Definition at line 41 of file xa_storage.cpp.

                                                                        {
    switch (interp) {
        case xa_photometric_interpretation::monochrome1:
            return "MONOCHROME1";
        case xa_photometric_interpretation::monochrome2:
            return "MONOCHROME2";
    }
    return "MONOCHROME2";
}

References monochrome1, and monochrome2.

to_string() [41/41]

std::string_view kcenon::pacs::services::sop_classes::to_string ( xa_positioner_motion motion )

nodiscardnoexcept

Convert positioner motion enum to DICOM string.

Parameters

motion

The positioner motion type

Returns

DICOM-compliant string representation

Definition at line 166 of file xa_storage.cpp.

                                                               {
    switch (motion) {
        case xa_positioner_motion::stationary:
            return "STATIONARY";
        case xa_positioner_motion::dynamic:
            return "DYNAMIC";
    }
    return "STATIONARY";
}

References dynamic, and stationary.

Variable Documentation

acquisition_context_sr_storage_uid

std::string_view kcenon::pacs::services::sop_classes::acquisition_context_sr_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.88.71"

Acquisition Context SR Storage SOP Class UID.

Definition at line 83 of file sr_storage.h.

ambulatory_ecg_storage_uid

std::string_view kcenon::pacs::services::sop_classes::ambulatory_ecg_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.9.1.3"

Ambulatory ECG Waveform Storage SOP Class UID.

Definition at line 45 of file waveform_storage.h.

Referenced by get_waveform_type().

arterial_pulse_waveform_storage_uid

std::string_view kcenon::pacs::services::sop_classes::arterial_pulse_waveform_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.9.5.1"

Arterial Pulse Waveform Storage SOP Class UID.

Definition at line 65 of file waveform_storage.h.

Referenced by get_waveform_type().

basic_text_sr_storage_uid

std::string_view kcenon::pacs::services::sop_classes::basic_text_sr_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.88.11"

Basic Text SR Storage SOP Class UID.

Definition at line 38 of file sr_storage.h.

Referenced by get_recommended_sr_template(), get_sr_document_type(), and kcenon::pacs::services::sop_class_registry::register_sr_sop_classes().

basic_voice_audio_storage_uid

std::string_view kcenon::pacs::services::sop_classes::basic_voice_audio_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.9.4.1"

Basic Voice Audio Waveform Storage SOP Class UID.

Definition at line 57 of file waveform_storage.h.

Referenced by get_waveform_type().

body_position_waveform_storage_uid

std::string_view kcenon::pacs::services::sop_classes::body_position_waveform_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.9.8.1"

Body Position Waveform Storage SOP Class UID.

Definition at line 93 of file waveform_storage.h.

Referenced by get_waveform_type().

breast_projection_image_storage_for_presentation_uid

std::string_view kcenon::pacs::services::sop_classes::breast_projection_image_storage_for_presentation_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.13.1.4"

Breast Projection X-Ray Image Storage - For Presentation SOP Class UID.

Definition at line 58 of file mg_storage.h.

breast_projection_image_storage_for_processing_uid

std::string_view kcenon::pacs::services::sop_classes::breast_projection_image_storage_for_processing_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.13.1.5"

Breast Projection X-Ray Image Storage - For Processing SOP Class UID.

Definition at line 62 of file mg_storage.h.

breast_tomosynthesis_image_storage_uid

std::string_view kcenon::pacs::services::sop_classes::breast_tomosynthesis_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.13.1.3"

Breast Tomosynthesis Image Storage SOP Class UID.

Definition at line 54 of file mg_storage.h.

cardiac_ep_waveform_storage_uid

std::string_view kcenon::pacs::services::sop_classes::cardiac_ep_waveform_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.9.3.1"

Basic Cardiac Electrophysiology Waveform Storage SOP Class UID.

Definition at line 53 of file waveform_storage.h.

Referenced by get_waveform_type().

chest_cad_sr_storage_uid

std::string_view kcenon::pacs::services::sop_classes::chest_cad_sr_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.88.65"

Chest CAD SR Storage SOP Class UID.

Definition at line 67 of file sr_storage.h.

Referenced by get_recommended_sr_template(), get_sr_document_type(), and kcenon::pacs::services::sop_class_registry::register_sr_sop_classes().

colon_cad_sr_storage_uid

std::string_view kcenon::pacs::services::sop_classes::colon_cad_sr_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.88.69"

Colon CAD SR Storage SOP Class UID.

Definition at line 71 of file sr_storage.h.

Referenced by get_recommended_sr_template(), get_sr_document_type(), and kcenon::pacs::services::sop_class_registry::register_sr_sop_classes().

comprehensive_3d_sr_storage_uid

std::string_view kcenon::pacs::services::sop_classes::comprehensive_3d_sr_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.88.34"

Comprehensive 3D SR Storage SOP Class UID.

Definition at line 50 of file sr_storage.h.

Referenced by get_sr_document_type(), and kcenon::pacs::services::sop_class_registry::register_sr_sop_classes().

comprehensive_sr_storage_uid

std::string_view kcenon::pacs::services::sop_classes::comprehensive_sr_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.88.33"

Comprehensive SR Storage SOP Class UID.

Definition at line 46 of file sr_storage.h.

Referenced by get_recommended_sr_template(), get_sr_document_type(), and kcenon::pacs::services::sop_class_registry::register_sr_sop_classes().

ct_for_processing_image_storage_uid

std::string_view kcenon::pacs::services::sop_classes::ct_for_processing_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.2.2"

CT For Processing Image Storage SOP Class UID Multi-energy/spectral CT basis material decomposition images.

Definition at line 44 of file ct_storage.h.

Referenced by get_ct_storage_sop_classes(), is_ct_storage_sop_class(), kcenon::pacs::services::validation::ct_processing_iod_validator::quick_check(), and kcenon::pacs::services::validation::ct_processing_iod_validator::validate_sop_common_module().

ct_image_storage_uid

std::string_view kcenon::pacs::services::sop_classes::ct_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.2"

CT Image Storage SOP Class UID.

Definition at line 35 of file ct_storage.h.

Referenced by get_ct_storage_sop_classes(), and is_ct_storage_sop_class().

dx_image_storage_for_presentation_uid

std::string_view kcenon::pacs::services::sop_classes::dx_image_storage_for_presentation_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.1.1"

Digital X-Ray Image Storage - For Presentation SOP Class UID Used for images ready for display and clinical review.

Definition at line 44 of file dx_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_dx_sop_classes().

dx_image_storage_for_processing_uid

std::string_view kcenon::pacs::services::sop_classes::dx_image_storage_for_processing_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.1.1.1"

Digital X-Ray Image Storage - For Processing SOP Class UID Used for raw detector data requiring additional processing.

Definition at line 49 of file dx_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_dx_sop_classes().

emg_waveform_storage_uid

std::string_view kcenon::pacs::services::sop_classes::emg_waveform_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.9.7.2"

Electromyogram Waveform Storage SOP Class UID.

Definition at line 81 of file waveform_storage.h.

Referenced by get_waveform_type().

enhanced_ct_image_storage_uid

std::string_view kcenon::pacs::services::sop_classes::enhanced_ct_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.2.1"

Enhanced CT Image Storage SOP Class UID.

Definition at line 39 of file ct_storage.h.

Referenced by get_ct_storage_sop_classes(), and is_ct_storage_sop_class().

enhanced_mr_image_storage_uid

std::string_view kcenon::pacs::services::sop_classes::enhanced_mr_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.4.1"

Enhanced MR Image Storage SOP Class UID.

Definition at line 38 of file mr_storage.h.

Referenced by get_mr_storage_sop_classes(), and is_mr_storage_sop_class().

enhanced_pet_image_storage_uid

std::string_view kcenon::pacs::services::sop_classes::enhanced_pet_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.130"

Enhanced PET Image Storage SOP Class UID.

Definition at line 41 of file pet_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_pet_sop_classes().

enhanced_sr_storage_uid

std::string_view kcenon::pacs::services::sop_classes::enhanced_sr_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.88.22"

Enhanced SR Storage SOP Class UID.

Definition at line 42 of file sr_storage.h.

Referenced by get_recommended_sr_template(), get_sr_document_type(), and kcenon::pacs::services::sop_class_registry::register_sr_sop_classes().

enhanced_xa_image_storage_uid

std::string_view kcenon::pacs::services::sop_classes::enhanced_xa_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.12.1.1"

Enhanced XA Image Storage SOP Class UID (enhanced IOD)

Definition at line 51 of file xa_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_xa_sop_classes().

enhanced_xray_radiation_dose_sr_storage_uid

std::string_view kcenon::pacs::services::sop_classes::enhanced_xray_radiation_dose_sr_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.88.76"

Enhanced X-Ray Radiation Dose SR Storage SOP Class UID.

Definition at line 103 of file sr_storage.h.

Referenced by get_recommended_sr_template(), and get_sr_document_type().

eog_waveform_storage_uid

std::string_view kcenon::pacs::services::sop_classes::eog_waveform_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.9.7.3"

Electrooculogram Waveform Storage SOP Class UID.

Definition at line 85 of file waveform_storage.h.

Referenced by get_waveform_type().

extensible_sr_storage_uid

std::string_view kcenon::pacs::services::sop_classes::extensible_sr_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.88.35"

Extensible SR Storage SOP Class UID.

Definition at line 54 of file sr_storage.h.

Referenced by get_sr_document_type(), and kcenon::pacs::services::sop_class_registry::register_sr_sop_classes().

general_audio_waveform_storage_uid

std::string_view kcenon::pacs::services::sop_classes::general_audio_waveform_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.9.4.2"

General Audio Waveform Storage SOP Class UID.

Definition at line 61 of file waveform_storage.h.

Referenced by get_waveform_type().

general_ecg_storage_uid

std::string_view kcenon::pacs::services::sop_classes::general_ecg_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.9.1.2"

General ECG Waveform Storage SOP Class UID.

Definition at line 41 of file waveform_storage.h.

Referenced by get_waveform_type().

heightmap_segmentation_storage_uid

std::string_view kcenon::pacs::services::sop_classes::heightmap_segmentation_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.66.7"

Heightmap Segmentation Storage SOP Class UID (Supplement 240)

Definition at line 46 of file seg_storage.h.

Referenced by kcenon::pacs::services::validation::heightmap_seg_iod_validator::quick_check(), kcenon::pacs::services::sop_class_registry::register_seg_sop_classes(), and kcenon::pacs::services::validation::heightmap_seg_iod_validator::validate_sop_common_module().

hemodynamic_waveform_storage_uid

std::string_view kcenon::pacs::services::sop_classes::hemodynamic_waveform_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.9.2.1"

Hemodynamic Waveform Storage SOP Class UID.

Definition at line 49 of file waveform_storage.h.

Referenced by get_waveform_type().

intraoral_image_storage_for_presentation_uid

std::string_view kcenon::pacs::services::sop_classes::intraoral_image_storage_for_presentation_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.1.3"

Digital Intra-Oral X-Ray Image Storage - For Presentation.

Definition at line 71 of file dx_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_dx_sop_classes().

intraoral_image_storage_for_processing_uid

std::string_view kcenon::pacs::services::sop_classes::intraoral_image_storage_for_processing_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.1.3.1"

Digital Intra-Oral X-Ray Image Storage - For Processing.

Definition at line 75 of file dx_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_dx_sop_classes().

key_object_selection_document_storage_uid

std::string_view kcenon::pacs::services::sop_classes::key_object_selection_document_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.88.59"

Key Object Selection Document Storage SOP Class UID.

Definition at line 112 of file sr_storage.h.

Referenced by kcenon::pacs::services::xds::imaging_document_source::build_document_entry(), kcenon::pacs::services::xds::imaging_document_source::create_kos_document(), get_recommended_sr_template(), get_sr_document_type(), and kcenon::pacs::services::sop_class_registry::register_sr_sop_classes().

label_map_segmentation_storage_uid

std::string_view kcenon::pacs::services::sop_classes::label_map_segmentation_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.66.8"

Label Map Segmentation Storage SOP Class UID (Supplement 243)

Definition at line 50 of file seg_storage.h.

Referenced by kcenon::pacs::services::validation::label_map_seg_iod_validator::quick_check(), kcenon::pacs::services::sop_class_registry::register_seg_sop_classes(), and kcenon::pacs::services::validation::label_map_seg_iod_validator::validate_sop_common_module().

legacy_converted_enhanced_pet_image_storage_uid

std::string_view kcenon::pacs::services::sop_classes::legacy_converted_enhanced_pet_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.128.1"

Legacy Converted Enhanced PET Image Storage SOP Class UID.

Definition at line 45 of file pet_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_pet_sop_classes().

mammography_cad_sr_storage_uid

std::string_view kcenon::pacs::services::sop_classes::mammography_cad_sr_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.88.50"

Mammography CAD SR Storage SOP Class UID.

Definition at line 63 of file sr_storage.h.

Referenced by get_recommended_sr_template(), get_sr_document_type(), and kcenon::pacs::services::sop_class_registry::register_sr_sop_classes().

mammography_image_storage_for_presentation_uid

std::string_view kcenon::pacs::services::sop_classes::mammography_image_storage_for_presentation_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.1.2"

Digital Mammography X-Ray Image Storage - For Presentation.

Definition at line 58 of file dx_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_dx_sop_classes().

mammography_image_storage_for_processing_uid

std::string_view kcenon::pacs::services::sop_classes::mammography_image_storage_for_processing_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.1.2.1"

Digital Mammography X-Ray Image Storage - For Processing.

Definition at line 62 of file dx_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_dx_sop_classes().

mg_image_storage_for_presentation_uid

std::string_view kcenon::pacs::services::sop_classes::mg_image_storage_for_presentation_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.1.2"

Digital Mammography X-Ray Image Storage - For Presentation SOP Class UID.

Definition at line 46 of file mg_storage.h.

mg_image_storage_for_processing_uid

std::string_view kcenon::pacs::services::sop_classes::mg_image_storage_for_processing_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.1.2.1"

Digital Mammography X-Ray Image Storage - For Processing SOP Class UID.

Definition at line 50 of file mg_storage.h.

mr_image_storage_uid

std::string_view kcenon::pacs::services::sop_classes::mr_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.4"

MR Image Storage SOP Class UID.

Definition at line 34 of file mr_storage.h.

Referenced by get_mr_storage_sop_classes(), and is_mr_storage_sop_class().

multichannel_respiratory_waveform_storage_uid

std::string_view kcenon::pacs::services::sop_classes::multichannel_respiratory_waveform_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.9.6.2"

Multi-channel Respiratory Waveform Storage SOP Class UID.

Definition at line 73 of file waveform_storage.h.

Referenced by get_waveform_type().

nm_image_storage_retired_uid

std::string_view kcenon::pacs::services::sop_classes::nm_image_storage_retired_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.5"

Nuclear Medicine Image Storage (Retired) - for legacy systems.

Definition at line 46 of file nm_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_nm_sop_classes().

nm_image_storage_uid

std::string_view kcenon::pacs::services::sop_classes::nm_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.20"

Nuclear Medicine Image Storage SOP Class UID.

Definition at line 37 of file nm_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_nm_sop_classes().

ophthalmic_oct_bscan_analysis_storage_uid

std::string_view kcenon::pacs::services::sop_classes::ophthalmic_oct_bscan_analysis_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.77.1.5.8"

Ophthalmic Optical Coherence Tomography B-scan Volume Analysis Storage.

Definition at line 50 of file ophthalmic_storage.h.

Referenced by get_ophthalmic_storage_sop_classes(), is_ophthalmic_storage_sop_class(), kcenon::pacs::services::sop_class_registry::register_ophthalmic_sop_classes(), and kcenon::pacs::services::validation::ophthalmic_iod_validator::validate_multiframe_module().

ophthalmic_photo_16bit_storage_uid

std::string_view kcenon::pacs::services::sop_classes::ophthalmic_photo_16bit_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.77.1.5.2"

Ophthalmic Photography 16 Bit Image Storage.

Definition at line 38 of file ophthalmic_storage.h.

Referenced by get_ophthalmic_storage_sop_classes(), is_ophthalmic_storage_sop_class(), and kcenon::pacs::services::sop_class_registry::register_ophthalmic_sop_classes().

ophthalmic_photo_8bit_storage_uid

std::string_view kcenon::pacs::services::sop_classes::ophthalmic_photo_8bit_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.77.1.5.1"

Ophthalmic Photography 8 Bit Image Storage.

Definition at line 34 of file ophthalmic_storage.h.

Referenced by get_ophthalmic_storage_sop_classes(), is_ophthalmic_storage_sop_class(), and kcenon::pacs::services::sop_class_registry::register_ophthalmic_sop_classes().

ophthalmic_tomography_storage_uid

std::string_view kcenon::pacs::services::sop_classes::ophthalmic_tomography_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.77.1.5.4"

Ophthalmic Tomography Image Storage (OCT)

Definition at line 42 of file ophthalmic_storage.h.

Referenced by get_ophthalmic_storage_sop_classes(), is_ophthalmic_storage_sop_class(), kcenon::pacs::services::sop_class_registry::register_ophthalmic_sop_classes(), and kcenon::pacs::services::validation::ophthalmic_iod_validator::validate_multiframe_module().

parametric_map_storage_uid

std::string_view kcenon::pacs::services::sop_classes::parametric_map_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.30"

Parametric Map Storage SOP Class UID.

Definition at line 35 of file parametric_map_storage.h.

Referenced by get_parametric_map_sop_class_info(), get_parametric_map_storage_sop_classes(), is_parametric_map_storage_sop_class(), and kcenon::pacs::services::sop_class_registry::register_parametric_map_sop_classes().

patient_radiation_dose_sr_storage_uid

std::string_view kcenon::pacs::services::sop_classes::patient_radiation_dose_sr_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.88.73"

Patient Radiation Dose SR Storage SOP Class UID.

Definition at line 91 of file sr_storage.h.

Referenced by get_sr_document_type().

performed_imaging_agent_admin_sr_storage_uid

std::string_view kcenon::pacs::services::sop_classes::performed_imaging_agent_admin_sr_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.88.75"

Performed Imaging Agent Administration SR Storage SOP Class UID.

Definition at line 99 of file sr_storage.h.

pet_image_storage_uid

std::string_view kcenon::pacs::services::sop_classes::pet_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.128"

PET Image Storage SOP Class UID.

Definition at line 37 of file pet_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_pet_sop_classes().

planned_imaging_agent_admin_sr_storage_uid

std::string_view kcenon::pacs::services::sop_classes::planned_imaging_agent_admin_sr_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.88.74"

Planned Imaging Agent Administration SR Storage SOP Class UID.

Definition at line 95 of file sr_storage.h.

radiopharmaceutical_radiation_dose_sr_storage_uid

std::string_view kcenon::pacs::services::sop_classes::radiopharmaceutical_radiation_dose_sr_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.88.68"

Radiopharmaceutical Radiation Dose SR Storage SOP Class UID.

Definition at line 79 of file sr_storage.h.

Referenced by get_sr_document_type().

respiratory_waveform_storage_uid

std::string_view kcenon::pacs::services::sop_classes::respiratory_waveform_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.9.6.1"

Respiratory Waveform Storage SOP Class UID.

Definition at line 69 of file waveform_storage.h.

Referenced by get_waveform_type().

routine_scalp_eeg_storage_uid

std::string_view kcenon::pacs::services::sop_classes::routine_scalp_eeg_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.9.7.1"

Routine Scalp Electroencephalogram Waveform Storage SOP Class UID.

Definition at line 77 of file waveform_storage.h.

Referenced by get_waveform_type().

rt_beams_treatment_record_storage_uid

std::string_view kcenon::pacs::services::sop_classes::rt_beams_treatment_record_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.481.4"

RT Beams Treatment Record Storage SOP Class UID.

Definition at line 54 of file rt_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_rt_sop_classes().

rt_brachy_treatment_record_storage_uid

std::string_view kcenon::pacs::services::sop_classes::rt_brachy_treatment_record_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.481.6"

RT Brachy Treatment Record Storage SOP Class UID.

Definition at line 58 of file rt_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_rt_sop_classes().

rt_dose_storage_uid

std::string_view kcenon::pacs::services::sop_classes::rt_dose_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.481.2"

RT Dose Storage SOP Class UID.

Definition at line 42 of file rt_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_rt_sop_classes(), kcenon::pacs::services::validation::rt_iod_validator::validate(), and kcenon::pacs::services::validation::rt_dose_iod_validator::validate_sop_common_module().

rt_image_storage_uid

std::string_view kcenon::pacs::services::sop_classes::rt_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.481.1"

RT Image Storage SOP Class UID.

Definition at line 50 of file rt_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_rt_sop_classes().

rt_ion_beams_treatment_record_storage_uid

std::string_view kcenon::pacs::services::sop_classes::rt_ion_beams_treatment_record_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.481.9"

RT Ion Beams Treatment Record Storage SOP Class UID.

Definition at line 70 of file rt_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_rt_sop_classes().

rt_ion_plan_storage_uid

std::string_view kcenon::pacs::services::sop_classes::rt_ion_plan_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.481.8"

RT Ion Plan Storage SOP Class UID.

Definition at line 66 of file rt_storage.h.

Referenced by is_rt_plan_sop_class(), kcenon::pacs::services::sop_class_registry::register_rt_sop_classes(), and kcenon::pacs::services::validation::rt_iod_validator::validate().

rt_plan_storage_uid

std::string_view kcenon::pacs::services::sop_classes::rt_plan_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.481.5"

RT Plan Storage SOP Class UID.

Definition at line 38 of file rt_storage.h.

Referenced by is_rt_plan_sop_class(), kcenon::pacs::services::sop_class_registry::register_rt_sop_classes(), and kcenon::pacs::services::validation::rt_iod_validator::validate().

rt_structure_set_storage_uid

std::string_view kcenon::pacs::services::sop_classes::rt_structure_set_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.481.3"

RT Structure Set Storage SOP Class UID.

Definition at line 46 of file rt_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_rt_sop_classes(), kcenon::pacs::services::validation::rt_iod_validator::validate(), and kcenon::pacs::services::validation::rt_structure_set_iod_validator::validate_sop_common_module().

rt_treatment_summary_record_storage_uid

std::string_view kcenon::pacs::services::sop_classes::rt_treatment_summary_record_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.481.7"

RT Treatment Summary Record Storage SOP Class UID.

Definition at line 62 of file rt_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_rt_sop_classes().

segmentation_storage_uid

std::string_view kcenon::pacs::services::sop_classes::segmentation_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.66.4"

Segmentation Storage SOP Class UID.

Definition at line 38 of file seg_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_seg_sop_classes().

simplified_adult_echo_sr_storage_uid

std::string_view kcenon::pacs::services::sop_classes::simplified_adult_echo_sr_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.88.72"

Simplified Adult Echo SR Storage SOP Class UID.

Definition at line 87 of file sr_storage.h.

sleep_eeg_storage_uid

std::string_view kcenon::pacs::services::sop_classes::sleep_eeg_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.9.7.4"

Sleep Electroencephalogram Waveform Storage SOP Class UID.

Definition at line 89 of file waveform_storage.h.

Referenced by get_waveform_type().

surface_segmentation_storage_uid

std::string_view kcenon::pacs::services::sop_classes::surface_segmentation_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.66.5"

Surface Segmentation Storage SOP Class UID.

Definition at line 42 of file seg_storage.h.

Referenced by is_surface_segmentation_sop_class(), and kcenon::pacs::services::sop_class_registry::register_seg_sop_classes().

twelve_lead_ecg_storage_uid

std::string_view kcenon::pacs::services::sop_classes::twelve_lead_ecg_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.9.1.1"

12-lead ECG Waveform Storage SOP Class UID

Definition at line 37 of file waveform_storage.h.

Referenced by get_waveform_type().

us_image_storage_retired_uid

std::string_view kcenon::pacs::services::sop_classes::us_image_storage_retired_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.6"

US Image Storage (Retired) - for legacy systems.

Definition at line 52 of file us_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_us_sop_classes().

us_image_storage_uid

std::string_view kcenon::pacs::services::sop_classes::us_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.6.1"

US Image Storage SOP Class UID (single-frame)

Definition at line 39 of file us_storage.h.

Referenced by kcenon::pacs::integration_test::test_data_generator::patient_journey(), kcenon::pacs::services::sop_class_registry::register_us_sop_classes(), kcenon::pacs::integration_test::TEST_CASE(), and kcenon::pacs::integration_test::test_data_generator::us().

us_multiframe_image_storage_retired_uid

std::string_view kcenon::pacs::services::sop_classes::us_multiframe_image_storage_retired_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.3.1"

US Multi-frame Image Storage (Retired) - for legacy systems.

Definition at line 56 of file us_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_us_sop_classes().

us_multiframe_image_storage_uid

std::string_view kcenon::pacs::services::sop_classes::us_multiframe_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.6.2"

US Multi-frame Image Storage SOP Class UID (cine loops)

Definition at line 43 of file us_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_us_sop_classes(), kcenon::pacs::integration_test::TEST_CASE(), and kcenon::pacs::integration_test::test_data_generator::us_cine().

waveform_annotation_storage_uid

std::string_view kcenon::pacs::services::sop_classes::waveform_annotation_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.11.12"

Waveform Annotation Storage SOP Class UID.

Definition at line 106 of file waveform_storage.h.

Referenced by get_waveform_type(), and is_waveform_annotation_sop_class().

waveform_presentation_state_storage_uid

std::string_view kcenon::pacs::services::sop_classes::waveform_presentation_state_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.11.11"

Waveform Presentation State Storage SOP Class UID.

Definition at line 102 of file waveform_storage.h.

Referenced by get_waveform_type(), and is_waveform_presentation_state_sop_class().

wide_field_ophthalmic_photo_storage_uid

std::string_view kcenon::pacs::services::sop_classes::wide_field_ophthalmic_photo_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.77.1.5.7"

Wide Field Ophthalmic Photography SOP Class Storage.

Definition at line 46 of file ophthalmic_storage.h.

Referenced by get_ophthalmic_storage_sop_classes(), is_ophthalmic_storage_sop_class(), and kcenon::pacs::services::sop_class_registry::register_ophthalmic_sop_classes().

wsi_image_storage_uid

std::string_view kcenon::pacs::services::sop_classes::wsi_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.77.1.6"

VL Whole Slide Microscopy Image Storage SOP Class UID.

Definition at line 35 of file wsi_storage.h.

Referenced by get_wsi_storage_sop_classes(), is_wsi_storage_sop_class(), and kcenon::pacs::services::sop_class_registry::register_wsi_sop_classes().

xa_image_storage_uid

std::string_view kcenon::pacs::services::sop_classes::xa_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.12.1"

XA Image Storage SOP Class UID (single/multi-frame)

Definition at line 47 of file xa_storage.h.

Referenced by kcenon::pacs::integration_test::test_data_generator::patient_journey(), kcenon::pacs::services::sop_class_registry::register_xa_sop_classes(), kcenon::pacs::integration_test::TEST_CASE(), kcenon::pacs::integration_test::test_data_generator::xa(), and kcenon::pacs::integration_test::test_data_generator::xa_cine().

xray_3d_angiographic_image_storage_uid

std::string_view kcenon::pacs::services::sop_classes::xray_3d_angiographic_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.13.1.1"

X-Ray 3D Angiographic Image Storage SOP Class UID (3D rotational)

Definition at line 64 of file xa_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_xa_sop_classes().

xray_3d_craniofacial_image_storage_uid

std::string_view kcenon::pacs::services::sop_classes::xray_3d_craniofacial_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.13.1.2"

X-Ray 3D Craniofacial Image Storage SOP Class UID.

Definition at line 68 of file xa_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_xa_sop_classes().

xray_radiation_dose_sr_storage_uid

std::string_view kcenon::pacs::services::sop_classes::xray_radiation_dose_sr_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.88.67"

X-Ray Radiation Dose SR Storage SOP Class UID.

Definition at line 75 of file sr_storage.h.

Referenced by get_recommended_sr_template(), get_sr_document_type(), and kcenon::pacs::services::sop_class_registry::register_sr_sop_classes().

xrf_image_storage_uid

std::string_view kcenon::pacs::services::sop_classes::xrf_image_storage_uid

inlineconstexpr

Initial value:

=
    "1.2.840.10008.5.1.4.1.1.12.2"

XRF Image Storage SOP Class UID (X-Ray Radiofluoroscopic)

Definition at line 55 of file xa_storage.h.

Referenced by kcenon::pacs::services::sop_class_registry::register_xa_sop_classes().
