Namespaces
namespace	cid_manager_error

namespace	connection_error

namespace	flow_control_error
	Flow control error codes.

namespace	quic_version
	Well-known QUIC version numbers.

namespace	stream_error
	Stream error codes.

namespace	stream_flags
	STREAM frame type flags (bits 0-2 of type byte)

namespace	stream_id_type
	Stream ID type information.

namespace	transport_param_error
	Transport parameter error codes.

namespace	transport_param_id
	Transport parameter IDs as defined in RFC 9000 Section 18.2.

Classes
struct	ack_frame
	ACK frame (RFC 9000 Section 19.3) More...

struct	ack_range
	ACK Range for ACK frames. More...

class	congestion_controller
	QUIC congestion control (RFC 9002 Section 7) More...

class	connection
	QUIC connection state machine (RFC 9000 Section 5) More...

struct	connection_close_frame
	CONNECTION_CLOSE frame (RFC 9000 Section 19.19) More...

class	connection_id
	QUIC Connection ID (RFC 9000 Section 5.1) More...

struct	connection_id_entry
	Entry for storing a peer's connection ID with metadata. More...

class	connection_id_manager
	Manages peer connection IDs for QUIC connections (RFC 9000 Section 5.1) More...

struct	crypto_frame
	CRYPTO frame (RFC 9000 Section 19.6) More...

struct	data_blocked_frame
	DATA_BLOCKED frame (RFC 9000 Section 19.12) More...

struct	ecn_counts
	ECN counts for ACK_ECN frames. More...

class	ecn_tracker
	ECN (Explicit Congestion Notification) tracker (RFC 9000 Section 13.4, RFC 9002 Section 7.1) More...

struct	flow_control_stats
	Statistics for flow control monitoring. More...

class	flow_controller
	Connection-level flow control for QUIC (RFC 9000 Section 4) More...

class	frame_builder
	Builder for QUIC frames (RFC 9000 Section 12) More...

class	frame_parser
	Parser for QUIC frames (RFC 9000 Section 12) More...

struct	handshake_done_frame
	HANDSHAKE_DONE frame (RFC 9000 Section 19.20) More...

class	hkdf
	HKDF (HMAC-based Key Derivation Function) utilities (RFC 5869) More...

class	initial_keys
	Derives initial encryption keys from Destination Connection ID. More...

struct	key_pair
	A pair of read and write keys for bidirectional communication. More...

struct	long_header
	QUIC Long Header format (RFC 9000 Section 17.2) More...

struct	loss_detection_result
	Result of loss detection operations. More...

class	loss_detector
	QUIC loss detection (RFC 9002 Section 6) More...

struct	max_data_frame
	MAX_DATA frame (RFC 9000 Section 19.9) More...

struct	max_stream_data_frame
	MAX_STREAM_DATA frame (RFC 9000 Section 19.10) More...

struct	max_streams_frame
	MAX_STREAMS frame (RFC 9000 Section 19.11) More...

struct	new_connection_id_frame
	NEW_CONNECTION_ID frame (RFC 9000 Section 19.15) More...

struct	new_token_frame
	NEW_TOKEN frame (RFC 9000 Section 19.7) More...

class	packet_builder
	Builder for QUIC packet headers (RFC 9000 Section 17) More...

class	packet_number
	QUIC packet number utilities (RFC 9000 Section 17.1) More...

struct	packet_number_space
	State for each packet number space (Initial, Handshake, Application) More...

class	packet_parser
	Parser for QUIC packet headers (RFC 9000 Section 17) More...

class	packet_protection
	QUIC packet protection (encryption/decryption) (RFC 9001 Section 5) More...

struct	padding_frame
	PADDING frame (RFC 9000 Section 19.1) More...

struct	path_challenge_frame
	PATH_CHALLENGE frame (RFC 9000 Section 19.17) More...

struct	path_response_frame
	PATH_RESPONSE frame (RFC 9000 Section 19.18) More...

struct	ping_frame
	PING frame (RFC 9000 Section 19.2) More...

struct	pmtud_config
	Configuration for PMTUD controller. More...

class	pmtud_controller
	Path MTU Discovery controller for QUIC (RFC 8899 DPLPMTUD) More...

struct	preferred_address_info
	QUIC preferred address transport parameter (RFC 9000 Section 18.2) More...

class	quic_crypto
	QUIC-TLS integration handler (RFC 9001) More...

struct	quic_keys
	QUIC encryption keys for a single encryption level (RFC 9001 Section 5) More...

class	replay_filter
	Anti-replay protection for 0-RTT data. More...

struct	reset_stream_frame
	RESET_STREAM frame (RFC 9000 Section 19.4) More...

struct	retire_connection_id_frame
	RETIRE_CONNECTION_ID frame (RFC 9000 Section 19.16) More...

class	rtt_estimator
	RTT estimation for QUIC (RFC 9002 Section 5) More...

struct	sent_packet
	Information about a sent packet for loss detection (RFC 9002 Section A.1.1) More...

struct	sent_packet_info
	Information about a sent packet for loss detection. More...

struct	session_ticket_info
	Contains session ticket data for 0-RTT resumption. More...

class	session_ticket_store
	Thread-safe storage for QUIC session tickets. More...

struct	short_header
	QUIC Short Header format (RFC 9000 Section 17.3) More...

struct	stop_sending_frame
	STOP_SENDING frame (RFC 9000 Section 19.5) More...

class	stream
	QUIC stream implementation (RFC 9000 Sections 2-4) More...

struct	stream_data_blocked_frame
	STREAM_DATA_BLOCKED frame (RFC 9000 Section 19.13) More...

struct	stream_frame
	STREAM frame (RFC 9000 Section 19.8) More...

class	stream_manager
	Manages QUIC streams within a connection. More...

struct	streams_blocked_frame
	STREAMS_BLOCKED frame (RFC 9000 Section 19.14) More...

struct	transport_parameters
	QUIC transport parameters (RFC 9000 Section 18) More...

class	varint
	QUIC variable-length integer encoding/decoding (RFC 9000 Section 16) More...

Typedefs
using	frame
	Variant type holding any QUIC frame.

using	packet_header = std::variant<long_header, short_header>
	Variant type for packet headers.

Enumerations
enum class	congestion_state { slow_start , congestion_avoidance , recovery }
	States of the congestion controller (RFC 9002 Section 7) More...

enum class	connection_state { idle , handshaking , connected , closing , draining , closed }
	QUIC connection state (RFC 9000 Section 5) More...

enum class	handshake_state { initial , waiting_server_hello , waiting_finished , complete }
	TLS handshake state. More...

enum class	ecn_result { none , congestion_signal , ecn_failure }
	Result of ECN counts processing (RFC 9000 Section 13.4) More...

enum class	ecn_marking : uint8_t { not_ect = 0x00 , ect1 = 0x01 , ect0 = 0x02 , ecn_ce = 0x03 }
	ECN marking values for IP header (RFC 3168) More...

enum class	frame_type : uint64_t { padding = 0x00 , ping = 0x01 , ack = 0x02 , ack_ecn = 0x03 , reset_stream = 0x04 , stop_sending = 0x05 , crypto = 0x06 , new_token = 0x07 , stream_base = 0x08 , max_data = 0x10 , max_stream_data = 0x11 , max_streams_bidi = 0x12 , max_streams_uni = 0x13 , data_blocked = 0x14 , stream_data_blocked = 0x15 , streams_blocked_bidi = 0x16 , streams_blocked_uni = 0x17 , new_connection_id = 0x18 , retire_connection_id = 0x19 , path_challenge = 0x1a , path_response = 0x1b , connection_close = 0x1c , connection_close_app = 0x1d , handshake_done = 0x1e }
	QUIC frame types as defined in RFC 9000 Section 12.4. More...

enum class	encryption_level : uint8_t { initial = 0 , handshake = 1 , zero_rtt = 2 , application = 3 }
	QUIC encryption levels (RFC 9001 Section 4) More...

enum class	loss_detection_event { none , packet_lost , pto_expired }
	Events that can occur during loss detection. More...

enum class	packet_type : uint8_t { initial = 0x00 , zero_rtt = 0x01 , handshake = 0x02 , retry = 0x03 , one_rtt = 0xFF }
	QUIC packet types (RFC 9000 Section 17) More...

enum class	pmtud_state { disabled , base , searching , search_complete , error }
	States for DPLPMTUD state machine (RFC 8899 Section 5.2) More...

enum class	send_stream_state { ready , send , data_sent , reset_sent , reset_recvd , data_recvd }
	Stream state for sending (RFC 9000 Section 3.1) More...

enum class	recv_stream_state { recv , size_known , data_recvd , reset_recvd , data_read , reset_read }
	Stream state for receiving (RFC 9000 Section 3.2) More...

Functions
auto	congestion_state_to_string (congestion_state state) noexcept -> const char *
	Convert congestion state to string.

auto	connection_state_to_string (connection_state state) -> const char *
	Convert connection state to string.

auto	handshake_state_to_string (handshake_state state) -> const char *
	Convert handshake state to string.

auto	ecn_result_to_string (ecn_result result) noexcept -> const char *
	Convert ecn_result to string.

auto	get_flow_control_stats (const flow_controller &fc) -> flow_control_stats
	Get flow control statistics.

constexpr auto	is_stream_frame (uint64_t type) noexcept -> bool
	Check if a frame type value represents a STREAM frame.

constexpr auto	get_stream_flags (uint64_t type) noexcept -> uint8_t
	Extract STREAM flags from frame type.

constexpr auto	make_stream_type (bool has_fin, bool has_length, bool has_offset) noexcept -> uint8_t
	Build STREAM frame type from flags.

auto	get_frame_type (const frame &f) -> frame_type
	Get the frame type for a frame variant.

auto	frame_type_to_string (frame_type type) -> std::string
	Get string name for a frame type.

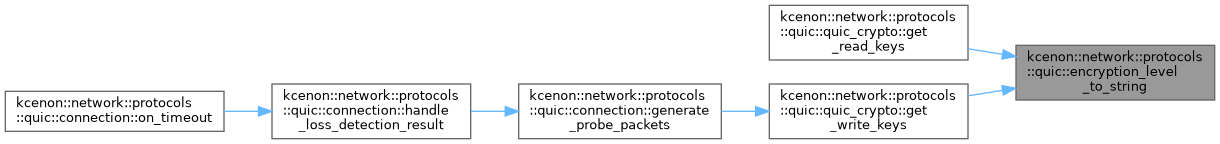

auto	encryption_level_to_string (encryption_level level) -> std::string
	Convert encryption level to string for debugging.

constexpr auto	encryption_level_count () noexcept -> size_t
	Get the encryption level count.

auto	packet_type_to_string (packet_type type) -> std::string
	Convert packet type to string for debugging.

auto	pmtud_state_to_string (pmtud_state state) noexcept -> const char *
	Convert PMTUD state to string.

auto	send_state_to_string (send_stream_state state) -> const char *
	Get string representation of send stream state.

auto	recv_state_to_string (recv_stream_state state) -> const char *
	Get string representation of receive stream state.

auto	make_default_client_params () -> transport_parameters
	Create default client transport parameters.

auto	make_default_server_params () -> transport_parameters
	Create default server transport parameters.

Variables
constexpr std::array< uint8_t, 20 >	initial_salt_v1
	QUIC version 1 initial salt (RFC 9001 Section 5.2)

constexpr std::array< uint8_t, 20 >	initial_salt_v2
	QUIC version 2 initial salt (RFC 9369)

constexpr size_t	aes_128_key_size = 16
	AES-128-GCM key size in bytes.

constexpr size_t	aes_256_key_size = 32
	AES-256-GCM key size in bytes.

constexpr size_t	aead_iv_size = 12
	AEAD IV/nonce size in bytes.

constexpr size_t	aead_tag_size = 16
	AEAD authentication tag size in bytes.

constexpr size_t	secret_size = 32
	Traffic secret size (SHA-256 output)

constexpr size_t	hp_key_size = 16
	Header protection key size for AES-128.

constexpr size_t	hp_sample_size = 16
	Header protection sample size.

constexpr uint64_t	varint_max = 4611686018427387903ULL
	Maximum value that can be encoded in QUIC variable-length integer.

Typedef Documentation

◆ frame

using kcenon::network::protocols::quic::frame

Initial value:

 std::variant<
    padding_frame,
    ping_frame,
    ack_frame,
    reset_stream_frame,
    stop_sending_frame,
    crypto_frame,
    new_token_frame,
    stream_frame,
    max_data_frame,
    max_stream_data_frame,
    max_streams_frame,
    data_blocked_frame,
    stream_data_blocked_frame,
    streams_blocked_frame,
    new_connection_id_frame,
    retire_connection_id_frame,
    path_challenge_frame,
    path_response_frame,
    connection_close_frame,
    handshake_done_frame
>

Variant type holding any QUIC frame.

Definition at line 366 of file frame_types.h.

◆ packet_header

using kcenon::network::protocols::quic::packet_header = std::variant<long_header, short_header>

Variant type for packet headers.

Definition at line 160 of file packet.h.

Enumeration Type Documentation

◆ congestion_state

enum class kcenon::network::protocols::quic::congestion_state

strong

States of the congestion controller (RFC 9002 Section 7)

Enumerator
slow_start	Exponential growth of cwnd.
congestion_avoidance	Linear growth of cwnd.
recovery	Congestion recovery after loss.

Definition at line 22 of file congestion_controller.h.

{
    slow_start,
    congestion_avoidance,
    recovery,
};

◆ connection_state

enum class kcenon::network::protocols::quic::connection_state

strong

QUIC connection state (RFC 9000 Section 5)

Enumerator
idle	Connection not yet started.
handshaking	TLS handshake in progress.
connected	Handshake complete, can send/receive data.
closing	CONNECTION_CLOSE sent, waiting for timeout.
draining	CONNECTION_CLOSE received, draining period.
closed	Connection terminated.

Definition at line 42 of file connection.h.

{
    idle,
    handshaking,
    connected,
    closing,
    draining,
    closed,
};

◆ ecn_marking

enum class kcenon::network::protocols::quic::ecn_marking : uint8_t

strong

ECN marking values for IP header (RFC 3168)

Enumerator
not_ect	Not ECN-Capable Transport.
ect1	ECN Capable Transport (1)
ect0	ECN Capable Transport (0)
ecn_ce	Congestion Experienced.

Definition at line 35 of file ecn_tracker.h.

{
    not_ect = 0x00,
    ect1 = 0x01,
    ect0 = 0x02,
    ecn_ce = 0x03,
};

◆ ecn_result

enum class kcenon::network::protocols::quic::ecn_result

strong

Result of ECN counts processing (RFC 9000 Section 13.4)

Enumerator
none	No congestion signal.
congestion_signal	ECN-CE increased (congestion experienced)
ecn_failure	ECN validation failed, should disable ECN.

Definition at line 19 of file ecn_tracker.h.

{
    none,
    congestion_signal,
    ecn_failure,
};

◆ encryption_level

enum class kcenon::network::protocols::quic::encryption_level : uint8_t

strong

QUIC encryption levels (RFC 9001 Section 4)

QUIC uses four encryption levels, each with different key material:

Initial: Keys derived from Destination Connection ID
Handshake: Keys from TLS handshake
Zero-RTT (0-RTT): Early data keys (optional)
Application (1-RTT): Post-handshake keys

Enumerator
initial	Initial encryption (derived from DCID)
handshake	Handshake encryption.
zero_rtt	0-RTT early data encryption
application	1-RTT application data encryption

Definition at line 53 of file keys.h.

{
    initial = 0,
    handshake = 1,
    zero_rtt = 2,
    application = 3
};

◆ frame_type

enum class kcenon::network::protocols::quic::frame_type : uint64_t

strong

QUIC frame types as defined in RFC 9000 Section 12.4.

Frame types indicate which fields are present in a frame. Some frame types use the low-order bits to encode specific flags.

Enumerator
padding
ping
ack
ack_ecn
reset_stream
stop_sending
crypto
new_token
stream_base
max_data
max_stream_data
max_streams_bidi
max_streams_uni
data_blocked
stream_data_blocked
streams_blocked_bidi
streams_blocked_uni
new_connection_id
retire_connection_id
path_challenge
path_response
connection_close
connection_close_app
handshake_done

Definition at line 24 of file frame_types.h.

{
    padding = 0x00,
    ping = 0x01,
    ack = 0x02,
    ack_ecn = 0x03,
    reset_stream = 0x04,
    stop_sending = 0x05,
    crypto = 0x06,
    new_token = 0x07,
    // STREAM frames: 0x08-0x0f (use stream_base and flags)
    stream_base = 0x08,
    max_data = 0x10,
    max_stream_data = 0x11,
    max_streams_bidi = 0x12,
    max_streams_uni = 0x13,
    data_blocked = 0x14,
    stream_data_blocked = 0x15,
    streams_blocked_bidi = 0x16,
    streams_blocked_uni = 0x17,
    new_connection_id = 0x18,
    retire_connection_id = 0x19,
    path_challenge = 0x1a,
    path_response = 0x1b,
    connection_close = 0x1c,
    connection_close_app = 0x1d,
    handshake_done = 0x1e,
};

◆ handshake_state

enum class kcenon::network::protocols::quic::handshake_state

strong

TLS handshake state.

Enumerator
initial	Not started.
waiting_server_hello	Client waiting for ServerHello.
waiting_finished	Waiting for peer's Finished.
complete	Handshake complete.

Definition at line 55 of file connection.h.

{
    initial,
    waiting_server_hello,
    waiting_finished,
    complete,
};

◆ loss_detection_event

enum class kcenon::network::protocols::quic::loss_detection_event

strong

Events that can occur during loss detection.

Enumerator
none	No event.
packet_lost	Packet(s) declared lost.
pto_expired	Probe timeout expired.

Definition at line 53 of file loss_detector.h.

{
    none,
    packet_lost,
    pto_expired,
};

◆ packet_type

enum class kcenon::network::protocols::quic::packet_type : uint8_t

strong

QUIC packet types (RFC 9000 Section 17)

Long header packets (used during handshake):

Initial (0x00): First handshake packet
Zero-RTT (0x01): Early data (0-RTT)
Handshake (0x02): Handshake continuation
Retry (0x03): Address validation token

Short header packets (used after handshake):

One-RTT: Minimal header for application data

Enumerator
initial
zero_rtt
handshake
retry
one_rtt

Definition at line 54 of file packet.h.

{
    initial = 0x00,
    zero_rtt = 0x01,
    handshake = 0x02,
    retry = 0x03,
    one_rtt = 0xFF,  // Special marker for short header packets
};

◆ pmtud_state

enum class kcenon::network::protocols::quic::pmtud_state

strong

States for DPLPMTUD state machine (RFC 8899 Section 5.2)

Enumerator
disabled	PMTUD is disabled.
base	Using BASE_PLPMTU (minimum MTU)
searching	Binary search for larger MTU.
search_complete	Maximum MTU found and validated.
error	Black hole detected, reset to base.

Definition at line 18 of file pmtud_controller.h.

{
    disabled,
    base,
    searching,
    search_complete,
    error,
};

◆ recv_stream_state

enum class kcenon::network::protocols::quic::recv_stream_state

strong

Stream state for receiving (RFC 9000 Section 3.2)

Enumerator
recv	Receiving data.
size_known	FIN received, final size known.
data_recvd	All data received.
reset_recvd	RESET_STREAM received.
data_read	All data read by application (terminal)
reset_read	Reset acknowledged by application (terminal)

Definition at line 114 of file stream.h.

{
    recv,
    size_known,
    data_recvd,
    reset_recvd,
    data_read,
    reset_read,
};

◆ send_stream_state

enum class kcenon::network::protocols::quic::send_stream_state

strong

Stream state for sending (RFC 9000 Section 3.1)

Enumerator
ready	Stream is ready, can send data.
send	Sending data.
data_sent	All data sent, awaiting ACKs.
reset_sent	RESET_STREAM sent.
reset_recvd	Reset acknowledged by peer (terminal)
data_recvd	All data acknowledged (terminal)

Definition at line 101 of file stream.h.

{
    ready,
    send,
    data_sent,
    reset_sent,
    reset_recvd,
    data_recvd,
};

Function Documentation

◆ congestion_state_to_string()

auto kcenon::network::protocols::quic::congestion_state_to_string ( congestion_state state ) -> const char*

nodiscardnoexcept

Convert congestion state to string.

Definition at line 13 of file congestion_controller.cpp.

{
    switch (state)
    {
    case congestion_state::slow_start:
        return "slow_start";
    case congestion_state::congestion_avoidance:
        return "congestion_avoidance";
    case congestion_state::recovery:
        return "recovery";
    default:
        return "unknown";
    }
}

References congestion_avoidance, recovery, and slow_start.

◆ connection_state_to_string()

auto kcenon::network::protocols::quic::connection_state_to_string ( connection_state state ) -> const char*

nodiscard

Convert connection state to string.

Definition at line 21 of file connection.cpp.

{
    switch (state)
    {
    case connection_state::idle:
        return "idle";
    case connection_state::handshaking:
        return "handshaking";
    case connection_state::connected:
        return "connected";
    case connection_state::closing:
        return "closing";
    case connection_state::draining:
        return "draining";
    case connection_state::closed:
        return "closed";
    default:
        return "unknown";
    }
}

References closed, closing, connected, draining, handshaking, and idle.

Referenced by kcenon::network::protocols::quic::connection::receive_packet().

Here is the caller graph for this function:

◆ ecn_result_to_string()

auto kcenon::network::protocols::quic::ecn_result_to_string ( ecn_result result ) -> const char*

nodiscardnoexcept

Convert ecn_result to string.

Definition at line 10 of file ecn_tracker.cpp.

{
    switch (result)
    {
    case ecn_result::none:
        return "none";
    case ecn_result::congestion_signal:
        return "congestion_signal";
    case ecn_result::ecn_failure:
        return "ecn_failure";
    default:
        return "unknown";
    }
}

References congestion_signal, ecn_failure, and none.

◆ encryption_level_count()

auto kcenon::network::protocols::quic::encryption_level_count ( ) -> size_t

nodiscardconstexprnoexcept

Get the encryption level count.

Returns: Number of encryption levels (4)

Definition at line 72 of file keys.h.

{
    return 4;
}

◆ encryption_level_to_string()

auto kcenon::network::protocols::quic::encryption_level_to_string ( encryption_level level ) -> std::string

nodiscard

Convert encryption level to string for debugging.

Parameters

level Encryption level to convert

Returns: String representation of the level

Definition at line 13 of file keys.cpp.

{
    switch (level)
    {
        case encryption_level::initial:
            return "Initial";
        case encryption_level::handshake:
            return "Handshake";
        case encryption_level::zero_rtt:
            return "0-RTT";
        case encryption_level::application:
            return "Application";
        default:
            return "Unknown";
    }
}

References application, handshake, initial, and zero_rtt.

Referenced by kcenon::network::protocols::quic::quic_crypto::get_read_keys(), and kcenon::network::protocols::quic::quic_crypto::get_write_keys().

Here is the caller graph for this function:

◆ frame_type_to_string()

auto kcenon::network::protocols::quic::frame_type_to_string ( frame_type type ) -> std::string

nodiscard

Get string name for a frame type.

Definition at line 80 of file frame.cpp.

{
    switch (type)
    {
        case frame_type::padding: return "PADDING";
        case frame_type::ping: return "PING";
        case frame_type::ack: return "ACK";
        case frame_type::ack_ecn: return "ACK_ECN";
        case frame_type::reset_stream: return "RESET_STREAM";
        case frame_type::stop_sending: return "STOP_SENDING";
        case frame_type::crypto: return "CRYPTO";
        case frame_type::new_token: return "NEW_TOKEN";
        case frame_type::stream_base: return "STREAM";
        case frame_type::max_data: return "MAX_DATA";
        case frame_type::max_stream_data: return "MAX_STREAM_DATA";
        case frame_type::max_streams_bidi: return "MAX_STREAMS_BIDI";
        case frame_type::max_streams_uni: return "MAX_STREAMS_UNI";
        case frame_type::data_blocked: return "DATA_BLOCKED";
        case frame_type::stream_data_blocked: return "STREAM_DATA_BLOCKED";
        case frame_type::streams_blocked_bidi: return "STREAMS_BLOCKED_BIDI";
        case frame_type::streams_blocked_uni: return "STREAMS_BLOCKED_UNI";
        case frame_type::new_connection_id: return "NEW_CONNECTION_ID";
        case frame_type::retire_connection_id: return "RETIRE_CONNECTION_ID";
        case frame_type::path_challenge: return "PATH_CHALLENGE";
        case frame_type::path_response: return "PATH_RESPONSE";
        case frame_type::connection_close: return "CONNECTION_CLOSE";
        case frame_type::connection_close_app: return "CONNECTION_CLOSE_APP";
        case frame_type::handshake_done: return "HANDSHAKE_DONE";
        default: return "UNKNOWN";
    }
}

References ack, ack_ecn, connection_close, connection_close_app, crypto, data_blocked, handshake_done, max_data, max_stream_data, max_streams_bidi, max_streams_uni, new_connection_id, new_token, padding, path_challenge, path_response, ping, reset_stream, retire_connection_id, stop_sending, stream_base, stream_data_blocked, streams_blocked_bidi, and streams_blocked_uni.

◆ get_flow_control_stats()

auto kcenon::network::protocols::quic::get_flow_control_stats ( const flow_controller & fc ) -> flow_control_stats

nodiscard

Get flow control statistics.

Parameters

fc	Flow controller to query

Returns: Flow control statistics

Definition at line 174 of file flow_control.cpp.

{
    flow_control_stats stats;

    // Send side
    stats.send_limit = fc.send_limit();
    stats.bytes_sent = fc.bytes_sent();
    stats.send_window_available = fc.available_send_window();
    stats.send_blocked = fc.is_send_blocked();

    // Receive side
    stats.receive_limit = fc.receive_limit();
    stats.bytes_received = fc.bytes_received();
    stats.bytes_consumed = fc.bytes_consumed();
    stats.receive_window_available = fc.receive_limit() - fc.bytes_received();

    return stats;
}

◆ get_frame_type()

auto kcenon::network::protocols::quic::get_frame_type ( const frame & f ) -> frame_type

nodiscard

Get the frame type for a frame variant.

Definition at line 28 of file frame.cpp.

{
    return std::visit([](const auto& fr) -> frame_type {
        using T = std::decay_t<decltype(fr)>;
        if constexpr (std::is_same_v<T, padding_frame>)
            return frame_type::padding;
        else if constexpr (std::is_same_v<T, ping_frame>)
            return frame_type::ping;
        else if constexpr (std::is_same_v<T, ack_frame>)
            return fr.ecn ? frame_type::ack_ecn : frame_type::ack;
        else if constexpr (std::is_same_v<T, reset_stream_frame>)
            return frame_type::reset_stream;
        else if constexpr (std::is_same_v<T, stop_sending_frame>)
            return frame_type::stop_sending;
        else if constexpr (std::is_same_v<T, crypto_frame>)
            return frame_type::crypto;
        else if constexpr (std::is_same_v<T, new_token_frame>)
            return frame_type::new_token;
        else if constexpr (std::is_same_v<T, stream_frame>)
            return frame_type::stream_base;
        else if constexpr (std::is_same_v<T, max_data_frame>)
            return frame_type::max_data;
        else if constexpr (std::is_same_v<T, max_stream_data_frame>)
            return frame_type::max_stream_data;
        else if constexpr (std::is_same_v<T, max_streams_frame>)
            return fr.bidirectional ? frame_type::max_streams_bidi
                                    : frame_type::max_streams_uni;
        else if constexpr (std::is_same_v<T, data_blocked_frame>)
            return frame_type::data_blocked;
        else if constexpr (std::is_same_v<T, stream_data_blocked_frame>)
            return frame_type::stream_data_blocked;
        else if constexpr (std::is_same_v<T, streams_blocked_frame>)
            return fr.bidirectional ? frame_type::streams_blocked_bidi
                                    : frame_type::streams_blocked_uni;
        else if constexpr (std::is_same_v<T, new_connection_id_frame>)
            return frame_type::new_connection_id;
        else if constexpr (std::is_same_v<T, retire_connection_id_frame>)
            return frame_type::retire_connection_id;
        else if constexpr (std::is_same_v<T, path_challenge_frame>)
            return frame_type::path_challenge;
        else if constexpr (std::is_same_v<T, path_response_frame>)
            return frame_type::path_response;
        else if constexpr (std::is_same_v<T, connection_close_frame>)
            return fr.is_application_error ? frame_type::connection_close_app
                                           : frame_type::connection_close;
        else if constexpr (std::is_same_v<T, handshake_done_frame>)
            return frame_type::handshake_done;
        else
            return frame_type::padding;
    }, f);
}

References ack, ack_ecn, connection_close, connection_close_app, crypto, data_blocked, handshake_done, max_data, max_stream_data, max_streams_bidi, max_streams_uni, new_connection_id, new_token, padding, path_challenge, path_response, ping, reset_stream, retire_connection_id, stop_sending, stream_base, stream_data_blocked, streams_blocked_bidi, and streams_blocked_uni.

◆ get_stream_flags()

auto kcenon::network::protocols::quic::get_stream_flags ( uint64_t type ) -> uint8_t

nodiscardconstexprnoexcept

Extract STREAM flags from frame type.

Definition at line 81 of file frame_types.h.

{
    return static_cast<uint8_t>(type & stream_flags::mask);
}

References kcenon::network::protocols::quic::stream_flags::mask.

Referenced by kcenon::network::protocols::quic::frame_parser::parse().

Here is the caller graph for this function:

◆ handshake_state_to_string()

auto kcenon::network::protocols::quic::handshake_state_to_string ( handshake_state state ) -> const char*

nodiscard

Convert handshake state to string.

Definition at line 42 of file connection.cpp.

{
    switch (state)
    {
    case handshake_state::initial:
        return "initial";
    case handshake_state::waiting_server_hello:
        return "waiting_server_hello";
    case handshake_state::waiting_finished:
        return "waiting_finished";
    case handshake_state::complete:
        return "complete";
    default:
        return "unknown";
    }
}

References complete, initial, waiting_finished, and waiting_server_hello.

◆ is_stream_frame()

auto kcenon::network::protocols::quic::is_stream_frame ( uint64_t type ) -> bool

nodiscardconstexprnoexcept

Check if a frame type value represents a STREAM frame.

Definition at line 73 of file frame_types.h.

{
    return (type >= 0x08 && type <= 0x0f);
}

Referenced by kcenon::network::protocols::quic::frame_parser::parse().

Here is the caller graph for this function:

◆ make_default_client_params()

auto kcenon::network::protocols::quic::make_default_client_params ( ) -> transport_parameters

nodiscard

Create default client transport parameters.

Returns: Transport parameters with reasonable defaults for a client

Definition at line 640 of file transport_params.cpp.

{
    transport_parameters params;

    // Set reasonable defaults for a client
    params.max_idle_timeout = 30000;  // 30 seconds
    params.max_udp_payload_size = 65527;
    params.initial_max_data = 1048576;  // 1 MB
    params.initial_max_stream_data_bidi_local = 262144;  // 256 KB
    params.initial_max_stream_data_bidi_remote = 262144;
    params.initial_max_stream_data_uni = 262144;
    params.initial_max_streams_bidi = 100;
    params.initial_max_streams_uni = 100;
    params.ack_delay_exponent = 3;
    params.max_ack_delay = 25;
    params.active_connection_id_limit = 8;

    return params;
}

Referenced by kcenon::network::protocols::quic::connection::connection().

Here is the caller graph for this function:

◆ make_default_server_params()

auto kcenon::network::protocols::quic::make_default_server_params ( ) -> transport_parameters

nodiscard

Create default server transport parameters.

Returns: Transport parameters with reasonable defaults for a server

Definition at line 660 of file transport_params.cpp.

{
    transport_parameters params;

    // Set reasonable defaults for a server
    params.max_idle_timeout = 30000;  // 30 seconds
    params.max_udp_payload_size = 65527;
    params.initial_max_data = 1048576;  // 1 MB
    params.initial_max_stream_data_bidi_local = 262144;  // 256 KB
    params.initial_max_stream_data_bidi_remote = 262144;
    params.initial_max_stream_data_uni = 262144;
    params.initial_max_streams_bidi = 100;
    params.initial_max_streams_uni = 100;
    params.ack_delay_exponent = 3;
    params.max_ack_delay = 25;
    params.active_connection_id_limit = 8;

    return params;
}

Referenced by kcenon::network::protocols::quic::connection::connection().

Here is the caller graph for this function:

◆ make_stream_type()

auto kcenon::network::protocols::quic::make_stream_type	(	bool	has_fin,
		bool	has_length,
		bool	has_offset ) -> uint8_t

nodiscardconstexprnoexcept

Build STREAM frame type from flags.

Definition at line 89 of file frame_types.h.

{
    uint8_t type = stream_flags::base;
    if (has_fin) type |= stream_flags::fin;
    if (has_length) type |= stream_flags::len;
    if (has_offset) type |= stream_flags::off;
    return type;
}

References kcenon::network::protocols::quic::stream_flags::base, kcenon::network::protocols::quic::stream_flags::fin, kcenon::network::protocols::quic::stream_flags::len, and kcenon::network::protocols::quic::stream_flags::off.

Referenced by kcenon::network::protocols::quic::frame_builder::build_stream().

Here is the caller graph for this function:

◆ packet_type_to_string()

auto kcenon::network::protocols::quic::packet_type_to_string ( packet_type type ) -> std::string

nodiscard

Convert packet type to string for debugging.

Definition at line 43 of file packet.cpp.

{
    switch (type)
    {
        case packet_type::initial: return "Initial";
        case packet_type::zero_rtt: return "0-RTT";
        case packet_type::handshake: return "Handshake";
        case packet_type::retry: return "Retry";
        case packet_type::one_rtt: return "1-RTT";
        default: return "Unknown";
    }
}

References handshake, initial, one_rtt, retry, and zero_rtt.

◆ pmtud_state_to_string()

auto kcenon::network::protocols::quic::pmtud_state_to_string ( pmtud_state state ) -> const char*

nodiscardnoexcept

Convert PMTUD state to string.

Definition at line 12 of file pmtud_controller.cpp.

{
    switch (state)
    {
    case pmtud_state::disabled:
        return "disabled";
    case pmtud_state::base:
        return "base";
    case pmtud_state::searching:
        return "searching";
    case pmtud_state::search_complete:
        return "search_complete";
    case pmtud_state::error:
        return "error";
    }
    return "unknown";
}

References base, disabled, error, search_complete, and searching.

◆ recv_state_to_string()

auto kcenon::network::protocols::quic::recv_state_to_string ( recv_stream_state state ) -> const char*

nodiscard

Get string representation of receive stream state.

Definition at line 498 of file stream.cpp.

{
    switch (state) {
        case recv_stream_state::recv:        return "recv";
        case recv_stream_state::size_known:  return "size_known";
        case recv_stream_state::data_recvd:  return "data_recvd";
        case recv_stream_state::reset_recvd: return "reset_recvd";
        case recv_stream_state::data_read:   return "data_read";
        case recv_stream_state::reset_read:  return "reset_read";
        default:                              return "unknown";
    }
}

References data_read, data_recvd, recv, reset_read, reset_recvd, and size_known.

◆ send_state_to_string()

auto kcenon::network::protocols::quic::send_state_to_string ( send_stream_state state ) -> const char*

nodiscard

Get string representation of send stream state.

Definition at line 485 of file stream.cpp.

{
    switch (state) {
        case send_stream_state::ready:       return "ready";
        case send_stream_state::send:        return "send";
        case send_stream_state::data_sent:   return "data_sent";
        case send_stream_state::reset_sent:  return "reset_sent";
        case send_stream_state::reset_recvd: return "reset_recvd";
        case send_stream_state::data_recvd:  return "data_recvd";
        default:                              return "unknown";
    }
}

References data_recvd, data_sent, ready, reset_recvd, reset_sent, and send.

Variable Documentation

◆ aead_iv_size

size_t kcenon::network::protocols::quic::aead_iv_size = 12

constexpr

AEAD IV/nonce size in bytes.

Definition at line 25 of file keys.h.

Referenced by kcenon::network::protocols::quic::initial_keys::derive_keys(), and kcenon::network::protocols::quic::packet_protection::make_nonce().

◆ aead_tag_size

size_t kcenon::network::protocols::quic::aead_tag_size = 16

constexpr

AEAD authentication tag size in bytes.

Definition at line 28 of file keys.h.

Referenced by kcenon::network::protocols::quic::packet_protection::protect(), and kcenon::network::protocols::quic::packet_protection::unprotect().

◆ aes_128_key_size

size_t kcenon::network::protocols::quic::aes_128_key_size = 16

constexpr

AES-128-GCM key size in bytes.

Definition at line 19 of file keys.h.

Referenced by kcenon::network::protocols::quic::initial_keys::derive_keys().

◆ aes_256_key_size

size_t kcenon::network::protocols::quic::aes_256_key_size = 32

constexpr

AES-256-GCM key size in bytes.

Definition at line 22 of file keys.h.

◆ hp_key_size

size_t kcenon::network::protocols::quic::hp_key_size = 16

constexpr

Header protection key size for AES-128.

Definition at line 34 of file keys.h.

Referenced by kcenon::network::protocols::quic::initial_keys::derive_keys().

◆ hp_sample_size

size_t kcenon::network::protocols::quic::hp_sample_size = 16

constexpr

Header protection sample size.

Definition at line 37 of file keys.h.

Referenced by kcenon::network::protocols::quic::packet_protection::generate_hp_mask(), and kcenon::network::internal::quic_socket::handle_packet().

◆ initial_salt_v1

std::array<uint8_t, 20> kcenon::network::protocols::quic::initial_salt_v1

constexpr

Initial value:

= {
    0x38, 0x76, 0x2c, 0xf7, 0xf5, 0x59, 0x34, 0xb3, 0x4d, 0x17,
    0x9a, 0xe6, 0xa4, 0xc8, 0x0c, 0xad, 0xcc, 0xbb, 0x7f, 0x0a
}

QUIC version 1 initial salt (RFC 9001 Section 5.2)

This salt is used to derive the initial secrets from the Destination Connection ID. It is a fixed value defined in the RFC.

Definition at line 36 of file crypto.h.

                                                  {
    0x38, 0x76, 0x2c, 0xf7, 0xf5, 0x59, 0x34, 0xb3, 0x4d, 0x17,
    0x9a, 0xe6, 0xa4, 0xc8, 0x0c, 0xad, 0xcc, 0xbb, 0x7f, 0x0a
};

Referenced by kcenon::network::protocols::quic::initial_keys::derive(), and kcenon::network::protocols::quic::quic_crypto::derive_zero_rtt_keys().

◆ initial_salt_v2

std::array<uint8_t, 20> kcenon::network::protocols::quic::initial_salt_v2

constexpr

Initial value:

= {
    0x0d, 0xed, 0xe3, 0xde, 0xf7, 0x00, 0xa6, 0xdb, 0x81, 0x93,
    0x81, 0xbe, 0x6e, 0x26, 0x9d, 0xcb, 0xf9, 0xbd, 0x2e, 0xd9
}

QUIC version 2 initial salt (RFC 9369)

Definition at line 44 of file crypto.h.

                                                  {
    0x0d, 0xed, 0xe3, 0xde, 0xf7, 0x00, 0xa6, 0xdb, 0x81, 0x93,
    0x81, 0xbe, 0x6e, 0x26, 0x9d, 0xcb, 0xf9, 0xbd, 0x2e, 0xd9
};

Referenced by kcenon::network::protocols::quic::initial_keys::derive().

◆ secret_size

size_t kcenon::network::protocols::quic::secret_size = 32

constexpr

Traffic secret size (SHA-256 output)

Definition at line 31 of file keys.h.

Referenced by kcenon::network::protocols::quic::initial_keys::derive(), kcenon::network::protocols::quic::quic_crypto::derive_zero_rtt_keys(), and kcenon::network::protocols::quic::quic_crypto::update_keys().

◆ varint_max

uint64_t kcenon::network::protocols::quic::varint_max = 4611686018427387903ULL

constexpr

Maximum value that can be encoded in QUIC variable-length integer.

This is 2^62 - 1, the maximum 62-bit unsigned integer.

Definition at line 21 of file varint.h.

Referenced by kcenon::network::protocols::quic::varint::encode(), kcenon::network::protocols::quic::varint::encode_with_length(), and kcenon::network::protocols::quic::varint::is_valid().

Namespaces

Classes

Typedefs

Enumerations

Functions

Variables

Typedef Documentation

◆ frame

◆ packet_header

Enumeration Type Documentation

◆ congestion_state

◆ connection_state

◆ ecn_marking

◆ ecn_result

◆ encryption_level

◆ frame_type

◆ handshake_state

◆ loss_detection_event

◆ packet_type

◆ pmtud_state

◆ recv_stream_state

◆ send_stream_state

Function Documentation

◆ congestion_state_to_string()

◆ connection_state_to_string()

◆ ecn_result_to_string()

◆ encryption_level_count()

◆ encryption_level_to_string()

◆ frame_type_to_string()

◆ get_flow_control_stats()

◆ get_frame_type()

◆ get_stream_flags()

◆ handshake_state_to_string()

◆ is_stream_frame()

◆ make_default_client_params()

◆ make_default_server_params()

◆ make_stream_type()

◆ packet_type_to_string()

◆ pmtud_state_to_string()

◆ recv_state_to_string()

◆ send_state_to_string()

Variable Documentation

◆ aead_iv_size

◆ aead_tag_size

◆ aes_128_key_size

◆ aes_256_key_size

◆ hp_key_size

◆ hp_sample_size

◆ initial_salt_v1

◆ initial_salt_v2

◆ secret_size

◆ varint_max
