Connection-level flow control for QUIC (RFC 9000 Section 4) More...

#include <flow_control.h>

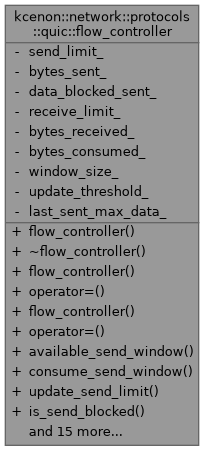

Collaboration diagram for kcenon::network::protocols::quic::flow_controller:

Public Member Functions
	flow_controller (uint64_t initial_window=1048576)
	Construct a flow controller.

	~flow_controller ()=default

	flow_controller (const flow_controller &)=default

auto	operator= (const flow_controller &) -> flow_controller &=default

	flow_controller (flow_controller &&) noexcept=default

auto	operator= (flow_controller &&) noexcept -> flow_controller &=default

auto	available_send_window () const noexcept -> uint64_t
	Get available send window.

auto	consume_send_window (uint64_t bytes) -> VoidResult
	Try to consume send window for outgoing data.

void	update_send_limit (uint64_t max_data)
	Update the send limit (from peer's MAX_DATA)

auto	is_send_blocked () const noexcept -> bool
	Check if send is blocked.

auto	send_limit () const noexcept -> uint64_t
	Get the current send limit (peer's MAX_DATA)

auto	bytes_sent () const noexcept -> uint64_t
	Get total bytes sent.

auto	record_received (uint64_t bytes) -> VoidResult
	Record received data.

void	record_consumed (uint64_t bytes)
	Record data consumed by application.

auto	receive_limit () const noexcept -> uint64_t
	Get our receive limit (advertised as MAX_DATA)

auto	bytes_received () const noexcept -> uint64_t
	Get total bytes received.

auto	bytes_consumed () const noexcept -> uint64_t
	Get bytes consumed by application.

auto	should_send_max_data () const noexcept -> bool
	Check if MAX_DATA frame should be sent.

auto	generate_max_data () -> std::optional< uint64_t >
	Generate MAX_DATA value if update needed.

auto	should_send_data_blocked () const noexcept -> bool
	Check if DATA_BLOCKED frame should be sent.

void	mark_data_blocked_sent ()
	Mark DATA_BLOCKED as sent (to avoid repeated sending)

void	set_window_size (uint64_t window)
	Set the window size for auto-tuning.

auto	window_size () const noexcept -> uint64_t
	Get the current window size.

void	set_update_threshold (double threshold)
	Set the threshold for sending MAX_DATA updates (0.0 - 1.0)

void	reset (uint64_t initial_window)
	Reset flow controller state.

Private Attributes
uint64_t	send_limit_ {0}

uint64_t	bytes_sent_ {0}

bool	data_blocked_sent_ {false}

uint64_t	receive_limit_ {0}

uint64_t	bytes_received_ {0}

uint64_t	bytes_consumed_ {0}

uint64_t	window_size_

double	update_threshold_ {0.5}

uint64_t	last_sent_max_data_ {0}

Detailed Description

Connection-level flow control for QUIC (RFC 9000 Section 4)

QUIC provides connection-level and stream-level flow control. This class handles connection-level flow control, tracking the total amount of data that can be sent/received across all streams.

Definition at line 33 of file flow_control.h.

Constructor & Destructor Documentation

◆ flow_controller() [1/3]

kcenon::network::protocols::quic::flow_controller::flow_controller ( uint64_t initial_window = 1048576 )

explicit

Construct a flow controller.

Parameters

initial_window Initial window size (from transport parameters)

Definition at line 12 of file flow_control.cpp.

    : send_limit_{initial_window}
    , receive_limit_{initial_window}
    , window_size_{initial_window}
    , last_sent_max_data_{initial_window}
{
}

◆ ~flow_controller()

kcenon::network::protocols::quic::flow_controller::~flow_controller ( )

default

◆ flow_controller() [2/3]

kcenon::network::protocols::quic::flow_controller::flow_controller ( const flow_controller & )

default

◆ flow_controller() [3/3]

kcenon::network::protocols::quic::flow_controller::flow_controller ( flow_controller && )

defaultnoexcept

Member Function Documentation

◆ available_send_window()

auto kcenon::network::protocols::quic::flow_controller::available_send_window ( ) const -> uint64_t

nodiscardnoexcept

Get available send window.

Returns: Number of bytes we can send

Definition at line 24 of file flow_control.cpp.

{
    if (bytes_sent_ >= send_limit_) {
        return 0;
    }
    return send_limit_ - bytes_sent_;
}

References bytes_sent_, and send_limit_.

◆ bytes_consumed()

auto kcenon::network::protocols::quic::flow_controller::bytes_consumed ( ) const -> uint64_t

inlinenodiscardnoexcept

Get bytes consumed by application.

Definition at line 120 of file flow_control.h.

120{ return bytes_consumed_; }

kcenon::network::protocols::quic::flow_controller::bytes_consumed_

uint64_t bytes_consumed_

Definition flow_control.h:187

References bytes_consumed_.

◆ bytes_received()

auto kcenon::network::protocols::quic::flow_controller::bytes_received ( ) const -> uint64_t

inlinenodiscardnoexcept

Get total bytes received.

Definition at line 115 of file flow_control.h.

115{ return bytes_received_; }

kcenon::network::protocols::quic::flow_controller::bytes_received_

uint64_t bytes_received_

Definition flow_control.h:186

References bytes_received_.

◆ bytes_sent()

auto kcenon::network::protocols::quic::flow_controller::bytes_sent ( ) const -> uint64_t

inlinenodiscardnoexcept

Get total bytes sent.

Definition at line 88 of file flow_control.h.

88{ return bytes_sent_; }

References bytes_sent_.

◆ consume_send_window()

auto kcenon::network::protocols::quic::flow_controller::consume_send_window ( uint64_t bytes ) -> VoidResult

nodiscard

Try to consume send window for outgoing data.

Parameters

bytes Number of bytes to consume

Returns: Success or error if blocked

Definition at line 32 of file flow_control.cpp.

{
    if (bytes == 0) {
        return ok();
    }

    const uint64_t available = available_send_window();
    if (bytes > available) {
        return error_void(flow_control_error::send_blocked,
                         "Send window exhausted",
                         "quic::flow_controller");
    }

    bytes_sent_ += bytes;
    data_blocked_sent_ = false; // Reset blocked flag on successful send
    return ok();
}

References kcenon::network::error_void(), kcenon::network::ok(), and kcenon::network::protocols::quic::flow_control_error::send_blocked.

Here is the call graph for this function:

◆ generate_max_data()

auto kcenon::network::protocols::quic::flow_controller::generate_max_data ( ) -> std::optional<uint64_t>

nodiscard

Generate MAX_DATA value if update needed.

Returns: New MAX_DATA value or nullopt

Definition at line 109 of file flow_control.cpp.

{
    if (!should_send_max_data()) {
        return std::nullopt;
    }

    // New limit is current consumption point plus window size
    const uint64_t new_limit = bytes_consumed_ + window_size_;

    // Only send if it's an increase
    if (new_limit <= last_sent_max_data_) {
        return std::nullopt;
    }

    receive_limit_ = new_limit;
    last_sent_max_data_ = new_limit;
    return new_limit;
}

◆ is_send_blocked()

auto kcenon::network::protocols::quic::flow_controller::is_send_blocked ( ) const -> bool

nodiscardnoexcept

Check if send is blocked.

Definition at line 59 of file flow_control.cpp.

{
    return bytes_sent_ >= send_limit_;
}

References bytes_sent_, and send_limit_.

Referenced by should_send_data_blocked().

Here is the caller graph for this function:

◆ mark_data_blocked_sent()

void kcenon::network::protocols::quic::flow_controller::mark_data_blocked_sent ( )

Mark DATA_BLOCKED as sent (to avoid repeated sending)

Definition at line 133 of file flow_control.cpp.

{
    data_blocked_sent_ = true;
}

References data_blocked_sent_.

◆ operator=() [1/2]

auto kcenon::network::protocols::quic::flow_controller::operator= ( const flow_controller & ) -> flow_controller &=default

default

◆ operator=() [2/2]

auto kcenon::network::protocols::quic::flow_controller::operator= ( flow_controller && ) -> flow_controller &=default

defaultnoexcept

◆ receive_limit()

auto kcenon::network::protocols::quic::flow_controller::receive_limit ( ) const -> uint64_t

inlinenodiscardnoexcept

Get our receive limit (advertised as MAX_DATA)

Definition at line 110 of file flow_control.h.

110{ return receive_limit_; }

References receive_limit_.

◆ record_consumed()

void kcenon::network::protocols::quic::flow_controller::record_consumed ( uint64_t bytes )

Record data consumed by application.

Parameters

bytes Number of bytes consumed

Definition at line 85 of file flow_control.cpp.

{
    bytes_consumed_ += bytes;
    // Consumed cannot exceed received
    if (bytes_consumed_ > bytes_received_) {
        bytes_consumed_ = bytes_received_;
    }
}

References bytes_consumed_, and bytes_received_.

◆ record_received()

auto kcenon::network::protocols::quic::flow_controller::record_received ( uint64_t bytes ) -> VoidResult

nodiscard

Record received data.

Parameters

bytes Number of bytes received

Returns: Success or error if limit exceeded

Definition at line 68 of file flow_control.cpp.

{
    if (bytes == 0) {
        return ok();
    }

    const uint64_t new_total = bytes_received_ + bytes;
    if (new_total > receive_limit_) {
        return error_void(flow_control_error::receive_overflow,
                         "Received data exceeds flow control limit",
                         "quic::flow_controller");
    }

    bytes_received_ = new_total;
    return ok();
}

References kcenon::network::error_void(), kcenon::network::ok(), and kcenon::network::protocols::quic::flow_control_error::receive_overflow.

Here is the call graph for this function:

◆ reset()

void kcenon::network::protocols::quic::flow_controller::reset ( uint64_t initial_window )

Reset flow controller state.

Parameters

initial_window New initial window size

Definition at line 156 of file flow_control.cpp.

{
    send_limit_ = initial_window;
    bytes_sent_ = 0;
    data_blocked_sent_ = false;

    receive_limit_ = initial_window;
    bytes_received_ = 0;
    bytes_consumed_ = 0;

    window_size_ = initial_window;
    last_sent_max_data_ = initial_window;
}

References bytes_consumed_, bytes_received_, bytes_sent_, data_blocked_sent_, last_sent_max_data_, receive_limit_, send_limit_, and window_size_.

◆ send_limit()

auto kcenon::network::protocols::quic::flow_controller::send_limit ( ) const -> uint64_t

inlinenodiscardnoexcept

Get the current send limit (peer's MAX_DATA)

Definition at line 83 of file flow_control.h.

83{ return send_limit_; }

References send_limit_.

◆ set_update_threshold()

void kcenon::network::protocols::quic::flow_controller::set_update_threshold ( double threshold )

Set the threshold for sending MAX_DATA updates (0.0 - 1.0)

Parameters

threshold Fraction of window that triggers update

Definition at line 147 of file flow_control.cpp.

{
    update_threshold_ = std::clamp(threshold, 0.0, 1.0);
}

References update_threshold_.

◆ set_window_size()

void kcenon::network::protocols::quic::flow_controller::set_window_size ( uint64_t window )

Set the window size for auto-tuning.

Parameters

window New window size

Definition at line 142 of file flow_control.cpp.

{
    window_size_ = window;
}

References window_size_.

◆ should_send_data_blocked()

auto kcenon::network::protocols::quic::flow_controller::should_send_data_blocked ( ) const -> bool

nodiscardnoexcept

Check if DATA_BLOCKED frame should be sent.

Definition at line 128 of file flow_control.cpp.

{
    return is_send_blocked() && !data_blocked_sent_;
}

References data_blocked_sent_, and is_send_blocked().

Here is the call graph for this function:

◆ should_send_max_data()

auto kcenon::network::protocols::quic::flow_controller::should_send_max_data ( ) const -> bool

nodiscardnoexcept

Check if MAX_DATA frame should be sent.

Definition at line 98 of file flow_control.cpp.

{
    // Send MAX_DATA when we've consumed enough of the window
    const uint64_t threshold = static_cast<uint64_t>(window_size_ * update_threshold_);

    // Calculate how much of the advertised window has been consumed
    const uint64_t consumed_from_last = bytes_consumed_ - (last_sent_max_data_ - window_size_);

    return consumed_from_last >= threshold;
}

References bytes_consumed_, last_sent_max_data_, update_threshold_, and window_size_.

◆ update_send_limit()

void kcenon::network::protocols::quic::flow_controller::update_send_limit ( uint64_t max_data )

Update the send limit (from peer's MAX_DATA)

Parameters

max_data New maximum data limit

Definition at line 50 of file flow_control.cpp.

{
    // Only update if new limit is higher (MAX_DATA can only increase)
    if (max_data > send_limit_) {
        send_limit_ = max_data;
        data_blocked_sent_ = false; // Can send again, reset blocked flag
    }
}

References data_blocked_sent_, kcenon::network::protocols::quic::max_data, and send_limit_.

Referenced by kcenon::network::protocols::quic::connection::apply_remote_params().

Here is the caller graph for this function:

◆ window_size()

auto kcenon::network::protocols::quic::flow_controller::window_size ( ) const -> uint64_t

inlinenodiscardnoexcept

Get the current window size.

Definition at line 160 of file flow_control.h.

160{ return window_size_; }

References window_size_.

Member Data Documentation

◆ bytes_consumed_

uint64_t kcenon::network::protocols::quic::flow_controller::bytes_consumed_ {0}

private

Definition at line 187 of file flow_control.h.

187{0}; // Bytes consumed by application

Referenced by bytes_consumed(), record_consumed(), reset(), and should_send_max_data().

◆ bytes_received_

uint64_t kcenon::network::protocols::quic::flow_controller::bytes_received_ {0}

private

Definition at line 186 of file flow_control.h.

186{0}; // Total bytes received

Referenced by bytes_received(), record_consumed(), and reset().

◆ bytes_sent_

uint64_t kcenon::network::protocols::quic::flow_controller::bytes_sent_ {0}

private

Definition at line 181 of file flow_control.h.

181{0}; // Total bytes we've sent

Referenced by available_send_window(), bytes_sent(), is_send_blocked(), and reset().

◆ data_blocked_sent_

bool kcenon::network::protocols::quic::flow_controller::data_blocked_sent_ {false}

private

Definition at line 182 of file flow_control.h.

182{false}; // DATA_BLOCKED already sent

Referenced by mark_data_blocked_sent(), reset(), should_send_data_blocked(), and update_send_limit().

◆ last_sent_max_data_

uint64_t kcenon::network::protocols::quic::flow_controller::last_sent_max_data_ {0}

private

Definition at line 194 of file flow_control.h.

194{0};

Referenced by reset(), and should_send_max_data().

◆ receive_limit_

uint64_t kcenon::network::protocols::quic::flow_controller::receive_limit_ {0}

private

Definition at line 185 of file flow_control.h.

185{0}; // Our MAX_DATA (peer's send limit)

Referenced by receive_limit(), and reset().

◆ send_limit_

uint64_t kcenon::network::protocols::quic::flow_controller::send_limit_ {0}

private

Definition at line 180 of file flow_control.h.

180{0}; // Peer's MAX_DATA (our send limit)

Referenced by available_send_window(), is_send_blocked(), reset(), send_limit(), and update_send_limit().

◆ update_threshold_

double kcenon::network::protocols::quic::flow_controller::update_threshold_ {0.5}

private

Definition at line 191 of file flow_control.h.

191{0.5}; // Send MAX_DATA when 50% consumed

Referenced by set_update_threshold(), and should_send_max_data().

◆ window_size_

uint64_t kcenon::network::protocols::quic::flow_controller::window_size_

private

Definition at line 190 of file flow_control.h.

Referenced by reset(), set_window_size(), should_send_max_data(), and window_size().

The documentation for this class was generated from the following files:

src/internal/protocols/quic/flow_control.h
src/protocols/quic/flow_control.cpp

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ flow_controller() [1/3]

◆ ~flow_controller()

◆ flow_controller() [2/3]

◆ flow_controller() [3/3]

Member Function Documentation

◆ available_send_window()

◆ bytes_consumed()

◆ bytes_received()

◆ bytes_sent()

◆ consume_send_window()

◆ generate_max_data()

◆ is_send_blocked()

◆ mark_data_blocked_sent()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ receive_limit()

◆ record_consumed()

◆ record_received()

◆ reset()

◆ send_limit()

◆ set_update_threshold()

◆ set_window_size()

◆ should_send_data_blocked()

◆ should_send_max_data()

◆ update_send_limit()

◆ window_size()

Member Data Documentation

◆ bytes_consumed_

◆ bytes_received_

◆ bytes_sent_

◆ data_blocked_sent_

◆ last_sent_max_data_

◆ receive_limit_

◆ send_limit_

◆ update_threshold_

◆ window_size_
