Classes
struct	annotation_query

struct	annotation_record
	Annotation record from the database. More...

class	annotation_repository
	Repository for annotation persistence (legacy SQLite interface) More...

struct	annotation_style
	Style information for annotations. More...

struct	audit_query
	Query parameters for audit log search. More...

struct	audit_record
	Audit log record from the database. More...

class	audit_repository

struct	azure_blob_info
	Information about an Azure Blob object. More...

class	azure_blob_storage

struct	azure_storage_config
	Configuration for Azure Blob storage. More...

struct	cloud_storage_config
	Configuration for S3-compatible cloud storage. More...

class	file_storage

struct	file_storage_config
	Configuration for file_storage. More...

class	hsm_migration_service

struct	hsm_statistics
	Combined statistics for all HSM tiers. More...

class	hsm_storage

struct	hsm_storage_config
	Configuration for HSM storage. More...

struct	index_config
	Configuration for index database. More...

class	index_database

struct	instance_query

struct	instance_record
	Instance record from the database. More...

class	instance_repository
	Repository for instance metadata persistence (legacy SQLite interface) More...

struct	job_query_options
	Query options for listing jobs. More...

class	job_repository
	Repository for job persistence (legacy SQLite interface) More...

struct	key_image_query

struct	key_image_record
	Key image record from the database. More...

class	key_image_repository
	Repository for key image persistence (legacy SQLite interface) More...

struct	measurement_query

struct	measurement_record
	Measurement record from the database. More...

class	measurement_repository
	Repository for measurement persistence (legacy SQLite interface) More...

struct	migration_record
	Represents a record of an applied database migration. More...

struct	migration_result
	Result of a migration operation. More...

class	migration_runner

struct	migration_service_config
	Configuration for the migration service. More...

class	mock_azure_client
	Mock Azure Blob client for testing without Azure SDK dependency. More...

class	mock_s3_client
	Mock S3 client for testing without AWS SDK dependency. More...

struct	mpps_query

struct	mpps_record
	MPPS record from the database. More...

class	mpps_repository

class	node_repository
	Repository for remote node persistence (legacy SQLite interface) More...

struct	patient_query

struct	patient_record
	Patient record from the database. More...

class	patient_repository
	Repository for patient metadata persistence (legacy SQLite interface) More...

struct	performed_series_info
	Information about a performed series. More...

struct	prefetch_history_query_options
	Query options for listing prefetch history. More...

class	prefetch_repository
	Repository for prefetch persistence (legacy SQLite interface) More...

struct	prefetch_rule_query_options
	Query options for listing prefetch rules. More...

struct	recent_study_record
	Recent study access record from the database. More...

class	routing_repository
	Repository for routing rule persistence (legacy SQLite interface) More...

struct	routing_rule_query_options
	Query options for listing routing rules. More...

struct	s3_object_info
	Information about an S3 object. More...

class	s3_storage

struct	series_query

struct	series_record
	Series record from the database. More...

class	series_repository
	Repository for series metadata persistence (legacy SQLite interface) More...

class	storage_interface

struct	storage_statistics
	Storage statistics structure. More...

struct	study_query

struct	study_record
	Study record from the database. More...

class	study_repository
	Repository for study metadata persistence (legacy SQLite interface) More...

class	sync_repository
	Repository for sync persistence (legacy SQLite interface) More...

struct	tier_metadata
	Metadata for tracking instance tier location. More...

struct	tier_policy

struct	tier_statistics
	Statistics for a single storage tier. More...

class	ups_repository

struct	ups_subscription
	UPS subscription record from the database. More...

struct	ups_workitem
	UPS workitem record from the database. More...

struct	ups_workitem_query

struct	viewer_state_query

struct	viewer_state_record
	Viewer state record from the database. More...

class	viewer_state_repository
	Repository for viewer state persistence (legacy SQLite interface) More...

struct	worklist_item
	Worklist item record from the database. More...

struct	worklist_query

class	worklist_repository

Typedefs
template<typename T >
using	Result = kcenon::common::Result<T>
	Result type alias for operations returning a value.

using	azure_progress_callback
	Callback type for upload/download progress tracking.

using	migration_function = std::function<VoidResult(sqlite3* db)>
	Function type for migration implementations (SQLite)

using	progress_callback
	Callback type for upload/download progress tracking.

Enumerations
enum class	annotation_type { arrow , line , rectangle , ellipse , polygon , freehand , text , angle , roi }
	Annotation types supported by the system. More...

enum class	audit_event_type { association_established , association_released , c_store , c_find , c_move , c_get , security_event , configuration_change , system_startup , system_shutdown , user_login , user_logout , data_access , data_export , error }
	Audit event type enumeration. More...

enum class	audit_outcome { success , failure , warning }
	Audit log outcome/status. More...

enum class	naming_scheme { uid_hierarchical , date_hierarchical , flat }
	Naming scheme for DICOM file organization. More...

enum class	duplicate_policy { reject , replace , ignore }
	Policy for handling duplicate SOP Instance UIDs. More...

enum class	storage_tier { hot , warm , cold }
	Storage tier classification. More...

enum class	measurement_type { length , area , angle , hounsfield , suv , ellipse_area , polygon_area }
	Measurement types supported by the system. More...

enum class	mpps_status { in_progress , completed , discontinued }
	MPPS status values. More...

enum class	ups_state { scheduled , in_progress , completed , canceled }
	UPS workitem state values. More...

enum class	ups_priority { low , medium , high }
	UPS workitem priority values. More...

enum class	worklist_status { scheduled , started , completed }
	Worklist step status values. More...

Functions
auto	to_string (annotation_type type) -> std::string
	Convert annotation_type to string.

auto	annotation_type_from_string (std::string_view str) -> std::optional< annotation_type >
	Parse string to annotation_type.

auto	to_string (audit_event_type type) -> std::string
	Convert audit_event_type enum to string representation.

auto	parse_audit_event_type (std::string_view str) -> std::optional< audit_event_type >
	Parse string to audit_event_type enum.

auto	to_string (audit_outcome outcome) -> std::string
	Convert audit_outcome enum to string.

constexpr auto	to_string (storage_tier tier) noexcept -> std::string_view
	Convert storage_tier to string representation.

constexpr auto	storage_tier_from_string (std::string_view str) -> std::optional< storage_tier >
	Parse storage_tier from string.

auto	to_string (measurement_type type) -> std::string
	Convert measurement_type to string.

auto	measurement_type_from_string (std::string_view str) -> std::optional< measurement_type >
	Parse string to measurement_type.

auto	to_string (mpps_status status) -> std::string
	Convert mpps_status enum to string representation.

auto	parse_mpps_status (std::string_view str) -> std::optional< mpps_status >
	Parse string to mpps_status enum.

auto	to_string (ups_state state) -> std::string
	Convert ups_state enum to string representation.

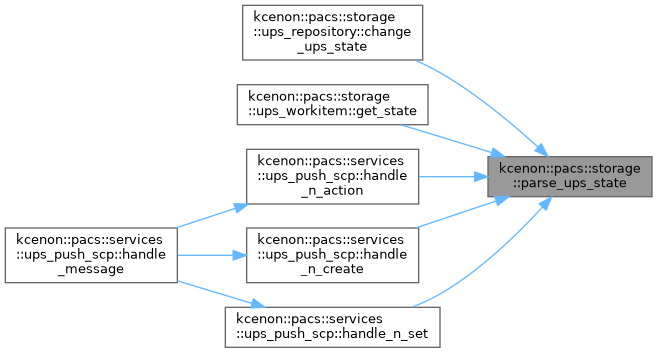

auto	parse_ups_state (std::string_view str) -> std::optional< ups_state >
	Parse string to ups_state enum.

auto	to_string (ups_priority priority) -> std::string
	Convert ups_priority enum to string representation.

auto	parse_ups_priority (std::string_view str) -> std::optional< ups_priority >
	Parse string to ups_priority enum.

auto	to_string (worklist_status status) -> std::string
	Convert worklist_status enum to string representation.

auto	parse_worklist_status (std::string_view str) -> std::optional< worklist_status >
	Parse string to worklist_status enum.

Typedef Documentation

◆ azure_progress_callback

using kcenon::pacs::storage::azure_progress_callback

Initial value:

std::function<bool(std::size_t bytes_transferred, std::size_t total_bytes)>

Callback type for upload/download progress tracking.

Parameters:

bytes_transferred: Number of bytes transferred so far
total_bytes: Total number of bytes to transfer
Returns: true to continue, false to abort

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/azure_blob_storage.h.

Definition at line 124 of file azure_blob_storage.h.

◆ migration_function

using kcenon::pacs::storage::migration_function = std::function<VoidResult(sqlite3* db)>

Function type for migration implementations (SQLite)

Each migration function receives a database handle and should execute the necessary SQL to upgrade the schema to its target version.

Parameters

db	The SQLite database handle

Returns: VoidResult Success or error information

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/migration_runner.h.

Definition at line 58 of file migration_runner.h.

◆ progress_callback

using kcenon::pacs::storage::progress_callback

Initial value:

std::function<bool(std::size_t bytes_transferred, std::size_t total_bytes)>

Callback type for upload/download progress tracking.

Parameters:

bytes_transferred: Number of bytes transferred so far
total_bytes: Total number of bytes to transfer
Returns: true to continue, false to abort

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/hsm_migration_service.h, and /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/s3_storage.h.

Definition at line 115 of file s3_storage.h.

◆ Result

template<typename T >

using kcenon::pacs::storage::Result = kcenon::common::Result<T>

Result type alias for operations returning a value.

Result type alias.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/di/test_support.h, /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/azure_blob_storage.h, /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/file_storage.h, /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/hsm_storage.h, /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/index_database.h, /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/s3_storage.h, and /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/storage_interface.h.

Definition at line 176 of file annotation_repository.h.

Enumeration Type Documentation

◆ annotation_type

enum class kcenon::pacs::storage::annotation_type

strong

Annotation types supported by the system.

Enumerator
arrow	Arrow annotation.
line	Simple line.
rectangle	Rectangle shape.
ellipse	Ellipse/oval shape.
polygon	Multi-point polygon.
freehand	Freehand drawing.
text	Text annotation.
angle	Angle measurement annotation.
roi	Region of interest.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/annotation_record.h.

Definition at line 29 of file annotation_record.h.

                           {
    arrow,
    line,
    rectangle,
    ellipse,
    polygon,
    freehand,
    text,
    angle,
    roi
};

◆ audit_event_type

enum class kcenon::pacs::storage::audit_event_type

strong

Audit event type enumeration.

Enumerator
association_established
association_released
c_store
c_find
c_move
c_get
security_event
configuration_change
system_startup
system_shutdown
user_login
user_logout
data_access
data_export
error

Definition at line 28 of file audit_record.h.

                            {
    association_established,
    association_released,
    c_store,
    c_find,
    c_move,
    c_get,
    security_event,
    configuration_change,
    system_startup,
    system_shutdown,
    user_login,
    user_logout,
    data_access,
    data_export,
    error
};

◆ audit_outcome

enum class kcenon::pacs::storage::audit_outcome

strong

Audit log outcome/status.

Enumerator
success
failure
warning

Definition at line 142 of file audit_record.h.

                         {
    success,
    failure,
    warning
};

◆ duplicate_policy

enum class kcenon::pacs::storage::duplicate_policy

strong

Policy for handling duplicate SOP Instance UIDs.

Enumerator
reject	Return error if instance already exists.
replace	Overwrite existing instance.
ignore	Skip silently if instance exists.

Definition at line 52 of file file_storage.h.

                            {
    reject,

    replace,

    ignore
};

◆ measurement_type

enum class kcenon::pacs::storage::measurement_type

strong

Measurement types supported by the system.

Enumerator
length	Linear distance measurement.
area	Area measurement (generic)
angle	Angle measurement in degrees.
hounsfield	CT Hounsfield unit value.
suv	PET Standard Uptake Value.
ellipse_area	Ellipse area measurement.
polygon_area	Polygon area measurement.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/measurement_record.h.

Definition at line 29 of file measurement_record.h.

                            {
    length,
    area,
    angle,
    hounsfield,
    suv,
    ellipse_area,
    polygon_area
};

◆ mpps_status

enum class kcenon::pacs::storage::mpps_status

strong

MPPS status values.

Defines the valid states for a Modality Performed Procedure Step. COMPLETED and DISCONTINUED are final states.

Enumerator
in_progress	Procedure is currently being performed.
completed	Procedure completed successfully.
discontinued	Procedure was stopped/cancelled.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/mpps_record.h.

Definition at line 33 of file mpps_record.h.

                       {
    in_progress,
    completed,
    discontinued
};

◆ naming_scheme

enum class kcenon::pacs::storage::naming_scheme

strong

Naming scheme for DICOM file organization.

Determines how files are organized in the storage directory.

Enumerator
uid_hierarchical	{StudyUID}/{SeriesUID}/{SOPUID}.dcm
date_hierarchical	YYYY/MM/DD/{StudyUID}/{SOPUID}.dcm.
flat	{SOPUID}.dcm (flat structure)

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/file_storage.h.

Definition at line 38 of file file_storage.h.

                         {
    uid_hierarchical,

    date_hierarchical,

    flat
};

◆ storage_tier

enum class kcenon::pacs::storage::storage_tier

strong

Storage tier classification.

Represents the different tiers in the hierarchical storage system. Each tier has different performance characteristics and cost implications:

Hot: Fast access, high cost (SSD/NVMe)
Warm: Medium access, medium cost (HDD)
Cold: Slow access, low cost (S3/Glacier/Archive)

Enumerator
hot	Hot tier - Recent, frequently accessed data (SSD/NVMe)
warm	Warm tier - Older, occasionally accessed data (HDD)
cold	Cold tier - Archive, rarely accessed data (S3/Glacier)

Definition at line 37 of file hsm_types.h.

                        {
    hot,

    warm,

    cold
};

◆ ups_priority

enum class kcenon::pacs::storage::ups_priority

strong

UPS workitem priority values.

Defines the priority levels for UPS workitems (PS3.4 CC.1.1).

Enumerator
low	Low priority.
medium	Medium priority (default)
high	High priority.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/ups_workitem.h.

Definition at line 90 of file ups_workitem.h.

                        {
    low,
    medium,
    high
};

◆ ups_state

enum class kcenon::pacs::storage::ups_state

strong

UPS workitem state values.

Defines the valid states for a Unified Procedure Step workitem. State transitions are unidirectional as defined in PS3.4 Table CC.1.1-2.

Enumerator
scheduled	Workitem is scheduled (initial state)
in_progress	Workitem is being performed.
completed	Workitem completed successfully (final)
canceled	Workitem was canceled (final)

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/ups_workitem.h.

Definition at line 34 of file ups_workitem.h.

                     {
    scheduled,
    in_progress,
    completed,
    canceled
};

◆ worklist_status

enum class kcenon::pacs::storage::worklist_status

strong

Worklist step status values.

Defines the valid states for a Scheduled Procedure Step.

Enumerator
scheduled	Procedure is scheduled (default)
started	Procedure has been started (MPPS received)
completed	Procedure has been completed.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/worklist_record.h.

Definition at line 31 of file worklist_record.h.

                           {
    scheduled,
    started,
    completed
};

Function Documentation

◆ annotation_type_from_string()

auto kcenon::pacs::storage::annotation_type_from_string ( std::string_view str ) -> std::optional<annotation_type>

inlinenodiscard

Parse string to annotation_type.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/annotation_record.h.

Definition at line 62 of file annotation_record.h.

                                    {
    if (str == "arrow") return annotation_type::arrow;
    if (str == "line") return annotation_type::line;
    if (str == "rectangle") return annotation_type::rectangle;
    if (str == "ellipse") return annotation_type::ellipse;
    if (str == "polygon") return annotation_type::polygon;
    if (str == "freehand") return annotation_type::freehand;
    if (str == "text") return annotation_type::text;
    if (str == "angle") return annotation_type::angle;
    if (str == "roi") return annotation_type::roi;
    return std::nullopt;
}

References angle, arrow, ellipse, freehand, line, polygon, rectangle, roi, and text.

◆ measurement_type_from_string()

auto kcenon::pacs::storage::measurement_type_from_string ( std::string_view str ) -> std::optional<measurement_type>

inlinenodiscard

Parse string to measurement_type.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/measurement_record.h.

Definition at line 58 of file measurement_record.h.

                                     {
    if (str == "length") return measurement_type::length;
    if (str == "area") return measurement_type::area;
    if (str == "angle") return measurement_type::angle;
    if (str == "hounsfield") return measurement_type::hounsfield;
    if (str == "suv") return measurement_type::suv;
    if (str == "ellipse_area") return measurement_type::ellipse_area;
    if (str == "polygon_area") return measurement_type::polygon_area;
    return std::nullopt;
}

References angle, area, ellipse_area, hounsfield, length, polygon_area, and suv.

Referenced by kcenon::pacs::web::endpoints::register_measurement_endpoints_impl().

Here is the caller graph for this function:

◆ parse_audit_event_type()

auto kcenon::pacs::storage::parse_audit_event_type ( std::string_view str ) -> std::optional<audit_event_type>

inlinenodiscard

Parse string to audit_event_type enum.

Definition at line 89 of file audit_record.h.

                                     {
    if (str == "ASSOCIATION_ESTABLISHED") {
        return audit_event_type::association_established;
    }
    if (str == "ASSOCIATION_RELEASED") {
        return audit_event_type::association_released;
    }
    if (str == "C_STORE") {
        return audit_event_type::c_store;
    }
    if (str == "C_FIND") {
        return audit_event_type::c_find;
    }
    if (str == "C_MOVE") {
        return audit_event_type::c_move;
    }
    if (str == "C_GET") {
        return audit_event_type::c_get;
    }
    if (str == "SECURITY_EVENT") {
        return audit_event_type::security_event;
    }
    if (str == "CONFIGURATION_CHANGE") {
        return audit_event_type::configuration_change;
    }
    if (str == "SYSTEM_STARTUP") {
        return audit_event_type::system_startup;
    }
    if (str == "SYSTEM_SHUTDOWN") {
        return audit_event_type::system_shutdown;
    }
    if (str == "USER_LOGIN") {
        return audit_event_type::user_login;
    }
    if (str == "USER_LOGOUT") {
        return audit_event_type::user_logout;
    }
    if (str == "DATA_ACCESS") {
        return audit_event_type::data_access;
    }
    if (str == "DATA_EXPORT") {
        return audit_event_type::data_export;
    }
    if (str == "ERROR") {
        return audit_event_type::error;
    }
    return std::nullopt;
}

References association_established, association_released, c_find, c_get, c_move, c_store, configuration_change, data_access, data_export, error, security_event, system_shutdown, system_startup, user_login, and user_logout.

◆ parse_mpps_status()

auto kcenon::pacs::storage::parse_mpps_status ( std::string_view str ) -> std::optional<mpps_status>

inlinenodiscard

Parse string to mpps_status enum.

Parameters

str	The string representation

Returns: Optional containing the status if valid, nullopt otherwise

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/mpps_record.h.

Definition at line 64 of file mpps_record.h.

                                {
    if (str == "IN PROGRESS") {
        return mpps_status::in_progress;
    }
    if (str == "COMPLETED") {
        return mpps_status::completed;
    }
    if (str == "DISCONTINUED") {
        return mpps_status::discontinued;
    }
    return std::nullopt;
}

References completed, discontinued, and in_progress.

Referenced by kcenon::pacs::storage::mpps_record::get_status().

Here is the caller graph for this function:

◆ parse_ups_priority()

auto kcenon::pacs::storage::parse_ups_priority ( std::string_view str ) -> std::optional<ups_priority>

inlinenodiscard

Parse string to ups_priority enum.

Parameters

str	The string representation

Returns: Optional containing the priority if valid, nullopt otherwise

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/ups_workitem.h.

Definition at line 121 of file ups_workitem.h.

                                 {
    if (str == "LOW") {
        return ups_priority::low;
    }
    if (str == "MEDIUM") {
        return ups_priority::medium;
    }
    if (str == "HIGH") {
        return ups_priority::high;
    }
    return std::nullopt;
}

References high, low, and medium.

Referenced by kcenon::pacs::storage::ups_workitem::get_priority().

Here is the caller graph for this function:

◆ parse_ups_state()

auto kcenon::pacs::storage::parse_ups_state ( std::string_view str ) -> std::optional<ups_state>

inlinenodiscard

Parse string to ups_state enum.

Parameters

str	The string representation

Returns: Optional containing the state if valid, nullopt otherwise

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/ups_workitem.h.

Definition at line 68 of file ups_workitem.h.

                              {
    if (str == "SCHEDULED") {
        return ups_state::scheduled;
    }
    if (str == "IN PROGRESS") {
        return ups_state::in_progress;
    }
    if (str == "COMPLETED") {
        return ups_state::completed;
    }
    if (str == "CANCELED") {
        return ups_state::canceled;
    }
    return std::nullopt;
}

References canceled, completed, in_progress, and scheduled.

Referenced by kcenon::pacs::storage::ups_repository::change_ups_state(), kcenon::pacs::storage::ups_workitem::get_state(), kcenon::pacs::services::ups_push_scp::handle_n_action(), kcenon::pacs::services::ups_push_scp::handle_n_create(), and kcenon::pacs::services::ups_push_scp::handle_n_set().

Here is the caller graph for this function:

◆ parse_worklist_status()

auto kcenon::pacs::storage::parse_worklist_status ( std::string_view str ) -> std::optional<worklist_status>

inlinenodiscard

Parse string to worklist_status enum.

Parameters

str	The string representation

Returns: Optional containing the status if valid, nullopt otherwise

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/worklist_record.h.

Definition at line 62 of file worklist_record.h.

                                    {
    if (str == "SCHEDULED") {
        return worklist_status::scheduled;
    }
    if (str == "STARTED") {
        return worklist_status::started;
    }
    if (str == "COMPLETED") {
        return worklist_status::completed;
    }
    return std::nullopt;
}

References completed, scheduled, and started.

Referenced by kcenon::pacs::storage::worklist_item::get_status().

Here is the caller graph for this function:

◆ storage_tier_from_string()

auto kcenon::pacs::storage::storage_tier_from_string ( std::string_view str ) -> std::optional<storage_tier>

nodiscardconstexpr

Parse storage_tier from string.

Parameters

str	String representation ("hot", "warm", "cold")

Returns: Parsed storage tier or std::nullopt if invalid

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/hsm_types.h.

Definition at line 71 of file hsm_types.h.

                                 {
    if (str == "hot") {
        return storage_tier::hot;
    }
    if (str == "warm") {
        return storage_tier::warm;
    }
    if (str == "cold") {
        return storage_tier::cold;
    }
    return std::nullopt;
}

References cold, hot, and warm.

◆ to_string() [1/9]

auto kcenon::pacs::storage::to_string ( annotation_type type ) -> std::string

inlinenodiscard

Convert annotation_type to string.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/annotation_record.h, /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/hsm_types.h, /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/measurement_record.h, /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/mpps_record.h, /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/ups_workitem.h, and /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/worklist_record.h.

Definition at line 44 of file annotation_record.h.

                                                                       {
    switch (type) {
        case annotation_type::arrow: return "arrow";
        case annotation_type::line: return "line";
        case annotation_type::rectangle: return "rectangle";
        case annotation_type::ellipse: return "ellipse";
        case annotation_type::polygon: return "polygon";
        case annotation_type::freehand: return "freehand";
        case annotation_type::text: return "text";
        case annotation_type::angle: return "angle";
        case annotation_type::roi: return "roi";
    }
    return "unknown";
}

References angle, arrow, ellipse, freehand, line, polygon, rectangle, roi, and text.

Here is the caller graph for this function:

◆ to_string() [2/9]

auto kcenon::pacs::storage::to_string ( audit_event_type type ) -> std::string

inlinenodiscard

Convert audit_event_type enum to string representation.

Definition at line 49 of file audit_record.h.

                                                                        {
    switch (type) {
        case audit_event_type::association_established:
            return "ASSOCIATION_ESTABLISHED";
        case audit_event_type::association_released:
            return "ASSOCIATION_RELEASED";
        case audit_event_type::c_store:
            return "C_STORE";
        case audit_event_type::c_find:
            return "C_FIND";
        case audit_event_type::c_move:
            return "C_MOVE";
        case audit_event_type::c_get:
            return "C_GET";
        case audit_event_type::security_event:
            return "SECURITY_EVENT";
        case audit_event_type::configuration_change:
            return "CONFIGURATION_CHANGE";
        case audit_event_type::system_startup:
            return "SYSTEM_STARTUP";
        case audit_event_type::system_shutdown:
            return "SYSTEM_SHUTDOWN";
        case audit_event_type::user_login:
            return "USER_LOGIN";
        case audit_event_type::user_logout:
            return "USER_LOGOUT";
        case audit_event_type::data_access:
            return "DATA_ACCESS";
        case audit_event_type::data_export:
            return "DATA_EXPORT";
        case audit_event_type::error:
            return "ERROR";
        default:
            return "UNKNOWN";
    }
}

References association_established, association_released, c_find, c_get, c_move, c_store, configuration_change, data_access, data_export, error, security_event, system_shutdown, system_startup, user_login, and user_logout.

◆ to_string() [3/9]

auto kcenon::pacs::storage::to_string ( audit_outcome outcome ) -> std::string

inlinenodiscard

Convert audit_outcome enum to string.

Definition at line 151 of file audit_record.h.

                                                                        {
    switch (outcome) {
        case audit_outcome::success:
            return "SUCCESS";
        case audit_outcome::failure:
            return "FAILURE";
        case audit_outcome::warning:
            return "WARNING";
        default:
            return "UNKNOWN";
    }
}

References failure, success, and warning.

◆ to_string() [4/9]

auto kcenon::pacs::storage::to_string ( measurement_type type ) -> std::string

inlinenodiscard

Convert measurement_type to string.

Definition at line 42 of file measurement_record.h.

                                                                        {
    switch (type) {
        case measurement_type::length: return "length";
        case measurement_type::area: return "area";
        case measurement_type::angle: return "angle";
        case measurement_type::hounsfield: return "hounsfield";
        case measurement_type::suv: return "suv";
        case measurement_type::ellipse_area: return "ellipse_area";
        case measurement_type::polygon_area: return "polygon_area";
    }
    return "unknown";
}

References angle, area, ellipse_area, hounsfield, length, polygon_area, and suv.

◆ to_string() [5/9]

auto kcenon::pacs::storage::to_string ( mpps_status status ) -> std::string

inlinenodiscard

Convert mpps_status enum to string representation.

Parameters

status The status enum value

Returns: String representation matching DICOM standard

Definition at line 45 of file mpps_record.h.

                                                                     {
    switch (status) {
        case mpps_status::in_progress:
            return "IN PROGRESS";
        case mpps_status::completed:
            return "COMPLETED";
        case mpps_status::discontinued:
            return "DISCONTINUED";
        default:
            return "IN PROGRESS";
    }
}

References completed, discontinued, and in_progress.

◆ to_string() [6/9]

auto kcenon::pacs::storage::to_string ( storage_tier tier ) -> std::string_view

nodiscardconstexprnoexcept

Convert storage_tier to string representation.

Parameters

tier	The storage tier

Returns: String representation ("hot", "warm", "cold")

Definition at line 53 of file hsm_types.h.

                      {
    switch (tier) {
        case storage_tier::hot:
            return "hot";
        case storage_tier::warm:
            return "warm";
        case storage_tier::cold:
            return "cold";
    }
    return "unknown";
}

References cold, hot, and warm.

◆ to_string() [7/9]

auto kcenon::pacs::storage::to_string ( ups_priority priority ) -> std::string

inlinenodiscard

Convert ups_priority enum to string representation.

Parameters

priority The priority enum value

Returns: String representation matching DICOM standard

Definition at line 102 of file ups_workitem.h.

                                                                        {
    switch (priority) {
        case ups_priority::low:
            return "LOW";
        case ups_priority::medium:
            return "MEDIUM";
        case ups_priority::high:
            return "HIGH";
        default:
            return "MEDIUM";
    }
}

References high, low, and medium.

◆ to_string() [8/9]

auto kcenon::pacs::storage::to_string ( ups_state state ) -> std::string

inlinenodiscard

Convert ups_state enum to string representation.

Parameters

state The state enum value

Returns: String representation matching DICOM standard

Definition at line 47 of file ups_workitem.h.

                                                                  {
    switch (state) {
        case ups_state::scheduled:
            return "SCHEDULED";
        case ups_state::in_progress:
            return "IN PROGRESS";
        case ups_state::completed:
            return "COMPLETED";
        case ups_state::canceled:
            return "CANCELED";
        default:
            return "SCHEDULED";
    }
}

References canceled, completed, in_progress, and scheduled.

◆ to_string() [9/9]

auto kcenon::pacs::storage::to_string ( worklist_status status ) -> std::string

inlinenodiscard

Convert worklist_status enum to string representation.

Parameters

status The status enum value

Returns: String representation

Definition at line 43 of file worklist_record.h.

                                                                         {
    switch (status) {
        case worklist_status::scheduled:
            return "SCHEDULED";
        case worklist_status::started:
            return "STARTED";
        case worklist_status::completed:
            return "COMPLETED";
        default:
            return "SCHEDULED";
    }
}

References completed, scheduled, and started.

Classes

Typedefs

Enumerations

Functions

Typedef Documentation

◆ azure_progress_callback

◆ migration_function

◆ progress_callback

◆ Result

Enumeration Type Documentation

◆ annotation_type

◆ audit_event_type

◆ audit_outcome

◆ duplicate_policy

◆ measurement_type

◆ mpps_status

◆ naming_scheme

◆ storage_tier

◆ ups_priority

◆ ups_state

◆ worklist_status

Function Documentation

◆ annotation_type_from_string()

◆ measurement_type_from_string()

◆ parse_audit_event_type()

◆ parse_mpps_status()

◆ parse_ups_priority()

◆ parse_ups_state()

◆ parse_worklist_status()

◆ storage_tier_from_string()

◆ to_string() [1/9]

◆ to_string() [2/9]

◆ to_string() [3/9]

◆ to_string() [4/9]

◆ to_string() [5/9]

◆ to_string() [6/9]

◆ to_string() [7/9]

◆ to_string() [8/9]

◆ to_string() [9/9]
