kcenon::pacs::storage::study_repository Class Reference

Repository for study metadata persistence (legacy SQLite interface) More...

#include <study_repository.h>

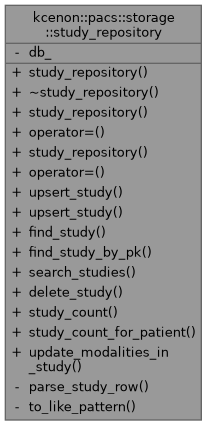

Collaboration diagram for kcenon::pacs::storage::study_repository:

Public Member Functions
	study_repository (sqlite3 *db)
	~study_repository ()
	study_repository (const study_repository &)=delete
auto	operator= (const study_repository &) -> study_repository &=delete
	study_repository (study_repository &&) noexcept
auto	operator= (study_repository &&) noexcept -> study_repository &
auto	upsert_study (int64_t patient_pk, std::string_view study_uid, std::string_view study_id="", std::string_view study_date="", std::string_view study_time="", std::string_view accession_number="", std::string_view referring_physician="", std::string_view study_description="") -> Result< int64_t >
auto	upsert_study (const study_record &record) -> Result< int64_t >
auto	find_study (std::string_view study_uid) const -> std::optional< study_record >
auto	find_study_by_pk (int64_t pk) const -> std::optional< study_record >
auto	search_studies (const study_query &query) const -> Result< std::vector< study_record > >
auto	delete_study (std::string_view study_uid) -> VoidResult
auto	study_count () const -> Result< size_t >
auto	study_count_for_patient (int64_t patient_pk) const -> Result< size_t >
auto	update_modalities_in_study (int64_t study_pk) -> VoidResult

Private Member Functions
auto	parse_study_row (void *stmt) const -> study_record

Static Private Member Functions
static auto	to_like_pattern (std::string_view pattern) -> std::string

Private Attributes
sqlite3 *	db_ {nullptr}

Detailed Description

Repository for study metadata persistence (legacy SQLite interface)

Definition at line 173 of file study_repository.h.

Constructor & Destructor Documentation

study_repository() [1/3]

kcenon::pacs::storage::study_repository::study_repository ( sqlite3 * db )

explicit

Definition at line 690 of file study_repository.cpp.

: db_(db) {}

~study_repository()

kcenon::pacs::storage::study_repository::~study_repository ( )

default

study_repository() [2/3]

kcenon::pacs::storage::study_repository::study_repository ( const study_repository & )

delete

study_repository() [3/3]

kcenon::pacs::storage::study_repository::study_repository ( study_repository && )

defaultnoexcept

Member Function Documentation

delete_study()

auto kcenon::pacs::storage::study_repository::delete_study ( std::string_view study_uid ) -> VoidResult

nodiscard

Definition at line 1011 of file study_repository.cpp.

                                                                          {
    const char* sql = "DELETE FROM studies WHERE study_uid = ?;";

    sqlite3_stmt* stmt = nullptr;
    auto rc = sqlite3_prepare_v2(db_, sql, -1, &stmt, nullptr);
    if (rc != SQLITE_OK) {
        return make_error<std::monostate>(
            rc,
            kcenon::pacs::compat::format("Failed to prepare delete: {}", sqlite3_errmsg(db_)),
            "storage");
    }

    sqlite3_bind_text(stmt, 1, study_uid.data(),
                      static_cast<int>(study_uid.size()), SQLITE_TRANSIENT);

    rc = sqlite3_step(stmt);
    sqlite3_finalize(stmt);

    if (rc != SQLITE_DONE) {
        return make_error<std::monostate>(
            rc, kcenon::pacs::compat::format("Failed to delete study: {}", sqlite3_errmsg(db_)),
            "storage");
    }

    return ok();
}

find_study()

auto kcenon::pacs::storage::study_repository::find_study ( std::string_view study_uid ) const -> std::optional<study_record>

nodiscard

Definition at line 839 of file study_repository.cpp.

                                 {
    const char* sql = R"(
        SELECT study_pk, patient_pk, study_uid, study_id, study_date,
               study_time, accession_number, referring_physician,
               study_description, modalities_in_study, num_series,
               num_instances, created_at, updated_at
        FROM studies
        WHERE study_uid = ?;
    )";

    sqlite3_stmt* stmt = nullptr;
    auto rc = sqlite3_prepare_v2(db_, sql, -1, &stmt, nullptr);
    if (rc != SQLITE_OK) {
        return std::nullopt;
    }

    sqlite3_bind_text(stmt, 1, study_uid.data(),
                      static_cast<int>(study_uid.size()), SQLITE_TRANSIENT);

    rc = sqlite3_step(stmt);
    if (rc != SQLITE_ROW) {
        sqlite3_finalize(stmt);
        return std::nullopt;
    }

    auto record = parse_study_row(stmt);
    sqlite3_finalize(stmt);

    return record;
}

find_study_by_pk()

auto kcenon::pacs::storage::study_repository::find_study_by_pk ( int64_t pk ) const -> std::optional<study_record>

nodiscard

Definition at line 871 of file study_repository.cpp.

                                 {
    const char* sql = R"(
        SELECT study_pk, patient_pk, study_uid, study_id, study_date,
               study_time, accession_number, referring_physician,
               study_description, modalities_in_study, num_series,
               num_instances, created_at, updated_at
        FROM studies
        WHERE study_pk = ?;
    )";

    sqlite3_stmt* stmt = nullptr;
    auto rc = sqlite3_prepare_v2(db_, sql, -1, &stmt, nullptr);
    if (rc != SQLITE_OK) {
        return std::nullopt;
    }

    sqlite3_bind_int64(stmt, 1, pk);

    rc = sqlite3_step(stmt);
    if (rc != SQLITE_ROW) {
        sqlite3_finalize(stmt);
        return std::nullopt;
    }

    auto record = parse_study_row(stmt);
    sqlite3_finalize(stmt);

    return record;
}

operator=() [1/2]

auto kcenon::pacs::storage::study_repository::operator= ( const study_repository & ) -> study_repository &=delete

delete

operator=() [2/2]

auto kcenon::pacs::storage::study_repository::operator= ( study_repository && ) -> study_repository &

defaultnoexcept

parse_study_row()

auto kcenon::pacs::storage::study_repository::parse_study_row ( void * stmt ) const -> study_record

nodiscardprivate

Definition at line 720 of file study_repository.cpp.

                                                                           {
    auto* stmt = static_cast<sqlite3_stmt*>(stmt_ptr);
    study_record record;

    record.pk = sqlite3_column_int64(stmt, 0);
    record.patient_pk = sqlite3_column_int64(stmt, 1);
    record.study_uid = get_text(stmt, 2);
    record.study_id = get_text(stmt, 3);
    record.study_date = get_text(stmt, 4);
    record.study_time = get_text(stmt, 5);
    record.accession_number = get_text(stmt, 6);
    record.referring_physician = get_text(stmt, 7);
    record.study_description = get_text(stmt, 8);
    record.modalities_in_study = get_text(stmt, 9);
    record.num_series = sqlite3_column_int(stmt, 10);
    record.num_instances = sqlite3_column_int(stmt, 11);

    auto created_str = get_text(stmt, 12);
    record.created_at = parse_datetime(created_str.c_str());

    auto updated_str = get_text(stmt, 13);
    record.updated_at = parse_datetime(updated_str.c_str());

    return record;
}

search_studies()

auto kcenon::pacs::storage::study_repository::search_studies ( const study_query & query ) const -> Result<std::vector<study_record>>

nodiscard

Definition at line 902 of file study_repository.cpp.

                                       {
    std::vector<study_record> results;

    std::string sql = R"(
        SELECT s.study_pk, s.patient_pk, s.study_uid, s.study_id, s.study_date,
               s.study_time, s.accession_number, s.referring_physician,
               s.study_description, s.modalities_in_study, s.num_series,
               s.num_instances, s.created_at, s.updated_at
        FROM studies s
        JOIN patients p ON s.patient_pk = p.patient_pk
        WHERE 1=1
    )";

    std::vector<std::string> params;

    if (query.patient_id.has_value()) {
        sql += " AND p.patient_id LIKE ?";
        params.push_back(to_like_pattern(*query.patient_id));
    }

    if (query.patient_name.has_value()) {
        sql += " AND p.patient_name LIKE ?";
        params.push_back(to_like_pattern(*query.patient_name));
    }

    if (query.study_uid.has_value()) {
        sql += " AND s.study_uid = ?";
        params.push_back(*query.study_uid);
    }

    if (query.study_id.has_value()) {
        sql += " AND s.study_id LIKE ?";
        params.push_back(to_like_pattern(*query.study_id));
    }

    if (query.study_date.has_value()) {
        sql += " AND s.study_date = ?";
        params.push_back(*query.study_date);
    }

    if (query.study_date_from.has_value()) {
        sql += " AND s.study_date >= ?";
        params.push_back(*query.study_date_from);
    }

    if (query.study_date_to.has_value()) {
        sql += " AND s.study_date <= ?";
        params.push_back(*query.study_date_to);
    }

    if (query.accession_number.has_value()) {
        sql += " AND s.accession_number LIKE ?";
        params.push_back(to_like_pattern(*query.accession_number));
    }

    if (query.modality.has_value()) {
        sql += " AND (s.modalities_in_study = ? OR "
               "s.modalities_in_study LIKE ? OR "
               "s.modalities_in_study LIKE ? OR "
               "s.modalities_in_study LIKE ?)";
        params.push_back(*query.modality);
        params.push_back(*query.modality + "\\%");
        params.push_back("%\\" + *query.modality);
        params.push_back("%\\" + *query.modality + "\\%");
    }

    if (query.referring_physician.has_value()) {
        sql += " AND s.referring_physician LIKE ?";
        params.push_back(to_like_pattern(*query.referring_physician));
    }

    if (query.study_description.has_value()) {
        sql += " AND s.study_description LIKE ?";
        params.push_back(to_like_pattern(*query.study_description));
    }

    sql += " ORDER BY s.study_date DESC, s.study_time DESC";

    if (query.limit > 0) {
        sql += kcenon::pacs::compat::format(" LIMIT {}", query.limit);
    }

    if (query.offset > 0) {
        sql += kcenon::pacs::compat::format(" OFFSET {}", query.offset);
    }

    sqlite3_stmt* stmt = nullptr;
    auto rc = sqlite3_prepare_v2(db_, sql.c_str(), -1, &stmt, nullptr);
    if (rc != SQLITE_OK) {
        return make_error<std::vector<study_record>>(
            database_query_error,
            kcenon::pacs::compat::format("Failed to prepare query: {}", sqlite3_errmsg(db_)),
            "storage");
    }

    for (size_t i = 0; i < params.size(); ++i) {
        sqlite3_bind_text(stmt, static_cast<int>(i + 1), params[i].c_str(), -1,
                          SQLITE_TRANSIENT);
    }

    while (sqlite3_step(stmt) == SQLITE_ROW) {
        results.push_back(parse_study_row(stmt));
    }

    sqlite3_finalize(stmt);
    return ok(std::move(results));
}

References kcenon::pacs::error_codes::database_query_error.

study_count()

auto kcenon::pacs::storage::study_repository::study_count ( ) const -> Result<size_t>

nodiscard

Definition at line 1038 of file study_repository.cpp.

                                                           {
    const char* sql = "SELECT COUNT(*) FROM studies;";

    sqlite3_stmt* stmt = nullptr;
    auto rc = sqlite3_prepare_v2(db_, sql, -1, &stmt, nullptr);
    if (rc != SQLITE_OK) {
        return make_error<size_t>(
            database_query_error,
            kcenon::pacs::compat::format("Failed to prepare query: {}", sqlite3_errmsg(db_)),
            "storage");
    }

    size_t count = 0;
    if (sqlite3_step(stmt) == SQLITE_ROW) {
        count = static_cast<size_t>(sqlite3_column_int64(stmt, 0));
    }

    sqlite3_finalize(stmt);
    return ok(count);
}

References kcenon::pacs::error_codes::database_query_error, and db_.

study_count_for_patient()

auto kcenon::pacs::storage::study_repository::study_count_for_patient ( int64_t patient_pk ) const -> Result<size_t>

nodiscard

Definition at line 1059 of file study_repository.cpp.

                      {
    const char* sql = R"(
        SELECT COUNT(*) FROM studies
        WHERE patient_pk = ?;
    )";

    sqlite3_stmt* stmt = nullptr;
    auto rc = sqlite3_prepare_v2(db_, sql, -1, &stmt, nullptr);
    if (rc != SQLITE_OK) {
        return make_error<size_t>(
            database_query_error,
            kcenon::pacs::compat::format("Failed to prepare query: {}", sqlite3_errmsg(db_)),
            "storage");
    }

    sqlite3_bind_int64(stmt, 1, patient_pk);

    size_t count = 0;
    if (sqlite3_step(stmt) == SQLITE_ROW) {
        count = static_cast<size_t>(sqlite3_column_int64(stmt, 0));
    }

    sqlite3_finalize(stmt);
    return ok(count);
}

References kcenon::pacs::error_codes::database_query_error.

to_like_pattern()

auto kcenon::pacs::storage::study_repository::to_like_pattern ( std::string_view pattern ) -> std::string

staticnodiscardprivate

Definition at line 699 of file study_repository.cpp.

                 {
    std::string result;
    result.reserve(pattern.size());

    for (char c : pattern) {
        if (c == '*') {
            result += '%';
        } else if (c == '?') {
            result += '_';
        } else if (c == '%' || c == '_') {
            result += '\\';
            result += c;
        } else {
            result += c;
        }
    }

    return result;
}

update_modalities_in_study()

auto kcenon::pacs::storage::study_repository::update_modalities_in_study ( int64_t study_pk ) -> VoidResult

nodiscard

Definition at line 1086 of file study_repository.cpp.

                  {
    const char* sql = R"(
        UPDATE studies
        SET modalities_in_study = (
            SELECT GROUP_CONCAT(modality, '\')
            FROM (
                SELECT DISTINCT modality FROM series
                WHERE study_pk = ? AND modality IS NOT NULL AND modality != ''
            )
        ),
        updated_at = datetime('now')
        WHERE study_pk = ?;
    )";

    sqlite3_stmt* stmt = nullptr;
    auto rc = sqlite3_prepare_v2(db_, sql, -1, &stmt, nullptr);
    if (rc != SQLITE_OK) {
        return make_error<std::monostate>(
            rc,
            kcenon::pacs::compat::format("Failed to prepare update: {}", sqlite3_errmsg(db_)),
            "storage");
    }

    sqlite3_bind_int64(stmt, 1, study_pk);
    sqlite3_bind_int64(stmt, 2, study_pk);

    rc = sqlite3_step(stmt);
    sqlite3_finalize(stmt);

    if (rc != SQLITE_DONE) {
        return make_error<std::monostate>(
            rc,
            kcenon::pacs::compat::format("Failed to update modalities: {}", sqlite3_errmsg(db_)),
            "storage");
    }

    return ok();
}

upsert_study() [1/2]

auto kcenon::pacs::storage::study_repository::upsert_study ( const study_record & record ) -> Result<int64_t>

nodiscard

Definition at line 767 of file study_repository.cpp.

                       {
    if (record.study_uid.empty()) {
        return make_error<int64_t>(-1, "Study Instance UID is required",
                                   "storage");
    }

    if (record.study_uid.length() > 64) {
        return make_error<int64_t>(
            -1, "Study Instance UID exceeds maximum length of 64 characters",
            "storage");
    }

    if (record.patient_pk <= 0) {
        return make_error<int64_t>(-1, "Valid patient_pk is required",
                                   "storage");
    }

    const char* sql = R"(
        INSERT INTO studies (
            patient_pk, study_uid, study_id, study_date, study_time,
            accession_number, referring_physician, study_description,
            updated_at
        ) VALUES (?, ?, ?, ?, ?, ?, ?, ?, datetime('now'))
        ON CONFLICT(study_uid) DO UPDATE SET
            patient_pk = excluded.patient_pk,
            study_id = excluded.study_id,
            study_date = excluded.study_date,
            study_time = excluded.study_time,
            accession_number = excluded.accession_number,
            referring_physician = excluded.referring_physician,
            study_description = excluded.study_description,
            updated_at = datetime('now')
        RETURNING study_pk;
    )";

    sqlite3_stmt* stmt = nullptr;
    auto rc = sqlite3_prepare_v2(db_, sql, -1, &stmt, nullptr);
    if (rc != SQLITE_OK) {
        return make_error<int64_t>(
            rc,
            kcenon::pacs::compat::format("Failed to prepare statement: {}", sqlite3_errmsg(db_)),
            "storage");
    }

    sqlite3_bind_int64(stmt, 1, record.patient_pk);
    sqlite3_bind_text(stmt, 2, record.study_uid.c_str(), -1, SQLITE_TRANSIENT);
    sqlite3_bind_text(stmt, 3, record.study_id.c_str(), -1, SQLITE_TRANSIENT);
    sqlite3_bind_text(stmt, 4, record.study_date.c_str(), -1, SQLITE_TRANSIENT);
    sqlite3_bind_text(stmt, 5, record.study_time.c_str(), -1, SQLITE_TRANSIENT);
    sqlite3_bind_text(stmt, 6, record.accession_number.c_str(), -1,
                      SQLITE_TRANSIENT);
    sqlite3_bind_text(stmt, 7, record.referring_physician.c_str(), -1,
                      SQLITE_TRANSIENT);
    sqlite3_bind_text(stmt, 8, record.study_description.c_str(), -1,
                      SQLITE_TRANSIENT);

    rc = sqlite3_step(stmt);
    if (rc != SQLITE_ROW) {
        auto error_msg = sqlite3_errmsg(db_);
        sqlite3_finalize(stmt);
        return make_error<int64_t>(
            rc, kcenon::pacs::compat::format("Failed to upsert study: {}", error_msg),
            "storage");
    }

    auto pk = sqlite3_column_int64(stmt, 0);
    sqlite3_finalize(stmt);

    return pk;
}

upsert_study() [2/2]

auto kcenon::pacs::storage::study_repository::upsert_study ( int64_t patient_pk, std::string_view study_uid, std::string_view study_id = "", std::string_view study_date = "", std::string_view study_time = "", std::string_view accession_number = "", std::string_view referring_physician = "", std::string_view study_description = "" ) -> Result<int64_t>

nodiscard

Definition at line 746 of file study_repository.cpp.

                       {
    study_record record;
    record.patient_pk = patient_pk;
    record.study_uid = std::string(study_uid);
    record.study_id = std::string(study_id);
    record.study_date = std::string(study_date);
    record.study_time = std::string(study_time);
    record.accession_number = std::string(accession_number);
    record.referring_physician = std::string(referring_physician);
    record.study_description = std::string(study_description);
    return upsert_study(record);
}

Member Data Documentation

db_

sqlite3* kcenon::pacs::storage::study_repository::db_ {nullptr}

private

Definition at line 212 of file study_repository.h.

{nullptr};

Referenced by study_count().

---

The documentation for this class was generated from the following files:

• include/kcenon/pacs/storage/study_repository.h
• src/storage/study_repository.cpp
