kcenon::pacs::storage::storage_interface Class Reference

Abstract storage interface for DICOM persistence. More...

#include <storage_interface.h>

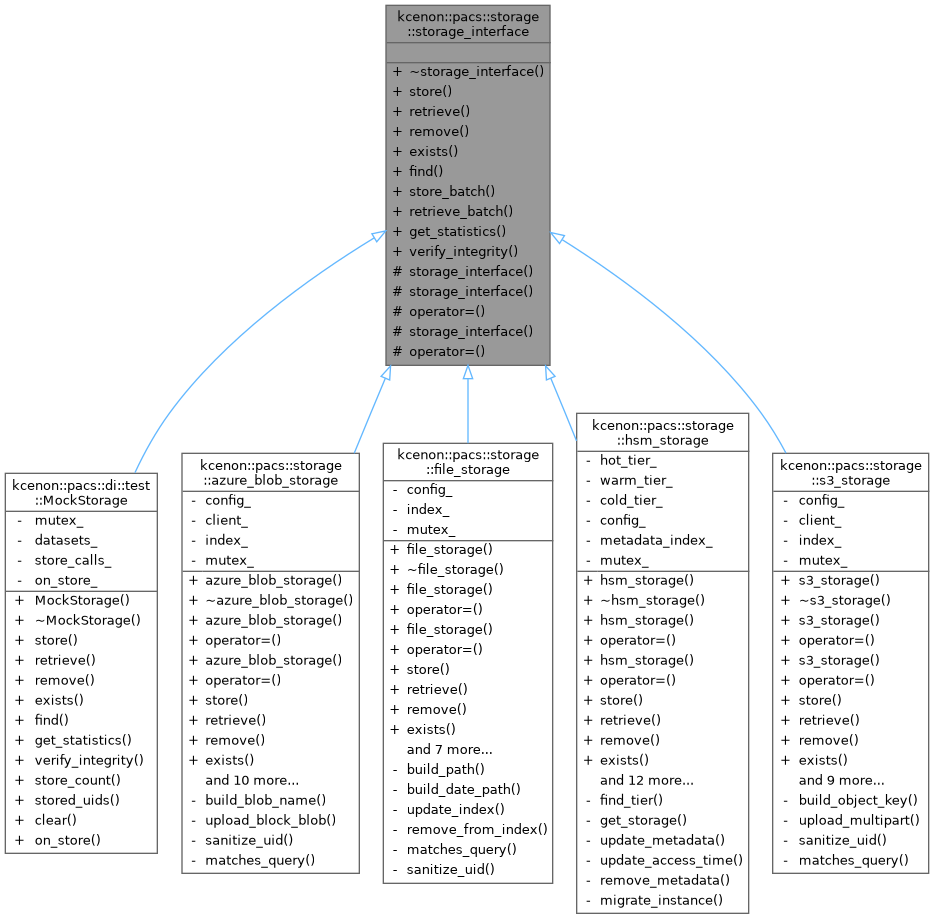

Inheritance diagram for kcenon::pacs::storage::storage_interface:

Collaboration diagram for kcenon::pacs::storage::storage_interface:

Public Member Functions
virtual	~storage_interface ()=default
	Virtual destructor for proper polymorphic destruction.
virtual auto	store (const core::dicom_dataset &dataset) -> VoidResult=0
	Store a DICOM dataset.
virtual auto	retrieve (std::string_view sop_instance_uid) -> Result< core::dicom_dataset >=0
	Retrieve a DICOM dataset by SOP Instance UID.
virtual auto	remove (std::string_view sop_instance_uid) -> VoidResult=0
	Remove a DICOM dataset by SOP Instance UID.
virtual auto	exists (std::string_view sop_instance_uid) const -> bool=0
	Check if a DICOM instance exists.
virtual auto	find (const core::dicom_dataset &query) -> Result< std::vector< core::dicom_dataset > >=0
	Find DICOM datasets matching query criteria.
virtual auto	store_batch (const std::vector< core::dicom_dataset > &datasets) -> VoidResult
	Store multiple DICOM datasets in a single operation.
virtual auto	retrieve_batch (const std::vector< std::string > &sop_instance_uids) -> Result< std::vector< core::dicom_dataset > >
	Retrieve multiple DICOM datasets by their SOP Instance UIDs.
virtual auto	get_statistics () const -> storage_statistics=0
	Get storage statistics.
virtual auto	verify_integrity () -> VoidResult=0
	Verify storage integrity.

Protected Member Functions
	storage_interface ()=default
	Protected default constructor for derived classes.
	storage_interface (const storage_interface &)=delete
	Non-copyable.
storage_interface &	operator= (const storage_interface &)=delete
	storage_interface (storage_interface &&)=default
	Movable.
storage_interface &	operator= (storage_interface &&)=default

Detailed Description

Abstract storage interface for DICOM persistence.

Provides a unified API for storing, retrieving, and querying DICOM data. All concrete storage implementations must inherit from this interface.

Thread Safety:

• All methods must be thread-safe in concrete implementations
• Concurrent reads are allowed
• Writes must be atomic

Example:

// Using a concrete implementation (e.g., file_storage)
std::unique_ptr<storage_interface> storage =
    std::make_unique<file_storage>("/path/to/storage");

// Store a DICOM dataset
core::dicom_dataset dataset;
// ... populate dataset ...
auto result = storage->store(dataset);

// Retrieve by SOP Instance UID
auto retrieved = storage->retrieve("1.2.3.4.5.6.7.8.9");

// Query for studies
core::dicom_dataset query;
query.set_string(tags::patient_id, vr_type::LO, "12345");
auto matches = storage->find(query);

Definition at line 93 of file storage_interface.h.

Constructor & Destructor Documentation

~storage_interface()

virtual kcenon::pacs::storage::storage_interface::~storage_interface ( )

virtualdefault

Virtual destructor for proper polymorphic destruction.

storage_interface() [1/3]

kcenon::pacs::storage::storage_interface::storage_interface ( )

protecteddefault

Protected default constructor for derived classes.

storage_interface() [2/3]

kcenon::pacs::storage::storage_interface::storage_interface ( const storage_interface & )

protecteddelete

Non-copyable.

storage_interface() [3/3]

kcenon::pacs::storage::storage_interface::storage_interface ( storage_interface && )

protecteddefault

Movable.

Member Function Documentation

exists()

virtual auto kcenon::pacs::storage::storage_interface::exists ( std::string_view sop_instance_uid ) const -> bool

nodiscardpure virtual

Check if a DICOM instance exists.

Parameters

sop_instance_uid

The unique identifier to check

Returns

true if the instance exists, false otherwise

Implemented in kcenon::pacs::di::test::MockStorage, kcenon::pacs::storage::azure_blob_storage, kcenon::pacs::storage::file_storage, kcenon::pacs::storage::hsm_storage, and kcenon::pacs::storage::s3_storage.

find()

virtual auto kcenon::pacs::storage::storage_interface::find ( const core::dicom_dataset & query ) -> Result< std::vector< core::dicom_dataset > >

nodiscardpure virtual

Find DICOM datasets matching query criteria.

Performs a search using DICOM C-FIND semantics. The query dataset contains the search criteria where empty values act as wildcards.

Parameters

query

The query dataset containing search criteria

Returns

Result containing matching datasets or error information

Note

Supports standard DICOM wildcard matching (* and ?)

Implemented in kcenon::pacs::di::test::MockStorage, kcenon::pacs::storage::azure_blob_storage, kcenon::pacs::storage::file_storage, kcenon::pacs::storage::hsm_storage, and kcenon::pacs::storage::s3_storage.

get_statistics()

virtual auto kcenon::pacs::storage::storage_interface::get_statistics ( ) const -> storage_statistics

nodiscardpure virtual

Get storage statistics.

Returns aggregated metrics about the current state of storage.

Returns

Storage statistics structure

Implemented in kcenon::pacs::di::test::MockStorage, kcenon::pacs::storage::azure_blob_storage, kcenon::pacs::storage::file_storage, kcenon::pacs::storage::hsm_storage, and kcenon::pacs::storage::s3_storage.

operator=() [1/2]

storage_interface & kcenon::pacs::storage::storage_interface::operator= ( const storage_interface & )

protecteddelete

operator=() [2/2]

storage_interface & kcenon::pacs::storage::storage_interface::operator= ( storage_interface && )

protecteddefault

remove()

virtual auto kcenon::pacs::storage::storage_interface::remove ( std::string_view sop_instance_uid ) -> VoidResult

nodiscardpure virtual

Remove a DICOM dataset by SOP Instance UID.

Parameters

sop_instance_uid

The unique identifier for the instance to remove

Returns

VoidResult Success or error information

Note

Removing a non-existent instance is not considered an error

Implemented in kcenon::pacs::di::test::MockStorage, kcenon::pacs::storage::azure_blob_storage, kcenon::pacs::storage::file_storage, kcenon::pacs::storage::hsm_storage, and kcenon::pacs::storage::s3_storage.

retrieve()

virtual auto kcenon::pacs::storage::storage_interface::retrieve ( std::string_view sop_instance_uid ) -> Result< core::dicom_dataset >

nodiscardpure virtual

Retrieve a DICOM dataset by SOP Instance UID.

Parameters

sop_instance_uid

The unique identifier for the instance

Returns

Result containing the dataset or error information

Implemented in kcenon::pacs::di::test::MockStorage, kcenon::pacs::storage::azure_blob_storage, kcenon::pacs::storage::file_storage, kcenon::pacs::storage::hsm_storage, and kcenon::pacs::storage::s3_storage.

retrieve_batch()

auto kcenon::pacs::storage::storage_interface::retrieve_batch ( const std::vector< std::string > & sop_instance_uids ) -> Result<std::vector<core::dicom_dataset>>

nodiscardvirtual

Retrieve multiple DICOM datasets by their SOP Instance UIDs.

Default implementation calls retrieve() for each UID. Concrete implementations may override for better performance.

Parameters

sop_instance_uids

The collection of UIDs to retrieve

Returns

Result containing found datasets or error information

Note

Missing instances are silently skipped in the result

Definition at line 33 of file storage_interface.cpp.

                                            {
    std::vector<core::dicom_dataset> results;
    results.reserve(sop_instance_uids.size());

    for (const auto& uid : sop_instance_uids) {
        auto result = retrieve(uid);
        if (result.is_ok()) {
            results.push_back(std::move(result.value()));
        }
        // Silently skip missing instances as per interface contract
    }

    return results;
}

References uid.

store()

virtual auto kcenon::pacs::storage::storage_interface::store ( const core::dicom_dataset & dataset ) -> VoidResult

nodiscardpure virtual

Store a DICOM dataset.

Stores the dataset using its SOP Instance UID as the key. If a dataset with the same UID already exists, it will be replaced.

Parameters

dataset

The DICOM dataset to store

Returns

VoidResult Success or error information

Note

The dataset must contain a valid SOP Instance UID (0008,0018)

Implemented in kcenon::pacs::di::test::MockStorage, kcenon::pacs::storage::azure_blob_storage, kcenon::pacs::storage::file_storage, kcenon::pacs::storage::hsm_storage, and kcenon::pacs::storage::s3_storage.

store_batch()

auto kcenon::pacs::storage::storage_interface::store_batch ( const std::vector< core::dicom_dataset > & datasets ) -> VoidResult

nodiscardvirtual

Store multiple DICOM datasets in a single operation.

Default implementation calls store() for each dataset. Concrete implementations may override for better performance.

Parameters

datasets

The collection of datasets to store

Returns

VoidResult Success or error information

Note

On error, some datasets may have been stored

Definition at line 22 of file storage_interface.cpp.

                                                                {
    for (const auto& dataset : datasets) {
        auto result = store(dataset);
        if (result.is_err()) {
            return result;
        }
    }
    return ok();
}

verify_integrity()

virtual auto kcenon::pacs::storage::storage_interface::verify_integrity ( ) -> VoidResult

nodiscardpure virtual

Verify storage integrity.

Performs a consistency check on the storage backend. The specific checks depend on the implementation.

Returns

VoidResult Success if integrity is verified, error otherwise

Implemented in kcenon::pacs::di::test::MockStorage, kcenon::pacs::storage::azure_blob_storage, kcenon::pacs::storage::file_storage, kcenon::pacs::storage::hsm_storage, and kcenon::pacs::storage::s3_storage.

---

The documentation for this class was generated from the following files:

• include/kcenon/pacs/storage/storage_interface.h
• src/storage/storage_interface.cpp
