kcenon::pacs::storage::measurement_record Struct Reference

Measurement record from the database. More...

#include <measurement_record.h>

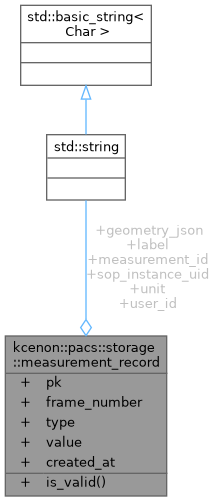

Collaboration diagram for kcenon::pacs::storage::measurement_record:

Public Member Functions
auto	is_valid () const noexcept -> bool
	Check if this record has valid data.

Public Attributes
int64_t	pk {0}
	Primary key (auto-generated)
std::string	measurement_id
	Unique measurement identifier (UUID)
std::string	sop_instance_uid
	SOP Instance UID - DICOM tag (0008,0018)
std::optional< int >	frame_number
	Frame number for multi-frame images (1-based)
std::string	user_id
	User who created the measurement.
measurement_type	type {measurement_type::length}
	Type of measurement.
std::string	geometry_json
	Geometry data as JSON string (coordinates)
double	value {0.0}
	Calculated measurement value.
std::string	unit
	Unit of measurement (mm, cm2, degrees, HU, g/ml, etc.)
std::string	label
	Optional label/description.
std::chrono::system_clock::time_point	created_at
	Record creation timestamp.

Detailed Description

Measurement record from the database.

Represents a single measurement on a DICOM image. Maps directly to the measurements table in the database.

Definition at line 76 of file measurement_record.h.

Member Function Documentation

is_valid()

auto kcenon::pacs::storage::measurement_record::is_valid ( ) const -> bool

inlinenodiscardnoexcept

Check if this record has valid data.

Returns

true if measurement_id and sop_instance_uid are not empty

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/measurement_record.h.

Definition at line 115 of file measurement_record.h.

                                                         {
        return !measurement_id.empty() && !sop_instance_uid.empty();
    }

References measurement_id, and sop_instance_uid.

Member Data Documentation

created_at

std::chrono::system_clock::time_point kcenon::pacs::storage::measurement_record::created_at

Record creation timestamp.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/measurement_record.h.

Definition at line 108 of file measurement_record.h.

Referenced by kcenon::pacs::web::endpoints::register_measurement_endpoints_impl().

frame_number

std::optional<int> kcenon::pacs::storage::measurement_record::frame_number

Frame number for multi-frame images (1-based)

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/measurement_record.h.

Definition at line 87 of file measurement_record.h.

Referenced by kcenon::pacs::web::endpoints::register_measurement_endpoints_impl().

geometry_json

std::string kcenon::pacs::storage::measurement_record::geometry_json

Geometry data as JSON string (coordinates)

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/measurement_record.h.

Definition at line 96 of file measurement_record.h.

Referenced by kcenon::pacs::web::endpoints::register_measurement_endpoints_impl().

label

std::string kcenon::pacs::storage::measurement_record::label

Optional label/description.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/measurement_record.h.

Definition at line 105 of file measurement_record.h.

Referenced by kcenon::pacs::web::endpoints::register_measurement_endpoints_impl().

measurement_id

std::string kcenon::pacs::storage::measurement_record::measurement_id

Unique measurement identifier (UUID)

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/measurement_record.h.

Definition at line 81 of file measurement_record.h.

Referenced by is_valid(), and kcenon::pacs::web::endpoints::register_measurement_endpoints_impl().

pk

int64_t kcenon::pacs::storage::measurement_record::pk {0}

Primary key (auto-generated)

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/measurement_record.h.

Definition at line 78 of file measurement_record.h.

{0};

sop_instance_uid

std::string kcenon::pacs::storage::measurement_record::sop_instance_uid

SOP Instance UID - DICOM tag (0008,0018)

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/measurement_record.h.

Definition at line 84 of file measurement_record.h.

Referenced by is_valid(), and kcenon::pacs::web::endpoints::register_measurement_endpoints_impl().

type

measurement_type kcenon::pacs::storage::measurement_record::type {measurement_type::length}

Type of measurement.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/measurement_record.h.

Definition at line 93 of file measurement_record.h.

{measurement_type::length};

Referenced by kcenon::pacs::web::endpoints::register_measurement_endpoints_impl().

unit

std::string kcenon::pacs::storage::measurement_record::unit

Unit of measurement (mm, cm2, degrees, HU, g/ml, etc.)

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/measurement_record.h.

Definition at line 102 of file measurement_record.h.

Referenced by kcenon::pacs::web::endpoints::register_measurement_endpoints_impl().

user_id

std::string kcenon::pacs::storage::measurement_record::user_id

User who created the measurement.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/measurement_record.h.

Definition at line 90 of file measurement_record.h.

Referenced by kcenon::pacs::web::endpoints::register_measurement_endpoints_impl().

value

double kcenon::pacs::storage::measurement_record::value {0.0}

Calculated measurement value.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/measurement_record.h.

Definition at line 99 of file measurement_record.h.

{0.0};

Referenced by kcenon::pacs::web::endpoints::register_measurement_endpoints_impl().

---

The documentation for this struct was generated from the following file:

• include/kcenon/pacs/storage/measurement_record.h
