kcenon::pacs::storage::hsm_migration_service Class Reference

Background migration service for HSM. More...

#include <hsm_migration_service.h>

Collaboration diagram for kcenon::pacs::storage::hsm_migration_service:

Public Member Functions
	hsm_migration_service (hsm_storage &storage, const migration_service_config &config={})
	Construct migration service.
	hsm_migration_service (hsm_storage &storage, std::shared_ptr< kcenon::thread::thread_pool > thread_pool, const migration_service_config &config={})
	Construct migration service with thread pool.
	~hsm_migration_service ()
	Destructor - ensures graceful shutdown.
	hsm_migration_service (const hsm_migration_service &)=delete
	Non-copyable.
hsm_migration_service &	operator= (const hsm_migration_service &)=delete
	hsm_migration_service (hsm_migration_service &&)=delete
	Non-movable.
hsm_migration_service &	operator= (hsm_migration_service &&)=delete
void	start ()
	Start the background migration service.
void	stop (bool wait_for_completion=true)
	Stop the background migration service.
auto	is_running () const noexcept -> bool
	Check if the service is running.
auto	run_migration_cycle () -> migration_result
	Manually trigger a migration cycle.
void	trigger_cycle ()
	Trigger next cycle immediately.
auto	get_last_result () const -> std::optional< migration_result >
	Get the result of the last migration cycle.
auto	get_cumulative_stats () const -> migration_result
	Get total statistics since service started.
auto	time_until_next_cycle () const -> std::optional< std::chrono::seconds >
	Get the time until the next scheduled migration.
auto	cycles_completed () const noexcept -> std::size_t
	Get the number of cycles completed.
void	set_migration_interval (std::chrono::seconds interval)
	Update the migration interval.
auto	get_migration_interval () const noexcept -> std::chrono::seconds
	Get the current migration interval.
void	set_progress_callback (migration_service_config::progress_callback callback)
	Set the progress callback.
void	set_error_callback (migration_service_config::error_callback callback)
	Set the error callback.

Private Member Functions
void	run_loop ()
	Background thread main loop.
auto	execute_cycle () -> migration_result
	Execute a single migration cycle.
void	update_stats (const migration_result &result)
	Update cumulative statistics.

Private Attributes
hsm_storage &	storage_
	Reference to managed HSM storage.
std::shared_ptr< kcenon::thread::thread_pool >	thread_pool_
	Thread pool for parallel migrations (optional)
migration_service_config	config_
	Service configuration.
std::thread	worker_thread_
	Background worker thread.
std::mutex	mutex_
	Mutex for thread synchronization.
std::condition_variable	cv_
	Condition variable for sleep/wake.
std::atomic< bool >	stop_requested_ {false}
	Flag to signal shutdown.
std::atomic< bool >	running_ {false}
	Flag indicating service is running.
std::atomic< bool >	cycle_in_progress_ {false}
	Flag indicating a cycle is in progress.
std::optional< migration_result >	last_result_
	Last migration result.
migration_result	cumulative_stats_
	Cumulative statistics.
std::atomic< std::size_t >	cycles_count_ {0}
	Number of completed cycles.
std::chrono::steady_clock::time_point	next_cycle_time_
	Time of next scheduled cycle.

Detailed Description

Background migration service for HSM.

Runs periodic migration cycles to move data between storage tiers based on the configured tier policy. Integrates with thread_system for parallel migration operations.

Thread Safety:

• All methods are thread-safe
• Uses condition variables for efficient scheduling
• Graceful shutdown support

Example:

// Create HSM storage
hsm_storage storage{hot, warm, cold};

// Create migration service
migration_service_config config;
config.migration_interval = std::chrono::hours{1};
config.on_cycle_complete = [](const migration_result& r) {
    std::cout << "Migrated " << r.instances_migrated << " instances\n";
};

hsm_migration_service service{storage, config};
service.start();

// Later...
service.stop();

Definition at line 99 of file hsm_migration_service.h.

Constructor & Destructor Documentation

hsm_migration_service() [1/4]

kcenon::pacs::storage::hsm_migration_service::hsm_migration_service ( hsm_storage & storage, const migration_service_config & config = {} )

explicit

Construct migration service.

Parameters

storage	Reference to the HSM storage to manage
config	Service configuration

Definition at line 20 of file hsm_migration_service.cpp.

    : storage_(storage), config_(config) {
    if (config_.auto_start) {
        start();
    }
}

References kcenon::pacs::storage::migration_service_config::auto_start, and config_.

hsm_migration_service() [2/4]

kcenon::pacs::storage::hsm_migration_service::hsm_migration_service	(	hsm_storage &	storage,
		std::shared_ptr< kcenon::thread::thread_pool >	thread_pool,
		const migration_service_config &	config = {} )

Construct migration service with thread pool.

Parameters

storage	Reference to the HSM storage to manage
thread_pool	Thread pool for parallel migrations
config	Service configuration

Definition at line 28 of file hsm_migration_service.cpp.

    : storage_(storage),
      thread_pool_(std::move(thread_pool)),
      config_(config) {
    if (config_.auto_start) {
        start();
    }
}

References kcenon::pacs::storage::migration_service_config::auto_start, and config_.

~hsm_migration_service()

kcenon::pacs::storage::hsm_migration_service::~hsm_migration_service

(

)

Destructor - ensures graceful shutdown.

Definition at line 40 of file hsm_migration_service.cpp.

                                              {
    stop(true);
}

References stop().

Here is the call graph for this function:

hsm_migration_service() [3/4]

kcenon::pacs::storage::hsm_migration_service::hsm_migration_service ( const hsm_migration_service & )

delete

Non-copyable.

hsm_migration_service() [4/4]

kcenon::pacs::storage::hsm_migration_service::hsm_migration_service ( hsm_migration_service && )

delete

Non-movable.

Member Function Documentation

cycles_completed()

auto kcenon::pacs::storage::hsm_migration_service::cycles_completed ( ) const -> std::size_t

nodiscardnoexcept

Get the number of cycles completed.

Returns

Total number of completed migration cycles

Definition at line 150 of file hsm_migration_service.cpp.

                                                                         {
    return cycles_count_.load();
}

References cycles_count_.

execute_cycle()

auto kcenon::pacs::storage::hsm_migration_service::execute_cycle ( ) -> migration_result

nodiscardprivate

Execute a single migration cycle.

Returns

Migration result

Definition at line 227 of file hsm_migration_service.cpp.

                                                              {
    cycle_in_progress_.store(true);

    auto result = storage_.run_migration_cycle();

    // Call error callbacks for failures
    if (!result.failed_uids.empty() && config_.on_migration_error) {
        for (const auto& uid : result.failed_uids) {
            config_.on_migration_error(uid, "Migration failed");
        }
    }

    cycle_in_progress_.store(false);

    return result;
}

References uid.

Referenced by run_loop().

Here is the caller graph for this function:

get_cumulative_stats()

auto kcenon::pacs::storage::hsm_migration_service::get_cumulative_stats ( ) const -> migration_result

nodiscard

Get total statistics since service started.

Returns

Cumulative migration statistics

Definition at line 128 of file hsm_migration_service.cpp.

                                                                           {
    std::lock_guard lock(mutex_);
    return cumulative_stats_;
}

References cumulative_stats_, and mutex_.

get_last_result()

auto kcenon::pacs::storage::hsm_migration_service::get_last_result ( ) const -> std::optional<migration_result>

nodiscard

Get the result of the last migration cycle.

Returns

Last migration result, or nullopt if no cycle has run

Definition at line 122 of file hsm_migration_service.cpp.

                                     {
    std::lock_guard lock(mutex_);
    return last_result_;
}

References last_result_, and mutex_.

get_migration_interval()

auto kcenon::pacs::storage::hsm_migration_service::get_migration_interval ( ) const -> std::chrono::seconds

nodiscardnoexcept

Get the current migration interval.

Returns

Current interval between migration cycles

Definition at line 164 of file hsm_migration_service.cpp.

                        {
    return config_.migration_interval;
}

References config_, and kcenon::pacs::storage::migration_service_config::migration_interval.

is_running()

auto kcenon::pacs::storage::hsm_migration_service::is_running ( ) const -> bool

nodiscardnoexcept

Check if the service is running.

Returns

true if the background service is running

Definition at line 92 of file hsm_migration_service.cpp.

                                                              {
    return running_.load();
}

References running_.

operator=() [1/2]

hsm_migration_service & kcenon::pacs::storage::hsm_migration_service::operator= ( const hsm_migration_service & )

delete

operator=() [2/2]

hsm_migration_service & kcenon::pacs::storage::hsm_migration_service::operator= ( hsm_migration_service && )

delete

run_loop()

void kcenon::pacs::storage::hsm_migration_service::run_loop ( )

private

Background thread main loop.

Definition at line 185 of file hsm_migration_service.cpp.

                                     {
    while (!stop_requested_.load()) {
        std::unique_lock lock(mutex_);

        // Wait until next cycle time or stop requested
        cv_.wait_until(lock, next_cycle_time_, [this]() {
            return stop_requested_.load() ||
                   std::chrono::steady_clock::now() >= next_cycle_time_;
        });

        if (stop_requested_.load()) {
            break;
        }

        // Release lock during migration
        lock.unlock();

        // Execute migration cycle
        auto result = execute_cycle();

        // Update statistics
        update_stats(result);

        // Store result
        lock.lock();
        last_result_ = result;
        cycles_count_++;

        // Schedule next cycle
        next_cycle_time_ =
            std::chrono::steady_clock::now() + config_.migration_interval;

        // Call progress callback (outside of lock)
        auto callback = config_.on_cycle_complete;
        lock.unlock();

        if (callback) {
            callback(result);
        }
    }
}

References config_, cv_, cycles_count_, execute_cycle(), last_result_, kcenon::pacs::storage::migration_service_config::migration_interval, mutex_, next_cycle_time_, kcenon::pacs::storage::migration_service_config::on_cycle_complete, stop_requested_, and update_stats().

Referenced by start().

Here is the call graph for this function:

Here is the caller graph for this function:

run_migration_cycle()

auto kcenon::pacs::storage::hsm_migration_service::run_migration_cycle ( ) -> migration_result

nodiscard

Manually trigger a migration cycle.

Runs a migration cycle immediately, regardless of the scheduled interval. Can be called whether the service is running or not.

Returns

Migration result with statistics

Definition at line 100 of file hsm_migration_service.cpp.

                                                                    {
    return execute_cycle();
}

set_error_callback()

void kcenon::pacs::storage::hsm_migration_service::set_error_callback

(

migration_service_config::error_callback

callback

)

Set the error callback.

Parameters

callback

Function called when a migration fails

Definition at line 175 of file hsm_migration_service.cpp.

                                                     {
    std::lock_guard lock(mutex_);
    config_.on_migration_error = std::move(callback);
}

References config_, mutex_, and kcenon::pacs::storage::migration_service_config::on_migration_error.

set_migration_interval()

void kcenon::pacs::storage::hsm_migration_service::set_migration_interval

(

std::chrono::seconds

interval

)

Update the migration interval.

Parameters

interval

New interval between migration cycles

Note

Takes effect at the next cycle

Definition at line 158 of file hsm_migration_service.cpp.

                               {
    std::lock_guard lock(mutex_);
    config_.migration_interval = interval;
}

References config_, kcenon::pacs::storage::migration_service_config::migration_interval, and mutex_.

set_progress_callback()

void kcenon::pacs::storage::hsm_migration_service::set_progress_callback

(

migration_service_config::progress_callback

callback

)

Set the progress callback.

Parameters

callback

Function called after each migration cycle

Definition at line 169 of file hsm_migration_service.cpp.

                                                        {
    std::lock_guard lock(mutex_);
    config_.on_cycle_complete = std::move(callback);
}

References config_, mutex_, and kcenon::pacs::storage::migration_service_config::on_cycle_complete.

start()

void kcenon::pacs::storage::hsm_migration_service::start

(

)

Start the background migration service.

Starts the background thread that runs periodic migration cycles. If already started, this is a no-op.

Definition at line 48 of file hsm_migration_service.cpp.

                                  {
    std::lock_guard lock(mutex_);

    if (running_.load()) {
        return;  // Already running
    }

    stop_requested_.store(false);
    running_.store(true);

    // Set next cycle time
    next_cycle_time_ =
        std::chrono::steady_clock::now() + config_.migration_interval;

    // Start worker thread
    worker_thread_ = std::thread([this]() { run_loop(); });
}

References config_, kcenon::pacs::storage::migration_service_config::migration_interval, mutex_, next_cycle_time_, run_loop(), running_, stop_requested_, and worker_thread_.

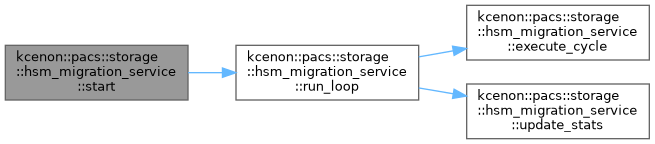

Here is the call graph for this function:

stop()

void kcenon::pacs::storage::hsm_migration_service::stop

(

bool

wait_for_completion = true

)

Stop the background migration service.

Gracefully stops the service, waiting for any in-progress migrations to complete. If not started, this is a no-op.

Parameters

wait_for_completion

If true, waits for current cycle to complete

Definition at line 66 of file hsm_migration_service.cpp.

                                                         {
    {
        std::lock_guard lock(mutex_);

        if (!running_.load()) {
            return;  // Not running
        }

        stop_requested_.store(true);
    }

    // Wake up the worker thread
    cv_.notify_all();

    // Wait for thread to finish
    if (worker_thread_.joinable()) {
        if (wait_for_completion) {
            worker_thread_.join();
        } else {
            worker_thread_.detach();
        }
    }

    running_.store(false);
}

References cv_, mutex_, running_, stop_requested_, and worker_thread_.

Referenced by ~hsm_migration_service().

Here is the caller graph for this function:

time_until_next_cycle()

auto kcenon::pacs::storage::hsm_migration_service::time_until_next_cycle ( ) const -> std::optional<std::chrono::seconds>

nodiscard

Get the time until the next scheduled migration.

Returns

Duration until next cycle, or nullopt if not scheduled

Definition at line 133 of file hsm_migration_service.cpp.

                                     {
    std::lock_guard lock(mutex_);

    if (!running_.load()) {
        return std::nullopt;
    }

    auto now = std::chrono::steady_clock::now();
    if (next_cycle_time_ <= now) {
        return std::chrono::seconds{0};
    }

    return std::chrono::duration_cast<std::chrono::seconds>(next_cycle_time_ -
                                                            now);
}

References mutex_, next_cycle_time_, and running_.

trigger_cycle()

void kcenon::pacs::storage::hsm_migration_service::trigger_cycle

(

)

Trigger next cycle immediately.

Wakes up the background thread to run a migration cycle immediately, without waiting for the scheduled interval. Only works if service is running.

Definition at line 104 of file hsm_migration_service.cpp.

                                          {
    std::lock_guard lock(mutex_);

    if (!running_.load()) {
        return;
    }

    // Set next cycle time to now to trigger immediate execution
    next_cycle_time_ = std::chrono::steady_clock::now();

    // Wake up the worker thread
    cv_.notify_all();
}

References cv_, mutex_, next_cycle_time_, and running_.

update_stats()

void kcenon::pacs::storage::hsm_migration_service::update_stats ( const migration_result & result )

private

Update cumulative statistics.

Parameters

result

Result from latest cycle

Definition at line 244 of file hsm_migration_service.cpp.

                                                                       {
    std::lock_guard lock(mutex_);

    cumulative_stats_.instances_migrated += result.instances_migrated;
    cumulative_stats_.bytes_migrated += result.bytes_migrated;
    cumulative_stats_.duration += result.duration;
    cumulative_stats_.instances_skipped += result.instances_skipped;

    // Append failed UIDs (keep last N)
    constexpr std::size_t kMaxFailedUids = 100;
    for (const auto& uid : result.failed_uids) {
        if (cumulative_stats_.failed_uids.size() >= kMaxFailedUids) {
            cumulative_stats_.failed_uids.erase(
                cumulative_stats_.failed_uids.begin());
        }
        cumulative_stats_.failed_uids.push_back(uid);
    }
}

References kcenon::pacs::storage::migration_result::bytes_migrated, cumulative_stats_, kcenon::pacs::storage::migration_result::duration, kcenon::pacs::storage::migration_result::failed_uids, kcenon::pacs::storage::migration_result::instances_migrated, kcenon::pacs::storage::migration_result::instances_skipped, mutex_, and uid.

Referenced by run_loop().

Here is the caller graph for this function:

Member Data Documentation

config_

migration_service_config kcenon::pacs::storage::hsm_migration_service::config_

private

Service configuration.

Definition at line 293 of file hsm_migration_service.h.

Referenced by get_migration_interval(), hsm_migration_service(), hsm_migration_service(), run_loop(), set_error_callback(), set_migration_interval(), set_progress_callback(), and start().

cumulative_stats_

migration_result kcenon::pacs::storage::hsm_migration_service::cumulative_stats_

private

Cumulative statistics.

Definition at line 317 of file hsm_migration_service.h.

Referenced by get_cumulative_stats(), and update_stats().

cv_

std::condition_variable kcenon::pacs::storage::hsm_migration_service::cv_

private

Condition variable for sleep/wake.

Definition at line 302 of file hsm_migration_service.h.

Referenced by run_loop(), stop(), and trigger_cycle().

cycle_in_progress_

std::atomic<bool> kcenon::pacs::storage::hsm_migration_service::cycle_in_progress_ {false}

private

Flag indicating a cycle is in progress.

Definition at line 311 of file hsm_migration_service.h.

{false};

cycles_count_

std::atomic<std::size_t> kcenon::pacs::storage::hsm_migration_service::cycles_count_ {0}

private

Number of completed cycles.

Definition at line 320 of file hsm_migration_service.h.

{0};

Referenced by cycles_completed(), and run_loop().

last_result_

std::optional<migration_result> kcenon::pacs::storage::hsm_migration_service::last_result_

private

Last migration result.

Definition at line 314 of file hsm_migration_service.h.

Referenced by get_last_result(), and run_loop().

mutex_

std::mutex kcenon::pacs::storage::hsm_migration_service::mutex_

mutableprivate

Mutex for thread synchronization.

Definition at line 299 of file hsm_migration_service.h.

Referenced by get_cumulative_stats(), get_last_result(), run_loop(), set_error_callback(), set_migration_interval(), set_progress_callback(), start(), stop(), time_until_next_cycle(), trigger_cycle(), and update_stats().

next_cycle_time_

std::chrono::steady_clock::time_point kcenon::pacs::storage::hsm_migration_service::next_cycle_time_

private

Time of next scheduled cycle.

Definition at line 323 of file hsm_migration_service.h.

Referenced by run_loop(), start(), time_until_next_cycle(), and trigger_cycle().

running_

std::atomic<bool> kcenon::pacs::storage::hsm_migration_service::running_ {false}

private

Flag indicating service is running.

Definition at line 308 of file hsm_migration_service.h.

{false};

Referenced by is_running(), start(), stop(), time_until_next_cycle(), and trigger_cycle().

stop_requested_

std::atomic<bool> kcenon::pacs::storage::hsm_migration_service::stop_requested_ {false}

private

Flag to signal shutdown.

Definition at line 305 of file hsm_migration_service.h.

{false};

Referenced by run_loop(), start(), and stop().

storage_

hsm_storage& kcenon::pacs::storage::hsm_migration_service::storage_

private

Reference to managed HSM storage.

Definition at line 287 of file hsm_migration_service.h.

thread_pool_

std::shared_ptr<kcenon::thread::thread_pool> kcenon::pacs::storage::hsm_migration_service::thread_pool_

private

Thread pool for parallel migrations (optional)

Definition at line 290 of file hsm_migration_service.h.

worker_thread_

std::thread kcenon::pacs::storage::hsm_migration_service::worker_thread_

private

Background worker thread.

Definition at line 296 of file hsm_migration_service.h.

Referenced by start(), and stop().

---

The documentation for this class was generated from the following files:

• include/kcenon/pacs/storage/hsm_migration_service.h
• src/storage/hsm_migration_service.cpp
