#include <migration_runner.h>

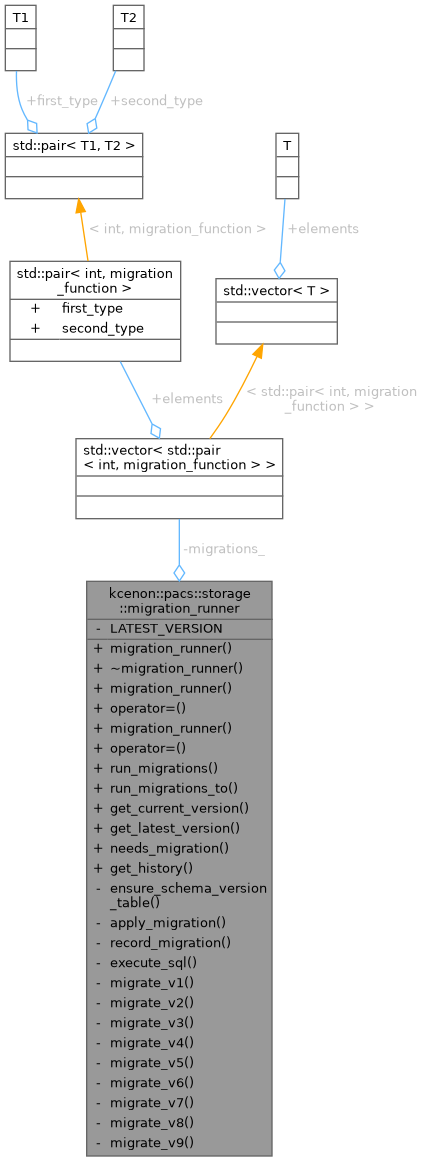

Collaboration diagram for kcenon::pacs::storage::migration_runner:

Public Member Functions
	migration_runner ()
	Default constructor.

	~migration_runner ()=default
	Default destructor.

	migration_runner (const migration_runner &)=delete

auto	operator= (const migration_runner &) -> migration_runner &=delete

	migration_runner (migration_runner &&)=delete

auto	operator= (migration_runner &&) -> migration_runner &=delete

auto	run_migrations (sqlite3 *db) -> VoidResult
	Run all pending migrations.

auto	run_migrations_to (sqlite3 *db, int target_version) -> VoidResult
	Run migrations up to a specific version.

auto	get_current_version (sqlite3 *db) const -> int
	Get the current schema version.

auto	get_latest_version () const noexcept -> int
	Get the latest available schema version.

auto	needs_migration (sqlite3 *db) const -> bool
	Check if migration is needed.

auto	get_history (sqlite3 *db) const -> std::vector< migration_record >
	Get the migration history.

Private Member Functions
auto	ensure_schema_version_table (sqlite3 *db) -> VoidResult
	Create the schema_version table if it doesn't exist.

auto	apply_migration (sqlite3 *db, int version) -> VoidResult
	Apply a single migration.

auto	record_migration (sqlite3 *db, int version, std::string_view description) -> VoidResult
	Record a migration in the schema_version table.

auto	execute_sql (sqlite3 *db, std::string_view sql) -> VoidResult
	Execute SQL statement and handle errors.

auto	migrate_v1 (sqlite3 *db) -> VoidResult

auto	migrate_v2 (sqlite3 *db) -> VoidResult

auto	migrate_v3 (sqlite3 *db) -> VoidResult

auto	migrate_v4 (sqlite3 *db) -> VoidResult

auto	migrate_v5 (sqlite3 *db) -> VoidResult

auto	migrate_v6 (sqlite3 *db) -> VoidResult

auto	migrate_v7 (sqlite3 *db) -> VoidResult

auto	migrate_v8 (sqlite3 *db) -> VoidResult

auto	migrate_v9 (sqlite3 *db) -> VoidResult

Private Attributes
std::vector< std::pair< int, migration_function > >	migrations_
	Migration function registry.

Static Private Attributes
static constexpr int	LATEST_VERSION = 9
	Latest schema version (increment when adding migrations)

Detailed Description

Definition at line 103 of file migration_runner.h.

Constructor & Destructor Documentation

◆ migration_runner() [1/3]

kcenon::pacs::storage::migration_runner::migration_runner ( )

Default constructor.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/migration_runner.h.

Definition at line 36 of file migration_runner.cpp.

                                   {
    // Register all migrations (SQLite version)
    migrations_.push_back({1, [this](sqlite3* db) { return migrate_v1(db); }});
    migrations_.push_back({2, [this](sqlite3* db) { return migrate_v2(db); }});
    migrations_.push_back({3, [this](sqlite3* db) { return migrate_v3(db); }});
    migrations_.push_back({4, [this](sqlite3* db) { return migrate_v4(db); }});
    migrations_.push_back({5, [this](sqlite3* db) { return migrate_v5(db); }});
    migrations_.push_back({6, [this](sqlite3* db) { return migrate_v6(db); }});
    migrations_.push_back({7, [this](sqlite3* db) { return migrate_v7(db); }});
    migrations_.push_back({8, [this](sqlite3* db) { return migrate_v8(db); }});
    migrations_.push_back({9, [this](sqlite3* db) { return migrate_v9(db); }});

#ifdef PACS_WITH_DATABASE_SYSTEM
    // Register all migrations (pacs_database_adapter version)
    adapter_migrations_.push_back(
        {1, [this](pacs_database_adapter& db) { return migrate_v1(db); }});
    adapter_migrations_.push_back(
        {2, [this](pacs_database_adapter& db) { return migrate_v2(db); }});
    adapter_migrations_.push_back(
        {3, [this](pacs_database_adapter& db) { return migrate_v3(db); }});
    adapter_migrations_.push_back(
        {4, [this](pacs_database_adapter& db) { return migrate_v4(db); }});
    adapter_migrations_.push_back(
        {5, [this](pacs_database_adapter& db) { return migrate_v5(db); }});
    adapter_migrations_.push_back(
        {6, [this](pacs_database_adapter& db) { return migrate_v6(db); }});
    adapter_migrations_.push_back(
        {7, [this](pacs_database_adapter& db) { return migrate_v7(db); }});
    adapter_migrations_.push_back(
        {8, [this](pacs_database_adapter& db) { return migrate_v8(db); }});
    adapter_migrations_.push_back(
        {9, [this](pacs_database_adapter& db) { return migrate_v9(db); }});
#endif
}

References migrate_v1(), migrate_v2(), migrate_v3(), migrate_v4(), migrate_v5(), migrate_v6(), migrate_v7(), migrate_v8(), migrate_v9(), and migrations_.

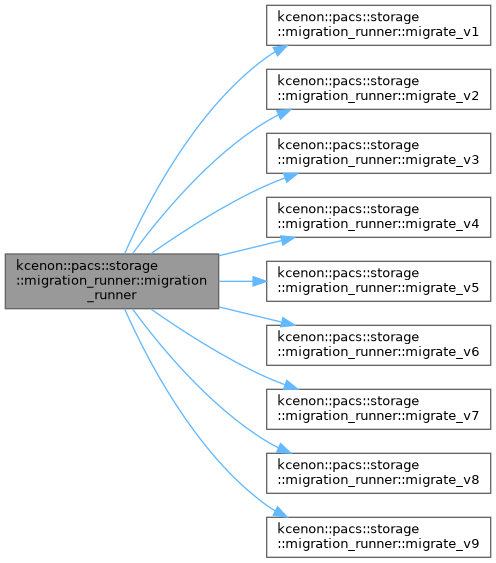

Here is the call graph for this function:

◆ ~migration_runner()

kcenon::pacs::storage::migration_runner::~migration_runner ( )

default

Default destructor.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/migration_runner.h.

◆ migration_runner() [2/3]

kcenon::pacs::storage::migration_runner::migration_runner ( const migration_runner & )

delete

◆ migration_runner() [3/3]

kcenon::pacs::storage::migration_runner::migration_runner ( migration_runner && )

delete

Member Function Documentation

◆ apply_migration()

auto kcenon::pacs::storage::migration_runner::apply_migration	(	sqlite3 *	db,
		int	version ) -> VoidResult

nodiscardprivate

Apply a single migration.

Parameters

db	The SQLite database handle
version	The migration version to apply

Returns: VoidResult Success or error information

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/migration_runner.h.

Definition at line 231 of file migration_runner.cpp.

                                                                             {
    // Find the migration function
    for (const auto& [ver, func] : migrations_) {
        if (ver == version) {
            return func(db);
        }
    }

    return make_error<std::monostate>(
        -1,
        kcenon::pacs::compat::format("Migration for version {} not found", version),
        "storage");
}

◆ ensure_schema_version_table()

auto kcenon::pacs::storage::migration_runner::ensure_schema_version_table ( sqlite3 * db ) -> VoidResult

nodiscardprivate

Create the schema_version table if it doesn't exist.

Parameters

db	The SQLite database handle

Returns: VoidResult Success or error information

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/migration_runner.h.

Definition at line 219 of file migration_runner.cpp.

                                                                            {
    const char* sql = R"(
        CREATE TABLE IF NOT EXISTS schema_version (
            version     INTEGER PRIMARY KEY,
            description TEXT NOT NULL,
            applied_at  TEXT NOT NULL DEFAULT (datetime('now'))
        );
    )";

    return execute_sql(db, sql);
}

◆ execute_sql()

auto kcenon::pacs::storage::migration_runner::execute_sql	(	sqlite3 *	db,
		std::string_view	sql ) -> VoidResult

nodiscardprivate

Execute SQL statement and handle errors.

Parameters

db	The SQLite database handle
sql	The SQL statement to execute

Returns: VoidResult Success or error information

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/migration_runner.h.

Definition at line 279 of file migration_runner.cpp.

                  {
    char* errmsg = nullptr;
    auto rc = sqlite3_exec(db, sql.data(), nullptr, nullptr, &errmsg);

    if (rc != SQLITE_OK) {
        auto error_str = errmsg ? std::string(errmsg) : "Unknown error";
        sqlite3_free(errmsg);

        return make_error<std::monostate>(
            rc, kcenon::pacs::compat::format("SQL execution failed: {}", error_str),
            "storage");
    }

    return ok();
}

◆ get_current_version()

auto kcenon::pacs::storage::migration_runner::get_current_version ( sqlite3 * db ) const -> int

nodiscard

Get the current schema version.

Returns 0 if no migrations have been applied (schema_version table doesn't exist or is empty).

Parameters

db	The SQLite database handle

Returns: Current schema version number

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/migration_runner.h.

Definition at line 137 of file migration_runner.cpp.

                                                                   {
    // Check if schema_version table exists
    const char* check_sql =
        "SELECT name FROM sqlite_master WHERE type='table' AND name='schema_version';";

    sqlite3_stmt* stmt = nullptr;
    auto rc = sqlite3_prepare_v2(db, check_sql, -1, &stmt, nullptr);
    if (rc != SQLITE_OK) {
        return 0;
    }

    rc = sqlite3_step(stmt);
    sqlite3_finalize(stmt);

    if (rc != SQLITE_ROW) {
        // Table doesn't exist
        return 0;
    }

    // Get max version from table
    const char* version_sql = "SELECT MAX(version) FROM schema_version;";
    rc = sqlite3_prepare_v2(db, version_sql, -1, &stmt, nullptr);
    if (rc != SQLITE_OK) {
        return 0;
    }

    int version = 0;
    if (sqlite3_step(stmt) == SQLITE_ROW) {
        // sqlite3_column_int returns 0 for NULL
        version = sqlite3_column_int(stmt, 0);
    }
    sqlite3_finalize(stmt);

    return version;
}

Referenced by kcenon::pacs::storage::index_database::schema_version().

Here is the caller graph for this function:

◆ get_history()

auto kcenon::pacs::storage::migration_runner::get_history ( sqlite3 * db ) const -> std::vector<migration_record>

nodiscard

Get the migration history.

Returns all applied migrations in chronological order.

Parameters

db	The SQLite database handle

Returns: Vector of migration records, empty if no migrations applied

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/migration_runner.h.

Definition at line 185 of file migration_runner.cpp.

                                   {
    std::vector<migration_record> history;

    const char* sql =
        "SELECT version, description, applied_at FROM schema_version ORDER BY version;";

    sqlite3_stmt* stmt = nullptr;
    auto rc = sqlite3_prepare_v2(db, sql, -1, &stmt, nullptr);
    if (rc != SQLITE_OK) {
        return history;
    }

    while (sqlite3_step(stmt) == SQLITE_ROW) {
        migration_record record;
        record.version = sqlite3_column_int(stmt, 0);

        const auto* desc = reinterpret_cast<const char*>(sqlite3_column_text(stmt, 1));
        record.description = desc ? desc : "";

        const auto* applied = reinterpret_cast<const char*>(sqlite3_column_text(stmt, 2));
        record.applied_at = applied ? applied : "";

        history.push_back(std::move(record));
    }

    sqlite3_finalize(stmt);
    return history;
}

◆ get_latest_version()

auto kcenon::pacs::storage::migration_runner::get_latest_version ( ) const -> int

nodiscardnoexcept

Get the latest available schema version.

Returns: The highest version number available for migration

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/migration_runner.h.

Definition at line 173 of file migration_runner.cpp.

                                                                {
    return LATEST_VERSION;
}

References LATEST_VERSION.

◆ migrate_v1()

auto kcenon::pacs::storage::migration_runner::migrate_v1 ( sqlite3 * db ) -> VoidResult

nodiscardprivate

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/migration_runner.h.

Definition at line 300 of file migration_runner.cpp.

                                                           {
    // V1: Initial schema - Create all base tables
    const char* sql = R"(
        -- =====================================================================
        -- PATIENTS TABLE
        -- =====================================================================
        CREATE TABLE IF NOT EXISTS patients (
            patient_pk      INTEGER PRIMARY KEY AUTOINCREMENT,
            patient_id      TEXT NOT NULL UNIQUE,
            patient_name    TEXT,
            birth_date      TEXT,
            sex             TEXT,
            other_ids       TEXT,
            ethnic_group    TEXT,
            comments        TEXT,
            created_at      TEXT NOT NULL DEFAULT (datetime('now')),
            updated_at      TEXT NOT NULL DEFAULT (datetime('now')),
            CHECK (length(patient_id) <= 64)
        );

        CREATE INDEX IF NOT EXISTS idx_patients_name ON patients(patient_name);
        CREATE INDEX IF NOT EXISTS idx_patients_birth ON patients(birth_date);

        -- =====================================================================
        -- STUDIES TABLE
        -- =====================================================================
        CREATE TABLE IF NOT EXISTS studies (
            study_pk            INTEGER PRIMARY KEY AUTOINCREMENT,
            patient_pk          INTEGER NOT NULL REFERENCES patients(patient_pk)
                                ON DELETE CASCADE,
            study_uid           TEXT NOT NULL UNIQUE,
            study_id            TEXT,
            study_date          TEXT,
            study_time          TEXT,
            accession_number    TEXT,
            referring_physician TEXT,
            study_description   TEXT,
            modalities_in_study TEXT,
            num_series          INTEGER DEFAULT 0,
            num_instances       INTEGER DEFAULT 0,
            created_at          TEXT NOT NULL DEFAULT (datetime('now')),
            updated_at          TEXT NOT NULL DEFAULT (datetime('now')),
            CHECK (length(study_uid) <= 64)
        );

        CREATE INDEX IF NOT EXISTS idx_studies_patient ON studies(patient_pk);
        CREATE INDEX IF NOT EXISTS idx_studies_date ON studies(study_date);
        CREATE INDEX IF NOT EXISTS idx_studies_accession ON studies(accession_number);

        -- =====================================================================
        -- SERIES TABLE
        -- =====================================================================
        CREATE TABLE IF NOT EXISTS series (
            series_pk           INTEGER PRIMARY KEY AUTOINCREMENT,
            study_pk            INTEGER NOT NULL REFERENCES studies(study_pk)
                                ON DELETE CASCADE,
            series_uid          TEXT NOT NULL UNIQUE,
            series_number       INTEGER,
            modality            TEXT,
            series_description  TEXT,
            body_part_examined  TEXT,
            station_name        TEXT,
            num_instances       INTEGER DEFAULT 0,
            created_at          TEXT NOT NULL DEFAULT (datetime('now')),
            updated_at          TEXT NOT NULL DEFAULT (datetime('now')),
            CHECK (length(series_uid) <= 64)
        );

        CREATE INDEX IF NOT EXISTS idx_series_study ON series(study_pk);
        CREATE INDEX IF NOT EXISTS idx_series_modality ON series(modality);

        -- =====================================================================
        -- INSTANCES TABLE
        -- =====================================================================
        CREATE TABLE IF NOT EXISTS instances (
            instance_pk     INTEGER PRIMARY KEY AUTOINCREMENT,
            series_pk       INTEGER NOT NULL REFERENCES series(series_pk)
                            ON DELETE CASCADE,
            sop_uid         TEXT NOT NULL UNIQUE,
            sop_class_uid   TEXT NOT NULL,
            instance_number INTEGER,
            transfer_syntax TEXT,
            content_date    TEXT,
            content_time    TEXT,
            rows            INTEGER,
            columns         INTEGER,
            bits_allocated  INTEGER,
            number_of_frames INTEGER,
            file_path       TEXT NOT NULL,
            file_size       INTEGER NOT NULL,
            file_hash       TEXT,
            created_at      TEXT NOT NULL DEFAULT (datetime('now')),
            CHECK (length(sop_uid) <= 64),
            CHECK (file_size >= 0)
        );

        CREATE INDEX IF NOT EXISTS idx_instances_series ON instances(series_pk);
        CREATE INDEX IF NOT EXISTS idx_instances_sop_class ON instances(sop_class_uid);
        CREATE INDEX IF NOT EXISTS idx_instances_number ON instances(instance_number);
        CREATE INDEX IF NOT EXISTS idx_instances_created ON instances(created_at);

        -- =====================================================================
        -- MPPS TABLE (Modality Performed Procedure Step)
        -- =====================================================================
        CREATE TABLE IF NOT EXISTS mpps (
            mpps_pk             INTEGER PRIMARY KEY AUTOINCREMENT,
            mpps_uid            TEXT NOT NULL UNIQUE,
            status              TEXT NOT NULL,
            start_datetime      TEXT,
            end_datetime        TEXT,
            station_ae          TEXT,
            station_name        TEXT,
            modality            TEXT,
            study_uid           TEXT,
            accession_no        TEXT,
            scheduled_step_id   TEXT,
            requested_proc_id   TEXT,
            performed_series    TEXT,
            created_at          TEXT NOT NULL DEFAULT (datetime('now')),
            updated_at          TEXT NOT NULL DEFAULT (datetime('now')),
            CHECK (status IN ('IN PROGRESS', 'COMPLETED', 'DISCONTINUED'))
        );

        CREATE INDEX IF NOT EXISTS idx_mpps_status ON mpps(status);
        CREATE INDEX IF NOT EXISTS idx_mpps_station ON mpps(station_ae);
        CREATE INDEX IF NOT EXISTS idx_mpps_study ON mpps(study_uid);
        CREATE INDEX IF NOT EXISTS idx_mpps_date ON mpps(start_datetime);

        -- =====================================================================
        -- WORKLIST TABLE (Modality Worklist)
        -- =====================================================================
        CREATE TABLE IF NOT EXISTS worklist (
            worklist_pk         INTEGER PRIMARY KEY AUTOINCREMENT,
            step_id             TEXT NOT NULL,
            step_status         TEXT DEFAULT 'SCHEDULED',
            patient_id          TEXT NOT NULL,
            patient_name        TEXT,
            birth_date          TEXT,
            sex                 TEXT,
            accession_no        TEXT,
            requested_proc_id   TEXT,
            study_uid           TEXT,
            scheduled_datetime  TEXT NOT NULL,
            station_ae          TEXT,
            station_name        TEXT,
            modality            TEXT NOT NULL,
            procedure_desc      TEXT,
            protocol_code       TEXT,
            referring_phys      TEXT,
            referring_phys_id   TEXT,
            created_at          TEXT NOT NULL DEFAULT (datetime('now')),
            updated_at          TEXT NOT NULL DEFAULT (datetime('now')),
            UNIQUE (step_id, accession_no)
        );

        CREATE INDEX IF NOT EXISTS idx_worklist_station ON worklist(station_ae);
        CREATE INDEX IF NOT EXISTS idx_worklist_modality ON worklist(modality);
        CREATE INDEX IF NOT EXISTS idx_worklist_scheduled ON worklist(scheduled_datetime);
        CREATE INDEX IF NOT EXISTS idx_worklist_patient ON worklist(patient_id);
        CREATE INDEX IF NOT EXISTS idx_worklist_accession ON worklist(accession_no);
        CREATE INDEX IF NOT EXISTS idx_worklist_status ON worklist(step_status);
        CREATE INDEX IF NOT EXISTS idx_worklist_station_date_mod
            ON worklist(station_ae, scheduled_datetime, modality);

        -- =====================================================================
        -- TRIGGERS FOR PARENT COUNT UPDATES
        -- =====================================================================
        CREATE TRIGGER IF NOT EXISTS trg_instances_insert
        AFTER INSERT ON instances
        BEGIN
            UPDATE series
            SET num_instances = num_instances + 1,
                updated_at = datetime('now')
            WHERE series_pk = NEW.series_pk;

            UPDATE studies
            SET num_instances = num_instances + 1,
                updated_at = datetime('now')
            WHERE study_pk = (SELECT study_pk FROM series WHERE series_pk = NEW.series_pk);
        END;

        CREATE TRIGGER IF NOT EXISTS trg_instances_delete
        AFTER DELETE ON instances
        BEGIN
            UPDATE series
            SET num_instances = num_instances - 1,
                updated_at = datetime('now')
            WHERE series_pk = OLD.series_pk;

            UPDATE studies
            SET num_instances = num_instances - 1,
                updated_at = datetime('now')
            WHERE study_pk = (SELECT study_pk FROM series WHERE series_pk = OLD.series_pk);
        END;

        CREATE TRIGGER IF NOT EXISTS trg_series_insert
        AFTER INSERT ON series
        BEGIN
            UPDATE studies
            SET num_series = num_series + 1,
                updated_at = datetime('now')
            WHERE study_pk = NEW.study_pk;
        END;

        CREATE TRIGGER IF NOT EXISTS trg_series_delete
        AFTER DELETE ON series
        BEGIN
            UPDATE studies
            SET num_series = num_series - 1,
                updated_at = datetime('now')
            WHERE study_pk = OLD.study_pk;
        END;
    )";

    auto result = execute_sql(db, sql);
    if (result.is_err()) {
        return result;
    }

    return record_migration(db, 1, "Initial schema creation");
}

Referenced by migration_runner().

Here is the caller graph for this function:

◆ migrate_v2()

auto kcenon::pacs::storage::migration_runner::migrate_v2 ( sqlite3 * db ) -> VoidResult

nodiscardprivate

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/migration_runner.h.

Definition at line 522 of file migration_runner.cpp.

                                                           {
    // V2: Add audit_log table for REST API audit endpoints
    const char* sql = R"(
        -- =====================================================================
        -- AUDIT_LOG TABLE (for REST API and HIPAA compliance)
        -- =====================================================================
        CREATE TABLE IF NOT EXISTS audit_log (
            audit_pk        INTEGER PRIMARY KEY AUTOINCREMENT,
            event_type      TEXT NOT NULL,
            outcome         TEXT DEFAULT 'SUCCESS',
            timestamp       TEXT NOT NULL DEFAULT (datetime('now')),
            user_id         TEXT,
            source_ae       TEXT,
            target_ae       TEXT,
            source_ip       TEXT,
            patient_id      TEXT,
            study_uid       TEXT,
            message         TEXT,
            details         TEXT,
            CHECK (outcome IN ('SUCCESS', 'FAILURE', 'WARNING'))
        );

        CREATE INDEX IF NOT EXISTS idx_audit_event_type ON audit_log(event_type);
        CREATE INDEX IF NOT EXISTS idx_audit_timestamp ON audit_log(timestamp);
        CREATE INDEX IF NOT EXISTS idx_audit_user ON audit_log(user_id);
        CREATE INDEX IF NOT EXISTS idx_audit_source_ae ON audit_log(source_ae);
        CREATE INDEX IF NOT EXISTS idx_audit_patient ON audit_log(patient_id);
        CREATE INDEX IF NOT EXISTS idx_audit_study ON audit_log(study_uid);
        CREATE INDEX IF NOT EXISTS idx_audit_outcome ON audit_log(outcome);
    )";

    auto result = execute_sql(db, sql);
    if (result.is_err()) {
        return result;
    }

    return record_migration(db, 2, "Add audit_log table");
}

Referenced by migration_runner().

Here is the caller graph for this function:

◆ migrate_v3()

auto kcenon::pacs::storage::migration_runner::migrate_v3 ( sqlite3 * db ) -> VoidResult

nodiscardprivate

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/migration_runner.h.

Definition at line 561 of file migration_runner.cpp.

                                                           {
    // V3: Add remote_nodes table for PACS client remote node management
    const char* sql = R"(
        -- =====================================================================
        -- REMOTE_NODES TABLE (for PACS client SCU operations)
        -- =====================================================================
        CREATE TABLE IF NOT EXISTS remote_nodes (
            pk                      INTEGER PRIMARY KEY AUTOINCREMENT,
            node_id                 TEXT NOT NULL UNIQUE,
            name                    TEXT,
            ae_title                TEXT NOT NULL,
            host                    TEXT NOT NULL,
            port                    INTEGER NOT NULL DEFAULT 104,
            supports_find           INTEGER NOT NULL DEFAULT 1,
            supports_move           INTEGER NOT NULL DEFAULT 1,
            supports_get            INTEGER NOT NULL DEFAULT 0,
            supports_store          INTEGER NOT NULL DEFAULT 1,
            supports_worklist       INTEGER NOT NULL DEFAULT 0,
            connection_timeout_sec  INTEGER NOT NULL DEFAULT 30,
            dimse_timeout_sec       INTEGER NOT NULL DEFAULT 60,
            max_associations        INTEGER NOT NULL DEFAULT 4,
            status                  TEXT NOT NULL DEFAULT 'unknown',
            last_verified           TEXT,
            last_error              TEXT,
            last_error_message      TEXT,
            created_at              TEXT NOT NULL DEFAULT (datetime('now')),
            updated_at              TEXT NOT NULL DEFAULT (datetime('now')),
            CHECK (port > 0 AND port <= 65535),
            CHECK (status IN ('unknown', 'online', 'offline', 'error', 'verifying'))
        );

        CREATE INDEX IF NOT EXISTS idx_remote_nodes_ae_title ON remote_nodes(ae_title);
        CREATE INDEX IF NOT EXISTS idx_remote_nodes_host ON remote_nodes(host);
        CREATE INDEX IF NOT EXISTS idx_remote_nodes_status ON remote_nodes(status);
    )";

    auto result = execute_sql(db, sql);
    if (result.is_err()) {
        return result;
    }

    return record_migration(db, 3, "Add remote_nodes table for PACS client");
}

Referenced by migration_runner().

Here is the caller graph for this function:

◆ migrate_v4()

auto kcenon::pacs::storage::migration_runner::migrate_v4 ( sqlite3 * db ) -> VoidResult

nodiscardprivate

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/migration_runner.h.

Definition at line 605 of file migration_runner.cpp.

                                                           {
    // V4: Add jobs table for async DICOM operations
    const char* sql = R"(
        -- =====================================================================
        -- JOBS TABLE (for async DICOM operations - Job Manager)
        -- =====================================================================
        CREATE TABLE IF NOT EXISTS jobs (
            pk                          INTEGER PRIMARY KEY AUTOINCREMENT,
            job_id                      TEXT NOT NULL UNIQUE,
            type                        TEXT NOT NULL,
            status                      TEXT NOT NULL DEFAULT 'pending',
            priority                    INTEGER NOT NULL DEFAULT 1,
            source_node_id              TEXT,
            destination_node_id         TEXT,
            patient_id                  TEXT,
            study_uid                   TEXT,
            series_uid                  TEXT,
            sop_instance_uid            TEXT,
            instance_uids_json          TEXT DEFAULT '[]',
            total_items                 INTEGER DEFAULT 0,
            completed_items             INTEGER DEFAULT 0,
            failed_items                INTEGER DEFAULT 0,
            skipped_items               INTEGER DEFAULT 0,
            bytes_transferred           INTEGER DEFAULT 0,
            current_item                TEXT,
            current_item_description    TEXT,
            error_message               TEXT,
            error_details               TEXT,
            retry_count                 INTEGER DEFAULT 0,
            max_retries                 INTEGER DEFAULT 3,
            created_by                  TEXT,
            metadata_json               TEXT DEFAULT '{}',
            created_at                  TEXT NOT NULL DEFAULT (datetime('now')),
            queued_at                   TEXT,
            started_at                  TEXT,
            completed_at                TEXT,
            CHECK (type IN ('query', 'retrieve', 'store', 'export', 'import', 'prefetch', 'sync')),
            CHECK (status IN ('pending', 'queued', 'running', 'completed', 'failed', 'cancelled', 'paused')),
            CHECK (priority >= 0 AND priority <= 3)
        );

        CREATE INDEX IF NOT EXISTS idx_jobs_status ON jobs(status);
        CREATE INDEX IF NOT EXISTS idx_jobs_type ON jobs(type);
        CREATE INDEX IF NOT EXISTS idx_jobs_priority ON jobs(priority DESC);
        CREATE INDEX IF NOT EXISTS idx_jobs_created_at ON jobs(created_at DESC);
        CREATE INDEX IF NOT EXISTS idx_jobs_source_node ON jobs(source_node_id);
        CREATE INDEX IF NOT EXISTS idx_jobs_destination_node ON jobs(destination_node_id);
        CREATE INDEX IF NOT EXISTS idx_jobs_study ON jobs(study_uid);
        CREATE INDEX IF NOT EXISTS idx_jobs_patient ON jobs(patient_id);
    )";

    auto result = execute_sql(db, sql);
    if (result.is_err()) {
        return result;
    }

    return record_migration(db, 4, "Add jobs table for async DICOM operations");
}

Referenced by migration_runner().

Here is the caller graph for this function:

◆ migrate_v5()

auto kcenon::pacs::storage::migration_runner::migrate_v5 ( sqlite3 * db ) -> VoidResult

nodiscardprivate

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/migration_runner.h.

Definition at line 664 of file migration_runner.cpp.

                                                           {
    // V5: Add routing_rules table for auto-forwarding
    const char* sql = R"(
        -- =====================================================================
        -- ROUTING_RULES TABLE (for auto-forwarding - Routing Manager)
        -- =====================================================================
        CREATE TABLE IF NOT EXISTS routing_rules (
            pk                  INTEGER PRIMARY KEY AUTOINCREMENT,
            rule_id             TEXT NOT NULL UNIQUE,
            name                TEXT NOT NULL,
            description         TEXT,
            enabled             INTEGER NOT NULL DEFAULT 1,
            priority            INTEGER NOT NULL DEFAULT 0,
            conditions_json     TEXT NOT NULL DEFAULT '[]',
            actions_json        TEXT NOT NULL DEFAULT '[]',
            schedule_cron       TEXT,
            effective_from      TEXT,
            effective_until     TEXT,
            triggered_count     INTEGER DEFAULT 0,
            success_count       INTEGER DEFAULT 0,
            failure_count       INTEGER DEFAULT 0,
            last_triggered      TEXT,
            created_at          TEXT NOT NULL DEFAULT (datetime('now')),
            updated_at          TEXT NOT NULL DEFAULT (datetime('now'))
        );

        CREATE INDEX IF NOT EXISTS idx_routing_rules_enabled ON routing_rules(enabled);
        CREATE INDEX IF NOT EXISTS idx_routing_rules_priority ON routing_rules(priority DESC);
    )";

    auto result = execute_sql(db, sql);
    if (result.is_err()) {
        return result;
    }

    return record_migration(db, 5, "Add routing_rules table for auto-forwarding");
}

Referenced by migration_runner().

Here is the caller graph for this function:

◆ migrate_v6()

auto kcenon::pacs::storage::migration_runner::migrate_v6 ( sqlite3 * db ) -> VoidResult

nodiscardprivate

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/migration_runner.h.

Definition at line 702 of file migration_runner.cpp.

                                                           {
    // V6: Add sync tables for bidirectional synchronization
    const char* sql = R"(
        -- =====================================================================
        -- SYNC_CONFIGS TABLE (for Sync Manager)
        -- =====================================================================
        CREATE TABLE IF NOT EXISTS sync_configs (
            pk                      INTEGER PRIMARY KEY AUTOINCREMENT,
            config_id               TEXT NOT NULL UNIQUE,
            source_node_id          TEXT NOT NULL,
            name                    TEXT NOT NULL,
            enabled                 INTEGER NOT NULL DEFAULT 1,
            lookback_hours          INTEGER NOT NULL DEFAULT 24,
            modalities_json         TEXT DEFAULT '[]',
            patient_patterns_json   TEXT DEFAULT '[]',
            sync_direction          TEXT NOT NULL DEFAULT 'pull',
            delete_missing          INTEGER NOT NULL DEFAULT 0,
            overwrite_existing      INTEGER NOT NULL DEFAULT 0,
            sync_metadata_only      INTEGER NOT NULL DEFAULT 0,
            schedule_cron           TEXT,
            last_sync               TEXT,
            last_successful_sync    TEXT,
            total_syncs             INTEGER DEFAULT 0,
            studies_synced          INTEGER DEFAULT 0,
            created_at              TEXT NOT NULL DEFAULT (datetime('now')),
            updated_at              TEXT NOT NULL DEFAULT (datetime('now')),
            CHECK (sync_direction IN ('pull', 'push', 'bidirectional'))
        );

        CREATE INDEX IF NOT EXISTS idx_sync_configs_enabled ON sync_configs(enabled);
        CREATE INDEX IF NOT EXISTS idx_sync_configs_source ON sync_configs(source_node_id);

        -- =====================================================================
        -- SYNC_CONFLICTS TABLE (for conflict tracking)
        -- =====================================================================
        CREATE TABLE IF NOT EXISTS sync_conflicts (
            pk                      INTEGER PRIMARY KEY AUTOINCREMENT,
            config_id               TEXT NOT NULL,
            study_uid               TEXT NOT NULL,
            patient_id              TEXT,
            conflict_type           TEXT NOT NULL,
            local_modified          TEXT,
            remote_modified         TEXT,
            local_instance_count    INTEGER DEFAULT 0,
            remote_instance_count   INTEGER DEFAULT 0,
            resolved                INTEGER NOT NULL DEFAULT 0,
            resolution              TEXT,
            detected_at             TEXT NOT NULL DEFAULT (datetime('now')),
            resolved_at             TEXT,
            UNIQUE (config_id, study_uid),
            CHECK (conflict_type IN ('missing_local', 'missing_remote', 'modified', 'count_mismatch')),
            CHECK (resolution IS NULL OR resolution IN ('prefer_local', 'prefer_remote', 'prefer_newer'))
        );

        CREATE INDEX IF NOT EXISTS idx_sync_conflicts_config ON sync_conflicts(config_id);
        CREATE INDEX IF NOT EXISTS idx_sync_conflicts_resolved ON sync_conflicts(resolved);
        CREATE INDEX IF NOT EXISTS idx_sync_conflicts_study ON sync_conflicts(study_uid);

        -- =====================================================================
        -- SYNC_HISTORY TABLE (for sync operation history)
        -- =====================================================================
        CREATE TABLE IF NOT EXISTS sync_history (
            pk                  INTEGER PRIMARY KEY AUTOINCREMENT,
            config_id           TEXT NOT NULL,
            job_id              TEXT NOT NULL,
            success             INTEGER NOT NULL DEFAULT 0,
            studies_checked     INTEGER DEFAULT 0,
            studies_synced      INTEGER DEFAULT 0,
            conflicts_found     INTEGER DEFAULT 0,
            errors_json         TEXT DEFAULT '[]',
            started_at          TEXT NOT NULL,
            completed_at        TEXT NOT NULL
        );

        CREATE INDEX IF NOT EXISTS idx_sync_history_config ON sync_history(config_id);
        CREATE INDEX IF NOT EXISTS idx_sync_history_started ON sync_history(started_at DESC);
    )";

    auto result = execute_sql(db, sql);
    if (result.is_err()) {
        return result;
    }

    return record_migration(db, 6, "Add sync tables for bidirectional synchronization");
}

Referenced by migration_runner().

Here is the caller graph for this function:

◆ migrate_v7()

auto kcenon::pacs::storage::migration_runner::migrate_v7 ( sqlite3 * db ) -> VoidResult

nodiscardprivate

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/migration_runner.h.

Definition at line 788 of file migration_runner.cpp.

                                                           {
    // V7: Add annotation and measurement tables for viewer functionality
    const char* sql = R"(
        -- =====================================================================
        -- ANNOTATIONS TABLE (for image annotations)
        -- =====================================================================
        CREATE TABLE IF NOT EXISTS annotations (
            pk                  INTEGER PRIMARY KEY AUTOINCREMENT,
            annotation_id       TEXT NOT NULL UNIQUE,
            study_uid           TEXT NOT NULL,
            series_uid          TEXT,
            sop_instance_uid    TEXT,
            frame_number        INTEGER,
            user_id             TEXT NOT NULL,
            annotation_type     TEXT NOT NULL,
            geometry_json       TEXT NOT NULL,
            text                TEXT,
            style_json          TEXT,
            created_at          TEXT NOT NULL DEFAULT (datetime('now')),
            updated_at          TEXT NOT NULL DEFAULT (datetime('now')),
            CHECK (annotation_type IN ('arrow', 'line', 'rectangle', 'ellipse', 'polygon', 'freehand', 'text', 'angle', 'roi'))
        );

        CREATE INDEX IF NOT EXISTS idx_annotations_study ON annotations(study_uid);
        CREATE INDEX IF NOT EXISTS idx_annotations_instance ON annotations(sop_instance_uid);
        CREATE INDEX IF NOT EXISTS idx_annotations_user ON annotations(user_id);

        -- =====================================================================
        -- MEASUREMENTS TABLE (for image measurements)
        -- =====================================================================
        CREATE TABLE IF NOT EXISTS measurements (
            pk                  INTEGER PRIMARY KEY AUTOINCREMENT,
            measurement_id      TEXT NOT NULL UNIQUE,
            sop_instance_uid    TEXT NOT NULL,
            frame_number        INTEGER,
            user_id             TEXT NOT NULL,
            measurement_type    TEXT NOT NULL,
            geometry_json       TEXT NOT NULL,
            value               REAL NOT NULL,
            unit                TEXT NOT NULL,
            label               TEXT,
            created_at          TEXT NOT NULL DEFAULT (datetime('now')),
            CHECK (measurement_type IN ('length', 'area', 'angle', 'hounsfield', 'suv', 'ellipse_area', 'polygon_area'))
        );

        CREATE INDEX IF NOT EXISTS idx_measurements_instance ON measurements(sop_instance_uid);
        CREATE INDEX IF NOT EXISTS idx_measurements_user ON measurements(user_id);

        -- =====================================================================
        -- KEY_IMAGES TABLE (for key image markers)
        -- =====================================================================
        CREATE TABLE IF NOT EXISTS key_images (
            pk                  INTEGER PRIMARY KEY AUTOINCREMENT,
            key_image_id        TEXT NOT NULL UNIQUE,
            study_uid           TEXT NOT NULL,
            sop_instance_uid    TEXT NOT NULL,
            frame_number        INTEGER,
            user_id             TEXT NOT NULL,
            reason              TEXT,
            document_title      TEXT,
            created_at          TEXT NOT NULL DEFAULT (datetime('now'))
        );

        CREATE INDEX IF NOT EXISTS idx_key_images_study ON key_images(study_uid);

        -- =====================================================================
        -- VIEWER_STATES TABLE (for saved viewer configurations)
        -- =====================================================================
        CREATE TABLE IF NOT EXISTS viewer_states (
            pk                  INTEGER PRIMARY KEY AUTOINCREMENT,
            state_id            TEXT NOT NULL UNIQUE,
            study_uid           TEXT NOT NULL,
            user_id             TEXT NOT NULL,
            state_json          TEXT NOT NULL,
            created_at          TEXT NOT NULL DEFAULT (datetime('now')),
            updated_at          TEXT NOT NULL DEFAULT (datetime('now'))
        );

        CREATE INDEX IF NOT EXISTS idx_viewer_states_study ON viewer_states(study_uid);
        CREATE INDEX IF NOT EXISTS idx_viewer_states_user ON viewer_states(user_id);

        -- =====================================================================
        -- RECENT_STUDIES TABLE (for tracking user study access)
        -- =====================================================================
        CREATE TABLE IF NOT EXISTS recent_studies (
            pk                  INTEGER PRIMARY KEY AUTOINCREMENT,
            user_id             TEXT NOT NULL,
            study_uid           TEXT NOT NULL,
            accessed_at         TEXT NOT NULL DEFAULT (datetime('now')),
            UNIQUE (user_id, study_uid)
        );

        CREATE INDEX IF NOT EXISTS idx_recent_studies_user ON recent_studies(user_id, accessed_at DESC);
    )";

    auto result = execute_sql(db, sql);
    if (result.is_err()) {
        return result;
    }

    return record_migration(db, 7, "Add annotation and measurement tables");
}

Referenced by migration_runner().

Here is the caller graph for this function:

◆ migrate_v8()

auto kcenon::pacs::storage::migration_runner::migrate_v8 ( sqlite3 * db ) -> VoidResult

nodiscardprivate

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/migration_runner.h.

Definition at line 891 of file migration_runner.cpp.

                                                           {
    // V8: Add Storage Commitment tracking tables
    const char* sql = R"(
        -- =====================================================================
        -- STORAGE_COMMITMENT TABLE (transaction-level tracking)
        -- =====================================================================
        CREATE TABLE IF NOT EXISTS storage_commitment (
            transaction_uid     TEXT PRIMARY KEY,
            requesting_ae       TEXT NOT NULL,
            request_time        TEXT NOT NULL,
            completion_time     TEXT,
            status              TEXT NOT NULL DEFAULT 'pending',
            total_instances     INTEGER NOT NULL DEFAULT 0,
            success_count       INTEGER NOT NULL DEFAULT 0,
            failure_count       INTEGER NOT NULL DEFAULT 0,
            CHECK (status IN ('pending', 'success', 'partial', 'failed'))
        );

        CREATE INDEX IF NOT EXISTS idx_commitment_status
            ON storage_commitment(status);
        CREATE INDEX IF NOT EXISTS idx_commitment_request_time
            ON storage_commitment(request_time);

        -- =====================================================================
        -- COMMITMENT_REFERENCES TABLE (per-instance tracking)
        -- =====================================================================
        CREATE TABLE IF NOT EXISTS commitment_references (
            transaction_uid     TEXT NOT NULL
                REFERENCES storage_commitment(transaction_uid)
                ON DELETE CASCADE,
            sop_class_uid       TEXT NOT NULL,
            sop_instance_uid    TEXT NOT NULL,
            status              TEXT NOT NULL DEFAULT 'pending',
            failure_reason      INTEGER,
            PRIMARY KEY (transaction_uid, sop_instance_uid),
            CHECK (status IN ('pending', 'success', 'failed'))
        );

        CREATE INDEX IF NOT EXISTS idx_commitment_ref_instance
            ON commitment_references(sop_instance_uid);
    )";

    auto result = execute_sql(db, sql);
    if (result.is_err()) {
        return result;
    }

    return record_migration(db, 8, "Add Storage Commitment tracking tables");
}

Referenced by migration_runner().

Here is the caller graph for this function:

◆ migrate_v9()

auto kcenon::pacs::storage::migration_runner::migrate_v9 ( sqlite3 * db ) -> VoidResult

nodiscardprivate

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/migration_runner.h.

Definition at line 941 of file migration_runner.cpp.

                                                           {
    // V9: Add Unified Procedure Step (UPS) tables
    const char* sql = R"(
        -- =====================================================================
        -- UPS WORKITEMS TABLE (Unified Procedure Step - PS3.4 Annex CC)
        -- =====================================================================
        CREATE TABLE IF NOT EXISTS ups_workitems (
            workitem_pk                     INTEGER PRIMARY KEY AUTOINCREMENT,
            workitem_uid                    TEXT NOT NULL UNIQUE,
            state                           TEXT NOT NULL DEFAULT 'SCHEDULED',
            procedure_step_label            TEXT,
            worklist_label                  TEXT,
            priority                        TEXT DEFAULT 'MEDIUM',
            scheduled_start_datetime        TEXT,
            expected_completion_datetime    TEXT,
            scheduled_station_name          TEXT,
            scheduled_station_class         TEXT,
            scheduled_station_geographic    TEXT,
            scheduled_human_performers      TEXT,
            input_information               TEXT,
            performing_ae                   TEXT,
            progress_description            TEXT,
            progress_percent                INTEGER DEFAULT 0,
            output_information              TEXT,
            transaction_uid                 TEXT,
            created_at                      TEXT NOT NULL DEFAULT (datetime('now')),
            updated_at                      TEXT NOT NULL DEFAULT (datetime('now')),
            CHECK (state IN ('SCHEDULED', 'IN PROGRESS', 'COMPLETED', 'CANCELED')),
            CHECK (priority IN ('LOW', 'MEDIUM', 'HIGH'))
        );

        CREATE INDEX IF NOT EXISTS idx_ups_state ON ups_workitems(state);
        CREATE INDEX IF NOT EXISTS idx_ups_priority ON ups_workitems(priority);
        CREATE INDEX IF NOT EXISTS idx_ups_performing ON ups_workitems(performing_ae);
        CREATE INDEX IF NOT EXISTS idx_ups_scheduled ON ups_workitems(scheduled_start_datetime);
        CREATE INDEX IF NOT EXISTS idx_ups_worklist ON ups_workitems(worklist_label);

        -- =====================================================================
        -- UPS SUBSCRIPTIONS TABLE
        -- =====================================================================
        CREATE TABLE IF NOT EXISTS ups_subscriptions (
            subscription_pk     INTEGER PRIMARY KEY AUTOINCREMENT,
            subscriber_ae       TEXT NOT NULL,
            workitem_uid        TEXT,
            deletion_lock       INTEGER DEFAULT 0,
            filter_criteria     TEXT,
            created_at          TEXT NOT NULL DEFAULT (datetime('now')),
            UNIQUE (subscriber_ae, workitem_uid)
        );

        CREATE INDEX IF NOT EXISTS idx_ups_sub_ae ON ups_subscriptions(subscriber_ae);
        CREATE INDEX IF NOT EXISTS idx_ups_sub_workitem ON ups_subscriptions(workitem_uid);
    )";

    auto result = execute_sql(db, sql);
    if (result.is_err()) {
        return result;
    }

    return record_migration(db, 9, "Add Unified Procedure Step (UPS) tables");
}

Referenced by migration_runner().

Here is the caller graph for this function:

◆ needs_migration()

auto kcenon::pacs::storage::migration_runner::needs_migration ( sqlite3 * db ) const -> bool

nodiscard

Check if migration is needed.

Parameters

db	The SQLite database handle

Returns: true if current version is less than LATEST_VERSION

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/migration_runner.h.

Definition at line 177 of file migration_runner.cpp.

                                                                {
    return get_current_version(db) < LATEST_VERSION;
}

◆ operator=() [1/2]

auto kcenon::pacs::storage::migration_runner::operator= ( const migration_runner & ) -> migration_runner &=delete

delete

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/migration_runner.h.

◆ operator=() [2/2]

auto kcenon::pacs::storage::migration_runner::operator= ( migration_runner && ) -> migration_runner &=delete

delete

◆ record_migration()

auto kcenon::pacs::storage::migration_runner::record_migration	(	sqlite3 *	db,
		int	version,
		std::string_view	description ) -> VoidResult

nodiscardprivate

Record a migration in the schema_version table.

Parameters

db	The SQLite database handle
version	The version that was applied
description	Description of the migration

Returns: VoidResult Success or error information

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/migration_runner.h.

Definition at line 245 of file migration_runner.cpp.

                  {
    const char* sql =
        "INSERT INTO schema_version (version, description) VALUES (?, ?);";

    sqlite3_stmt* stmt = nullptr;
    auto rc = sqlite3_prepare_v2(db, sql, -1, &stmt, nullptr);
    if (rc != SQLITE_OK) {
        return make_error<std::monostate>(
            rc,
            kcenon::pacs::compat::format("Failed to prepare statement: {}",
                       sqlite3_errmsg(db)),
            "storage");
    }

    sqlite3_bind_int(stmt, 1, version);
    sqlite3_bind_text(stmt, 2, description.data(),
                      static_cast<int>(description.size()), SQLITE_TRANSIENT);

    rc = sqlite3_step(stmt);
    sqlite3_finalize(stmt);

    if (rc != SQLITE_DONE) {
        return make_error<std::monostate>(
            rc,
            kcenon::pacs::compat::format("Failed to record migration: {}",
                       sqlite3_errmsg(db)),
            "storage");
    }

    return ok();
}

◆ run_migrations()

auto kcenon::pacs::storage::migration_runner::run_migrations ( sqlite3 * db ) -> VoidResult

nodiscard

Run all pending migrations.

Executes all migrations from the current version up to LATEST_VERSION. Each migration is run within a transaction for atomicity.

Parameters

db	The SQLite database handle

Returns: VoidResult Success or error information

Note: If any migration fails, the database will be rolled back to its state before that migration started.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/migration_runner.h.

Definition at line 75 of file migration_runner.cpp.

                                                               {
    return run_migrations_to(db, LATEST_VERSION);
}

◆ run_migrations_to()

auto kcenon::pacs::storage::migration_runner::run_migrations_to	(	sqlite3 *	db,
		int	target_version ) -> VoidResult

nodiscard

Run migrations up to a specific version.

Parameters

db	The SQLite database handle
target_version	The version to migrate to

Returns: VoidResult Success or error information

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/migration_runner.h.

Definition at line 79 of file migration_runner.cpp.

                  {
    if (target_version > LATEST_VERSION) {
        return make_error<std::monostate>(
            -1,
            kcenon::pacs::compat::format("Target version {} exceeds latest version {}",
                       target_version, LATEST_VERSION),
            "storage");
    }

    // Ensure schema_version table exists
    auto ensure_result = ensure_schema_version_table(db);
    if (ensure_result.is_err()) {
        return ensure_result;
    }

    auto current_version = get_current_version(db);

    // Nothing to do if already at or past target
    if (current_version >= target_version) {
        return ok();
    }

    // Apply each migration in a transaction
    while (current_version < target_version) {
        auto next_version = current_version + 1;

        // Begin transaction
        auto begin_result = execute_sql(db, "BEGIN TRANSACTION;");
        if (begin_result.is_err()) {
            return begin_result;
        }

        // Apply migration
        auto migration_result = apply_migration(db, next_version);
        if (migration_result.is_err()) {
            // Rollback on failure
            (void)execute_sql(db, "ROLLBACK;");
            return migration_result;
        }

        // Commit transaction
        auto commit_result = execute_sql(db, "COMMIT;");
        if (commit_result.is_err()) {
            (void)execute_sql(db, "ROLLBACK;");
            return commit_result;
        }

        current_version = next_version;
    }

    return ok();
}

Member Data Documentation

◆ LATEST_VERSION

int kcenon::pacs::storage::migration_runner::LATEST_VERSION = 9

staticconstexprprivate

Latest schema version (increment when adding migrations)

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/migration_runner.h.

Definition at line 367 of file migration_runner.h.

Referenced by get_latest_version().

◆ migrations_

std::vector<std::pair<int, migration_function> > kcenon::pacs::storage::migration_runner::migrations_

private

Migration function registry.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/storage/migration_runner.h.

Definition at line 370 of file migration_runner.h.

Referenced by migration_runner().

The documentation for this class was generated from the following files:

include/kcenon/pacs/storage/migration_runner.h
src/storage/migration_runner.cpp

Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ migration_runner() [1/3]

◆ ~migration_runner()

◆ migration_runner() [2/3]

◆ migration_runner() [3/3]

Member Function Documentation

◆ apply_migration()

◆ ensure_schema_version_table()

◆ execute_sql()

◆ get_current_version()

◆ get_history()

◆ get_latest_version()

◆ migrate_v1()

◆ migrate_v2()

◆ migrate_v3()

◆ migrate_v4()

◆ migrate_v5()

◆ migrate_v6()

◆ migrate_v7()

◆ migrate_v8()

◆ migrate_v9()

◆ needs_migration()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ record_migration()

◆ run_migrations()

◆ run_migrations_to()

Member Data Documentation

◆ LATEST_VERSION

◆ migrations_
