mpps_scu.h File Reference

DICOM MPPS (Modality Performed Procedure Step) SCU service. More...

#include "mpps_scp.h"
#include "kcenon/pacs/core/dicom_dataset.h"
#include "kcenon/pacs/di/ilogger.h"
#include "kcenon/pacs/network/association.h"
#include "kcenon/pacs/network/dimse/dimse_message.h"
#include <atomic>
#include <chrono>
#include <memory>
#include <string>
#include <vector>

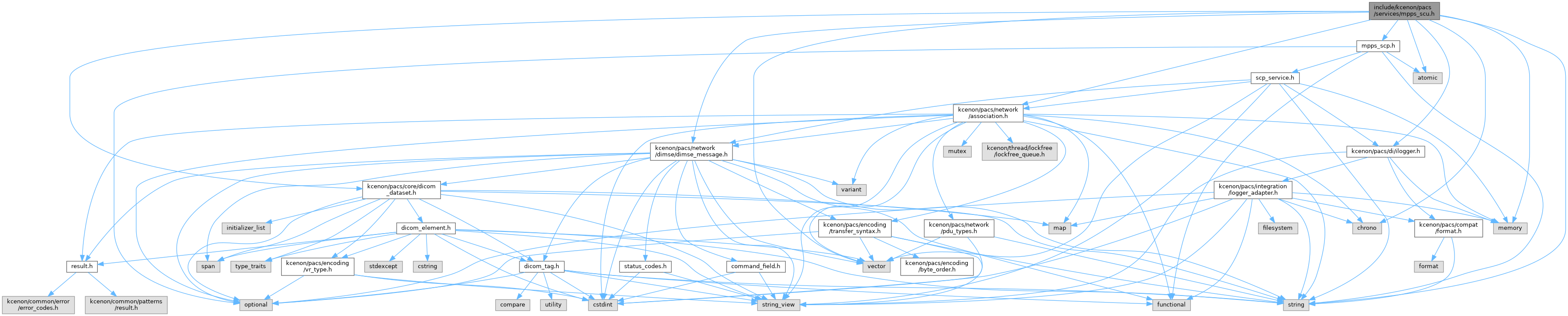

Include dependency graph for mpps_scu.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	kcenon::pacs::services::performed_series_info
	Information about a performed series for N-SET COMPLETED. More...
struct	kcenon::pacs::services::mpps_create_data
	Data for N-CREATE operation (start procedure) More...
struct	kcenon::pacs::services::mpps_set_data
	Data for N-SET operation (update/complete procedure) More...
struct	kcenon::pacs::services::mpps_result
	Result of an MPPS operation. More...
struct	kcenon::pacs::services::mpps_scu_config
	Configuration for MPPS SCU service. More...
class	kcenon::pacs::services::mpps_scu

Namespaces
namespace	kcenon
namespace	kcenon::pacs
namespace	kcenon::pacs::services
namespace	kcenon::pacs::services::mpps_tags

Variables
constexpr core::dicom_tag	kcenon::pacs::services::mpps_tags::performed_procedure_step_start_date {0x0040, 0x0244}
	Performed Procedure Step Start Date (0040,0244)
constexpr core::dicom_tag	kcenon::pacs::services::mpps_tags::performed_procedure_step_start_time {0x0040, 0x0245}
	Performed Procedure Step Start Time (0040,0245)
constexpr core::dicom_tag	kcenon::pacs::services::mpps_tags::performed_procedure_step_description {0x0040, 0x0254}
	Performed Procedure Step Description (0040,0254)
constexpr core::dicom_tag	kcenon::pacs::services::mpps_tags::performed_protocol_code_sequence {0x0040, 0x0260}
	Performed Protocol Code Sequence (0040,0260)
constexpr core::dicom_tag	kcenon::pacs::services::mpps_tags::retrieve_ae_title {0x0008, 0x0054}
	Retrieve AE Title (0008,0054)
constexpr core::dicom_tag	kcenon::pacs::services::mpps_tags::referenced_image_sequence {0x0008, 0x1140}
	Referenced Image Sequence (0008,1140)
constexpr core::dicom_tag	kcenon::pacs::services::mpps_tags::performing_physicians_name {0x0008, 0x1050}
	Performing Physician's Name (0008,1050)
constexpr core::dicom_tag	kcenon::pacs::services::mpps_tags::operators_name {0x0008, 0x1070}
	Operators' Name (0008,1070)
constexpr core::dicom_tag	kcenon::pacs::services::mpps_tags::series_description {0x0008, 0x103E}
	Series Description (0008,103E)
constexpr core::dicom_tag	kcenon::pacs::services::mpps_tags::discontinuation_reason_code_sequence {0x0040, 0x0281}
	Performed Procedure Step Discontinuation Reason Code Sequence (0040,0281)

Detailed Description

DICOM MPPS (Modality Performed Procedure Step) SCU service.

This file provides the mpps_scu class for reporting procedure status to MPPS SCP systems via N-CREATE and N-SET operations.

See also

DICOM PS3.4 Section F - Modality Performed Procedure Step

DICOM PS3.7 Section 10 - DIMSE-N Services

Issue #534 - MPPS SCU Library Implementation

Author

kcenon

Since

1.0.0

Definition in file mpps_scu.h.
