kcenon::pacs::web::rest_server Class Reference

REST API server for PACS administration and monitoring. More...

#include <rest_server.h>

Collaboration diagram for kcenon::pacs::web::rest_server:

Classes
struct	impl
	Implementation details for rest_server. More...

Public Member Functions
	rest_server ()
	Construct REST server with default configuration.
	rest_server (const rest_server_config &config)
	Construct REST server with custom configuration.
	~rest_server ()
	Destructor - stops server if running.
	rest_server (const rest_server &)=delete
	Non-copyable.
rest_server &	operator= (const rest_server &)=delete
	rest_server (rest_server &&other) noexcept
	Movable.
rest_server &	operator= (rest_server &&other) noexcept
const rest_server_config &	config () const noexcept
	Get current configuration.
void	set_config (const rest_server_config &config)
	Update configuration (requires restart to apply)
void	set_health_checker (std::shared_ptr< monitoring::health_checker > checker)
	Set health checker for /api/v1/system/status endpoint.
void	set_metrics_provider (std::shared_ptr< monitoring::pacs_metrics > metrics)
	Set metrics provider for /api/v1/system/metrics endpoint.
void	set_access_control_manager (std::shared_ptr< security::access_control_manager > manager)
	Set access control manager for security.
void	set_database (std::shared_ptr< storage::index_database > database)
	Set index database for patient/study/series endpoints.
void	set_file_storage (std::shared_ptr< storage::file_storage > storage)
	Set file storage for DICOM instance persistence (STOW-RS)
void	set_node_manager (std::shared_ptr< client::remote_node_manager > manager)
	Set remote node manager for remote PACS node management.
void	set_job_manager (std::shared_ptr< client::job_manager > manager)
	Set job manager for async DICOM operations.
void	set_routing_manager (std::shared_ptr< client::routing_manager > manager)
	Set routing manager for auto-forwarding rules.
void	set_dicom_server (std::shared_ptr< network::dicom_server > server)
	Set DICOM server for live association management.
void	set_oauth2_middleware (std::shared_ptr< auth::oauth2_middleware > middleware)
	Set OAuth 2.0 middleware for DICOMweb endpoint authorization.
void	start ()
	Start the server (blocking)
void	start_async ()
	Start the server (non-blocking)
void	stop ()
	Stop the server.
bool	is_running () const noexcept
	Check if server is currently running.
void	wait ()
	Wait for server to stop.
std::uint16_t	port () const noexcept
	Get the actual port the server is listening on.

Private Attributes
std::unique_ptr< impl >	impl_

Detailed Description

REST API server for PACS administration and monitoring.

The rest_server class provides a REST API for:

• System health status and metrics
• Configuration management
• Future: Patient/Study browsing, Worklist management

Example

#include <kcenon/pacs/web/rest_server.h>

rest_server_config config;
config.port = 8080;
config.concurrency = 4;

rest_server server(config);
server.set_health_checker(health_checker_instance);
server.set_metrics_provider(metrics_instance);

server.start_async();  // Non-blocking
// ... do other work ...
server.stop();

Definition at line 85 of file rest_server.h.

Constructor & Destructor Documentation

rest_server() [1/4]

kcenon::pacs::web::rest_server::rest_server

(

)

Construct REST server with default configuration.

Definition at line 120 of file rest_server.cpp.

: impl_(std::make_unique<impl>()) {}

rest_server() [2/4]

kcenon::pacs::web::rest_server::rest_server ( const rest_server_config & config )

explicit

Construct REST server with custom configuration.

Parameters

config

Server configuration

Definition at line 122 of file rest_server.cpp.

    : impl_(std::make_unique<impl>(config)) {}

~rest_server()

kcenon::pacs::web::rest_server::~rest_server

(

)

Destructor - stops server if running.

Definition at line 125 of file rest_server.cpp.

{ stop(); }

References stop().

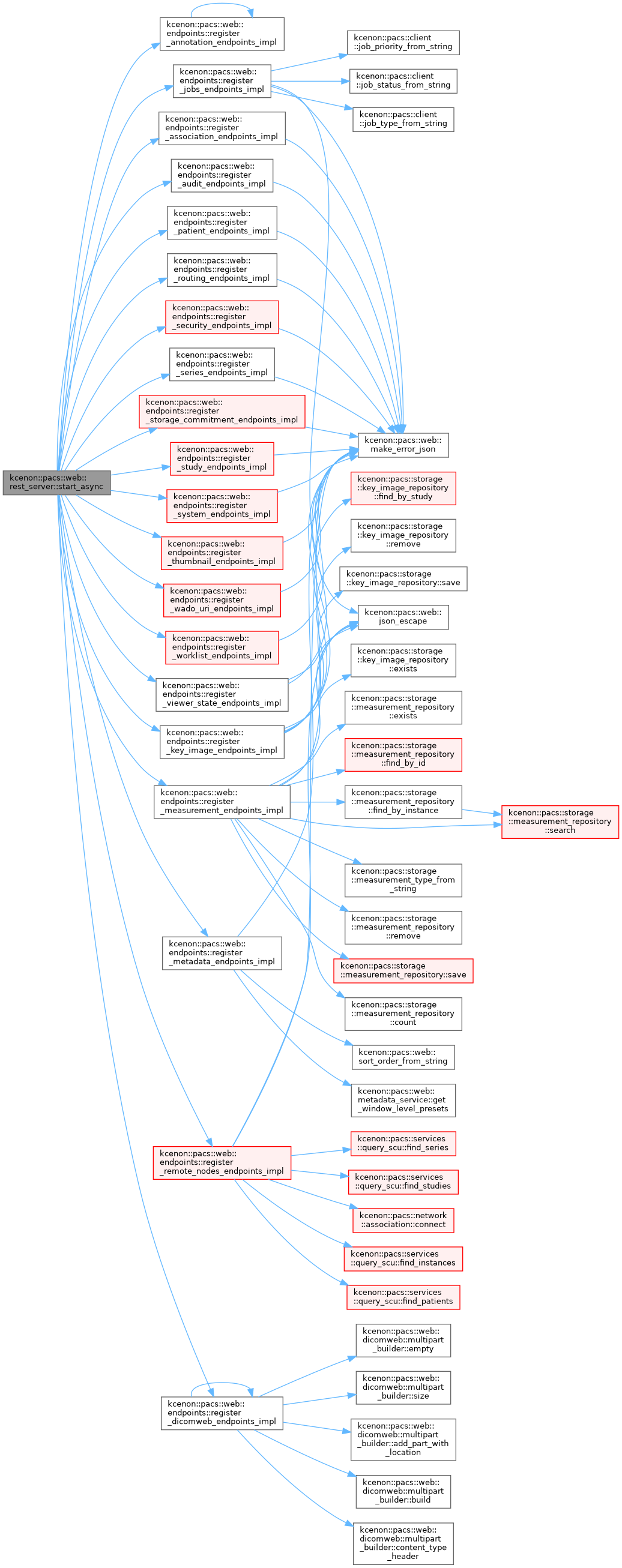

Here is the call graph for this function:

rest_server() [3/4]

kcenon::pacs::web::rest_server::rest_server ( const rest_server & )

delete

Non-copyable.

rest_server() [4/4]

kcenon::pacs::web::rest_server::rest_server ( rest_server && other )

defaultnoexcept

Movable.

Member Function Documentation

config()

const rest_server_config & kcenon::pacs::web::rest_server::config ( ) const

nodiscardnoexcept

Get current configuration.

Returns

Current server configuration

Definition at line 130 of file rest_server.cpp.

                                                             {
  return impl_->config;
}

References kcenon::pacs::web::rest_server::impl::config, and impl_.

Referenced by set_config().

Here is the caller graph for this function:

is_running()

bool kcenon::pacs::web::rest_server::is_running ( ) const

nodiscardnoexcept

Check if server is currently running.

Returns

true if server is running

Definition at line 317 of file rest_server.cpp.

{ return impl_->running; }

References impl_, and kcenon::pacs::web::rest_server::impl::running.

operator=() [1/2]

rest_server & kcenon::pacs::web::rest_server::operator= ( const rest_server & )

delete

operator=() [2/2]

rest_server & kcenon::pacs::web::rest_server::operator= ( rest_server && other )

defaultnoexcept

port()

std::uint16_t kcenon::pacs::web::rest_server::port ( ) const

nodiscardnoexcept

Get the actual port the server is listening on.

Returns

Port number, or 0 if not running

Definition at line 325 of file rest_server.cpp.

                                             {
  return impl_->running ? impl_->config.port : 0;
}

References kcenon::pacs::web::rest_server::impl::config, impl_, kcenon::pacs::web::rest_server_config::port, and kcenon::pacs::web::rest_server::impl::running.

set_access_control_manager()

void kcenon::pacs::web::rest_server::set_access_control_manager

(

std::shared_ptr< security::access_control_manager >

manager

)

Set access control manager for security.

Parameters

manager

Access control manager instance

Definition at line 152 of file rest_server.cpp.

                                                           {
  std::lock_guard<std::mutex> lock(impl_->mutex);
  impl_->context->security_manager = std::move(manager);
}

References kcenon::pacs::web::rest_server::impl::context, impl_, and kcenon::pacs::web::rest_server::impl::mutex.

set_config()

void kcenon::pacs::web::rest_server::set_config

(

const rest_server_config &

config

)

Update configuration (requires restart to apply)

Parameters

config

New configuration

Definition at line 134 of file rest_server.cpp.

                                                             {
  std::lock_guard<std::mutex> lock(impl_->mutex);
  impl_->config = config;
  impl_->context->config = &impl_->config;
}

References config(), kcenon::pacs::web::rest_server::impl::config, kcenon::pacs::web::rest_server::impl::context, impl_, and kcenon::pacs::web::rest_server::impl::mutex.

Here is the call graph for this function:

set_database()

void kcenon::pacs::web::rest_server::set_database

(

std::shared_ptr< storage::index_database >

database

)

Set index database for patient/study/series endpoints.

Parameters

database

Index database instance

Definition at line 158 of file rest_server.cpp.

                                                   {
  std::lock_guard<std::mutex> lock(impl_->mutex);
  impl_->context->database = std::move(database);
}

References kcenon::pacs::web::rest_server::impl::context, impl_, and kcenon::pacs::web::rest_server::impl::mutex.

set_dicom_server()

void kcenon::pacs::web::rest_server::set_dicom_server

(

std::shared_ptr< network::dicom_server >

server

)

Set DICOM server for live association management.

Parameters

server

DICOM server instance

Definition at line 188 of file rest_server.cpp.

                                               {
  std::lock_guard<std::mutex> lock(impl_->mutex);
  impl_->context->dicom_server = std::move(server);
}

References kcenon::pacs::web::rest_server::impl::context, impl_, and kcenon::pacs::web::rest_server::impl::mutex.

set_file_storage()

void kcenon::pacs::web::rest_server::set_file_storage

(

std::shared_ptr< storage::file_storage >

storage

)

Set file storage for DICOM instance persistence (STOW-RS)

Parameters

storage

File storage instance

Definition at line 164 of file rest_server.cpp.

                                                {
  std::lock_guard<std::mutex> lock(impl_->mutex);
  impl_->context->file_storage = std::move(storage);
}

References kcenon::pacs::web::rest_server::impl::context, impl_, and kcenon::pacs::web::rest_server::impl::mutex.

set_health_checker()

void kcenon::pacs::web::rest_server::set_health_checker

(

std::shared_ptr< monitoring::health_checker >

checker

)

Set health checker for /api/v1/system/status endpoint.

Parameters

checker

Health checker instance

Definition at line 140 of file rest_server.cpp.

                                                     {
  std::lock_guard<std::mutex> lock(impl_->mutex);
  impl_->context->health_checker = std::move(checker);
}

References kcenon::pacs::web::rest_server::impl::context, impl_, and kcenon::pacs::web::rest_server::impl::mutex.

set_job_manager()

void kcenon::pacs::web::rest_server::set_job_manager

(

std::shared_ptr< client::job_manager >

manager

)

Set job manager for async DICOM operations.

Parameters

manager

Job manager instance

Definition at line 176 of file rest_server.cpp.

                                              {
  std::lock_guard<std::mutex> lock(impl_->mutex);
  impl_->context->job_manager = std::move(manager);
}

References kcenon::pacs::web::rest_server::impl::context, impl_, and kcenon::pacs::web::rest_server::impl::mutex.

set_metrics_provider()

void kcenon::pacs::web::rest_server::set_metrics_provider

(

std::shared_ptr< monitoring::pacs_metrics >

metrics

)

Set metrics provider for /api/v1/system/metrics endpoint.

Parameters

metrics

Metrics instance

Set metrics provider for /api/v1/system/metrics endpoint

Parameters

metrics

Metrics instance

Definition at line 146 of file rest_server.cpp.

                                                   {
  std::lock_guard<std::mutex> lock(impl_->mutex);
  impl_->context->metrics = std::move(metrics);
}

References kcenon::pacs::web::rest_server::impl::context, impl_, and kcenon::pacs::web::rest_server::impl::mutex.

set_node_manager()

void kcenon::pacs::web::rest_server::set_node_manager

(

std::shared_ptr< client::remote_node_manager >

manager

)

Set remote node manager for remote PACS node management.

Parameters

manager

Remote node manager instance

Definition at line 170 of file rest_server.cpp.

                                                      {
  std::lock_guard<std::mutex> lock(impl_->mutex);
  impl_->context->node_manager = std::move(manager);
}

References kcenon::pacs::web::rest_server::impl::context, impl_, and kcenon::pacs::web::rest_server::impl::mutex.

set_oauth2_middleware()

void kcenon::pacs::web::rest_server::set_oauth2_middleware

(

std::shared_ptr< auth::oauth2_middleware >

middleware

)

Set OAuth 2.0 middleware for DICOMweb endpoint authorization.

Parameters

middleware

OAuth 2.0 middleware instance

Definition at line 194 of file rest_server.cpp.

                                                     {
  std::lock_guard<std::mutex> lock(impl_->mutex);
  impl_->context->oauth2 = std::move(middleware);
}

References kcenon::pacs::web::rest_server::impl::context, impl_, and kcenon::pacs::web::rest_server::impl::mutex.

set_routing_manager()

void kcenon::pacs::web::rest_server::set_routing_manager

(

std::shared_ptr< client::routing_manager >

manager

)

Set routing manager for auto-forwarding rules.

Parameters

manager

Routing manager instance

Definition at line 182 of file rest_server.cpp.

                                                  {
  std::lock_guard<std::mutex> lock(impl_->mutex);
  impl_->context->routing_manager = std::move(manager);
}

References kcenon::pacs::web::rest_server::impl::context, impl_, and kcenon::pacs::web::rest_server::impl::mutex.

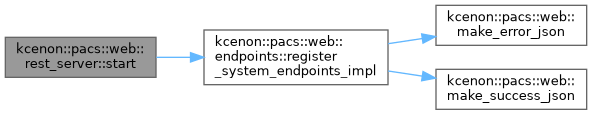

start()

void kcenon::pacs::web::rest_server::start

(

)

Start the server (blocking)

This method blocks until stop() is called from another thread.

Definition at line 200 of file rest_server.cpp.

                        {
  if (impl_->running.exchange(true)) {
    return; // Already running
  }

  impl_->app = std::make_unique<crow::SimpleApp>();
  auto &app = *impl_->app;

  // Register system endpoints
  endpoints::register_system_endpoints_impl(app, impl_->context);

  // Add CORS preflight handler
  if (impl_->config.enable_cors) {
    CROW_ROUTE(app, "/api/<path>")
        .methods(crow::HTTPMethod::OPTIONS)(
            [this](const crow::request & /*req*/,
                   const std::string & /*path*/) {
              crow::response res(204);
              res.add_header("Access-Control-Allow-Origin",
                             impl_->config.cors_allowed_origins);
              res.add_header("Access-Control-Allow-Methods",
                             "GET, POST, PUT, DELETE, OPTIONS");
              res.add_header("Access-Control-Allow-Headers",
                             "Content-Type, Authorization");
              res.add_header("Access-Control-Max-Age", "86400");
              return res;
            });
  }

  // Start server
  app.bindaddr(impl_->config.bind_address)
      .port(impl_->config.port)
      .concurrency(static_cast<uint16_t>(impl_->config.concurrency))
      .run();

  impl_->running = false;
}

References kcenon::pacs::web::rest_server::impl::app, kcenon::pacs::web::rest_server_config::bind_address, kcenon::pacs::web::rest_server_config::concurrency, kcenon::pacs::web::rest_server::impl::config, kcenon::pacs::web::rest_server::impl::context, kcenon::pacs::web::rest_server_config::cors_allowed_origins, kcenon::pacs::web::rest_server_config::enable_cors, impl_, kcenon::pacs::web::rest_server_config::port, kcenon::pacs::web::endpoints::register_system_endpoints_impl(), and kcenon::pacs::web::rest_server::impl::running.

Here is the call graph for this function:

start_async()

void kcenon::pacs::web::rest_server::start_async

(

)

Start the server (non-blocking)

Starts the server in a background thread and returns immediately.

Definition at line 238 of file rest_server.cpp.

                              {
  if (impl_->running.exchange(true)) {
    return; // Already running
  }

  impl_->server_thread = std::thread([this]() {
    impl_->app = std::make_unique<crow::SimpleApp>();
    auto &app = *impl_->app;

    // Register endpoints
    endpoints::register_system_endpoints_impl(app, impl_->context);
    endpoints::register_security_endpoints_impl(app, impl_->context);
    endpoints::register_patient_endpoints_impl(app, impl_->context);
    endpoints::register_study_endpoints_impl(app, impl_->context);
    endpoints::register_series_endpoints_impl(app, impl_->context);
    endpoints::register_worklist_endpoints_impl(app, impl_->context);
    endpoints::register_audit_endpoints_impl(app, impl_->context);
    endpoints::register_association_endpoints_impl(app, impl_->context);
    endpoints::register_dicomweb_endpoints_impl(app, impl_->context);
    endpoints::register_remote_nodes_endpoints_impl(app, impl_->context);
    endpoints::register_jobs_endpoints_impl(app, impl_->context);
    endpoints::register_routing_endpoints_impl(app, impl_->context);
    endpoints::register_thumbnail_endpoints_impl(app, impl_->context);
    endpoints::register_metadata_endpoints_impl(app, impl_->context);
    endpoints::register_annotation_endpoints_impl(app, impl_->context);
    endpoints::register_measurement_endpoints_impl(app, impl_->context);
    endpoints::register_key_image_endpoints_impl(app, impl_->context);
    endpoints::register_viewer_state_endpoints_impl(app, impl_->context);
    endpoints::register_wado_uri_endpoints_impl(app, impl_->context);
    endpoints::register_storage_commitment_endpoints_impl(app, impl_->context);

#ifdef PACS_WITH_DATABASE_SYSTEM
    endpoints::register_metrics_endpoints_impl(app, impl_->context);
#endif

    // Add CORS preflight handler
    if (impl_->config.enable_cors) {
      CROW_ROUTE(app, "/api/<path>")
          .methods(crow::HTTPMethod::OPTIONS)(
              [this](const crow::request & /*req*/,
                     const std::string & /*path*/) {
                crow::response res(204);
                res.add_header("Access-Control-Allow-Origin",
                               impl_->config.cors_allowed_origins);
                res.add_header("Access-Control-Allow-Methods",
                               "GET, POST, PUT, DELETE, OPTIONS");
                res.add_header("Access-Control-Allow-Headers",
                               "Content-Type, Authorization");
                res.add_header("Access-Control-Max-Age", "86400");
                return res;
              });
    }

    // Start server
    app.bindaddr(impl_->config.bind_address)
        .port(impl_->config.port)
        .concurrency(static_cast<uint16_t>(impl_->config.concurrency))
        .run();

    impl_->running = false;
  });
}

References kcenon::pacs::web::rest_server::impl::app, kcenon::pacs::web::rest_server_config::bind_address, kcenon::pacs::web::rest_server_config::concurrency, kcenon::pacs::web::rest_server::impl::config, kcenon::pacs::web::rest_server::impl::context, kcenon::pacs::web::rest_server_config::cors_allowed_origins, kcenon::pacs::web::rest_server_config::enable_cors, impl_, kcenon::pacs::web::rest_server_config::port, kcenon::pacs::web::endpoints::register_annotation_endpoints_impl(), kcenon::pacs::web::endpoints::register_association_endpoints_impl(), kcenon::pacs::web::endpoints::register_audit_endpoints_impl(), kcenon::pacs::web::endpoints::register_dicomweb_endpoints_impl(), kcenon::pacs::web::endpoints::register_jobs_endpoints_impl(), kcenon::pacs::web::endpoints::register_key_image_endpoints_impl(), kcenon::pacs::web::endpoints::register_measurement_endpoints_impl(), kcenon::pacs::web::endpoints::register_metadata_endpoints_impl(), kcenon::pacs::web::endpoints::register_patient_endpoints_impl(), kcenon::pacs::web::endpoints::register_remote_nodes_endpoints_impl(), kcenon::pacs::web::endpoints::register_routing_endpoints_impl(), kcenon::pacs::web::endpoints::register_security_endpoints_impl(), kcenon::pacs::web::endpoints::register_series_endpoints_impl(), kcenon::pacs::web::endpoints::register_storage_commitment_endpoints_impl(), kcenon::pacs::web::endpoints::register_study_endpoints_impl(), kcenon::pacs::web::endpoints::register_system_endpoints_impl(), kcenon::pacs::web::endpoints::register_thumbnail_endpoints_impl(), kcenon::pacs::web::endpoints::register_viewer_state_endpoints_impl(), kcenon::pacs::web::endpoints::register_wado_uri_endpoints_impl(), kcenon::pacs::web::endpoints::register_worklist_endpoints_impl(), kcenon::pacs::web::rest_server::impl::running, and kcenon::pacs::web::rest_server::impl::server_thread.

Here is the call graph for this function:

stop()

void kcenon::pacs::web::rest_server::stop

(

)

Stop the server.

Gracefully shuts down the server. Safe to call multiple times.

Definition at line 301 of file rest_server.cpp.

                       {
  if (!impl_->running) {
    return;
  }

  if (impl_->app) {
    impl_->app->stop();
  }

  if (impl_->server_thread.joinable()) {
    impl_->server_thread.join();
  }

  impl_->running = false;
}

References kcenon::pacs::web::rest_server::impl::app, impl_, kcenon::pacs::web::rest_server::impl::running, and kcenon::pacs::web::rest_server::impl::server_thread.

Referenced by ~rest_server().

Here is the caller graph for this function:

wait()

void kcenon::pacs::web::rest_server::wait

(

)

Wait for server to stop.

Blocks until the server has completely stopped. Only valid after start_async() was called.

Definition at line 319 of file rest_server.cpp.

                       {
  if (impl_->server_thread.joinable()) {
    impl_->server_thread.join();
  }
}

References impl_, and kcenon::pacs::web::rest_server::impl::server_thread.

Member Data Documentation

impl_

std::unique_ptr<impl> kcenon::pacs::web::rest_server::impl_

private

Definition at line 244 of file rest_server.h.

Referenced by config(), is_running(), port(), set_access_control_manager(), set_config(), set_database(), set_dicom_server(), set_file_storage(), set_health_checker(), set_job_manager(), set_metrics_provider(), set_node_manager(), set_oauth2_middleware(), set_routing_manager(), start(), start_async(), stop(), and wait().

---

The documentation for this class was generated from the following files:

• include/kcenon/pacs/web/rest_server.h
• src/web/rest_server.cpp
