kcenon::pacs::web Namespace Reference

Namespaces
namespace	auth
namespace	dicomweb
namespace	endpoints
namespace	storage_commitment
namespace	wado_uri

Classes
struct	api_error
	Standard API error structure. More...
struct	frame_info
	Multi-frame information. More...
struct	metadata_request
	Parameters for selective metadata retrieval. More...
struct	metadata_response
	Response for selective metadata retrieval. More...
class	metadata_service
	Service for selective metadata retrieval and series navigation. More...
struct	navigation_info
	Navigation info for an instance. More...
class	rest_server
	REST API server for PACS administration and monitoring. More...
struct	rest_server_config
	Configuration options for the REST server. More...
struct	rest_server_context
	Shared context for REST endpoints. More...
struct	sorted_instance
	Instance info for series navigation. More...
struct	sorted_instances_response
	Response for sorted instances query. More...
struct	tag_value
	DICOM tag value in metadata response. More...
struct	thumbnail_cache_entry
	Cached thumbnail entry. More...
struct	thumbnail_params
	Parameters for thumbnail generation. More...
struct	thumbnail_result
	Result type for thumbnail operations. More...
class	thumbnail_service
	Thumbnail generation and caching service. More...
struct	voi_lut_info
	VOI LUT information from DICOM. More...
struct	window_level_preset
	Window/Level preset. More...

Enumerations
enum class	metadata_preset {   image_display , window_level , patient_info , acquisition ,   positioning , multiframe }
	Metadata preset types for common use cases. More...
enum class	sort_order { position , instance_number , acquisition_time }
	Sort order for series instances. More...
enum class	http_status : std::uint16_t {   ok = 200 , created = 201 , accepted = 202 , no_content = 204 ,   bad_request = 400 , unauthorized = 401 , forbidden = 403 , not_found = 404 ,   method_not_allowed = 405 , conflict = 409 , unprocessable_entity = 422 , internal_server_error = 500 ,   not_implemented = 501 , service_unavailable = 503 }
	Common HTTP status codes. More...

Functions
std::string_view	preset_to_string (metadata_preset preset)
	Convert preset enum to string.
std::optional< metadata_preset >	preset_from_string (std::string_view str)
	Parse preset from string.
std::string_view	sort_order_to_string (sort_order order)
	Convert sort order enum to string.
std::optional< sort_order >	sort_order_from_string (std::string_view str)
	Parse sort order from string.
std::string	to_json (const api_error &error)
	Create JSON error response body.
std::string	make_error_json (std::string_view code, std::string_view message)
	Create JSON error response body with details.
std::string	make_success_json (std::string_view message="OK")
	Create success response with optional message.
std::string	json_escape (std::string_view s)
	Escape a string for JSON.

Enumeration Type Documentation

http_status

enum class kcenon::pacs::web::http_status : std::uint16_t

strong

Common HTTP status codes.

Enumerator
ok
created
accepted
no_content
bad_request
unauthorized
forbidden
not_found
method_not_allowed
conflict
unprocessable_entity
internal_server_error
not_implemented
service_unavailable

Definition at line 30 of file rest_types.h.

                       : std::uint16_t {
  // Success
  ok = 200,
  created = 201,
  accepted = 202,
  no_content = 204,

  // Client errors
  bad_request = 400,
  unauthorized = 401,
  forbidden = 403,
  not_found = 404,
  method_not_allowed = 405,
  conflict = 409,
  unprocessable_entity = 422,

  // Server errors
  internal_server_error = 500,
  not_implemented = 501,
  service_unavailable = 503
};

metadata_preset

enum class kcenon::pacs::web::metadata_preset

strong

Metadata preset types for common use cases.

Enumerator
image_display	Rows, Columns, Bits, PhotometricInterpretation.
window_level	WindowCenter, WindowWidth, Rescale values.
patient_info	Patient demographics.
acquisition	KVP, ExposureTime, SliceThickness.
positioning	ImagePosition, ImageOrientation, PixelSpacing.
multiframe	NumberOfFrames, FrameTime.

Definition at line 40 of file metadata_service.h.

                           {
    image_display,
    window_level,
    patient_info,
    acquisition,
    positioning,
    multiframe
};

sort_order

enum class kcenon::pacs::web::sort_order

strong

Sort order for series instances.

Enumerator
position	Sort by ImagePositionPatient/SliceLocation.
instance_number	Sort by InstanceNumber.
acquisition_time	Sort by AcquisitionTime.

Definition at line 142 of file metadata_service.h.

                      {
    position,
    instance_number,
    acquisition_time
};

Function Documentation

json_escape()

std::string kcenon::pacs::web::json_escape ( std::string_view s )

inlinenodiscard

Escape a string for JSON.

Parameters

s	Input string

Returns

JSON-escaped string

Definition at line 101 of file rest_types.h.

                                                             {
  std::string result;
  result.reserve(s.size() + 10);
  for (char c : s) {
    switch (c) {
    case '"':
      result += "\\\"";
      break;
    case '\\':
      result += "\\\\";
      break;
    case '\b':
      result += "\\b";
      break;
    case '\f':
      result += "\\f";
      break;
    case '\n':
      result += "\\n";
      break;
    case '\r':
      result += "\\r";
      break;
    case '\t':
      result += "\\t";
      break;
    default:
      result += c;
      break;
    }
  }
  return result;
}

Referenced by kcenon::pacs::web::dicomweb::dataset_to_dicom_json(), kcenon::pacs::web::dicomweb::instance_record_to_dicom_json(), kcenon::pacs::web::endpoints::register_jobs_endpoints_impl(), kcenon::pacs::web::endpoints::register_key_image_endpoints_impl(), kcenon::pacs::web::endpoints::register_measurement_endpoints_impl(), kcenon::pacs::web::endpoints::register_remote_nodes_endpoints_impl(), kcenon::pacs::web::endpoints::register_viewer_state_endpoints_impl(), kcenon::pacs::web::dicomweb::series_record_to_dicom_json(), kcenon::pacs::web::dicomweb::study_record_to_dicom_json(), and kcenon::pacs::web::storage_commitment::transaction_to_json().

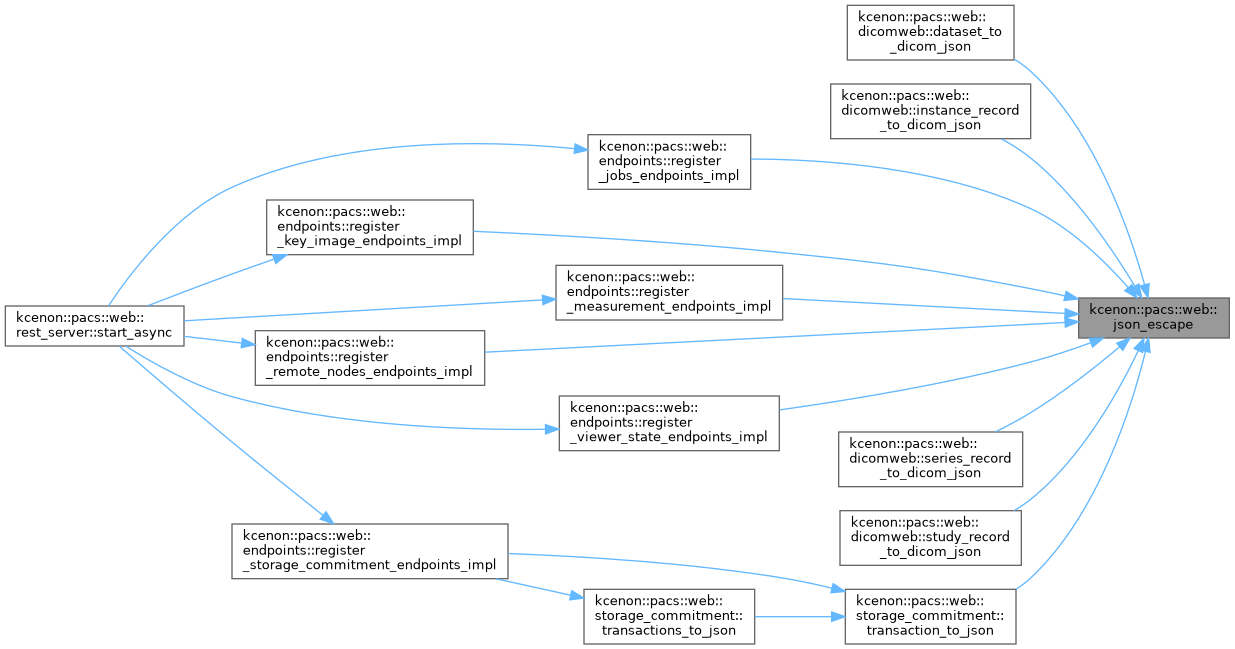

Here is the caller graph for this function:

make_error_json()

std::string kcenon::pacs::web::make_error_json ( std::string_view code, std::string_view message )

inlinenodiscard

Create JSON error response body with details.

Parameters

code	Error code
message	Error message

Returns

JSON string

Definition at line 79 of file rest_types.h.

                                                                         {
  return std::string(R"({"error":{"code":")") + std::string(code) +
         R"(","message":")" + std::string(message) + R"("}})";
}

References code.

Referenced by kcenon::pacs::web::endpoints::register_association_endpoints_impl(), kcenon::pacs::web::endpoints::register_audit_endpoints_impl(), kcenon::pacs::web::endpoints::register_jobs_endpoints_impl(), kcenon::pacs::web::endpoints::register_key_image_endpoints_impl(), kcenon::pacs::web::endpoints::register_measurement_endpoints_impl(), kcenon::pacs::web::endpoints::register_metadata_endpoints_impl(), kcenon::pacs::web::endpoints::register_patient_endpoints_impl(), kcenon::pacs::web::endpoints::register_remote_nodes_endpoints_impl(), kcenon::pacs::web::endpoints::register_routing_endpoints_impl(), kcenon::pacs::web::endpoints::register_security_endpoints_impl(), kcenon::pacs::web::endpoints::register_series_endpoints_impl(), kcenon::pacs::web::endpoints::register_storage_commitment_endpoints_impl(), kcenon::pacs::web::endpoints::register_study_endpoints_impl(), kcenon::pacs::web::endpoints::register_system_endpoints_impl(), kcenon::pacs::web::endpoints::register_thumbnail_endpoints_impl(), kcenon::pacs::web::endpoints::register_viewer_state_endpoints_impl(), kcenon::pacs::web::endpoints::register_wado_uri_endpoints_impl(), kcenon::pacs::web::endpoints::register_worklist_endpoints_impl(), kcenon::pacs::web::auth::oauth2_middleware::set_forbidden(), and kcenon::pacs::web::auth::oauth2_middleware::set_unauthorized().

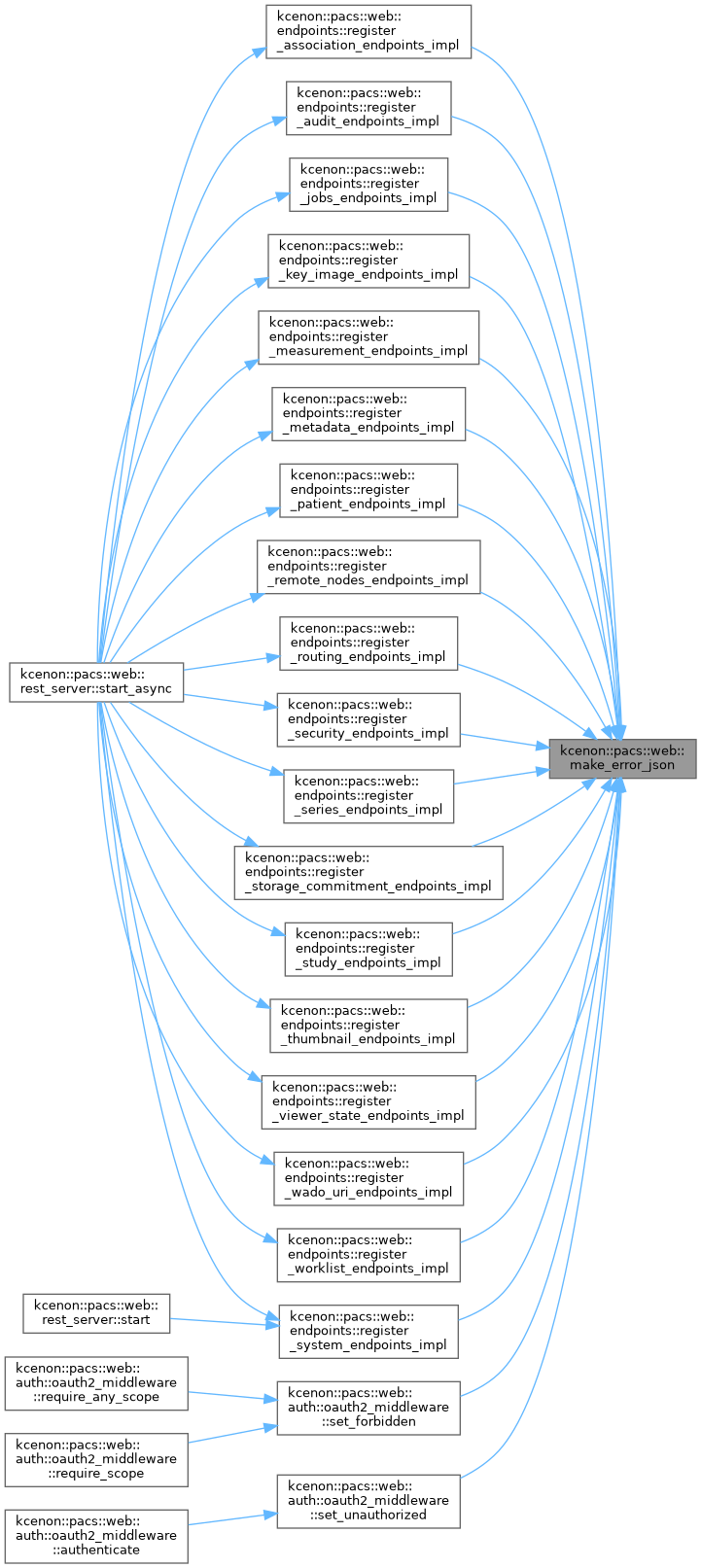

Here is the caller graph for this function:

make_success_json()

std::string kcenon::pacs::web::make_success_json ( std::string_view message = "OK" )

inlinenodiscard

Create success response with optional message.

Parameters

message

Optional message

Returns

JSON string

Definition at line 91 of file rest_types.h.

                                                 {
  return std::string(R"({"status":"success","message":")") +
         std::string(message) + R"("})";
}

Referenced by kcenon::pacs::web::endpoints::register_security_endpoints_impl(), kcenon::pacs::web::endpoints::register_study_endpoints_impl(), kcenon::pacs::web::endpoints::register_system_endpoints_impl(), kcenon::pacs::web::endpoints::register_thumbnail_endpoints_impl(), and kcenon::pacs::web::endpoints::register_worklist_endpoints_impl().

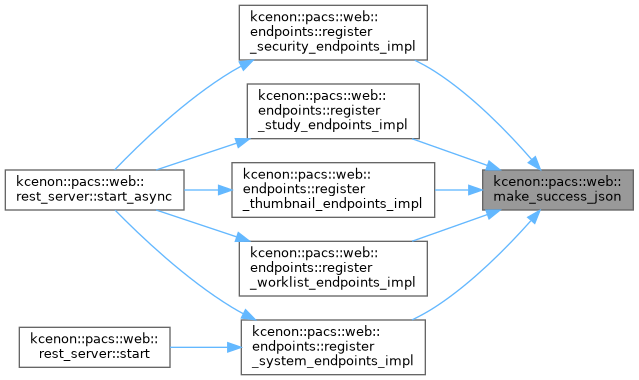

Here is the caller graph for this function:

preset_from_string()

std::optional< metadata_preset > kcenon::pacs::web::preset_from_string ( std::string_view str )

nodiscard

Parse preset from string.

Definition at line 52 of file metadata_service.cpp.

                                                                    {
    if (str == "image_display") {
        return metadata_preset::image_display;
    }
    if (str == "window_level") {
        return metadata_preset::window_level;
    }
    if (str == "patient_info") {
        return metadata_preset::patient_info;
    }
    if (str == "acquisition") {
        return metadata_preset::acquisition;
    }
    if (str == "positioning") {
        return metadata_preset::positioning;
    }
    if (str == "multiframe") {
        return metadata_preset::multiframe;
    }
    return std::nullopt;
}

References acquisition, image_display, multiframe, patient_info, positioning, and window_level.

preset_to_string()

std::string_view kcenon::pacs::web::preset_to_string ( metadata_preset preset )

nodiscard

Convert preset enum to string.

Definition at line 34 of file metadata_service.cpp.

                                                        {
    switch (preset) {
        case metadata_preset::image_display:
            return "image_display";
        case metadata_preset::window_level:
            return "window_level";
        case metadata_preset::patient_info:
            return "patient_info";
        case metadata_preset::acquisition:
            return "acquisition";
        case metadata_preset::positioning:
            return "positioning";
        case metadata_preset::multiframe:
            return "multiframe";
    }
    return "unknown";
}

References acquisition, image_display, multiframe, patient_info, positioning, and window_level.

sort_order_from_string()

std::optional< sort_order > kcenon::pacs::web::sort_order_from_string ( std::string_view str )

nodiscard

Parse sort order from string.

Definition at line 86 of file metadata_service.cpp.

                                                                   {
    if (str == "position") {
        return sort_order::position;
    }
    if (str == "instance_number") {
        return sort_order::instance_number;
    }
    if (str == "acquisition_time") {
        return sort_order::acquisition_time;
    }
    return std::nullopt;
}

References acquisition_time, instance_number, and position.

Referenced by kcenon::pacs::web::endpoints::register_metadata_endpoints_impl().

Here is the caller graph for this function:

sort_order_to_string()

std::string_view kcenon::pacs::web::sort_order_to_string ( sort_order order )

nodiscard

Convert sort order enum to string.

Definition at line 74 of file metadata_service.cpp.

                                                      {
    switch (order) {
        case sort_order::position:
            return "position";
        case sort_order::instance_number:
            return "instance_number";
        case sort_order::acquisition_time:
            return "acquisition_time";
    }
    return "unknown";
}

References acquisition_time, instance_number, and position.

to_json()

std::string kcenon::pacs::web::to_json ( const api_error & error )

inlinenodiscard

Create JSON error response body.

Parameters

error

The API error

Returns

JSON string

Definition at line 67 of file rest_types.h.

                                                               {
  std::string json = R"({"error":{"code":")" + error.code + R"(","message":")" +
                     error.message + R"("})";
  return json;
}
