Central metrics collection for PACS DICOM operations. More...

#include <pacs_metrics.h>

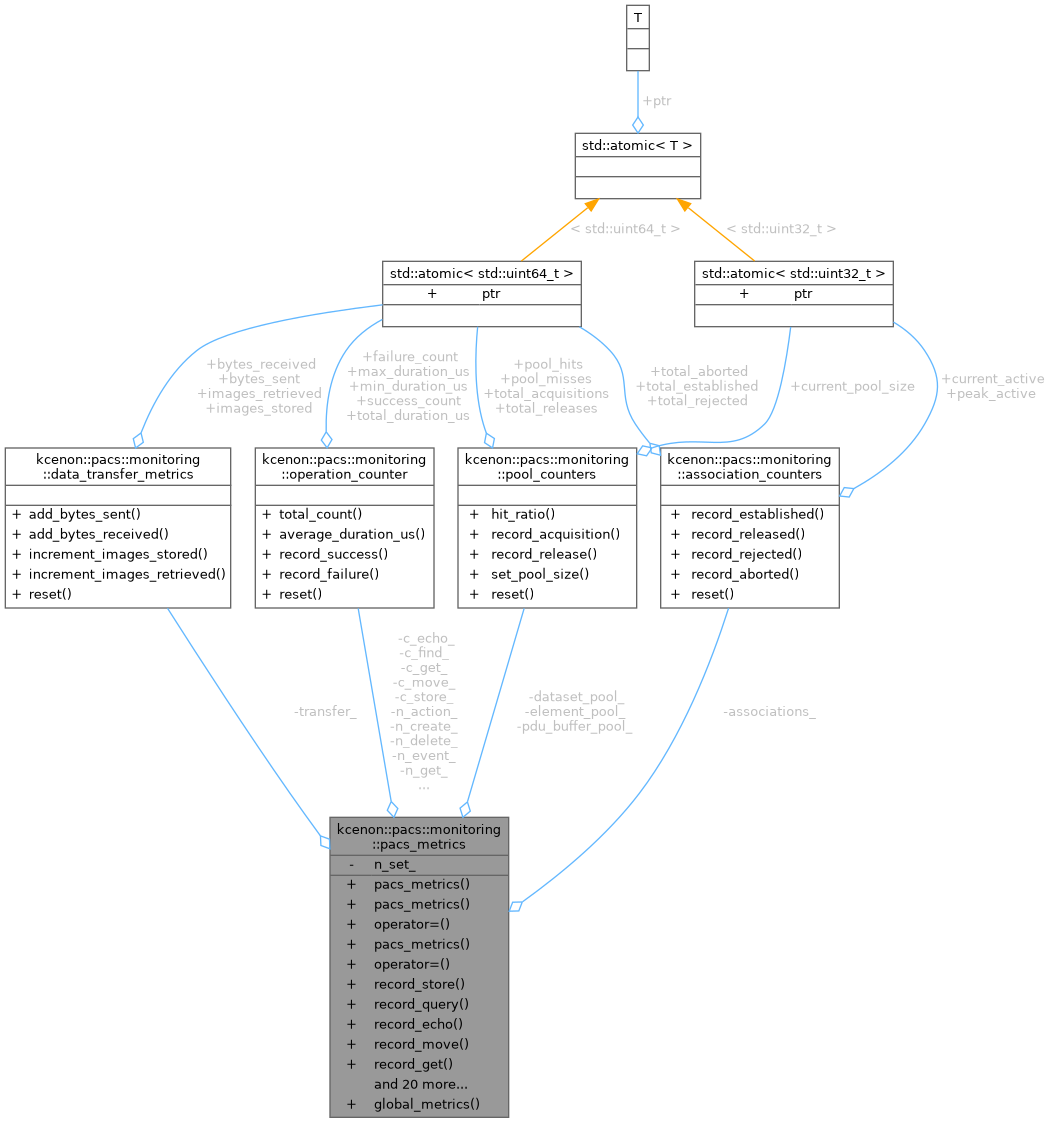

Collaboration diagram for kcenon::pacs::monitoring::pacs_metrics:

Public Member Functions
	pacs_metrics ()=default
	Default constructor.

	pacs_metrics (const pacs_metrics &)=delete
	Non-copyable.

pacs_metrics &	operator= (const pacs_metrics &)=delete

	pacs_metrics (pacs_metrics &&)=delete
	Non-movable (singleton)

pacs_metrics &	operator= (pacs_metrics &&)=delete

void	record_store (bool success, std::chrono::microseconds duration, std::uint64_t bytes_stored=0) noexcept
	Record a C-STORE operation.

void	record_query (bool success, std::chrono::microseconds duration, std::uint32_t matches=0) noexcept
	Record a C-FIND (query) operation.

void	record_echo (bool success, std::chrono::microseconds duration) noexcept
	Record a C-ECHO (verification) operation.

void	record_move (bool success, std::chrono::microseconds duration, std::uint32_t images_moved=0) noexcept
	Record a C-MOVE operation.

void	record_get (bool success, std::chrono::microseconds duration, std::uint32_t images_retrieved=0, std::uint64_t bytes_retrieved=0) noexcept
	Record a C-GET operation.

void	record_operation (dimse_operation op, bool success, std::chrono::microseconds duration) noexcept
	Record a generic DIMSE operation.

void	record_bytes_sent (std::uint64_t bytes) noexcept
	Record bytes sent over the network.

void	record_bytes_received (std::uint64_t bytes) noexcept
	Record bytes received from the network.

void	record_association_established () noexcept
	Record an association being established.

void	record_association_released () noexcept
	Record an association being released.

void	record_association_rejected () noexcept
	Record an association being rejected.

void	record_association_aborted () noexcept
	Record an association being aborted.

const operation_counter &	get_counter (dimse_operation op) const noexcept
	Get operation counter for a specific DIMSE operation.

operation_counter &	get_counter (dimse_operation op) noexcept
	Get mutable operation counter for a specific DIMSE operation.

const data_transfer_metrics &	transfer () const noexcept
	Get data transfer metrics.

const association_counters &	associations () const noexcept
	Get association counters.

const pool_counters &	element_pool () const noexcept
	Get element pool counters.

pool_counters &	element_pool () noexcept
	Get mutable element pool counters.

const pool_counters &	dataset_pool () const noexcept
	Get dataset pool counters.

pool_counters &	dataset_pool () noexcept
	Get mutable dataset pool counters.

const pool_counters &	pdu_buffer_pool () const noexcept
	Get PDU buffer pool counters.

pool_counters &	pdu_buffer_pool () noexcept
	Get mutable PDU buffer pool counters.

std::string	to_json () const
	Export metrics as JSON string.

std::string	to_prometheus (std::string_view prefix="pacs") const
	Export metrics in Prometheus text format.

void	reset () noexcept
	Reset all metrics to zero.

Static Public Member Functions
static pacs_metrics &	global_metrics () noexcept
	Get the global singleton instance.

Detailed Description

Central metrics collection for PACS DICOM operations.

The pacs_metrics class provides a thread-safe, low-overhead mechanism for tracking DICOM operation metrics including:

DIMSE operation counts and timing (C-ECHO, C-STORE, C-FIND, C-MOVE, C-GET)
Data transfer volumes (bytes sent/received, images stored/retrieved)
Association lifecycle events (established, rejected, aborted)

Thread Safety: All public methods are thread-safe using atomic operations.

Definition at line 354 of file pacs_metrics.h.

Constructor & Destructor Documentation

◆ pacs_metrics() [1/3]

kcenon::pacs::monitoring::pacs_metrics::pacs_metrics ( )

default

Default constructor.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

◆ pacs_metrics() [2/3]

kcenon::pacs::monitoring::pacs_metrics::pacs_metrics ( const pacs_metrics & )

delete

Non-copyable.

◆ pacs_metrics() [3/3]

kcenon::pacs::monitoring::pacs_metrics::pacs_metrics ( pacs_metrics && )

delete

Non-movable (singleton)

Member Function Documentation

◆ associations()

const association_counters & kcenon::pacs::monitoring::pacs_metrics::associations ( ) const

inlinenodiscardnoexcept

Get association counters.

Returns: Const reference to association counters

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/collectors/dicom_association_collector.h, /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/collectors/dicom_metrics_collector.h, and /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 609 of file pacs_metrics.h.

                                                                            {
        return associations_;
    }

References associations_.

Referenced by kcenon::pacs::monitoring::dicom_association_collector::collect(), and kcenon::pacs::monitoring::dicom_metrics_collector::collect_association_metrics().

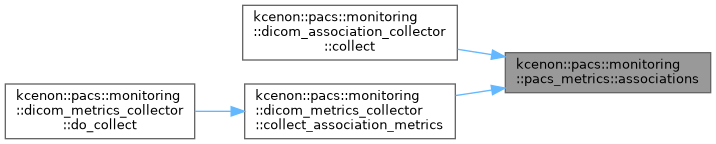

Here is the caller graph for this function:

◆ dataset_pool() [1/2]

const pool_counters & kcenon::pacs::monitoring::pacs_metrics::dataset_pool ( ) const

inlinenodiscardnoexcept

Get dataset pool counters.

Returns: Const reference to dataset pool counters

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 637 of file pacs_metrics.h.

                                                                     {
        return dataset_pool_;
    }

References dataset_pool_.

◆ dataset_pool() [2/2]

pool_counters & kcenon::pacs::monitoring::pacs_metrics::dataset_pool ( )

inlinenodiscardnoexcept

Get mutable dataset pool counters.

Returns: Reference to dataset pool counters

Definition at line 645 of file pacs_metrics.h.

                                                         {
        return dataset_pool_;
    }

References dataset_pool_.

◆ element_pool() [1/2]

const pool_counters & kcenon::pacs::monitoring::pacs_metrics::element_pool ( ) const

inlinenodiscardnoexcept

Get element pool counters.

Returns: Const reference to element pool counters

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 621 of file pacs_metrics.h.

                                                                     {
        return element_pool_;
    }

References element_pool_.

◆ element_pool() [2/2]

pool_counters & kcenon::pacs::monitoring::pacs_metrics::element_pool ( )

inlinenodiscardnoexcept

Get mutable element pool counters.

Returns: Reference to element pool counters

Definition at line 629 of file pacs_metrics.h.

                                                         {
        return element_pool_;
    }

References element_pool_.

◆ get_counter() [1/2]

const operation_counter & kcenon::pacs::monitoring::pacs_metrics::get_counter ( dimse_operation op ) const

inlinenodiscardnoexcept

Get operation counter for a specific DIMSE operation.

Parameters

op	The DIMSE operation type

Returns: Const reference to the operation counter

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 558 of file pacs_metrics.h.

                                                                                          {
        switch (op) {
            case dimse_operation::c_echo:
                return c_echo_;
            case dimse_operation::c_store:
                return c_store_;
            case dimse_operation::c_find:
                return c_find_;
            case dimse_operation::c_move:
                return c_move_;
            case dimse_operation::c_get:
                return c_get_;
            case dimse_operation::n_create:
                return n_create_;
            case dimse_operation::n_set:
                return n_set_;
            case dimse_operation::n_get:
                return n_get_;
            case dimse_operation::n_action:
                return n_action_;
            case dimse_operation::n_event:
                return n_event_;
            case dimse_operation::n_delete:
                return n_delete_;
            default:
                return c_echo_;  // Should never happen
        }
    }

References kcenon::pacs::monitoring::c_echo, c_echo_, kcenon::pacs::monitoring::c_find, c_find_, kcenon::pacs::monitoring::c_get, c_get_, kcenon::pacs::monitoring::c_move, c_move_, kcenon::pacs::monitoring::c_store, c_store_, kcenon::pacs::monitoring::n_action, n_action_, kcenon::pacs::monitoring::n_create, n_create_, kcenon::pacs::monitoring::n_delete, n_delete_, kcenon::pacs::monitoring::n_event, n_event_, kcenon::pacs::monitoring::n_get, n_get_, kcenon::pacs::monitoring::n_set, and n_set_.

Referenced by get_counter(), and record_operation().

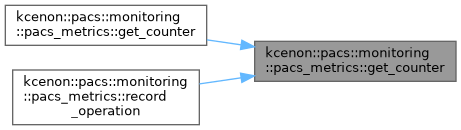

Here is the caller graph for this function:

◆ get_counter() [2/2]

operation_counter & kcenon::pacs::monitoring::pacs_metrics::get_counter ( dimse_operation op )

inlinenodiscardnoexcept

Get mutable operation counter for a specific DIMSE operation.

Parameters

op	The DIMSE operation type

Returns: Reference to the operation counter

Definition at line 592 of file pacs_metrics.h.

                                                                              {
        return const_cast<operation_counter&>(
            static_cast<const pacs_metrics*>(this)->get_counter(op));
    }

References get_counter().

Here is the call graph for this function:

◆ global_metrics()

static pacs_metrics & kcenon::pacs::monitoring::pacs_metrics::global_metrics ( )

inlinestaticnodiscardnoexcept

Get the global singleton instance.

Returns: Reference to the global metrics instance

Thread-safe lazy initialization using Meyer's singleton pattern.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/collectors/dicom_association_collector.h, /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/collectors/dicom_metrics_collector.h, /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/collectors/dicom_service_collector.h, /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/collectors/dicom_storage_collector.h, /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h, and /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_monitor.h.

Definition at line 371 of file pacs_metrics.h.

                                                                 {
        static pacs_metrics instance;
        return instance;
    }

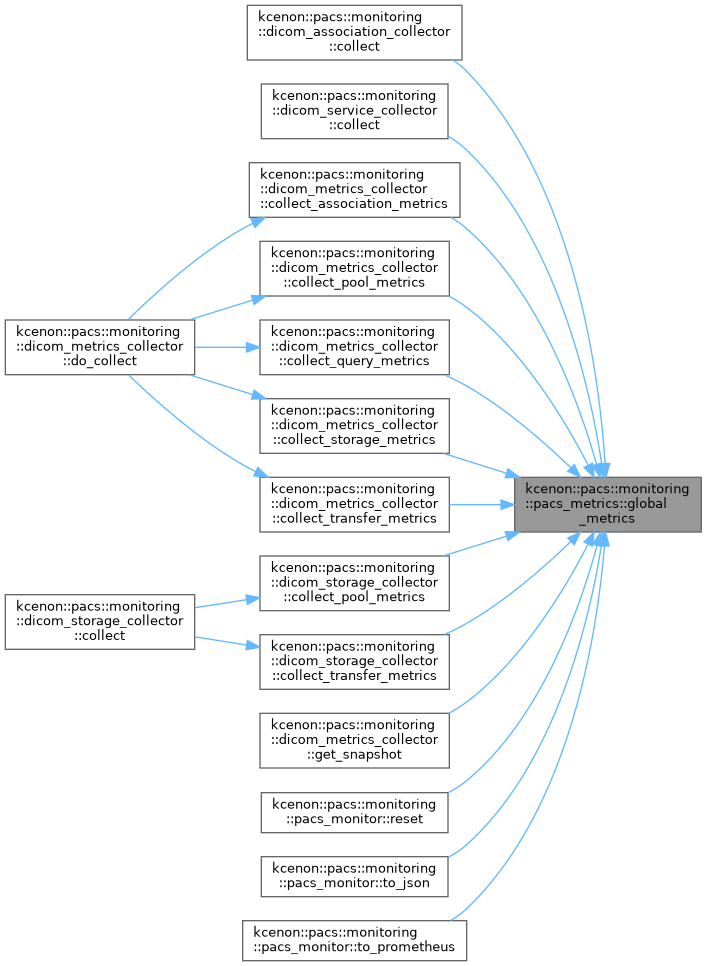

Here is the caller graph for this function:

◆ operator=() [1/2]

pacs_metrics & kcenon::pacs::monitoring::pacs_metrics::operator= ( const pacs_metrics & )

delete

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

◆ operator=() [2/2]

pacs_metrics & kcenon::pacs::monitoring::pacs_metrics::operator= ( pacs_metrics && )

delete

◆ pdu_buffer_pool() [1/2]

const pool_counters & kcenon::pacs::monitoring::pacs_metrics::pdu_buffer_pool ( ) const

inlinenodiscardnoexcept

Get PDU buffer pool counters.

Returns: Const reference to PDU buffer pool counters

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 653 of file pacs_metrics.h.

                                                                        {
        return pdu_buffer_pool_;
    }

References pdu_buffer_pool_.

◆ pdu_buffer_pool() [2/2]

pool_counters & kcenon::pacs::monitoring::pacs_metrics::pdu_buffer_pool ( )

inlinenodiscardnoexcept

Get mutable PDU buffer pool counters.

Returns: Reference to PDU buffer pool counters

Definition at line 661 of file pacs_metrics.h.

                                                            {
        return pdu_buffer_pool_;
    }

References pdu_buffer_pool_.

◆ record_association_aborted()

void kcenon::pacs::monitoring::pacs_metrics::record_association_aborted ( )

inlinenoexcept

Record an association being aborted.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 545 of file pacs_metrics.h.

                                               {
        associations_.record_aborted();
    }

References associations_, and kcenon::pacs::monitoring::association_counters::record_aborted().

Here is the call graph for this function:

◆ record_association_established()

void kcenon::pacs::monitoring::pacs_metrics::record_association_established ( )

inlinenoexcept

Record an association being established.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 524 of file pacs_metrics.h.

                                                   {
        associations_.record_established();
    }

References associations_, and kcenon::pacs::monitoring::association_counters::record_established().

Here is the call graph for this function:

◆ record_association_rejected()

void kcenon::pacs::monitoring::pacs_metrics::record_association_rejected ( )

inlinenoexcept

Record an association being rejected.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 538 of file pacs_metrics.h.

                                                {
        associations_.record_rejected();
    }

References associations_, and kcenon::pacs::monitoring::association_counters::record_rejected().

Here is the call graph for this function:

◆ record_association_released()

void kcenon::pacs::monitoring::pacs_metrics::record_association_released ( )

inlinenoexcept

Record an association being released.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 531 of file pacs_metrics.h.

                                                {
        associations_.record_released();
    }

References associations_, and kcenon::pacs::monitoring::association_counters::record_released().

Here is the call graph for this function:

◆ record_bytes_received()

void kcenon::pacs::monitoring::pacs_metrics::record_bytes_received ( std::uint64_t bytes )

inlinenoexcept

Record bytes received from the network.

Parameters

bytes Number of bytes received

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 513 of file pacs_metrics.h.

                                                           {
        transfer_.add_bytes_received(bytes);
    }

References kcenon::pacs::monitoring::data_transfer_metrics::add_bytes_received(), and transfer_.

Here is the call graph for this function:

◆ record_bytes_sent()

void kcenon::pacs::monitoring::pacs_metrics::record_bytes_sent ( std::uint64_t bytes )

inlinenoexcept

Record bytes sent over the network.

Parameters

bytes Number of bytes sent

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 505 of file pacs_metrics.h.

                                                       {
        transfer_.add_bytes_sent(bytes);
    }

References kcenon::pacs::monitoring::data_transfer_metrics::add_bytes_sent(), and transfer_.

Here is the call graph for this function:

◆ record_echo()

void kcenon::pacs::monitoring::pacs_metrics::record_echo	(	bool	success,
		std::chrono::microseconds	duration )

inlinenoexcept

Record a C-ECHO (verification) operation.

Parameters

success	Whether the operation succeeded
duration	Operation duration

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 429 of file pacs_metrics.h.

                                                                            {
        if (success) {
            c_echo_.record_success(duration);
        } else {
            c_echo_.record_failure(duration);
        }
    }

References c_echo_, kcenon::pacs::monitoring::operation_counter::record_failure(), and kcenon::pacs::monitoring::operation_counter::record_success().

Here is the call graph for this function:

◆ record_get()

void kcenon::pacs::monitoring::pacs_metrics::record_get	(	bool	success,
		std::chrono::microseconds	duration,
		std::uint32_t	images_retrieved = 0,
		std::uint64_t	bytes_retrieved = 0 )

inlinenoexcept

Record a C-GET operation.

Parameters

success	Whether the operation succeeded
duration	Operation duration
images_retrieved	Number of images retrieved
bytes_retrieved	Number of bytes retrieved

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 463 of file pacs_metrics.h.

                                                              {
        if (success) {
            c_get_.record_success(duration);
            for (std::uint32_t i = 0; i < images_retrieved; ++i) {
                transfer_.increment_images_retrieved();
            }
            if (bytes_retrieved > 0) {
                transfer_.add_bytes_sent(bytes_retrieved);
            }
        } else {
            c_get_.record_failure(duration);
        }
    }

References kcenon::pacs::monitoring::data_transfer_metrics::add_bytes_sent(), c_get_, kcenon::pacs::monitoring::data_transfer_metrics::increment_images_retrieved(), kcenon::pacs::monitoring::operation_counter::record_failure(), kcenon::pacs::monitoring::operation_counter::record_success(), and transfer_.

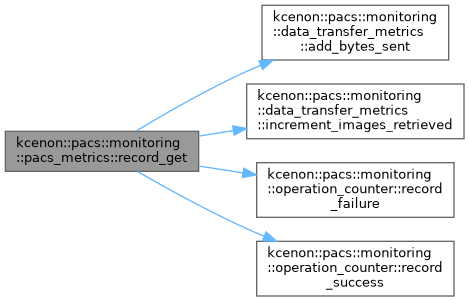

Here is the call graph for this function:

◆ record_move()

void kcenon::pacs::monitoring::pacs_metrics::record_move	(	bool	success,
		std::chrono::microseconds	duration,
		std::uint32_t	images_moved = 0 )

inlinenoexcept

Record a C-MOVE operation.

Parameters

success	Whether the operation succeeded
duration	Operation duration
images_moved	Number of images moved

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 443 of file pacs_metrics.h.

                                                            {
        if (success) {
            c_move_.record_success(duration);
            for (std::uint32_t i = 0; i < images_moved; ++i) {
                transfer_.increment_images_retrieved();
            }
        } else {
            c_move_.record_failure(duration);
        }
    }

References c_move_, kcenon::pacs::monitoring::data_transfer_metrics::increment_images_retrieved(), kcenon::pacs::monitoring::operation_counter::record_failure(), kcenon::pacs::monitoring::operation_counter::record_success(), and transfer_.

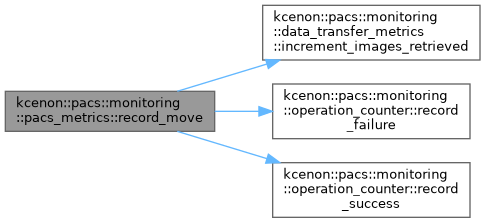

Here is the call graph for this function:

◆ record_operation()

void kcenon::pacs::monitoring::pacs_metrics::record_operation	(	dimse_operation	op,
		bool	success,
		std::chrono::microseconds	duration )

inlinenoexcept

Record a generic DIMSE operation.

Parameters

op	Operation type
success	Whether the operation succeeded
duration	Operation duration

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 486 of file pacs_metrics.h.

                                                                   {
        auto& counter = get_counter(op);
        if (success) {
            counter.record_success(duration);
        } else {
            counter.record_failure(duration);
        }
    }

References kcenon::pacs::monitoring::counter, and get_counter().

Here is the call graph for this function:

◆ record_query()

void kcenon::pacs::monitoring::pacs_metrics::record_query	(	bool	success,
		std::chrono::microseconds	duration,
		std::uint32_t	matches = 0 )

inlinenoexcept

Record a C-FIND (query) operation.

Parameters

success	Whether the operation succeeded
duration	Operation duration
matches	Number of matching results

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 414 of file pacs_metrics.h.

                                                                         {
        if (success) {
            c_find_.record_success(duration);
        } else {
            c_find_.record_failure(duration);
        }
    }

References c_find_, kcenon::pacs::monitoring::operation_counter::record_failure(), and kcenon::pacs::monitoring::operation_counter::record_success().

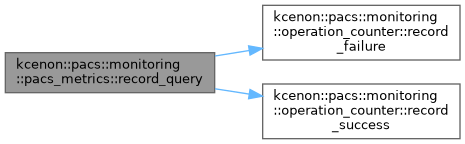

Here is the call graph for this function:

◆ record_store()

void kcenon::pacs::monitoring::pacs_metrics::record_store	(	bool	success,
		std::chrono::microseconds	duration,
		std::uint64_t	bytes_stored = 0 )

inlinenoexcept

Record a C-STORE operation.

Parameters

success	Whether the operation succeeded
duration	Operation duration
bytes_stored	Number of bytes stored (0 if failed)

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 394 of file pacs_metrics.h.

                                                             {
        if (success) {
            c_store_.record_success(duration);
            if (bytes_stored > 0) {
                transfer_.add_bytes_received(bytes_stored);
                transfer_.increment_images_stored();
            }
        } else {
            c_store_.record_failure(duration);
        }
    }

References kcenon::pacs::monitoring::data_transfer_metrics::add_bytes_received(), c_store_, kcenon::pacs::monitoring::data_transfer_metrics::increment_images_stored(), kcenon::pacs::monitoring::operation_counter::record_failure(), kcenon::pacs::monitoring::operation_counter::record_success(), and transfer_.

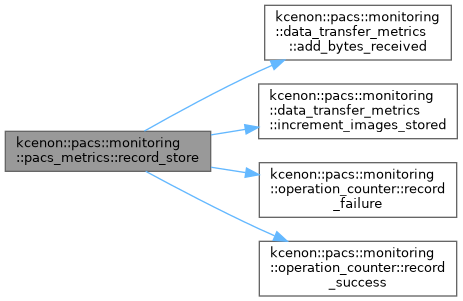

Here is the call graph for this function:

◆ reset()

void kcenon::pacs::monitoring::pacs_metrics::reset ( )

inlinenoexcept

Reset all metrics to zero.

Thread-safe reset of all counters. Useful for testing or periodic metric collection windows.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h, and /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_monitor.h.

Definition at line 698 of file pacs_metrics.h.

                          {
        c_echo_.reset();
        c_store_.reset();
        c_find_.reset();
        c_move_.reset();
        c_get_.reset();
        n_create_.reset();
        n_set_.reset();
        n_get_.reset();
        n_action_.reset();
        n_event_.reset();
        n_delete_.reset();
        transfer_.reset();
        associations_.reset();
        element_pool_.reset();
        dataset_pool_.reset();
        pdu_buffer_pool_.reset();
    }

References associations_, c_echo_, c_find_, c_get_, c_move_, c_store_, dataset_pool_, element_pool_, n_action_, n_create_, n_delete_, n_event_, n_get_, n_set_, pdu_buffer_pool_, kcenon::pacs::monitoring::association_counters::reset(), kcenon::pacs::monitoring::data_transfer_metrics::reset(), kcenon::pacs::monitoring::operation_counter::reset(), kcenon::pacs::monitoring::pool_counters::reset(), and transfer_.

Referenced by kcenon::pacs::monitoring::pacs_monitor::reset().

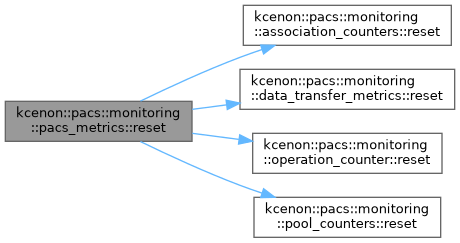

Here is the call graph for this function:

Here is the caller graph for this function:

◆ to_json()

std::string kcenon::pacs::monitoring::pacs_metrics::to_json ( ) const

nodiscard

Export metrics as JSON string.

Returns: JSON representation of all metrics

The JSON format is suitable for REST API responses and integration with monitoring systems like Grafana.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h, and /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_monitor.h.

Definition at line 110 of file pacs_metrics.cpp.

                                      {
    std::ostringstream oss;
    oss << "{";

    // DIMSE operations section
    oss << R"("dimse_operations":{)"
        << R"("c_echo":)" << counter_to_json(c_echo_)
        << R"(,"c_store":)" << counter_to_json(c_store_)
        << R"(,"c_find":)" << counter_to_json(c_find_)
        << R"(,"c_move":)" << counter_to_json(c_move_)
        << R"(,"c_get":)" << counter_to_json(c_get_)
        << R"(,"n_create":)" << counter_to_json(n_create_)
        << R"(,"n_set":)" << counter_to_json(n_set_)
        << R"(,"n_get":)" << counter_to_json(n_get_)
        << R"(,"n_action":)" << counter_to_json(n_action_)
        << R"(,"n_event":)" << counter_to_json(n_event_)
        << R"(,"n_delete":)" << counter_to_json(n_delete_)
        << "}";

    // Data transfer section
    oss << R"(,"data_transfer":{)"
        << R"("bytes_sent":)" << transfer_.bytes_sent.load(std::memory_order_relaxed)
        << R"(,"bytes_received":)" << transfer_.bytes_received.load(std::memory_order_relaxed)
        << R"(,"images_stored":)" << transfer_.images_stored.load(std::memory_order_relaxed)
        << R"(,"images_retrieved":)" << transfer_.images_retrieved.load(std::memory_order_relaxed)
        << "}";

    // Associations section
    oss << R"(,"associations":{)"
        << R"("total_established":)" << associations_.total_established.load(std::memory_order_relaxed)
        << R"(,"total_rejected":)" << associations_.total_rejected.load(std::memory_order_relaxed)
        << R"(,"total_aborted":)" << associations_.total_aborted.load(std::memory_order_relaxed)
        << R"(,"current_active":)" << associations_.current_active.load(std::memory_order_relaxed)
        << R"(,"peak_active":)" << associations_.peak_active.load(std::memory_order_relaxed)
        << "}";

    oss << "}";
    return oss.str();
}

Referenced by kcenon::pacs::monitoring::pacs_monitor::to_json().

Here is the caller graph for this function:

◆ to_prometheus()

std::string kcenon::pacs::monitoring::pacs_metrics::to_prometheus ( std::string_view prefix = "pacs" ) const

nodiscard

Export metrics in Prometheus text format.

Parameters

prefix Metric name prefix (default: "pacs")

Returns: Prometheus exposition format text

The output follows the Prometheus text-based format specification suitable for scraping by Prometheus servers.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h, and /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_monitor.h.

Definition at line 150 of file pacs_metrics.cpp.

                                                                 {
    std::ostringstream oss;

    // DIMSE operation metrics
    counter_to_prometheus(oss, prefix, "c_echo", c_echo_);
    counter_to_prometheus(oss, prefix, "c_store", c_store_);
    counter_to_prometheus(oss, prefix, "c_find", c_find_);
    counter_to_prometheus(oss, prefix, "c_move", c_move_);
    counter_to_prometheus(oss, prefix, "c_get", c_get_);
    counter_to_prometheus(oss, prefix, "n_create", n_create_);
    counter_to_prometheus(oss, prefix, "n_set", n_set_);
    counter_to_prometheus(oss, prefix, "n_get", n_get_);
    counter_to_prometheus(oss, prefix, "n_action", n_action_);
    counter_to_prometheus(oss, prefix, "n_event", n_event_);
    counter_to_prometheus(oss, prefix, "n_delete", n_delete_);

    // Data transfer metrics
    oss << "# HELP " << prefix << "_bytes_sent_total Total bytes sent over network\n"
        << "# TYPE " << prefix << "_bytes_sent_total counter\n"
        << prefix << "_bytes_sent_total " << transfer_.bytes_sent.load(std::memory_order_relaxed) << "\n";

    oss << "# HELP " << prefix << "_bytes_received_total Total bytes received from network\n"
        << "# TYPE " << prefix << "_bytes_received_total counter\n"
        << prefix << "_bytes_received_total " << transfer_.bytes_received.load(std::memory_order_relaxed) << "\n";

    oss << "# HELP " << prefix << "_images_stored_total Total DICOM images stored\n"
        << "# TYPE " << prefix << "_images_stored_total counter\n"
        << prefix << "_images_stored_total " << transfer_.images_stored.load(std::memory_order_relaxed) << "\n";

    oss << "# HELP " << prefix << "_images_retrieved_total Total DICOM images retrieved\n"
        << "# TYPE " << prefix << "_images_retrieved_total counter\n"
        << prefix << "_images_retrieved_total " << transfer_.images_retrieved.load(std::memory_order_relaxed) << "\n";

    // Association metrics
    oss << "# HELP " << prefix << "_associations_established_total Total associations established\n"
        << "# TYPE " << prefix << "_associations_established_total counter\n"
        << prefix << "_associations_established_total " << associations_.total_established.load(std::memory_order_relaxed) << "\n";

    oss << "# HELP " << prefix << "_associations_rejected_total Total associations rejected\n"
        << "# TYPE " << prefix << "_associations_rejected_total counter\n"
        << prefix << "_associations_rejected_total " << associations_.total_rejected.load(std::memory_order_relaxed) << "\n";

    oss << "# HELP " << prefix << "_associations_aborted_total Total associations aborted\n"
        << "# TYPE " << prefix << "_associations_aborted_total counter\n"
        << prefix << "_associations_aborted_total " << associations_.total_aborted.load(std::memory_order_relaxed) << "\n";

    oss << "# HELP " << prefix << "_associations_active Current active associations\n"
        << "# TYPE " << prefix << "_associations_active gauge\n"
        << prefix << "_associations_active " << associations_.current_active.load(std::memory_order_relaxed) << "\n";

    oss << "# HELP " << prefix << "_associations_peak_active Peak concurrent associations\n"
        << "# TYPE " << prefix << "_associations_peak_active gauge\n"
        << prefix << "_associations_peak_active " << associations_.peak_active.load(std::memory_order_relaxed) << "\n";

    return oss.str();
}

Referenced by kcenon::pacs::monitoring::pacs_monitor::to_prometheus().

Here is the caller graph for this function:

◆ transfer()

const data_transfer_metrics & kcenon::pacs::monitoring::pacs_metrics::transfer ( ) const

inlinenodiscardnoexcept

Get data transfer metrics.

Returns: Const reference to transfer metrics

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/collectors/dicom_metrics_collector.h, /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/collectors/dicom_storage_collector.h, and /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 601 of file pacs_metrics.h.

                                                                         {
        return transfer_;
    }

References transfer_.

Referenced by kcenon::pacs::monitoring::dicom_metrics_collector::collect_transfer_metrics(), and kcenon::pacs::monitoring::dicom_storage_collector::collect_transfer_metrics().

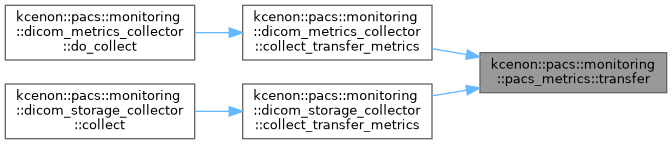

Here is the caller graph for this function:

Member Data Documentation

◆ associations_

association_counters kcenon::pacs::monitoring::pacs_metrics::associations_

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 735 of file pacs_metrics.h.

Referenced by associations(), record_association_aborted(), record_association_established(), record_association_rejected(), record_association_released(), reset(), to_json(), and to_prometheus().

◆ c_echo_

operation_counter kcenon::pacs::monitoring::pacs_metrics::c_echo_

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 719 of file pacs_metrics.h.

Referenced by get_counter(), record_echo(), reset(), to_json(), and to_prometheus().

◆ c_find_

operation_counter kcenon::pacs::monitoring::pacs_metrics::c_find_

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 721 of file pacs_metrics.h.

Referenced by get_counter(), record_query(), reset(), to_json(), and to_prometheus().

◆ c_get_

operation_counter kcenon::pacs::monitoring::pacs_metrics::c_get_

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 723 of file pacs_metrics.h.

Referenced by get_counter(), record_get(), reset(), to_json(), and to_prometheus().

◆ c_move_

operation_counter kcenon::pacs::monitoring::pacs_metrics::c_move_

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 722 of file pacs_metrics.h.

Referenced by get_counter(), record_move(), reset(), to_json(), and to_prometheus().

◆ c_store_

operation_counter kcenon::pacs::monitoring::pacs_metrics::c_store_

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 720 of file pacs_metrics.h.

Referenced by get_counter(), record_store(), reset(), to_json(), and to_prometheus().

◆ dataset_pool_

pool_counters kcenon::pacs::monitoring::pacs_metrics::dataset_pool_

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 739 of file pacs_metrics.h.

Referenced by dataset_pool(), dataset_pool(), and reset().

◆ element_pool_

pool_counters kcenon::pacs::monitoring::pacs_metrics::element_pool_

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 738 of file pacs_metrics.h.

Referenced by element_pool(), element_pool(), and reset().

◆ n_action_

operation_counter kcenon::pacs::monitoring::pacs_metrics::n_action_

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 727 of file pacs_metrics.h.

Referenced by get_counter(), reset(), to_json(), and to_prometheus().

◆ n_create_

operation_counter kcenon::pacs::monitoring::pacs_metrics::n_create_

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 724 of file pacs_metrics.h.

Referenced by get_counter(), reset(), to_json(), and to_prometheus().

◆ n_delete_

operation_counter kcenon::pacs::monitoring::pacs_metrics::n_delete_

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 729 of file pacs_metrics.h.

Referenced by get_counter(), reset(), to_json(), and to_prometheus().

◆ n_event_

operation_counter kcenon::pacs::monitoring::pacs_metrics::n_event_

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 728 of file pacs_metrics.h.

Referenced by get_counter(), reset(), to_json(), and to_prometheus().

◆ n_get_

operation_counter kcenon::pacs::monitoring::pacs_metrics::n_get_

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 726 of file pacs_metrics.h.

Referenced by get_counter(), reset(), to_json(), and to_prometheus().

◆ n_set_

operation_counter kcenon::pacs::monitoring::pacs_metrics::n_set_

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 725 of file pacs_metrics.h.

Referenced by get_counter(), reset(), to_json(), and to_prometheus().

◆ pdu_buffer_pool_

pool_counters kcenon::pacs::monitoring::pacs_metrics::pdu_buffer_pool_

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 740 of file pacs_metrics.h.

Referenced by pdu_buffer_pool(), pdu_buffer_pool(), and reset().

◆ transfer_

data_transfer_metrics kcenon::pacs::monitoring::pacs_metrics::transfer_

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/monitoring/pacs_metrics.h.

Definition at line 732 of file pacs_metrics.h.

Referenced by record_bytes_received(), record_bytes_sent(), record_get(), record_move(), record_store(), reset(), to_json(), to_prometheus(), and transfer().

The documentation for this class was generated from the following files:

include/kcenon/pacs/monitoring/pacs_metrics.h
src/monitoring/pacs_metrics.cpp

Private Attributes
operation_counter	c_echo_

operation_counter	c_store_

operation_counter	c_find_

operation_counter	c_move_

operation_counter	c_get_

operation_counter	n_create_

operation_counter	n_set_

operation_counter	n_get_

operation_counter	n_action_

operation_counter	n_event_

operation_counter	n_delete_

data_transfer_metrics	transfer_

association_counters	associations_

pool_counters	element_pool_

pool_counters	dataset_pool_

pool_counters	pdu_buffer_pool_

Public Member Functions

Static Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ pacs_metrics() [1/3]

◆ pacs_metrics() [2/3]

◆ pacs_metrics() [3/3]

Member Function Documentation

◆ associations()

◆ dataset_pool() [1/2]

◆ dataset_pool() [2/2]

◆ element_pool() [1/2]

◆ element_pool() [2/2]

◆ get_counter() [1/2]

◆ get_counter() [2/2]

◆ global_metrics()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ pdu_buffer_pool() [1/2]

◆ pdu_buffer_pool() [2/2]

◆ record_association_aborted()

◆ record_association_established()

◆ record_association_rejected()

◆ record_association_released()

◆ record_bytes_received()

◆ record_bytes_sent()

◆ record_echo()

◆ record_get()

◆ record_move()

◆ record_operation()

◆ record_query()

◆ record_store()

◆ reset()

◆ to_json()

◆ to_prometheus()

◆ transfer()

Member Data Documentation

◆ associations_

◆ c_echo_

◆ c_find_

◆ c_get_

◆ c_move_

◆ c_store_

◆ dataset_pool_

◆ element_pool_

◆ n_action_

◆ n_create_

◆ n_delete_

◆ n_event_

◆ n_get_

◆ n_set_

◆ pdu_buffer_pool_

◆ transfer_
