DIMSE message class. More...

#include <dimse_message.h>

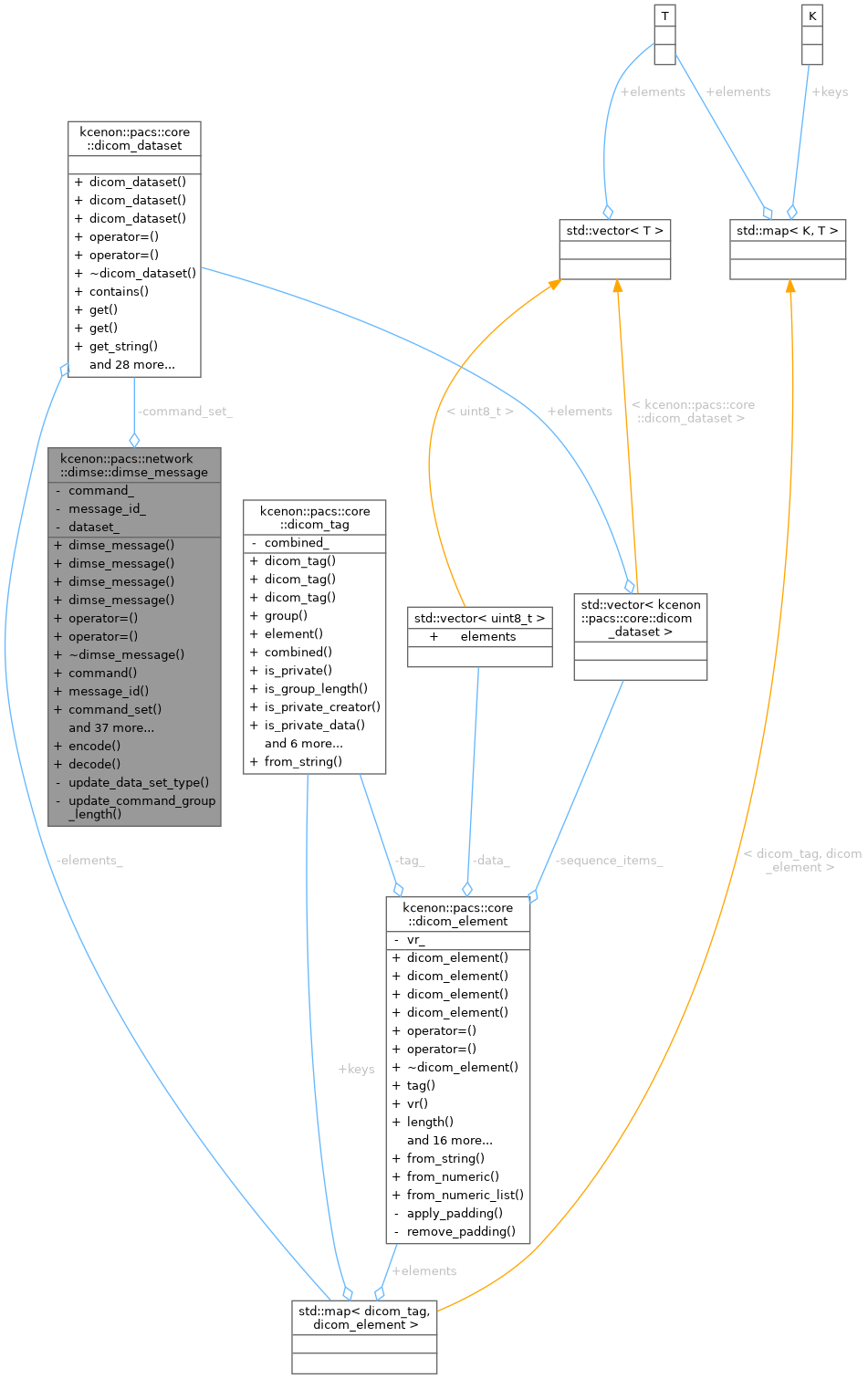

Collaboration diagram for kcenon::pacs::network::dimse::dimse_message:

Public Types
using	encoded_message = std::pair<std::vector<uint8_t>, std::vector<uint8_t>>
	Encoded message result type: pair of (command_set_bytes, dataset_bytes)

Public Member Functions
	dimse_message (command_field cmd, uint16_t message_id)
	Construct a new DIMSE message.

	dimse_message ()=default
	Default constructor (creates an invalid message)

	dimse_message (const dimse_message &)=default
	Copy constructor.

	dimse_message (dimse_message &&) noexcept=default
	Move constructor.

auto	operator= (const dimse_message &) -> dimse_message &=default
	Copy assignment.

auto	operator= (dimse_message &&) noexcept -> dimse_message &=default
	Move assignment.

	~dimse_message ()=default
	Destructor.

auto	command () const noexcept -> command_field
	Get the command field.

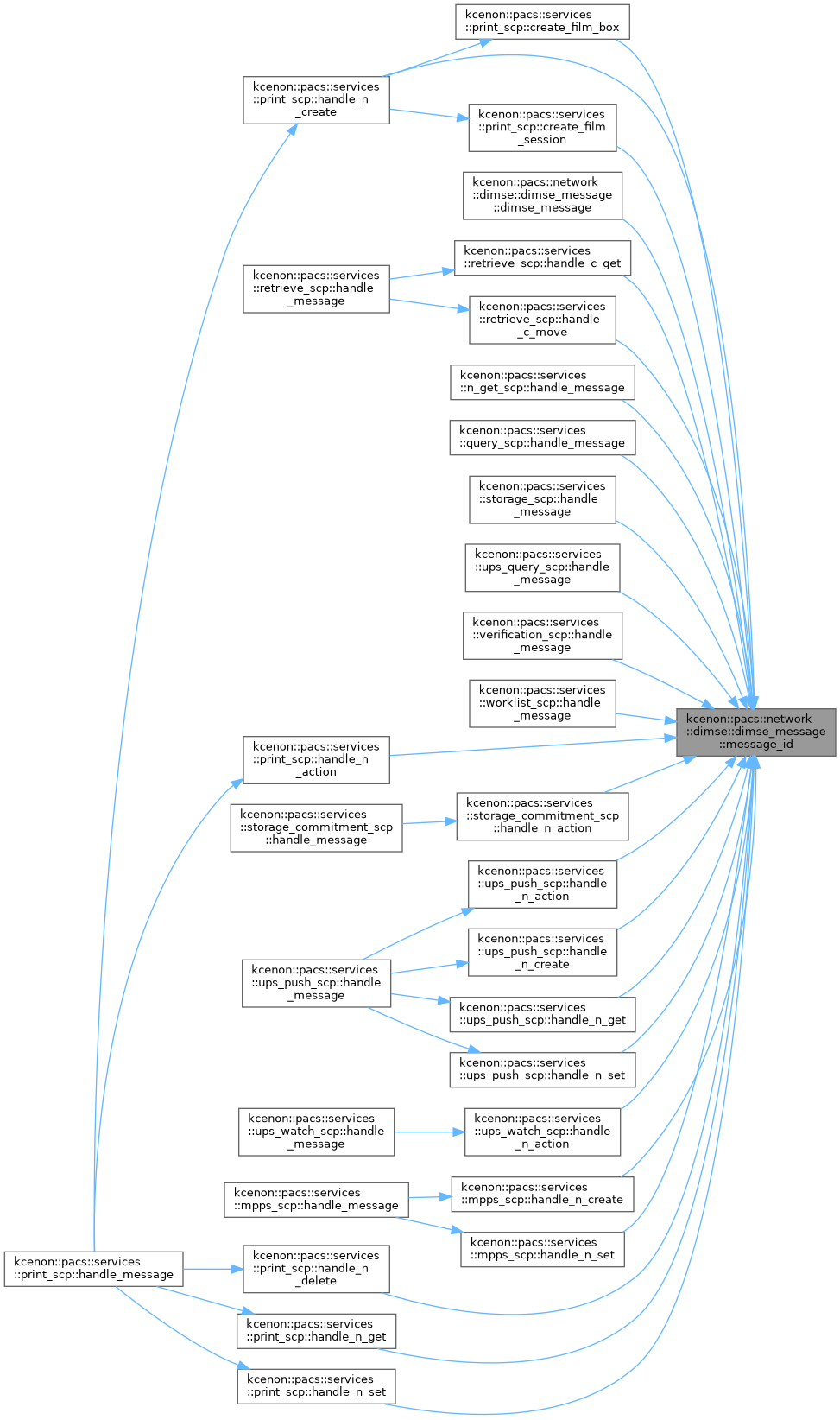

auto	message_id () const noexcept -> uint16_t
	Get the message ID.

auto	command_set () noexcept -> core::dicom_dataset &
	Get mutable reference to the command set.

auto	command_set () const noexcept -> const core::dicom_dataset &
	Get const reference to the command set.

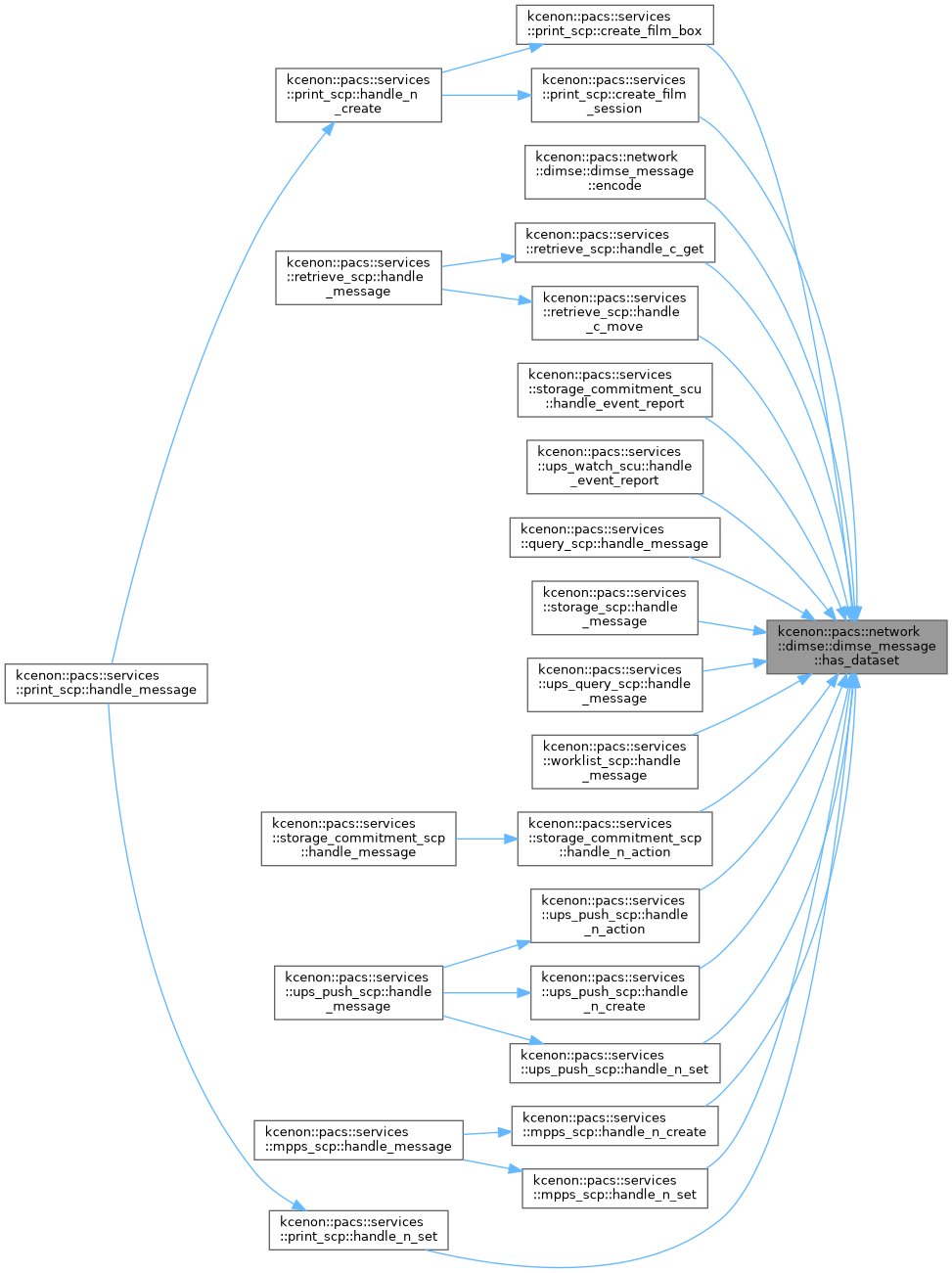

auto	has_dataset () const noexcept -> bool
	Check if the message has an associated data set.

auto	dataset () -> kcenon::pacs::Result< std::reference_wrapper< core::dicom_dataset > >
	Get mutable reference to the data set.

auto	dataset () const -> kcenon::pacs::Result< std::reference_wrapper< const core::dicom_dataset > >
	Get const reference to the data set.

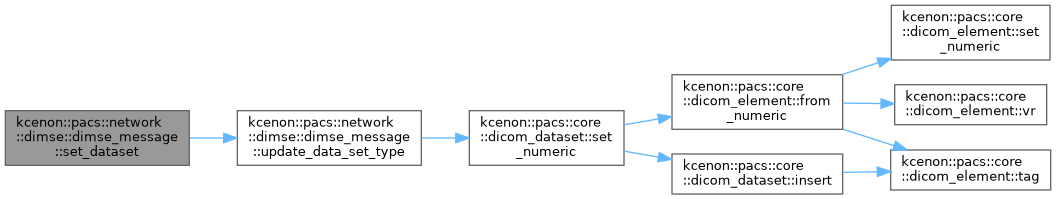

void	set_dataset (core::dicom_dataset ds)
	Set the data set for this message.

void	clear_dataset () noexcept
	Remove the data set from this message.

auto	status () const -> status_code
	Get the status code (for response messages)

void	set_status (status_code status)
	Set the status code (for response messages)

auto	affected_sop_class_uid () const -> std::string
	Get the Affected SOP Class UID.

void	set_affected_sop_class_uid (std::string_view uid)
	Set the Affected SOP Class UID.

auto	affected_sop_instance_uid () const -> std::string
	Get the Affected SOP Instance UID.

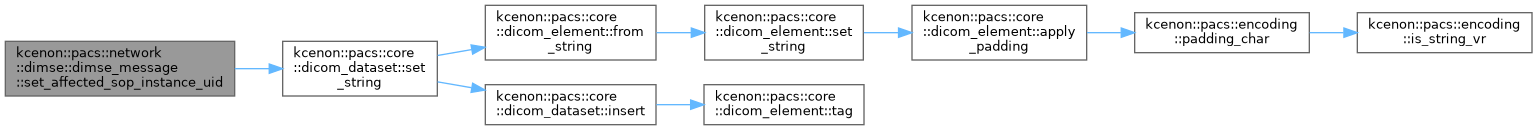

void	set_affected_sop_instance_uid (std::string_view uid)
	Set the Affected SOP Instance UID.

auto	priority () const -> uint16_t
	Get the priority.

void	set_priority (uint16_t priority)
	Set the priority.

auto	message_id_responded_to () const -> uint16_t
	Get the Message ID Being Responded To (for responses)

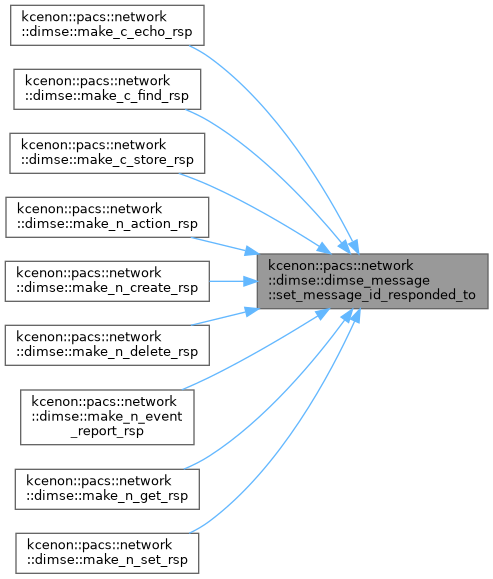

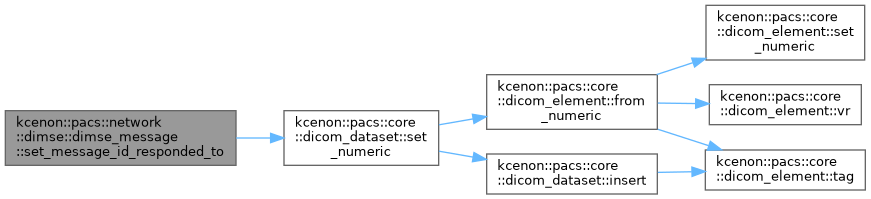

void	set_message_id_responded_to (uint16_t id)
	Set the Message ID Being Responded To (for responses)

auto	requested_sop_class_uid () const -> std::string
	Get the Requested SOP Class UID (for N-SET, N-GET, N-ACTION, N-DELETE)

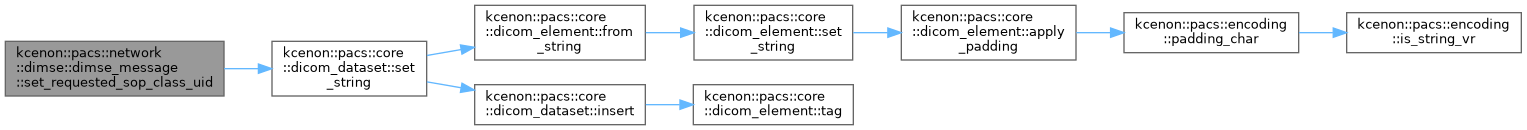

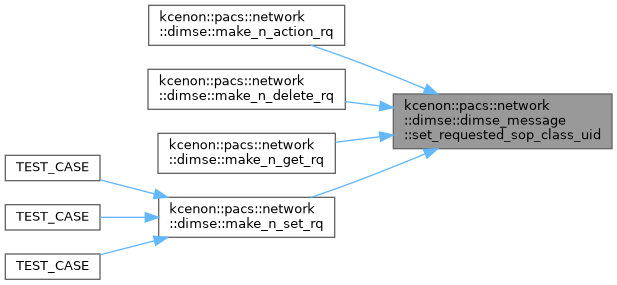

void	set_requested_sop_class_uid (std::string_view uid)
	Set the Requested SOP Class UID.

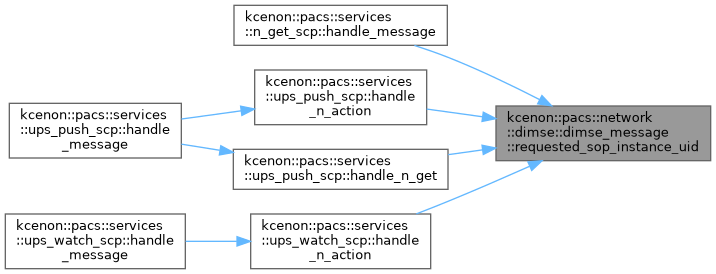

auto	requested_sop_instance_uid () const -> std::string
	Get the Requested SOP Instance UID (for N-SET, N-GET, N-ACTION, N-DELETE)

void	set_requested_sop_instance_uid (std::string_view uid)
	Set the Requested SOP Instance UID.

auto	event_type_id () const -> std::optional< uint16_t >
	Get the Event Type ID (for N-EVENT-REPORT)

void	set_event_type_id (uint16_t type_id)
	Set the Event Type ID.

auto	action_type_id () const -> std::optional< uint16_t >
	Get the Action Type ID (for N-ACTION)

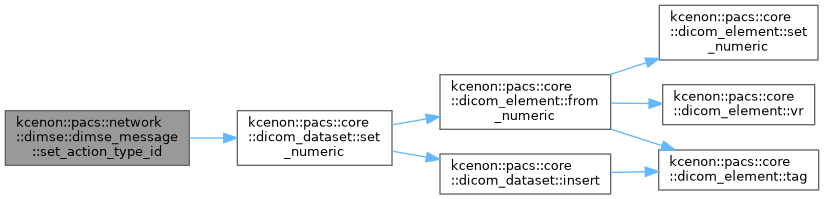

void	set_action_type_id (uint16_t type_id)
	Set the Action Type ID.

auto	attribute_identifier_list () const -> std::vector< core::dicom_tag >
	Get the Attribute Identifier List (for N-GET)

void	set_attribute_identifier_list (const std::vector< core::dicom_tag > &tags)
	Set the Attribute Identifier List.

auto	remaining_subops () const -> std::optional< uint16_t >
	Get the number of remaining sub-operations.

void	set_remaining_subops (uint16_t count)
	Set the number of remaining sub-operations.

auto	completed_subops () const -> std::optional< uint16_t >
	Get the number of completed sub-operations.

void	set_completed_subops (uint16_t count)
	Set the number of completed sub-operations.

auto	failed_subops () const -> std::optional< uint16_t >
	Get the number of failed sub-operations.

void	set_failed_subops (uint16_t count)
	Set the number of failed sub-operations.

auto	warning_subops () const -> std::optional< uint16_t >
	Get the number of warning sub-operations.

void	set_warning_subops (uint16_t count)
	Set the number of warning sub-operations.

auto	is_valid () const noexcept -> bool
	Check if the message is valid.

auto	is_request () const noexcept -> bool
	Check if this is a request message.

auto	is_response () const noexcept -> bool
	Check if this is a response message.

Static Public Member Functions
static auto	encode (const dimse_message &msg, const encoding::transfer_syntax &dataset_ts) -> dimse_result< encoded_message >
	Encode the DIMSE message to bytes.

static auto	decode (std::span< const uint8_t > command_data, std::span< const uint8_t > dataset_data, const encoding::transfer_syntax &dataset_ts) -> dimse_result< dimse_message >
	Decode a DIMSE message from bytes.

Private Member Functions

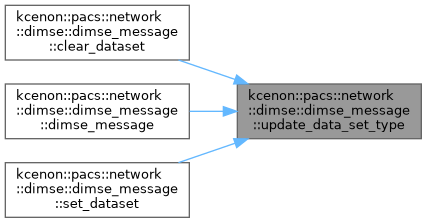

void	update_data_set_type ()
	Update the CommandDataSetType field based on dataset presence.

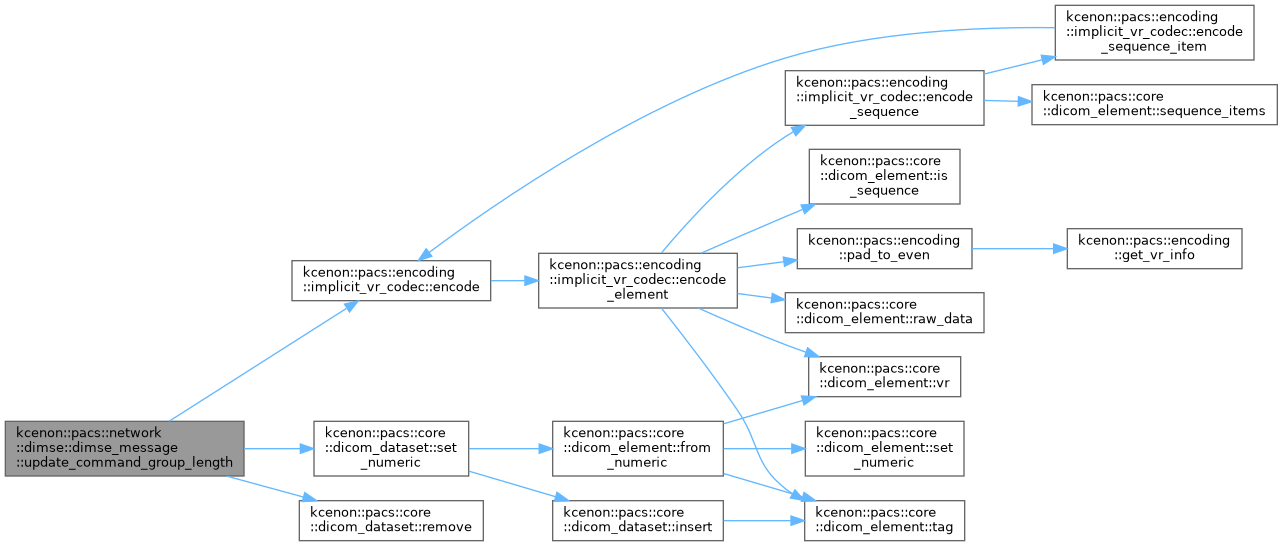

void	update_command_group_length ()
	Calculate and set CommandGroupLength.

Private Attributes
command_field	command_ {}

uint16_t	message_id_ {0}

core::dicom_dataset	command_set_

std::optional< core::dicom_dataset >	dataset_

Detailed Description

DIMSE message class.

Represents a DICOM Message Service Element (DIMSE) message, consisting of a command set and an optional data set.

The command set is always encoded using Implicit VR Little Endian. The data set uses the negotiated transfer syntax.

Example:: // Create a C-STORE request

dimse_message msg{command_field::c_store_rq, 1};

msg.set_affected_sop_class_uid("1.2.840.10008.5.1.4.1.1.2");

msg.set_affected_sop_instance_uid("1.2.3.4.5.6.7.8.9");

core::dicom_dataset ds;

ds.set_string(core::tags::patient_name, encoding::vr_type::PN, "DOE^JOHN");

msg.set_dataset(std::move(ds));

// Encode the message

auto encoded = dimse_message::encode(msg, transfer_syntax::explicit_vr_le);

kcenon::pacs::core::dicom_dataset
Represents a DICOM Dataset (ordered collection of Data Elements)
Definition dicom_dataset.h:65

kcenon::pacs::core::dicom_dataset::set_string
void set_string(dicom_tag tag, encoding::vr_type vr, std::string_view value)
Set a string value for the given tag.
Definition dicom_dataset.cpp:286

kcenon::pacs::network::dimse::dimse_message
DIMSE message class.
Definition dimse_message.h:202

kcenon::pacs::network::dimse::dimse_message::encode
static auto encode(const dimse_message &msg, const encoding::transfer_syntax &dataset_ts) -> dimse_result< encoded_message >
Encode the DIMSE message to bytes.
Definition dimse_message.cpp:266

kcenon::pacs::network::dimse::dimse_message::set_affected_sop_class_uid
void set_affected_sop_class_uid(std::string_view uid)
Set the Affected SOP Class UID.
Definition dimse_message.cpp:116

kcenon::pacs::core::tags::patient_name
constexpr dicom_tag patient_name
Patient's Name.
Definition dicom_tag_constants.h:235

kcenon::pacs::encoding::vr_type::PN
@ PN
Person Name (64 chars max per component group)

kcenon::pacs::network::dimse::command_field::c_store_rq
@ c_store_rq
C-STORE Request - Store composite SOP instance.

Definition at line 202 of file dimse_message.h.

Member Typedef Documentation

◆ encoded_message

using kcenon::pacs::network::dimse::dimse_message::encoded_message = std::pair<std::vector<uint8_t>, std::vector<uint8_t>>

Encoded message result type: pair of (command_set_bytes, dataset_bytes)

Definition at line 488 of file dimse_message.h.

Constructor & Destructor Documentation

◆ dimse_message() [1/4]

kcenon::pacs::network::dimse::dimse_message::dimse_message	(	command_field	cmd,
		uint16_t	message_id )

Construct a new DIMSE message.

Parameters

cmd	The command field (type of operation)
message_id	Unique message identifier

Definition at line 35 of file dimse_message.cpp.

    : command_(cmd), message_id_(message_id) {
    // Initialize the command set with required fields
    command_set_.set_numeric(tag_command_field, encoding::vr_type::US,
                             static_cast<uint16_t>(cmd));
    command_set_.set_numeric(tag_message_id, encoding::vr_type::US, message_id);
    update_data_set_type();
}

References command_set_, message_id(), kcenon::pacs::core::dicom_dataset::set_numeric(), kcenon::pacs::network::dimse::tag_command_field, kcenon::pacs::network::dimse::tag_message_id, update_data_set_type(), and kcenon::pacs::encoding::US.

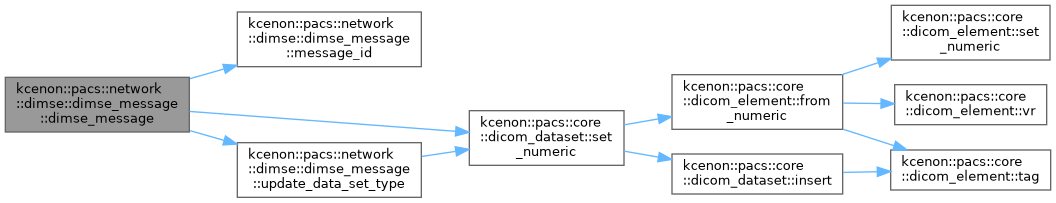

Here is the call graph for this function:

◆ dimse_message() [2/4]

kcenon::pacs::network::dimse::dimse_message::dimse_message ( )

default

Default constructor (creates an invalid message)

◆ dimse_message() [3/4]

kcenon::pacs::network::dimse::dimse_message::dimse_message ( const dimse_message & )

default

Copy constructor.

◆ dimse_message() [4/4]

kcenon::pacs::network::dimse::dimse_message::dimse_message ( dimse_message && )

defaultnoexcept

Move constructor.

◆ ~dimse_message()

kcenon::pacs::network::dimse::dimse_message::~dimse_message ( )

default

Destructor.

Member Function Documentation

◆ action_type_id()

auto kcenon::pacs::network::dimse::dimse_message::action_type_id ( ) const -> std::optional<uint16_t>

nodiscard

Get the Action Type ID (for N-ACTION)

Returns: The action type ID if present

Definition at line 174 of file dimse_message.cpp.

                                                                  {
    return command_set_.get_numeric<uint16_t>(tag_action_type_id);
}

References command_set_, kcenon::pacs::core::dicom_dataset::get_numeric(), and kcenon::pacs::network::dimse::tag_action_type_id.

Referenced by kcenon::pacs::services::print_scp::handle_n_action(), kcenon::pacs::services::storage_commitment_scp::handle_n_action(), kcenon::pacs::services::ups_push_scp::handle_n_action(), and kcenon::pacs::services::ups_watch_scp::handle_n_action().

Here is the call graph for this function:

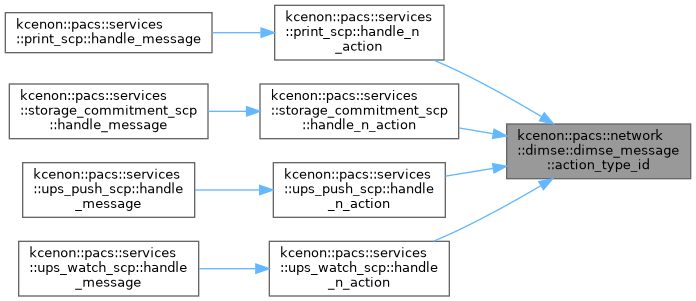

Here is the caller graph for this function:

◆ affected_sop_class_uid()

auto kcenon::pacs::network::dimse::dimse_message::affected_sop_class_uid ( ) const -> std::string

nodiscard

Get the Affected SOP Class UID.

Returns: The SOP Class UID if present

Definition at line 112 of file dimse_message.cpp.

                                                              {
    return command_set_.get_string(tag_affected_sop_class_uid);
}

References command_set_, kcenon::pacs::core::dicom_dataset::get_string(), and kcenon::pacs::network::dimse::tag_affected_sop_class_uid.

Here is the call graph for this function:

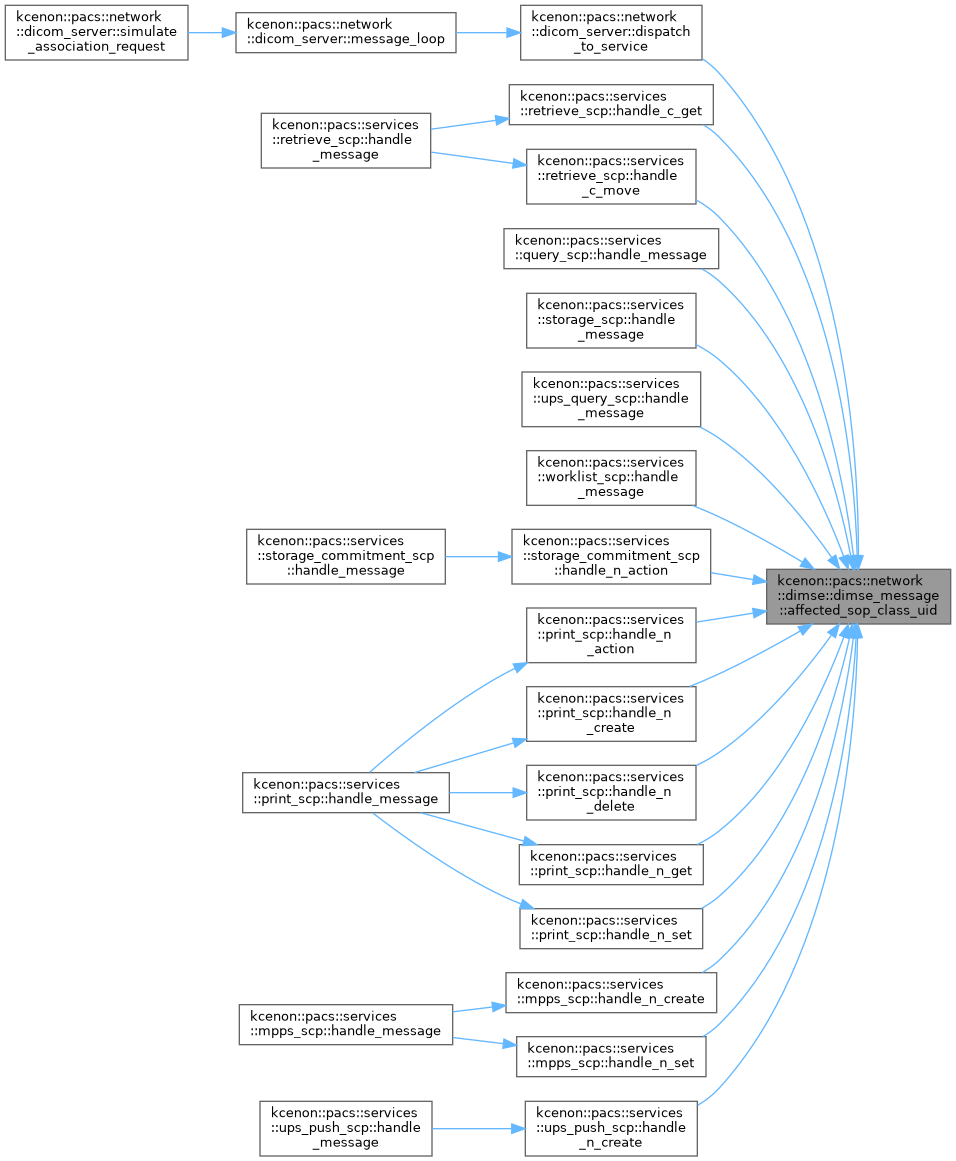

Here is the caller graph for this function:

◆ affected_sop_instance_uid()

auto kcenon::pacs::network::dimse::dimse_message::affected_sop_instance_uid ( ) const -> std::string

nodiscard

Get the Affected SOP Instance UID.

Returns: The SOP Instance UID if present

Definition at line 121 of file dimse_message.cpp.

                                                                 {
    return command_set_.get_string(tag_affected_sop_instance_uid);
}

References command_set_, kcenon::pacs::core::dicom_dataset::get_string(), and kcenon::pacs::network::dimse::tag_affected_sop_instance_uid.

Here is the call graph for this function:

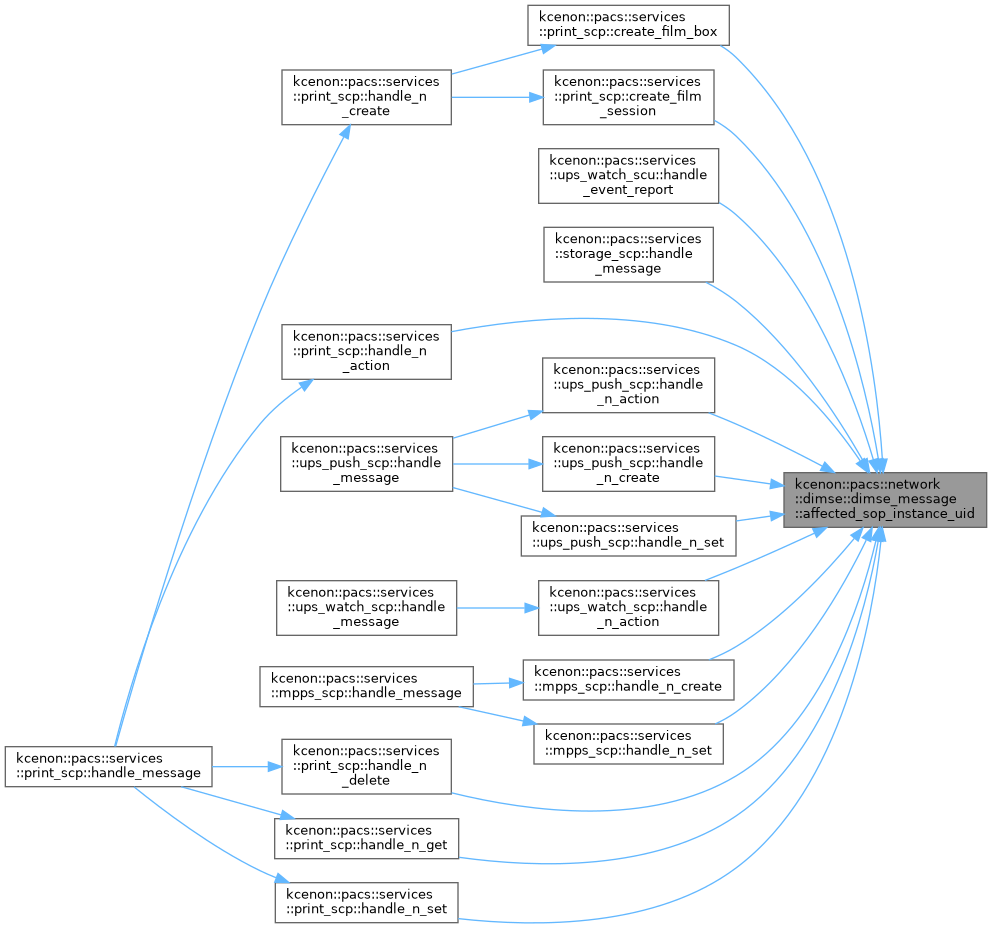

Here is the caller graph for this function:

◆ attribute_identifier_list()

auto kcenon::pacs::network::dimse::dimse_message::attribute_identifier_list ( ) const -> std::vector<core::dicom_tag>

nodiscard

Get the Attribute Identifier List (for N-GET)

Returns: Vector of tags to retrieve

Definition at line 182 of file dimse_message.cpp.

                                                                                {
    std::vector<core::dicom_tag> tags;
    const auto* elem = command_set_.get(tag_attribute_identifier_list);
    if (elem == nullptr) {
        return tags;
    }

    auto bytes = elem->raw_data();
    if (bytes.empty()) {
        return tags;
    }

    // Each tag is 4 bytes (group:2 + element:2), little-endian
    for (size_t i = 0; i + 3 < bytes.size(); i += 4) {
        uint16_t group = static_cast<uint16_t>(bytes[i]) |
                         (static_cast<uint16_t>(bytes[i + 1]) << 8);
        uint16_t element = static_cast<uint16_t>(bytes[i + 2]) |
                           (static_cast<uint16_t>(bytes[i + 3]) << 8);
        tags.emplace_back(group, element);
    }
    return tags;
}

References command_set_, kcenon::pacs::core::dicom_dataset::get(), and kcenon::pacs::network::dimse::tag_attribute_identifier_list.

Referenced by kcenon::pacs::services::n_get_scp::handle_message().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clear_dataset()

void kcenon::pacs::network::dimse::dimse_message::clear_dataset ( )

noexcept

Remove the data set from this message.

Definition at line 91 of file dimse_message.cpp.

                                           {
    dataset_.reset();
    update_data_set_type();
}

References dataset_, and update_data_set_type().

Here is the call graph for this function:

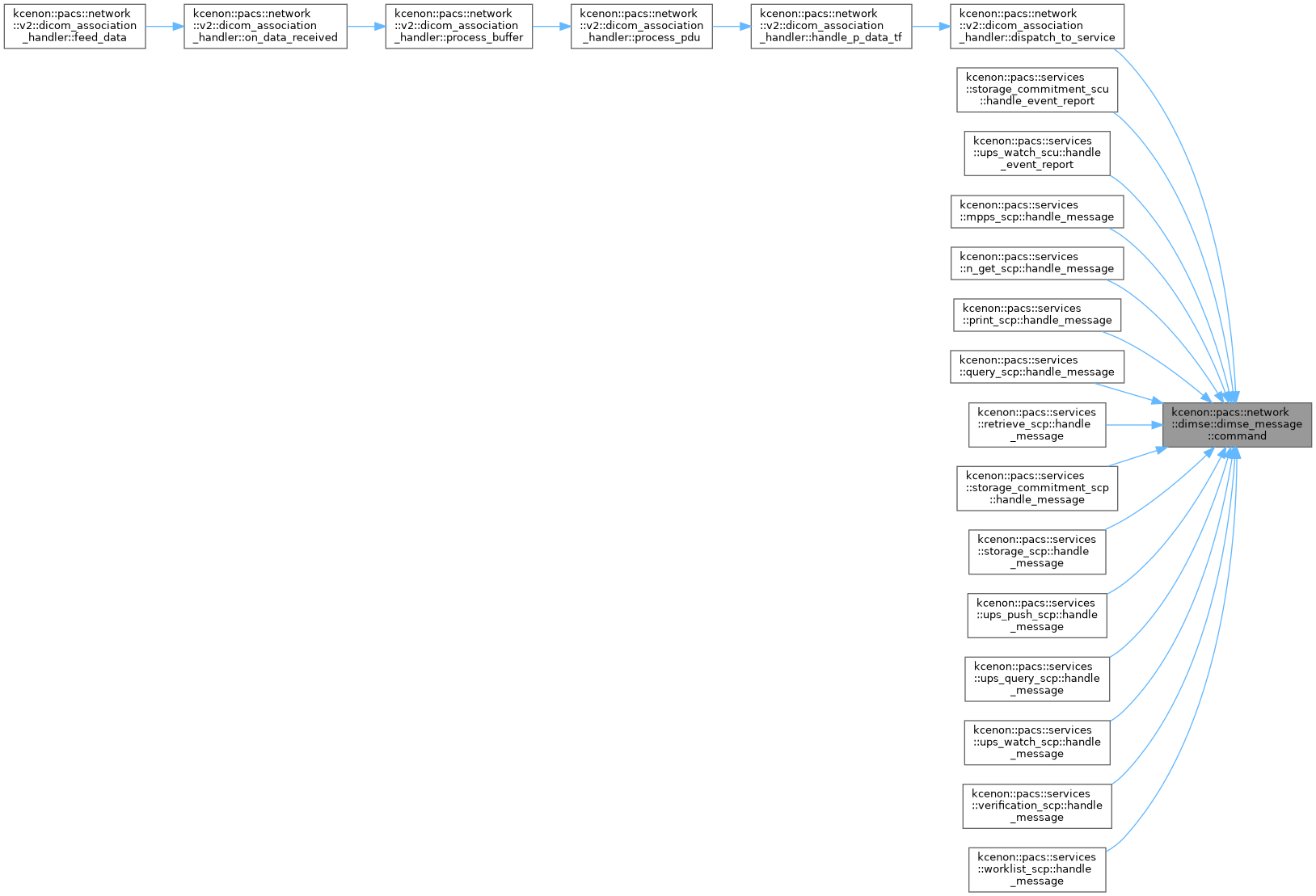

◆ command()

auto kcenon::pacs::network::dimse::dimse_message::command ( ) const -> command_field

nodiscardnoexcept

Get the command field.

Returns: The command field value

Definition at line 48 of file dimse_message.cpp.

                                                            {
    return command_;
}

References command_.

Here is the caller graph for this function:

◆ command_set() [1/2]

auto kcenon::pacs::network::dimse::dimse_message::command_set ( ) const -> const core::dicom_dataset&

nodiscardnoexcept

Get const reference to the command set.

Returns: Const reference to the command dataset

Definition at line 60 of file dimse_message.cpp.

                                                                           {
    return command_set_;
}

References command_set_.

◆ command_set() [2/2]

auto kcenon::pacs::network::dimse::dimse_message::command_set ( ) -> core::dicom_dataset&

nodiscardnoexcept

Get mutable reference to the command set.

Returns: Reference to the command dataset

Definition at line 56 of file dimse_message.cpp.

                                                               {
    return command_set_;
}

References command_set_.

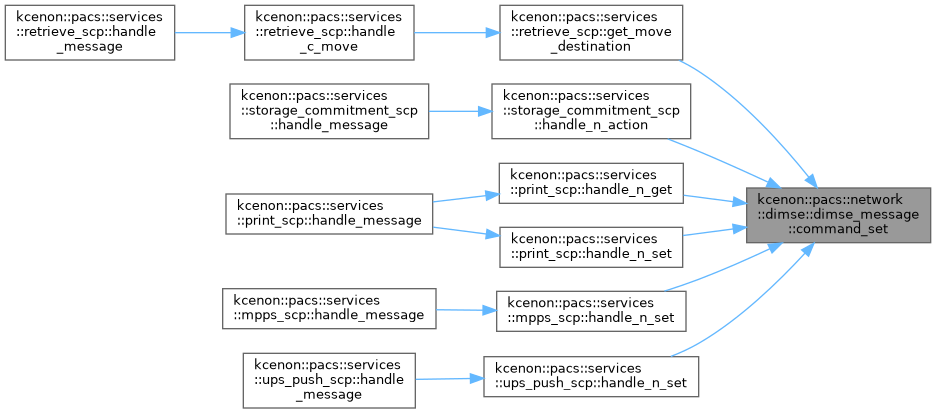

Referenced by kcenon::pacs::services::retrieve_scp::get_move_destination(), kcenon::pacs::services::storage_commitment_scp::handle_n_action(), kcenon::pacs::services::print_scp::handle_n_get(), kcenon::pacs::services::mpps_scp::handle_n_set(), kcenon::pacs::services::print_scp::handle_n_set(), and kcenon::pacs::services::ups_push_scp::handle_n_set().

Here is the caller graph for this function:

◆ completed_subops()

auto kcenon::pacs::network::dimse::dimse_message::completed_subops ( ) const -> std::optional<uint16_t>

nodiscard

Get the number of completed sub-operations.

Definition at line 235 of file dimse_message.cpp.

                                                                    {
    return command_set_.get_numeric<uint16_t>(tag_number_of_completed_subops);
}

References command_set_, kcenon::pacs::core::dicom_dataset::get_numeric(), and kcenon::pacs::network::dimse::tag_number_of_completed_subops.

Here is the call graph for this function:

◆ dataset() [1/2]

auto kcenon::pacs::network::dimse::dimse_message::dataset ( ) -> kcenon::pacs::Result<std::reference_wrapper<core::dicom_dataset>>

nodiscard

Get mutable reference to the data set.

Returns: Result containing reference to the data set or error if not present

Definition at line 72 of file dimse_message.cpp.

                                                                                         {
    if (!dataset_) {
        return make_dimse_error(dimse_error::invalid_data_format, "DIMSE message has no dataset");
    }
    return std::ref(*dataset_);
}

References kcenon::pacs::network::dimse::invalid_data_format.

Here is the caller graph for this function:

◆ dataset() [2/2]

auto kcenon::pacs::network::dimse::dimse_message::dataset ( ) const -> kcenon::pacs::Result<std::reference_wrapper<const core::dicom_dataset>>

nodiscard

Get const reference to the data set.

Returns: Result containing reference to the data set or error if not present

Definition at line 79 of file dimse_message.cpp.

                                                                                                     {
    if (!dataset_) {
        return make_dimse_error(dimse_error::invalid_data_format, "DIMSE message has no dataset");
    }
    return std::cref(*dataset_);
}

References dataset_, and kcenon::pacs::network::dimse::invalid_data_format.

◆ decode()

auto kcenon::pacs::network::dimse::dimse_message::decode	(	std::span< const uint8_t >	command_data,
		std::span< const uint8_t >	dataset_data,
		const encoding::transfer_syntax &	dataset_ts ) -> dimse_result<dimse_message>

staticnodiscard

Decode a DIMSE message from bytes.

Parameters

command_data	The encoded command set (Implicit VR LE)
dataset_data	The encoded data set (per transfer syntax)
dataset_ts	The transfer syntax of the data set

Returns: The decoded message or an error

Definition at line 293 of file dimse_message.cpp.

                                   {
    // Decode command set (always Implicit VR Little Endian)
    auto cmd_result = encoding::implicit_vr_codec::decode(command_data);
    if (cmd_result.is_err()) {
        return make_dimse_error(dimse_error::decoding_error, "Failed to decode command set");
    }

    auto command_set = std::move(cmd_result.value());

    // Extract command field
    auto cmd_value = command_set.get_numeric<uint16_t>(tag_command_field);
    if (!cmd_value) {
        return make_dimse_error(dimse_error::missing_required_field, "CommandField tag not found");
    }
    auto cmd = static_cast<command_field>(*cmd_value);

    // Extract message ID
    auto msg_id = command_set.get_numeric<uint16_t>(tag_message_id);
    if (!msg_id && dimse::is_request(cmd)) {
        return make_dimse_error(dimse_error::missing_required_field, "MessageID tag not found for request");
    }
    // For responses, use message_id_responded_to if message_id is not present
    uint16_t message_id = msg_id.value_or(0);

    dimse_message msg(cmd, message_id);
    msg.command_set_ = std::move(command_set);

    // Decode dataset if present
    if (!dataset_data.empty()) {
        kcenon::pacs::Result<core::dicom_dataset> ds_result =
            (dataset_ts.vr_type() == encoding::vr_encoding::implicit)
                ? encoding::implicit_vr_codec::decode(dataset_data)
                : encoding::explicit_vr_codec::decode(dataset_data);

        if (ds_result.is_err()) {
            return make_dimse_error(dimse_error::decoding_error, "Failed to decode dataset");
        }
        msg.dataset_ = std::move(ds_result.value());
    }

    return msg;
}

References command_set_, dataset_, kcenon::pacs::encoding::explicit_vr_codec::decode(), kcenon::pacs::encoding::implicit_vr_codec::decode(), kcenon::pacs::network::dimse::decoding_error, kcenon::pacs::encoding::implicit, kcenon::pacs::network::dimse::is_request(), kcenon::pacs::network::dimse::missing_required_field, kcenon::pacs::network::dimse::tag_command_field, and kcenon::pacs::network::dimse::tag_message_id.

Referenced by kcenon::pacs::network::v2::dicom_association_handler::handle_p_data_tf().

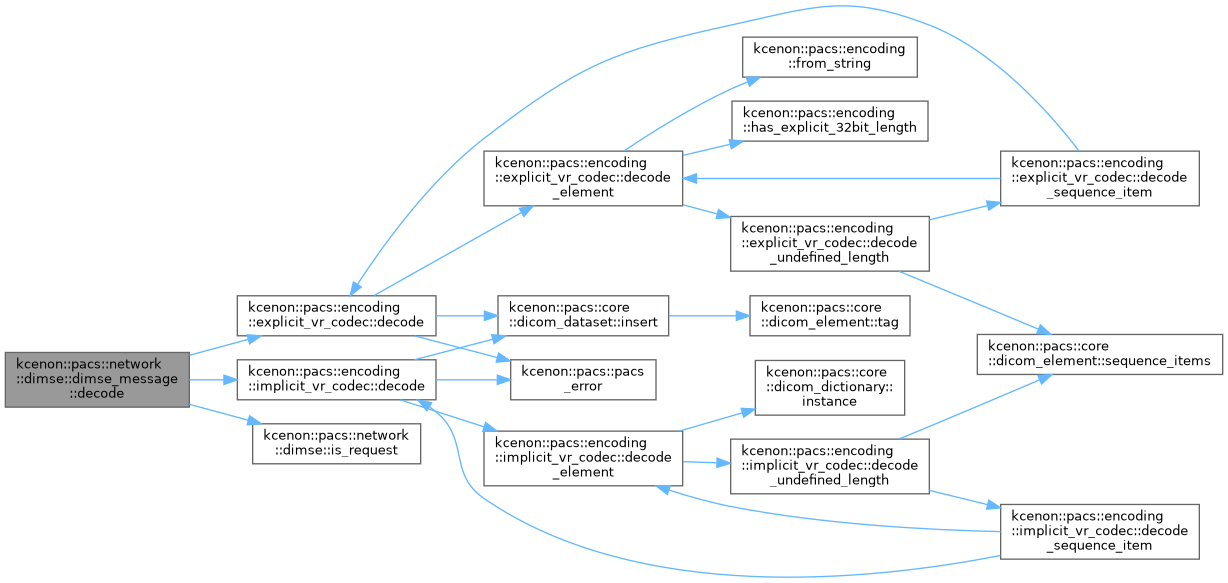

Here is the call graph for this function:

Here is the caller graph for this function:

◆ encode()

auto kcenon::pacs::network::dimse::dimse_message::encode	(	const dimse_message &	msg,
		const encoding::transfer_syntax &	dataset_ts ) -> dimse_result<encoded_message>

staticnodiscard

Encode the DIMSE message to bytes.

Parameters

msg	The message to encode
dataset_ts	The transfer syntax for the data set

Returns: Encoded command set and data set bytes as a pair

The command set is always encoded using Implicit VR Little Endian. The data set uses the specified transfer syntax.

Definition at line 266 of file dimse_message.cpp.

                                     {
    // Create a mutable copy for encoding
    dimse_message copy = msg;
    copy.update_command_group_length();

    // Command set is always Implicit VR Little Endian
    auto command_bytes = encoding::implicit_vr_codec::encode(copy.command_set_);

    // Encode dataset if present
    std::vector<uint8_t> dataset_bytes;
    if (copy.has_dataset()) {
        auto ds_result = copy.dataset();
        if (ds_result.is_err()) {
            return ds_result.error();
        }
        if (dataset_ts.vr_type() == encoding::vr_encoding::implicit) {
            dataset_bytes = encoding::implicit_vr_codec::encode(ds_result.value().get());
        } else {
            dataset_bytes = encoding::explicit_vr_codec::encode(ds_result.value().get());
        }
    }

    return encoded_message{std::move(command_bytes), std::move(dataset_bytes)};
}

References command_set_, dataset(), kcenon::pacs::encoding::explicit_vr_codec::encode(), kcenon::pacs::encoding::implicit_vr_codec::encode(), has_dataset(), kcenon::pacs::encoding::implicit, and update_command_group_length().

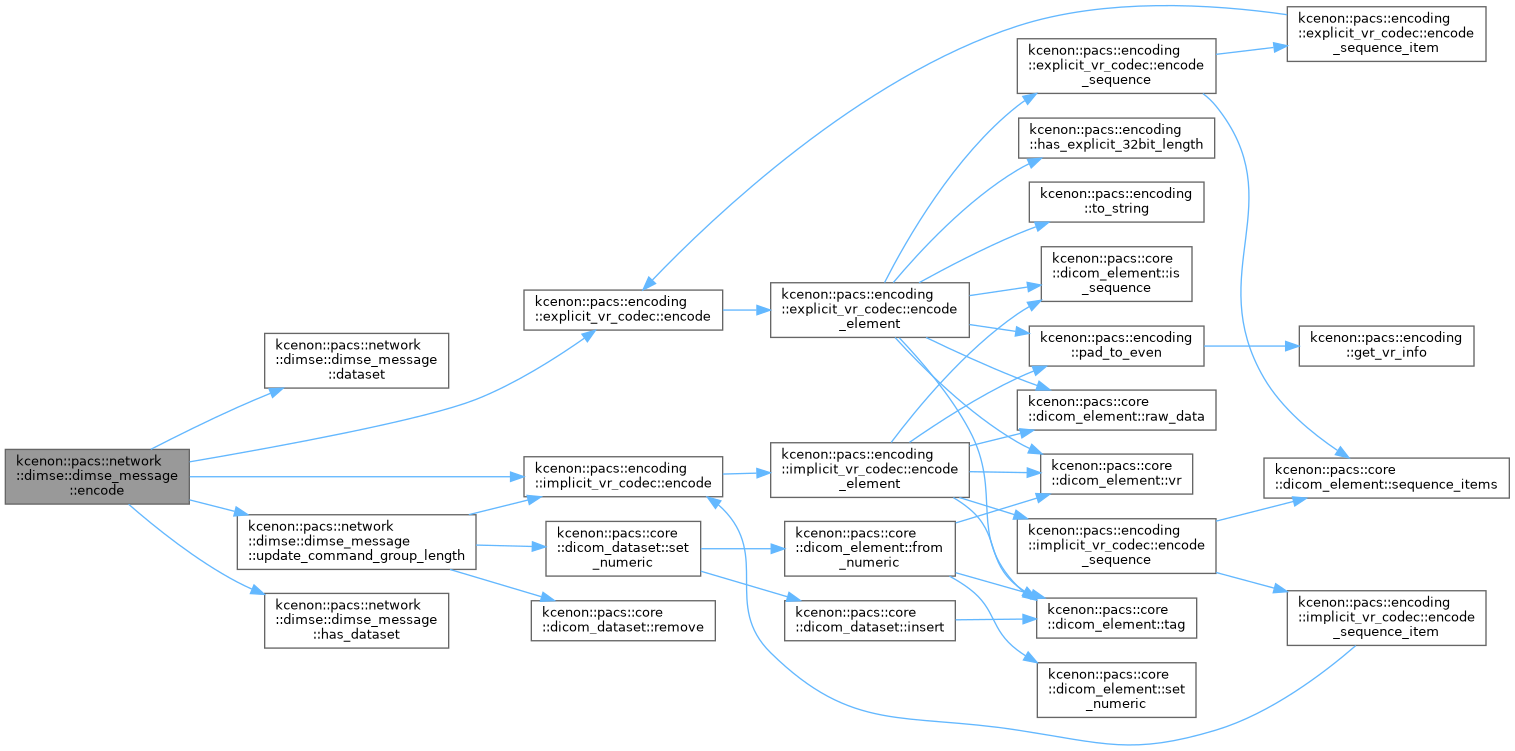

Here is the call graph for this function:

◆ event_type_id()

auto kcenon::pacs::network::dimse::dimse_message::event_type_id ( ) const -> std::optional<uint16_t>

nodiscard

Get the Event Type ID (for N-EVENT-REPORT)

Returns: The event type ID if present

Definition at line 166 of file dimse_message.cpp.

                                                                 {
    return command_set_.get_numeric<uint16_t>(tag_event_type_id);
}

References command_set_, kcenon::pacs::core::dicom_dataset::get_numeric(), and kcenon::pacs::network::dimse::tag_event_type_id.

Referenced by kcenon::pacs::services::ups_watch_scu::handle_event_report().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ failed_subops()

auto kcenon::pacs::network::dimse::dimse_message::failed_subops ( ) const -> std::optional<uint16_t>

nodiscard

Get the number of failed sub-operations.

Definition at line 244 of file dimse_message.cpp.

                                                                 {
    return command_set_.get_numeric<uint16_t>(tag_number_of_failed_subops);
}

References command_set_, kcenon::pacs::core::dicom_dataset::get_numeric(), and kcenon::pacs::network::dimse::tag_number_of_failed_subops.

Here is the call graph for this function:

◆ has_dataset()

auto kcenon::pacs::network::dimse::dimse_message::has_dataset ( ) const -> bool

nodiscardnoexcept

Check if the message has an associated data set.

Returns: true if a data set is present

Definition at line 68 of file dimse_message.cpp.

                                                       {
    return dataset_.has_value();
}

References dataset_.

Here is the caller graph for this function:

◆ is_request()

auto kcenon::pacs::network::dimse::dimse_message::is_request ( ) const -> bool

nodiscardnoexcept

Check if this is a request message.

Returns: true if the command field represents a request

Definition at line 348 of file dimse_message.cpp.

                                                      {
    return dimse::is_request(command_);
}

References command_, and kcenon::pacs::network::dimse::is_request().

Here is the call graph for this function:

◆ is_response()

auto kcenon::pacs::network::dimse::dimse_message::is_response ( ) const -> bool

nodiscardnoexcept

Check if this is a response message.

Returns: true if the command field represents a response

Definition at line 352 of file dimse_message.cpp.

                                                       {
    return dimse::is_response(command_);
}

References command_, and kcenon::pacs::network::dimse::is_response().

Here is the call graph for this function:

◆ is_valid()

auto kcenon::pacs::network::dimse::dimse_message::is_valid ( ) const -> bool

nodiscardnoexcept

Check if the message is valid.

Returns: true if the message has valid command field and message ID

Definition at line 343 of file dimse_message.cpp.

                                                    {
    return command_set_.contains(tag_command_field) &&
           command_set_.contains(tag_message_id);
}

References command_set_, kcenon::pacs::core::dicom_dataset::contains(), kcenon::pacs::network::dimse::tag_command_field, and kcenon::pacs::network::dimse::tag_message_id.

Referenced by kcenon::pacs::network::association::send_dimse().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ message_id()

auto kcenon::pacs::network::dimse::dimse_message::message_id ( ) const -> uint16_t

nodiscardnoexcept

Get the message ID.

Returns: The message ID

Definition at line 52 of file dimse_message.cpp.

                                                          {
    return message_id_;
}

References message_id_.

Here is the caller graph for this function:

◆ message_id_responded_to()

auto kcenon::pacs::network::dimse::dimse_message::message_id_responded_to ( ) const -> uint16_t

nodiscard

Get the Message ID Being Responded To (for responses)

Returns: The message ID being responded to

Definition at line 138 of file dimse_message.cpp.

                                                              {
    return command_set_.get_numeric<uint16_t>(tag_message_id_responded_to).value_or(0);
}

References command_set_, kcenon::pacs::core::dicom_dataset::get_numeric(), and kcenon::pacs::network::dimse::tag_message_id_responded_to.

Here is the call graph for this function:

◆ operator=() [1/2]

auto kcenon::pacs::network::dimse::dimse_message::operator= ( const dimse_message & ) -> dimse_message &=default

default

Copy assignment.

◆ operator=() [2/2]

auto kcenon::pacs::network::dimse::dimse_message::operator= ( dimse_message && ) -> dimse_message &=default

defaultnoexcept

Move assignment.

◆ priority()

auto kcenon::pacs::network::dimse::dimse_message::priority ( ) const -> uint16_t

nodiscard

Get the priority.

Returns: The priority value (0=medium, 1=high, 2=low)

Definition at line 130 of file dimse_message.cpp.

                                               {
    return command_set_.get_numeric<uint16_t>(tag_priority).value_or(priority_medium);
}

References command_set_, kcenon::pacs::core::dicom_dataset::get_numeric(), kcenon::pacs::network::dimse::priority_medium, and kcenon::pacs::network::dimse::tag_priority.

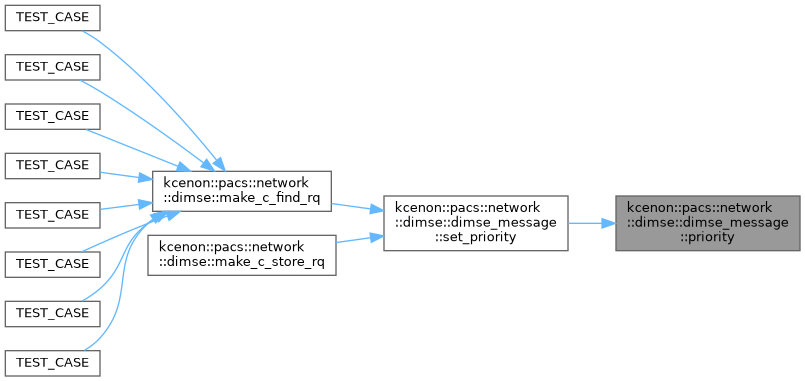

Referenced by set_priority().

Here is the call graph for this function:

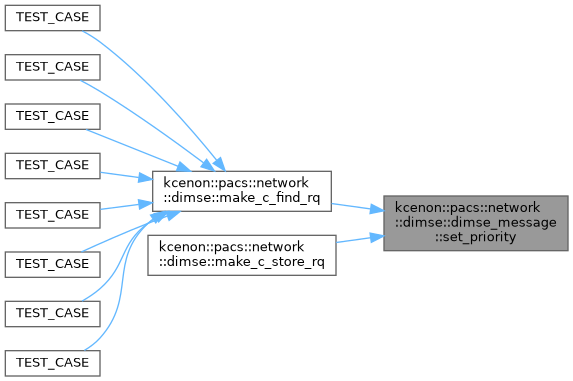

Here is the caller graph for this function:

◆ remaining_subops()

auto kcenon::pacs::network::dimse::dimse_message::remaining_subops ( ) const -> std::optional<uint16_t>

nodiscard

Get the number of remaining sub-operations.

Returns: Optional count of remaining sub-operations

Definition at line 226 of file dimse_message.cpp.

                                                                    {
    return command_set_.get_numeric<uint16_t>(tag_number_of_remaining_subops);
}

References command_set_, kcenon::pacs::core::dicom_dataset::get_numeric(), and kcenon::pacs::network::dimse::tag_number_of_remaining_subops.

Here is the call graph for this function:

◆ requested_sop_class_uid()

auto kcenon::pacs::network::dimse::dimse_message::requested_sop_class_uid ( ) const -> std::string

nodiscard

Get the Requested SOP Class UID (for N-SET, N-GET, N-ACTION, N-DELETE)

Returns: The SOP Class UID if present

Definition at line 150 of file dimse_message.cpp.

                                                               {
    return command_set_.get_string(tag_requested_sop_class_uid);
}

References command_set_, kcenon::pacs::core::dicom_dataset::get_string(), and kcenon::pacs::network::dimse::tag_requested_sop_class_uid.

Referenced by kcenon::pacs::services::n_get_scp::handle_message().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ requested_sop_instance_uid()

auto kcenon::pacs::network::dimse::dimse_message::requested_sop_instance_uid ( ) const -> std::string

nodiscard

Get the Requested SOP Instance UID (for N-SET, N-GET, N-ACTION, N-DELETE)

Returns: The SOP Instance UID if present

Definition at line 158 of file dimse_message.cpp.

                                                                  {
    return command_set_.get_string(tag_requested_sop_instance_uid);
}

References command_set_, kcenon::pacs::core::dicom_dataset::get_string(), and kcenon::pacs::network::dimse::tag_requested_sop_instance_uid.

Referenced by kcenon::pacs::services::n_get_scp::handle_message(), kcenon::pacs::services::ups_push_scp::handle_n_action(), kcenon::pacs::services::ups_watch_scp::handle_n_action(), and kcenon::pacs::services::ups_push_scp::handle_n_get().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_action_type_id()

void kcenon::pacs::network::dimse::dimse_message::set_action_type_id ( uint16_t type_id )

Set the Action Type ID.

Parameters

type_id The action type ID

Definition at line 178 of file dimse_message.cpp.

                                                       {
    command_set_.set_numeric(tag_action_type_id, encoding::vr_type::US, type_id);
}

References command_set_, kcenon::pacs::core::dicom_dataset::set_numeric(), kcenon::pacs::network::dimse::tag_action_type_id, and kcenon::pacs::encoding::US.

Referenced by kcenon::pacs::network::dimse::make_n_action_rq(), and kcenon::pacs::network::dimse::make_n_action_rsp().

Here is the call graph for this function:

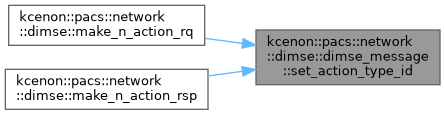

Here is the caller graph for this function:

◆ set_affected_sop_class_uid()

void kcenon::pacs::network::dimse::dimse_message::set_affected_sop_class_uid ( std::string_view uid )

Set the Affected SOP Class UID.

Parameters

uid	The SOP Class UID

Definition at line 116 of file dimse_message.cpp.

                                                                 {
    command_set_.set_string(tag_affected_sop_class_uid, encoding::vr_type::UI,
                            uid);
}

References command_set_, kcenon::pacs::core::dicom_dataset::set_string(), kcenon::pacs::network::dimse::tag_affected_sop_class_uid, kcenon::pacs::encoding::UI, and uid.

Here is the call graph for this function:

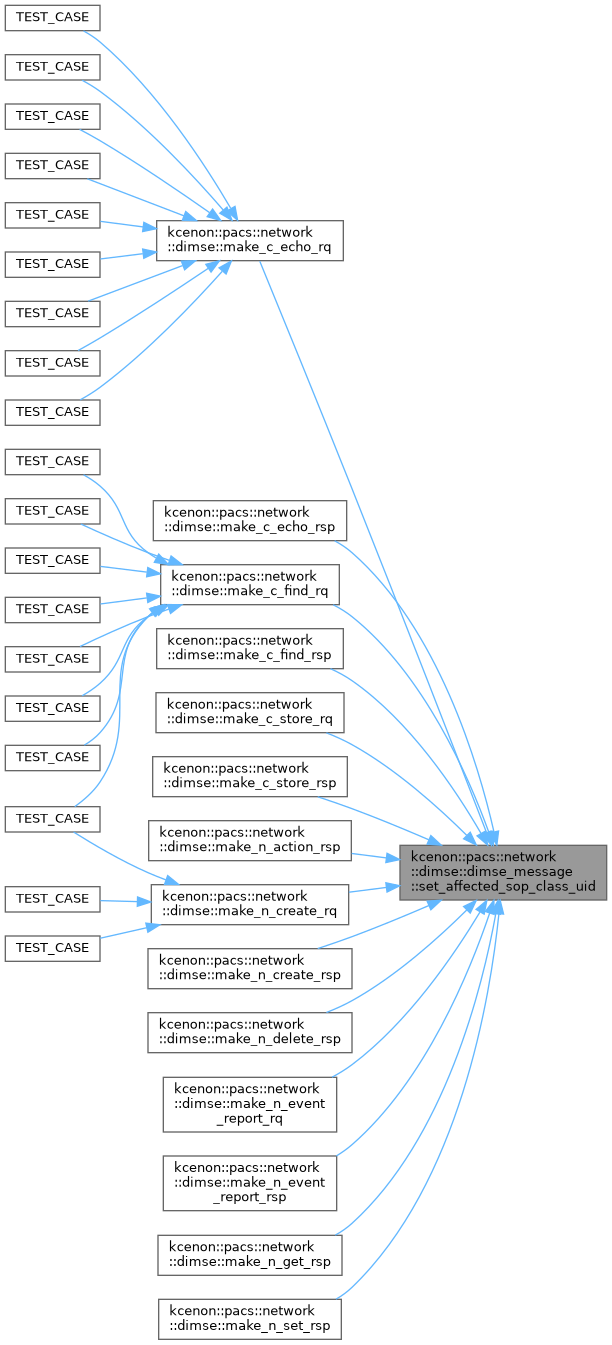

Here is the caller graph for this function:

◆ set_affected_sop_instance_uid()

void kcenon::pacs::network::dimse::dimse_message::set_affected_sop_instance_uid ( std::string_view uid )

Set the Affected SOP Instance UID.

Parameters

uid	The SOP Instance UID

Definition at line 125 of file dimse_message.cpp.

                                                                    {
    command_set_.set_string(tag_affected_sop_instance_uid, encoding::vr_type::UI,
                            uid);
}

References command_set_, kcenon::pacs::core::dicom_dataset::set_string(), kcenon::pacs::network::dimse::tag_affected_sop_instance_uid, kcenon::pacs::encoding::UI, and uid.

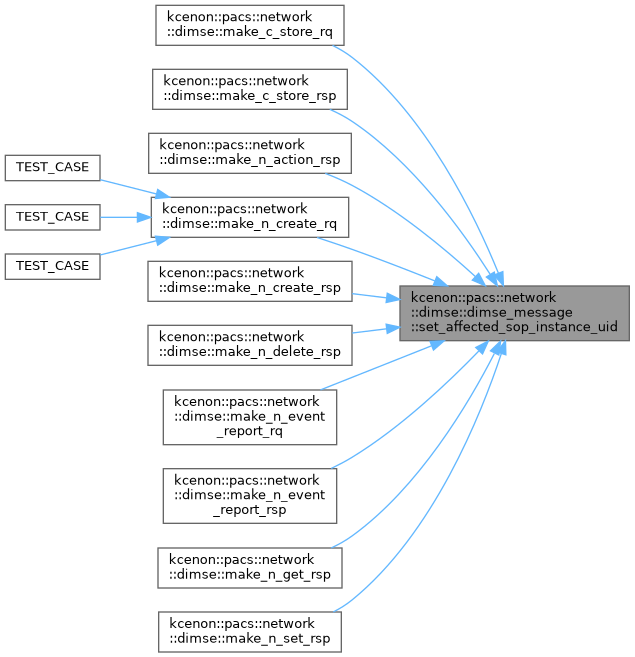

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_attribute_identifier_list()

void kcenon::pacs::network::dimse::dimse_message::set_attribute_identifier_list ( const std::vector< core::dicom_tag > & tags )

Set the Attribute Identifier List.

Parameters

tags	Vector of tags to retrieve

Definition at line 205 of file dimse_message.cpp.

                                          {
    std::vector<uint8_t> bytes;
    bytes.reserve(tags.size() * 4);

    for (const auto& tag : tags) {
        // Little-endian encoding
        bytes.push_back(static_cast<uint8_t>(tag.group() & 0xFF));
        bytes.push_back(static_cast<uint8_t>((tag.group() >> 8) & 0xFF));
        bytes.push_back(static_cast<uint8_t>(tag.element() & 0xFF));
        bytes.push_back(static_cast<uint8_t>((tag.element() >> 8) & 0xFF));
    }

    command_set_.insert(core::dicom_element(tag_attribute_identifier_list,
                                            encoding::vr_type::AT, bytes));
}

References kcenon::pacs::encoding::AT, command_set_, kcenon::pacs::core::dicom_dataset::insert(), and kcenon::pacs::network::dimse::tag_attribute_identifier_list.

Referenced by kcenon::pacs::network::dimse::make_n_get_rq().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_completed_subops()

void kcenon::pacs::network::dimse::dimse_message::set_completed_subops ( uint16_t count )

Set the number of completed sub-operations.

Definition at line 239 of file dimse_message.cpp.

                                                       {
    command_set_.set_numeric(tag_number_of_completed_subops, encoding::vr_type::US,
                             count);
}

References command_set_, kcenon::pacs::core::dicom_dataset::set_numeric(), kcenon::pacs::network::dimse::tag_number_of_completed_subops, and kcenon::pacs::encoding::US.

Here is the call graph for this function:

◆ set_dataset()

void kcenon::pacs::network::dimse::dimse_message::set_dataset ( core::dicom_dataset ds )

Set the data set for this message.

Parameters

ds	The data set to associate with this message

Definition at line 86 of file dimse_message.cpp.

                                                    {
    dataset_ = std::move(ds);
    update_data_set_type();
}

References dataset_, and update_data_set_type().

Here is the call graph for this function:

◆ set_event_type_id()

void kcenon::pacs::network::dimse::dimse_message::set_event_type_id ( uint16_t type_id )

Set the Event Type ID.

Parameters

type_id The event type ID

Definition at line 170 of file dimse_message.cpp.

                                                      {
    command_set_.set_numeric(tag_event_type_id, encoding::vr_type::US, type_id);
}

References command_set_, kcenon::pacs::core::dicom_dataset::set_numeric(), kcenon::pacs::network::dimse::tag_event_type_id, and kcenon::pacs::encoding::US.

Referenced by kcenon::pacs::network::dimse::make_n_event_report_rq(), and kcenon::pacs::network::dimse::make_n_event_report_rsp().

Here is the call graph for this function:

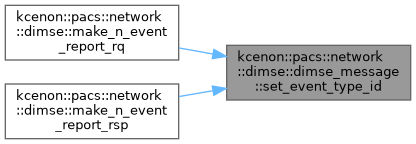

Here is the caller graph for this function:

◆ set_failed_subops()

void kcenon::pacs::network::dimse::dimse_message::set_failed_subops ( uint16_t count )

Set the number of failed sub-operations.

Definition at line 248 of file dimse_message.cpp.

                                                    {
    command_set_.set_numeric(tag_number_of_failed_subops, encoding::vr_type::US,
                             count);
}

References command_set_, kcenon::pacs::core::dicom_dataset::set_numeric(), kcenon::pacs::network::dimse::tag_number_of_failed_subops, and kcenon::pacs::encoding::US.

Here is the call graph for this function:

◆ set_message_id_responded_to()

void kcenon::pacs::network::dimse::dimse_message::set_message_id_responded_to ( uint16_t id )

Set the Message ID Being Responded To (for responses)

Parameters

id	The message ID being responded to

Definition at line 142 of file dimse_message.cpp.

                                                           {
    command_set_.set_numeric(tag_message_id_responded_to, encoding::vr_type::US, id);
}

References command_set_, kcenon::pacs::core::dicom_dataset::set_numeric(), kcenon::pacs::network::dimse::tag_message_id_responded_to, and kcenon::pacs::encoding::US.

Referenced by kcenon::pacs::network::dimse::make_c_echo_rsp(), kcenon::pacs::network::dimse::make_c_find_rsp(), kcenon::pacs::network::dimse::make_c_store_rsp(), kcenon::pacs::network::dimse::make_n_action_rsp(), kcenon::pacs::network::dimse::make_n_create_rsp(), kcenon::pacs::network::dimse::make_n_delete_rsp(), kcenon::pacs::network::dimse::make_n_event_report_rsp(), kcenon::pacs::network::dimse::make_n_get_rsp(), and kcenon::pacs::network::dimse::make_n_set_rsp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_priority()

void kcenon::pacs::network::dimse::dimse_message::set_priority ( uint16_t priority )

Set the priority.

Parameters

priority The priority value

Definition at line 134 of file dimse_message.cpp.

                                                  {
    command_set_.set_numeric(tag_priority, encoding::vr_type::US, priority);
}

References command_set_, priority(), kcenon::pacs::core::dicom_dataset::set_numeric(), kcenon::pacs::network::dimse::tag_priority, and kcenon::pacs::encoding::US.

Referenced by kcenon::pacs::network::dimse::make_c_find_rq(), and kcenon::pacs::network::dimse::make_c_store_rq().

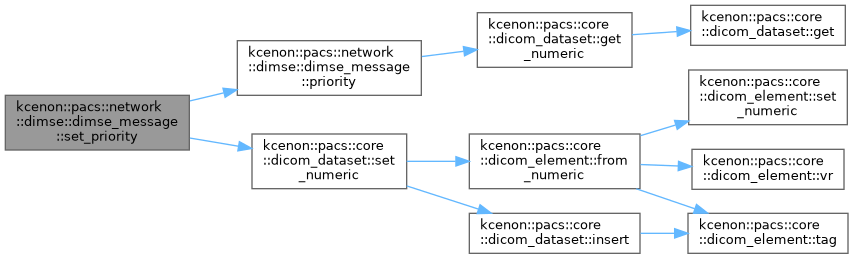

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_remaining_subops()

void kcenon::pacs::network::dimse::dimse_message::set_remaining_subops ( uint16_t count )

Set the number of remaining sub-operations.

Definition at line 230 of file dimse_message.cpp.

                                                       {
    command_set_.set_numeric(tag_number_of_remaining_subops, encoding::vr_type::US,
                             count);
}

References command_set_, kcenon::pacs::core::dicom_dataset::set_numeric(), kcenon::pacs::network::dimse::tag_number_of_remaining_subops, and kcenon::pacs::encoding::US.

Here is the call graph for this function:

◆ set_requested_sop_class_uid()

void kcenon::pacs::network::dimse::dimse_message::set_requested_sop_class_uid ( std::string_view uid )

Set the Requested SOP Class UID.

Parameters

uid	The SOP Class UID

Definition at line 154 of file dimse_message.cpp.

                                                                  {
    command_set_.set_string(tag_requested_sop_class_uid, encoding::vr_type::UI, uid);
}

References command_set_, kcenon::pacs::core::dicom_dataset::set_string(), kcenon::pacs::network::dimse::tag_requested_sop_class_uid, kcenon::pacs::encoding::UI, and uid.

Referenced by kcenon::pacs::network::dimse::make_n_action_rq(), kcenon::pacs::network::dimse::make_n_delete_rq(), kcenon::pacs::network::dimse::make_n_get_rq(), and kcenon::pacs::network::dimse::make_n_set_rq().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_requested_sop_instance_uid()

void kcenon::pacs::network::dimse::dimse_message::set_requested_sop_instance_uid ( std::string_view uid )

Set the Requested SOP Instance UID.

Parameters

uid	The SOP Instance UID

Definition at line 162 of file dimse_message.cpp.

                                                                     {
    command_set_.set_string(tag_requested_sop_instance_uid, encoding::vr_type::UI, uid);
}

References command_set_, kcenon::pacs::core::dicom_dataset::set_string(), kcenon::pacs::network::dimse::tag_requested_sop_instance_uid, kcenon::pacs::encoding::UI, and uid.

Referenced by kcenon::pacs::network::dimse::make_n_action_rq(), kcenon::pacs::network::dimse::make_n_delete_rq(), kcenon::pacs::network::dimse::make_n_get_rq(), and kcenon::pacs::network::dimse::make_n_set_rq().

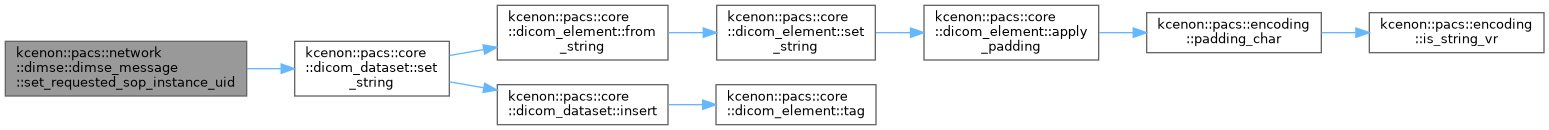

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_status()

void kcenon::pacs::network::dimse::dimse_message::set_status ( status_code status )

Set the status code (for response messages)

Parameters

status The status code to set

Definition at line 104 of file dimse_message.cpp.

                                                 {
    command_set_.set_numeric(tag_status, encoding::vr_type::US, status);
}

References command_set_, kcenon::pacs::core::dicom_dataset::set_numeric(), status(), kcenon::pacs::network::dimse::tag_status, and kcenon::pacs::encoding::US.

Referenced by kcenon::pacs::network::dimse::make_c_echo_rsp(), kcenon::pacs::network::dimse::make_c_find_rsp(), kcenon::pacs::network::dimse::make_c_store_rsp(), kcenon::pacs::network::dimse::make_n_action_rsp(), kcenon::pacs::network::dimse::make_n_create_rsp(), kcenon::pacs::network::dimse::make_n_delete_rsp(), kcenon::pacs::network::dimse::make_n_event_report_rsp(), kcenon::pacs::network::dimse::make_n_get_rsp(), and kcenon::pacs::network::dimse::make_n_set_rsp().

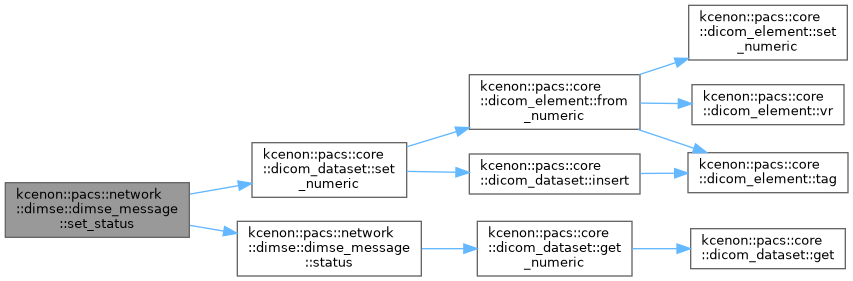

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_warning_subops()

void kcenon::pacs::network::dimse::dimse_message::set_warning_subops ( uint16_t count )

Set the number of warning sub-operations.

Definition at line 257 of file dimse_message.cpp.

                                                     {
    command_set_.set_numeric(tag_number_of_warning_subops, encoding::vr_type::US,
                             count);
}

References command_set_, kcenon::pacs::core::dicom_dataset::set_numeric(), kcenon::pacs::network::dimse::tag_number_of_warning_subops, and kcenon::pacs::encoding::US.

Here is the call graph for this function:

◆ status()

auto kcenon::pacs::network::dimse::dimse_message::status ( ) const -> status_code

nodiscard

Get the status code (for response messages)

Returns: The status code value

Definition at line 100 of file dimse_message.cpp.

                                                {
    return command_set_.get_numeric<uint16_t>(tag_status).value_or(0);
}

References command_set_, kcenon::pacs::core::dicom_dataset::get_numeric(), and kcenon::pacs::network::dimse::tag_status.

Referenced by set_status().

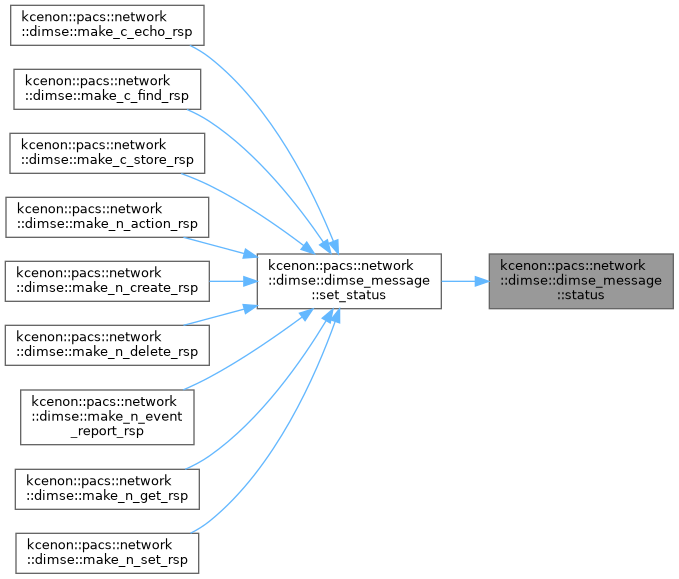

Here is the call graph for this function:

Here is the caller graph for this function:

◆ update_command_group_length()

void kcenon::pacs::network::dimse::dimse_message::update_command_group_length ( )

private

Calculate and set CommandGroupLength.

Definition at line 370 of file dimse_message.cpp.

                                                {
    // First, remove CommandGroupLength to calculate without it
    command_set_.remove(tag_command_group_length);

    // Encode command set to get the size
    auto encoded = encoding::implicit_vr_codec::encode(command_set_);
    auto length = static_cast<uint32_t>(encoded.size());

    // Set CommandGroupLength
    command_set_.set_numeric(tag_command_group_length, encoding::vr_type::UL, length);
}

References command_set_, kcenon::pacs::encoding::implicit_vr_codec::encode(), kcenon::pacs::core::dicom_dataset::remove(), kcenon::pacs::core::dicom_dataset::set_numeric(), kcenon::pacs::network::dimse::tag_command_group_length, and kcenon::pacs::encoding::UL.

Referenced by encode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ update_data_set_type()

void kcenon::pacs::network::dimse::dimse_message::update_data_set_type ( )

private

Update the CommandDataSetType field based on dataset presence.

Definition at line 360 of file dimse_message.cpp.

                                         {
    if (dataset_) {
        command_set_.set_numeric(tag_command_data_set_type, encoding::vr_type::US,
                                 command_data_set_type_present);
    } else {
        command_set_.set_numeric(tag_command_data_set_type, encoding::vr_type::US,
                                 command_data_set_type_null);
    }
}

References kcenon::pacs::network::dimse::command_data_set_type_null, kcenon::pacs::network::dimse::command_data_set_type_present, command_set_, dataset_, kcenon::pacs::core::dicom_dataset::set_numeric(), kcenon::pacs::network::dimse::tag_command_data_set_type, and kcenon::pacs::encoding::US.

Referenced by clear_dataset(), dimse_message(), and set_dataset().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ warning_subops()

auto kcenon::pacs::network::dimse::dimse_message::warning_subops ( ) const -> std::optional<uint16_t>

nodiscard

Get the number of warning sub-operations.

Definition at line 253 of file dimse_message.cpp.

                                                                  {
    return command_set_.get_numeric<uint16_t>(tag_number_of_warning_subops);
}

References command_set_, kcenon::pacs::core::dicom_dataset::get_numeric(), and kcenon::pacs::network::dimse::tag_number_of_warning_subops.

Here is the call graph for this function:

Member Data Documentation

◆ command_

command_field kcenon::pacs::network::dimse::dimse_message::command_ {}

private

Definition at line 546 of file dimse_message.h.

546{};

Referenced by command(), is_request(), and is_response().

◆ command_set_

core::dicom_dataset kcenon::pacs::network::dimse::dimse_message::command_set_

private

Definition at line 548 of file dimse_message.h.

Referenced by action_type_id(), affected_sop_class_uid(), affected_sop_instance_uid(), attribute_identifier_list(), command_set(), command_set(), completed_subops(), decode(), dimse_message(), encode(), event_type_id(), failed_subops(), is_valid(), message_id_responded_to(), priority(), remaining_subops(), requested_sop_class_uid(), requested_sop_instance_uid(), set_action_type_id(), set_affected_sop_class_uid(), set_affected_sop_instance_uid(), set_attribute_identifier_list(), set_completed_subops(), set_event_type_id(), set_failed_subops(), set_message_id_responded_to(), set_priority(), set_remaining_subops(), set_requested_sop_class_uid(), set_requested_sop_instance_uid(), set_status(), set_warning_subops(), status(), update_command_group_length(), update_data_set_type(), and warning_subops().

◆ dataset_

std::optional<core::dicom_dataset> kcenon::pacs::network::dimse::dimse_message::dataset_

private

Definition at line 549 of file dimse_message.h.

Referenced by clear_dataset(), dataset(), decode(), has_dataset(), set_dataset(), and update_data_set_type().

◆ message_id_

uint16_t kcenon::pacs::network::dimse::dimse_message::message_id_ {0}

private

Definition at line 547 of file dimse_message.h.

547{0};

Referenced by message_id().

The documentation for this class was generated from the following files:

include/kcenon/pacs/network/dimse/dimse_message.h
src/network/dimse/dimse_message.cpp

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ encoded_message

Constructor & Destructor Documentation

◆ dimse_message() [1/4]

◆ dimse_message() [2/4]

◆ dimse_message() [3/4]

◆ dimse_message() [4/4]

◆ ~dimse_message()

Member Function Documentation

◆ action_type_id()

◆ affected_sop_class_uid()

◆ affected_sop_instance_uid()

◆ attribute_identifier_list()

◆ clear_dataset()

◆ command()

◆ command_set() [1/2]

◆ command_set() [2/2]

◆ completed_subops()

◆ dataset() [1/2]

◆ dataset() [2/2]

◆ decode()

◆ encode()

◆ event_type_id()

◆ failed_subops()

◆ has_dataset()

◆ is_request()

◆ is_response()

◆ is_valid()

◆ message_id()

◆ message_id_responded_to()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ priority()

◆ remaining_subops()

◆ requested_sop_class_uid()

◆ requested_sop_instance_uid()

◆ set_action_type_id()

◆ set_affected_sop_class_uid()

◆ set_affected_sop_instance_uid()

◆ set_attribute_identifier_list()

◆ set_completed_subops()

◆ set_dataset()

◆ set_event_type_id()

◆ set_failed_subops()

◆ set_message_id_responded_to()

◆ set_priority()

◆ set_remaining_subops()

◆ set_requested_sop_class_uid()

◆ set_requested_sop_instance_uid()

◆ set_status()

◆ set_warning_subops()

◆ status()

◆ update_command_group_length()

◆ update_data_set_type()

◆ warning_subops()

Member Data Documentation

◆ command_

◆ command_set_

◆ dataset_

◆ message_id_
