Represents a DICOM Transfer Syntax. More...

#include <transfer_syntax.h>

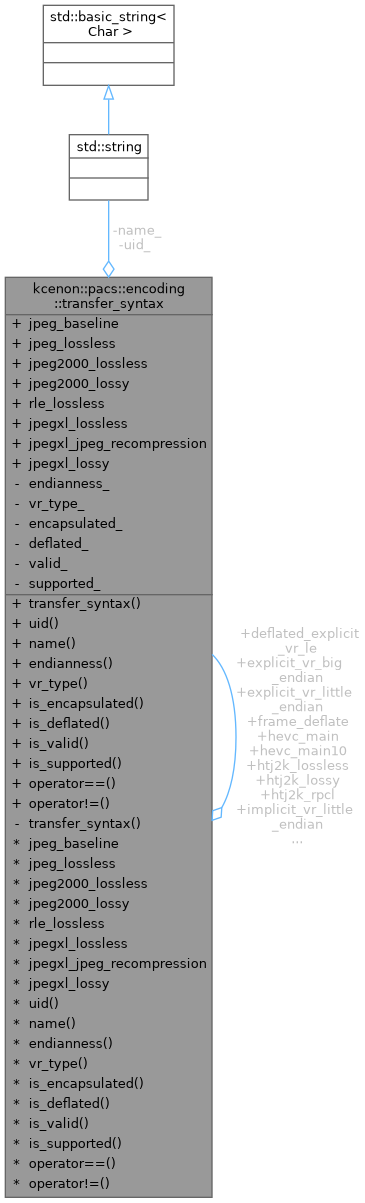

Collaboration diagram for kcenon::pacs::encoding::transfer_syntax:

Public Member Functions
	transfer_syntax (std::string_view uid)
	Constructs a transfer_syntax from a UID string.

Property Accessors
std::string_view	uid () const noexcept
	Returns the Transfer Syntax UID.

std::string_view	name () const noexcept
	Returns the human-readable name of the Transfer Syntax.

byte_order	endianness () const noexcept
	Returns the byte ordering for this Transfer Syntax.

vr_encoding	vr_type () const noexcept
	Returns the VR encoding mode for this Transfer Syntax.

bool	is_encapsulated () const noexcept
	Checks if this Transfer Syntax uses encapsulated (compressed) format.

bool	is_deflated () const noexcept
	Checks if this Transfer Syntax uses deflate compression.

Validation
bool	is_valid () const noexcept
	Checks if this is a recognized DICOM Transfer Syntax.

bool	is_supported () const noexcept
	Checks if this Transfer Syntax is currently supported.

Comparison Operators
bool	operator== (const transfer_syntax &other) const noexcept
	Compares two Transfer Syntaxes by UID.

bool	operator!= (const transfer_syntax &other) const noexcept
	Compares two Transfer Syntaxes by UID.

Static Public Attributes
Standard Transfer Syntax Instances
static const transfer_syntax	implicit_vr_little_endian
	Implicit VR Little Endian (1.2.840.10008.1.2)

static const transfer_syntax	explicit_vr_little_endian
	Explicit VR Little Endian (1.2.840.10008.1.2.1)

static const transfer_syntax	explicit_vr_big_endian
	Explicit VR Big Endian (1.2.840.10008.1.2.2) - Retired.

static const transfer_syntax	deflated_explicit_vr_le
	Deflated Explicit VR Little Endian (1.2.840.10008.1.2.1.99)

static const transfer_syntax	jpeg_baseline
	JPEG Baseline (Process 1) (1.2.840.10008.1.2.4.50)

static const transfer_syntax	jpeg_lossless
	JPEG Lossless, Non-Hierarchical (1.2.840.10008.1.2.4.70)

static const transfer_syntax	jpeg2000_lossless
	JPEG 2000 Image Compression (Lossless Only) (1.2.840.10008.1.2.4.90)

static const transfer_syntax	jpeg2000_lossy
	JPEG 2000 Image Compression (1.2.840.10008.1.2.4.91)

static const transfer_syntax	rle_lossless
	RLE Lossless (1.2.840.10008.1.2.5)

static const transfer_syntax	htj2k_lossless
	HTJ2K Lossless Only (1.2.840.10008.1.2.4.201)

static const transfer_syntax	htj2k_rpcl
	HTJ2K RPCL (1.2.840.10008.1.2.4.202) - Lossless Only.

static const transfer_syntax	htj2k_lossy
	HTJ2K (1.2.840.10008.1.2.4.203) - Lossless or Lossy.

static const transfer_syntax	hevc_main
	HEVC/H.265 Main Profile / Level 5.1 (1.2.840.10008.1.2.4.107)

static const transfer_syntax	hevc_main10
	HEVC/H.265 Main 10 Profile / Level 5.1 (1.2.840.10008.1.2.4.108)

static const transfer_syntax	jpegxl_lossless
	JPEG XL Lossless (1.2.840.10008.1.2.4.110) - Supplement 232.

static const transfer_syntax	jpegxl_jpeg_recompression
	JPEG XL JPEG Recompression (1.2.840.10008.1.2.4.111) - Supplement 232.

static const transfer_syntax	jpegxl_lossy
	JPEG XL (1.2.840.10008.1.2.4.112) - Supplement 232.

static const transfer_syntax	frame_deflate
	Frame Deflate (1.2.840.10008.1.2.11) - Supplement 244.

Private Member Functions
	transfer_syntax (std::string_view uid, std::string_view name, byte_order endian, vr_encoding vr, bool encapsulated, bool deflated, bool supported)
	Private constructor for static instances and registry functions.

Private Attributes
std::string	uid_

std::string	name_

byte_order	endianness_

vr_encoding	vr_type_

bool	encapsulated_

bool	deflated_

bool	valid_

bool	supported_

Friends
std::optional< transfer_syntax >	find_transfer_syntax (std::string_view uid)
	Allow registry functions to use private constructor.

std::vector< transfer_syntax >	supported_transfer_syntaxes ()
	Returns a list of all supported Transfer Syntaxes.

std::vector< transfer_syntax >	all_transfer_syntaxes ()
	Returns a list of all known Transfer Syntaxes.

Detailed Description

Represents a DICOM Transfer Syntax.

Transfer Syntax defines how DICOM data is encoded, including:

Byte ordering (little-endian or big-endian)
VR encoding (implicit or explicit)
Compression (encapsulated pixel data)

Each Transfer Syntax is uniquely identified by a UID.

See also: DICOM PS3.5 Section 10 - Transfer Syntax

Examples: dcm_conv/main.cpp.

Definition at line 35 of file transfer_syntax.h.

Constructor & Destructor Documentation

◆ transfer_syntax() [1/2]

kcenon::pacs::encoding::transfer_syntax::transfer_syntax ( std::string_view uid )

explicit

Constructs a transfer_syntax from a UID string.

Parameters

uid	The Transfer Syntax UID (e.g., "1.2.840.10008.1.2")

If the UID is not recognized, the transfer_syntax will be invalid (is_valid() returns false).

Definition at line 297 of file transfer_syntax.cpp.

    : uid_(uid),
      name_("Unknown"),
      endianness_(byte_order::little_endian),
      vr_type_(vr_encoding::implicit),
      encapsulated_(false),
      deflated_(false),
      valid_(false),
      supported_(false) {
    if (const auto* entry = find_entry(uid)) {
        name_ = entry->name;
        endianness_ = entry->endian;
        vr_type_ = entry->vr;
        encapsulated_ = entry->encapsulated;
        deflated_ = entry->deflated;
        valid_ = true;
        supported_ = entry->supported;
    }
}

References deflated_, encapsulated_, endianness_, name_, supported_, uid(), valid_, and vr_type_.

Here is the call graph for this function:

◆ transfer_syntax() [2/2]

kcenon::pacs::encoding::transfer_syntax::transfer_syntax	(	std::string_view	uid,
		std::string_view	name,
		byte_order	endian,
		vr_encoding	vr,
		bool	encapsulated,
		bool	deflated,
		bool	supported )

private

Private constructor for static instances and registry functions.

Definition at line 318 of file transfer_syntax.cpp.

    : uid_(uid),
      name_(name),
      endianness_(endian),
      vr_type_(vr),
      encapsulated_(encapsulated),
      deflated_(deflated),
      valid_(true),
      supported_(supported) {}

Member Function Documentation

◆ endianness()

byte_order kcenon::pacs::encoding::transfer_syntax::endianness ( ) const

nodiscardnoexcept

Returns the byte ordering for this Transfer Syntax.

Returns: byte_order::little_endian or byte_order::big_endian

Definition at line 339 of file transfer_syntax.cpp.

                                                      {
    return endianness_;
}

References endianness_.

◆ is_deflated()

bool kcenon::pacs::encoding::transfer_syntax::is_deflated ( ) const

nodiscardnoexcept

Checks if this Transfer Syntax uses deflate compression.

Returns: true if the entire dataset is deflate-compressed

Definition at line 351 of file transfer_syntax.cpp.

                                                 {
    return deflated_;
}

References deflated_.

◆ is_encapsulated()

bool kcenon::pacs::encoding::transfer_syntax::is_encapsulated ( ) const

nodiscardnoexcept

Checks if this Transfer Syntax uses encapsulated (compressed) format.

Returns: true if pixel data is encapsulated (JPEG, JPEG 2000, etc.)

Definition at line 347 of file transfer_syntax.cpp.

                                                     {
    return encapsulated_;
}

References encapsulated_.

◆ is_supported()

bool kcenon::pacs::encoding::transfer_syntax::is_supported ( ) const

nodiscardnoexcept

Checks if this Transfer Syntax is currently supported.

Returns: true if encoding/decoding is implemented

In Phase 1, only uncompressed transfer syntaxes are supported.

Definition at line 359 of file transfer_syntax.cpp.

                                                  {
    return supported_;
}

References supported_.

◆ is_valid()

bool kcenon::pacs::encoding::transfer_syntax::is_valid ( ) const

nodiscardnoexcept

Checks if this is a recognized DICOM Transfer Syntax.

Returns: true if the UID was recognized in the registry

Definition at line 355 of file transfer_syntax.cpp.

                                              {
    return valid_;
}

References valid_.

◆ name()

std::string_view kcenon::pacs::encoding::transfer_syntax::name ( ) const

nodiscardnoexcept

Returns the human-readable name of the Transfer Syntax.

Returns: The name (e.g., "Implicit VR Little Endian")

Definition at line 335 of file transfer_syntax.cpp.

                                                    {
    return name_;
}

References name_.

◆ operator!=()

bool kcenon::pacs::encoding::transfer_syntax::operator!= ( const transfer_syntax & other ) const

noexcept

Compares two Transfer Syntaxes by UID.

Parameters

other The Transfer Syntax to compare with

Returns: true if UIDs are not equal

Definition at line 367 of file transfer_syntax.cpp.

                                                                            {
    return !(*this == other);
}

◆ operator==()

bool kcenon::pacs::encoding::transfer_syntax::operator== ( const transfer_syntax & other ) const

noexcept

Compares two Transfer Syntaxes by UID.

Parameters

other The Transfer Syntax to compare with

Returns: true if UIDs are equal

Definition at line 363 of file transfer_syntax.cpp.

                                                                            {
    return uid_ == other.uid_;
}

◆ uid()

std::string_view kcenon::pacs::encoding::transfer_syntax::uid ( ) const

nodiscardnoexcept

Returns the Transfer Syntax UID.

Returns: The UID string (e.g., "1.2.840.10008.1.2")

Definition at line 331 of file transfer_syntax.cpp.

                                                   {
    return uid_;
}

References uid_.

Referenced by transfer_syntax().

Here is the caller graph for this function:

◆ vr_type()

vr_encoding kcenon::pacs::encoding::transfer_syntax::vr_type ( ) const

nodiscardnoexcept

Returns the VR encoding mode for this Transfer Syntax.

Returns: vr_encoding::implicit or vr_encoding::explicit_vr

Definition at line 343 of file transfer_syntax.cpp.

                                                    {
    return vr_type_;
}

References vr_type_.

Friends And Related Symbol Documentation

◆ all_transfer_syntaxes

std::vector< transfer_syntax > all_transfer_syntaxes ( )

friend

Returns a list of all known Transfer Syntaxes.

Returns: Vector of all registered transfer_syntax instances

Definition at line 394 of file transfer_syntax.cpp.

                                                   {
    std::vector<transfer_syntax> result;
    result.reserve(TS_REGISTRY.size());

    for (const auto& entry : TS_REGISTRY) {
        result.push_back(transfer_syntax{entry.uid, entry.name, entry.endian,
                                         entry.vr, entry.encapsulated,
                                         entry.deflated, entry.supported});
    }
    return result;
}

◆ find_transfer_syntax

std::optional< transfer_syntax > find_transfer_syntax ( std::string_view uid )

friend

Allow registry functions to use private constructor.

Parameters

uid	The Transfer Syntax UID to search for

Returns: The transfer_syntax if found, std::nullopt otherwise

Definition at line 371 of file transfer_syntax.cpp.

                                                                      {
    if (const auto* entry = find_entry(uid)) {
        return transfer_syntax{entry->uid, entry->name, entry->endian,
                               entry->vr, entry->encapsulated, entry->deflated,
                               entry->supported};
    }
    return std::nullopt;
}

◆ supported_transfer_syntaxes

std::vector< transfer_syntax > supported_transfer_syntaxes ( )

friend

Returns a list of all supported Transfer Syntaxes.

Returns: Vector of supported transfer_syntax instances

Definition at line 380 of file transfer_syntax.cpp.

                                                         {
    std::vector<transfer_syntax> result;
    result.reserve(TS_REGISTRY.size());

    for (const auto& entry : TS_REGISTRY) {
        if (entry.supported) {
            result.push_back(transfer_syntax{entry.uid, entry.name, entry.endian,
                                             entry.vr, entry.encapsulated,
                                             entry.deflated, entry.supported});
        }
    }
    return result;
}

Member Data Documentation

◆ deflated_

bool kcenon::pacs::encoding::transfer_syntax::deflated_

private

Definition at line 200 of file transfer_syntax.h.

Referenced by is_deflated(), and transfer_syntax().

◆ deflated_explicit_vr_le

const transfer_syntax kcenon::pacs::encoding::transfer_syntax::deflated_explicit_vr_le

static

Initial value:

{
    "1.2.840.10008.1.2.1.99",
    "Deflated Explicit VR Little Endian",
    byte_order::little_endian,
    vr_encoding::explicit_vr,
    false, true, false}

Deflated Explicit VR Little Endian (1.2.840.10008.1.2.1.99)

Definition at line 119 of file transfer_syntax.h.

◆ encapsulated_

bool kcenon::pacs::encoding::transfer_syntax::encapsulated_

private

Definition at line 199 of file transfer_syntax.h.

Referenced by is_encapsulated(), and transfer_syntax().

◆ endianness_

byte_order kcenon::pacs::encoding::transfer_syntax::endianness_

private

Definition at line 197 of file transfer_syntax.h.

Referenced by endianness(), and transfer_syntax().

◆ explicit_vr_big_endian

const transfer_syntax kcenon::pacs::encoding::transfer_syntax::explicit_vr_big_endian

static

Initial value:

{
    "1.2.840.10008.1.2.2",
    "Explicit VR Big Endian",
    byte_order::big_endian,
    vr_encoding::explicit_vr,
    false, false, true}

Explicit VR Big Endian (1.2.840.10008.1.2.2) - Retired.

Definition at line 116 of file transfer_syntax.h.

◆ explicit_vr_little_endian

const transfer_syntax kcenon::pacs::encoding::transfer_syntax::explicit_vr_little_endian

static

Initial value:

{
    "1.2.840.10008.1.2.1",
    "Explicit VR Little Endian",
    byte_order::little_endian,
    vr_encoding::explicit_vr,
    false, false, true}

Explicit VR Little Endian (1.2.840.10008.1.2.1)

Examples: dcm_dir/main.cpp, get_scu/main.cpp, module_example/main.cpp, and retrieve_scu/main.cpp.

Definition at line 113 of file transfer_syntax.h.

Referenced by kcenon::pacs::storage::file_storage::store(), kcenon::pacs::storage::azure_blob_storage::store_with_progress(), and kcenon::pacs::storage::s3_storage::store_with_progress().

◆ frame_deflate

const transfer_syntax kcenon::pacs::encoding::transfer_syntax::frame_deflate

static

Initial value:

{
    "1.2.840.10008.1.2.11",
    "Frame Deflate",
    byte_order::little_endian,
    vr_encoding::explicit_vr,
    true, false, true}

Frame Deflate (1.2.840.10008.1.2.11) - Supplement 244.

Definition at line 161 of file transfer_syntax.h.

◆ hevc_main

const transfer_syntax kcenon::pacs::encoding::transfer_syntax::hevc_main

static

Initial value:

{
    "1.2.840.10008.1.2.4.107",
    "HEVC/H.265 Main Profile / Level 5.1",
    byte_order::little_endian,
    vr_encoding::explicit_vr,
    true, false, true}

HEVC/H.265 Main Profile / Level 5.1 (1.2.840.10008.1.2.4.107)

Definition at line 146 of file transfer_syntax.h.

◆ hevc_main10

const transfer_syntax kcenon::pacs::encoding::transfer_syntax::hevc_main10

static

Initial value:

{
    "1.2.840.10008.1.2.4.108",
    "HEVC/H.265 Main 10 Profile / Level 5.1",
    byte_order::little_endian,
    vr_encoding::explicit_vr,
    true, false, true}

HEVC/H.265 Main 10 Profile / Level 5.1 (1.2.840.10008.1.2.4.108)

Definition at line 149 of file transfer_syntax.h.

◆ htj2k_lossless

const transfer_syntax kcenon::pacs::encoding::transfer_syntax::htj2k_lossless

static

Initial value:

{
    "1.2.840.10008.1.2.4.201",
    "High-Throughput JPEG 2000 Image Compression (Lossless Only)",
    byte_order::little_endian,
    vr_encoding::explicit_vr,
    true, false, true}

HTJ2K Lossless Only (1.2.840.10008.1.2.4.201)

Definition at line 137 of file transfer_syntax.h.

◆ htj2k_lossy

const transfer_syntax kcenon::pacs::encoding::transfer_syntax::htj2k_lossy

static

Initial value:

{
    "1.2.840.10008.1.2.4.203",
    "High-Throughput JPEG 2000 Image Compression",
    byte_order::little_endian,
    vr_encoding::explicit_vr,
    true, false, true}

HTJ2K (1.2.840.10008.1.2.4.203) - Lossless or Lossy.

Definition at line 143 of file transfer_syntax.h.

◆ htj2k_rpcl

const transfer_syntax kcenon::pacs::encoding::transfer_syntax::htj2k_rpcl

static

Initial value:

{
    "1.2.840.10008.1.2.4.202",
    "High-Throughput JPEG 2000 with RPCL Options Image Compression (Lossless Only)",
    byte_order::little_endian,
    vr_encoding::explicit_vr,
    true, false, true}

HTJ2K RPCL (1.2.840.10008.1.2.4.202) - Lossless Only.

Definition at line 140 of file transfer_syntax.h.

◆ implicit_vr_little_endian

const transfer_syntax kcenon::pacs::encoding::transfer_syntax::implicit_vr_little_endian

static

Initial value:

{
    "1.2.840.10008.1.2",
    "Implicit VR Little Endian",
    byte_order::little_endian,
    vr_encoding::implicit,
    false, false, true}

Implicit VR Little Endian (1.2.840.10008.1.2)

Examples: module_example/main.cpp.

Definition at line 110 of file transfer_syntax.h.

◆ jpeg2000_lossless

const transfer_syntax kcenon::pacs::encoding::transfer_syntax::jpeg2000_lossless

static

Initial value:

{
    "1.2.840.10008.1.2.4.90",
    "JPEG 2000 Image Compression (Lossless Only)",
    byte_order::little_endian,
    vr_encoding::explicit_vr,
    true, false, false}

JPEG 2000 Image Compression (Lossless Only) (1.2.840.10008.1.2.4.90)

Definition at line 128 of file transfer_syntax.h.

◆ jpeg2000_lossy

const transfer_syntax kcenon::pacs::encoding::transfer_syntax::jpeg2000_lossy

static

Initial value:

{
    "1.2.840.10008.1.2.4.91",
    "JPEG 2000 Image Compression",
    byte_order::little_endian,
    vr_encoding::explicit_vr,
    true, false, false}

JPEG 2000 Image Compression (1.2.840.10008.1.2.4.91)

Definition at line 131 of file transfer_syntax.h.

◆ jpeg_baseline

const transfer_syntax kcenon::pacs::encoding::transfer_syntax::jpeg_baseline

static

Initial value:

{
    "1.2.840.10008.1.2.4.50",
    "JPEG Baseline (Process 1)",
    byte_order::little_endian,
    vr_encoding::explicit_vr,
    true, false, true}

JPEG Baseline (Process 1) (1.2.840.10008.1.2.4.50)

Definition at line 122 of file transfer_syntax.h.

◆ jpeg_lossless

const transfer_syntax kcenon::pacs::encoding::transfer_syntax::jpeg_lossless

static

Initial value:

{
    "1.2.840.10008.1.2.4.70",
    "JPEG Lossless, Non-Hierarchical, First-Order Prediction",
    byte_order::little_endian,
    vr_encoding::explicit_vr,
    true, false, false}

JPEG Lossless, Non-Hierarchical (1.2.840.10008.1.2.4.70)

Definition at line 125 of file transfer_syntax.h.

◆ jpegxl_jpeg_recompression

const transfer_syntax kcenon::pacs::encoding::transfer_syntax::jpegxl_jpeg_recompression

static

Initial value:

{
    "1.2.840.10008.1.2.4.111",
    "JPEG XL JPEG Recompression",
    byte_order::little_endian,
    vr_encoding::explicit_vr,
    true, false, true}

JPEG XL JPEG Recompression (1.2.840.10008.1.2.4.111) - Supplement 232.

Definition at line 155 of file transfer_syntax.h.

◆ jpegxl_lossless

const transfer_syntax kcenon::pacs::encoding::transfer_syntax::jpegxl_lossless

static

Initial value:

{
    "1.2.840.10008.1.2.4.110",
    "JPEG XL Lossless",
    byte_order::little_endian,
    vr_encoding::explicit_vr,
    true, false, true}

JPEG XL Lossless (1.2.840.10008.1.2.4.110) - Supplement 232.

Definition at line 152 of file transfer_syntax.h.

◆ jpegxl_lossy

const transfer_syntax kcenon::pacs::encoding::transfer_syntax::jpegxl_lossy

static

Initial value:

{
    "1.2.840.10008.1.2.4.112",
    "JPEG XL",
    byte_order::little_endian,
    vr_encoding::explicit_vr,
    true, false, true}

JPEG XL (1.2.840.10008.1.2.4.112) - Supplement 232.

Definition at line 158 of file transfer_syntax.h.

◆ name_

std::string kcenon::pacs::encoding::transfer_syntax::name_

private

Definition at line 196 of file transfer_syntax.h.

Referenced by name(), and transfer_syntax().

◆ rle_lossless

const transfer_syntax kcenon::pacs::encoding::transfer_syntax::rle_lossless

static

Initial value:

{
    "1.2.840.10008.1.2.5",
    "RLE Lossless",
    byte_order::little_endian,
    vr_encoding::explicit_vr,
    true, false, true}

RLE Lossless (1.2.840.10008.1.2.5)

Definition at line 134 of file transfer_syntax.h.

◆ supported_

bool kcenon::pacs::encoding::transfer_syntax::supported_

private

Definition at line 202 of file transfer_syntax.h.

Referenced by is_supported(), and transfer_syntax().

◆ uid_

std::string kcenon::pacs::encoding::transfer_syntax::uid_

private

Definition at line 195 of file transfer_syntax.h.

Referenced by uid().

◆ valid_

bool kcenon::pacs::encoding::transfer_syntax::valid_

private

Definition at line 201 of file transfer_syntax.h.

Referenced by is_valid(), and transfer_syntax().

◆ vr_type_

vr_encoding kcenon::pacs::encoding::transfer_syntax::vr_type_

private

Definition at line 198 of file transfer_syntax.h.

Referenced by transfer_syntax(), and vr_type().

The documentation for this class was generated from the following files:

include/kcenon/pacs/encoding/transfer_syntax.h
src/encoding/transfer_syntax.cpp

Public Member Functions

Static Public Attributes

Private Member Functions

Private Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ transfer_syntax() [1/2]

◆ transfer_syntax() [2/2]

Member Function Documentation

◆ endianness()

◆ is_deflated()

◆ is_encapsulated()

◆ is_supported()

◆ is_valid()

◆ name()

◆ operator!=()

◆ operator==()

◆ uid()

◆ vr_type()

Friends And Related Symbol Documentation

◆ all_transfer_syntaxes

◆ find_transfer_syntax

◆ supported_transfer_syntaxes

Member Data Documentation

◆ deflated_

◆ deflated_explicit_vr_le

◆ encapsulated_

◆ endianness_

◆ explicit_vr_big_endian

◆ explicit_vr_little_endian

◆ frame_deflate

◆ hevc_main

◆ hevc_main10

◆ htj2k_lossless

◆ htj2k_lossy

◆ htj2k_rpcl

◆ implicit_vr_little_endian

◆ jpeg2000_lossless

◆ jpeg2000_lossy

◆ jpeg_baseline

◆ jpeg_lossless

◆ jpegxl_jpeg_recompression

◆ jpegxl_lossless

◆ jpegxl_lossy

◆ name_

◆ rle_lossless

◆ supported_

◆ uid_

◆ valid_

◆ vr_type_
