kcenon::pacs::network::dimse Namespace Reference

Classes
class	dimse_message

Typedefs
template<typename T >
using	dimse_result = kcenon::pacs::Result<T>
	Result type for DIMSE operations using standardized kcenon::pacs::Result<T>
using	status_code = uint16_t
	DIMSE status code type alias.

Enumerations
enum class	command_field : uint16_t {   c_store_rq = 0x0001 , c_store_rsp = 0x8001 , c_get_rq = 0x0010 , c_get_rsp = 0x8010 ,   c_find_rq = 0x0020 , c_find_rsp = 0x8020 , c_move_rq = 0x0021 , c_move_rsp = 0x8021 ,   c_echo_rq = 0x0030 , c_echo_rsp = 0x8030 , c_cancel_rq = 0x0FFF , n_event_report_rq = 0x0100 ,   n_event_report_rsp = 0x8100 , n_get_rq = 0x0110 , n_get_rsp = 0x8110 , n_set_rq = 0x0120 ,   n_set_rsp = 0x8120 , n_action_rq = 0x0130 , n_action_rsp = 0x8130 , n_create_rq = 0x0140 ,   n_create_rsp = 0x8140 , n_delete_rq = 0x0150 , n_delete_rsp = 0x8150 }
	DIMSE command field values. More...
enum class	dimse_error {   success = 0 , invalid_command_set , missing_required_field , invalid_data_format ,   encoding_error , decoding_error }
	Error codes for DIMSE message operations. More...

Functions
constexpr std::string_view	to_string (dimse_error err) noexcept
	Get error description.

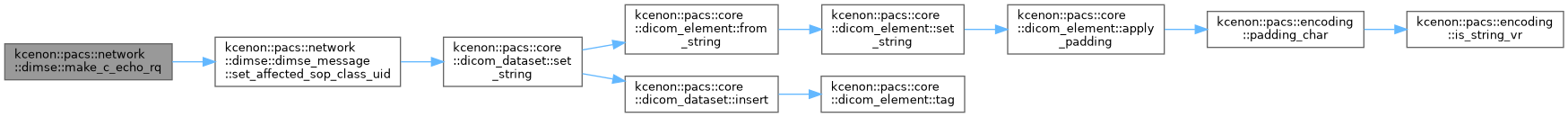

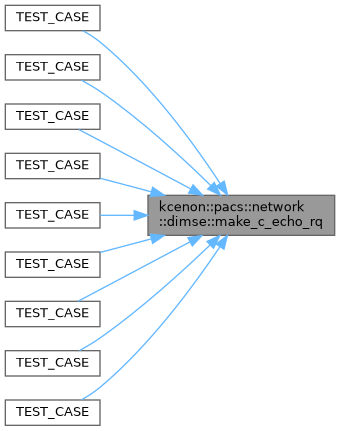

auto	make_c_echo_rq (uint16_t message_id, std::string_view sop_class_uid="1.2.840.10008.1.1") -> dimse_message
	Create a C-ECHO request message.

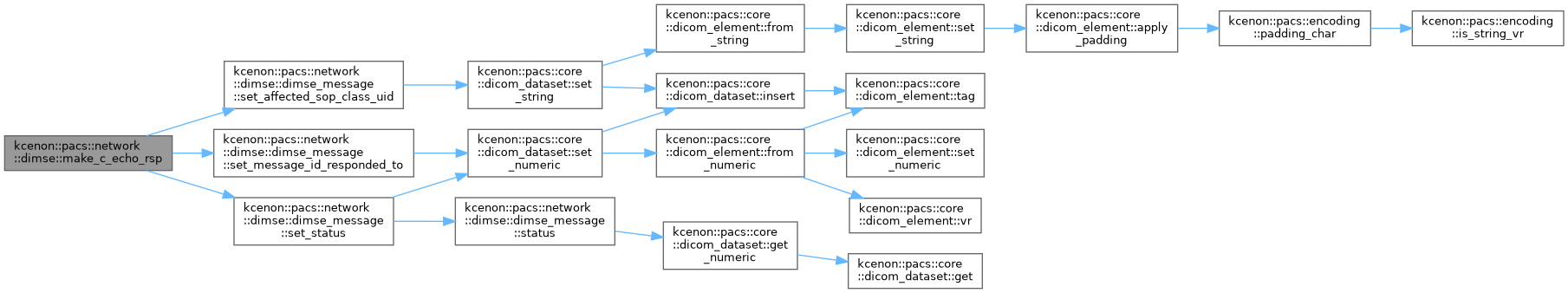

auto	make_c_echo_rsp (uint16_t message_id_responded_to, status_code status=status_success, std::string_view sop_class_uid="1.2.840.10008.1.1") -> dimse_message
	Create a C-ECHO response message.

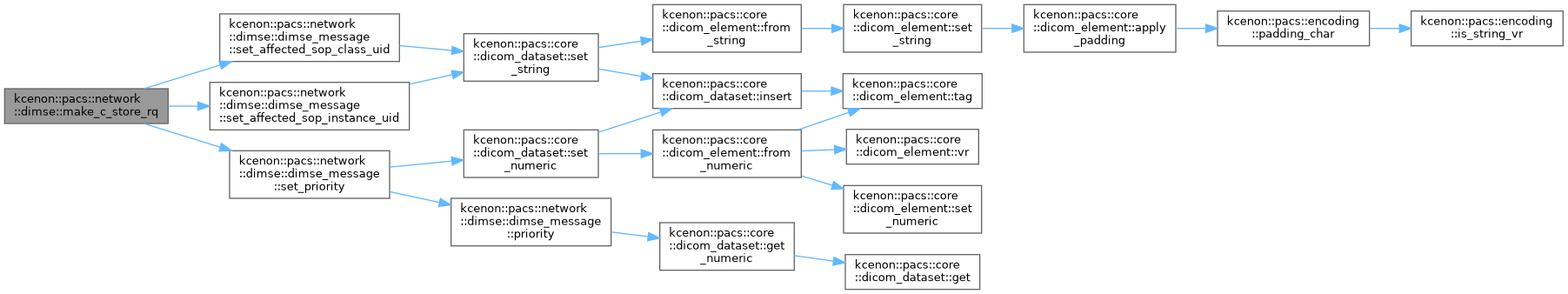

auto	make_c_store_rq (uint16_t message_id, std::string_view sop_class_uid, std::string_view sop_instance_uid, uint16_t priority=priority_medium) -> dimse_message
	Create a C-STORE request message.

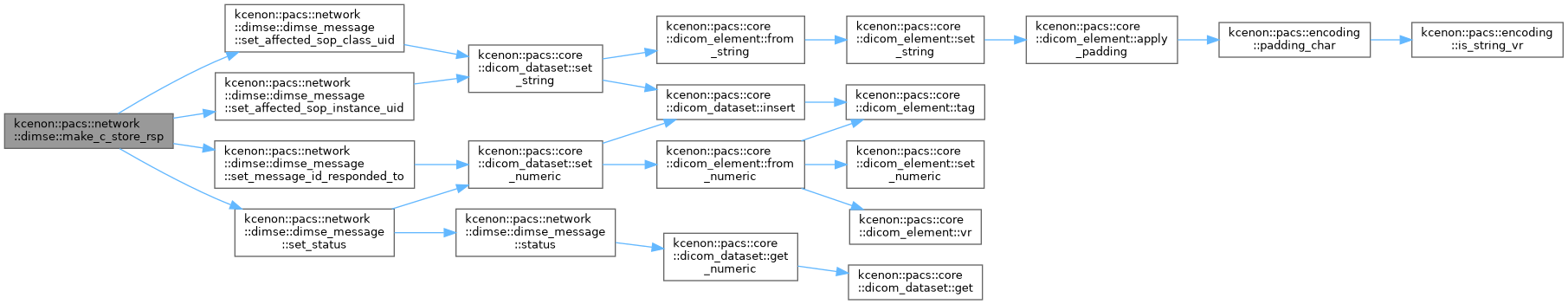

auto	make_c_store_rsp (uint16_t message_id_responded_to, std::string_view sop_class_uid, std::string_view sop_instance_uid, status_code status=status_success) -> dimse_message
	Create a C-STORE response message.

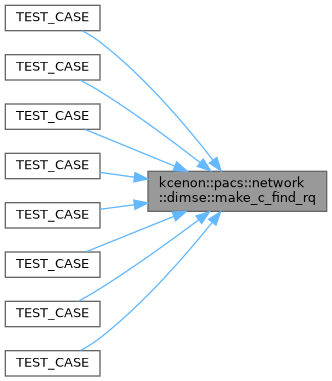

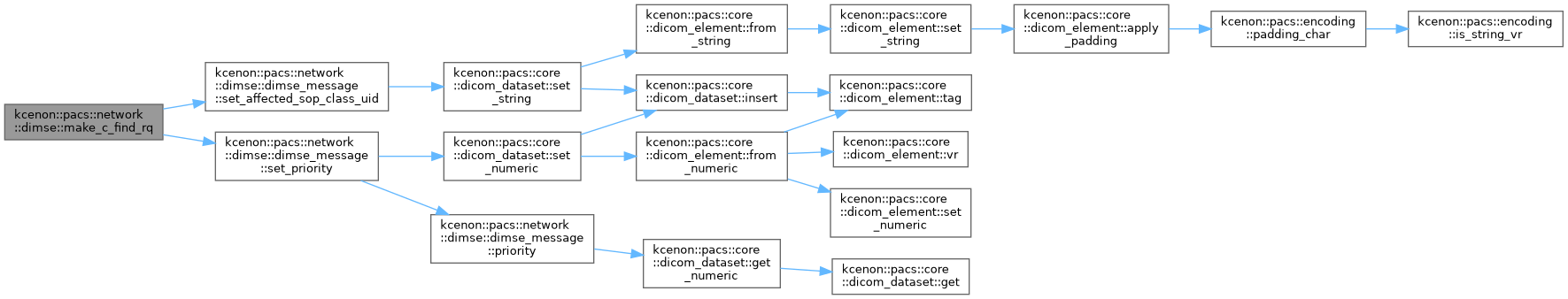

auto	make_c_find_rq (uint16_t message_id, std::string_view sop_class_uid, uint16_t priority=priority_medium) -> dimse_message
	Create a C-FIND request message.
auto	make_c_find_rsp (uint16_t message_id_responded_to, std::string_view sop_class_uid, status_code status) -> dimse_message
	Create a C-FIND response message.
auto	make_n_create_rq (uint16_t message_id, std::string_view sop_class_uid, std::string_view sop_instance_uid="") -> dimse_message
	Create an N-CREATE request message.
auto	make_n_create_rsp (uint16_t message_id_responded_to, std::string_view sop_class_uid, std::string_view sop_instance_uid, status_code status=status_success) -> dimse_message
	Create an N-CREATE response message.

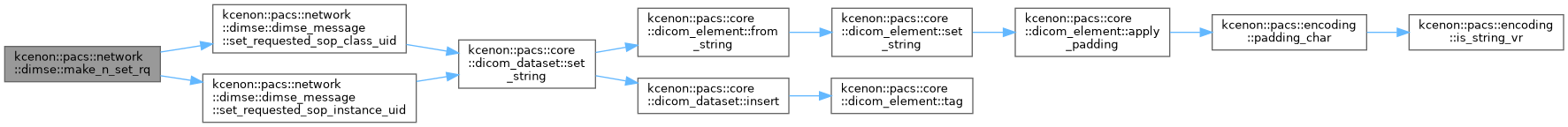

auto	make_n_set_rq (uint16_t message_id, std::string_view sop_class_uid, std::string_view sop_instance_uid) -> dimse_message
	Create an N-SET request message.
auto	make_n_set_rsp (uint16_t message_id_responded_to, std::string_view sop_class_uid, std::string_view sop_instance_uid, status_code status=status_success) -> dimse_message
	Create an N-SET response message.

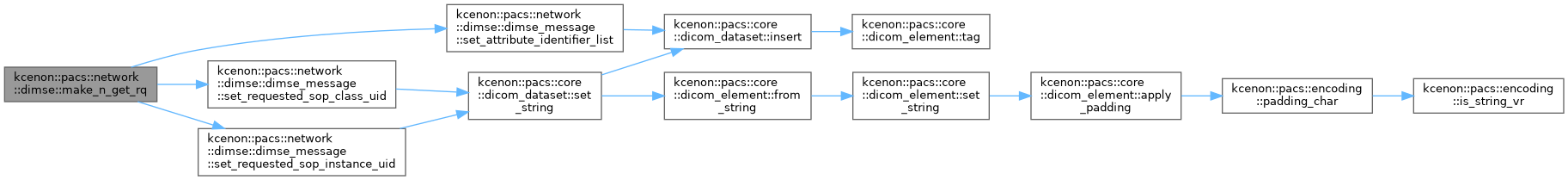

auto	make_n_get_rq (uint16_t message_id, std::string_view sop_class_uid, std::string_view sop_instance_uid, const std::vector< core::dicom_tag > &attribute_tags={}) -> dimse_message
	Create an N-GET request message.
auto	make_n_get_rsp (uint16_t message_id_responded_to, std::string_view sop_class_uid, std::string_view sop_instance_uid, status_code status=status_success) -> dimse_message
	Create an N-GET response message.

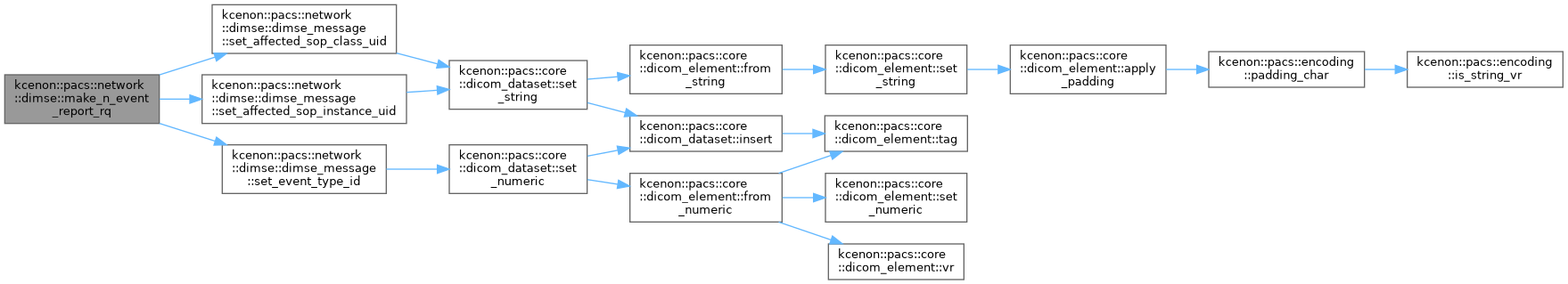

auto	make_n_event_report_rq (uint16_t message_id, std::string_view sop_class_uid, std::string_view sop_instance_uid, uint16_t event_type_id) -> dimse_message
	Create an N-EVENT-REPORT request message.

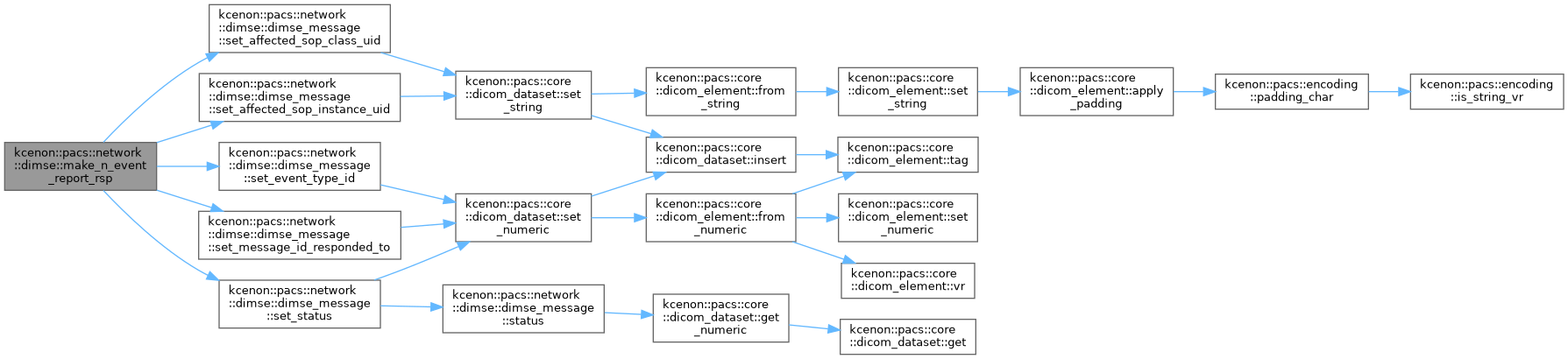

auto	make_n_event_report_rsp (uint16_t message_id_responded_to, std::string_view sop_class_uid, std::string_view sop_instance_uid, uint16_t event_type_id, status_code status=status_success) -> dimse_message
	Create an N-EVENT-REPORT response message.

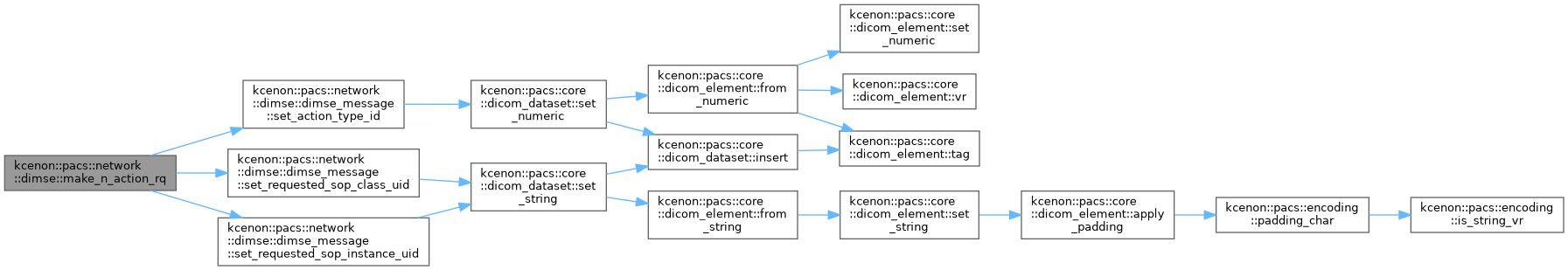

auto	make_n_action_rq (uint16_t message_id, std::string_view sop_class_uid, std::string_view sop_instance_uid, uint16_t action_type_id) -> dimse_message
	Create an N-ACTION request message.

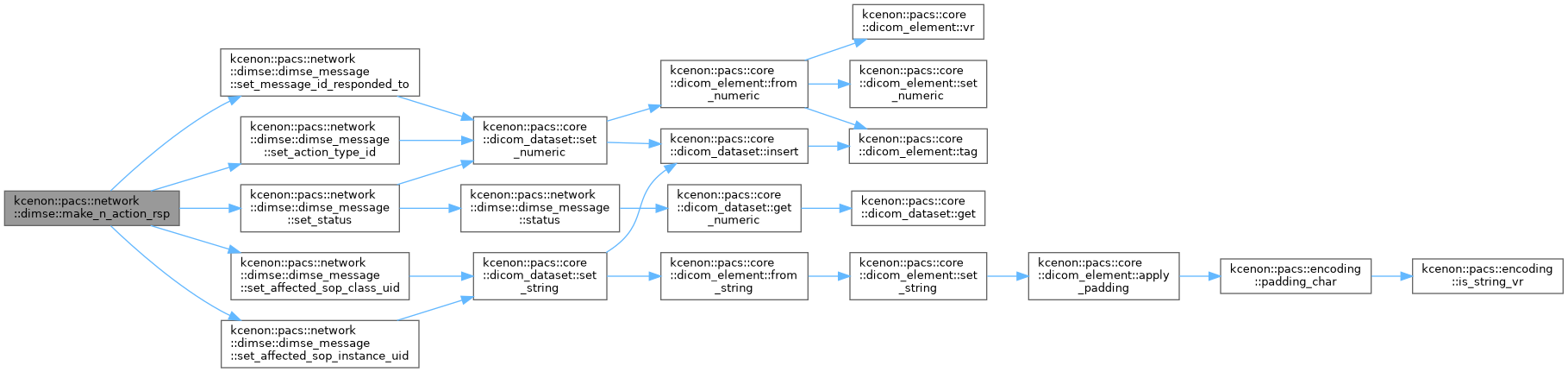

auto	make_n_action_rsp (uint16_t message_id_responded_to, std::string_view sop_class_uid, std::string_view sop_instance_uid, uint16_t action_type_id, status_code status=status_success) -> dimse_message
	Create an N-ACTION response message.

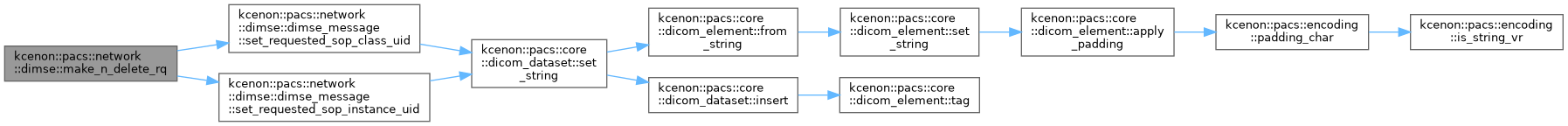

auto	make_n_delete_rq (uint16_t message_id, std::string_view sop_class_uid, std::string_view sop_instance_uid) -> dimse_message
	Create an N-DELETE request message.

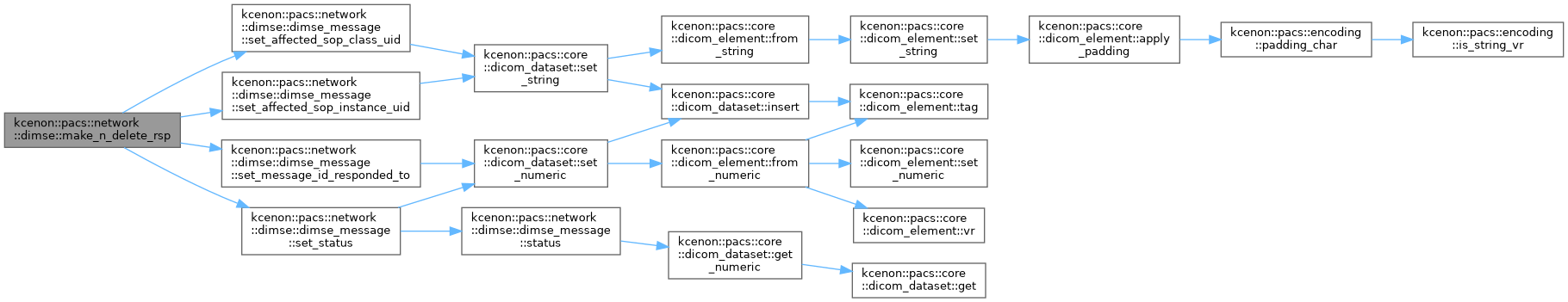

auto	make_n_delete_rsp (uint16_t message_id_responded_to, std::string_view sop_class_uid, std::string_view sop_instance_uid, status_code status=status_success) -> dimse_message
	Create an N-DELETE response message.
Command Field Utilities

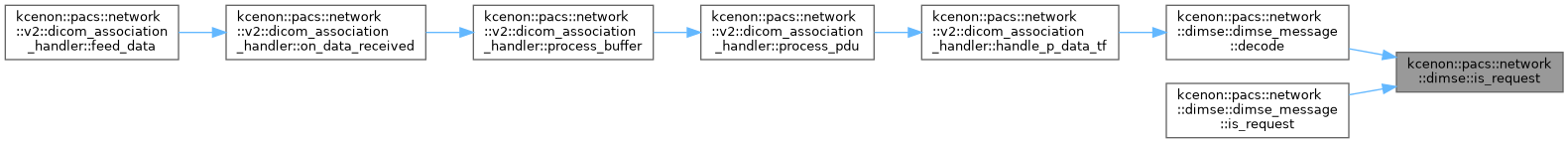

constexpr bool	is_request (command_field cmd) noexcept
	Check if a command field represents a request.
constexpr bool	is_response (command_field cmd) noexcept
	Check if a command field represents a response.
constexpr bool	is_dimse_c (command_field cmd) noexcept
	Check if a command is a DIMSE-C command.
constexpr bool	is_dimse_n (command_field cmd) noexcept
	Check if a command is a DIMSE-N command.
constexpr command_field	get_response_command (command_field request) noexcept
	Get the corresponding response command for a request.
constexpr command_field	get_request_command (command_field response) noexcept
	Get the corresponding request command for a response.
constexpr std::string_view	to_string (command_field cmd) noexcept
	Convert command field to string representation.
Status Type Categories
constexpr bool	is_success (status_code status) noexcept
	Check if status indicates success.

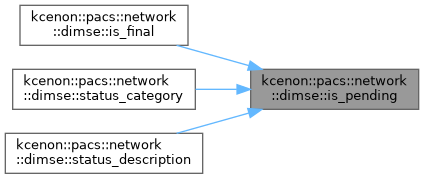

constexpr bool	is_pending (status_code status) noexcept
	Check if status indicates pending (more results)
constexpr bool	is_cancel (status_code status) noexcept
	Check if status indicates cancellation.
constexpr bool	is_warning (status_code status) noexcept
	Check if status indicates a warning.

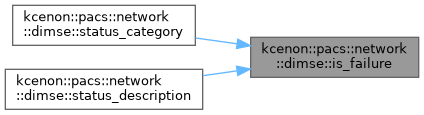

constexpr bool	is_failure (status_code status) noexcept
	Check if status indicates a failure.
constexpr bool	is_final (status_code status) noexcept
	Check if this is a final status (operation complete)
Status Code String Conversion

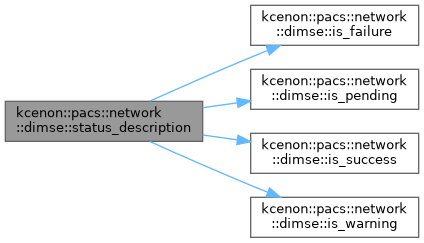

constexpr std::string_view	status_description (status_code status) noexcept
	Get a human-readable description of a status code.

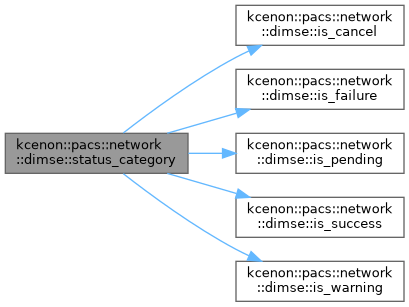

constexpr std::string_view	status_category (status_code status) noexcept
	Get the category name for a status code.

Variables
DIMSE Command Tags
constexpr core::dicom_tag	tag_command_group_length {0x0000, 0x0000}
	Command Group Length (0000,0000) - UL.
constexpr core::dicom_tag	tag_affected_sop_class_uid {0x0000, 0x0002}
	Affected SOP Class UID (0000,0002) - UI.
constexpr core::dicom_tag	tag_requested_sop_class_uid {0x0000, 0x0003}
	Requested SOP Class UID (0000,0003) - UI.
constexpr core::dicom_tag	tag_command_field {0x0000, 0x0100}
	Command Field (0000,0100) - US.
constexpr core::dicom_tag	tag_message_id {0x0000, 0x0110}
	Message ID (0000,0110) - US.
constexpr core::dicom_tag	tag_message_id_responded_to {0x0000, 0x0120}
	Message ID Being Responded To (0000,0120) - US.
constexpr core::dicom_tag	tag_move_destination {0x0000, 0x0600}
	Move Destination (0000,0600) - AE.
constexpr core::dicom_tag	tag_priority {0x0000, 0x0700}
	Priority (0000,0700) - US.
constexpr core::dicom_tag	tag_command_data_set_type {0x0000, 0x0800}
	Command Data Set Type (0000,0800) - US.
constexpr core::dicom_tag	tag_status {0x0000, 0x0900}
	Status (0000,0900) - US.
constexpr core::dicom_tag	tag_offending_element {0x0000, 0x0901}
	Offending Element (0000,0901) - AT.
constexpr core::dicom_tag	tag_error_comment {0x0000, 0x0902}
	Error Comment (0000,0902) - LO.
constexpr core::dicom_tag	tag_error_id {0x0000, 0x0903}
	Error ID (0000,0903) - US.
constexpr core::dicom_tag	tag_affected_sop_instance_uid {0x0000, 0x1000}
	Affected SOP Instance UID (0000,1000) - UI.
constexpr core::dicom_tag	tag_requested_sop_instance_uid {0x0000, 0x1001}
	Requested SOP Instance UID (0000,1001) - UI.
constexpr core::dicom_tag	tag_event_type_id {0x0000, 0x1002}
	Event Type ID (0000,1002) - US.
constexpr core::dicom_tag	tag_attribute_identifier_list {0x0000, 0x1005}
	Attribute Identifier List (0000,1005) - AT.
constexpr core::dicom_tag	tag_action_type_id {0x0000, 0x1008}
	Action Type ID (0000,1008) - US.
constexpr core::dicom_tag	tag_number_of_remaining_subops {0x0000, 0x1020}
	Number of Remaining Sub-operations (0000,1020) - US.
constexpr core::dicom_tag	tag_number_of_completed_subops {0x0000, 0x1021}
	Number of Completed Sub-operations (0000,1021) - US.
constexpr core::dicom_tag	tag_number_of_failed_subops {0x0000, 0x1022}
	Number of Failed Sub-operations (0000,1022) - US.
constexpr core::dicom_tag	tag_number_of_warning_subops {0x0000, 0x1023}
	Number of Warning Sub-operations (0000,1023) - US.
constexpr core::dicom_tag	tag_move_originator_aet {0x0000, 0x1030}
	Move Originator Application Entity Title (0000,1030) - AE.
constexpr core::dicom_tag	tag_move_originator_message_id {0x0000, 0x1031}
	Move Originator Message ID (0000,1031) - US.
Command Data Set Type Values
constexpr uint16_t	command_data_set_type_null = 0x0101
	Null value indicating no data set present.
constexpr uint16_t	command_data_set_type_present = 0x0001
	Value indicating data set is present (any value other than 0x0101)
Priority Values
constexpr uint16_t	priority_low = 0x0002
	Low priority.
constexpr uint16_t	priority_medium = 0x0000
	Medium priority.
constexpr uint16_t	priority_high = 0x0001
	High priority.
General Status Codes
constexpr status_code	status_success = 0x0000
	Operation completed successfully.
constexpr status_code	status_pending = 0xFF00
	Operation pending (more results available)
constexpr status_code	status_pending_warning = 0xFF01
	Pending with optional keys not supported.
constexpr status_code	status_cancel = 0xFE00
	Operation was canceled.
Failure Status Codes (0xCxxx, 0xAxxx)
constexpr status_code	status_refused_out_of_resources = 0xA700
	Refused: Out of resources.
constexpr status_code	status_refused_out_of_resources_matches = 0xA701
	Refused: Out of resources - Unable to calculate number of matches.
constexpr status_code	status_refused_out_of_resources_subops = 0xA702
	Refused: Out of resources - Unable to perform sub-operations.
constexpr status_code	status_refused_move_destination_unknown = 0xA801
	Refused: Move destination unknown.
constexpr status_code	status_refused_sop_class_not_supported = 0x0122
	Refused: SOP class not supported.
constexpr status_code	status_error_dataset_mismatch = 0xA900
	Error: Data set does not match SOP class.
constexpr status_code	status_error_cannot_understand = 0xC000
	Error: Cannot understand.
constexpr status_code	status_error_unable_to_process = 0xC001
	Error: Unable to process.
constexpr status_code	status_error_duplicate_sop_instance = 0x0111
	Error: Duplicate SOP instance.
constexpr status_code	status_error_missing_attribute = 0x0120
	Error: Missing attribute.
constexpr status_code	status_error_missing_attribute_value = 0x0121
	Error: Missing attribute value.
DIMSE-N Specific Failure Status Codes
constexpr status_code	status_error_attribute_list_error = 0x0107
	Error: Attribute list error (N-CREATE)
constexpr status_code	status_error_attribute_value_out_of_range = 0x0116
	Error: Attribute value out of range (N-SET)
constexpr status_code	status_error_invalid_object_instance = 0x0117
	Error: Invalid object instance (N-SET, N-GET, N-ACTION, N-DELETE)
constexpr status_code	status_error_no_such_sop_class = 0x0118
	Error: No such SOP class (All DIMSE-N)
constexpr status_code	status_error_class_instance_conflict = 0x0119
	Error: Class-instance conflict (All DIMSE-N)
constexpr status_code	status_error_not_authorized = 0x0124
	Error: Not authorized (All DIMSE-N)
constexpr status_code	status_error_duplicate_invocation = 0x0210
	Error: Duplicate invocation (All DIMSE-N)
constexpr status_code	status_error_unrecognized_operation = 0x0211
	Error: Unrecognized operation (All DIMSE-N)
constexpr status_code	status_error_mistyped_argument = 0x0212
	Error: Mistyped argument (All DIMSE-N)
constexpr status_code	status_error_resource_limitation = 0x0213
	Error: Resource limitation (All DIMSE-N)
constexpr status_code	status_error_no_such_action_type = 0x0123
	Error: No such action type (N-ACTION)
constexpr status_code	status_error_no_such_event_type = 0x0113
	Error: No such event type (N-EVENT-REPORT)
constexpr status_code	status_error_processing_failure = 0x0110
	Error: Processing failure (All DIMSE-N)
Warning Status Codes (0xBxxx)
constexpr status_code	status_warning_coercion = 0xB000
	Warning: Coercion of data elements.
constexpr status_code	status_warning_dataset_mismatch = 0xB007
	Warning: Data set does not match SOP class (non-fatal)
constexpr status_code	status_warning_elements_discarded = 0xB006
	Warning: Elements discarded.
constexpr status_code	status_warning_subops_complete_failures = 0xB000
	Warning: Sub-operations complete with failures.

Typedef Documentation

dimse_result

template<typename T >

using kcenon::pacs::network::dimse::dimse_result = kcenon::pacs::Result<T>

Result type for DIMSE operations using standardized kcenon::pacs::Result<T>

Template Parameters

T	The success value type

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 176 of file dimse_message.h.

status_code

using kcenon::pacs::network::dimse::status_code = uint16_t

DIMSE status code type alias.

Status codes are 16-bit unsigned integers. The high nibble indicates the status type (Success, Warning, Failure, etc.)

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 32 of file status_codes.h.

Enumeration Type Documentation

command_field

enum class kcenon::pacs::network::dimse::command_field : uint16_t

strong

DIMSE command field values.

These values represent the Command Field (0000,0100) in DICOM command sets. Request commands have values in the range 0x0001-0x0FFF, while response commands have values in the range 0x8001-0x8FFF.

The pattern is: response = request | 0x8000

Enumerator
c_store_rq	C-STORE Request - Store composite SOP instance.
c_store_rsp	C-STORE Response.
c_get_rq	C-GET Request - Retrieve composite SOP instances.
c_get_rsp	C-GET Response.
c_find_rq	C-FIND Request - Query for matching instances.
c_find_rsp	C-FIND Response.
c_move_rq	C-MOVE Request - Move composite SOP instances.
c_move_rsp	C-MOVE Response.
c_echo_rq	C-ECHO Request - Verify DICOM connection.
c_echo_rsp	C-ECHO Response.
c_cancel_rq	C-CANCEL Request - Cancel pending operation.
n_event_report_rq	N-EVENT-REPORT Request - Report event notification.
n_event_report_rsp	N-EVENT-REPORT Response.
n_get_rq	N-GET Request - Get attribute values.
n_get_rsp	N-GET Response.
n_set_rq	N-SET Request - Set attribute values.
n_set_rsp	N-SET Response.
n_action_rq	N-ACTION Request - Request action.
n_action_rsp	N-ACTION Response.
n_create_rq	N-CREATE Request - Create SOP instance.
n_create_rsp	N-CREATE Response.
n_delete_rq	N-DELETE Request - Delete SOP instance.
n_delete_rsp	N-DELETE Response.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 35 of file command_field.h.

                         : uint16_t {
    // ========================================================================
    // DIMSE-C Commands (Composite SOP Classes)
    // ========================================================================

    c_store_rq = 0x0001,
    c_store_rsp = 0x8001,

    c_get_rq = 0x0010,
    c_get_rsp = 0x8010,

    c_find_rq = 0x0020,
    c_find_rsp = 0x8020,

    c_move_rq = 0x0021,
    c_move_rsp = 0x8021,

    c_echo_rq = 0x0030,
    c_echo_rsp = 0x8030,

    c_cancel_rq = 0x0FFF,

    // ========================================================================
    // DIMSE-N Commands (Normalized SOP Classes)
    // ========================================================================

    n_event_report_rq = 0x0100,
    n_event_report_rsp = 0x8100,

    n_get_rq = 0x0110,
    n_get_rsp = 0x8110,

    n_set_rq = 0x0120,
    n_set_rsp = 0x8120,

    n_action_rq = 0x0130,
    n_action_rsp = 0x8130,

    n_create_rq = 0x0140,
    n_create_rsp = 0x8140,

    n_delete_rq = 0x0150,
    n_delete_rsp = 0x8150,
};

dimse_error

enum class kcenon::pacs::network::dimse::dimse_error

strong

Error codes for DIMSE message operations.

Enumerator
success
invalid_command_set
missing_required_field
invalid_data_format
encoding_error
decoding_error

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 146 of file dimse_message.h.

                       {
    success = 0,
    invalid_command_set,
    missing_required_field,
    invalid_data_format,
    encoding_error,
    decoding_error,
};

Function Documentation

get_request_command()

command_field kcenon::pacs::network::dimse::get_request_command ( command_field response )

nodiscardconstexprnoexcept

Get the corresponding request command for a response.

Parameters

response

The response command field

Returns

The corresponding request command field

Definition at line 162 of file command_field.h.

                                     {
    return static_cast<command_field>(static_cast<uint16_t>(response) & 0x7FFF);
}

get_response_command()

command_field kcenon::pacs::network::dimse::get_response_command ( command_field request )

nodiscardconstexprnoexcept

Get the corresponding response command for a request.

Parameters

request

The request command field

Returns

The corresponding response command field

Note

Behavior is undefined if called with C-CANCEL-RQ (has no response)

Definition at line 152 of file command_field.h.

                                    {
    return static_cast<command_field>(static_cast<uint16_t>(request) | 0x8000);
}

is_cancel()

bool kcenon::pacs::network::dimse::is_cancel ( status_code status )

nodiscardconstexprnoexcept

Check if status indicates cancellation.

Parameters

status

The status code to check

Returns

true if operation was canceled

Definition at line 176 of file status_codes.h.

                                                                    {
    return status == status_cancel;
}

References status_cancel.

Referenced by status_category().

Here is the caller graph for this function:

is_dimse_c()

bool kcenon::pacs::network::dimse::is_dimse_c ( command_field cmd )

nodiscardconstexprnoexcept

Check if a command is a DIMSE-C command.

Parameters

cmd	The command field to check

Returns

true if the command is a DIMSE-C (composite) command

Definition at line 129 of file command_field.h.

                                                                    {
    // Remove response bit (0x8000) and check range
    const auto value = static_cast<uint16_t>(cmd) & 0x7FFF;
    return value <= 0x0030 || value == 0x0FFF;
}

is_dimse_n()

bool kcenon::pacs::network::dimse::is_dimse_n ( command_field cmd )

nodiscardconstexprnoexcept

Check if a command is a DIMSE-N command.

Parameters

cmd	The command field to check

Returns

true if the command is a DIMSE-N (normalized) command

Definition at line 140 of file command_field.h.

                                                                    {
    // Remove response bit (0x8000) and check range
    const auto value = static_cast<uint16_t>(cmd) & 0x7FFF;
    return value >= 0x0100 && value <= 0x0150;
}

is_failure()

bool kcenon::pacs::network::dimse::is_failure ( status_code status )

nodiscardconstexprnoexcept

Check if status indicates a failure.

Parameters

status

The status code to check

Returns

true if operation failed

Failure status codes start with 0xA or 0xC in the high nibble, or have specific values like 0x01xx (DIMSE-N errors) or 0x02xx (protocol errors).

Definition at line 197 of file status_codes.h.

                                                                     {
    const auto high_nibble = (status & 0xF000) >> 12;
    return high_nibble == 0xA || high_nibble == 0xC ||
           (status >= 0x0100 && status <= 0x02FF);
}

Referenced by status_category(), and status_description().

Here is the caller graph for this function:

is_final()

bool kcenon::pacs::network::dimse::is_final ( status_code status )

nodiscardconstexprnoexcept

Check if this is a final status (operation complete)

Parameters

status

The status code to check

Returns

true if this indicates the operation is complete

Definition at line 208 of file status_codes.h.

                                                                   {
    return !is_pending(status);
}

References is_pending().

Here is the call graph for this function:

is_pending()

bool kcenon::pacs::network::dimse::is_pending ( status_code status )

nodiscardconstexprnoexcept

Check if status indicates pending (more results)

Parameters

status

The status code to check

Returns

true if more results are pending

Definition at line 167 of file status_codes.h.

                                                                     {
    return status == status_pending || status == status_pending_warning;
}

References status_pending_warning.

Referenced by is_final(), status_category(), and status_description().

Here is the caller graph for this function:

is_request()

bool kcenon::pacs::network::dimse::is_request ( command_field cmd )

nodiscardconstexprnoexcept

Check if a command field represents a request.

Parameters

cmd	The command field to check

Returns

true if the command is a request (not a response)

Definition at line 111 of file command_field.h.

                                                                    {
    return (static_cast<uint16_t>(cmd) & 0x8000) == 0;
}

Referenced by kcenon::pacs::network::dimse::dimse_message::decode(), and kcenon::pacs::network::dimse::dimse_message::is_request().

Here is the caller graph for this function:

is_response()

bool kcenon::pacs::network::dimse::is_response ( command_field cmd )

nodiscardconstexprnoexcept

Check if a command field represents a response.

Parameters

cmd	The command field to check

Returns

true if the command is a response

Definition at line 120 of file command_field.h.

                                                                     {
    return (static_cast<uint16_t>(cmd) & 0x8000) != 0;
}

Referenced by kcenon::pacs::network::dimse::dimse_message::is_response().

Here is the caller graph for this function:

is_success()

bool kcenon::pacs::network::dimse::is_success ( status_code status )

nodiscardconstexprnoexcept

Check if status indicates success.

Parameters

status

The status code to check

Returns

true if operation was successful

Definition at line 158 of file status_codes.h.

                                                                     {
    return status == status_success;
}

References status_success.

Referenced by status_category(), and status_description().

Here is the caller graph for this function:

is_warning()

bool kcenon::pacs::network::dimse::is_warning ( status_code status )

nodiscardconstexprnoexcept

Check if status indicates a warning.

Parameters

status

The status code to check

Returns

true if operation completed with warning

Definition at line 185 of file status_codes.h.

                                                                     {
    return (status & 0xF000) == 0xB000;
}

Referenced by status_category(), and status_description().

Here is the caller graph for this function:

make_c_echo_rq()

auto kcenon::pacs::network::dimse::make_c_echo_rq ( uint16_t message_id, std::string_view sop_class_uid = "1.2.840.10008.1.1" ) -> dimse_message

nodiscard

Create a C-ECHO request message.

Parameters

message_id	The message ID
sop_class_uid	The Verification SOP Class UID

Returns

The constructed message

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 386 of file dimse_message.cpp.

                     {
    dimse_message msg(command_field::c_echo_rq, message_id);
    msg.set_affected_sop_class_uid(sop_class_uid);
    return msg;
}

References c_echo_rq, and kcenon::pacs::network::dimse::dimse_message::set_affected_sop_class_uid().

Referenced by TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), and TEST_CASE().

Here is the call graph for this function:

Here is the caller graph for this function:

make_c_echo_rsp()

auto kcenon::pacs::network::dimse::make_c_echo_rsp ( uint16_t message_id_responded_to, status_code status = status_success, std::string_view sop_class_uid = "1.2.840.10008.1.1" ) -> dimse_message

nodiscard

Create a C-ECHO response message.

Parameters

message_id_responded_to	The message ID being responded to
status	The response status code
sop_class_uid	The Verification SOP Class UID

Returns

The constructed message

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 393 of file dimse_message.cpp.

                                                                    {
    dimse_message msg(command_field::c_echo_rsp, 0);
    msg.set_message_id_responded_to(message_id_responded_to);
    msg.set_affected_sop_class_uid(sop_class_uid);
    msg.set_status(status);
    return msg;
}

References c_echo_rsp, kcenon::pacs::network::dimse::dimse_message::set_affected_sop_class_uid(), kcenon::pacs::network::dimse::dimse_message::set_message_id_responded_to(), and kcenon::pacs::network::dimse::dimse_message::set_status().

Here is the call graph for this function:

make_c_find_rq()

auto kcenon::pacs::network::dimse::make_c_find_rq ( uint16_t message_id, std::string_view sop_class_uid, uint16_t priority = priority_medium ) -> dimse_message

nodiscard

Create a C-FIND request message.

Parameters

message_id	The message ID
sop_class_uid	The Query/Retrieve SOP Class UID
priority	Operation priority

Returns

The constructed message

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 424 of file dimse_message.cpp.

                                                        {
    dimse_message msg(command_field::c_find_rq, message_id);
    msg.set_affected_sop_class_uid(sop_class_uid);
    msg.set_priority(priority);
    return msg;
}

References c_find_rq, kcenon::pacs::network::dimse::dimse_message::set_affected_sop_class_uid(), and kcenon::pacs::network::dimse::dimse_message::set_priority().

Referenced by TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), and TEST_CASE().

Here is the call graph for this function:

Here is the caller graph for this function:

make_c_find_rsp()

auto kcenon::pacs::network::dimse::make_c_find_rsp ( uint16_t message_id_responded_to, std::string_view sop_class_uid, status_code status ) -> dimse_message

nodiscard

Create a C-FIND response message.

Parameters

message_id_responded_to	The message ID being responded to
sop_class_uid	The Query/Retrieve SOP Class UID
status	The response status code

Returns

The constructed message

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 432 of file dimse_message.cpp.

                     {
    dimse_message msg(command_field::c_find_rsp, 0);
    msg.set_message_id_responded_to(message_id_responded_to);
    msg.set_affected_sop_class_uid(sop_class_uid);
    msg.set_status(status);
    return msg;
}

References c_find_rsp, kcenon::pacs::network::dimse::dimse_message::set_affected_sop_class_uid(), kcenon::pacs::network::dimse::dimse_message::set_message_id_responded_to(), and kcenon::pacs::network::dimse::dimse_message::set_status().

Here is the call graph for this function:

make_c_store_rq()

auto kcenon::pacs::network::dimse::make_c_store_rq ( uint16_t message_id, std::string_view sop_class_uid, std::string_view sop_instance_uid, uint16_t priority = priority_medium ) -> dimse_message

nodiscard

Create a C-STORE request message.

Parameters

message_id	The message ID
sop_class_uid	The SOP Class UID
sop_instance_uid	The SOP Instance UID
priority	Operation priority

Returns

The constructed message

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 402 of file dimse_message.cpp.

                     {
    dimse_message msg(command_field::c_store_rq, message_id);
    msg.set_affected_sop_class_uid(sop_class_uid);
    msg.set_affected_sop_instance_uid(sop_instance_uid);
    msg.set_priority(priority);
    return msg;
}

References c_store_rq, kcenon::pacs::network::dimse::dimse_message::set_affected_sop_class_uid(), kcenon::pacs::network::dimse::dimse_message::set_affected_sop_instance_uid(), and kcenon::pacs::network::dimse::dimse_message::set_priority().

Here is the call graph for this function:

make_c_store_rsp()

auto kcenon::pacs::network::dimse::make_c_store_rsp ( uint16_t message_id_responded_to, std::string_view sop_class_uid, std::string_view sop_instance_uid, status_code status = status_success ) -> dimse_message

nodiscard

Create a C-STORE response message.

Parameters

message_id_responded_to	The message ID being responded to
sop_class_uid	The SOP Class UID
sop_instance_uid	The SOP Instance UID
status	The response status code

Returns

The constructed message

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 412 of file dimse_message.cpp.

                     {
    dimse_message msg(command_field::c_store_rsp, 0);
    msg.set_message_id_responded_to(message_id_responded_to);
    msg.set_affected_sop_class_uid(sop_class_uid);
    msg.set_affected_sop_instance_uid(sop_instance_uid);
    msg.set_status(status);
    return msg;
}

References c_store_rsp, kcenon::pacs::network::dimse::dimse_message::set_affected_sop_class_uid(), kcenon::pacs::network::dimse::dimse_message::set_affected_sop_instance_uid(), kcenon::pacs::network::dimse::dimse_message::set_message_id_responded_to(), and kcenon::pacs::network::dimse::dimse_message::set_status().

Here is the call graph for this function:

make_n_action_rq()

auto kcenon::pacs::network::dimse::make_n_action_rq ( uint16_t message_id, std::string_view sop_class_uid, std::string_view sop_instance_uid, uint16_t action_type_id ) -> dimse_message

nodiscard

Create an N-ACTION request message.

Parameters

message_id	The message ID
sop_class_uid	The Requested SOP Class UID
sop_instance_uid	The Requested SOP Instance UID
action_type_id	The action type identifier

Returns

The constructed message

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 537 of file dimse_message.cpp.

                     {
    dimse_message msg(command_field::n_action_rq, message_id);
    msg.set_requested_sop_class_uid(sop_class_uid);
    msg.set_requested_sop_instance_uid(sop_instance_uid);
    msg.set_action_type_id(action_type_id);
    return msg;
}

References n_action_rq, kcenon::pacs::network::dimse::dimse_message::set_action_type_id(), kcenon::pacs::network::dimse::dimse_message::set_requested_sop_class_uid(), and kcenon::pacs::network::dimse::dimse_message::set_requested_sop_instance_uid().

Here is the call graph for this function:

make_n_action_rsp()

auto kcenon::pacs::network::dimse::make_n_action_rsp ( uint16_t message_id_responded_to, std::string_view sop_class_uid, std::string_view sop_instance_uid, uint16_t action_type_id, status_code status = status_success ) -> dimse_message

nodiscard

Create an N-ACTION response message.

Parameters

message_id_responded_to	The message ID being responded to
sop_class_uid	The Affected SOP Class UID
sop_instance_uid	The Affected SOP Instance UID
action_type_id	The action type identifier
status	The response status code

Returns

The constructed message

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 547 of file dimse_message.cpp.

                                                            {
    dimse_message msg(command_field::n_action_rsp, 0);
    msg.set_message_id_responded_to(message_id_responded_to);
    msg.set_affected_sop_class_uid(sop_class_uid);
    msg.set_affected_sop_instance_uid(sop_instance_uid);
    msg.set_action_type_id(action_type_id);
    msg.set_status(status);
    return msg;
}

References n_action_rsp, kcenon::pacs::network::dimse::dimse_message::set_action_type_id(), kcenon::pacs::network::dimse::dimse_message::set_affected_sop_class_uid(), kcenon::pacs::network::dimse::dimse_message::set_affected_sop_instance_uid(), kcenon::pacs::network::dimse::dimse_message::set_message_id_responded_to(), and kcenon::pacs::network::dimse::dimse_message::set_status().

Here is the call graph for this function:

make_n_create_rq()

auto kcenon::pacs::network::dimse::make_n_create_rq ( uint16_t message_id, std::string_view sop_class_uid, std::string_view sop_instance_uid = "" ) -> dimse_message

nodiscard

Create an N-CREATE request message.

Parameters

message_id	The message ID
sop_class_uid	The Affected SOP Class UID
sop_instance_uid	Optional Affected SOP Instance UID (may be generated by SCP)

Returns

The constructed message

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 446 of file dimse_message.cpp.

                                                                        {
    dimse_message msg(command_field::n_create_rq, message_id);
    msg.set_affected_sop_class_uid(sop_class_uid);
    if (!sop_instance_uid.empty()) {
        msg.set_affected_sop_instance_uid(sop_instance_uid);
    }
    return msg;
}

References n_create_rq, kcenon::pacs::network::dimse::dimse_message::set_affected_sop_class_uid(), and kcenon::pacs::network::dimse::dimse_message::set_affected_sop_instance_uid().

Referenced by TEST_CASE(), TEST_CASE(), and TEST_CASE().

Here is the call graph for this function:

Here is the caller graph for this function:

make_n_create_rsp()

auto kcenon::pacs::network::dimse::make_n_create_rsp ( uint16_t message_id_responded_to, std::string_view sop_class_uid, std::string_view sop_instance_uid, status_code status = status_success ) -> dimse_message

nodiscard

Create an N-CREATE response message.

Parameters

message_id_responded_to	The message ID being responded to
sop_class_uid	The Affected SOP Class UID
sop_instance_uid	The Affected SOP Instance UID (returned by SCP)
status	The response status code

Returns

The constructed message

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 456 of file dimse_message.cpp.

                     {
    dimse_message msg(command_field::n_create_rsp, 0);
    msg.set_message_id_responded_to(message_id_responded_to);
    msg.set_affected_sop_class_uid(sop_class_uid);
    msg.set_affected_sop_instance_uid(sop_instance_uid);
    msg.set_status(status);
    return msg;
}

References n_create_rsp, kcenon::pacs::network::dimse::dimse_message::set_affected_sop_class_uid(), kcenon::pacs::network::dimse::dimse_message::set_affected_sop_instance_uid(), kcenon::pacs::network::dimse::dimse_message::set_message_id_responded_to(), and kcenon::pacs::network::dimse::dimse_message::set_status().

Here is the call graph for this function:

make_n_delete_rq()

auto kcenon::pacs::network::dimse::make_n_delete_rq ( uint16_t message_id, std::string_view sop_class_uid, std::string_view sop_instance_uid ) -> dimse_message

nodiscard

Create an N-DELETE request message.

Parameters

message_id	The message ID
sop_class_uid	The Requested SOP Class UID
sop_instance_uid	The Requested SOP Instance UID

Returns

The constructed message

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 560 of file dimse_message.cpp.

                                                                        {
    dimse_message msg(command_field::n_delete_rq, message_id);
    msg.set_requested_sop_class_uid(sop_class_uid);
    msg.set_requested_sop_instance_uid(sop_instance_uid);
    return msg;
}

References n_delete_rq, kcenon::pacs::network::dimse::dimse_message::set_requested_sop_class_uid(), and kcenon::pacs::network::dimse::dimse_message::set_requested_sop_instance_uid().

Here is the call graph for this function:

make_n_delete_rsp()

auto kcenon::pacs::network::dimse::make_n_delete_rsp ( uint16_t message_id_responded_to, std::string_view sop_class_uid, std::string_view sop_instance_uid, status_code status = status_success ) -> dimse_message

nodiscard

Create an N-DELETE response message.

Parameters

message_id_responded_to	The message ID being responded to
sop_class_uid	The Affected SOP Class UID
sop_instance_uid	The Affected SOP Instance UID
status	The response status code

Returns

The constructed message

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 568 of file dimse_message.cpp.

                     {
    dimse_message msg(command_field::n_delete_rsp, 0);
    msg.set_message_id_responded_to(message_id_responded_to);
    msg.set_affected_sop_class_uid(sop_class_uid);
    msg.set_affected_sop_instance_uid(sop_instance_uid);
    msg.set_status(status);
    return msg;
}

References n_delete_rsp, kcenon::pacs::network::dimse::dimse_message::set_affected_sop_class_uid(), kcenon::pacs::network::dimse::dimse_message::set_affected_sop_instance_uid(), kcenon::pacs::network::dimse::dimse_message::set_message_id_responded_to(), and kcenon::pacs::network::dimse::dimse_message::set_status().

Here is the call graph for this function:

make_n_event_report_rq()

auto kcenon::pacs::network::dimse::make_n_event_report_rq ( uint16_t message_id, std::string_view sop_class_uid, std::string_view sop_instance_uid, uint16_t event_type_id ) -> dimse_message

nodiscard

Create an N-EVENT-REPORT request message.

Parameters

message_id	The message ID
sop_class_uid	The Affected SOP Class UID
sop_instance_uid	The Affected SOP Instance UID
event_type_id	The event type identifier

Returns

The constructed message

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 513 of file dimse_message.cpp.

                                                                     {
    dimse_message msg(command_field::n_event_report_rq, message_id);
    msg.set_affected_sop_class_uid(sop_class_uid);
    msg.set_affected_sop_instance_uid(sop_instance_uid);
    msg.set_event_type_id(event_type_id);
    return msg;
}

References n_event_report_rq, kcenon::pacs::network::dimse::dimse_message::set_affected_sop_class_uid(), kcenon::pacs::network::dimse::dimse_message::set_affected_sop_instance_uid(), and kcenon::pacs::network::dimse::dimse_message::set_event_type_id().

Here is the call graph for this function:

make_n_event_report_rsp()

auto kcenon::pacs::network::dimse::make_n_event_report_rsp ( uint16_t message_id_responded_to, std::string_view sop_class_uid, std::string_view sop_instance_uid, uint16_t event_type_id, status_code status = status_success ) -> dimse_message

nodiscard

Create an N-EVENT-REPORT response message.

Parameters

message_id_responded_to	The message ID being responded to
sop_class_uid	The Affected SOP Class UID
sop_instance_uid	The Affected SOP Instance UID
event_type_id	The event type identifier
status	The response status code

Returns

The constructed message

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 523 of file dimse_message.cpp.

                     {
    dimse_message msg(command_field::n_event_report_rsp, 0);
    msg.set_message_id_responded_to(message_id_responded_to);
    msg.set_affected_sop_class_uid(sop_class_uid);
    msg.set_affected_sop_instance_uid(sop_instance_uid);
    msg.set_event_type_id(event_type_id);
    msg.set_status(status);
    return msg;
}

References n_event_report_rsp, kcenon::pacs::network::dimse::dimse_message::set_affected_sop_class_uid(), kcenon::pacs::network::dimse::dimse_message::set_affected_sop_instance_uid(), kcenon::pacs::network::dimse::dimse_message::set_event_type_id(), kcenon::pacs::network::dimse::dimse_message::set_message_id_responded_to(), and kcenon::pacs::network::dimse::dimse_message::set_status().

Here is the call graph for this function:

make_n_get_rq()

auto kcenon::pacs::network::dimse::make_n_get_rq ( uint16_t message_id, std::string_view sop_class_uid, std::string_view sop_instance_uid, const std::vector< core::dicom_tag > & attribute_tags = {} ) -> dimse_message

nodiscard

Create an N-GET request message.

Parameters

message_id	The message ID
sop_class_uid	The Requested SOP Class UID
sop_instance_uid	The Requested SOP Instance UID
attribute_tags	Optional list of attribute tags to retrieve

Returns

The constructed message

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 488 of file dimse_message.cpp.

                     {
    dimse_message msg(command_field::n_get_rq, message_id);
    msg.set_requested_sop_class_uid(sop_class_uid);
    msg.set_requested_sop_instance_uid(sop_instance_uid);
    if (!attribute_tags.empty()) {
        msg.set_attribute_identifier_list(attribute_tags);
    }
    return msg;
}

References n_get_rq, kcenon::pacs::network::dimse::dimse_message::set_attribute_identifier_list(), kcenon::pacs::network::dimse::dimse_message::set_requested_sop_class_uid(), and kcenon::pacs::network::dimse::dimse_message::set_requested_sop_instance_uid().

Here is the call graph for this function:

make_n_get_rsp()

auto kcenon::pacs::network::dimse::make_n_get_rsp ( uint16_t message_id_responded_to, std::string_view sop_class_uid, std::string_view sop_instance_uid, status_code status = status_success ) -> dimse_message

nodiscard

Create an N-GET response message.

Parameters

message_id_responded_to	The message ID being responded to
sop_class_uid	The Affected SOP Class UID
sop_instance_uid	The Affected SOP Instance UID
status	The response status code

Returns

The constructed message

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 501 of file dimse_message.cpp.

                     {
    dimse_message msg(command_field::n_get_rsp, 0);
    msg.set_message_id_responded_to(message_id_responded_to);
    msg.set_affected_sop_class_uid(sop_class_uid);
    msg.set_affected_sop_instance_uid(sop_instance_uid);
    msg.set_status(status);
    return msg;
}

References n_get_rsp, kcenon::pacs::network::dimse::dimse_message::set_affected_sop_class_uid(), kcenon::pacs::network::dimse::dimse_message::set_affected_sop_instance_uid(), kcenon::pacs::network::dimse::dimse_message::set_message_id_responded_to(), and kcenon::pacs::network::dimse::dimse_message::set_status().

Here is the call graph for this function:

make_n_set_rq()

auto kcenon::pacs::network::dimse::make_n_set_rq ( uint16_t message_id, std::string_view sop_class_uid, std::string_view sop_instance_uid ) -> dimse_message

nodiscard

Create an N-SET request message.

Parameters

message_id	The message ID
sop_class_uid	The Requested SOP Class UID
sop_instance_uid	The Requested SOP Instance UID

Returns

The constructed message

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 468 of file dimse_message.cpp.

                                                                     {
    dimse_message msg(command_field::n_set_rq, message_id);
    msg.set_requested_sop_class_uid(sop_class_uid);
    msg.set_requested_sop_instance_uid(sop_instance_uid);
    return msg;
}

References n_set_rq, kcenon::pacs::network::dimse::dimse_message::set_requested_sop_class_uid(), and kcenon::pacs::network::dimse::dimse_message::set_requested_sop_instance_uid().

Referenced by TEST_CASE(), TEST_CASE(), and TEST_CASE().

Here is the call graph for this function:

Here is the caller graph for this function:

make_n_set_rsp()

auto kcenon::pacs::network::dimse::make_n_set_rsp ( uint16_t message_id_responded_to, std::string_view sop_class_uid, std::string_view sop_instance_uid, status_code status = status_success ) -> dimse_message

nodiscard

Create an N-SET response message.

Parameters

message_id_responded_to	The message ID being responded to
sop_class_uid	The Affected SOP Class UID
sop_instance_uid	The Affected SOP Instance UID
status	The response status code

Returns

The constructed message

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 476 of file dimse_message.cpp.

                     {
    dimse_message msg(command_field::n_set_rsp, 0);
    msg.set_message_id_responded_to(message_id_responded_to);
    msg.set_affected_sop_class_uid(sop_class_uid);
    msg.set_affected_sop_instance_uid(sop_instance_uid);
    msg.set_status(status);
    return msg;
}

References n_set_rsp, kcenon::pacs::network::dimse::dimse_message::set_affected_sop_class_uid(), kcenon::pacs::network::dimse::dimse_message::set_affected_sop_instance_uid(), kcenon::pacs::network::dimse::dimse_message::set_message_id_responded_to(), and kcenon::pacs::network::dimse::dimse_message::set_status().

Here is the call graph for this function:

status_category()

std::string_view kcenon::pacs::network::dimse::status_category ( status_code status )

nodiscardconstexprnoexcept

Get the category name for a status code.

Parameters

status

The status code to categorize

Returns

Category name (Success, Pending, Warning, Failure, or Unknown)

Definition at line 292 of file status_codes.h.

                                 {
    if (is_success(status)) return "Success";
    if (is_pending(status)) return "Pending";
    if (is_cancel(status)) return "Cancel";
    if (is_warning(status)) return "Warning";
    if (is_failure(status)) return "Failure";
    return "Unknown";
}

References is_cancel(), is_failure(), is_pending(), is_success(), and is_warning().

Here is the call graph for this function:

status_description()

std::string_view kcenon::pacs::network::dimse::status_description ( status_code status )

nodiscardconstexprnoexcept

Get a human-readable description of a status code.

Parameters

status

The status code to describe

Returns

Description string

Definition at line 222 of file status_codes.h.

                                 {
    switch (status) {
        case status_success: return "Success";
        case status_pending: return "Pending";
        case status_pending_warning: return "Pending (Warning)";
        case status_cancel: return "Canceled";
        case status_refused_out_of_resources: return "Refused: Out of resources";
        case status_refused_out_of_resources_matches:
            return "Refused: Unable to calculate number of matches";
        case status_refused_out_of_resources_subops:
            return "Refused: Unable to perform sub-operations";
        case status_refused_move_destination_unknown:
            return "Refused: Move destination unknown";
        case status_refused_sop_class_not_supported:
            return "Refused: SOP class not supported";
        case status_error_dataset_mismatch:
            return "Error: Data set does not match SOP class";
        case status_error_cannot_understand: return "Error: Cannot understand";
        case status_error_unable_to_process: return "Error: Unable to process";
        case status_error_duplicate_sop_instance:
            return "Error: Duplicate SOP instance";
        case status_error_missing_attribute: return "Error: Missing attribute";
        case status_error_missing_attribute_value:
            return "Error: Missing attribute value";
        case status_error_attribute_list_error:
            return "Error: Attribute list error";
        case status_error_attribute_value_out_of_range:
            return "Error: Attribute value out of range";
        case status_error_invalid_object_instance:
            return "Error: Invalid object instance";
        case status_error_no_such_sop_class:
            return "Error: No such SOP class";
        case status_error_class_instance_conflict:
            return "Error: Class-instance conflict";
        case status_error_not_authorized:
            return "Error: Not authorized";
        case status_error_duplicate_invocation:
            return "Error: Duplicate invocation";
        case status_error_unrecognized_operation:
            return "Error: Unrecognized operation";
        case status_error_mistyped_argument:
            return "Error: Mistyped argument";
        case status_error_resource_limitation:
            return "Error: Resource limitation";
        case status_error_no_such_action_type:
            return "Error: No such action type";
        case status_error_no_such_event_type:
            return "Error: No such event type";
        case status_error_processing_failure:
            return "Error: Processing failure";
        case status_warning_coercion: return "Warning: Coercion of data elements";
        case status_warning_dataset_mismatch:
            return "Warning: Data set does not match SOP class";
        case status_warning_elements_discarded:
            return "Warning: Elements discarded";
        default:
            if (is_success(status)) return "Success";
            if (is_pending(status)) return "Pending";
            if (is_warning(status)) return "Warning";
            if (is_failure(status)) return "Failure";
            return "Unknown status";
    }
}

References is_failure(), is_pending(), is_success(), is_warning(), status_cancel, status_error_attribute_list_error, status_error_attribute_value_out_of_range, status_error_cannot_understand, status_error_class_instance_conflict, status_error_dataset_mismatch, status_error_duplicate_invocation, status_error_duplicate_sop_instance, status_error_invalid_object_instance, status_error_missing_attribute, status_error_missing_attribute_value, status_error_mistyped_argument, status_error_no_such_action_type, status_error_no_such_event_type, status_error_no_such_sop_class, status_error_not_authorized, status_error_processing_failure, status_error_resource_limitation, status_error_unable_to_process, status_error_unrecognized_operation, status_pending, status_pending_warning, status_refused_move_destination_unknown, status_refused_out_of_resources, status_refused_out_of_resources_matches, status_refused_out_of_resources_subops, status_refused_sop_class_not_supported, status_success, status_warning_coercion, status_warning_dataset_mismatch, and status_warning_elements_discarded.

Here is the call graph for this function:

to_string() [1/2]

std::string_view kcenon::pacs::network::dimse::to_string ( command_field cmd )

nodiscardconstexprnoexcept

Convert command field to string representation.

Parameters

cmd	The command field to convert

Returns

Human-readable string representation

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 172 of file command_field.h.

                                                                             {
    switch (cmd) {
        case command_field::c_store_rq: return "C-STORE-RQ";
        case command_field::c_store_rsp: return "C-STORE-RSP";
        case command_field::c_get_rq: return "C-GET-RQ";
        case command_field::c_get_rsp: return "C-GET-RSP";
        case command_field::c_find_rq: return "C-FIND-RQ";
        case command_field::c_find_rsp: return "C-FIND-RSP";
        case command_field::c_move_rq: return "C-MOVE-RQ";
        case command_field::c_move_rsp: return "C-MOVE-RSP";
        case command_field::c_echo_rq: return "C-ECHO-RQ";
        case command_field::c_echo_rsp: return "C-ECHO-RSP";
        case command_field::c_cancel_rq: return "C-CANCEL-RQ";
        case command_field::n_event_report_rq: return "N-EVENT-REPORT-RQ";
        case command_field::n_event_report_rsp: return "N-EVENT-REPORT-RSP";
        case command_field::n_get_rq: return "N-GET-RQ";
        case command_field::n_get_rsp: return "N-GET-RSP";
        case command_field::n_set_rq: return "N-SET-RQ";
        case command_field::n_set_rsp: return "N-SET-RSP";
        case command_field::n_action_rq: return "N-ACTION-RQ";
        case command_field::n_action_rsp: return "N-ACTION-RSP";
        case command_field::n_create_rq: return "N-CREATE-RQ";
        case command_field::n_create_rsp: return "N-CREATE-RSP";
        case command_field::n_delete_rq: return "N-DELETE-RQ";
        case command_field::n_delete_rsp: return "N-DELETE-RSP";
        default: return "UNKNOWN";
    }
}

References c_cancel_rq, c_echo_rq, c_echo_rsp, c_find_rq, c_find_rsp, c_get_rq, c_get_rsp, c_move_rq, c_move_rsp, c_store_rq, c_store_rsp, n_action_rq, n_action_rsp, n_create_rq, n_create_rsp, n_delete_rq, n_delete_rsp, n_event_report_rq, n_event_report_rsp, n_get_rq, n_get_rsp, n_set_rq, and n_set_rsp.

to_string() [2/2]

std::string_view kcenon::pacs::network::dimse::to_string ( dimse_error err )

nodiscardconstexprnoexcept

Get error description.

Definition at line 158 of file dimse_message.h.

                                                                           {
    switch (err) {
        case dimse_error::success: return "Success";
        case dimse_error::invalid_command_set: return "Invalid command set";
        case dimse_error::missing_required_field: return "Missing required field";
        case dimse_error::invalid_data_format: return "Invalid data format";
        case dimse_error::encoding_error: return "Encoding error";
        case dimse_error::decoding_error: return "Decoding error";
        default: return "Unknown error";
    }
}

References decoding_error, encoding_error, invalid_command_set, invalid_data_format, missing_required_field, and success.

Variable Documentation

command_data_set_type_null

uint16_t kcenon::pacs::network::dimse::command_data_set_type_null = 0x0101

constexpr

Null value indicating no data set present.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 122 of file dimse_message.h.

Referenced by kcenon::pacs::network::dimse::dimse_message::update_data_set_type().

command_data_set_type_present

uint16_t kcenon::pacs::network::dimse::command_data_set_type_present = 0x0001

constexpr

Value indicating data set is present (any value other than 0x0101)

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 125 of file dimse_message.h.

Referenced by kcenon::pacs::network::dimse::dimse_message::update_data_set_type().

priority_high

uint16_t kcenon::pacs::network::dimse::priority_high = 0x0001

constexpr

High priority.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 139 of file dimse_message.h.

priority_low

uint16_t kcenon::pacs::network::dimse::priority_low = 0x0002

constexpr

Low priority.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 133 of file dimse_message.h.

priority_medium

uint16_t kcenon::pacs::network::dimse::priority_medium = 0x0000

constexpr

Medium priority.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 136 of file dimse_message.h.

Referenced by kcenon::pacs::network::dimse::dimse_message::priority().

status_cancel

status_code kcenon::pacs::network::dimse::status_cancel = 0xFE00

constexpr

Operation was canceled.

Definition at line 47 of file status_codes.h.

Referenced by is_cancel(), and status_description().

status_error_attribute_list_error

status_code kcenon::pacs::network::dimse::status_error_attribute_list_error = 0x0107

constexpr

Error: Attribute list error (N-CREATE)

Definition at line 93 of file status_codes.h.

Referenced by status_description().

status_error_attribute_value_out_of_range

status_code kcenon::pacs::network::dimse::status_error_attribute_value_out_of_range = 0x0116

constexpr

Error: Attribute value out of range (N-SET)

Definition at line 96 of file status_codes.h.

Referenced by status_description().

status_error_cannot_understand

status_code kcenon::pacs::network::dimse::status_error_cannot_understand = 0xC000

constexpr

Error: Cannot understand.

Definition at line 73 of file status_codes.h.

Referenced by status_description().

status_error_class_instance_conflict

status_code kcenon::pacs::network::dimse::status_error_class_instance_conflict = 0x0119

constexpr

Error: Class-instance conflict (All DIMSE-N)

Definition at line 105 of file status_codes.h.

Referenced by status_description().

status_error_dataset_mismatch

status_code kcenon::pacs::network::dimse::status_error_dataset_mismatch = 0xA900

constexpr

Error: Data set does not match SOP class.

Definition at line 70 of file status_codes.h.

Referenced by status_description().

status_error_duplicate_invocation

status_code kcenon::pacs::network::dimse::status_error_duplicate_invocation = 0x0210

constexpr

Error: Duplicate invocation (All DIMSE-N)

Definition at line 111 of file status_codes.h.

Referenced by status_description().

status_error_duplicate_sop_instance

status_code kcenon::pacs::network::dimse::status_error_duplicate_sop_instance = 0x0111

constexpr

Error: Duplicate SOP instance.

Definition at line 79 of file status_codes.h.

Referenced by status_description().

status_error_invalid_object_instance

status_code kcenon::pacs::network::dimse::status_error_invalid_object_instance = 0x0117

constexpr

Error: Invalid object instance (N-SET, N-GET, N-ACTION, N-DELETE)

Definition at line 99 of file status_codes.h.

Referenced by status_description().

status_error_missing_attribute

status_code kcenon::pacs::network::dimse::status_error_missing_attribute = 0x0120

constexpr

Error: Missing attribute.

Definition at line 82 of file status_codes.h.

Referenced by status_description().

status_error_missing_attribute_value

status_code kcenon::pacs::network::dimse::status_error_missing_attribute_value = 0x0121

constexpr

Error: Missing attribute value.

Definition at line 85 of file status_codes.h.

Referenced by status_description().

status_error_mistyped_argument

status_code kcenon::pacs::network::dimse::status_error_mistyped_argument = 0x0212

constexpr

Error: Mistyped argument (All DIMSE-N)

Definition at line 117 of file status_codes.h.

Referenced by status_description().

status_error_no_such_action_type

status_code kcenon::pacs::network::dimse::status_error_no_such_action_type = 0x0123

constexpr

Error: No such action type (N-ACTION)

Definition at line 123 of file status_codes.h.

Referenced by status_description().

status_error_no_such_event_type

status_code kcenon::pacs::network::dimse::status_error_no_such_event_type = 0x0113

constexpr

Error: No such event type (N-EVENT-REPORT)

Definition at line 126 of file status_codes.h.

Referenced by status_description().

status_error_no_such_sop_class

status_code kcenon::pacs::network::dimse::status_error_no_such_sop_class = 0x0118

constexpr

Error: No such SOP class (All DIMSE-N)

Definition at line 102 of file status_codes.h.

Referenced by status_description().

status_error_not_authorized

status_code kcenon::pacs::network::dimse::status_error_not_authorized = 0x0124

constexpr

Error: Not authorized (All DIMSE-N)

Definition at line 108 of file status_codes.h.

Referenced by status_description().

status_error_processing_failure

status_code kcenon::pacs::network::dimse::status_error_processing_failure = 0x0110

constexpr

Error: Processing failure (All DIMSE-N)

Definition at line 129 of file status_codes.h.

Referenced by status_description().

status_error_resource_limitation

status_code kcenon::pacs::network::dimse::status_error_resource_limitation = 0x0213

constexpr

Error: Resource limitation (All DIMSE-N)

Definition at line 120 of file status_codes.h.

Referenced by status_description().

status_error_unable_to_process

status_code kcenon::pacs::network::dimse::status_error_unable_to_process = 0xC001

constexpr

Error: Unable to process.

Definition at line 76 of file status_codes.h.

Referenced by status_description().

status_error_unrecognized_operation

status_code kcenon::pacs::network::dimse::status_error_unrecognized_operation = 0x0211

constexpr

Error: Unrecognized operation (All DIMSE-N)

Definition at line 114 of file status_codes.h.

Referenced by status_description().

status_pending

status_code kcenon::pacs::network::dimse::status_pending = 0xFF00

constexpr

Operation pending (more results available)

Definition at line 41 of file status_codes.h.

Referenced by status_description().

status_pending_warning

status_code kcenon::pacs::network::dimse::status_pending_warning = 0xFF01

constexpr

Pending with optional keys not supported.

Definition at line 44 of file status_codes.h.

Referenced by is_pending(), and status_description().

status_refused_move_destination_unknown

status_code kcenon::pacs::network::dimse::status_refused_move_destination_unknown = 0xA801

constexpr

Refused: Move destination unknown.

Definition at line 64 of file status_codes.h.

Referenced by status_description().

status_refused_out_of_resources

status_code kcenon::pacs::network::dimse::status_refused_out_of_resources = 0xA700

constexpr

Refused: Out of resources.

Definition at line 55 of file status_codes.h.

Referenced by status_description().

status_refused_out_of_resources_matches

status_code kcenon::pacs::network::dimse::status_refused_out_of_resources_matches = 0xA701

constexpr

Refused: Out of resources - Unable to calculate number of matches.

Definition at line 58 of file status_codes.h.

Referenced by status_description().

status_refused_out_of_resources_subops

status_code kcenon::pacs::network::dimse::status_refused_out_of_resources_subops = 0xA702

constexpr

Refused: Out of resources - Unable to perform sub-operations.

Definition at line 61 of file status_codes.h.

Referenced by status_description().

status_refused_sop_class_not_supported

status_code kcenon::pacs::network::dimse::status_refused_sop_class_not_supported = 0x0122

constexpr

Refused: SOP class not supported.

Definition at line 67 of file status_codes.h.

Referenced by status_description().

status_success

status_code kcenon::pacs::network::dimse::status_success = 0x0000

constexpr

Operation completed successfully.

Definition at line 38 of file status_codes.h.

Referenced by is_success(), status_description(), and TEST_CASE().

status_warning_coercion

status_code kcenon::pacs::network::dimse::status_warning_coercion = 0xB000

constexpr

Warning: Coercion of data elements.

Definition at line 137 of file status_codes.h.

Referenced by status_description().

status_warning_dataset_mismatch

status_code kcenon::pacs::network::dimse::status_warning_dataset_mismatch = 0xB007

constexpr

Warning: Data set does not match SOP class (non-fatal)

Definition at line 140 of file status_codes.h.

Referenced by status_description().

status_warning_elements_discarded

status_code kcenon::pacs::network::dimse::status_warning_elements_discarded = 0xB006

constexpr

Warning: Elements discarded.

Definition at line 143 of file status_codes.h.

Referenced by status_description().

status_warning_subops_complete_failures

status_code kcenon::pacs::network::dimse::status_warning_subops_complete_failures = 0xB000

constexpr

Warning: Sub-operations complete with failures.

Definition at line 146 of file status_codes.h.

tag_action_type_id

core::dicom_tag kcenon::pacs::network::dimse::tag_action_type_id {0x0000, 0x1008}

constexpr

Action Type ID (0000,1008) - US.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 96 of file dimse_message.h.

{0x0000, 0x1008};

Referenced by kcenon::pacs::network::dimse::dimse_message::action_type_id(), and kcenon::pacs::network::dimse::dimse_message::set_action_type_id().

tag_affected_sop_class_uid

core::dicom_tag kcenon::pacs::network::dimse::tag_affected_sop_class_uid {0x0000, 0x0002}

constexpr

Affected SOP Class UID (0000,0002) - UI.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 48 of file dimse_message.h.

{0x0000, 0x0002};

Referenced by kcenon::pacs::network::dimse::dimse_message::affected_sop_class_uid(), and kcenon::pacs::network::dimse::dimse_message::set_affected_sop_class_uid().

tag_affected_sop_instance_uid

core::dicom_tag kcenon::pacs::network::dimse::tag_affected_sop_instance_uid {0x0000, 0x1000}

constexpr

Affected SOP Instance UID (0000,1000) - UI.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 84 of file dimse_message.h.

{0x0000, 0x1000};

Referenced by kcenon::pacs::network::dimse::dimse_message::affected_sop_instance_uid(), and kcenon::pacs::network::dimse::dimse_message::set_affected_sop_instance_uid().

tag_attribute_identifier_list

core::dicom_tag kcenon::pacs::network::dimse::tag_attribute_identifier_list {0x0000, 0x1005}

constexpr

Attribute Identifier List (0000,1005) - AT.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 93 of file dimse_message.h.

{0x0000, 0x1005};

Referenced by kcenon::pacs::network::dimse::dimse_message::attribute_identifier_list(), and kcenon::pacs::network::dimse::dimse_message::set_attribute_identifier_list().

tag_command_data_set_type

core::dicom_tag kcenon::pacs::network::dimse::tag_command_data_set_type {0x0000, 0x0800}

constexpr

Command Data Set Type (0000,0800) - US.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 69 of file dimse_message.h.

{0x0000, 0x0800};

Referenced by kcenon::pacs::network::dimse::dimse_message::update_data_set_type().

tag_command_field

core::dicom_tag kcenon::pacs::network::dimse::tag_command_field {0x0000, 0x0100}

constexpr

Command Field (0000,0100) - US.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 54 of file dimse_message.h.

{0x0000, 0x0100};

Referenced by kcenon::pacs::network::dimse::dimse_message::decode(), kcenon::pacs::network::dimse::dimse_message::dimse_message(), and kcenon::pacs::network::dimse::dimse_message::is_valid().

tag_command_group_length

core::dicom_tag kcenon::pacs::network::dimse::tag_command_group_length {0x0000, 0x0000}

constexpr

Command Group Length (0000,0000) - UL.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 45 of file dimse_message.h.

{0x0000, 0x0000};

Referenced by kcenon::pacs::network::dimse::dimse_message::update_command_group_length().

tag_error_comment

core::dicom_tag kcenon::pacs::network::dimse::tag_error_comment {0x0000, 0x0902}

constexpr

Error Comment (0000,0902) - LO.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 78 of file dimse_message.h.

{0x0000, 0x0902};

tag_error_id

core::dicom_tag kcenon::pacs::network::dimse::tag_error_id {0x0000, 0x0903}

constexpr

Error ID (0000,0903) - US.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 81 of file dimse_message.h.

{0x0000, 0x0903};

tag_event_type_id

core::dicom_tag kcenon::pacs::network::dimse::tag_event_type_id {0x0000, 0x1002}

constexpr

Event Type ID (0000,1002) - US.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 90 of file dimse_message.h.

{0x0000, 0x1002};

Referenced by kcenon::pacs::network::dimse::dimse_message::event_type_id(), and kcenon::pacs::network::dimse::dimse_message::set_event_type_id().

tag_message_id

core::dicom_tag kcenon::pacs::network::dimse::tag_message_id {0x0000, 0x0110}

constexpr

Message ID (0000,0110) - US.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 57 of file dimse_message.h.

{0x0000, 0x0110};

Referenced by kcenon::pacs::network::dimse::dimse_message::decode(), kcenon::pacs::network::dimse::dimse_message::dimse_message(), and kcenon::pacs::network::dimse::dimse_message::is_valid().

tag_message_id_responded_to

core::dicom_tag kcenon::pacs::network::dimse::tag_message_id_responded_to {0x0000, 0x0120}

constexpr

Message ID Being Responded To (0000,0120) - US.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 60 of file dimse_message.h.

{0x0000, 0x0120};

Referenced by kcenon::pacs::network::dimse::dimse_message::message_id_responded_to(), and kcenon::pacs::network::dimse::dimse_message::set_message_id_responded_to().

tag_move_destination

core::dicom_tag kcenon::pacs::network::dimse::tag_move_destination {0x0000, 0x0600}

constexpr

Move Destination (0000,0600) - AE.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 63 of file dimse_message.h.

{0x0000, 0x0600};

Referenced by kcenon::pacs::services::retrieve_scp::get_move_destination().

tag_move_originator_aet

core::dicom_tag kcenon::pacs::network::dimse::tag_move_originator_aet {0x0000, 0x1030}

constexpr

Move Originator Application Entity Title (0000,1030) - AE.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 111 of file dimse_message.h.

{0x0000, 0x1030};

tag_move_originator_message_id

core::dicom_tag kcenon::pacs::network::dimse::tag_move_originator_message_id {0x0000, 0x1031}

constexpr

Move Originator Message ID (0000,1031) - US.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 114 of file dimse_message.h.

{0x0000, 0x1031};

tag_number_of_completed_subops

core::dicom_tag kcenon::pacs::network::dimse::tag_number_of_completed_subops {0x0000, 0x1021}

constexpr

Number of Completed Sub-operations (0000,1021) - US.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 102 of file dimse_message.h.

{0x0000, 0x1021};

Referenced by kcenon::pacs::network::dimse::dimse_message::completed_subops(), and kcenon::pacs::network::dimse::dimse_message::set_completed_subops().

tag_number_of_failed_subops

core::dicom_tag kcenon::pacs::network::dimse::tag_number_of_failed_subops {0x0000, 0x1022}

constexpr

Number of Failed Sub-operations (0000,1022) - US.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 105 of file dimse_message.h.

{0x0000, 0x1022};

Referenced by kcenon::pacs::network::dimse::dimse_message::failed_subops(), and kcenon::pacs::network::dimse::dimse_message::set_failed_subops().

tag_number_of_remaining_subops

core::dicom_tag kcenon::pacs::network::dimse::tag_number_of_remaining_subops {0x0000, 0x1020}

constexpr

Number of Remaining Sub-operations (0000,1020) - US.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 99 of file dimse_message.h.

{0x0000, 0x1020};

Referenced by kcenon::pacs::network::dimse::dimse_message::remaining_subops(), and kcenon::pacs::network::dimse::dimse_message::set_remaining_subops().

tag_number_of_warning_subops

core::dicom_tag kcenon::pacs::network::dimse::tag_number_of_warning_subops {0x0000, 0x1023}

constexpr

Number of Warning Sub-operations (0000,1023) - US.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 108 of file dimse_message.h.

{0x0000, 0x1023};

Referenced by kcenon::pacs::network::dimse::dimse_message::set_warning_subops(), and kcenon::pacs::network::dimse::dimse_message::warning_subops().

tag_offending_element

core::dicom_tag kcenon::pacs::network::dimse::tag_offending_element {0x0000, 0x0901}

constexpr

Offending Element (0000,0901) - AT.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 75 of file dimse_message.h.

{0x0000, 0x0901};

tag_priority

core::dicom_tag kcenon::pacs::network::dimse::tag_priority {0x0000, 0x0700}

constexpr

Priority (0000,0700) - US.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 66 of file dimse_message.h.

{0x0000, 0x0700};

Referenced by kcenon::pacs::network::dimse::dimse_message::priority(), and kcenon::pacs::network::dimse::dimse_message::set_priority().

tag_requested_sop_class_uid

core::dicom_tag kcenon::pacs::network::dimse::tag_requested_sop_class_uid {0x0000, 0x0003}

constexpr

Requested SOP Class UID (0000,0003) - UI.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 51 of file dimse_message.h.

{0x0000, 0x0003};

Referenced by kcenon::pacs::network::dimse::dimse_message::requested_sop_class_uid(), and kcenon::pacs::network::dimse::dimse_message::set_requested_sop_class_uid().

tag_requested_sop_instance_uid

core::dicom_tag kcenon::pacs::network::dimse::tag_requested_sop_instance_uid {0x0000, 0x1001}

constexpr

Requested SOP Instance UID (0000,1001) - UI.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 87 of file dimse_message.h.

{0x0000, 0x1001};

Referenced by kcenon::pacs::network::dimse::dimse_message::requested_sop_instance_uid(), and kcenon::pacs::network::dimse::dimse_message::set_requested_sop_instance_uid().

tag_status

core::dicom_tag kcenon::pacs::network::dimse::tag_status {0x0000, 0x0900}

constexpr

Status (0000,0900) - US.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/dimse/dimse_message.h.

Definition at line 72 of file dimse_message.h.

{0x0000, 0x0900};

Referenced by kcenon::pacs::network::dimse::dimse_message::set_status(), and kcenon::pacs::network::dimse::dimse_message::status().
