kcenon::pacs::web::thumbnail_service Class Reference

Thumbnail generation and caching service. More...

#include <thumbnail_service.h>

Collaboration diagram for kcenon::pacs::web::thumbnail_service:

Classes
struct	cache_key
	Cache key for lookups. More...
struct	cache_key_hash
	Hash function for cache key. More...

Public Member Functions
	thumbnail_service (std::shared_ptr< storage::index_database > database)
	Construct thumbnail service with database.
	~thumbnail_service ()
	Destructor.
	thumbnail_service (const thumbnail_service &)=delete
	Non-copyable, non-movable (due to shared_mutex member)
thumbnail_service &	operator= (const thumbnail_service &)=delete
	thumbnail_service (thumbnail_service &&)=delete
thumbnail_service &	operator= (thumbnail_service &&)=delete
thumbnail_result	get_thumbnail (std::string_view sop_instance_uid, const thumbnail_params &params)
	Get or generate thumbnail for a specific instance.
thumbnail_result	get_series_thumbnail (std::string_view series_uid, const thumbnail_params &params)
	Get thumbnail for a series (representative image)
thumbnail_result	get_study_thumbnail (std::string_view study_uid, const thumbnail_params &params)
	Get thumbnail for a study (representative image)
void	clear_cache ()
	Clear all cached thumbnails.
void	clear_cache (std::string_view sop_instance_uid)
	Clear cached thumbnails for a specific instance.
size_t	cache_size () const
	Get current cache size in bytes.
size_t	cache_entry_count () const
	Get number of cached entries.
void	set_max_cache_size (size_t max_bytes)
	Set maximum cache size.
size_t	max_cache_size () const
	Get maximum cache size.

Private Member Functions
std::vector< uint8_t >	generate_thumbnail (std::string_view file_path, const thumbnail_params &params)
	Generate thumbnail from DICOM file.
std::optional< std::string >	select_representative_instance (std::string_view series_uid)
	Select representative instance from series.
std::optional< std::string >	select_representative_series (std::string_view study_uid)
	Select representative series from study.
void	evict_lru ()
	Evict least recently used entries to make room.

Static Private Member Functions
static std::string	get_content_type (std::string_view format)
	Get MIME type for format.

Private Attributes
std::shared_ptr< storage::index_database >	database_
	Database for instance lookups.
std::unordered_map< cache_key, thumbnail_cache_entry, cache_key_hash >	cache_
	Thumbnail cache.
std::shared_mutex	cache_mutex_
	Cache mutex.
size_t	current_cache_size_ {0}
	Current cache size in bytes.
size_t	max_cache_size_ {64 * 1024 * 1024}
	Maximum cache size (default: 64MB)

Detailed Description

Thumbnail generation and caching service.

Generates thumbnails from DICOM images with server-side caching. Supports multiple output formats and sizes.

Example

auto service = std::make_shared<thumbnail_service>(database);

thumbnail_params params;
params.size = 256;
params.format = "jpeg";
params.quality = 75;

auto result = service->get_thumbnail("1.2.3.4.5", params);
if (result.success) {
    // Use result.entry.data and result.entry.content_type
}

Definition at line 125 of file thumbnail_service.h.

Constructor & Destructor Documentation

thumbnail_service() [1/3]

kcenon::pacs::web::thumbnail_service::thumbnail_service ( std::shared_ptr< storage::index_database > database )

explicit

Construct thumbnail service with database.

Parameters

database

Index database for instance lookups

Definition at line 41 of file thumbnail_service.cpp.

    : database_(std::move(database)) {}

~thumbnail_service()

kcenon::pacs::web::thumbnail_service::~thumbnail_service ( )

default

Destructor.

thumbnail_service() [2/3]

kcenon::pacs::web::thumbnail_service::thumbnail_service ( const thumbnail_service & )

delete

Non-copyable, non-movable (due to shared_mutex member)

thumbnail_service() [3/3]

kcenon::pacs::web::thumbnail_service::thumbnail_service ( thumbnail_service && )

delete

Member Function Documentation

cache_entry_count()

size_t kcenon::pacs::web::thumbnail_service::cache_entry_count ( ) const

nodiscard

Get number of cached entries.

Returns

Number of entries in cache

Definition at line 179 of file thumbnail_service.cpp.

                                                  {
    std::shared_lock lock(cache_mutex_);
    return cache_.size();
}

References cache_, and cache_mutex_.

cache_size()

size_t kcenon::pacs::web::thumbnail_service::cache_size ( ) const

nodiscard

Get current cache size in bytes.

Returns

Total bytes used by cached thumbnails

Definition at line 174 of file thumbnail_service.cpp.

                                           {
    std::shared_lock lock(cache_mutex_);
    return current_cache_size_;
}

References cache_mutex_, and current_cache_size_.

clear_cache() [1/2]

void kcenon::pacs::web::thumbnail_service::clear_cache

(

)

Clear all cached thumbnails.

Definition at line 154 of file thumbnail_service.cpp.

                                    {
    std::unique_lock lock(cache_mutex_);
    cache_.clear();
    current_cache_size_ = 0;
}

References cache_, cache_mutex_, and current_cache_size_.

clear_cache() [2/2]

void kcenon::pacs::web::thumbnail_service::clear_cache

(

std::string_view

sop_instance_uid

)

Clear cached thumbnails for a specific instance.

Parameters

sop_instance_uid

SOP Instance UID to clear

Definition at line 160 of file thumbnail_service.cpp.

                                                                   {
    std::unique_lock lock(cache_mutex_);

    // Remove all entries for this instance (any size/format/quality)
    for (auto it = cache_.begin(); it != cache_.end();) {
        if (it->first.uid == sop_instance_uid) {
            current_cache_size_ -= it->second.data.size();
            it = cache_.erase(it);
        } else {
            ++it;
        }
    }
}

References cache_, cache_mutex_, and current_cache_size_.

evict_lru()

void kcenon::pacs::web::thumbnail_service::evict_lru ( )

private

Evict least recently used entries to make room.

Definition at line 560 of file thumbnail_service.cpp.

                                  {
    // Find least recently used entry
    auto lru_it = cache_.end();
    auto oldest_time = std::chrono::system_clock::time_point::max();

    for (auto it = cache_.begin(); it != cache_.end(); ++it) {
        if (it->second.last_accessed < oldest_time) {
            oldest_time = it->second.last_accessed;
            lru_it = it;
        }
    }

    if (lru_it != cache_.end()) {
        current_cache_size_ -= lru_it->second.data.size();
        cache_.erase(lru_it);
    }
}

References cache_, and current_cache_size_.

Referenced by get_thumbnail(), and set_max_cache_size().

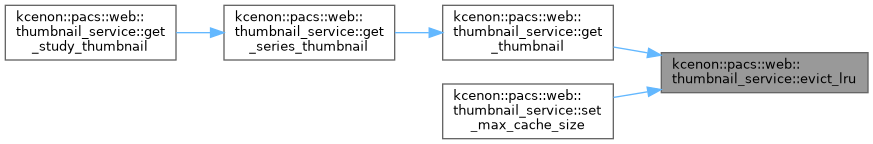

Here is the caller graph for this function:

generate_thumbnail()

std::vector< uint8_t > kcenon::pacs::web::thumbnail_service::generate_thumbnail ( std::string_view file_path, const thumbnail_params & params )

nodiscardprivate

Generate thumbnail from DICOM file.

Parameters

file_path	Path to DICOM file
params	Thumbnail parameters

Returns

Generated thumbnail data or empty on failure

Definition at line 203 of file thumbnail_service.cpp.

                                                              {
    using namespace kcenon::pacs::core;

    // Open DICOM file
    auto result = dicom_file::open(std::filesystem::path(file_path));
    if (result.is_err()) {
        return {};
    }

    auto& file = result.value();
    const auto& dataset = file.dataset();

    // Get image dimensions
    auto rows = dataset.get_numeric<uint16_t>(tags::rows);
    auto columns = dataset.get_numeric<uint16_t>(tags::columns);

    if (!rows || !columns || *rows == 0 || *columns == 0) {
        return {};
    }

    // Get bits information
    auto bits_allocated =
        dataset.get_numeric<uint16_t>(dicom_tag{0x0028, 0x0100});
    auto bits_stored = dataset.get_numeric<uint16_t>(dicom_tag{0x0028, 0x0101});
    auto samples_per_pixel = dataset.get_numeric<uint16_t>(tags::samples_per_pixel);
    auto pixel_representation =
        dataset.get_numeric<uint16_t>(dicom_tag{0x0028, 0x0103});

    if (!bits_allocated || !bits_stored) {
        return {};
    }

    uint16_t spp = samples_per_pixel.value_or(1);
    uint16_t repr = pixel_representation.value_or(0);

    // Get photometric interpretation
    auto photometric = dataset.get_string(tags::photometric_interpretation);

    // Get pixel data
    auto* pixel_element = dataset.get(tags::pixel_data);
    if (pixel_element == nullptr) {
        return {};
    }

    auto raw_data = pixel_element->raw_data();
    if (raw_data.empty()) {
        return {};
    }

    // Calculate frame offset for multi-frame images
    size_t frame_size = static_cast<size_t>(*rows) * (*columns) * spp *
                        ((*bits_allocated + 7) / 8);

    uint32_t frame_index = params.frame > 0 ? params.frame - 1 : 0;
    size_t frame_offset = frame_index * frame_size;

    if (frame_offset + frame_size > raw_data.size()) {
        // Fall back to first frame
        frame_offset = 0;
    }

    // Convert to 8-bit grayscale or RGB
    std::vector<uint8_t> pixels;
    size_t num_pixels = static_cast<size_t>(*rows) * (*columns) * spp;

    if (*bits_allocated == 16) {
        // 16-bit to 8-bit conversion with auto window/level
        int min_val = 65535;
        int max_val = -65536;

        // Find min/max for windowing
        for (size_t i = 0; i < num_pixels; ++i) {
            size_t idx = frame_offset + i * 2;
            if (idx + 1 >= raw_data.size()) break;

            int16_t pixel;
            if (repr == 0) {
                pixel = static_cast<int16_t>(raw_data[idx] |
                                             (raw_data[idx + 1] << 8));
            } else {
                pixel = static_cast<int16_t>(raw_data[idx] |
                                             (raw_data[idx + 1] << 8));
            }
            min_val = std::min(min_val, static_cast<int>(pixel));
            max_val = std::max(max_val, static_cast<int>(pixel));
        }

        double window_width = static_cast<double>(max_val - min_val);
        double window_center = static_cast<double>(min_val + max_val) / 2.0;
        if (window_width < 1) window_width = 1;

        pixels.resize(num_pixels);
        for (size_t i = 0; i < num_pixels; ++i) {
            size_t idx = frame_offset + i * 2;
            if (idx + 1 >= raw_data.size()) break;

            int16_t pixel = static_cast<int16_t>(raw_data[idx] |
                                                 (raw_data[idx + 1] << 8));

            double lower = window_center - window_width / 2.0;
            double upper = window_center + window_width / 2.0;

            if (pixel <= lower) {
                pixels[i] = 0;
            } else if (pixel >= upper) {
                pixels[i] = 255;
            } else {
                pixels[i] = static_cast<uint8_t>(
                    ((pixel - lower) / window_width) * 255.0);
            }
        }
    } else {
        // 8-bit: direct copy
        pixels.resize(num_pixels);
        for (size_t i = 0; i < num_pixels; ++i) {
            size_t idx = frame_offset + i;
            if (idx < raw_data.size()) {
                pixels[i] = raw_data[idx];
            }
        }
    }

    // Handle MONOCHROME1 inversion
    if (photometric == "MONOCHROME1") {
        for (auto& p : pixels) {
            p = static_cast<uint8_t>(255 - p);
        }
    }

    // Resize to target size
    uint16_t src_width = *columns;
    uint16_t src_height = *rows;
    uint16_t dst_size = params.size;

    // Calculate destination dimensions maintaining aspect ratio
    uint16_t dst_width, dst_height;
    if (src_width > src_height) {
        dst_width = dst_size;
        dst_height =
            static_cast<uint16_t>(static_cast<float>(src_height) / src_width * dst_size);
    } else {
        dst_height = dst_size;
        dst_width =
            static_cast<uint16_t>(static_cast<float>(src_width) / src_height * dst_size);
    }

    if (dst_width == 0) dst_width = 1;
    if (dst_height == 0) dst_height = 1;

    // Simple bilinear resize
    std::vector<uint8_t> resized(static_cast<size_t>(dst_width) * dst_height * spp);

    float x_ratio = static_cast<float>(src_width) / dst_width;
    float y_ratio = static_cast<float>(src_height) / dst_height;

    for (uint16_t y = 0; y < dst_height; ++y) {
        for (uint16_t x = 0; x < dst_width; ++x) {
            float src_x = x * x_ratio;
            float src_y = y * y_ratio;

            int x0 = static_cast<int>(src_x);
            int y0 = static_cast<int>(src_y);
            int x1 = std::min(x0 + 1, static_cast<int>(src_width - 1));
            int y1 = std::min(y0 + 1, static_cast<int>(src_height - 1));

            float x_diff = src_x - x0;
            float y_diff = src_y - y0;

            for (uint16_t c = 0; c < spp; ++c) {
                size_t idx00 = (static_cast<size_t>(y0) * src_width + x0) * spp + c;
                size_t idx01 = (static_cast<size_t>(y0) * src_width + x1) * spp + c;
                size_t idx10 = (static_cast<size_t>(y1) * src_width + x0) * spp + c;
                size_t idx11 = (static_cast<size_t>(y1) * src_width + x1) * spp + c;

                float v00 = idx00 < pixels.size() ? pixels[idx00] : 0;
                float v01 = idx01 < pixels.size() ? pixels[idx01] : 0;
                float v10 = idx10 < pixels.size() ? pixels[idx10] : 0;
                float v11 = idx11 < pixels.size() ? pixels[idx11] : 0;

                float value = v00 * (1 - x_diff) * (1 - y_diff) +
                              v01 * x_diff * (1 - y_diff) +
                              v10 * (1 - x_diff) * y_diff +
                              v11 * x_diff * y_diff;

                size_t dst_idx =
                    (static_cast<size_t>(y) * dst_width + x) * spp + c;
                resized[dst_idx] = static_cast<uint8_t>(std::clamp(value, 0.0f, 255.0f));
            }
        }
    }

    // Encode to output format
    std::vector<uint8_t> output;

    if (params.format == "jpeg") {
#ifdef PACS_JPEG_FOUND
        // JPEG encoding
        struct jpeg_compress_struct cinfo {};
        struct jpeg_error_mgr jerr {};

        cinfo.err = jpeg_std_error(&jerr);
        jpeg_create_compress(&cinfo);

        // Memory destination
        unsigned char* outbuffer = nullptr;
        unsigned long outsize = 0;
        jpeg_mem_dest(&cinfo, &outbuffer, &outsize);

        cinfo.image_width = dst_width;
        cinfo.image_height = dst_height;
        cinfo.input_components = static_cast<int>(spp);
        cinfo.in_color_space = (spp == 1) ? JCS_GRAYSCALE : JCS_RGB;

        jpeg_set_defaults(&cinfo);
        jpeg_set_quality(&cinfo, params.quality, TRUE);
        jpeg_start_compress(&cinfo, TRUE);

        JSAMPROW row_pointer[1];
        int row_stride = dst_width * spp;

        while (cinfo.next_scanline < cinfo.image_height) {
            row_pointer[0] = &resized[cinfo.next_scanline * static_cast<size_t>(row_stride)];
            jpeg_write_scanlines(&cinfo, row_pointer, 1);
        }

        jpeg_finish_compress(&cinfo);
        jpeg_destroy_compress(&cinfo);

        if (outbuffer != nullptr && outsize > 0) {
            output.assign(outbuffer, outbuffer + outsize);
            free(outbuffer);
        }
#else
        // Fallback: return empty if JPEG not available
        return {};
#endif
    } else if (params.format == "png") {
#ifdef PACS_PNG_FOUND
        // PNG encoding using libpng memory I/O
        struct png_mem_buffer {
            std::vector<uint8_t> data;
        };

        auto write_callback = [](png_structp png_ptr, png_bytep data,
                                 png_size_t length) {
            auto* buffer =
                static_cast<png_mem_buffer*>(png_get_io_ptr(png_ptr));
            buffer->data.insert(buffer->data.end(), data, data + length);
        };

        auto flush_callback = [](png_structp /*png_ptr*/) {
            // No-op for memory buffer
        };

        png_mem_buffer buffer;

        png_structp png_ptr = png_create_write_struct(
            PNG_LIBPNG_VER_STRING, nullptr, nullptr, nullptr);
        if (png_ptr == nullptr) {
            return {};
        }

        png_infop info_ptr = png_create_info_struct(png_ptr);
        if (info_ptr == nullptr) {
            png_destroy_write_struct(&png_ptr, nullptr);
            return {};
        }

        if (setjmp(png_jmpbuf(png_ptr))) {
            png_destroy_write_struct(&png_ptr, &info_ptr);
            return {};
        }

        png_set_write_fn(png_ptr, &buffer, write_callback, flush_callback);

        int color_type = (spp == 1) ? PNG_COLOR_TYPE_GRAY : PNG_COLOR_TYPE_RGB;
        png_set_IHDR(png_ptr, info_ptr, dst_width, dst_height, 8, color_type,
                     PNG_INTERLACE_NONE, PNG_COMPRESSION_TYPE_DEFAULT,
                     PNG_FILTER_TYPE_DEFAULT);

        png_write_info(png_ptr, info_ptr);

        int row_stride = dst_width * spp;
        for (uint16_t y = 0; y < dst_height; ++y) {
            png_bytep row = &resized[static_cast<size_t>(y) * row_stride];
            png_write_row(png_ptr, row);
        }

        png_write_end(png_ptr, nullptr);
        png_destroy_write_struct(&png_ptr, &info_ptr);

        output = std::move(buffer.data);
#else
        // Fallback: return empty if PNG not available
        return {};
#endif
    }

    return output;
}

References kcenon::pacs::core::tags::columns, kcenon::pacs::web::thumbnail_params::format, kcenon::pacs::web::thumbnail_params::frame, kcenon::pacs::core::tags::photometric_interpretation, kcenon::pacs::core::tags::pixel_data, kcenon::pacs::web::thumbnail_params::quality, kcenon::pacs::core::tags::rows, kcenon::pacs::core::tags::samples_per_pixel, and kcenon::pacs::web::thumbnail_params::size.

Referenced by get_thumbnail().

Here is the caller graph for this function:

get_content_type()

std::string kcenon::pacs::web::thumbnail_service::get_content_type ( std::string_view format )

staticnodiscardprivate

Get MIME type for format.

Parameters

format

Format string

Returns

MIME type string

Definition at line 578 of file thumbnail_service.cpp.

                                                                   {
    if (format == "jpeg") {
        return "image/jpeg";
    } else if (format == "png") {
        return "image/png";
    }
    return "application/octet-stream";
}

Referenced by get_thumbnail().

Here is the caller graph for this function:

get_series_thumbnail()

thumbnail_result kcenon::pacs::web::thumbnail_service::get_series_thumbnail ( std::string_view series_uid, const thumbnail_params & params )

nodiscard

Get thumbnail for a series (representative image)

Parameters

series_uid	Series Instance UID
params	Thumbnail parameters

Returns

Thumbnail result with image data or error

Selects the middle slice or key image from the series.

Definition at line 130 of file thumbnail_service.cpp.

                                                               {
    auto sop_uid = select_representative_instance(series_uid);
    if (!sop_uid) {
        return thumbnail_result::error("No instances found in series");
    }

    return get_thumbnail(*sop_uid, params);
}

References kcenon::pacs::web::thumbnail_result::error(), get_thumbnail(), and select_representative_instance().

Referenced by get_study_thumbnail().

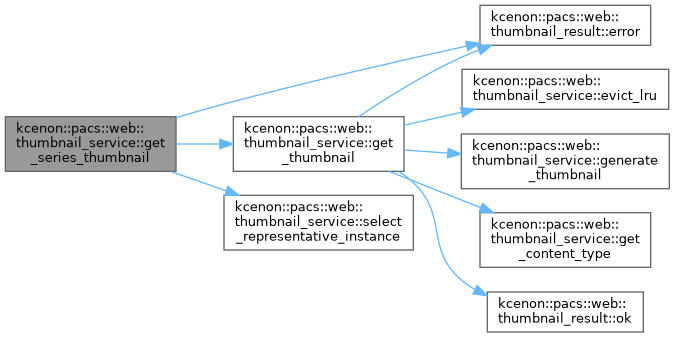

Here is the call graph for this function:

Here is the caller graph for this function:

get_study_thumbnail()

thumbnail_result kcenon::pacs::web::thumbnail_service::get_study_thumbnail ( std::string_view study_uid, const thumbnail_params & params )

nodiscard

Get thumbnail for a study (representative image)

Parameters

study_uid	Study Instance UID
params	Thumbnail parameters

Returns

Thumbnail result with image data or error

Selects the representative image from the primary series.

Definition at line 140 of file thumbnail_service.cpp.

                                                              {
    auto series_uid = select_representative_series(study_uid);
    if (!series_uid) {
        return thumbnail_result::error("No series found in study");
    }

    return get_series_thumbnail(*series_uid, params);
}

References kcenon::pacs::web::thumbnail_result::error(), get_series_thumbnail(), and select_representative_series().

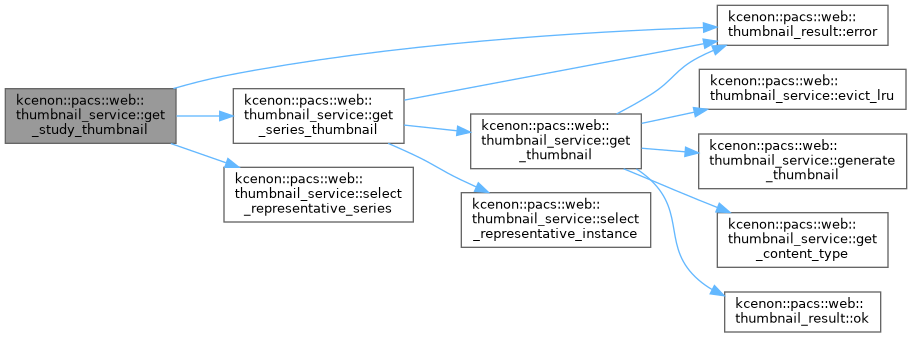

Here is the call graph for this function:

get_thumbnail()

thumbnail_result kcenon::pacs::web::thumbnail_service::get_thumbnail ( std::string_view sop_instance_uid, const thumbnail_params & params )

nodiscard

Get or generate thumbnail for a specific instance.

Parameters

sop_instance_uid	SOP Instance UID
params	Thumbnail parameters

Returns

Thumbnail result with image data or error

Definition at line 51 of file thumbnail_service.cpp.

                                                                     {
    // Validate parameters
    if (params.size != 64 && params.size != 128 && params.size != 256 &&
        params.size != 512) {
        return thumbnail_result::error("Invalid size: must be 64, 128, 256, or 512");
    }

    if (params.format != "jpeg" && params.format != "png") {
        return thumbnail_result::error("Invalid format: must be jpeg or png");
    }

    if (params.quality < 1 || params.quality > 100) {
        return thumbnail_result::error("Invalid quality: must be 1-100");
    }

    // Check database is available
    if (database_ == nullptr) {
        return thumbnail_result::error("Database not configured");
    }

    // Build cache key
    cache_key key{
        std::string(sop_instance_uid), params.size, params.format,
        params.quality, params.frame};

    // Check cache first (read lock)
    {
        std::shared_lock lock(cache_mutex_);
        auto it = cache_.find(key);
        if (it != cache_.end()) {
            // Update last accessed time
            const_cast<thumbnail_cache_entry&>(it->second).last_accessed =
                std::chrono::system_clock::now();
            return thumbnail_result::ok(it->second);
        }
    }

    // Find instance in database
    auto instance = database_->find_instance(sop_instance_uid);
    if (!instance) {
        return thumbnail_result::error("Instance not found");
    }

    // Check if file exists
    if (!std::filesystem::exists(instance->file_path)) {
        return thumbnail_result::error("DICOM file not found");
    }

    // Generate thumbnail
    auto thumbnail_data = generate_thumbnail(instance->file_path, params);
    if (thumbnail_data.empty()) {
        return thumbnail_result::error("Failed to generate thumbnail");
    }

    // Create cache entry
    thumbnail_cache_entry entry;
    entry.data = std::move(thumbnail_data);
    entry.content_type = get_content_type(params.format);
    entry.created_at = std::chrono::system_clock::now();
    entry.last_accessed = entry.created_at;

    // Store in cache (write lock)
    {
        std::unique_lock lock(cache_mutex_);

        // Check if we need to evict entries
        while (current_cache_size_ + entry.data.size() > max_cache_size_ &&
               !cache_.empty()) {
            evict_lru();
        }

        current_cache_size_ += entry.data.size();
        cache_[key] = entry;
    }

    return thumbnail_result::ok(std::move(entry));
}

References cache_, cache_mutex_, kcenon::pacs::web::thumbnail_cache_entry::content_type, kcenon::pacs::web::thumbnail_cache_entry::created_at, current_cache_size_, kcenon::pacs::web::thumbnail_cache_entry::data, database_, kcenon::pacs::web::thumbnail_result::error(), evict_lru(), kcenon::pacs::web::thumbnail_params::format, kcenon::pacs::web::thumbnail_params::frame, generate_thumbnail(), get_content_type(), kcenon::pacs::web::thumbnail_cache_entry::last_accessed, max_cache_size_, kcenon::pacs::web::thumbnail_result::ok(), kcenon::pacs::web::thumbnail_params::quality, and kcenon::pacs::web::thumbnail_params::size.

Referenced by get_series_thumbnail().

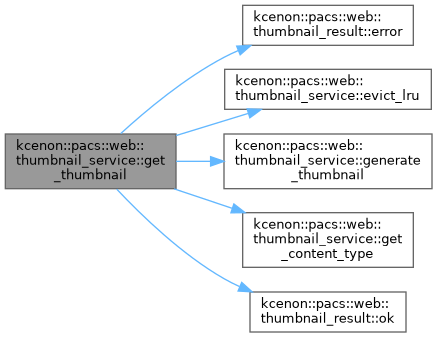

Here is the call graph for this function:

Here is the caller graph for this function:

max_cache_size()

size_t kcenon::pacs::web::thumbnail_service::max_cache_size ( ) const

nodiscard

Get maximum cache size.

Returns

Maximum cache size in bytes

Definition at line 194 of file thumbnail_service.cpp.

                                               {
    std::shared_lock lock(cache_mutex_);
    return max_cache_size_;
}

References cache_mutex_, and max_cache_size_.

operator=() [1/2]

thumbnail_service & kcenon::pacs::web::thumbnail_service::operator= ( const thumbnail_service & )

delete

operator=() [2/2]

thumbnail_service & kcenon::pacs::web::thumbnail_service::operator= ( thumbnail_service && )

delete

select_representative_instance()

std::optional< std::string > kcenon::pacs::web::thumbnail_service::select_representative_instance ( std::string_view series_uid )

nodiscardprivate

Select representative instance from series.

Parameters

series_uid

Series Instance UID

Returns

SOP Instance UID of representative instance

Definition at line 505 of file thumbnail_service.cpp.

                               {
    auto instances_result = database_->list_instances(series_uid);
    if (instances_result.is_err() || instances_result.value().empty()) {
        return std::nullopt;
    }

    const auto& instances = instances_result.value();

    // Sort by instance number and select middle instance
    std::vector<std::pair<int, std::string>> sorted;
    for (const auto& inst : instances) {
        int num = inst.instance_number.value_or(1);
        sorted.emplace_back(num, inst.sop_uid);
    }

    std::sort(sorted.begin(), sorted.end(),
              [](const auto& a, const auto& b) { return a.first < b.first; });

    // Select middle instance
    size_t middle = sorted.size() / 2;
    return sorted[middle].second;
}

References database_.

Referenced by get_series_thumbnail().

Here is the caller graph for this function:

select_representative_series()

std::optional< std::string > kcenon::pacs::web::thumbnail_service::select_representative_series ( std::string_view study_uid )

nodiscardprivate

Select representative series from study.

Parameters

study_uid

Study Instance UID

Returns

Series Instance UID of representative series

Definition at line 529 of file thumbnail_service.cpp.

                              {
    auto series_result = database_->list_series(study_uid);
    if (series_result.is_err() || series_result.value().empty()) {
        return std::nullopt;
    }

    const auto& series_list = series_result.value();

    // Prefer series with images (CT, MR, CR, DX, etc.)
    // Use first series with most instances as representative
    const kcenon::pacs::storage::series_record* best = nullptr;
    for (const auto& s : series_list) {
        // Skip structured reports, KOS, etc.
        if (s.modality == "SR" || s.modality == "KO" || s.modality == "PR") {
            continue;
        }

        if (best == nullptr || s.num_instances > best->num_instances) {
            best = &s;
        }
    }

    if (best == nullptr && !series_list.empty()) {
        // Fall back to first series
        best = &series_list[0];
    }

    return best ? std::make_optional(best->series_uid) : std::nullopt;
}

References database_, kcenon::pacs::storage::series_record::num_instances, and kcenon::pacs::storage::series_record::series_uid.

Referenced by get_study_thumbnail().

Here is the caller graph for this function:

set_max_cache_size()

void kcenon::pacs::web::thumbnail_service::set_max_cache_size

(

size_t

max_bytes

)

Set maximum cache size.

Parameters

max_bytes

Maximum cache size in bytes

Definition at line 184 of file thumbnail_service.cpp.

                                                           {
    std::unique_lock lock(cache_mutex_);
    max_cache_size_ = max_bytes;

    // Evict if over limit
    while (current_cache_size_ > max_cache_size_ && !cache_.empty()) {
        evict_lru();
    }
}

References cache_, cache_mutex_, current_cache_size_, evict_lru(), and max_cache_size_.

Here is the call graph for this function:

Member Data Documentation

cache_

std::unordered_map<cache_key, thumbnail_cache_entry, cache_key_hash> kcenon::pacs::web::thumbnail_service::cache_

private

Thumbnail cache.

Definition at line 248 of file thumbnail_service.h.

Referenced by cache_entry_count(), clear_cache(), clear_cache(), evict_lru(), get_thumbnail(), and set_max_cache_size().

cache_mutex_

std::shared_mutex kcenon::pacs::web::thumbnail_service::cache_mutex_

mutableprivate

Cache mutex.

Definition at line 251 of file thumbnail_service.h.

Referenced by cache_entry_count(), cache_size(), clear_cache(), clear_cache(), get_thumbnail(), max_cache_size(), and set_max_cache_size().

current_cache_size_

size_t kcenon::pacs::web::thumbnail_service::current_cache_size_ {0}

private

Current cache size in bytes.

Definition at line 254 of file thumbnail_service.h.

{0};

Referenced by cache_size(), clear_cache(), clear_cache(), evict_lru(), get_thumbnail(), and set_max_cache_size().

database_

std::shared_ptr<storage::index_database> kcenon::pacs::web::thumbnail_service::database_

private

Database for instance lookups.

Definition at line 245 of file thumbnail_service.h.

Referenced by get_thumbnail(), select_representative_instance(), and select_representative_series().

max_cache_size_

size_t kcenon::pacs::web::thumbnail_service::max_cache_size_ {64 * 1024 * 1024}

private

Maximum cache size (default: 64MB)

Definition at line 257 of file thumbnail_service.h.

{64 * 1024 * 1024};

Referenced by get_thumbnail(), max_cache_size(), and set_max_cache_size().

---

The documentation for this class was generated from the following files:

• include/kcenon/pacs/web/thumbnail_service.h
• src/web/thumbnail_service.cpp
