queue_factory_sample.cpp File Reference

Queue factory for requirements-based and compile-time queue selection. More...

#include <kcenon/thread/queue/queue_factory.h>
#include <kcenon/thread/core/callback_job.h>
#include <iostream>
#include <string>
#include <thread>
#include <atomic>
#include <vector>
#include <chrono>

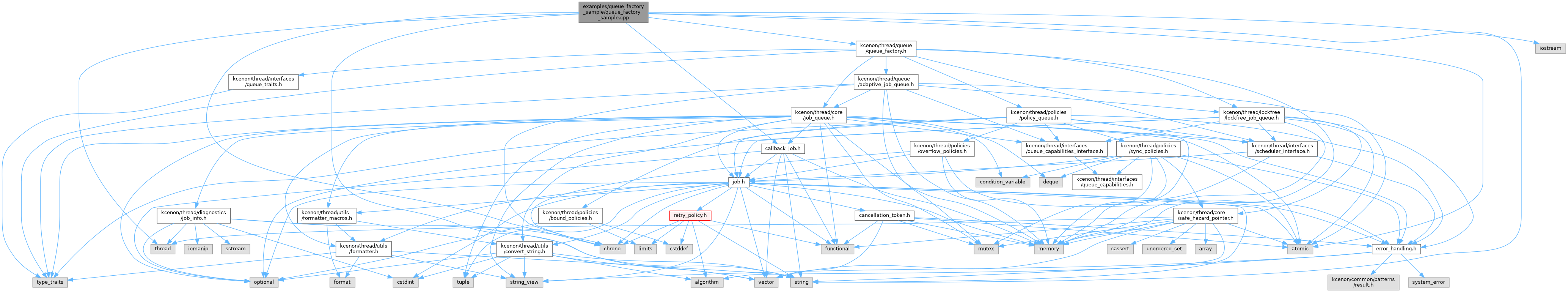

Include dependency graph for queue_factory_sample.cpp:

Go to the source code of this file.

Functions
void	simple_factory_usage ()
	Example 1: Simple factory usage.
void	requirements_based_selection ()
	Example 2: Requirements-based selection.
void	optimal_selection ()
	Example 3: Optimal queue selection.
void	compile_time_selection ()
	Example 4: Compile-time selection.
void	practical_use_cases ()
	Example 5: Practical use cases.
int	main ()

Detailed Description

Queue factory for requirements-based and compile-time queue selection.

Definition in file queue_factory_sample.cpp.

Function Documentation

compile_time_selection()

void compile_time_selection

(

)

Example 4: Compile-time selection.

Shows how to use template-based type selection for zero-overhead queue selection.

Examples

queue_factory_sample.cpp.

Definition at line 177 of file queue_factory_sample.cpp.

{
    std::cout << "=== Example 4: Compile-Time Selection ===" << std::endl;

    // Type aliases for common use cases
    std::cout << "Pre-defined type aliases:" << std::endl;
    std::cout << "  - accurate_queue_t = job_queue (exact size/empty)" << std::endl;
    std::cout << "  - fast_queue_t = adaptive_job_queue (maximum throughput)" << std::endl;
    std::cout << "  - balanced_queue_t = adaptive_job_queue (auto-tuning)" << std::endl;

    // Demonstrate usage
    accurate_queue_t accurate;
    fast_queue_t fast;
    balanced_queue_t balanced;

    std::cout << "\nInstantiated queues:" << std::endl;
    std::cout << "  - accurate_queue_t has_exact_size: " << std::boolalpha << accurate.has_exact_size() << std::endl;
    std::cout << "  - fast_queue_t is_lock_free: " << fast.is_lock_free() << std::endl;
    std::cout << "  - balanced_queue_t (adaptive mode)" << std::endl;

    // Show template-based selection
    std::cout << "\nTemplate-based selection (queue_t<NeedExactSize, PreferLockFree>):" << std::endl;
    std::cout << "  - queue_t<true, false>  -> job_queue" << std::endl;
    std::cout << "  - queue_t<false, true>  -> adaptive_job_queue (performance mode)" << std::endl;
    std::cout << "  - queue_t<false, false> -> adaptive_job_queue (balanced mode)" << std::endl;
    std::cout << "  - queue_t<true, true>   -> compile error (mutually exclusive)" << std::endl;

    std::cout << std::endl;
}

Referenced by main().

Here is the caller graph for this function:

main()

int main

(

)

Definition at line 297 of file queue_factory_sample.cpp.

{
    std::cout << "Queue Factory Sample" << std::endl;
    std::cout << "====================" << std::endl;
    std::cout << std::endl;

    try {
        simple_factory_usage();
        requirements_based_selection();
        optimal_selection();
        compile_time_selection();
        practical_use_cases();
    } catch (const std::exception& e) {
        std::cerr << "Exception: " << e.what() << std::endl;
        return 1;
    }

    std::cout << "All examples completed successfully!" << std::endl;

    return 0;
}

References compile_time_selection(), optimal_selection(), practical_use_cases(), requirements_based_selection(), and simple_factory_usage().

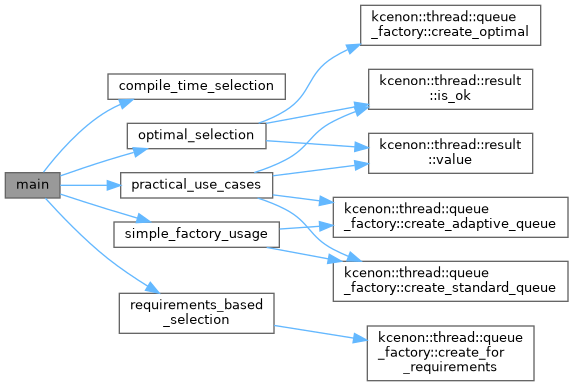

Here is the call graph for this function:

optimal_selection()

void optimal_selection

(

)

Example 3: Optimal queue selection.

Demonstrates automatic queue selection based on the runtime environment.

Examples

queue_factory_sample.cpp.

Definition at line 124 of file queue_factory_sample.cpp.

{
    std::cout << "=== Example 3: Optimal Queue Selection ===" << std::endl;

    auto optimal = queue_factory::create_optimal();

    std::cout << "Optimal queue selected for this system:" << std::endl;
    std::cout << "  Selection criteria:" << std::endl;
    std::cout << "  - Hardware concurrency: " << std::thread::hardware_concurrency() << " cores" << std::endl;
#if defined(__aarch64__) || defined(_M_ARM64)
    std::cout << "  - Architecture: ARM (weak memory model)" << std::endl;
    std::cout << "  - Selection: job_queue (safety priority)" << std::endl;
#else
    std::cout << "  - Architecture: x86 (strong memory model)" << std::endl;
    if (std::thread::hardware_concurrency() <= 2) {
        std::cout << "  - Selection: job_queue (mutex efficient for low core count)" << std::endl;
    } else {
        std::cout << "  - Selection: adaptive_job_queue (best of both worlds)" << std::endl;
    }
#endif

    // Demonstrate usage through scheduler_interface
    std::cout << "\nUsing optimal queue:" << std::endl;
    std::atomic<int> job_count{0};
    const int num_jobs = 5;

    for (int i = 0; i < num_jobs; ++i) {
        auto job = std::make_unique<callback_job>(
            [&job_count]() -> kcenon::common::VoidResult {
                job_count.fetch_add(1);
                return kcenon::common::ok();
            });
        optimal->schedule(std::move(job));
    }

    // Process all jobs
    for (int i = 0; i < num_jobs; ++i) {
        auto result = optimal->get_next_job();
        if (result.is_ok()) {
            auto work_result = result.value()->do_work();
            (void)work_result;
        }
    }
    std::cout << "  Processed " << job_count.load() << " jobs" << std::endl;

    std::cout << std::endl;
}

References kcenon::thread::queue_factory::create_optimal(), kcenon::thread::result< T >::is_ok(), and kcenon::thread::result< T >::value().

Referenced by main().

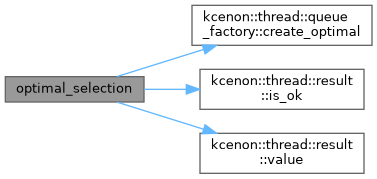

Here is the call graph for this function:

Here is the caller graph for this function:

practical_use_cases()

void practical_use_cases

(

)

Example 5: Practical use cases.

Demonstrates real-world scenarios where different queue types are appropriate.

Examples

queue_factory_sample.cpp.

Definition at line 212 of file queue_factory_sample.cpp.

{
    std::cout << "=== Example 5: Practical Use Cases ===" << std::endl;

    // Financial system: needs exact counts for audit
    std::cout << "\n[Financial System - Audit Queue]" << std::endl;
    std::cout << "  Requirements: exact_size + batch_operations" << std::endl;
    std::cout << "  Selected: job_queue (mutex-based for accuracy)" << std::endl;
    auto financial_queue = queue_factory::create_standard_queue();

    // High-frequency trading: needs maximum speed
    std::cout << "\n[High-Frequency Trading - Order Queue]" << std::endl;
    std::cout << "  Requirements: prefer_lock_free" << std::endl;
    std::cout << "  Selected: adaptive_job_queue with performance_first policy" << std::endl;
    auto hft_queue = queue_factory::create_adaptive_queue(adaptive_job_queue::policy::performance_first);

    // Web server: balanced workload
    std::cout << "\n[Web Server - Request Queue]" << std::endl;
    std::cout << "  Requirements: variable load, auto-tuning" << std::endl;
    std::cout << "  Selected: adaptive_job_queue with balanced policy" << std::endl;
    auto web_queue = queue_factory::create_adaptive_queue(adaptive_job_queue::policy::balanced);

    // Demonstrate actual usage with financial queue (has exact size)
    std::cout << "\n[Demo: Processing jobs through financial queue]" << std::endl;
    std::atomic<int> processed{0};

    // Enqueue some jobs
    for (int i = 0; i < 5; ++i) {
        auto job = std::make_unique<callback_job>(
            [i, &processed]() -> kcenon::common::VoidResult {
                processed.fetch_add(1);
                return kcenon::common::ok();
            });
        auto result = financial_queue->enqueue(std::move(job));
        if (!result.is_err()) {
            std::cout << "  Enqueued job " << i << ", queue size: " << financial_queue->size() << std::endl;
        }
    }

    // Process jobs
    while (!financial_queue->empty()) {
        auto result = financial_queue->dequeue();
        if (result.is_ok()) {
            auto work_result = result.value()->do_work();
            (void)work_result;
        }
    }
    std::cout << "  Processed " << processed.load() << " jobs" << std::endl;

    // Demonstrate HFT queue (lock-free)
    std::cout << "\n[Demo: High-frequency trading simulation]" << std::endl;
    std::atomic<int> orders_processed{0};
    const int order_count = 1000;

    auto start = std::chrono::high_resolution_clock::now();

    // Enqueue orders
    for (int i = 0; i < order_count; ++i) {
        auto job = std::make_unique<callback_job>(
            [&orders_processed]() -> kcenon::common::VoidResult {
                orders_processed.fetch_add(1);
                return kcenon::common::ok();
            });
        auto enqueue_result = hft_queue->enqueue(std::move(job));
        (void)enqueue_result;
    }

    // Process orders
    while (true) {
        auto result = hft_queue->dequeue();
        if (result.is_err()) break;
        auto work_result = result.value()->do_work();
        (void)work_result;
    }

    auto duration = std::chrono::high_resolution_clock::now() - start;
    auto us = std::chrono::duration_cast<std::chrono::microseconds>(duration).count();
    std::cout << "  Processed " << orders_processed.load() << " orders in " << us << " us" << std::endl;
    if (us > 0) {
        std::cout << "  Throughput: " << (order_count * 1000000.0 / us) << " ops/sec" << std::endl;
    }

    std::cout << std::endl;
}

References kcenon::thread::queue_factory::create_adaptive_queue(), kcenon::thread::queue_factory::create_standard_queue(), kcenon::thread::result< T >::is_ok(), and kcenon::thread::result< T >::value().

Referenced by main().

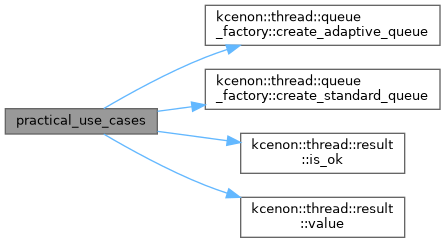

Here is the call graph for this function:

Here is the caller graph for this function:

requirements_based_selection()

void requirements_based_selection

(

)

Example 2: Requirements-based selection.

Shows how to use requirements to automatically select the appropriate queue type. Returns scheduler_interface which provides schedule() and get_next_job() methods.

Examples

queue_factory_sample.cpp.

Definition at line 67 of file queue_factory_sample.cpp.

{
    std::cout << "=== Example 2: Requirements-Based Selection ===" << std::endl;

    // Scenario: Monitoring system needs exact counts
    std::cout << "Monitoring queue (need_exact_size=true):" << std::endl;
    queue_factory::requirements monitoring_reqs;
    monitoring_reqs.need_exact_size = true;
    auto monitoring_queue = queue_factory::create_for_requirements(monitoring_reqs);
    std::cout << "  - Returns job_queue via scheduler_interface" << std::endl;
    std::cout << "  - Provides exact size() and empty() operations" << std::endl;

    // Scenario: High-performance logging prefers lock-free
    std::cout << "Logging queue (prefer_lock_free=true):" << std::endl;
    queue_factory::requirements logging_reqs;
    logging_reqs.prefer_lock_free = true;
    auto logging_queue = queue_factory::create_for_requirements(logging_reqs);
    std::cout << "  - Returns adaptive_job_queue via scheduler_interface" << std::endl;
    std::cout << "  - Maximum throughput for high-volume logging" << std::endl;

    // Scenario: Batch processing needs batch operations
    std::cout << "Batch queue (need_batch_operations=true):" << std::endl;
    queue_factory::requirements batch_reqs;
    batch_reqs.need_batch_operations = true;
    auto batch_queue = queue_factory::create_for_requirements(batch_reqs);
    std::cout << "  - Returns job_queue for batch operation support" << std::endl;

    // Scenario: No specific requirements - gets adaptive queue
    std::cout << "Default queue (no specific requirements):" << std::endl;
    queue_factory::requirements default_reqs;
    auto default_queue = queue_factory::create_for_requirements(default_reqs);
    std::cout << "  - Returns adaptive_job_queue for flexibility" << std::endl;

    // Demonstrate basic scheduler_interface usage
    std::cout << "\nUsing scheduler_interface:" << std::endl;
    auto job = std::make_unique<callback_job>(
        []() -> kcenon::common::VoidResult {
            std::cout << "  - Job executed!" << std::endl;
            return kcenon::common::ok();
        });
    auto schedule_result = monitoring_queue->schedule(std::move(job));
    if (schedule_result.is_ok()) {
        auto next_job = monitoring_queue->get_next_job();
        if (next_job.is_ok()) {
            auto work_result = next_job.value()->do_work();
            (void)work_result;
        }
    }

    std::cout << std::endl;
}

References kcenon::thread::queue_factory::create_for_requirements(), kcenon::thread::queue_factory::requirements::need_batch_operations, kcenon::thread::queue_factory::requirements::need_exact_size, and kcenon::thread::queue_factory::requirements::prefer_lock_free.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

simple_factory_usage()

void simple_factory_usage

(

)

Example 1: Simple factory usage.

Demonstrates the basic factory methods for creating different queue types.

Examples

queue_factory_sample.cpp.

Definition at line 34 of file queue_factory_sample.cpp.

{
    std::cout << "=== Example 1: Simple Factory Usage ===" << std::endl;

    // Create standard queue (job_queue) - exact size, batch operations, blocking dequeue
    auto standard = queue_factory::create_standard_queue();
    std::cout << "Standard queue (job_queue):" << std::endl;
    std::cout << "  - has_exact_size: " << std::boolalpha << standard->has_exact_size() << std::endl;
    std::cout << "  - is_lock_free: " << standard->is_lock_free() << std::endl;

    // Create adaptive queue with performance_first policy - maximum throughput
    // Note: create_lockfree_queue() is deprecated, use create_adaptive_queue() instead
    auto performance = queue_factory::create_adaptive_queue(adaptive_job_queue::policy::performance_first);
    std::cout << "Performance-first queue (adaptive_job_queue with lock-free mode):" << std::endl;
    std::cout << "  - has_exact_size: " << performance->has_exact_size() << std::endl;
    std::cout << "  - is_lock_free: " << performance->is_lock_free() << std::endl;

    // Create adaptive queue - auto-optimizing based on workload
    auto adaptive = queue_factory::create_adaptive_queue();
    std::cout << "Adaptive queue (adaptive_job_queue):" << std::endl;
    std::cout << "  - has_exact_size: " << adaptive->has_exact_size() << std::endl;
    std::cout << "  - is_lock_free: " << adaptive->is_lock_free() << std::endl;
    std::cout << "  - auto-switching enabled for balanced performance" << std::endl;

    std::cout << std::endl;
}

References kcenon::thread::adaptive, kcenon::thread::queue_factory::create_adaptive_queue(), kcenon::thread::queue_factory::create_standard_queue(), and kcenon::thread::standard.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:
