kcenon::thread::dag_job Class Reference

A job with dependency support for DAG-based scheduling. More...

#include <dag_job.h>

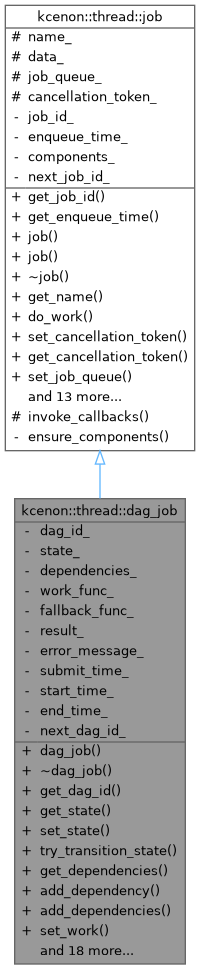

Inheritance diagram for kcenon::thread::dag_job:

Collaboration diagram for kcenon::thread::dag_job:

Public Member Functions
	dag_job (const std::string &name="dag_job")
	Constructs a new dag_job with a name.
	~dag_job () override
	Virtual destructor.
auto	get_dag_id () const -> job_id
	Gets the unique DAG job identifier.
auto	get_state () const -> dag_job_state
	Gets the current state of the job.
auto	set_state (dag_job_state new_state) -> void
	Sets the job state.
auto	try_transition_state (dag_job_state expected, dag_job_state desired) -> bool
	Attempts to transition state atomically.
auto	get_dependencies () const -> const std::vector< job_id > &
	Gets the list of dependency job IDs.
auto	add_dependency (job_id dependency_id) -> void
	Adds a dependency on another job.
auto	add_dependencies (const std::vector< job_id > &dependency_ids) -> void
	Adds multiple dependencies.
auto	set_work (std::function< common::VoidResult()> work_func) -> void
	Sets the work function to execute.
template<typename T >
auto	set_work_with_result (std::function< common::Result< T >()> work_func) -> void
	Sets the work function with result.
auto	set_fallback (std::function< common::VoidResult()> fallback_func) -> void
	Sets the fallback function to execute on failure.
auto	get_fallback () const -> const std::function< common::VoidResult()> &
	Gets the fallback function.
auto	has_fallback () const -> bool
	Checks if a fallback function is set.
template<typename T >
auto	set_result (T &&value) -> void
	Sets the result value.
template<typename T >
auto	get_result () const -> const T &
	Gets the result value.
auto	has_result () const -> bool
	Checks if the job has a result.
auto	get_result_any () const -> const std::any &
	Gets the result as std::any.
auto	set_error_message (const std::string &message) -> void
	Sets the error message for failed jobs.
auto	get_error_message () const -> const std::optional< std::string > &
	Gets the error message.
auto	record_start_time () -> void
	Records the start time.
auto	record_end_time () -> void
	Records the end time.
auto	get_submit_time () const -> std::chrono::steady_clock::time_point
	Gets the submit time.
auto	get_start_time () const -> std::chrono::steady_clock::time_point
	Gets the start time.
auto	get_end_time () const -> std::chrono::steady_clock::time_point
	Gets the end time.
auto	get_info () const -> dag_job_info
	Creates a dag_job_info snapshot.
auto	do_work () -> common::VoidResult override
	Executes the job's work function.
auto	to_string () const -> std::string override
	Returns a string representation of the job.
Public Member Functions inherited from kcenon::thread::job
auto	get_job_id () const -> std::uint64_t
	Gets the unique ID of this job.
auto	get_enqueue_time () const -> std::chrono::steady_clock::time_point
	Gets the time when this job was created (enqueued).
	job (const std::string &name="job")
	Constructs a new job with an optional human-readable name.
	job (const std::vector< uint8_t > &data, const std::string &name="data_job")
	Constructs a new job with associated raw byte data and a name.
virtual	~job (void)
	Virtual destructor for the job class to allow proper cleanup in derived classes.
auto	get_name (void) const -> std::string
	Retrieves the name of this job.
virtual auto	set_cancellation_token (const cancellation_token &token) -> void
	Sets a cancellation token that can be used to cancel the job.
virtual auto	get_cancellation_token () const -> cancellation_token
	Gets the cancellation token associated with this job.
virtual auto	set_job_queue (const std::shared_ptr< job_queue > &job_queue) -> void
	Associates this job with a specific job_queue.
virtual auto	get_job_queue (void) const -> std::shared_ptr< job_queue >
	Retrieves the job_queue associated with this job, if any.
auto	with_on_complete (std::function< void(common::VoidResult)> callback) -> job &
	Attaches a completion callback to this job.
auto	with_on_error (std::function< void(const common::error_info &)> callback) -> job &
	Attaches an error callback to this job.
auto	with_priority (job_priority priority) -> job &
	Sets the priority level for this job.
auto	with_cancellation (const cancellation_token &token) -> job &
	Attaches a cancellation token to this job via composition.
auto	with_retry (const retry_policy &policy) -> job &
	Attaches a retry policy to this job.
auto	with_timeout (std::chrono::milliseconds timeout) -> job &
	Sets a timeout for job execution.
auto	get_priority () const -> job_priority
	Gets the priority level of this job.
auto	get_retry_policy () const -> std::optional< retry_policy >
	Gets the retry policy of this job.
auto	get_timeout () const -> std::optional< std::chrono::milliseconds >
	Gets the timeout duration for this job.
auto	has_explicit_cancellation () const -> bool
	Checks if this job has an explicit cancellation set via composition.
auto	has_components () const -> bool
	Checks if this job has any composed components.

Private Attributes
job_id	dag_id_
	Unique identifier for this job in the DAG.
std::atomic< dag_job_state >	state_ {dag_job_state::pending}
	Current state of the job.
std::vector< job_id >	dependencies_
	List of job IDs this job depends on.
std::function< common::VoidResult()>	work_func_
	The work function to execute.
std::function< common::VoidResult()>	fallback_func_
	The fallback function to execute on failure.
std::any	result_
	Result value for passing between jobs.
std::optional< std::string >	error_message_
	Error message if job failed.
std::chrono::steady_clock::time_point	submit_time_
	Time when the job was created.
std::chrono::steady_clock::time_point	start_time_
	Time when execution started.
std::chrono::steady_clock::time_point	end_time_
	Time when execution ended.

Static Private Attributes
static std::atomic< job_id >	next_dag_id_ {1}
	Static counter for generating unique DAG job IDs.

Additional Inherited Members
Protected Member Functions inherited from kcenon::thread::job
auto	invoke_callbacks (const common::VoidResult &result) -> void
	Invokes the completion callbacks if they are set.
Protected Attributes inherited from kcenon::thread::job
std::string	name_
	The descriptive name of the job, used primarily for identification and logging.
std::vector< uint8_t >	data_
	An optional container of raw byte data that may be used by the job.
std::weak_ptr< job_queue >	job_queue_
	A weak reference to the job_queue that currently manages this job.
cancellation_token	cancellation_token_
	The cancellation token associated with this job.

Detailed Description

A job with dependency support for DAG-based scheduling.

The dag_job class extends the base job class to support:

• Dependency declarations on other jobs
• State tracking for DAG execution
• Result storage for passing data between jobs

Thread Safety

• State transitions are atomic
• Result access should be synchronized externally
• Dependencies should be set before adding to scheduler

Usage Example

auto job_a = std::make_unique<dag_job>("fetch_data");
job_a->set_work([]{ return fetch_from_database(); });

auto job_b = std::make_unique<dag_job>("process_data");
job_b->add_dependency(job_a->get_dag_id());
job_b->set_work([&scheduler, job_a_id] {
    auto data = scheduler.get_result<Data>(job_a_id);
    return process(data);
});

Definition at line 156 of file dag_job.h.

Constructor & Destructor Documentation

dag_job()

kcenon::thread::dag_job::dag_job ( const std::string & name = "dag_job" )

explicit

Constructs a new dag_job with a name.

Parameters

name	Human-readable name for the job

Definition at line 14 of file dag_job.cpp.

    : job(name)
    , dag_id_(next_dag_id_.fetch_add(1, std::memory_order_relaxed))
    , submit_time_(std::chrono::steady_clock::now())
{
}

~dag_job()

kcenon::thread::dag_job::~dag_job ( )

overridedefault

Virtual destructor.

Member Function Documentation

add_dependencies()

auto kcenon::thread::dag_job::add_dependencies ( const std::vector< job_id > & dependency_ids ) -> void

inline

Adds multiple dependencies.

Parameters

dependency_ids

Vector of job IDs to depend on

Thread Safety: Not thread-safe, should be called before scheduling

Definition at line 243 of file dag_job.h.

        {
            for (const auto& id : dependency_ids)
            {
                add_dependency(id);
            }
        }

References add_dependency().

Here is the call graph for this function:

add_dependency()

auto kcenon::thread::dag_job::add_dependency ( job_id dependency_id ) -> void

inline

Adds a dependency on another job.

Parameters

dependency_id

The ID of the job to depend on

Thread Safety: Not thread-safe, should be called before scheduling

Definition at line 229 of file dag_job.h.

        {
            if (dependency_id != INVALID_JOB_ID)
            {
                dependencies_.push_back(dependency_id);
            }
        }

References dependencies_, and kcenon::thread::INVALID_JOB_ID.

Referenced by add_dependencies().

Here is the caller graph for this function:

do_work()

auto kcenon::thread::dag_job::do_work ( void ) -> common::VoidResult

nodiscardoverridevirtual

Executes the job's work function.

Returns

Result of execution

Thread Safety: Should only be called by the scheduler

Reimplemented from kcenon::thread::job.

Definition at line 43 of file dag_job.cpp.

{
    // Check cancellation token
    if (cancellation_token_.is_cancelled())
    {
        set_state(dag_job_state::cancelled);
        return make_error_result(error_code::operation_canceled, "Job was cancelled");
    }

    // If no work function is set, return success
    if (!work_func_)
    {
        return common::ok();
    }

    // Execute the work function
    try
    {
        return work_func_();
    }
    catch (const std::exception& e)
    {
        set_error_message(e.what());
        return make_error_result(error_code::job_execution_failed, e.what());
    }
    catch (...)
    {
        set_error_message("Unknown exception");
        return make_error_result(error_code::job_execution_failed, "Unknown exception during job execution");
    }
}

References kcenon::thread::cancelled, kcenon::thread::job_execution_failed, kcenon::thread::make_error_result(), and kcenon::thread::operation_canceled.

Here is the call graph for this function:

get_dag_id()

auto kcenon::thread::dag_job::get_dag_id ( ) const -> job_id

inlinenodiscard

Gets the unique DAG job identifier.

Returns

The job's unique ID within the DAG

Thread Safety: Safe to call from any thread (ID is immutable)

Definition at line 176 of file dag_job.h.

{ return dag_id_; }

References dag_id_.

get_dependencies()

auto kcenon::thread::dag_job::get_dependencies ( ) const -> const std::vector<job_id>&

inlinenodiscard

Gets the list of dependency job IDs.

Returns

Vector of job IDs this job depends on

Thread Safety: Not thread-safe, should be set before scheduling

Definition at line 221 of file dag_job.h.

{ return dependencies_; }

References dependencies_.

get_end_time()

auto kcenon::thread::dag_job::get_end_time ( ) const -> std::chrono::steady_clock::time_point

inlinenodiscard

Gets the end time.

Returns

The time when execution ended

Definition at line 410 of file dag_job.h.

        {
            return end_time_;
        }

References end_time_.

get_error_message()

auto kcenon::thread::dag_job::get_error_message ( ) const -> const std::optional<std::string>&

inlinenodiscard

Gets the error message.

Returns

The error message, or std::nullopt if not set

Definition at line 367 of file dag_job.h.

        {
            return error_message_;
        }

References error_message_.

get_fallback()

auto kcenon::thread::dag_job::get_fallback ( ) const -> const std::function<common::VoidResult()>&

inlinenodiscard

Gets the fallback function.

Returns

The fallback function, or nullptr if not set

Definition at line 298 of file dag_job.h.

        {
            return fallback_func_;
        }

References fallback_func_.

get_info()

auto kcenon::thread::dag_job::get_info ( ) const -> dag_job_info

nodiscard

Creates a dag_job_info snapshot.

Returns

Snapshot of current job state

Definition at line 23 of file dag_job.cpp.

{
    dag_job_info info;
    info.id = dag_id_;
    info.name = get_name();
    info.state = get_state();
    info.dependencies = dependencies_;
    info.submit_time = submit_time_;
    info.start_time = start_time_;
    info.end_time = end_time_;
    info.error_message = error_message_;

    if (has_result())
    {
        info.result = result_;
    }

    return info;
}

References dag_id_, dependencies_, end_time_, error_message_, kcenon::thread::job::get_name(), get_state(), has_result(), kcenon::thread::dag_job_info::id, kcenon::thread::info, result_, start_time_, and submit_time_.

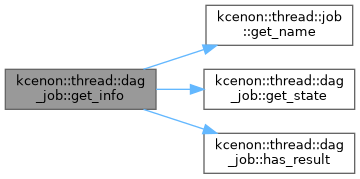

Here is the call graph for this function:

get_result()

template<typename T >

auto kcenon::thread::dag_job::get_result ( ) const -> const T&

inlinenodiscard

Gets the result value.

Template Parameters

T	The expected result type

Returns

The result value

Exceptions

std::bad_any_cast

if type doesn't match

Thread Safety: Not thread-safe, should be called after job completes

Definition at line 334 of file dag_job.h.

        {
            return std::any_cast<const T&>(result_);
        }

References result_.

get_result_any()

auto kcenon::thread::dag_job::get_result_any ( ) const -> const std::any&

inlinenodiscard

Gets the result as std::any.

Returns

The result as std::any

Definition at line 352 of file dag_job.h.

{ return result_; }

References result_.

get_start_time()

auto kcenon::thread::dag_job::get_start_time ( ) const -> std::chrono::steady_clock::time_point

inlinenodiscard

Gets the start time.

Returns

The time when execution started

Definition at line 401 of file dag_job.h.

        {
            return start_time_;
        }

References start_time_.

get_state()

auto kcenon::thread::dag_job::get_state ( ) const -> dag_job_state

inlinenodiscard

Gets the current state of the job.

Returns

Current dag_job_state

Thread Safety: Atomic read

Definition at line 184 of file dag_job.h.

        {
            return state_.load(std::memory_order_acquire);
        }

References state_.

Referenced by get_info(), and to_string().

Here is the caller graph for this function:

get_submit_time()

auto kcenon::thread::dag_job::get_submit_time ( ) const -> std::chrono::steady_clock::time_point

inlinenodiscard

Gets the submit time.

Returns

The time when the job was created

Definition at line 392 of file dag_job.h.

        {
            return submit_time_;
        }

References submit_time_.

has_fallback()

auto kcenon::thread::dag_job::has_fallback ( ) const -> bool

inlinenodiscard

Checks if a fallback function is set.

Returns

true if fallback is set

Definition at line 307 of file dag_job.h.

        {
            return fallback_func_ != nullptr;
        }

References fallback_func_.

has_result()

auto kcenon::thread::dag_job::has_result ( ) const -> bool

inlinenodiscard

Checks if the job has a result.

Returns

true if result is set

Definition at line 343 of file dag_job.h.

        {
            return result_.has_value();
        }

References result_.

Referenced by get_info().

Here is the caller graph for this function:

record_end_time()

auto kcenon::thread::dag_job::record_end_time ( ) -> void

inline

Records the end time.

Definition at line 383 of file dag_job.h.

        {
            end_time_ = std::chrono::steady_clock::now();
        }

References end_time_.

record_start_time()

auto kcenon::thread::dag_job::record_start_time ( ) -> void

inline

Records the start time.

Definition at line 375 of file dag_job.h.

        {
            start_time_ = std::chrono::steady_clock::now();
        }

References start_time_.

set_error_message()

auto kcenon::thread::dag_job::set_error_message ( const std::string & message ) -> void

inline

Sets the error message for failed jobs.

Parameters

message

The error message

Definition at line 358 of file dag_job.h.

        {
            error_message_ = message;
        }

References error_message_.

set_fallback()

auto kcenon::thread::dag_job::set_fallback ( std::function< common::VoidResult()> fallback_func ) -> void

inline

Sets the fallback function to execute on failure.

Parameters

fallback_func

The fallback function

Thread Safety: Not thread-safe, should be called before scheduling

Definition at line 289 of file dag_job.h.

        {
            fallback_func_ = std::move(fallback_func);
        }

References fallback_func_.

set_result()

template<typename T >

auto kcenon::thread::dag_job::set_result ( T && value ) -> void

inline

Sets the result value.

Template Parameters

T	The result type

Parameters

value

The result value

Thread Safety: Not thread-safe, should be called from worker thread only

Definition at line 320 of file dag_job.h.

        {
            result_ = std::forward<T>(value);
        }

References result_.

Referenced by set_work_with_result().

Here is the caller graph for this function:

set_state()

auto kcenon::thread::dag_job::set_state ( dag_job_state new_state ) -> void

inline

Sets the job state.

Parameters

new_state

The new state to set

Thread Safety: Atomic write

Definition at line 195 of file dag_job.h.

        {
            state_.store(new_state, std::memory_order_release);
        }

References state_.

set_work()

auto kcenon::thread::dag_job::set_work ( std::function< common::VoidResult()> work_func ) -> void

inline

Sets the work function to execute.

Parameters

work_func

The function to execute

Thread Safety: Not thread-safe, should be called before scheduling

Definition at line 257 of file dag_job.h.

        {
            work_func_ = std::move(work_func);
        }

References work_func_.

set_work_with_result()

template<typename T >

auto kcenon::thread::dag_job::set_work_with_result ( std::function< common::Result< T >()> work_func ) -> void

inline

Sets the work function with result.

Template Parameters

T	The result type

Parameters

work_func

The function to execute that returns a result

Thread Safety: Not thread-safe, should be called before scheduling

Definition at line 270 of file dag_job.h.

        {
            work_func_ = [this, func = std::move(work_func)]() -> common::VoidResult {
                auto result = func();
                if (result.is_ok())
                {
                    set_result(result.value());
                    return common::ok();
                }
                return common::VoidResult(result.error());
            };
        }

References kcenon::thread::result< T >::is_ok(), set_result(), kcenon::thread::result< T >::value(), and work_func_.

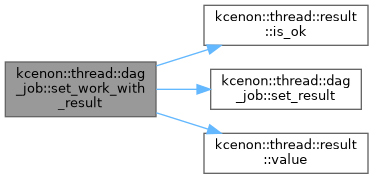

Here is the call graph for this function:

to_string()

auto kcenon::thread::dag_job::to_string ( void ) const -> std::string

nodiscardoverridevirtual

Returns a string representation of the job.

Returns

String describing the job

Reimplemented from kcenon::thread::job.

Definition at line 75 of file dag_job.cpp.

{
    return std::format("[dag_job: {} (id={}, state={})]",
                       get_name(),
                       dag_id_,
                       dag_job_state_to_string(get_state()));
}

References dag_id_, kcenon::thread::dag_job_state_to_string(), kcenon::thread::job::get_name(), and get_state().

Here is the call graph for this function:

try_transition_state()

auto kcenon::thread::dag_job::try_transition_state ( dag_job_state expected, dag_job_state desired ) -> bool

inlinenodiscard

Attempts to transition state atomically.

Parameters

expected	The expected current state
desired	The desired new state

Returns

true if transition succeeded, false otherwise

Thread Safety: Atomic compare-exchange

Definition at line 208 of file dag_job.h.

        {
            return state_.compare_exchange_strong(expected, desired,
                                                  std::memory_order_acq_rel,
                                                  std::memory_order_acquire);
        }

References state_.

Member Data Documentation

dag_id_

job_id kcenon::thread::dag_job::dag_id_

private

Unique identifier for this job in the DAG.

Definition at line 444 of file dag_job.h.

Referenced by get_dag_id(), get_info(), and to_string().

dependencies_

std::vector<job_id> kcenon::thread::dag_job::dependencies_

private

List of job IDs this job depends on.

Definition at line 454 of file dag_job.h.

Referenced by add_dependency(), get_dependencies(), and get_info().

end_time_

std::chrono::steady_clock::time_point kcenon::thread::dag_job::end_time_

private

Time when execution ended.

Definition at line 489 of file dag_job.h.

Referenced by get_end_time(), get_info(), and record_end_time().

error_message_

std::optional<std::string> kcenon::thread::dag_job::error_message_

private

Error message if job failed.

Definition at line 474 of file dag_job.h.

Referenced by get_error_message(), get_info(), and set_error_message().

fallback_func_

std::function<common::VoidResult()> kcenon::thread::dag_job::fallback_func_

private

The fallback function to execute on failure.

Definition at line 464 of file dag_job.h.

Referenced by get_fallback(), has_fallback(), and set_fallback().

next_dag_id_

std::atomic< job_id > kcenon::thread::dag_job::next_dag_id_ {1}

staticprivate

Static counter for generating unique DAG job IDs.

Definition at line 439 of file dag_job.h.

result_

std::any kcenon::thread::dag_job::result_

private

Result value for passing between jobs.

Definition at line 469 of file dag_job.h.

Referenced by get_info(), get_result(), get_result_any(), has_result(), and set_result().

start_time_

std::chrono::steady_clock::time_point kcenon::thread::dag_job::start_time_

private

Time when execution started.

Definition at line 484 of file dag_job.h.

Referenced by get_info(), get_start_time(), and record_start_time().

state_

std::atomic<dag_job_state> kcenon::thread::dag_job::state_ {dag_job_state::pending}

private

Current state of the job.

Definition at line 449 of file dag_job.h.

{dag_job_state::pending};

Referenced by get_state(), set_state(), and try_transition_state().

submit_time_

std::chrono::steady_clock::time_point kcenon::thread::dag_job::submit_time_

private

Time when the job was created.

Definition at line 479 of file dag_job.h.

Referenced by get_info(), and get_submit_time().

work_func_

std::function<common::VoidResult()> kcenon::thread::dag_job::work_func_

private

The work function to execute.

Definition at line 459 of file dag_job.h.

Referenced by set_work(), and set_work_with_result().

---

The documentation for this class was generated from the following files:

• include/kcenon/thread/dag/dag_job.h
• src/dag/dag_job.cpp
