xa_storage.h File Reference

X-Ray Angiographic (XA) Image Storage SOP Classes. More...

#include <array>
#include <cstdint>
#include <string>
#include <string_view>
#include <vector>

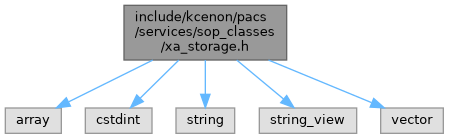

Include dependency graph for xa_storage.h:

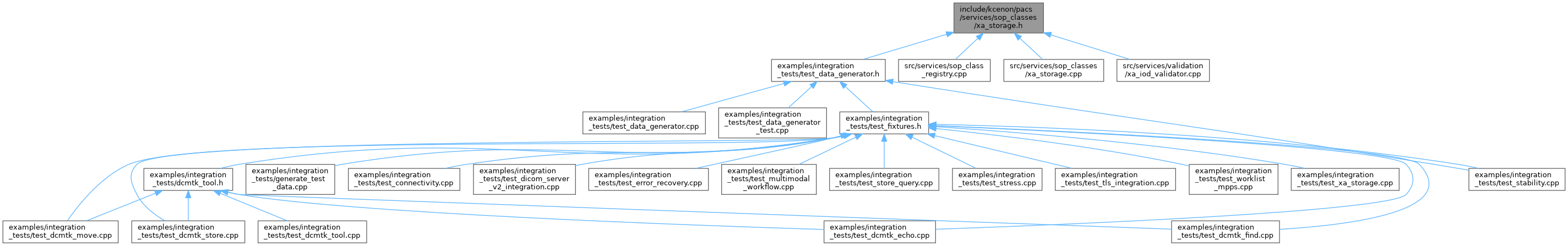

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	kcenon::pacs::services::sop_classes::xa_sop_class_info
	Information about an XA/XRF Storage SOP Class. More...
struct	kcenon::pacs::services::sop_classes::xa_positioner_angles
	Positioner angle information. More...
struct	kcenon::pacs::services::sop_classes::xa_calibration_data
	XA calibration data for quantitative analysis. More...

Namespaces
namespace	kcenon
namespace	kcenon::pacs
namespace	kcenon::pacs::services
namespace	kcenon::pacs::services::sop_classes

Enumerations
enum class	kcenon::pacs::services::sop_classes::xa_photometric_interpretation { kcenon::pacs::services::sop_classes::monochrome1 , kcenon::pacs::services::sop_classes::monochrome2 }
	Supported photometric interpretations for XA/XRF images. More...
enum class	kcenon::pacs::services::sop_classes::xa_positioner_motion { kcenon::pacs::services::sop_classes::stationary , kcenon::pacs::services::sop_classes::dynamic }
	Positioner motion type. More...
enum class	kcenon::pacs::services::sop_classes::xa_frame_rate : uint16_t { kcenon::pacs::services::sop_classes::fps_7_5 = 8 , kcenon::pacs::services::sop_classes::fps_15 = 15 , kcenon::pacs::services::sop_classes::fps_30 = 30 }
	Common XA frame rates in frames per second. More...

Functions
std::vector< std::string >	kcenon::pacs::services::sop_classes::get_xa_transfer_syntaxes ()
	Get recommended transfer syntaxes for XA images.
std::string_view	kcenon::pacs::services::sop_classes::to_string (xa_photometric_interpretation interp) noexcept
	Convert photometric interpretation enum to DICOM string.
xa_photometric_interpretation	kcenon::pacs::services::sop_classes::parse_xa_photometric_interpretation (std::string_view value) noexcept
	Parse DICOM photometric interpretation string for XA.
bool	kcenon::pacs::services::sop_classes::is_valid_xa_photometric (std::string_view value) noexcept
	Check if photometric interpretation is valid for XA.
std::vector< std::string >	kcenon::pacs::services::sop_classes::get_xa_storage_sop_classes (bool include_3d=true)
	Get all XA/XRF Storage SOP Class UIDs.
const xa_sop_class_info *	kcenon::pacs::services::sop_classes::get_xa_sop_class_info (std::string_view uid) noexcept
	Get information about a specific XA SOP Class.
bool	kcenon::pacs::services::sop_classes::is_xa_storage_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is an XA/XRF Storage SOP Class.
bool	kcenon::pacs::services::sop_classes::is_xa_multiframe_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a multi-frame XA Storage SOP Class.
bool	kcenon::pacs::services::sop_classes::is_enhanced_xa_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is an enhanced XA SOP Class.
bool	kcenon::pacs::services::sop_classes::is_xa_3d_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a 3D XA SOP Class.
std::string_view	kcenon::pacs::services::sop_classes::to_string (xa_positioner_motion motion) noexcept
	Convert positioner motion enum to DICOM string.
constexpr uint16_t	kcenon::pacs::services::sop_classes::get_default_xa_cine_rate () noexcept
	Get typical cine rate for cardiac XA.
constexpr size_t	kcenon::pacs::services::sop_classes::get_max_xa_frame_count () noexcept
	Get maximum recommended frame count for XA acquisitions.

Variables
Primary XA/XRF SOP Classes
constexpr std::string_view	kcenon::pacs::services::sop_classes::xa_image_storage_uid
	XA Image Storage SOP Class UID (single/multi-frame)
constexpr std::string_view	kcenon::pacs::services::sop_classes::enhanced_xa_image_storage_uid
	Enhanced XA Image Storage SOP Class UID (enhanced IOD)
constexpr std::string_view	kcenon::pacs::services::sop_classes::xrf_image_storage_uid
	XRF Image Storage SOP Class UID (X-Ray Radiofluoroscopic)
3D Angiographic SOP Classes
constexpr std::string_view	kcenon::pacs::services::sop_classes::xray_3d_angiographic_image_storage_uid
	X-Ray 3D Angiographic Image Storage SOP Class UID (3D rotational)
constexpr std::string_view	kcenon::pacs::services::sop_classes::xray_3d_craniofacial_image_storage_uid
	X-Ray 3D Craniofacial Image Storage SOP Class UID.

Detailed Description

X-Ray Angiographic (XA) Image Storage SOP Classes.

This file provides SOP Class definitions and utilities for X-Ray Angiographic (XA) and X-Ray Radiofluoroscopic (XRF) image storage. Supports standard, enhanced, and 3D angiographic SOP Classes.

XA imaging is essential for interventional procedures including:

• Cardiac catheterization (coronary angiography)
• Peripheral vascular interventions
• Neurointerventional procedures
• Electrophysiology studies
• Fluoroscopy-guided procedures

See also

DICOM PS3.4 Section B - Storage Service Class

DICOM PS3.3 Section A.14 - XA Image IOD

DICOM PS3.3 Section A.53 - Enhanced XA Image IOD

DES-SVC-009 - XA Storage Implementation

Author

kcenon

Since

1.0.0

Definition in file xa_storage.h.
