wsi_storage.h File Reference

VL Whole Slide Microscopy Image Storage SOP Class. More...

#include <cstdint>
#include <string>
#include <string_view>
#include <vector>

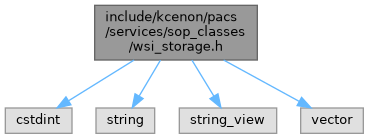

Include dependency graph for wsi_storage.h:

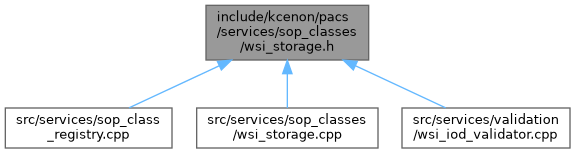

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	kcenon
namespace	kcenon::pacs
namespace	kcenon::pacs::services
namespace	kcenon::pacs::services::sop_classes
namespace	kcenon::pacs::services::sop_classes::wsi_tags

Functions
std::vector< std::string >	kcenon::pacs::services::sop_classes::get_wsi_storage_sop_classes ()
	Get all WSI Storage SOP Class UIDs.
bool	kcenon::pacs::services::sop_classes::is_wsi_storage_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a WSI Storage SOP Class.
bool	kcenon::pacs::services::sop_classes::is_valid_wsi_photometric (std::string_view value) noexcept
	Check if photometric interpretation is valid for WSI.

Variables
constexpr std::string_view	kcenon::pacs::services::sop_classes::wsi_image_storage_uid
	VL Whole Slide Microscopy Image Storage SOP Class UID.
constexpr uint32_t	kcenon::pacs::services::sop_classes::wsi_tags::imaged_volume_width = 0x00480001
	Imaged Volume Width (0048,0001) — physical width of scanned region in mm.
constexpr uint32_t	kcenon::pacs::services::sop_classes::wsi_tags::imaged_volume_height = 0x00480002
	Imaged Volume Height (0048,0002) — physical height of scanned region in mm.
constexpr uint32_t	kcenon::pacs::services::sop_classes::wsi_tags::imaged_volume_depth = 0x00480003
	Imaged Volume Depth (0048,0003) — physical depth (Z-stack) in mm.
constexpr uint32_t	kcenon::pacs::services::sop_classes::wsi_tags::total_pixel_matrix_columns = 0x00480006
	Total Pixel Matrix Columns (0048,0006) — total width across all tiles.
constexpr uint32_t	kcenon::pacs::services::sop_classes::wsi_tags::total_pixel_matrix_rows = 0x00480007
	Total Pixel Matrix Rows (0048,0007) — total height across all tiles.
constexpr uint32_t	kcenon::pacs::services::sop_classes::wsi_tags::total_pixel_matrix_focal_planes = 0x00480008
	Total Pixel Matrix Focal Planes (0048,0008) — number of focal planes.
constexpr uint32_t	kcenon::pacs::services::sop_classes::wsi_tags::image_orientation_slide = 0x00480102
	Image Orientation (Slide) (0048,0102)
constexpr uint32_t	kcenon::pacs::services::sop_classes::wsi_tags::optical_path_identifier = 0x00480105
	Optical Path Identifier (0048,0105)
constexpr uint32_t	kcenon::pacs::services::sop_classes::wsi_tags::optical_path_description = 0x00480106
	Optical Path Description (0048,0106)
constexpr uint32_t	kcenon::pacs::services::sop_classes::wsi_tags::specimen_identifier = 0x00400551
	Specimen Identifier (0040,0551)
constexpr uint32_t	kcenon::pacs::services::sop_classes::wsi_tags::container_identifier = 0x00400512
	Container Identifier (0040,0512)
constexpr uint32_t	kcenon::pacs::services::sop_classes::wsi_tags::dimension_organization_type = 0x00209311
	Dimension Organization Type (0020,9311)

Detailed Description

VL Whole Slide Microscopy Image Storage SOP Class.

Provides SOP Class definitions and utilities for Whole Slide Microscopy (WSI) image storage. WSI images are gigapixel-scale, tiled multi-frame images used in digital pathology.

See also

DICOM PS3.3 Section A.32.8 - VL Whole Slide Microscopy Image IOD

DICOM PS3.3 Section C.8.12.4 - Whole Slide Microscopy Image Module

Issue #825 - Add WSI SOP Class registration and storage definition

Author

kcenon

Since

1.0.0

Definition in file wsi_storage.h.
