ophthalmic_storage.h File Reference

Ophthalmic Photography and Tomography Storage SOP Classes. More...

#include <cstdint>
#include <string>
#include <string_view>
#include <vector>

Include dependency graph for ophthalmic_storage.h:

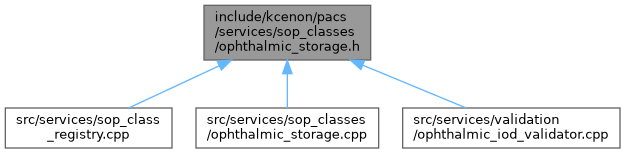

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	kcenon
namespace	kcenon::pacs
namespace	kcenon::pacs::services
namespace	kcenon::pacs::services::sop_classes
namespace	kcenon::pacs::services::sop_classes::ophthalmic_tags

Functions
std::vector< std::string >	kcenon::pacs::services::sop_classes::get_ophthalmic_storage_sop_classes ()
	Get all Ophthalmic Storage SOP Class UIDs.
bool	kcenon::pacs::services::sop_classes::is_ophthalmic_storage_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is an Ophthalmic Storage SOP Class.
bool	kcenon::pacs::services::sop_classes::is_valid_ophthalmic_photometric (std::string_view value) noexcept
	Check if photometric interpretation is valid for ophthalmic imaging.

Variables
constexpr std::string_view	kcenon::pacs::services::sop_classes::ophthalmic_photo_8bit_storage_uid
	Ophthalmic Photography 8 Bit Image Storage.
constexpr std::string_view	kcenon::pacs::services::sop_classes::ophthalmic_photo_16bit_storage_uid
	Ophthalmic Photography 16 Bit Image Storage.
constexpr std::string_view	kcenon::pacs::services::sop_classes::ophthalmic_tomography_storage_uid
	Ophthalmic Tomography Image Storage (OCT)
constexpr std::string_view	kcenon::pacs::services::sop_classes::wide_field_ophthalmic_photo_storage_uid
	Wide Field Ophthalmic Photography SOP Class Storage.
constexpr std::string_view	kcenon::pacs::services::sop_classes::ophthalmic_oct_bscan_analysis_storage_uid
	Ophthalmic Optical Coherence Tomography B-scan Volume Analysis Storage.
constexpr uint32_t	kcenon::pacs::services::sop_classes::ophthalmic_tags::image_laterality = 0x00200062
	Image Laterality (0020,0062) — R, L, or B.
constexpr uint32_t	kcenon::pacs::services::sop_classes::ophthalmic_tags::anatomic_region_sequence = 0x00082218
	Anatomic Region Sequence (0008,2218)
constexpr uint32_t	kcenon::pacs::services::sop_classes::ophthalmic_tags::acquisition_device_type_code_sequence = 0x00220015
	Acquisition Device Type Code Sequence (0022,0015)
constexpr uint32_t	kcenon::pacs::services::sop_classes::ophthalmic_tags::detector_type = 0x00187004
	Detector Type (0018,7004)
constexpr uint32_t	kcenon::pacs::services::sop_classes::ophthalmic_tags::pupil_dilated = 0x0022000D
	Pupil Dilated (0022,000D)
constexpr uint32_t	kcenon::pacs::services::sop_classes::ophthalmic_tags::depth_of_field = 0x00220035
	Depth of Field (0022,0035)
constexpr uint32_t	kcenon::pacs::services::sop_classes::ophthalmic_tags::axial_length_of_eye = 0x00220030
	Axial Length of the Eye (0022,0030)
constexpr uint32_t	kcenon::pacs::services::sop_classes::ophthalmic_tags::emmetropic_magnification = 0x0022000A
	Emmetropic Magnification (0022,000A)
constexpr uint32_t	kcenon::pacs::services::sop_classes::ophthalmic_tags::intra_ocular_pressure = 0x0022000B
	Intra Ocular Pressure (0022,000B)
constexpr uint32_t	kcenon::pacs::services::sop_classes::ophthalmic_tags::horizontal_field_of_view = 0x0022000C
	Horizontal Field of View (0022,000C)

Detailed Description

Ophthalmic Photography and Tomography Storage SOP Classes.

Provides SOP Class definitions and utilities for Ophthalmic Photography (fundus cameras) and Optical Coherence Tomography (OCT) image storage.

See also

DICOM PS3.3 Section A.39 - Ophthalmic Photography IODs

DICOM PS3.3 Section A.40 - Ophthalmic Tomography Image IOD

Issue #829 - Add Ophthalmic SOP Class registration and storage definition

Author

kcenon

Since

1.0.0

Definition in file ophthalmic_storage.h.
