ophthalmic_iod_validator.h File Reference

Ophthalmic Photography and Tomography Image IOD Validator. More...

#include "kcenon/pacs/core/dicom_dataset.h"
#include "kcenon/pacs/core/dicom_tag.h"
#include "kcenon/pacs/services/validation/us_iod_validator.h"
#include <string>
#include <vector>

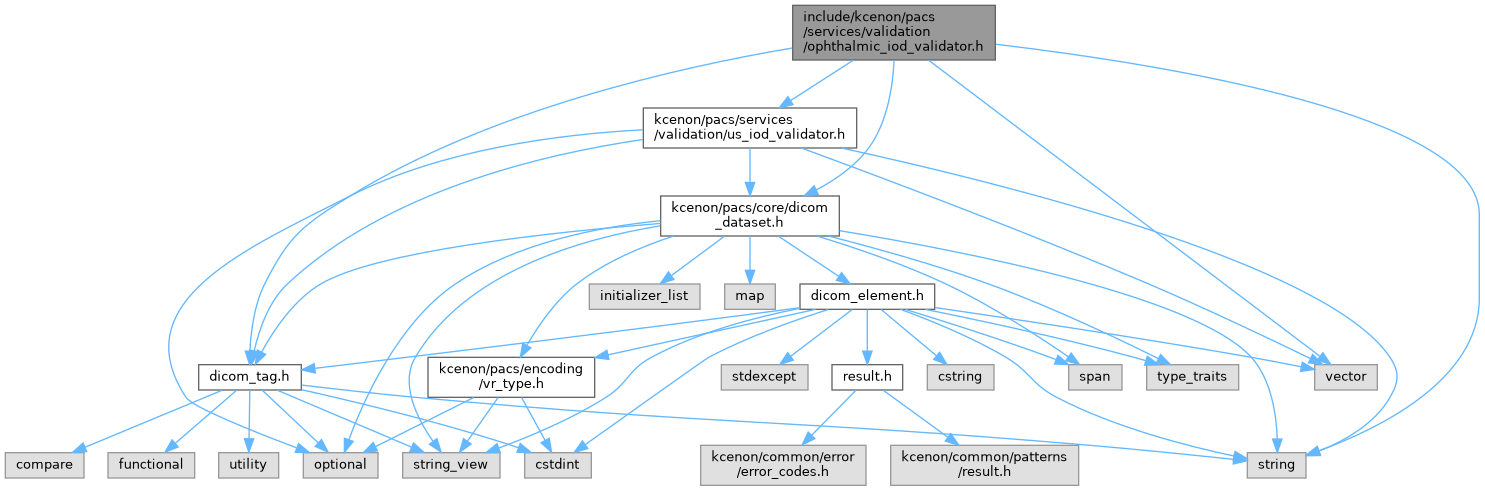

Include dependency graph for ophthalmic_iod_validator.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	kcenon::pacs::services::validation::ophthalmic_validation_options
	Options for Ophthalmic IOD validation. More...
class	kcenon::pacs::services::validation::ophthalmic_iod_validator

Namespaces
namespace	kcenon
namespace	kcenon::pacs
namespace	kcenon::pacs::services
namespace	kcenon::pacs::services::validation
namespace	kcenon::pacs::services::validation::ophthalmic_iod_tags

Functions
validation_result	kcenon::pacs::services::validation::validate_ophthalmic_iod (const core::dicom_dataset &dataset)
	Validate an ophthalmic dataset with default options.
bool	kcenon::pacs::services::validation::is_valid_ophthalmic_dataset (const core::dicom_dataset &dataset)
	Quick check if a dataset is a valid ophthalmic image.

Variables
constexpr core::dicom_tag	kcenon::pacs::services::validation::ophthalmic_iod_tags::image_laterality {0x0020, 0x0062}
	Image Laterality (0020,0062) — R, L, or B.
constexpr core::dicom_tag	kcenon::pacs::services::validation::ophthalmic_iod_tags::anatomic_region_sequence {0x0008, 0x2218}
	Anatomic Region Sequence (0008,2218)
constexpr core::dicom_tag	kcenon::pacs::services::validation::ophthalmic_iod_tags::acquisition_device_type_code_sequence
	Acquisition Device Type Code Sequence (0022,0015)
constexpr core::dicom_tag	kcenon::pacs::services::validation::ophthalmic_iod_tags::pupil_dilated {0x0022, 0x000D}
	Pupil Dilated (0022,000D)
constexpr core::dicom_tag	kcenon::pacs::services::validation::ophthalmic_iod_tags::axial_length_of_eye {0x0022, 0x0030}
	Axial Length of the Eye (0022,0030)
constexpr core::dicom_tag	kcenon::pacs::services::validation::ophthalmic_iod_tags::horizontal_field_of_view {0x0022, 0x000C}
	Horizontal Field of View (0022,000C)
constexpr core::dicom_tag	kcenon::pacs::services::validation::ophthalmic_iod_tags::detector_type {0x0018, 0x7004}
	Detector Type (0018,7004)
constexpr core::dicom_tag	kcenon::pacs::services::validation::ophthalmic_iod_tags::number_of_frames {0x0028, 0x0008}
	Number of Frames (0028,0008)
constexpr core::dicom_tag	kcenon::pacs::services::validation::ophthalmic_iod_tags::acquisition_context_sequence {0x0040, 0x0555}
	Acquisition Context Sequence (0040,0555)

Detailed Description

Ophthalmic Photography and Tomography Image IOD Validator.

Provides validation for Ophthalmic Photography (8-bit, 16-bit, wide-field) and Optical Coherence Tomography Image Information Object Definitions as specified in DICOM PS3.3 Sections A.39 and A.40.

Ophthalmic images include fundus photography, fluorescein angiography, ICG angiography, and OCT B-scans. They require laterality tracking and support modality-specific photometric interpretations.

See also

DICOM PS3.3 Section A.39 - Ophthalmic Photography IODs

DICOM PS3.3 Section A.40 - Ophthalmic Tomography Image IOD

Issue #830 - Add Ophthalmic IOD validator

Author

kcenon

Since

1.0.0

Definition in file ophthalmic_iod_validator.h.
