nm_storage.h File Reference

Nuclear Medicine (NM) Image Storage SOP Classes. More...

#include <array>
#include <cstdint>
#include <string>
#include <string_view>
#include <vector>

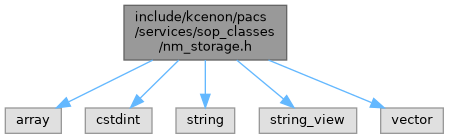

Include dependency graph for nm_storage.h:

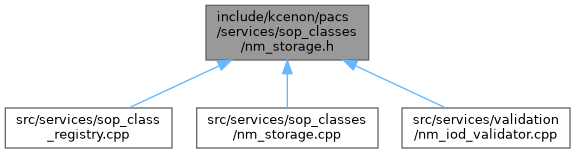

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	kcenon::pacs::services::sop_classes::nm_sop_class_info
	Information about a NM Storage SOP Class. More...
struct	kcenon::pacs::services::sop_classes::nm_energy_window_info
	Energy window information for NM acquisition. More...

Namespaces
namespace	kcenon
namespace	kcenon::pacs
namespace	kcenon::pacs::services
namespace	kcenon::pacs::services::sop_classes

Enumerations
enum class	kcenon::pacs::services::sop_classes::nm_photometric_interpretation { kcenon::pacs::services::sop_classes::monochrome2 , kcenon::pacs::services::sop_classes::palette_color }
	Supported photometric interpretations for NM images. More...
enum class	kcenon::pacs::services::sop_classes::nm_type_of_data {   kcenon::pacs::services::sop_classes::static_image , kcenon::pacs::services::sop_classes::dynamic , kcenon::pacs::services::sop_classes::gated , kcenon::pacs::services::sop_classes::whole_body ,   kcenon::pacs::services::sop_classes::recon_tomo , kcenon::pacs::services::sop_classes::recon_gated_tomo , kcenon::pacs::services::sop_classes::tomo , kcenon::pacs::services::sop_classes::gated_tomo }
	NM image type (Type of Data) More...
enum class	kcenon::pacs::services::sop_classes::nm_detector_geometry {   kcenon::pacs::services::sop_classes::planar , kcenon::pacs::services::sop_classes::ring , kcenon::pacs::services::sop_classes::partial_ring , kcenon::pacs::services::sop_classes::curved ,   kcenon::pacs::services::sop_classes::cylindrical }
	NM detector geometry type. More...
enum class	kcenon::pacs::services::sop_classes::nm_collimator_type {   kcenon::pacs::services::sop_classes::parallel , kcenon::pacs::services::sop_classes::fan_beam , kcenon::pacs::services::sop_classes::cone_beam , kcenon::pacs::services::sop_classes::pinhole ,   kcenon::pacs::services::sop_classes::diverging , kcenon::pacs::services::sop_classes::converging , kcenon::pacs::services::sop_classes::none }
	NM collimator type. More...
enum class	kcenon::pacs::services::sop_classes::nm_radioisotope {   kcenon::pacs::services::sop_classes::tc99m , kcenon::pacs::services::sop_classes::i131 , kcenon::pacs::services::sop_classes::i123 , kcenon::pacs::services::sop_classes::tl201 ,   kcenon::pacs::services::sop_classes::ga67 , kcenon::pacs::services::sop_classes::in111 , kcenon::pacs::services::sop_classes::f18 , kcenon::pacs::services::sop_classes::other }
	Common radioisotopes used in NM imaging. More...
enum class	kcenon::pacs::services::sop_classes::nm_rotation_direction { kcenon::pacs::services::sop_classes::cw , kcenon::pacs::services::sop_classes::cc }
	NM rotation direction for SPECT. More...
enum class	kcenon::pacs::services::sop_classes::nm_scan_arc { kcenon::pacs::services::sop_classes::arc_180 , kcenon::pacs::services::sop_classes::arc_360 }
	NM scan arc for SPECT. More...
enum class	kcenon::pacs::services::sop_classes::nm_whole_body_technique { kcenon::pacs::services::sop_classes::single_pass , kcenon::pacs::services::sop_classes::multi_pass , kcenon::pacs::services::sop_classes::stepping }
	Patient orientation for whole body scan. More...

Functions
std::vector< std::string >	kcenon::pacs::services::sop_classes::get_nm_transfer_syntaxes ()
	Get recommended transfer syntaxes for NM images.
std::string_view	kcenon::pacs::services::sop_classes::to_string (nm_photometric_interpretation interp) noexcept
	Convert photometric interpretation enum to DICOM string.
nm_photometric_interpretation	kcenon::pacs::services::sop_classes::parse_nm_photometric_interpretation (std::string_view value) noexcept
	Parse DICOM photometric interpretation string.
bool	kcenon::pacs::services::sop_classes::is_valid_nm_photometric (std::string_view value) noexcept
	Check if photometric interpretation is valid for NM.
std::vector< std::string >	kcenon::pacs::services::sop_classes::get_nm_storage_sop_classes (bool include_retired=true)
	Get all NM Storage SOP Class UIDs.
const nm_sop_class_info *	kcenon::pacs::services::sop_classes::get_nm_sop_class_info (std::string_view uid) noexcept
	Get information about a specific NM SOP Class.
bool	kcenon::pacs::services::sop_classes::is_nm_storage_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID is a NM Storage SOP Class.
bool	kcenon::pacs::services::sop_classes::is_nm_multiframe_sop_class (std::string_view uid) noexcept
	Check if a SOP Class UID supports multi-frame.
std::string_view	kcenon::pacs::services::sop_classes::to_string (nm_type_of_data type) noexcept
	Convert NM type of data to DICOM string.
nm_type_of_data	kcenon::pacs::services::sop_classes::parse_nm_type_of_data (std::string_view value) noexcept
	Parse NM type of data from DICOM string.
std::string_view	kcenon::pacs::services::sop_classes::to_string (nm_collimator_type collimator) noexcept
	Convert collimator type to DICOM string.
nm_collimator_type	kcenon::pacs::services::sop_classes::parse_nm_collimator_type (std::string_view value) noexcept
	Parse collimator type from DICOM string.
std::string_view	kcenon::pacs::services::sop_classes::to_string (nm_radioisotope isotope) noexcept
	Get radioisotope name string.
double	kcenon::pacs::services::sop_classes::get_primary_energy_kev (nm_radioisotope isotope) noexcept
	Get primary photopeak energy for radioisotope.
std::string_view	kcenon::pacs::services::sop_classes::to_string (nm_whole_body_technique technique) noexcept
	Convert whole body technique to string.

Variables
Primary NM SOP Classes
constexpr std::string_view	kcenon::pacs::services::sop_classes::nm_image_storage_uid
	Nuclear Medicine Image Storage SOP Class UID.
Retired NM SOP Classes (Legacy Support)
constexpr std::string_view	kcenon::pacs::services::sop_classes::nm_image_storage_retired_uid
	Nuclear Medicine Image Storage (Retired) - for legacy systems.

Detailed Description

Nuclear Medicine (NM) Image Storage SOP Classes.

This file provides SOP Class definitions and utilities for Nuclear Medicine (NM) image storage including planar, SPECT, and gated acquisitions.

See also

DICOM PS3.4 Section B - Storage Service Class

DICOM PS3.3 Section A.5 - NM Image IOD

Author

kcenon

Since

1.0.0

Definition in file nm_storage.h.
