Classes
struct	category_metrics
	Metrics for a job category (e.g., C-STORE, C-FIND) More...

struct	decoded_pdu
	Result of PDU decoding containing the PDU type and data. More...

class	dimse_process_job
	Job for processing DIMSE messages. More...

struct	dimse_request
	Parsed DIMSE request for service execution. More...

struct	encoded_response
	Encoded PDU ready for network transmission. More...

struct	job_context
	Context information attached to pipeline jobs for tracking. More...

class	pdu_decode_job
	Job for decoding raw PDU bytes. More...

class	pipeline_adapter
	Adapter for integrating pipeline with DICOM server components. More...

struct	pipeline_config
	Configuration options for the pipeline coordinator. More...

class	pipeline_coordinator
	Coordinates the 6-stage DICOM I/O pipeline. More...

class	pipeline_job_base
	Base class for all pipeline jobs. More...

class	pipeline_metrics
	Centralized metrics collection for the entire pipeline. More...

class	receive_network_io_job
	Job for receiving PDU data from network connections. More...

class	response_encode_job
	Job for encoding DIMSE responses into PDU bytes. More...

class	send_network_io_job
	Job for sending PDU data over network connections. More...

struct	service_result
	Result from service execution. More...

struct	session_context
	Context for a DICOM association session. More...

struct	stage_metrics
	Metrics for a single pipeline stage. More...

class	storage_query_exec_job
	Job for executing storage and query operations. More...

Enumerations
enum class	dimse_command_type : uint16_t { c_store_rq = 0x0001 , c_store_rsp = 0x8001 , c_get_rq = 0x0010 , c_get_rsp = 0x8010 , c_find_rq = 0x0020 , c_find_rsp = 0x8020 , c_move_rq = 0x0021 , c_move_rsp = 0x8021 , c_echo_rq = 0x0030 , c_echo_rsp = 0x8030 , n_event_report_rq = 0x0100 , n_event_report_rsp = 0x8100 , n_get_rq = 0x0110 , n_get_rsp = 0x8110 , n_set_rq = 0x0120 , n_set_rsp = 0x8120 , n_action_rq = 0x0130 , n_action_rsp = 0x8130 , n_create_rq = 0x0140 , n_create_rsp = 0x8140 , n_delete_rq = 0x0150 , n_delete_rsp = 0x8150 , c_cancel_rq = 0x0FFF }
	DICOM DIMSE command types. More...

enum class	dimse_status : uint16_t { success = 0x0000 , pending = 0xFF00 , pending_warning = 0xFF01 , cancel = 0xFE00 , warning_attribute_list_error = 0xB000 , warning_attribute_value_out_of_range = 0xB006 , failure_refused_out_of_resources = 0xA700 , failure_refused_sop_class_not_supported = 0x0122 , failure_invalid_sop_instance = 0x0117 , failure_unable_to_process = 0xC000 , failure_more_than_one_match = 0xC100 , failure_unable_to_perform = 0xC200 }
	DICOM DIMSE status codes. More...

enum class	pipeline_stage : uint8_t { network_receive = 0 , pdu_decode = 1 , dimse_process = 2 , storage_query_exec = 3 , response_encode = 4 , network_send = 5 , stage_count = 6 }
	Identifies the 6 stages of the DICOM I/O pipeline. More...

enum class	job_category : uint8_t { echo = 0 , store = 1 , find = 2 , get = 3 , move = 4 , association = 5 , control = 6 , other = 7 }
	Categories for pipeline jobs used in metrics and monitoring. More...

Functions
constexpr auto	get_stage_name (pipeline_stage stage) noexcept -> std::string_view
	Get the human-readable name of a pipeline stage.

constexpr auto	is_blocking_stage (pipeline_stage stage) noexcept -> bool
	Check if a stage allows blocking operations.

constexpr auto	is_network_io_stage (pipeline_stage stage) noexcept -> bool
	Check if a stage handles network I/O.

constexpr auto	get_category_name (job_category category) noexcept -> std::string_view
	Get the human-readable name of a job category.

Enumeration Type Documentation

◆ dimse_command_type

enum class kcenon::pacs::network::pipeline::dimse_command_type : uint16_t

strong

DICOM DIMSE command types.

Enumerator
c_store_rq
c_store_rsp
c_get_rq
c_get_rsp
c_find_rq
c_find_rsp
c_move_rq
c_move_rsp
c_echo_rq
c_echo_rsp
n_event_report_rq
n_event_report_rsp
n_get_rq
n_get_rsp
n_set_rq
n_set_rsp
n_action_rq
n_action_rsp
n_create_rq
n_create_rsp
n_delete_rq
n_delete_rsp
c_cancel_rq

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/pipeline/jobs/dimse_process_job.h, /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/pipeline/jobs/storage_query_exec_job.h, and /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/pipeline/pipeline_adapter.h.

Definition at line 36 of file dimse_process_job.h.

                              : uint16_t {
    c_store_rq = 0x0001,
    c_store_rsp = 0x8001,
    c_get_rq = 0x0010,
    c_get_rsp = 0x8010,
    c_find_rq = 0x0020,
    c_find_rsp = 0x8020,
    c_move_rq = 0x0021,
    c_move_rsp = 0x8021,
    c_echo_rq = 0x0030,
    c_echo_rsp = 0x8030,
    n_event_report_rq = 0x0100,
    n_event_report_rsp = 0x8100,
    n_get_rq = 0x0110,
    n_get_rsp = 0x8110,
    n_set_rq = 0x0120,
    n_set_rsp = 0x8120,
    n_action_rq = 0x0130,
    n_action_rsp = 0x8130,
    n_create_rq = 0x0140,
    n_create_rsp = 0x8140,
    n_delete_rq = 0x0150,
    n_delete_rsp = 0x8150,
    c_cancel_rq = 0x0FFF,
};

◆ dimse_status

enum class kcenon::pacs::network::pipeline::dimse_status : uint16_t

strong

DICOM DIMSE status codes.

Enumerator
success
pending
pending_warning
cancel
warning_attribute_list_error
warning_attribute_value_out_of_range
failure_refused_out_of_resources
failure_refused_sop_class_not_supported
failure_invalid_sop_instance
failure_unable_to_process
failure_more_than_one_match
failure_unable_to_perform

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/pipeline/jobs/storage_query_exec_job.h.

Definition at line 36 of file storage_query_exec_job.h.

                        : uint16_t {
    success = 0x0000,
    pending = 0xFF00,
    pending_warning = 0xFF01,
    cancel = 0xFE00,
    warning_attribute_list_error = 0xB000,
    warning_attribute_value_out_of_range = 0xB006,
    failure_refused_out_of_resources = 0xA700,
    failure_refused_sop_class_not_supported = 0x0122,
    failure_invalid_sop_instance = 0x0117,
    failure_unable_to_process = 0xC000,
    failure_more_than_one_match = 0xC100,
    failure_unable_to_perform = 0xC200,
};

◆ job_category

enum class kcenon::pacs::network::pipeline::job_category : uint8_t

strong

Categories for pipeline jobs used in metrics and monitoring.

Enumerator
echo	C-ECHO verification request/response.
store	C-STORE storage request/response.
find	C-FIND query request/response.
get	C-GET retrieve request/response.
move	C-MOVE move request/response.
association	Association management (A-ASSOCIATE, A-RELEASE, A-ABORT)
control	Internal pipeline control messages.
other	Unknown or other category.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/pipeline/jobs/storage_query_exec_job.h, and /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/pipeline/metrics/pipeline_metrics.h.

Definition at line 122 of file pipeline_job_types.h.

                        : uint8_t {
    echo = 0,

    store = 1,

    find = 2,

    get = 3,

    move = 4,

    association = 5,

    control = 6,

    other = 7
};

◆ pipeline_stage

enum class kcenon::pacs::network::pipeline::pipeline_stage : uint8_t

strong

Identifies the 6 stages of the DICOM I/O pipeline.

Each stage has dedicated worker threads optimized for its workload:

Network I/O stages: Low latency, non-blocking
Protocol stages: CPU-bound parsing/encoding
Execution stage: Blocking I/O allowed (database, file system)

Enumerator
network_receive	Stage 1: Receive raw PDU bytes from network.
pdu_decode	Stage 2: Decode PDU bytes into structured data.
dimse_process	Stage 3: Process DIMSE messages and route requests.
storage_query_exec	Stage 4: Execute storage/query operations (blocking allowed)
response_encode	Stage 5: Encode response into PDU bytes.
network_send	Stage 6: Send PDU bytes to network.
stage_count	Total number of stages.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/pipeline/metrics/pipeline_metrics.h, /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/pipeline/pipeline_adapter.h, and /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/pipeline/pipeline_coordinator.h.

Definition at line 49 of file pipeline_job_types.h.

                          : uint8_t {
    network_receive = 0,

    pdu_decode = 1,

    dimse_process = 2,

    storage_query_exec = 3,

    response_encode = 4,

    network_send = 5,

    stage_count = 6
};

Function Documentation

◆ get_category_name()

auto kcenon::pacs::network::pipeline::get_category_name ( job_category category ) -> std::string_view

nodiscardconstexprnoexcept

Get the human-readable name of a job category.

Parameters

category The job category

Returns: String view of the category name

Definition at line 153 of file pipeline_job_types.h.

                      {
    switch (category) {
        case job_category::echo:
            return "echo";
        case job_category::store:
            return "store";
        case job_category::find:
            return "find";
        case job_category::get:
            return "get";
        case job_category::move:
            return "move";
        case job_category::association:
            return "association";
        case job_category::control:
            return "control";
        default:
            return "other";
    }
}

References association, control, echo, find, get, move, and store.

◆ get_stage_name()

auto kcenon::pacs::network::pipeline::get_stage_name ( pipeline_stage stage ) -> std::string_view

nodiscardconstexprnoexcept

Get the human-readable name of a pipeline stage.

Parameters

stage The pipeline stage

Returns: String view of the stage name

Definition at line 77 of file pipeline_job_types.h.

                      {
    switch (stage) {
        case pipeline_stage::network_receive:
            return "network_receive";
        case pipeline_stage::pdu_decode:
            return "pdu_decode";
        case pipeline_stage::dimse_process:
            return "dimse_process";
        case pipeline_stage::storage_query_exec:
            return "storage_query_exec";
        case pipeline_stage::response_encode:
            return "response_encode";
        case pipeline_stage::network_send:
            return "network_send";
        default:
            return "unknown";
    }
}

References dimse_process, network_receive, network_send, pdu_decode, response_encode, and storage_query_exec.

Referenced by kcenon::pacs::network::pipeline::pipeline_coordinator::create_stage_pool(), kcenon::pacs::network::pipeline::pipeline_adapter::on_backpressure(), and kcenon::pacs::network::pipeline::pipeline_coordinator::start().

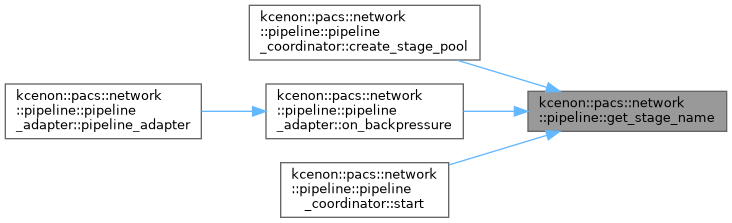

Here is the caller graph for this function:

◆ is_blocking_stage()

auto kcenon::pacs::network::pipeline::is_blocking_stage ( pipeline_stage stage ) -> bool

nodiscardconstexprnoexcept

Check if a stage allows blocking operations.

Parameters

stage The pipeline stage

Returns: true if blocking I/O is allowed in this stage

Definition at line 102 of file pipeline_job_types.h.

            {
    return stage == pipeline_stage::storage_query_exec;
}

References storage_query_exec.

◆ is_network_io_stage()

auto kcenon::pacs::network::pipeline::is_network_io_stage ( pipeline_stage stage ) -> bool

nodiscardconstexprnoexcept

Check if a stage handles network I/O.

Parameters

stage The pipeline stage

Returns: true if this is a network I/O stage

Definition at line 112 of file pipeline_job_types.h.

            {
    return stage == pipeline_stage::network_receive ||
           stage == pipeline_stage::network_send;
}

References network_receive, and network_send.
