kcenon::pacs::network::pipeline::pipeline_config Struct Reference

Configuration options for the pipeline coordinator. More...

#include <pipeline_coordinator.h>

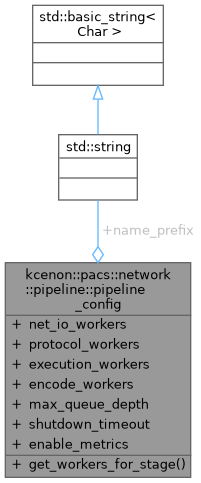

Collaboration diagram for kcenon::pacs::network::pipeline::pipeline_config:

Public Member Functions
auto	get_workers_for_stage (pipeline_stage stage) const noexcept -> size_t
	Get the number of workers for a specific stage.

Public Attributes
size_t	net_io_workers = 4
	Number of workers for network I/O stages (1 & 6) Low latency, non-blocking operations.
size_t	protocol_workers = 2
	Number of workers for protocol stages (2 & 3) PDU decoding and DIMSE processing.
size_t	execution_workers = 8
	Number of workers for execution stage (4) Blocking I/O allowed (database, file system)
size_t	encode_workers = 2
	Number of workers for encoding stage (5) Response PDU encoding.
size_t	max_queue_depth = 10000
	Maximum queue depth per stage (backpressure threshold)
std::chrono::milliseconds	shutdown_timeout {500}
	Graceful shutdown timeout.
bool	enable_metrics = true
	Enable metrics collection.
std::string	name_prefix = "pipeline"
	Name prefix for thread pools (for logging)

Detailed Description

Configuration options for the pipeline coordinator.

Default values are tuned for a typical PACS workload with balanced throughput and latency requirements.

Definition at line 43 of file pipeline_coordinator.h.

Member Function Documentation

get_workers_for_stage()

auto kcenon::pacs::network::pipeline::pipeline_config::get_workers_for_stage ( pipeline_stage stage ) const -> size_t

inlinenodiscardnoexcept

Get the number of workers for a specific stage.

Parameters

stage

The pipeline stage

Returns

Number of workers configured for that stage

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/pipeline/pipeline_coordinator.h.

Definition at line 77 of file pipeline_coordinator.h.

                  {
        switch (stage) {
            case pipeline_stage::network_receive:
            case pipeline_stage::network_send:
                return net_io_workers;

            case pipeline_stage::pdu_decode:
            case pipeline_stage::dimse_process:
                return protocol_workers;

            case pipeline_stage::storage_query_exec:
                return execution_workers;

            case pipeline_stage::response_encode:
                return encode_workers;

            default:
                return 1;
        }
    }

References kcenon::pacs::network::pipeline::dimse_process, encode_workers, execution_workers, net_io_workers, kcenon::pacs::network::pipeline::network_receive, kcenon::pacs::network::pipeline::network_send, kcenon::pacs::network::pipeline::pdu_decode, protocol_workers, kcenon::pacs::network::pipeline::response_encode, and kcenon::pacs::network::pipeline::storage_query_exec.

Member Data Documentation

enable_metrics

bool kcenon::pacs::network::pipeline::pipeline_config::enable_metrics = true

Enable metrics collection.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/pipeline/pipeline_coordinator.h.

Definition at line 67 of file pipeline_coordinator.h.

Referenced by kcenon::pacs::network::pipeline::pipeline_coordinator::pipeline_coordinator().

encode_workers

size_t kcenon::pacs::network::pipeline::pipeline_config::encode_workers = 2

Number of workers for encoding stage (5) Response PDU encoding.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/pipeline/pipeline_coordinator.h.

Definition at line 58 of file pipeline_coordinator.h.

Referenced by get_workers_for_stage().

execution_workers

size_t kcenon::pacs::network::pipeline::pipeline_config::execution_workers = 8

Number of workers for execution stage (4) Blocking I/O allowed (database, file system)

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/pipeline/pipeline_coordinator.h.

Definition at line 54 of file pipeline_coordinator.h.

Referenced by get_workers_for_stage().

max_queue_depth

size_t kcenon::pacs::network::pipeline::pipeline_config::max_queue_depth = 10000

Maximum queue depth per stage (backpressure threshold)

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/pipeline/pipeline_coordinator.h.

Definition at line 61 of file pipeline_coordinator.h.

Referenced by kcenon::pacs::network::pipeline::pipeline_coordinator::check_backpressure().

name_prefix

std::string kcenon::pacs::network::pipeline::pipeline_config::name_prefix = "pipeline"

Name prefix for thread pools (for logging)

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/pipeline/pipeline_coordinator.h.

Definition at line 70 of file pipeline_coordinator.h.

net_io_workers

size_t kcenon::pacs::network::pipeline::pipeline_config::net_io_workers = 4

Number of workers for network I/O stages (1 & 6) Low latency, non-blocking operations.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/pipeline/pipeline_coordinator.h.

Definition at line 46 of file pipeline_coordinator.h.

Referenced by get_workers_for_stage().

protocol_workers

size_t kcenon::pacs::network::pipeline::pipeline_config::protocol_workers = 2

Number of workers for protocol stages (2 & 3) PDU decoding and DIMSE processing.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/pipeline/pipeline_coordinator.h.

Definition at line 50 of file pipeline_coordinator.h.

Referenced by get_workers_for_stage().

shutdown_timeout

std::chrono::milliseconds kcenon::pacs::network::pipeline::pipeline_config::shutdown_timeout {500}

Graceful shutdown timeout.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/pipeline/pipeline_coordinator.h.

Definition at line 64 of file pipeline_coordinator.h.

{500};

---

The documentation for this struct was generated from the following file:

• include/kcenon/pacs/network/pipeline/pipeline_coordinator.h
