kcenon::pacs::network::pipeline::pipeline_job_base Class Reference

Base class for all pipeline jobs. More...

#include <pipeline_coordinator.h>

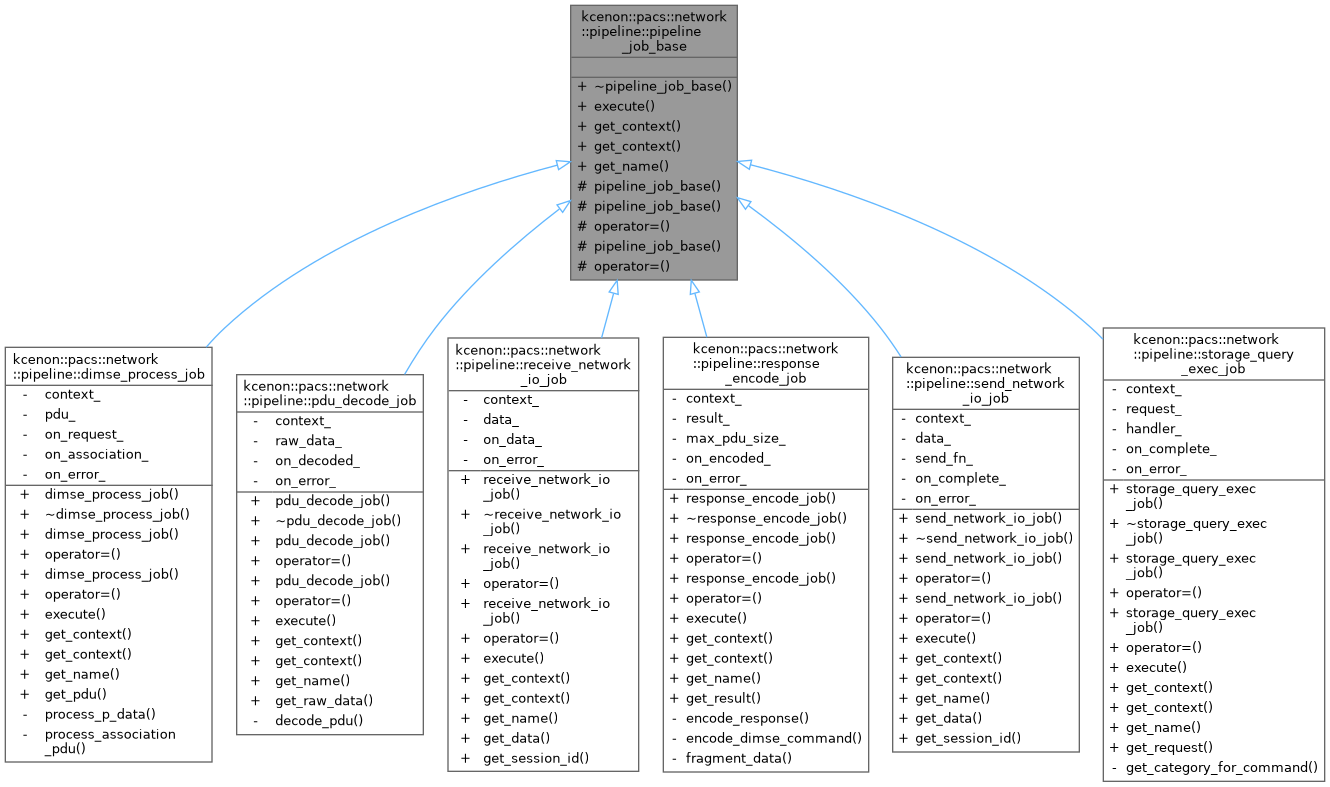

Inheritance diagram for kcenon::pacs::network::pipeline::pipeline_job_base:

Collaboration diagram for kcenon::pacs::network::pipeline::pipeline_job_base:

Public Member Functions
virtual	~pipeline_job_base ()=default
	Virtual destructor.
virtual auto	execute (pipeline_coordinator &coordinator) -> VoidResult=0
	Execute the job.
virtual auto	get_context () const noexcept -> const job_context &=0
	Get the job context.
virtual auto	get_context () noexcept -> job_context &=0
	Get the job context (mutable)
virtual auto	get_name () const -> std::string=0
	Get the job name for logging.

Protected Member Functions
	pipeline_job_base ()=default
	pipeline_job_base (const pipeline_job_base &)=delete
pipeline_job_base &	operator= (const pipeline_job_base &)=delete
	pipeline_job_base (pipeline_job_base &&)=default
pipeline_job_base &	operator= (pipeline_job_base &&)=default

Detailed Description

Base class for all pipeline jobs.

Pipeline jobs encapsulate work to be executed by a stage's worker pool. Derived classes implement the execute() method for stage-specific logic.

Definition at line 383 of file pipeline_coordinator.h.

Constructor & Destructor Documentation

~pipeline_job_base()

virtual kcenon::pacs::network::pipeline::pipeline_job_base::~pipeline_job_base ( )

virtualdefault

Virtual destructor.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/pipeline/pipeline_coordinator.h.

pipeline_job_base() [1/3]

kcenon::pacs::network::pipeline::pipeline_job_base::pipeline_job_base ( )

protecteddefault

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/pipeline/pipeline_coordinator.h.

pipeline_job_base() [2/3]

kcenon::pacs::network::pipeline::pipeline_job_base::pipeline_job_base ( const pipeline_job_base & )

protecteddelete

pipeline_job_base() [3/3]

kcenon::pacs::network::pipeline::pipeline_job_base::pipeline_job_base ( pipeline_job_base && )

protecteddefault

Member Function Documentation

execute()

virtual auto kcenon::pacs::network::pipeline::pipeline_job_base::execute ( pipeline_coordinator & coordinator ) -> VoidResult

nodiscardpure virtual

Execute the job.

Called by the worker thread. Implementations should perform the stage-specific work and optionally submit follow-up jobs to the next stage.

Parameters

coordinator

Reference to the pipeline coordinator

Returns

VoidResult indicating success or error

Implemented in kcenon::pacs::network::pipeline::dimse_process_job, kcenon::pacs::network::pipeline::pdu_decode_job, kcenon::pacs::network::pipeline::receive_network_io_job, kcenon::pacs::network::pipeline::response_encode_job, kcenon::pacs::network::pipeline::send_network_io_job, and kcenon::pacs::network::pipeline::storage_query_exec_job.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/pipeline/pipeline_coordinator.h.

get_context() [1/2]

virtual auto kcenon::pacs::network::pipeline::pipeline_job_base::get_context ( ) const -> const job_context &

nodiscardpure virtualnoexcept

Get the job context.

Returns

Reference to the job context

Implemented in kcenon::pacs::network::pipeline::dimse_process_job, kcenon::pacs::network::pipeline::pdu_decode_job, kcenon::pacs::network::pipeline::receive_network_io_job, kcenon::pacs::network::pipeline::response_encode_job, kcenon::pacs::network::pipeline::send_network_io_job, and kcenon::pacs::network::pipeline::storage_query_exec_job.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/pipeline/pipeline_coordinator.h.

get_context() [2/2]

virtual auto kcenon::pacs::network::pipeline::pipeline_job_base::get_context ( ) -> job_context &

nodiscardpure virtualnoexcept

Get the job context (mutable)

Returns

Reference to the job context

Implemented in kcenon::pacs::network::pipeline::dimse_process_job, kcenon::pacs::network::pipeline::pdu_decode_job, kcenon::pacs::network::pipeline::receive_network_io_job, kcenon::pacs::network::pipeline::response_encode_job, kcenon::pacs::network::pipeline::send_network_io_job, and kcenon::pacs::network::pipeline::storage_query_exec_job.

get_name()

virtual auto kcenon::pacs::network::pipeline::pipeline_job_base::get_name ( ) const -> std::string

nodiscardpure virtual

Get the job name for logging.

Returns

Job name string

Implemented in kcenon::pacs::network::pipeline::dimse_process_job, kcenon::pacs::network::pipeline::pdu_decode_job, kcenon::pacs::network::pipeline::receive_network_io_job, kcenon::pacs::network::pipeline::response_encode_job, kcenon::pacs::network::pipeline::send_network_io_job, and kcenon::pacs::network::pipeline::storage_query_exec_job.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/pipeline/pipeline_coordinator.h.

operator=() [1/2]

pipeline_job_base & kcenon::pacs::network::pipeline::pipeline_job_base::operator= ( const pipeline_job_base & )

protecteddelete

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/network/pipeline/pipeline_coordinator.h.

operator=() [2/2]

pipeline_job_base & kcenon::pacs::network::pipeline::pipeline_job_base::operator= ( pipeline_job_base && )

protecteddefault

---

The documentation for this class was generated from the following file:

• include/kcenon/pacs/network/pipeline/pipeline_coordinator.h
