mpps_scp.h File Reference

DICOM MPPS (Modality Performed Procedure Step) SCP service. More...

#include "scp_service.h"
#include <atomic>
#include <functional>
#include <optional>
#include <string>

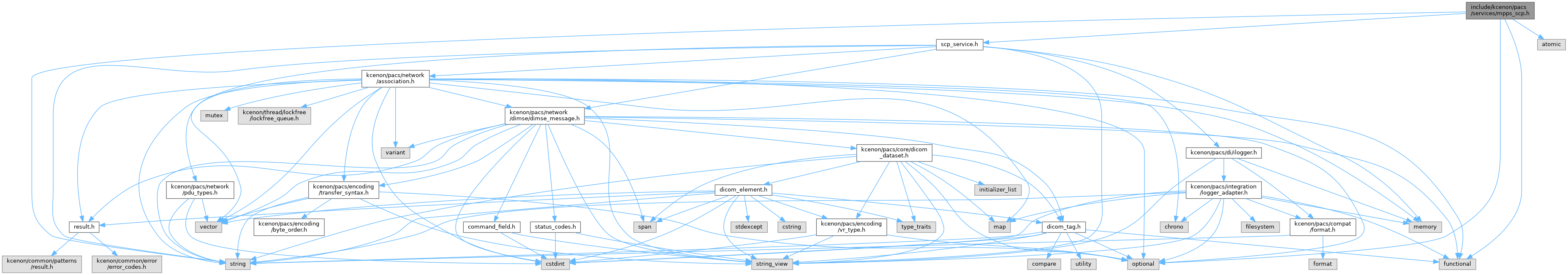

Include dependency graph for mpps_scp.h:

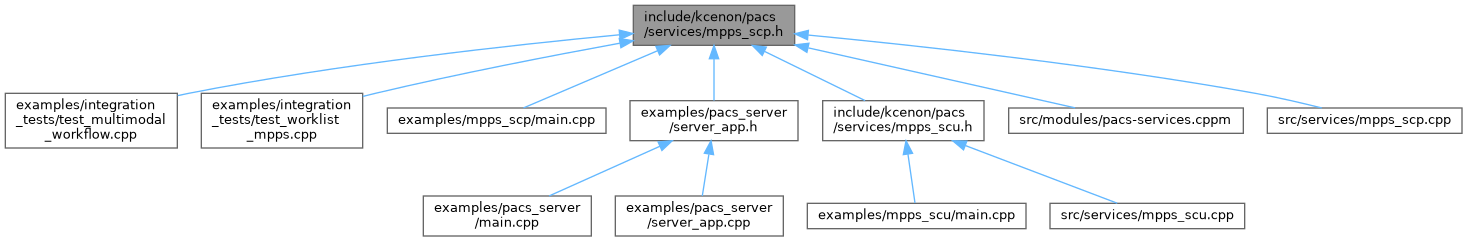

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	kcenon::pacs::services::mpps_instance
	MPPS instance data structure. More...
class	kcenon::pacs::services::mpps_scp

Namespaces
namespace	kcenon
namespace	kcenon::pacs
namespace	kcenon::pacs::services
namespace	kcenon::pacs::services::mpps_tags

Typedefs
using	kcenon::pacs::services::mpps_create_handler
	N-CREATE handler function type.
using	kcenon::pacs::services::mpps_set_handler
	N-SET handler function type.

Enumerations
enum class	kcenon::pacs::services::mpps_status { kcenon::pacs::services::in_progress , kcenon::pacs::services::completed , kcenon::pacs::services::discontinued }
	MPPS status enumeration. More...

Functions
auto	kcenon::pacs::services::to_string (mpps_status status) -> std::string_view
	Convert mpps_status to DICOM string representation.
auto	kcenon::pacs::services::parse_mpps_status (std::string_view str) -> std::optional< mpps_status >
	Parse DICOM string to mpps_status enum.

Variables
constexpr std::string_view	kcenon::pacs::services::mpps_sop_class_uid = "1.2.840.10008.3.1.2.3.3"
	MPPS (Modality Performed Procedure Step) SOP Class UID.
constexpr core::dicom_tag	kcenon::pacs::services::mpps_tags::performed_station_ae_title {0x0040, 0x0241}
	Performed Station AE Title (0040,0241)
constexpr core::dicom_tag	kcenon::pacs::services::mpps_tags::performed_station_name {0x0040, 0x0242}
	Performed Station Name (0040,0242)
constexpr core::dicom_tag	kcenon::pacs::services::mpps_tags::performed_location {0x0040, 0x0243}
	Performed Location (0040,0243)
constexpr core::dicom_tag	kcenon::pacs::services::mpps_tags::performed_procedure_step_end_date {0x0040, 0x0250}
	Performed Procedure Step End Date (0040,0250)
constexpr core::dicom_tag	kcenon::pacs::services::mpps_tags::performed_procedure_step_end_time {0x0040, 0x0251}
	Performed Procedure Step End Time (0040,0251)
constexpr core::dicom_tag	kcenon::pacs::services::mpps_tags::performed_procedure_step_status {0x0040, 0x0252}
	Performed Procedure Step Status (0040,0252)
constexpr core::dicom_tag	kcenon::pacs::services::mpps_tags::performed_procedure_step_id {0x0040, 0x0253}
	Performed Procedure Step ID (0040,0253)
constexpr core::dicom_tag	kcenon::pacs::services::mpps_tags::performed_series_sequence {0x0040, 0x0340}
	Performed Series Sequence (0040,0340)
constexpr core::dicom_tag	kcenon::pacs::services::mpps_tags::scheduled_step_attributes_sequence {0x0040, 0x0270}
	Scheduled Step Attributes Sequence (0040,0270)
constexpr core::dicom_tag	kcenon::pacs::services::mpps_tags::referenced_study_sequence {0x0008, 0x1110}
	Referenced Study Sequence (0008,1110)

Detailed Description

DICOM MPPS (Modality Performed Procedure Step) SCP service.

This file provides the mpps_scp class for handling N-CREATE and N-SET requests to track exam progress from modality devices.

See also

DICOM PS3.4 Section F - MPPS SOP Class

DICOM PS3.7 Section 10 - DIMSE-N Services

DES-SVC-007 - MPPS SCP Design Specification

Author

kcenon

Since

1.0.0

Definition in file mpps_scp.h.
