#include <sr_iod_validator.h>

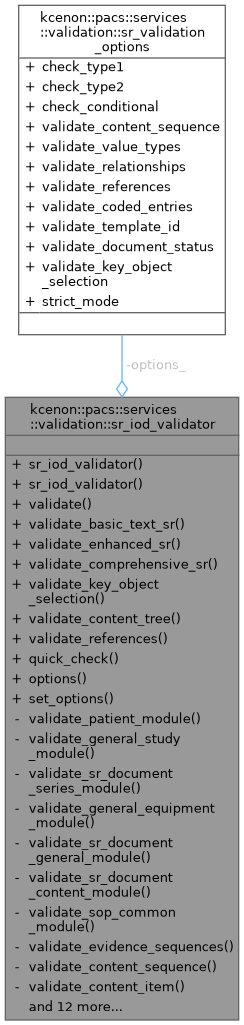

Collaboration diagram for kcenon::pacs::services::validation::sr_iod_validator:

Public Member Functions
	sr_iod_validator ()=default
	Construct validator with default options.

	sr_iod_validator (const sr_validation_options &options)
	Construct validator with custom options.

validation_result	validate (const core::dicom_dataset &dataset) const
	Validate a DICOM dataset against SR IOD.

validation_result	validate_basic_text_sr (const core::dicom_dataset &dataset) const
	Validate a Basic Text SR dataset.

validation_result	validate_enhanced_sr (const core::dicom_dataset &dataset) const
	Validate an Enhanced SR dataset.

validation_result	validate_comprehensive_sr (const core::dicom_dataset &dataset) const
	Validate a Comprehensive SR dataset.

validation_result	validate_key_object_selection (const core::dicom_dataset &dataset) const
	Validate a Key Object Selection document.

validation_result	validate_content_tree (const core::dicom_dataset &dataset) const
	Validate content tree structure.

validation_result	validate_references (const core::dicom_dataset &dataset) const
	Validate referenced instances.

bool	quick_check (const core::dicom_dataset &dataset) const
	Quick check if dataset has minimum required attributes.

const sr_validation_options &	options () const noexcept
	Get the validation options.

void	set_options (const sr_validation_options &options)
	Set validation options.

Private Member Functions
void	validate_patient_module (const core::dicom_dataset &dataset, std::vector< validation_finding > &findings) const

void	validate_general_study_module (const core::dicom_dataset &dataset, std::vector< validation_finding > &findings) const

void	validate_sr_document_series_module (const core::dicom_dataset &dataset, std::vector< validation_finding > &findings) const

void	validate_general_equipment_module (const core::dicom_dataset &dataset, std::vector< validation_finding > &findings) const

void	validate_sr_document_general_module (const core::dicom_dataset &dataset, std::vector< validation_finding > &findings) const

void	validate_sr_document_content_module (const core::dicom_dataset &dataset, std::vector< validation_finding > &findings) const

void	validate_sop_common_module (const core::dicom_dataset &dataset, std::vector< validation_finding > &findings) const

void	validate_evidence_sequences (const core::dicom_dataset &dataset, std::vector< validation_finding > &findings) const

void	validate_content_sequence (const core::dicom_dataset &dataset, std::vector< validation_finding > &findings) const

void	validate_content_item (const core::dicom_dataset &item, size_t depth, std::string_view parent_value_type, std::vector< validation_finding > &findings) const

void	validate_coded_entry (const core::dicom_dataset &coded_entry, std::string_view context, std::vector< validation_finding > &findings) const

void	validate_text_content_item (const core::dicom_dataset &item, std::vector< validation_finding > &findings) const

void	validate_code_content_item (const core::dicom_dataset &item, std::vector< validation_finding > &findings) const

void	validate_num_content_item (const core::dicom_dataset &item, std::vector< validation_finding > &findings) const

void	validate_image_content_item (const core::dicom_dataset &item, std::vector< validation_finding > &findings) const

void	validate_scoord_content_item (const core::dicom_dataset &item, std::vector< validation_finding > &findings) const

void	validate_scoord3d_content_item (const core::dicom_dataset &item, std::vector< validation_finding > &findings) const

void	check_type1_attribute (const core::dicom_dataset &dataset, core::dicom_tag tag, std::string_view name, std::vector< validation_finding > &findings) const

void	check_type2_attribute (const core::dicom_dataset &dataset, core::dicom_tag tag, std::string_view name, std::vector< validation_finding > &findings) const

void	check_modality (const core::dicom_dataset &dataset, std::vector< validation_finding > &findings) const

void	check_completion_flag (const core::dicom_dataset &dataset, std::vector< validation_finding > &findings) const

void	check_verification_flag (const core::dicom_dataset &dataset, std::vector< validation_finding > &findings) const

Private Attributes
sr_validation_options	options_

Detailed Description

Definition at line 117 of file sr_iod_validator.h.

Constructor & Destructor Documentation

◆ sr_iod_validator() [1/2]

kcenon::pacs::services::validation::sr_iod_validator::sr_iod_validator ( )

default

Construct validator with default options.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

◆ sr_iod_validator() [2/2]

kcenon::pacs::services::validation::sr_iod_validator::sr_iod_validator ( const sr_validation_options & options )

explicit

Construct validator with custom options.

Parameters

options Validation options

Definition at line 89 of file sr_iod_validator.cpp.

90 : options_(options) {}

kcenon::pacs::services::validation::sr_iod_validator::options_

sr_validation_options options_

Definition sr_iod_validator.h:318

Member Function Documentation

◆ check_completion_flag()

void kcenon::pacs::services::validation::sr_iod_validator::check_completion_flag	(	const core::dicom_dataset &	dataset,
		std::vector< validation_finding > &	findings ) const

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 918 of file sr_iod_validator.cpp.

                                                   {

    if (!dataset.contains(sr_tags::completion_flag)) {
        return;
    }

    auto flag = dataset.get_string(sr_tags::completion_flag);
    if (flag != "PARTIAL" && flag != "COMPLETE") {
        findings.push_back({
            validation_severity::error,
            sr_tags::completion_flag,
            "Invalid CompletionFlag value: " + flag + " (must be PARTIAL or COMPLETE)",
            "SR-FLAG-ERR-001"
        });
    }
}

References kcenon::pacs::services::validation::sr_tags::completion_flag, kcenon::pacs::core::dicom_dataset::contains(), kcenon::pacs::services::validation::error, and kcenon::pacs::core::dicom_dataset::get_string().

Referenced by validate_sr_document_general_module().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ check_modality()

void kcenon::pacs::services::validation::sr_iod_validator::check_modality	(	const core::dicom_dataset &	dataset,
		std::vector< validation_finding > &	findings ) const

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 899 of file sr_iod_validator.cpp.

                                                   {

    if (!dataset.contains(tags::modality)) {
        return;
    }

    auto modality = dataset.get_string(tags::modality);
    if (modality != "SR") {
        findings.push_back({
            validation_severity::error,
            tags::modality,
            "Modality must be 'SR' for Structured Report objects, found: " + modality,
            "SR-ERR-002"
        });
    }
}

References kcenon::pacs::core::dicom_dataset::contains(), kcenon::pacs::services::validation::error, kcenon::pacs::core::dicom_dataset::get_string(), and kcenon::pacs::core::tags::modality.

Referenced by validate_sr_document_series_module().

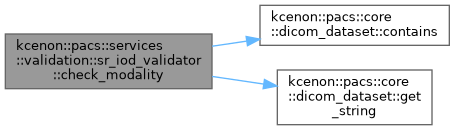

Here is the call graph for this function:

Here is the caller graph for this function:

◆ check_type1_attribute()

void kcenon::pacs::services::validation::sr_iod_validator::check_type1_attribute	(	const core::dicom_dataset &	dataset,
		core::dicom_tag	tag,
		std::string_view	name,
		std::vector< validation_finding > &	findings ) const

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 837 of file sr_iod_validator.cpp.

                                                   {

    if (!dataset.contains(tag)) {
        findings.push_back({
            validation_severity::error,
            tag,
            std::string("Type 1 attribute missing: ") + std::string(name) +
            " (" + tag.to_string() + ")",
            "SR-TYPE1-MISSING"
        });
    } else {
        const auto* element = dataset.get(tag);
        if (element != nullptr) {
            // For sequences, check if the sequence has items
            if (element->is_sequence()) {
                if (element->sequence_items().empty()) {
                    findings.push_back({
                        validation_severity::error,
                        tag,
                        std::string("Type 1 sequence has no items: ") +
                        std::string(name) + " (" + tag.to_string() + ")",
                        "SR-TYPE1-EMPTY"
                    });
                }
            } else {
                // For non-sequence elements, check if the value is empty
                auto value = dataset.get_string(tag);
                if (value.empty()) {
                    findings.push_back({
                        validation_severity::error,
                        tag,
                        std::string("Type 1 attribute has empty value: ") +
                        std::string(name) + " (" + tag.to_string() + ")",
                        "SR-TYPE1-EMPTY"
                    });
                }
            }
        }
    }
}

References kcenon::pacs::core::dicom_dataset::contains(), kcenon::pacs::services::validation::error, kcenon::pacs::core::dicom_dataset::get(), kcenon::pacs::core::dicom_dataset::get_string(), name, and kcenon::pacs::core::dicom_tag::to_string().

Referenced by validate_general_study_module(), validate_sop_common_module(), validate_sr_document_content_module(), validate_sr_document_general_module(), and validate_sr_document_series_module().

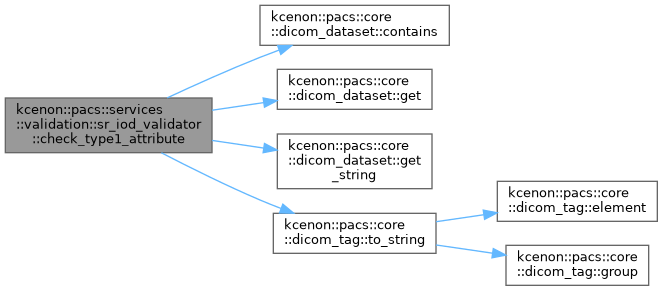

Here is the call graph for this function:

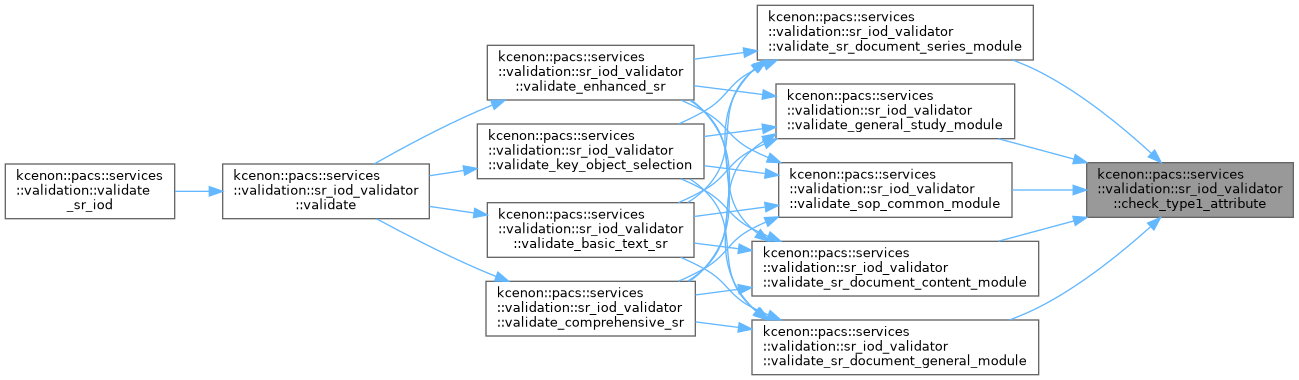

Here is the caller graph for this function:

◆ check_type2_attribute()

void kcenon::pacs::services::validation::sr_iod_validator::check_type2_attribute	(	const core::dicom_dataset &	dataset,
		core::dicom_tag	tag,
		std::string_view	name,
		std::vector< validation_finding > &	findings ) const

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 882 of file sr_iod_validator.cpp.

                                                   {

    if (!dataset.contains(tag)) {
        findings.push_back({
            validation_severity::warning,
            tag,
            std::string("Type 2 attribute missing: ") + std::string(name) +
            " (" + tag.to_string() + ")",
            "SR-TYPE2-MISSING"
        });
    }
}

References kcenon::pacs::core::dicom_dataset::contains(), name, kcenon::pacs::core::dicom_tag::to_string(), and kcenon::pacs::services::validation::warning.

Referenced by validate_general_equipment_module(), validate_general_study_module(), validate_patient_module(), validate_sr_document_general_module(), and validate_sr_document_series_module().

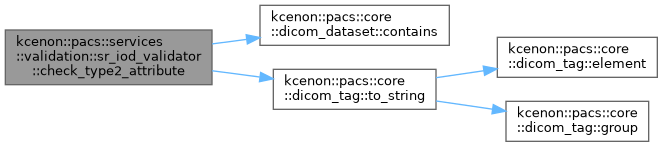

Here is the call graph for this function:

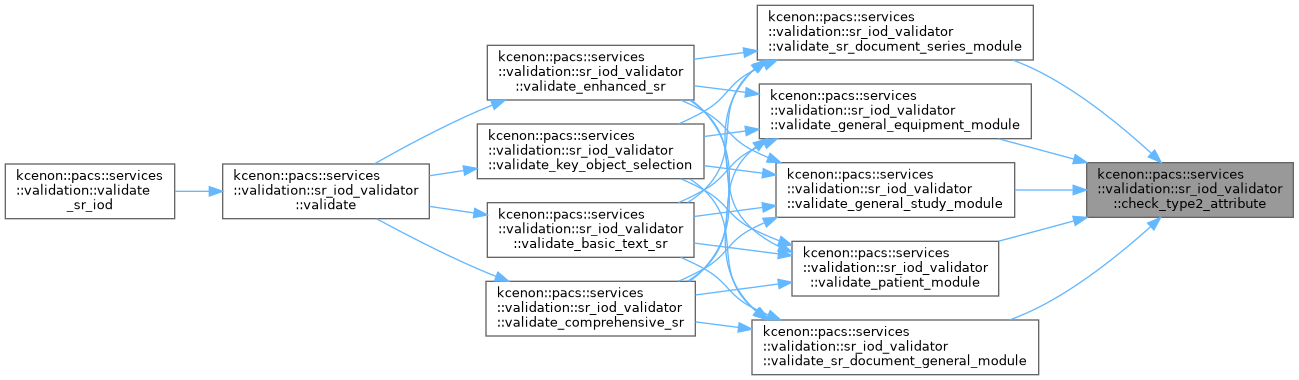

Here is the caller graph for this function:

◆ check_verification_flag()

void kcenon::pacs::services::validation::sr_iod_validator::check_verification_flag	(	const core::dicom_dataset &	dataset,
		std::vector< validation_finding > &	findings ) const

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 937 of file sr_iod_validator.cpp.

                                                   {

    if (!dataset.contains(sr_tags::verification_flag)) {
        return;
    }

    auto flag = dataset.get_string(sr_tags::verification_flag);
    if (flag != "UNVERIFIED" && flag != "VERIFIED") {
        findings.push_back({
            validation_severity::error,
            sr_tags::verification_flag,
            "Invalid VerificationFlag value: " + flag + " (must be UNVERIFIED or VERIFIED)",
            "SR-FLAG-ERR-002"
        });
    }
}

References kcenon::pacs::core::dicom_dataset::contains(), kcenon::pacs::services::validation::error, kcenon::pacs::core::dicom_dataset::get_string(), and kcenon::pacs::services::validation::sr_tags::verification_flag.

Referenced by validate_sr_document_general_module().

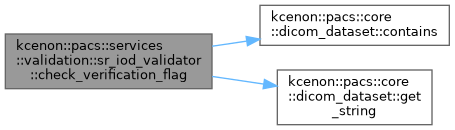

Here is the call graph for this function:

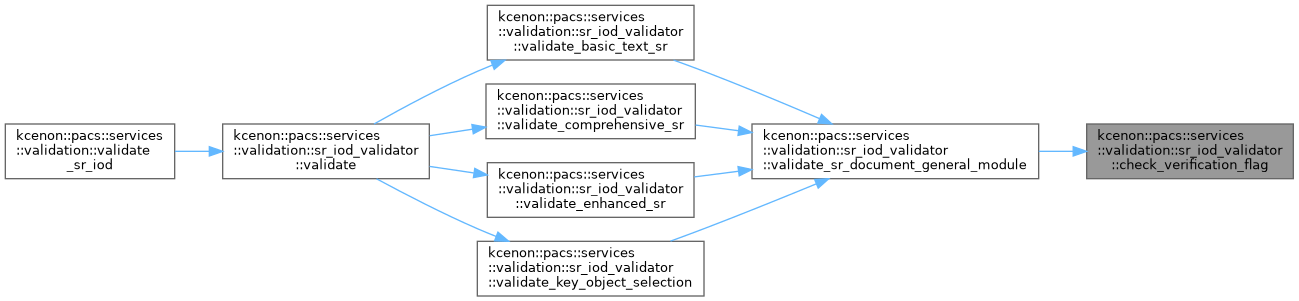

Here is the caller graph for this function:

◆ options()

const sr_validation_options & kcenon::pacs::services::validation::sr_iod_validator::options ( ) const

nodiscardnoexcept

Get the validation options.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 338 of file sr_iod_validator.cpp.

                                                                      {
    return options_;
}

References options_.

Referenced by set_options().

Here is the caller graph for this function:

◆ quick_check()

bool kcenon::pacs::services::validation::sr_iod_validator::quick_check ( const core::dicom_dataset & dataset ) const

nodiscard

Quick check if dataset has minimum required attributes.

Faster than full validation - only checks Type 1 attributes.

Parameters

dataset The dataset to check

Returns: true if all Type 1 attributes are present

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 305 of file sr_iod_validator.cpp.

                                                                     {
    // Check essential Type 1 attributes

    // General Study Module
    if (!dataset.contains(tags::study_instance_uid)) return false;

    // General Series Module
    if (!dataset.contains(tags::modality)) return false;
    if (!dataset.contains(tags::series_instance_uid)) return false;

    // Check modality is SR
    auto modality = dataset.get_string(tags::modality);
    if (modality != "SR") return false;

    // SR Document General Module
    if (!dataset.contains(sr_tags::completion_flag)) return false;
    if (!dataset.contains(sr_tags::verification_flag)) return false;

    // SR Document Content Module - root content item
    if (!dataset.contains(sr_tags::value_type)) return false;
    if (!dataset.contains(sr_tags::concept_name_code_sequence)) return false;

    // SOP Common Module
    if (!dataset.contains(tags::sop_class_uid)) return false;
    if (!dataset.contains(tags::sop_instance_uid)) return false;

    // Verify SOP Class is SR
    auto sop_class = dataset.get_string(tags::sop_class_uid);
    if (!sop_classes::is_sr_storage_sop_class(sop_class)) return false;

    return true;
}

References kcenon::pacs::services::validation::sr_tags::completion_flag, kcenon::pacs::services::validation::sr_tags::concept_name_code_sequence, kcenon::pacs::core::dicom_dataset::contains(), kcenon::pacs::core::dicom_dataset::get_string(), kcenon::pacs::services::sop_classes::is_sr_storage_sop_class(), kcenon::pacs::core::tags::modality, kcenon::pacs::core::tags::series_instance_uid, kcenon::pacs::core::tags::sop_class_uid, kcenon::pacs::core::tags::sop_instance_uid, kcenon::pacs::core::tags::study_instance_uid, kcenon::pacs::services::validation::sr_tags::value_type, and kcenon::pacs::services::validation::sr_tags::verification_flag.

Referenced by kcenon::pacs::services::validation::is_valid_sr_dataset().

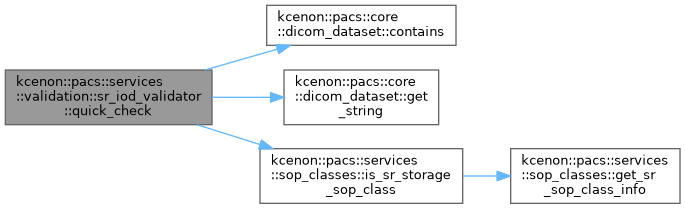

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_options()

void kcenon::pacs::services::validation::sr_iod_validator::set_options ( const sr_validation_options & options )

Set validation options.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 342 of file sr_iod_validator.cpp.

                                                                       {
    options_ = options;
}

References options(), and options_.

Here is the call graph for this function:

◆ validate()

validation_result kcenon::pacs::services::validation::sr_iod_validator::validate ( const core::dicom_dataset & dataset ) const

nodiscard

Validate a DICOM dataset against SR IOD.

Automatically detects the SR type and applies appropriate validation.

Parameters

dataset The dataset to validate

Returns: Validation result with all findings

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 92 of file sr_iod_validator.cpp.

                                                                               {
    // Detect SR type and delegate to appropriate validation
    if (!dataset.contains(tags::sop_class_uid)) {
        validation_result result;
        result.is_valid = false;
        result.findings.push_back({
            validation_severity::error,
            tags::sop_class_uid,
            "SOPClassUID is required to determine SR type",
            "SR-ERR-000"
        });
        return result;
    }

    auto sop_class = dataset.get_string(tags::sop_class_uid);
    auto doc_type = sop_classes::get_sr_document_type(sop_class);

    switch (doc_type) {
        case sop_classes::sr_document_type::basic_text:
            return validate_basic_text_sr(dataset);
        case sop_classes::sr_document_type::enhanced:
            return validate_enhanced_sr(dataset);
        case sop_classes::sr_document_type::comprehensive:
        case sop_classes::sr_document_type::comprehensive_3d:
            return validate_comprehensive_sr(dataset);
        case sop_classes::sr_document_type::key_object_selection:
            return validate_key_object_selection(dataset);
        default:
            // For other types, use comprehensive validation
            return validate_comprehensive_sr(dataset);
    }
}

Referenced by kcenon::pacs::services::validation::validate_sr_iod().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ validate_basic_text_sr()

validation_result kcenon::pacs::services::validation::sr_iod_validator::validate_basic_text_sr ( const core::dicom_dataset & dataset ) const

nodiscard

Validate a Basic Text SR dataset.

Parameters

dataset The dataset to validate

Returns: Validation result with all findings

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 126 of file sr_iod_validator.cpp.

                                                                           {
    validation_result result;
    result.is_valid = true;

    // Common modules
    validate_patient_module(dataset, result.findings);
    validate_general_study_module(dataset, result.findings);
    validate_sr_document_series_module(dataset, result.findings);
    validate_general_equipment_module(dataset, result.findings);
    validate_sr_document_general_module(dataset, result.findings);
    validate_sr_document_content_module(dataset, result.findings);
    validate_sop_common_module(dataset, result.findings);

    // Basic Text SR does not support SCOORD, IMAGE, WAVEFORM, etc.
    // Content validation will handle value type restrictions

    for (const auto& finding : result.findings) {
        if (finding.severity == validation_severity::error) {
            result.is_valid = false;
            break;
        }
        if (options_.strict_mode && finding.severity == validation_severity::warning) {
            result.is_valid = false;
            break;
        }
    }

    return result;
}

References kcenon::pacs::services::validation::error, kcenon::pacs::services::validation::validation_result::findings, kcenon::pacs::services::validation::validation_result::is_valid, options_, kcenon::pacs::services::validation::sr_validation_options::strict_mode, validate_general_equipment_module(), validate_general_study_module(), validate_patient_module(), validate_sop_common_module(), validate_sr_document_content_module(), validate_sr_document_general_module(), validate_sr_document_series_module(), and kcenon::pacs::services::validation::warning.

Referenced by validate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ validate_code_content_item()

void kcenon::pacs::services::validation::sr_iod_validator::validate_code_content_item	(	const core::dicom_dataset &	item,
		std::vector< validation_finding > &	findings ) const

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 688 of file sr_iod_validator.cpp.

                                                   {

    if (!item.contains(sr_tags::concept_name_code_sequence)) {
        findings.push_back({
            validation_severity::error,
            sr_tags::concept_name_code_sequence,
            "ConceptNameCodeSequence is required for CODE content item",
            "SR-CODE-ITEM-ERR-001"
        });
    }
}

References kcenon::pacs::services::validation::sr_tags::concept_name_code_sequence, and kcenon::pacs::services::validation::error.

Referenced by validate_content_item().

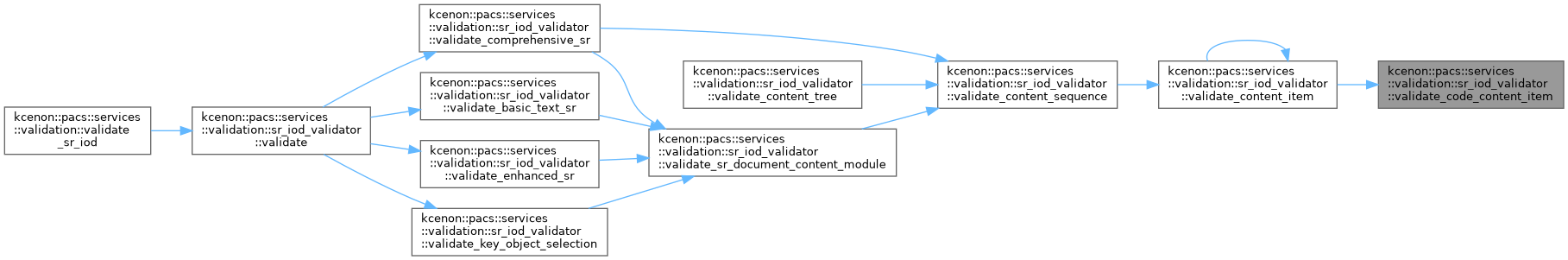

Here is the caller graph for this function:

◆ validate_coded_entry()

void kcenon::pacs::services::validation::sr_iod_validator::validate_coded_entry	(	const core::dicom_dataset &	coded_entry,
		std::string_view	context,
		std::vector< validation_finding > &	findings ) const

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 638 of file sr_iod_validator.cpp.

                                                   {

    // Code Value
    if (!coded_entry.contains(sr_tags::code_value)) {
        findings.push_back({
            validation_severity::error,
            sr_tags::code_value,
            std::string(context) + ": CodeValue is required",
            "SR-CODE-ERR-001"
        });
    }

    // Coding Scheme Designator
    if (!coded_entry.contains(sr_tags::coding_scheme_designator)) {
        findings.push_back({
            validation_severity::error,
            sr_tags::coding_scheme_designator,
            std::string(context) + ": CodingSchemeDesignator is required",
            "SR-CODE-ERR-002"
        });
    }

    // Code Meaning
    if (!coded_entry.contains(sr_tags::code_meaning)) {
        findings.push_back({
            validation_severity::error,
            sr_tags::code_meaning,
            std::string(context) + ": CodeMeaning is required",
            "SR-CODE-ERR-003"
        });
    }
}

References kcenon::pacs::services::validation::sr_tags::code_meaning, kcenon::pacs::services::validation::sr_tags::code_value, kcenon::pacs::services::validation::sr_tags::coding_scheme_designator, kcenon::pacs::core::dicom_dataset::contains(), and kcenon::pacs::services::validation::error.

Referenced by validate_sr_document_content_module().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ validate_comprehensive_sr()

validation_result kcenon::pacs::services::validation::sr_iod_validator::validate_comprehensive_sr ( const core::dicom_dataset & dataset ) const

nodiscard

Validate a Comprehensive SR dataset.

Parameters

dataset The dataset to validate

Returns: Validation result with all findings

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 190 of file sr_iod_validator.cpp.

                                                                              {
    validation_result result;
    result.is_valid = true;

    // Common modules
    validate_patient_module(dataset, result.findings);
    validate_general_study_module(dataset, result.findings);
    validate_sr_document_series_module(dataset, result.findings);
    validate_general_equipment_module(dataset, result.findings);
    validate_sr_document_general_module(dataset, result.findings);
    validate_sr_document_content_module(dataset, result.findings);
    validate_sop_common_module(dataset, result.findings);

    // Comprehensive SR specific - evidence sequences
    if (options_.validate_references) {
        validate_evidence_sequences(dataset, result.findings);
    }

    // Content tree validation (includes SCOORD support)
    if (options_.validate_content_sequence) {
        validate_content_sequence(dataset, result.findings);
    }

    for (const auto& finding : result.findings) {
        if (finding.severity == validation_severity::error) {
            result.is_valid = false;
            break;
        }
        if (options_.strict_mode && finding.severity == validation_severity::warning) {
            result.is_valid = false;
            break;
        }
    }

    return result;
}

References kcenon::pacs::services::validation::error, kcenon::pacs::services::validation::validation_result::findings, kcenon::pacs::services::validation::validation_result::is_valid, options_, kcenon::pacs::services::validation::sr_validation_options::strict_mode, validate_content_sequence(), kcenon::pacs::services::validation::sr_validation_options::validate_content_sequence, validate_evidence_sequences(), validate_general_equipment_module(), validate_general_study_module(), validate_patient_module(), kcenon::pacs::services::validation::sr_validation_options::validate_references, validate_sop_common_module(), validate_sr_document_content_module(), validate_sr_document_general_module(), validate_sr_document_series_module(), and kcenon::pacs::services::validation::warning.

Referenced by validate().

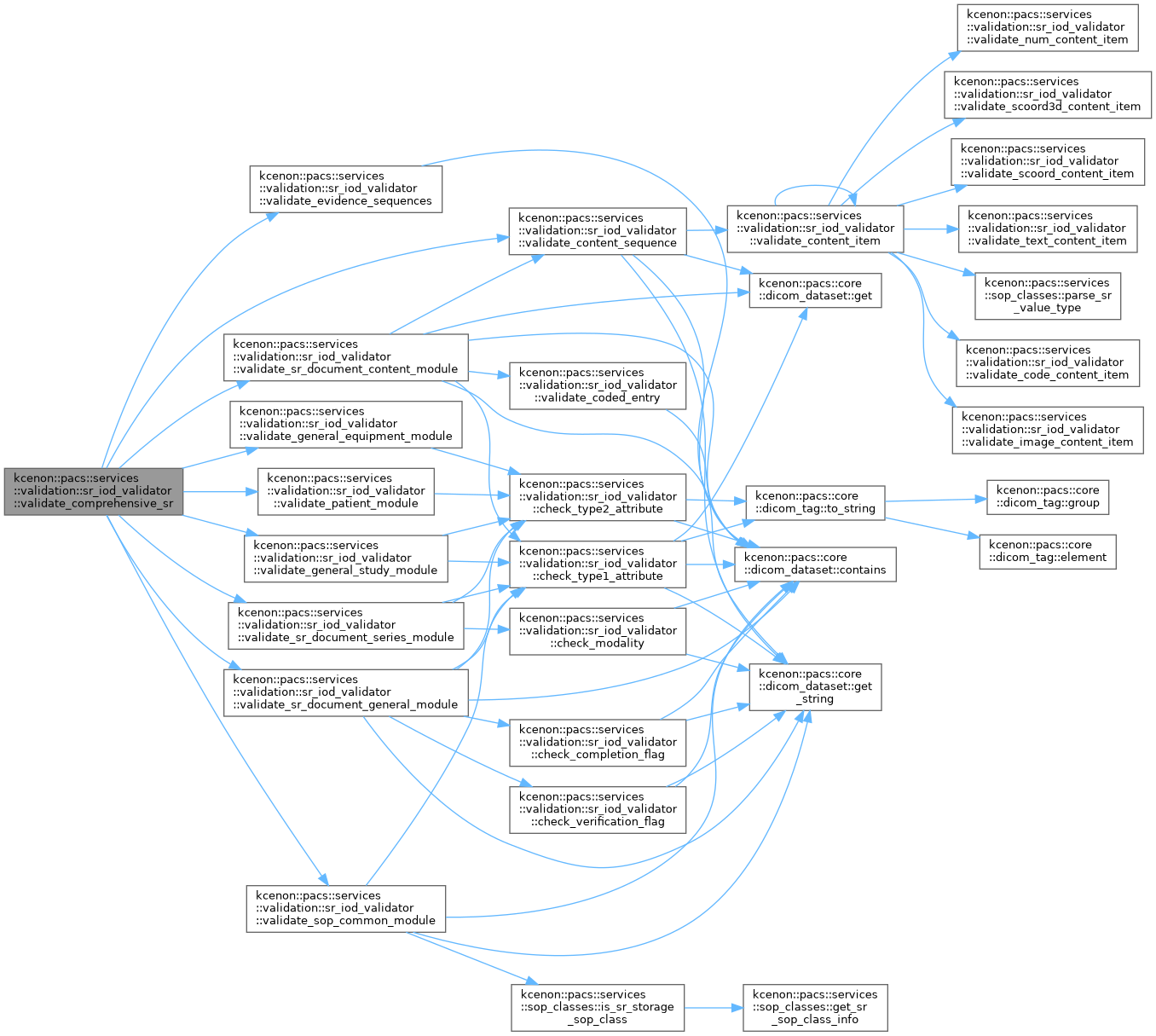

Here is the call graph for this function:

Here is the caller graph for this function:

◆ validate_content_item()

void kcenon::pacs::services::validation::sr_iod_validator::validate_content_item	(	const core::dicom_dataset &	item,
		size_t	depth,
		std::string_view	parent_value_type,
		std::vector< validation_finding > &	findings ) const

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 552 of file sr_iod_validator.cpp.

                                                   {

    // Prevent infinite recursion
    if (depth > 100) {
        findings.push_back({
            validation_severity::warning,
            sr_tags::content_sequence,
            "Content tree depth exceeds 100 - possible circular reference",
            "SR-CONTENT-WARN-001"
        });
        return;
    }

    // Check required attributes
    if (!item.contains(sr_tags::relationship_type)) {
        findings.push_back({
            validation_severity::error,
            sr_tags::relationship_type,
            "RelationshipType missing in content item at depth " + std::to_string(depth),
            "SR-ITEM-ERR-001"
        });
    }

    if (!item.contains(sr_tags::value_type)) {
        findings.push_back({
            validation_severity::error,
            sr_tags::value_type,
            "ValueType missing in content item at depth " + std::to_string(depth),
            "SR-ITEM-ERR-002"
        });
        return;  // Can't validate further without value type
    }

    auto value_type = item.get_string(sr_tags::value_type);
    auto sr_vt = sop_classes::parse_sr_value_type(value_type);

    if (sr_vt == sop_classes::sr_value_type::unknown) {
        findings.push_back({
            validation_severity::error,
            sr_tags::value_type,
            "Invalid ValueType: " + value_type,
            "SR-ITEM-ERR-003"
        });
        return;
    }

    // Value type specific validation
    switch (sr_vt) {
        case sop_classes::sr_value_type::text:
            validate_text_content_item(item, findings);
            break;
        case sop_classes::sr_value_type::code:
            validate_code_content_item(item, findings);
            break;
        case sop_classes::sr_value_type::num:
            validate_num_content_item(item, findings);
            break;
        case sop_classes::sr_value_type::image:
            validate_image_content_item(item, findings);
            break;
        case sop_classes::sr_value_type::scoord:
            validate_scoord_content_item(item, findings);
            break;
        case sop_classes::sr_value_type::scoord3d:
            validate_scoord3d_content_item(item, findings);
            break;
        default:
            break;
    }

    // Validate nested content items
    if (item.contains(sr_tags::content_sequence)) {
        const auto* nested_elem = item.get(sr_tags::content_sequence);
        if (nested_elem && nested_elem->is_sequence()) {
            const auto& nested_seq = nested_elem->sequence_items();
            for (size_t i = 0; i < nested_seq.size(); ++i) {
                validate_content_item(nested_seq[i], depth + 1, value_type, findings);
            }
        }
    }
}

Referenced by validate_content_item(), and validate_content_sequence().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ validate_content_sequence()

void kcenon::pacs::services::validation::sr_iod_validator::validate_content_sequence	(	const core::dicom_dataset &	dataset,
		std::vector< validation_finding > &	findings ) const

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 517 of file sr_iod_validator.cpp.

                                                   {

    if (!dataset.contains(sr_tags::content_sequence)) {
        findings.push_back({
            validation_severity::info,
            sr_tags::content_sequence,
            "ContentSequence not present - SR document has no content items",
            "SR-CONTENT-INFO-001"
        });
        return;
    }

    const auto* content_elem = dataset.get(sr_tags::content_sequence);
    if (!content_elem || !content_elem->is_sequence() || content_elem->sequence_items().empty()) {
        findings.push_back({
            validation_severity::info,
            sr_tags::content_sequence,
            "ContentSequence is empty",
            "SR-CONTENT-INFO-002"
        });
        return;
    }

    // Get root value type for context
    auto root_value_type = dataset.get_string(sr_tags::value_type);

    // Validate each content item
    const auto& content_seq = content_elem->sequence_items();
    for (size_t i = 0; i < content_seq.size(); ++i) {
        validate_content_item(content_seq[i], 1, root_value_type, findings);
    }
}

References kcenon::pacs::core::dicom_dataset::contains(), kcenon::pacs::services::validation::sr_tags::content_sequence, kcenon::pacs::core::dicom_dataset::get(), kcenon::pacs::core::dicom_dataset::get_string(), kcenon::pacs::services::validation::info, validate_content_item(), and kcenon::pacs::services::validation::sr_tags::value_type.

Referenced by validate_comprehensive_sr(), validate_content_tree(), and validate_sr_document_content_module().

Here is the call graph for this function:

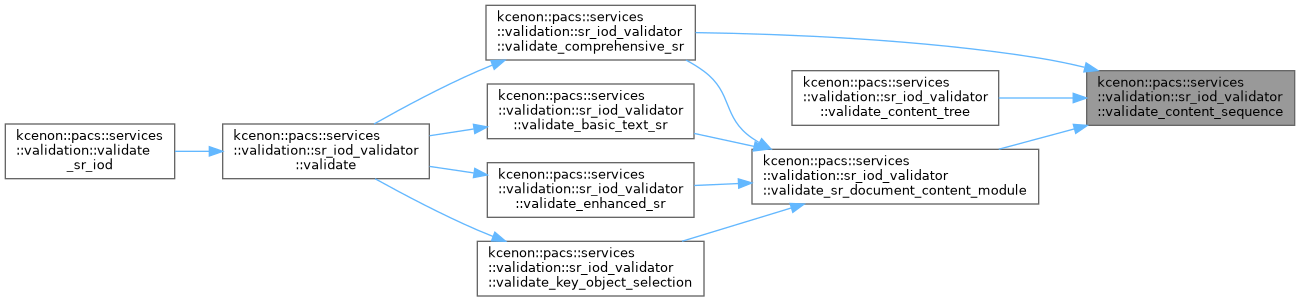

Here is the caller graph for this function:

◆ validate_content_tree()

validation_result kcenon::pacs::services::validation::sr_iod_validator::validate_content_tree ( const core::dicom_dataset & dataset ) const

nodiscard

Validate content tree structure.

Validates the Content Sequence hierarchy and relationships.

Parameters

dataset The dataset to validate

Returns: Validation result for content tree

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 272 of file sr_iod_validator.cpp.

                                                                          {
    validation_result result;
    result.is_valid = true;

    validate_content_sequence(dataset, result.findings);

    for (const auto& finding : result.findings) {
        if (finding.severity == validation_severity::error) {
            result.is_valid = false;
            break;
        }
    }

    return result;
}

References kcenon::pacs::services::validation::error, kcenon::pacs::services::validation::validation_result::findings, kcenon::pacs::services::validation::validation_result::is_valid, and validate_content_sequence().

Here is the call graph for this function:

◆ validate_enhanced_sr()

validation_result kcenon::pacs::services::validation::sr_iod_validator::validate_enhanced_sr ( const core::dicom_dataset & dataset ) const

nodiscard

Validate an Enhanced SR dataset.

Parameters

dataset The dataset to validate

Returns: Validation result with all findings

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 157 of file sr_iod_validator.cpp.

                                                                         {
    validation_result result;
    result.is_valid = true;

    // Common modules
    validate_patient_module(dataset, result.findings);
    validate_general_study_module(dataset, result.findings);
    validate_sr_document_series_module(dataset, result.findings);
    validate_general_equipment_module(dataset, result.findings);
    validate_sr_document_general_module(dataset, result.findings);
    validate_sr_document_content_module(dataset, result.findings);
    validate_sop_common_module(dataset, result.findings);

    // Enhanced SR specific - evidence sequences
    if (options_.validate_references) {
        validate_evidence_sequences(dataset, result.findings);
    }

    for (const auto& finding : result.findings) {
        if (finding.severity == validation_severity::error) {
            result.is_valid = false;
            break;
        }
        if (options_.strict_mode && finding.severity == validation_severity::warning) {
            result.is_valid = false;
            break;
        }
    }

    return result;
}

References kcenon::pacs::services::validation::error, kcenon::pacs::services::validation::validation_result::findings, kcenon::pacs::services::validation::validation_result::is_valid, options_, kcenon::pacs::services::validation::sr_validation_options::strict_mode, validate_evidence_sequences(), validate_general_equipment_module(), validate_general_study_module(), validate_patient_module(), kcenon::pacs::services::validation::sr_validation_options::validate_references, validate_sop_common_module(), validate_sr_document_content_module(), validate_sr_document_general_module(), validate_sr_document_series_module(), and kcenon::pacs::services::validation::warning.

Referenced by validate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ validate_evidence_sequences()

void kcenon::pacs::services::validation::sr_iod_validator::validate_evidence_sequences	(	const core::dicom_dataset &	dataset,
		std::vector< validation_finding > &	findings ) const

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 499 of file sr_iod_validator.cpp.

                                                   {

    // For Enhanced/Comprehensive SR, at least one evidence sequence should be present
    bool has_evidence = dataset.contains(sr_tags::current_requested_procedure_evidence_sequence) ||
                       dataset.contains(sr_tags::pertinent_other_evidence_sequence);

    if (!has_evidence) {
        findings.push_back({
            validation_severity::info,
            sr_tags::current_requested_procedure_evidence_sequence,
            "No evidence sequences present - SR may not properly link to source images",
            "SR-EVIDENCE-INFO-001"
        });
    }
}

References kcenon::pacs::core::dicom_dataset::contains(), kcenon::pacs::services::validation::sr_tags::current_requested_procedure_evidence_sequence, kcenon::pacs::services::validation::info, and kcenon::pacs::services::validation::sr_tags::pertinent_other_evidence_sequence.

Referenced by validate_comprehensive_sr(), validate_enhanced_sr(), and validate_references().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ validate_general_equipment_module()

void kcenon::pacs::services::validation::sr_iod_validator::validate_general_equipment_module	(	const core::dicom_dataset &	dataset,
		std::vector< validation_finding > &	findings ) const

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 394 of file sr_iod_validator.cpp.

                                                   {

    constexpr dicom_tag manufacturer{0x0008, 0x0070};
    if (options_.check_type2) {
        check_type2_attribute(dataset, manufacturer, "Manufacturer", findings);
    }
}

References kcenon::pacs::services::validation::sr_validation_options::check_type2, check_type2_attribute(), and options_.

Referenced by validate_basic_text_sr(), validate_comprehensive_sr(), validate_enhanced_sr(), and validate_key_object_selection().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ validate_general_study_module()

void kcenon::pacs::services::validation::sr_iod_validator::validate_general_study_module	(	const core::dicom_dataset &	dataset,
		std::vector< validation_finding > &	findings ) const

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 362 of file sr_iod_validator.cpp.

                                                   {

    if (options_.check_type1) {
        check_type1_attribute(dataset, tags::study_instance_uid, "StudyInstanceUID", findings);
    }

    if (options_.check_type2) {
        check_type2_attribute(dataset, tags::study_date, "StudyDate", findings);
        check_type2_attribute(dataset, tags::study_time, "StudyTime", findings);
        check_type2_attribute(dataset, tags::referring_physician_name, "ReferringPhysicianName", findings);
        check_type2_attribute(dataset, tags::study_id, "StudyID", findings);
        check_type2_attribute(dataset, tags::accession_number, "AccessionNumber", findings);
    }
}

References kcenon::pacs::core::tags::accession_number, kcenon::pacs::services::validation::sr_validation_options::check_type1, check_type1_attribute(), kcenon::pacs::services::validation::sr_validation_options::check_type2, check_type2_attribute(), options_, kcenon::pacs::core::tags::referring_physician_name, kcenon::pacs::core::tags::study_date, kcenon::pacs::core::tags::study_id, kcenon::pacs::core::tags::study_instance_uid, and kcenon::pacs::core::tags::study_time.

Referenced by validate_basic_text_sr(), validate_comprehensive_sr(), validate_enhanced_sr(), and validate_key_object_selection().

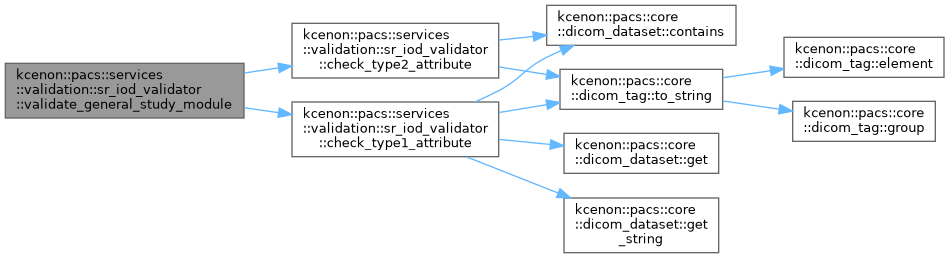

Here is the call graph for this function:

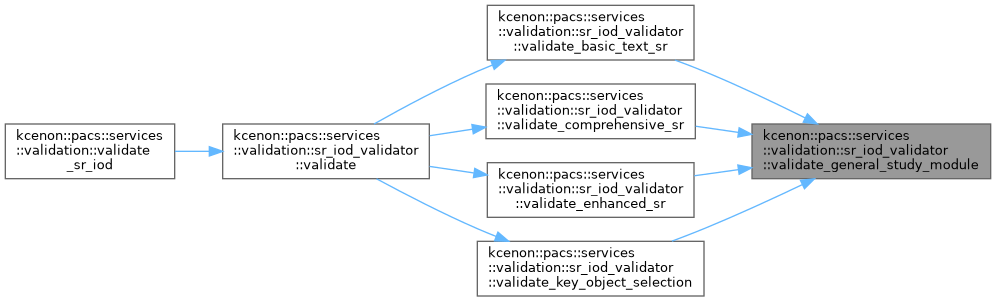

Here is the caller graph for this function:

◆ validate_image_content_item()

void kcenon::pacs::services::validation::sr_iod_validator::validate_image_content_item	(	const core::dicom_dataset &	item,
		std::vector< validation_finding > &	findings ) const

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 740 of file sr_iod_validator.cpp.

                                                   {

    if (!item.contains(sr_tags::referenced_sop_sequence)) {
        findings.push_back({
            validation_severity::error,
            sr_tags::referenced_sop_sequence,
            "ReferencedSOPSequence is required for IMAGE content item",
            "SR-IMAGE-ERR-001"
        });
        return;
    }

    const auto* ref_elem = item.get(sr_tags::referenced_sop_sequence);
    if (ref_elem && ref_elem->is_sequence() && !ref_elem->sequence_items().empty()) {
        const auto& ref_item = ref_elem->sequence_items()[0];

        if (!ref_item.contains(sr_tags::referenced_sop_class_uid)) {
            findings.push_back({
                validation_severity::error,
                sr_tags::referenced_sop_class_uid,
                "ReferencedSOPClassUID is required in IMAGE reference",
                "SR-IMAGE-ERR-002"
            });
        }

        if (!ref_item.contains(sr_tags::referenced_sop_instance_uid)) {
            findings.push_back({
                validation_severity::error,
                sr_tags::referenced_sop_instance_uid,
                "ReferencedSOPInstanceUID is required in IMAGE reference",
                "SR-IMAGE-ERR-003"
            });
        }
    }
}

References kcenon::pacs::services::validation::error, kcenon::pacs::services::validation::sr_tags::referenced_sop_class_uid, kcenon::pacs::services::validation::sr_tags::referenced_sop_instance_uid, and kcenon::pacs::services::validation::sr_tags::referenced_sop_sequence.

Referenced by validate_content_item().

Here is the caller graph for this function:

◆ validate_key_object_selection()

validation_result kcenon::pacs::services::validation::sr_iod_validator::validate_key_object_selection ( const core::dicom_dataset & dataset ) const

nodiscard

Validate a Key Object Selection document.

Parameters

dataset The dataset to validate

Returns: Validation result with all findings

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 228 of file sr_iod_validator.cpp.

                                                                                  {
    validation_result result;
    result.is_valid = true;

    if (!options_.validate_key_object_selection) {
        return result;
    }

    // Common modules
    validate_patient_module(dataset, result.findings);
    validate_general_study_module(dataset, result.findings);
    validate_sr_document_series_module(dataset, result.findings);
    validate_general_equipment_module(dataset, result.findings);
    validate_sr_document_general_module(dataset, result.findings);
    validate_sr_document_content_module(dataset, result.findings);
    validate_sop_common_module(dataset, result.findings);

    // KOS must have Current Requested Procedure Evidence Sequence
    if (options_.check_type1) {
        if (!dataset.contains(sr_tags::current_requested_procedure_evidence_sequence)) {
            result.findings.push_back({
                validation_severity::error,
                sr_tags::current_requested_procedure_evidence_sequence,
                "CurrentRequestedProcedureEvidenceSequence is required for Key Object Selection",
                "SR-KOS-ERR-001"
            });
        }
    }

    for (const auto& finding : result.findings) {
        if (finding.severity == validation_severity::error) {
            result.is_valid = false;
            break;
        }
        if (options_.strict_mode && finding.severity == validation_severity::warning) {
            result.is_valid = false;
            break;
        }
    }

    return result;
}

Referenced by validate().

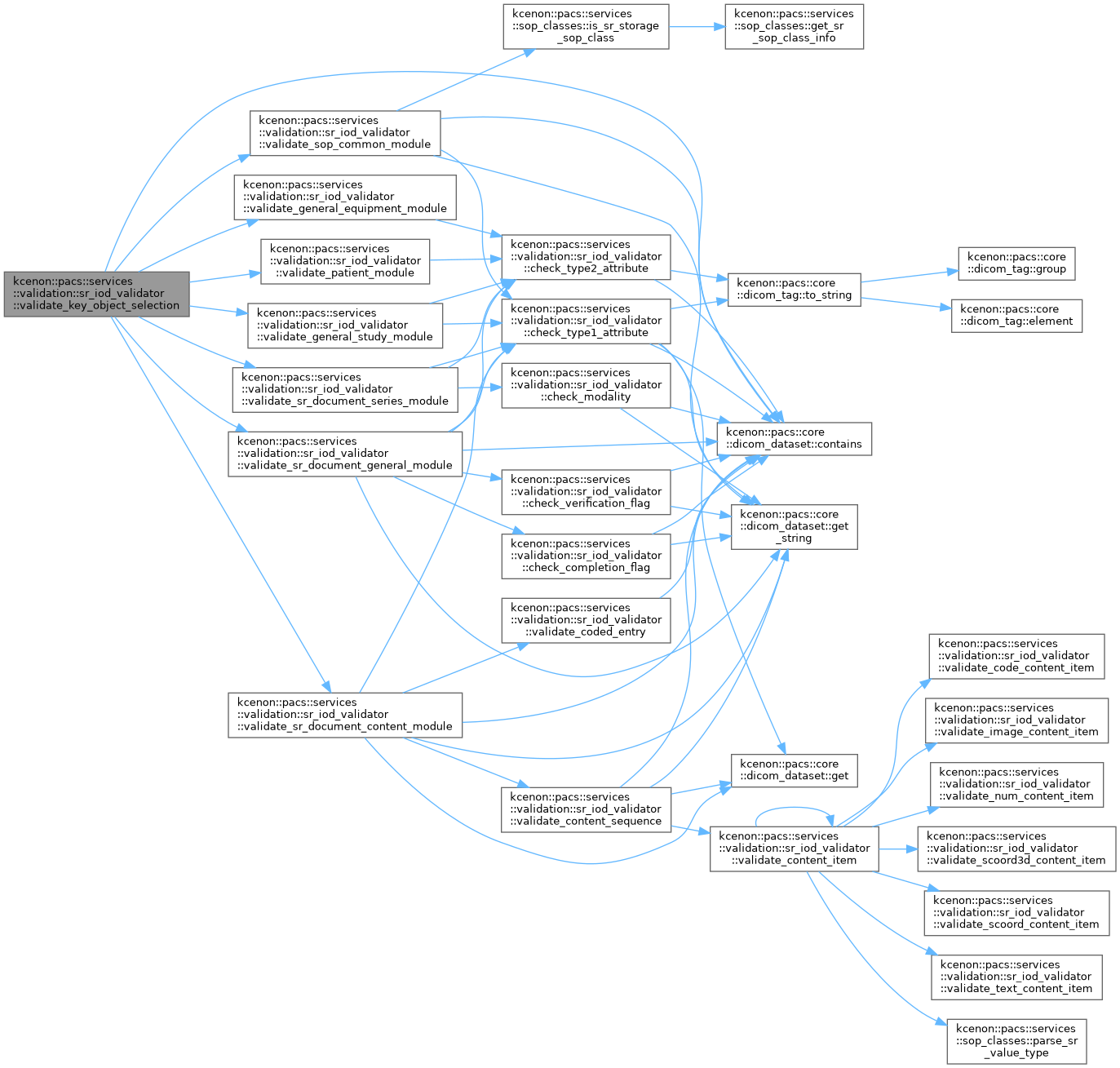

Here is the call graph for this function:

Here is the caller graph for this function:

◆ validate_num_content_item()

void kcenon::pacs::services::validation::sr_iod_validator::validate_num_content_item	(	const core::dicom_dataset &	item,
		std::vector< validation_finding > &	findings ) const

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 702 of file sr_iod_validator.cpp.

                                                   {

    if (!item.contains(sr_tags::measured_value_sequence)) {
        findings.push_back({
            validation_severity::error,
            sr_tags::measured_value_sequence,
            "MeasuredValueSequence is required for NUM content item",
            "SR-NUM-ERR-001"
        });
        return;
    }

    const auto* measured_elem = item.get(sr_tags::measured_value_sequence);
    if (measured_elem && measured_elem->is_sequence() && !measured_elem->sequence_items().empty()) {
        const auto& mv_item = measured_elem->sequence_items()[0];

        if (!mv_item.contains(sr_tags::numeric_value)) {
            findings.push_back({
                validation_severity::error,
                sr_tags::numeric_value,
                "NumericValue is required in MeasuredValueSequence",
                "SR-NUM-ERR-002"
            });
        }

        if (!mv_item.contains(sr_tags::measurement_units_code_sequence)) {
            findings.push_back({
                validation_severity::error,
                sr_tags::measurement_units_code_sequence,
                "MeasurementUnitsCodeSequence is required in MeasuredValueSequence",
                "SR-NUM-ERR-003"
            });
        }
    }
}

References kcenon::pacs::services::validation::error, kcenon::pacs::services::validation::sr_tags::measured_value_sequence, kcenon::pacs::services::validation::sr_tags::measurement_units_code_sequence, and kcenon::pacs::services::validation::sr_tags::numeric_value.

Referenced by validate_content_item().

Here is the caller graph for this function:

◆ validate_patient_module()

void kcenon::pacs::services::validation::sr_iod_validator::validate_patient_module	(	const core::dicom_dataset &	dataset,
		std::vector< validation_finding > &	findings ) const

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 350 of file sr_iod_validator.cpp.

                                                   {

    if (options_.check_type2) {
        check_type2_attribute(dataset, tags::patient_name, "PatientName", findings);
        check_type2_attribute(dataset, tags::patient_id, "PatientID", findings);
        check_type2_attribute(dataset, tags::patient_birth_date, "PatientBirthDate", findings);
        check_type2_attribute(dataset, tags::patient_sex, "PatientSex", findings);
    }
}

References kcenon::pacs::services::validation::sr_validation_options::check_type2, check_type2_attribute(), options_, kcenon::pacs::core::tags::patient_birth_date, kcenon::pacs::core::tags::patient_id, kcenon::pacs::core::tags::patient_name, and kcenon::pacs::core::tags::patient_sex.

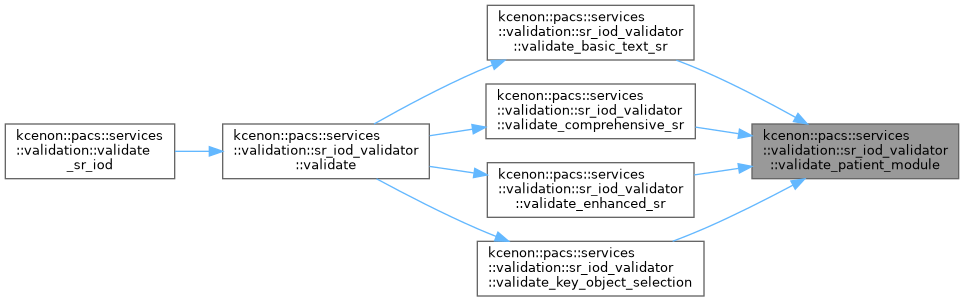

Referenced by validate_basic_text_sr(), validate_comprehensive_sr(), validate_enhanced_sr(), and validate_key_object_selection().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ validate_references()

validation_result kcenon::pacs::services::validation::sr_iod_validator::validate_references ( const core::dicom_dataset & dataset ) const

nodiscard

Validate referenced instances.

Checks that all referenced SOP instances are properly specified.

Parameters

dataset The dataset to validate

Returns: Validation result for references

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 289 of file sr_iod_validator.cpp.

                                                                        {
    validation_result result;
    result.is_valid = true;

    validate_evidence_sequences(dataset, result.findings);

    for (const auto& finding : result.findings) {
        if (finding.severity == validation_severity::error) {
            result.is_valid = false;
            break;
        }
    }

    return result;
}

References kcenon::pacs::services::validation::error, kcenon::pacs::services::validation::validation_result::findings, kcenon::pacs::services::validation::validation_result::is_valid, and validate_evidence_sequences().

Here is the call graph for this function:

◆ validate_scoord3d_content_item()

void kcenon::pacs::services::validation::sr_iod_validator::validate_scoord3d_content_item	(	const core::dicom_dataset &	item,
		std::vector< validation_finding > &	findings ) const

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 801 of file sr_iod_validator.cpp.

                                                   {

    if (!item.contains(sr_tags::graphic_type)) {
        findings.push_back({
            validation_severity::error,
            sr_tags::graphic_type,
            "GraphicType is required for SCOORD3D content item",
            "SR-SCOORD3D-ERR-001"
        });
    }

    if (!item.contains(sr_tags::graphic_data)) {
        findings.push_back({
            validation_severity::error,
            sr_tags::graphic_data,
            "GraphicData is required for SCOORD3D content item",
            "SR-SCOORD3D-ERR-002"
        });
    }

    if (!item.contains(sr_tags::referenced_frame_of_reference_uid)) {
        findings.push_back({
            validation_severity::error,
            sr_tags::referenced_frame_of_reference_uid,
            "ReferencedFrameOfReferenceUID is required for SCOORD3D content item",
            "SR-SCOORD3D-ERR-003"
        });
    }
}

References kcenon::pacs::services::validation::error, kcenon::pacs::services::validation::sr_tags::graphic_data, kcenon::pacs::services::validation::sr_tags::graphic_type, and kcenon::pacs::services::validation::sr_tags::referenced_frame_of_reference_uid.

Referenced by validate_content_item().

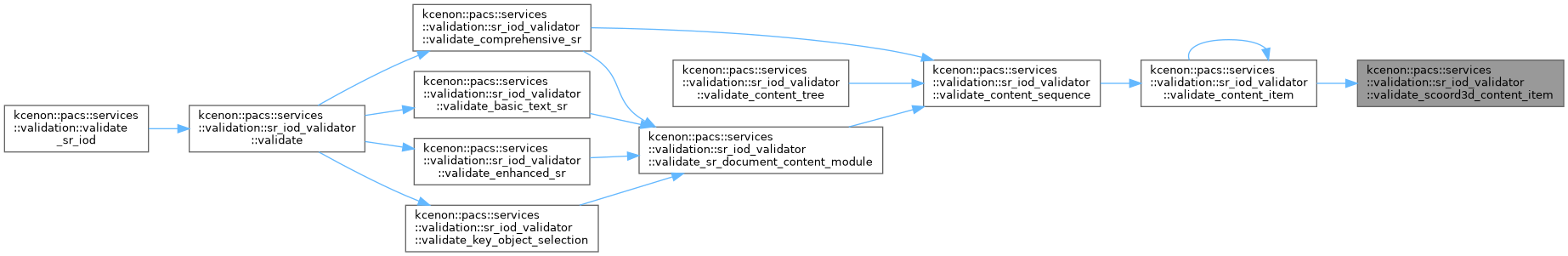

Here is the caller graph for this function:

◆ validate_scoord_content_item()

void kcenon::pacs::services::validation::sr_iod_validator::validate_scoord_content_item	(	const core::dicom_dataset &	item,
		std::vector< validation_finding > &	findings ) const

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 778 of file sr_iod_validator.cpp.

                                                   {

    if (!item.contains(sr_tags::graphic_type)) {
        findings.push_back({
            validation_severity::error,
            sr_tags::graphic_type,
            "GraphicType is required for SCOORD content item",
            "SR-SCOORD-ERR-001"
        });
    }

    if (!item.contains(sr_tags::graphic_data)) {
        findings.push_back({
            validation_severity::error,
            sr_tags::graphic_data,
            "GraphicData is required for SCOORD content item",
            "SR-SCOORD-ERR-002"
        });
    }
}

References kcenon::pacs::services::validation::error, kcenon::pacs::services::validation::sr_tags::graphic_data, and kcenon::pacs::services::validation::sr_tags::graphic_type.

Referenced by validate_content_item().

Here is the caller graph for this function:

◆ validate_sop_common_module()

void kcenon::pacs::services::validation::sr_iod_validator::validate_sop_common_module	(	const core::dicom_dataset &	dataset,
		std::vector< validation_finding > &	findings ) const

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 476 of file sr_iod_validator.cpp.

                                                   {

    if (options_.check_type1) {
        check_type1_attribute(dataset, tags::sop_class_uid, "SOPClassUID", findings);
        check_type1_attribute(dataset, tags::sop_instance_uid, "SOPInstanceUID", findings);
    }

    // Validate SOP Class UID is an SR storage class
    if (dataset.contains(tags::sop_class_uid)) {
        auto sop_class = dataset.get_string(tags::sop_class_uid);
        if (!sop_classes::is_sr_storage_sop_class(sop_class)) {
            findings.push_back({
                validation_severity::error,
                tags::sop_class_uid,
                "SOPClassUID is not a recognized SR Storage SOP Class: " + sop_class,
                "SR-ERR-001"
            });
        }
    }
}

References kcenon::pacs::services::validation::sr_validation_options::check_type1, check_type1_attribute(), kcenon::pacs::core::dicom_dataset::contains(), kcenon::pacs::services::validation::error, kcenon::pacs::core::dicom_dataset::get_string(), kcenon::pacs::services::sop_classes::is_sr_storage_sop_class(), options_, kcenon::pacs::core::tags::sop_class_uid, and kcenon::pacs::core::tags::sop_instance_uid.

Referenced by validate_basic_text_sr(), validate_comprehensive_sr(), validate_enhanced_sr(), and validate_key_object_selection().

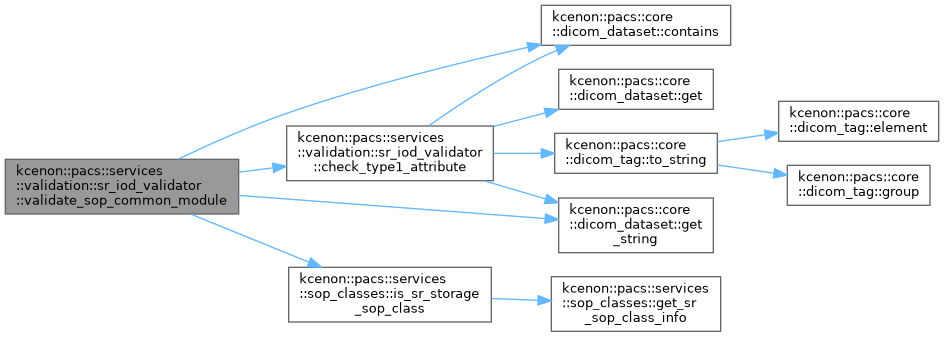

Here is the call graph for this function:

Here is the caller graph for this function:

◆ validate_sr_document_content_module()

void kcenon::pacs::services::validation::sr_iod_validator::validate_sr_document_content_module	(	const core::dicom_dataset &	dataset,
		std::vector< validation_finding > &	findings ) const

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 439 of file sr_iod_validator.cpp.

                                                   {

    // Root content item attributes
    if (options_.check_type1) {
        check_type1_attribute(dataset, sr_tags::value_type, "ValueType", findings);
        check_type1_attribute(dataset, sr_tags::concept_name_code_sequence, "ConceptNameCodeSequence", findings);
    }

    // Validate root value type
    if (options_.validate_value_types && dataset.contains(sr_tags::value_type)) {
        auto value_type = dataset.get_string(sr_tags::value_type);
        if (value_type != "CONTAINER") {
            findings.push_back({
                validation_severity::error,
                sr_tags::value_type,
                "Root content item ValueType must be CONTAINER, found: " + value_type,
                "SR-CONTENT-ERR-001"
            });
        }
    }

    // Validate Concept Name Code Sequence
    if (options_.validate_coded_entries && dataset.contains(sr_tags::concept_name_code_sequence)) {
        const auto* concept_elem = dataset.get(sr_tags::concept_name_code_sequence);
        if (concept_elem && concept_elem->is_sequence() && !concept_elem->sequence_items().empty()) {
            validate_coded_entry(concept_elem->sequence_items()[0], "Root Concept Name", findings);
        }
    }

    // Validate content sequence
    if (options_.validate_content_sequence) {
        validate_content_sequence(dataset, findings);
    }
}

References kcenon::pacs::services::validation::sr_validation_options::check_type1, check_type1_attribute(), kcenon::pacs::services::validation::sr_tags::concept_name_code_sequence, kcenon::pacs::core::dicom_dataset::contains(), kcenon::pacs::services::validation::error, kcenon::pacs::core::dicom_dataset::get(), kcenon::pacs::core::dicom_dataset::get_string(), options_, kcenon::pacs::services::validation::sr_validation_options::validate_coded_entries, validate_coded_entry(), validate_content_sequence(), kcenon::pacs::services::validation::sr_validation_options::validate_content_sequence, kcenon::pacs::services::validation::sr_validation_options::validate_value_types, and kcenon::pacs::services::validation::sr_tags::value_type.

Referenced by validate_basic_text_sr(), validate_comprehensive_sr(), validate_enhanced_sr(), and validate_key_object_selection().

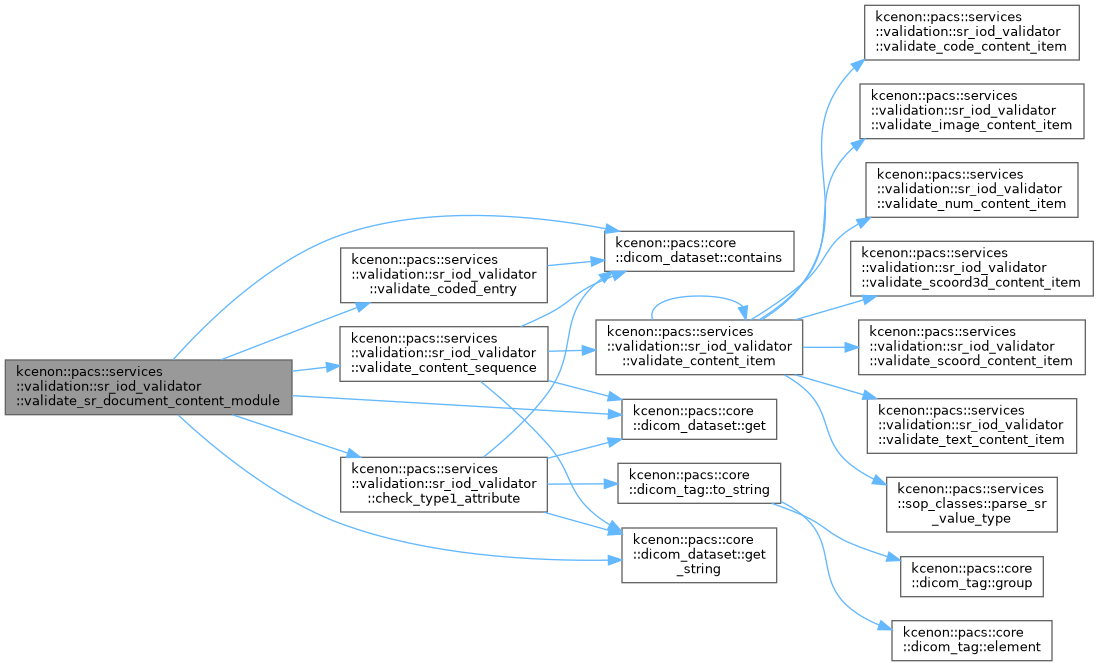

Here is the call graph for this function:

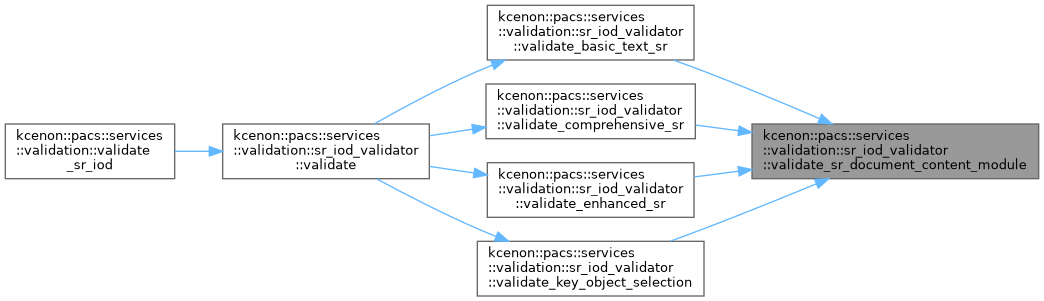

Here is the caller graph for this function:

◆ validate_sr_document_general_module()

void kcenon::pacs::services::validation::sr_iod_validator::validate_sr_document_general_module	(	const core::dicom_dataset &	dataset,
		std::vector< validation_finding > &	findings ) const

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 404 of file sr_iod_validator.cpp.

                                                   {

    if (options_.check_type1) {
        check_type1_attribute(dataset, sr_tags::instance_number, "InstanceNumber", findings);
        check_type1_attribute(dataset, sr_tags::completion_flag, "CompletionFlag", findings);
        check_type1_attribute(dataset, sr_tags::verification_flag, "VerificationFlag", findings);
    }

    if (options_.check_type2) {
        check_type2_attribute(dataset, sr_tags::content_date, "ContentDate", findings);
        check_type2_attribute(dataset, sr_tags::content_time, "ContentTime", findings);
    }

    // Validate flag values
    if (options_.validate_document_status) {
        check_completion_flag(dataset, findings);
        check_verification_flag(dataset, findings);
    }

    // VerifyingObserverSequence is Type 1C - required if VerificationFlag is VERIFIED
    if (options_.check_conditional && dataset.contains(sr_tags::verification_flag)) {
        auto flag = dataset.get_string(sr_tags::verification_flag);
        if (flag == "VERIFIED" && !dataset.contains(sr_tags::verifying_observer_sequence)) {
            findings.push_back({
                validation_severity::error,
                sr_tags::verifying_observer_sequence,
                "VerifyingObserverSequence is required when VerificationFlag is VERIFIED",
                "SR-DOC-ERR-001"
            });
        }
    }
}

Referenced by validate_basic_text_sr(), validate_comprehensive_sr(), validate_enhanced_sr(), and validate_key_object_selection().

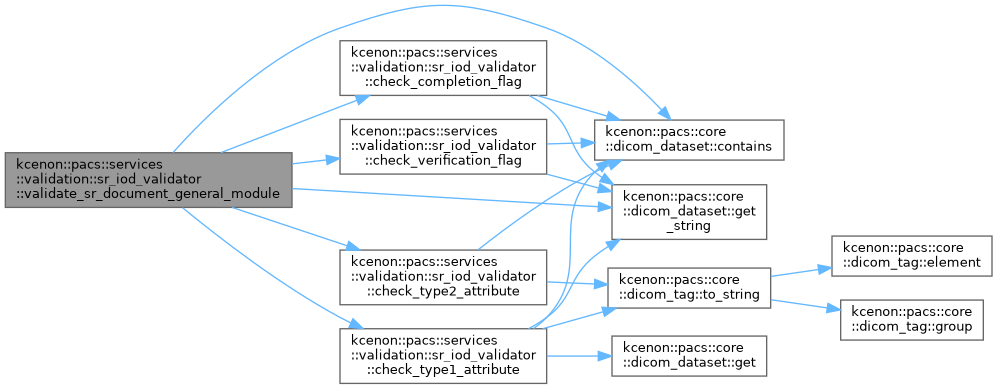

Here is the call graph for this function:

Here is the caller graph for this function:

◆ validate_sr_document_series_module()

void kcenon::pacs::services::validation::sr_iod_validator::validate_sr_document_series_module	(	const core::dicom_dataset &	dataset,
		std::vector< validation_finding > &	findings ) const

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 379 of file sr_iod_validator.cpp.

                                                   {

    if (options_.check_type1) {
        check_type1_attribute(dataset, tags::modality, "Modality", findings);
        check_type1_attribute(dataset, tags::series_instance_uid, "SeriesInstanceUID", findings);
        check_modality(dataset, findings);
    }

    if (options_.check_type2) {
        check_type2_attribute(dataset, tags::series_number, "SeriesNumber", findings);
    }
}

References check_modality(), kcenon::pacs::services::validation::sr_validation_options::check_type1, check_type1_attribute(), kcenon::pacs::services::validation::sr_validation_options::check_type2, check_type2_attribute(), kcenon::pacs::core::tags::modality, options_, kcenon::pacs::core::tags::series_instance_uid, and kcenon::pacs::core::tags::series_number.

Referenced by validate_basic_text_sr(), validate_comprehensive_sr(), validate_enhanced_sr(), and validate_key_object_selection().

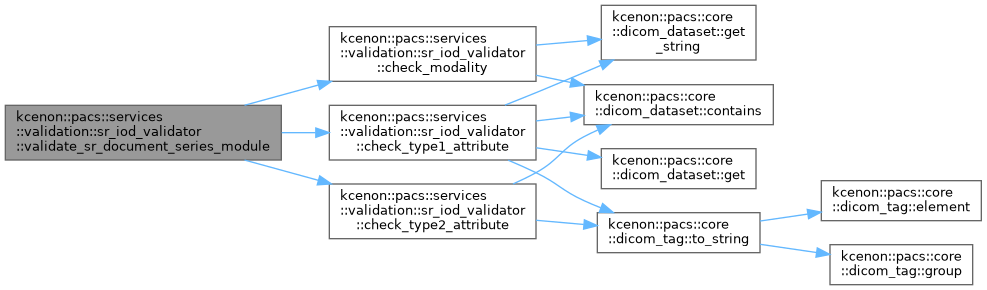

Here is the call graph for this function:

Here is the caller graph for this function:

◆ validate_text_content_item()

void kcenon::pacs::services::validation::sr_iod_validator::validate_text_content_item	(	const core::dicom_dataset &	item,
		std::vector< validation_finding > &	findings ) const

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 674 of file sr_iod_validator.cpp.

                                                   {

    if (!item.contains(sr_tags::text_value)) {
        findings.push_back({
            validation_severity::error,
            sr_tags::text_value,
            "TextValue is required for TEXT content item",
            "SR-TEXT-ERR-001"
        });
    }
}

References kcenon::pacs::services::validation::error, and kcenon::pacs::services::validation::sr_tags::text_value.

Referenced by validate_content_item().

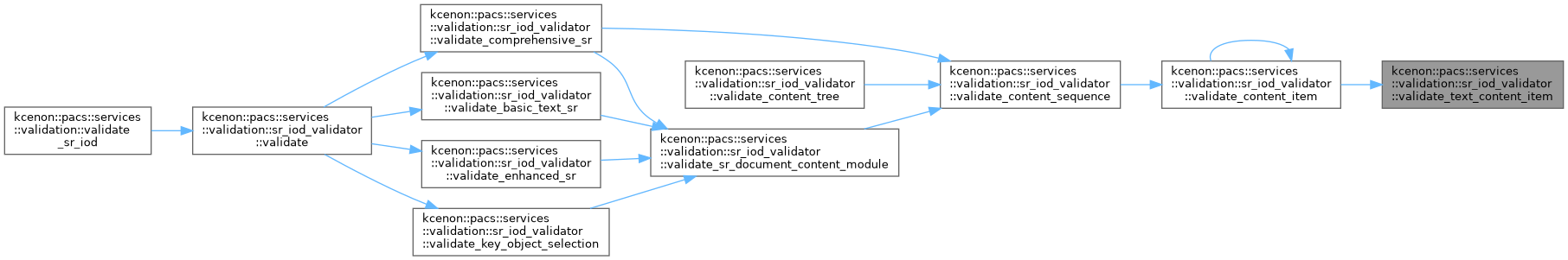

Here is the caller graph for this function:

Member Data Documentation

◆ options_

sr_validation_options kcenon::pacs::services::validation::sr_iod_validator::options_

private

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/services/validation/sr_iod_validator.h.

Definition at line 318 of file sr_iod_validator.h.

Referenced by options(), set_options(), validate_basic_text_sr(), validate_comprehensive_sr(), validate_enhanced_sr(), validate_general_equipment_module(), validate_general_study_module(), validate_key_object_selection(), validate_patient_module(), validate_sop_common_module(), validate_sr_document_content_module(), validate_sr_document_general_module(), and validate_sr_document_series_module().

The documentation for this class was generated from the following files:

include/kcenon/pacs/services/validation/sr_iod_validator.h
src/services/validation/sr_iod_validator.cpp

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ sr_iod_validator() [1/2]

◆ sr_iod_validator() [2/2]

Member Function Documentation

◆ check_completion_flag()

◆ check_modality()

◆ check_type1_attribute()

◆ check_type2_attribute()

◆ check_verification_flag()

◆ options()

◆ quick_check()

◆ set_options()

◆ validate()

◆ validate_basic_text_sr()

◆ validate_code_content_item()

◆ validate_coded_entry()

◆ validate_comprehensive_sr()

◆ validate_content_item()

◆ validate_content_sequence()

◆ validate_content_tree()

◆ validate_enhanced_sr()

◆ validate_evidence_sequences()

◆ validate_general_equipment_module()

◆ validate_general_study_module()

◆ validate_image_content_item()

◆ validate_key_object_selection()

◆ validate_num_content_item()

◆ validate_patient_module()

◆ validate_references()

◆ validate_scoord3d_content_item()

◆ validate_scoord_content_item()

◆ validate_sop_common_module()

◆ validate_sr_document_content_module()

◆ validate_sr_document_general_module()

◆ validate_sr_document_series_module()

◆ validate_text_content_item()

Member Data Documentation

◆ options_
