Unified validator for all RT IODs. More...

#include <rt_iod_validator.h>

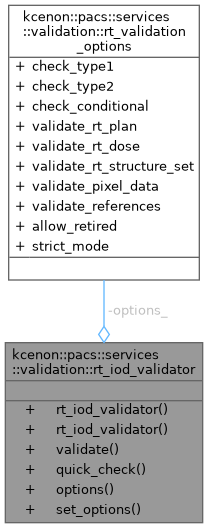

Collaboration diagram for kcenon::pacs::services::validation::rt_iod_validator:

Public Member Functions
	rt_iod_validator ()=default

	rt_iod_validator (const rt_validation_options &options)

validation_result	validate (const core::dicom_dataset &dataset) const
	Validate an RT dataset (auto-detects type)

bool	quick_check (const core::dicom_dataset &dataset) const
	Quick check if dataset has minimum required RT attributes.

const rt_validation_options &	options () const noexcept

void	set_options (const rt_validation_options &options)

Private Attributes
rt_validation_options	options_

Detailed Description

Unified validator for all RT IODs.

Automatically detects the RT object type and applies appropriate validation. Supports RT Plan, RT Dose, RT Structure Set, RT Image, and treatment records.

Definition at line 336 of file rt_iod_validator.h.

Constructor & Destructor Documentation

◆ rt_iod_validator() [1/2]

kcenon::pacs::services::validation::rt_iod_validator::rt_iod_validator ( )

default

◆ rt_iod_validator() [2/2]

kcenon::pacs::services::validation::rt_iod_validator::rt_iod_validator ( const rt_validation_options & options )

explicit

Definition at line 1058 of file rt_iod_validator.cpp.

1059 : options_(options) {}

kcenon::pacs::services::validation::rt_iod_validator::options_

rt_validation_options options_

Definition rt_iod_validator.h:359

Member Function Documentation

◆ options()

const rt_validation_options & kcenon::pacs::services::validation::rt_iod_validator::options ( ) const

nodiscardnoexcept

Definition at line 1125 of file rt_iod_validator.cpp.

                                                                      {
    return options_;
}

References options_.

Referenced by set_options().

Here is the caller graph for this function:

◆ quick_check()

bool kcenon::pacs::services::validation::rt_iod_validator::quick_check ( const core::dicom_dataset & dataset ) const

nodiscard

Quick check if dataset has minimum required RT attributes.

Parameters

dataset The dataset to check

Returns: true if all Type 1 attributes are present

Definition at line 1116 of file rt_iod_validator.cpp.

                                                                     {
    // Try each RT type
    if (rt_plan_iod_validator(options_).quick_check(dataset)) return true;
    if (rt_dose_iod_validator(options_).quick_check(dataset)) return true;
    if (rt_structure_set_iod_validator(options_).quick_check(dataset)) return true;

    return false;
}

References options_, and quick_check().

Referenced by kcenon::pacs::services::validation::is_valid_rt_dataset(), and quick_check().

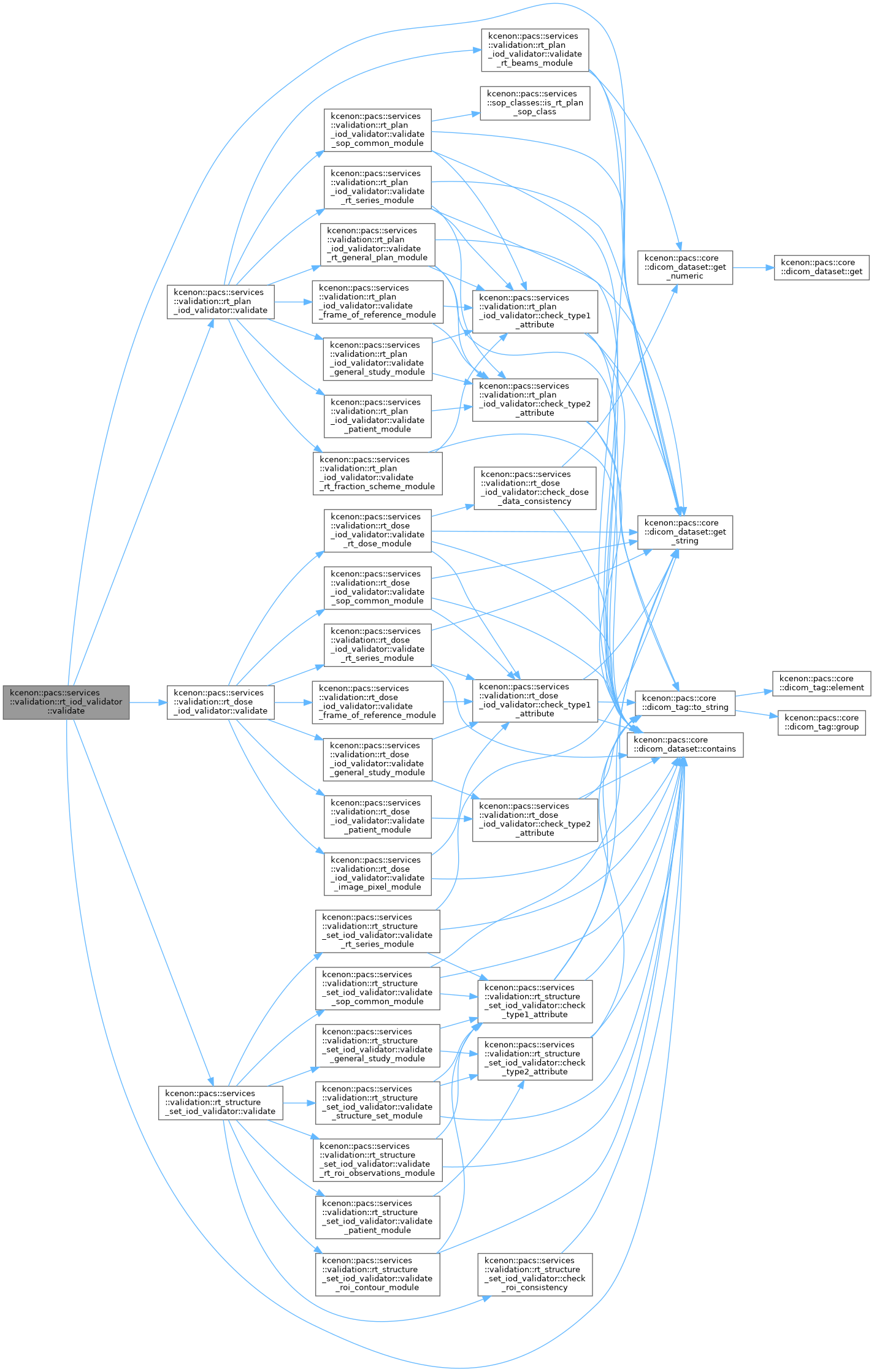

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_options()

void kcenon::pacs::services::validation::rt_iod_validator::set_options ( const rt_validation_options & options )

Definition at line 1129 of file rt_iod_validator.cpp.

                                                                       {
    options_ = options;
}

References options(), and options_.

Here is the call graph for this function:

◆ validate()

validation_result kcenon::pacs::services::validation::rt_iod_validator::validate ( const core::dicom_dataset & dataset ) const

nodiscard

Validate an RT dataset (auto-detects type)

Parameters

dataset The dataset to validate

Returns: Validation result with all findings

Definition at line 1061 of file rt_iod_validator.cpp.

                                                                               {
    // Detect RT object type from SOP Class UID or Modality
    std::string sop_class;
    if (dataset.contains(tags::sop_class_uid)) {
        sop_class = dataset.get_string(tags::sop_class_uid);
    }

    // Route to appropriate validator
    if (sop_class == sop_classes::rt_plan_storage_uid ||
        sop_class == sop_classes::rt_ion_plan_storage_uid) {
        rt_plan_iod_validator validator(options_);
        return validator.validate(dataset);
    }

    if (sop_class == sop_classes::rt_dose_storage_uid) {
        rt_dose_iod_validator validator(options_);
        return validator.validate(dataset);
    }

    if (sop_class == sop_classes::rt_structure_set_storage_uid) {
        rt_structure_set_iod_validator validator(options_);
        return validator.validate(dataset);
    }

    // Try to detect from Modality if SOP Class not recognized
    if (dataset.contains(tags::modality)) {
        auto modality = dataset.get_string(tags::modality);

        if (modality == "RTPLAN") {
            rt_plan_iod_validator validator(options_);
            return validator.validate(dataset);
        }
        if (modality == "RTDOSE") {
            rt_dose_iod_validator validator(options_);
            return validator.validate(dataset);
        }
        if (modality == "RTSTRUCT") {
            rt_structure_set_iod_validator validator(options_);
            return validator.validate(dataset);
        }
    }

    // Unknown RT type
    validation_result result;
    result.is_valid = false;
    result.findings.push_back({
        validation_severity::error,
        tags::sop_class_uid,
        "Unable to determine RT object type from SOPClassUID or Modality",
        "RT-ERR-001"
    });

    return result;
}
