kcenon::pacs::security::certificate Class Reference

#include <certificate.h>

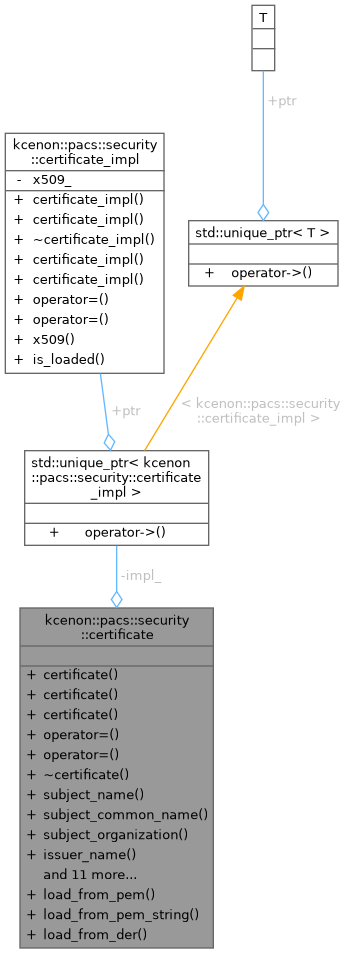

Collaboration diagram for kcenon::pacs::security::certificate:

Public Member Functions
	certificate ()
	Default constructor - creates an empty certificate.
	certificate (const certificate &other)
	Copy constructor.
	certificate (certificate &&other) noexcept
	Move constructor.
auto	operator= (const certificate &other) -> certificate &
	Copy assignment.
auto	operator= (certificate &&other) noexcept -> certificate &
	Move assignment.
	~certificate ()
	Destructor.
auto	subject_name () const -> std::string
	Get the subject distinguished name.
auto	subject_common_name () const -> std::string
	Get the common name from the subject.
auto	subject_organization () const -> std::string
	Get the organization from the subject.
auto	issuer_name () const -> std::string
	Get the issuer distinguished name.
auto	serial_number () const -> std::string
	Get the certificate serial number.
auto	thumbprint () const -> std::string
	Get the certificate thumbprint (SHA-256)
auto	not_before () const -> std::chrono::system_clock::time_point
	Get the not-before date.
auto	not_after () const -> std::chrono::system_clock::time_point
	Get the not-after date.
auto	is_valid () const -> bool
	Check if the certificate is currently valid.
auto	is_expired () const -> bool
	Check if the certificate has expired.
auto	to_pem () const -> std::string
	Export certificate as PEM string.
auto	to_der () const -> std::vector< std::uint8_t >
	Export certificate as DER bytes.
auto	is_loaded () const noexcept -> bool
	Check if certificate is loaded.
auto	impl () const noexcept -> const certificate_impl *
	Get internal implementation (for internal use only)
auto	impl () noexcept -> certificate_impl *

Static Public Member Functions
static auto	load_from_pem (std::string_view path) -> kcenon::common::Result< certificate >
	Load certificate from PEM file.
static auto	load_from_pem_string (std::string_view pem_data) -> kcenon::common::Result< certificate >
	Load certificate from PEM string.
static auto	load_from_der (std::span< const std::uint8_t > der_data) -> kcenon::common::Result< certificate >
	Load certificate from DER-encoded bytes.

Private Attributes
std::unique_ptr< certificate_impl >	impl_

Friends
class	certificate_chain

Detailed Description

Definition at line 56 of file certificate.h.

Constructor & Destructor Documentation

certificate() [1/3]

kcenon::pacs::security::certificate::certificate

(

)

Default constructor - creates an empty certificate.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/security/certificate.h.

Definition at line 214 of file certificate.cpp.

: impl_(std::make_unique<certificate_impl>()) {}

certificate() [2/3]

kcenon::pacs::security::certificate::certificate

(

const certificate &

other

)

Copy constructor.

Definition at line 216 of file certificate.cpp.

    : impl_(std::make_unique<certificate_impl>(*other.impl_)) {}

certificate() [3/3]

kcenon::pacs::security::certificate::certificate ( certificate && other )

defaultnoexcept

Move constructor.

~certificate()

kcenon::pacs::security::certificate::~certificate ( )

default

Destructor.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/security/certificate.h.

Member Function Documentation

impl() [1/2]

auto kcenon::pacs::security::certificate::impl ( ) const -> const certificate_impl*

nodiscardnoexcept

Get internal implementation (for internal use only)

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/security/certificate.h.

Definition at line 508 of file certificate.cpp.

                                                                 {
    return impl_.get();
}

References impl_.

Referenced by kcenon::pacs::security::get_x509_from_certificate().

Here is the caller graph for this function:

impl() [2/2]

auto kcenon::pacs::security::certificate::impl ( ) -> certificate_impl*

nodiscardnoexcept

Definition at line 512 of file certificate.cpp.

                                                     {
    return impl_.get();
}

References impl_.

is_expired()

auto kcenon::pacs::security::certificate::is_expired ( ) const -> bool

nodiscard

Check if the certificate has expired.

Returns

true if certificate has expired

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/security/certificate.h.

Definition at line 464 of file certificate.cpp.

                                           {
    if (!impl_->is_loaded()) {
        return true;
    }

    auto now = std::chrono::system_clock::now();
    return now > not_after();
}

References impl_, and not_after().

Here is the call graph for this function:

is_loaded()

auto kcenon::pacs::security::certificate::is_loaded ( ) const -> bool

nodiscardnoexcept

Check if certificate is loaded.

Returns

true if certificate data is loaded

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/security/certificate.h.

Definition at line 504 of file certificate.cpp.

                                                   {
    return impl_ && impl_->is_loaded();
}

References impl_.

is_valid()

auto kcenon::pacs::security::certificate::is_valid ( ) const -> bool

nodiscard

Check if the certificate is currently valid.

Returns

true if current time is within validity period

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/security/certificate.h.

Definition at line 455 of file certificate.cpp.

                                         {
    if (!impl_->is_loaded()) {
        return false;
    }

    auto now = std::chrono::system_clock::now();
    return now >= not_before() && now <= not_after();
}

References impl_, not_after(), and not_before().

Here is the call graph for this function:

issuer_name()

auto kcenon::pacs::security::certificate::issuer_name ( ) const -> std::string

nodiscard

Get the issuer distinguished name.

Returns

Issuer name

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/security/certificate.h.

Definition at line 368 of file certificate.cpp.

                                                 {
    if (!impl_->is_loaded()) {
        return "";
    }

    X509_NAME* name = X509_get_issuer_name(impl_->x509());
    if (!name) {
        return "";
    }

    bio_ptr bio(BIO_new(BIO_s_mem()));
    X509_NAME_print_ex(bio.get(), name, 0, XN_FLAG_RFC2253);

    char* data = nullptr;
    long len = BIO_get_mem_data(bio.get(), &data);
    return std::string(data, static_cast<size_t>(len));
}

References impl_, and name.

load_from_der()

auto kcenon::pacs::security::certificate::load_from_der ( std::span< const std::uint8_t > der_data ) -> kcenon::common::Result<certificate>

staticnodiscard

Load certificate from DER-encoded bytes.

Parameters

der_data

DER-encoded certificate bytes

Returns

Result containing certificate or error

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/security/certificate.h.

Definition at line 264 of file certificate.cpp.

                                       {
    const unsigned char* data = der_data.data();
    X509* x509 = d2i_X509(nullptr, &data, static_cast<long>(der_data.size()));
    if (!x509) {
        return kcenon::common::make_error<certificate>(
            4, "Failed to parse DER certificate: " + get_openssl_error(), "certificate");
    }

    certificate cert;
    cert.impl_ = std::make_unique<certificate_impl>(x509);
    return cert;
}

References impl_.

Referenced by kcenon::pacs::security::digital_signature::get_signature_info(), kcenon::pacs::security::digital_signature::verify(), and kcenon::pacs::security::digital_signature::verify_with_trust().

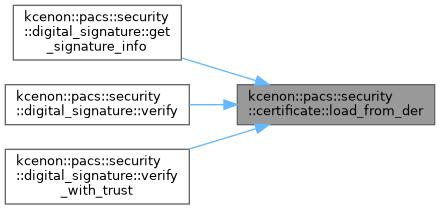

Here is the caller graph for this function:

load_from_pem()

auto kcenon::pacs::security::certificate::load_from_pem ( std::string_view path ) -> kcenon::common::Result<certificate>

staticnodiscard

Load certificate from PEM file.

Parameters

path	Path to PEM-encoded certificate file

Returns

Result containing certificate or error

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/security/certificate.h.

Definition at line 232 of file certificate.cpp.

                                       {
    auto content_result = read_file(path);
    if (content_result.is_err()) {
        return kcenon::common::make_error<certificate>(
            content_result.error().code,
            content_result.error().message,
            "certificate");
    }

    return load_from_pem_string(content_result.value());
}

load_from_pem_string()

auto kcenon::pacs::security::certificate::load_from_pem_string ( std::string_view pem_data ) -> kcenon::common::Result<certificate>

staticnodiscard

Load certificate from PEM string.

Parameters

pem_data

PEM-encoded certificate data

Returns

Result containing certificate or error

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/security/certificate.h.

Definition at line 245 of file certificate.cpp.

                                       {
    bio_ptr bio(BIO_new_mem_buf(pem_data.data(), static_cast<int>(pem_data.size())));
    if (!bio) {
        return kcenon::common::make_error<certificate>(
            2, "Failed to create BIO: " + get_openssl_error(), "certificate");
    }

    X509* x509 = PEM_read_bio_X509(bio.get(), nullptr, nullptr, nullptr);
    if (!x509) {
        return kcenon::common::make_error<certificate>(
            3, "Failed to parse PEM certificate: " + get_openssl_error(), "certificate");
    }

    certificate cert;
    cert.impl_ = std::make_unique<certificate_impl>(x509);
    return cert;
}

References impl_.

not_after()

auto kcenon::pacs::security::certificate::not_after ( ) const -> std::chrono::system_clock::time_point

nodiscard

Get the not-after date.

Returns

End of validity period

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/security/certificate.h.

Definition at line 446 of file certificate.cpp.

                                                                     {
    if (!impl_->is_loaded()) {
        return std::chrono::system_clock::time_point{};
    }

    const ASN1_TIME* time = X509_get0_notAfter(impl_->x509());
    return asn1_time_to_time_point(time);
}

References impl_.

Referenced by is_expired(), and is_valid().

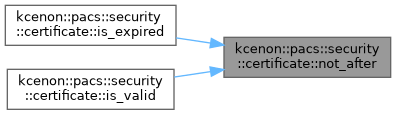

Here is the caller graph for this function:

not_before()

auto kcenon::pacs::security::certificate::not_before ( ) const -> std::chrono::system_clock::time_point

nodiscard

Get the not-before date.

Returns

Start of validity period

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/security/certificate.h.

Definition at line 437 of file certificate.cpp.

                                                                      {
    if (!impl_->is_loaded()) {
        return std::chrono::system_clock::time_point{};
    }

    const ASN1_TIME* time = X509_get0_notBefore(impl_->x509());
    return asn1_time_to_time_point(time);
}

References impl_.

Referenced by is_valid().

Here is the caller graph for this function:

operator=() [1/2]

auto kcenon::pacs::security::certificate::operator= ( certificate && other ) -> certificate &

defaultnoexcept

Move assignment.

operator=() [2/2]

auto kcenon::pacs::security::certificate::operator=

(

const certificate &

other

)

-> certificate&

Copy assignment.

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/security/certificate.h.

Definition at line 221 of file certificate.cpp.

                                                                    {
    if (this != &other) {
        impl_ = std::make_unique<certificate_impl>(*other.impl_);
    }
    return *this;
}

References kcenon::pacs::security::other.

serial_number()

auto kcenon::pacs::security::certificate::serial_number ( ) const -> std::string

nodiscard

Get the certificate serial number.

Returns

Serial number as hex string

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/security/certificate.h.

Definition at line 386 of file certificate.cpp.

                                                   {
    if (!impl_->is_loaded()) {
        return "";
    }

    const ASN1_INTEGER* serial = X509_get_serialNumber(impl_->x509());
    if (!serial) {
        return "";
    }

    BIGNUM* bn = ASN1_INTEGER_to_BN(serial, nullptr);
    if (!bn) {
        return "";
    }

    char* hex = BN_bn2hex(bn);
    BN_free(bn);

    if (!hex) {
        return "";
    }

    std::string result(hex);
    OPENSSL_free(hex);
    return result;
}

References impl_.

subject_common_name()

auto kcenon::pacs::security::certificate::subject_common_name ( ) const -> std::string

nodiscard

Get the common name from the subject.

Returns

Common name (CN) or empty string if not present

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/security/certificate.h.

Definition at line 296 of file certificate.cpp.

                                                         {
    if (!impl_->is_loaded()) {
        return "";
    }

    X509_NAME* name = X509_get_subject_name(impl_->x509());
    if (!name) {
        return "";
    }

    int idx = X509_NAME_get_index_by_NID(name, NID_commonName, -1);
    if (idx < 0) {
        return "";
    }

    X509_NAME_ENTRY* entry = X509_NAME_get_entry(name, idx);
    if (!entry) {
        return "";
    }

    ASN1_STRING* data = X509_NAME_ENTRY_get_data(entry);
    if (!data) {
        return "";
    }

    unsigned char* utf8 = nullptr;
    int len = ASN1_STRING_to_UTF8(&utf8, data);
    if (len < 0) {
        return "";
    }

    std::string result(reinterpret_cast<char*>(utf8), static_cast<size_t>(len));
    OPENSSL_free(utf8);
    return result;
}

References impl_, and name.

subject_name()

auto kcenon::pacs::security::certificate::subject_name ( ) const -> std::string

nodiscard

Get the subject distinguished name.

Returns

Subject name (e.g., "CN=John Doe,O=Hospital,C=US")

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/security/certificate.h.

Definition at line 278 of file certificate.cpp.

                                                  {
    if (!impl_->is_loaded()) {
        return "";
    }

    X509_NAME* name = X509_get_subject_name(impl_->x509());
    if (!name) {
        return "";
    }

    bio_ptr bio(BIO_new(BIO_s_mem()));
    X509_NAME_print_ex(bio.get(), name, 0, XN_FLAG_RFC2253);

    char* data = nullptr;
    long len = BIO_get_mem_data(bio.get(), &data);
    return std::string(data, static_cast<size_t>(len));
}

References impl_, and name.

subject_organization()

auto kcenon::pacs::security::certificate::subject_organization ( ) const -> std::string

nodiscard

Get the organization from the subject.

Returns

Organization (O) or empty string if not present

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/security/certificate.h.

Definition at line 332 of file certificate.cpp.

                                                          {
    if (!impl_->is_loaded()) {
        return "";
    }

    X509_NAME* name = X509_get_subject_name(impl_->x509());
    if (!name) {
        return "";
    }

    int idx = X509_NAME_get_index_by_NID(name, NID_organizationName, -1);
    if (idx < 0) {
        return "";
    }

    X509_NAME_ENTRY* entry = X509_NAME_get_entry(name, idx);
    if (!entry) {
        return "";
    }

    ASN1_STRING* data = X509_NAME_ENTRY_get_data(entry);
    if (!data) {
        return "";
    }

    unsigned char* utf8 = nullptr;
    int len = ASN1_STRING_to_UTF8(&utf8, data);
    if (len < 0) {
        return "";
    }

    std::string result(reinterpret_cast<char*>(utf8), static_cast<size_t>(len));
    OPENSSL_free(utf8);
    return result;
}

References impl_, and name.

thumbprint()

auto kcenon::pacs::security::certificate::thumbprint ( ) const -> std::string

nodiscard

Get the certificate thumbprint (SHA-256)

Returns

Thumbprint as hex string

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/security/certificate.h.

Definition at line 413 of file certificate.cpp.

                                                {
    if (!impl_->is_loaded()) {
        return "";
    }

    unsigned char hash[EVP_MAX_MD_SIZE];
    unsigned int hash_len = 0;

    if (X509_digest(impl_->x509(), EVP_sha256(), hash, &hash_len) != 1) {
        return "";
    }

    std::string result;
    result.reserve(hash_len * 2);

    static const char hex_chars[] = "0123456789ABCDEF";
    for (unsigned int i = 0; i < hash_len; ++i) {
        result += hex_chars[(hash[i] >> 4) & 0x0F];
        result += hex_chars[hash[i] & 0x0F];
    }

    return result;
}

References kcenon::pacs::security::hash, and impl_.

to_der()

auto kcenon::pacs::security::certificate::to_der ( ) const -> std::vector<std::uint8_t>

nodiscard

Export certificate as DER bytes.

Returns

DER-encoded certificate

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/security/certificate.h.

Definition at line 488 of file certificate.cpp.

                                                        {
    if (!impl_->is_loaded()) {
        return {};
    }

    unsigned char* data = nullptr;
    int len = i2d_X509(impl_->x509(), &data);
    if (len <= 0) {
        return {};
    }

    std::vector<std::uint8_t> result(data, data + len);
    OPENSSL_free(data);
    return result;
}

References impl_.

to_pem()

auto kcenon::pacs::security::certificate::to_pem ( ) const -> std::string

nodiscard

Export certificate as PEM string.

Returns

PEM-encoded certificate

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/security/certificate.h.

Definition at line 473 of file certificate.cpp.

                                            {
    if (!impl_->is_loaded()) {
        return "";
    }

    bio_ptr bio(BIO_new(BIO_s_mem()));
    if (PEM_write_bio_X509(bio.get(), impl_->x509()) != 1) {
        return "";
    }

    char* data = nullptr;
    long len = BIO_get_mem_data(bio.get(), &data);
    return std::string(data, static_cast<size_t>(len));
}

References impl_.

Friends And Related Symbol Documentation

certificate_chain

friend class certificate_chain

friend

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/security/certificate.h.

Definition at line 217 of file certificate.h.

Member Data Documentation

impl_

std::unique_ptr<certificate_impl> kcenon::pacs::security::certificate::impl_

private

Examples

/home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/security/certificate.h.

Definition at line 218 of file certificate.h.

Referenced by impl(), impl(), is_expired(), is_loaded(), is_valid(), issuer_name(), load_from_der(), kcenon::pacs::security::certificate_chain::load_from_pem(), load_from_pem_string(), not_after(), not_before(), serial_number(), subject_common_name(), subject_name(), subject_organization(), thumbprint(), to_der(), and to_pem().

---

The documentation for this class was generated from the following files:

• include/kcenon/pacs/security/certificate.h
• src/security/certificate.cpp
