kcenon::pacs::integration_test::test_data_generator Class Reference

Comprehensive DICOM test data generator. More...

#include <test_data_generator.h>

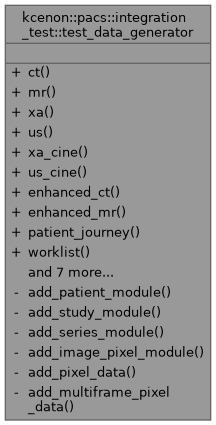

Collaboration diagram for kcenon::pacs::integration_test::test_data_generator:

Static Public Member Functions
static core::dicom_dataset	ct (const std::string &study_uid="")
	Generate a CT Image dataset.
static core::dicom_dataset	mr (const std::string &study_uid="")
	Generate an MR Image dataset.
static core::dicom_dataset	xa (const std::string &study_uid="")
	Generate a single-frame XA Image dataset.
static core::dicom_dataset	us (const std::string &study_uid="")
	Generate a single-frame US Image dataset.
static core::dicom_dataset	xa_cine (uint32_t frames=30, const std::string &study_uid="")
	Generate a multi-frame XA cine dataset.
static core::dicom_dataset	us_cine (uint32_t frames=60, const std::string &study_uid="")
	Generate a multi-frame US cine dataset.
static core::dicom_dataset	enhanced_ct (uint32_t frames=100, const std::string &study_uid="")
	Generate an Enhanced CT multi-frame dataset.
static core::dicom_dataset	enhanced_mr (uint32_t frames=50, const std::string &study_uid="")
	Generate an Enhanced MR multi-frame dataset.
static multi_modal_study	patient_journey (const std::string &patient_id, const std::vector< std::string > &modalities={"CT", "MR", "XA"})
	Generate a complete multi-modal patient study.

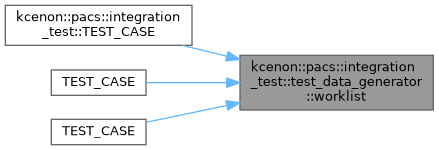

static core::dicom_dataset	worklist (const std::string &patient_id="", const std::string &modality="CT")
	Generate a worklist item dataset.

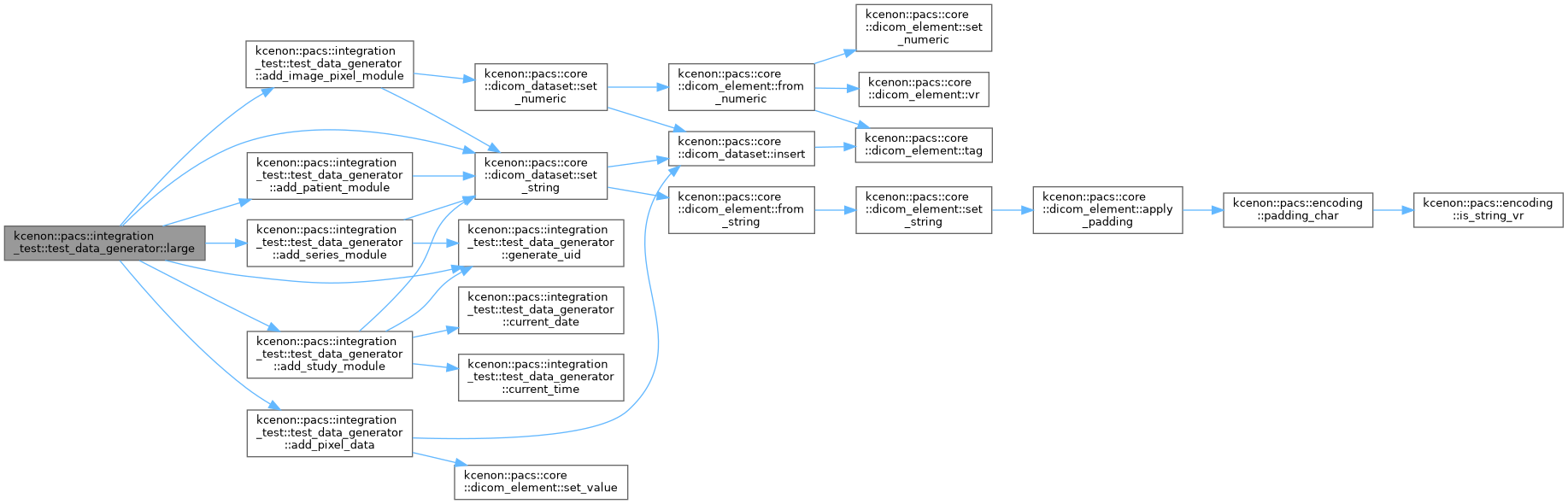

static core::dicom_dataset	large (size_t target_size_mb)
	Generate a large dataset for stress testing.
static core::dicom_dataset	unicode ()
	Generate a dataset with Unicode patient names.
static core::dicom_dataset	with_private_tags (const std::string &creator_id="TEST PRIVATE CREATOR")
	Generate a dataset with private tags.
static core::dicom_dataset	invalid (invalid_dataset_type type)
	Generate an intentionally invalid dataset.
static std::string	generate_uid (const std::string &root="1.2.826.0.1.3680043.9.9999")
	Generate a unique UID for testing.
static std::string	current_date ()
	Get current date in DICOM DA format (YYYYMMDD)
static std::string	current_time ()
	Get current time in DICOM TM format (HHMMSS)

Static Private Member Functions
static void	add_patient_module (core::dicom_dataset &ds, const std::string &patient_name, const std::string &patient_id, const std::string &birth_date="19800101", const std::string &sex="M")
	Add common patient module attributes.
static void	add_study_module (core::dicom_dataset &ds, const std::string &study_uid, const std::string &accession_number, const std::string &study_id, const std::string &description)
	Add common study module attributes.
static void	add_series_module (core::dicom_dataset &ds, const std::string &series_uid, const std::string &modality, const std::string &series_number, const std::string &description)
	Add common series module attributes.
static void	add_image_pixel_module (core::dicom_dataset &ds, uint16_t rows, uint16_t columns, uint16_t bits_allocated, uint16_t bits_stored, uint16_t samples_per_pixel=1, const std::string &photometric="MONOCHROME2")
	Add common image pixel module attributes.
static void	add_pixel_data (core::dicom_dataset &ds, uint16_t rows, uint16_t columns, uint16_t bits_allocated, uint16_t samples_per_pixel=1, uint16_t fill_value=512)
	Generate pixel data for single-frame image.
static void	add_multiframe_pixel_data (core::dicom_dataset &ds, uint16_t rows, uint16_t columns, uint16_t bits_allocated, uint32_t num_frames, uint16_t samples_per_pixel=1)
	Generate pixel data for multi-frame image.

Detailed Description

Comprehensive DICOM test data generator.

Provides static methods to generate various DICOM datasets for testing. All generated datasets contain valid DICOM structures suitable for storage, query, and retrieval operations.

Example usage:

// Generate a simple CT dataset
auto ct = test_data_generator::ct();

// Generate XA cine with 30 frames
auto xa = test_data_generator::xa_cine(30);

// Generate a multi-modal study
auto study = test_data_generator::patient_journey("PATIENT001", {"CT", "MR", "XA"});

Definition at line 94 of file test_data_generator.h.

Member Function Documentation

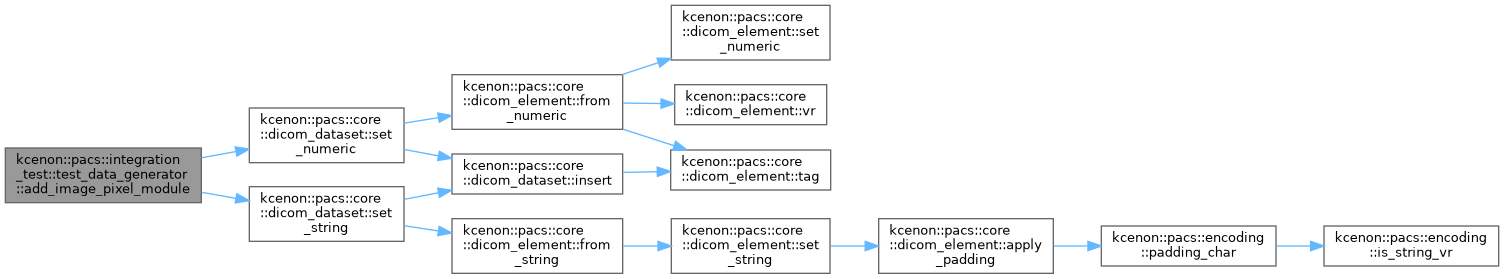

add_image_pixel_module()

void kcenon::pacs::integration_test::test_data_generator::add_image_pixel_module ( core::dicom_dataset & ds, uint16_t rows, uint16_t columns, uint16_t bits_allocated, uint16_t bits_stored, uint16_t samples_per_pixel = 1, const std::string & photometric = "MONOCHROME2" )

staticprivate

Add common image pixel module attributes.

Definition at line 139 of file test_data_generator.cpp.

                                  {

    ds.set_numeric<uint16_t>(core::tags::rows, encoding::vr_type::US, rows);
    ds.set_numeric<uint16_t>(core::tags::columns, encoding::vr_type::US, columns);
    ds.set_numeric<uint16_t>(core::tags::bits_allocated, encoding::vr_type::US, bits_allocated);
    ds.set_numeric<uint16_t>(core::tags::bits_stored, encoding::vr_type::US, bits_stored);
    ds.set_numeric<uint16_t>(core::tags::high_bit, encoding::vr_type::US,
                             static_cast<uint16_t>(bits_stored - 1));
    ds.set_numeric<uint16_t>(core::tags::pixel_representation, encoding::vr_type::US, 0);
    ds.set_numeric<uint16_t>(core::tags::samples_per_pixel, encoding::vr_type::US, samples_per_pixel);
    ds.set_string(core::tags::photometric_interpretation, encoding::vr_type::CS, photometric);
}

References kcenon::pacs::core::tags::bits_allocated, kcenon::pacs::core::tags::bits_stored, kcenon::pacs::core::tags::columns, kcenon::pacs::encoding::CS, kcenon::pacs::core::tags::high_bit, kcenon::pacs::core::tags::photometric_interpretation, kcenon::pacs::core::tags::pixel_representation, kcenon::pacs::core::tags::rows, kcenon::pacs::core::tags::samples_per_pixel, kcenon::pacs::core::dicom_dataset::set_numeric(), kcenon::pacs::core::dicom_dataset::set_string(), and kcenon::pacs::encoding::US.

Referenced by ct(), enhanced_ct(), enhanced_mr(), invalid(), large(), mr(), patient_journey(), unicode(), us(), us_cine(), with_private_tags(), xa(), and xa_cine().

Here is the call graph for this function:

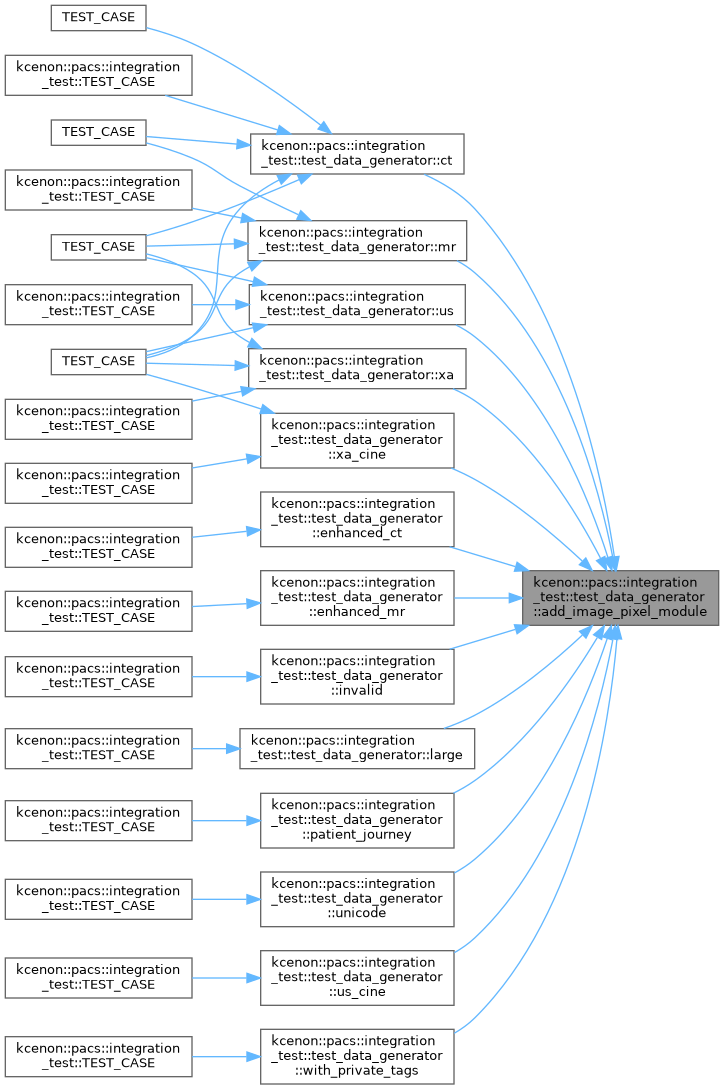

Here is the caller graph for this function:

add_multiframe_pixel_data()

void kcenon::pacs::integration_test::test_data_generator::add_multiframe_pixel_data ( core::dicom_dataset & ds, uint16_t rows, uint16_t columns, uint16_t bits_allocated, uint32_t num_frames, uint16_t samples_per_pixel = 1 )

staticprivate

Generate pixel data for multi-frame image.

Definition at line 184 of file test_data_generator.cpp.

                                {

    // Add Number of Frames attribute
    constexpr core::dicom_tag number_of_frames{0x0028, 0x0008};
    ds.set_string(number_of_frames, encoding::vr_type::IS, std::to_string(num_frames));

    size_t frame_size = static_cast<size_t>(rows) * columns * samples_per_pixel;
    size_t total_pixels = frame_size * num_frames;

    // Use random generator for more realistic data
    std::mt19937 gen(42);  // Fixed seed for reproducibility

    if (bits_allocated == 8) {
        std::uniform_int_distribution<uint16_t> dist(0, 255);
        std::vector<uint8_t> pixel_data(total_pixels);
        for (size_t i = 0; i < total_pixels; ++i) {
            pixel_data[i] = static_cast<uint8_t>(dist(gen));
        }
        core::dicom_element pixel_elem(core::tags::pixel_data, encoding::vr_type::OB);
        pixel_elem.set_value(std::span<const uint8_t>(pixel_data.data(), pixel_data.size()));
        ds.insert(std::move(pixel_elem));
    } else {
        std::uniform_int_distribution<uint16_t> dist(0, 4095);
        std::vector<uint16_t> pixel_data(total_pixels);
        for (size_t i = 0; i < total_pixels; ++i) {
            pixel_data[i] = dist(gen);
        }
        core::dicom_element pixel_elem(core::tags::pixel_data, encoding::vr_type::OW);
        pixel_elem.set_value(std::span<const uint8_t>(
            reinterpret_cast<const uint8_t*>(pixel_data.data()),
            pixel_data.size() * sizeof(uint16_t)));
        ds.insert(std::move(pixel_elem));
    }
}

References kcenon::pacs::core::dicom_dataset::insert(), kcenon::pacs::encoding::IS, number_of_frames, kcenon::pacs::encoding::OB, kcenon::pacs::encoding::OW, kcenon::pacs::core::tags::pixel_data, kcenon::pacs::core::dicom_dataset::set_string(), and kcenon::pacs::core::dicom_element::set_value().

Referenced by enhanced_ct(), enhanced_mr(), us_cine(), and xa_cine().

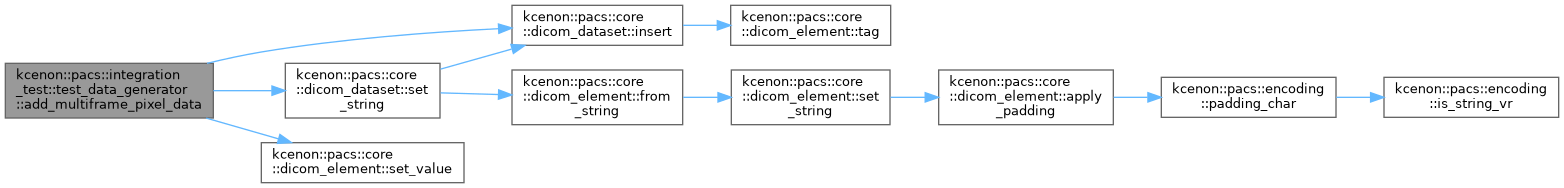

Here is the call graph for this function:

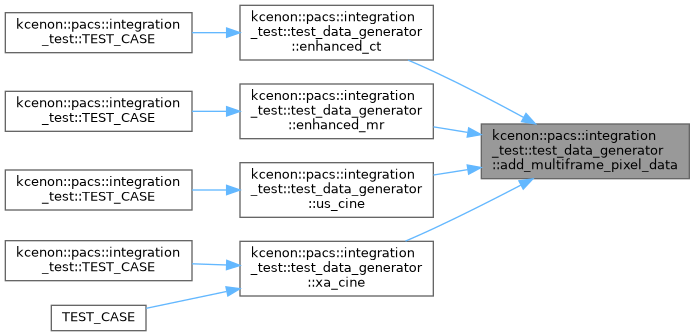

Here is the caller graph for this function:

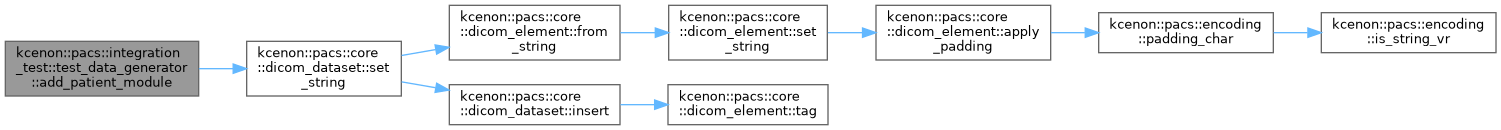

add_patient_module()

void kcenon::pacs::integration_test::test_data_generator::add_patient_module ( core::dicom_dataset & ds, const std::string & patient_name, const std::string & patient_id, const std::string & birth_date = "19800101", const std::string & sex = "M" )

staticprivate

Add common patient module attributes.

Definition at line 96 of file test_data_generator.cpp.

                          {

    ds.set_string(core::tags::patient_name, encoding::vr_type::PN, patient_name);
    ds.set_string(core::tags::patient_id, encoding::vr_type::LO, patient_id);
    ds.set_string(core::tags::patient_birth_date, encoding::vr_type::DA, birth_date);
    ds.set_string(core::tags::patient_sex, encoding::vr_type::CS, sex);
}

References kcenon::pacs::encoding::CS, kcenon::pacs::encoding::DA, kcenon::pacs::encoding::LO, kcenon::pacs::core::tags::patient_birth_date, kcenon::pacs::core::tags::patient_id, kcenon::pacs::core::tags::patient_name, kcenon::pacs::core::tags::patient_sex, kcenon::pacs::encoding::PN, and kcenon::pacs::core::dicom_dataset::set_string().

Referenced by ct(), enhanced_ct(), enhanced_mr(), invalid(), large(), mr(), patient_journey(), unicode(), us(), us_cine(), with_private_tags(), worklist(), xa(), and xa_cine().

Here is the call graph for this function:

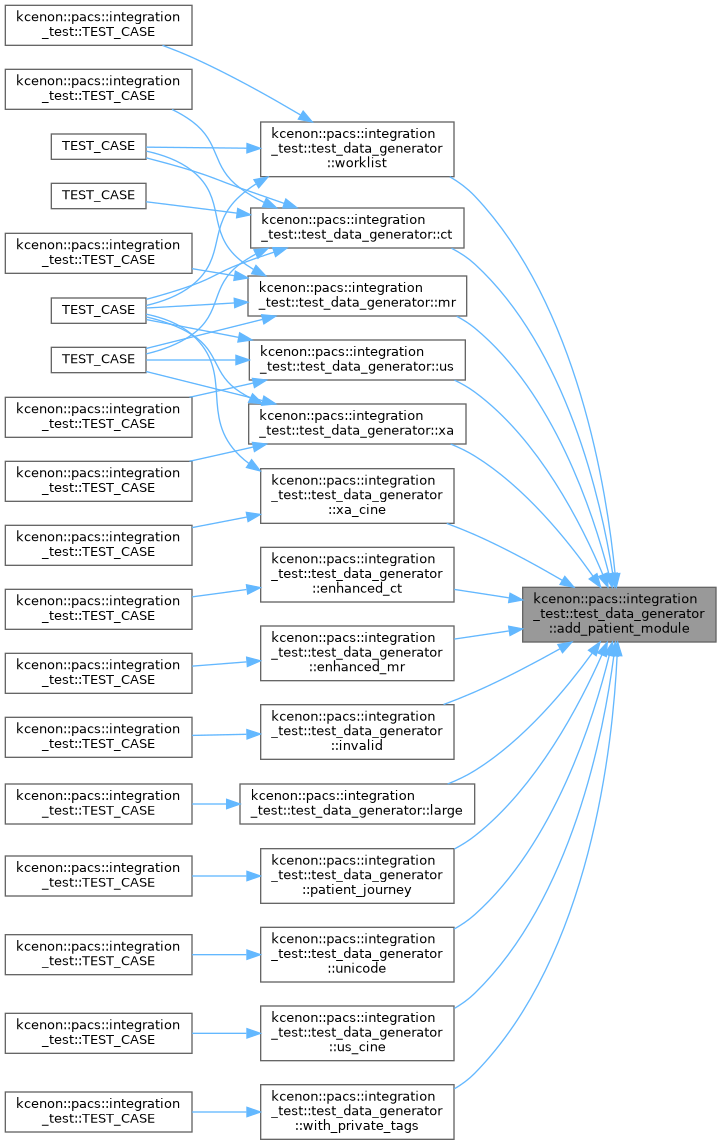

Here is the caller graph for this function:

add_pixel_data()

void kcenon::pacs::integration_test::test_data_generator::add_pixel_data ( core::dicom_dataset & ds, uint16_t rows, uint16_t columns, uint16_t bits_allocated, uint16_t samples_per_pixel = 1, uint16_t fill_value = 512 )

staticprivate

Generate pixel data for single-frame image.

Definition at line 159 of file test_data_generator.cpp.

                         {

    size_t pixel_count = static_cast<size_t>(rows) * columns * samples_per_pixel;

    if (bits_allocated == 8) {
        std::vector<uint8_t> pixel_data(pixel_count, static_cast<uint8_t>(fill_value & 0xFF));
        core::dicom_element pixel_elem(core::tags::pixel_data, encoding::vr_type::OB);
        pixel_elem.set_value(std::span<const uint8_t>(pixel_data.data(), pixel_data.size()));
        ds.insert(std::move(pixel_elem));
    } else {
        std::vector<uint16_t> pixel_data(pixel_count, fill_value);
        core::dicom_element pixel_elem(core::tags::pixel_data, encoding::vr_type::OW);
        pixel_elem.set_value(std::span<const uint8_t>(
            reinterpret_cast<const uint8_t*>(pixel_data.data()),
            pixel_data.size() * sizeof(uint16_t)));
        ds.insert(std::move(pixel_elem));
    }
}

References kcenon::pacs::core::dicom_dataset::insert(), kcenon::pacs::encoding::OB, kcenon::pacs::encoding::OW, kcenon::pacs::core::tags::pixel_data, and kcenon::pacs::core::dicom_element::set_value().

Referenced by ct(), invalid(), large(), mr(), patient_journey(), unicode(), us(), with_private_tags(), and xa().

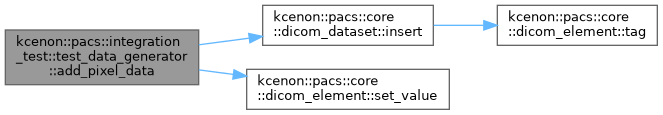

Here is the call graph for this function:

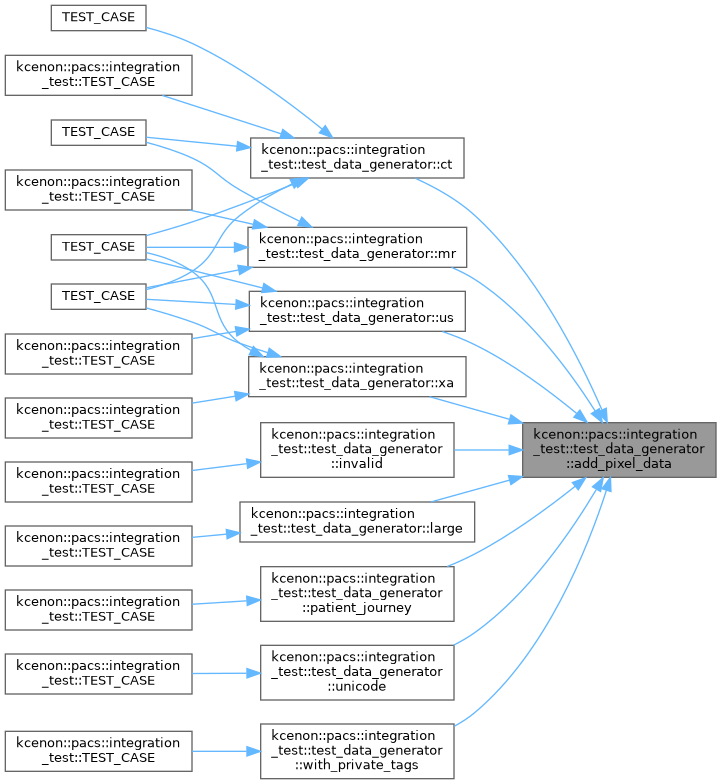

Here is the caller graph for this function:

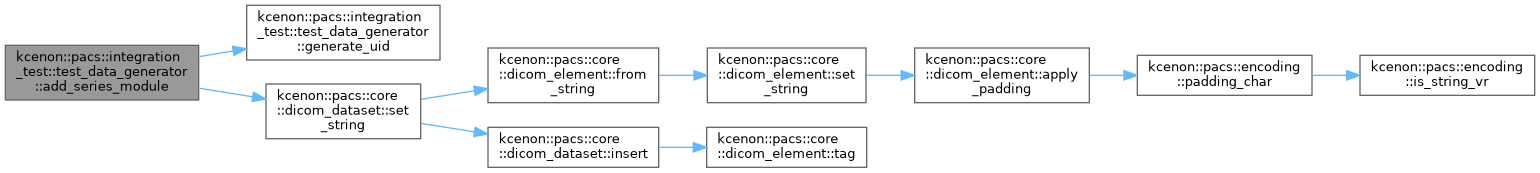

add_series_module()

void kcenon::pacs::integration_test::test_data_generator::add_series_module ( core::dicom_dataset & ds, const std::string & series_uid, const std::string & modality, const std::string & series_number, const std::string & description )

staticprivate

Add common series module attributes.

Definition at line 125 of file test_data_generator.cpp.

                                  {

    ds.set_string(core::tags::series_instance_uid, encoding::vr_type::UI,
                  series_uid.empty() ? generate_uid() : series_uid);
    ds.set_string(core::tags::modality, encoding::vr_type::CS, modality);
    ds.set_string(core::tags::series_number, encoding::vr_type::IS, series_number);
    ds.set_string(core::tags::series_description, encoding::vr_type::LO, description);
}

References kcenon::pacs::encoding::CS, generate_uid(), kcenon::pacs::encoding::IS, kcenon::pacs::encoding::LO, kcenon::pacs::core::tags::modality, kcenon::pacs::core::tags::series_description, kcenon::pacs::core::tags::series_instance_uid, kcenon::pacs::core::tags::series_number, kcenon::pacs::core::dicom_dataset::set_string(), and kcenon::pacs::encoding::UI.

Referenced by ct(), enhanced_ct(), enhanced_mr(), invalid(), large(), mr(), patient_journey(), unicode(), us(), us_cine(), with_private_tags(), xa(), and xa_cine().

Here is the call graph for this function:

Here is the caller graph for this function:

add_study_module()

void kcenon::pacs::integration_test::test_data_generator::add_study_module ( core::dicom_dataset & ds, const std::string & study_uid, const std::string & accession_number, const std::string & study_id, const std::string & description )

staticprivate

Add common study module attributes.

Definition at line 109 of file test_data_generator.cpp.

                                  {

    ds.set_string(core::tags::study_instance_uid, encoding::vr_type::UI,
                  study_uid.empty() ? generate_uid() : study_uid);
    ds.set_string(core::tags::study_date, encoding::vr_type::DA, current_date());
    ds.set_string(core::tags::study_time, encoding::vr_type::TM, current_time());
    ds.set_string(core::tags::accession_number, encoding::vr_type::SH, accession_number);
    ds.set_string(core::tags::study_id, encoding::vr_type::SH, study_id);
    ds.set_string(core::tags::study_description, encoding::vr_type::LO, description);
}

References kcenon::pacs::core::tags::accession_number, current_date(), current_time(), kcenon::pacs::encoding::DA, generate_uid(), kcenon::pacs::encoding::LO, kcenon::pacs::core::dicom_dataset::set_string(), kcenon::pacs::encoding::SH, kcenon::pacs::core::tags::study_date, kcenon::pacs::core::tags::study_description, kcenon::pacs::core::tags::study_id, kcenon::pacs::core::tags::study_instance_uid, kcenon::pacs::core::tags::study_time, kcenon::pacs::encoding::TM, and kcenon::pacs::encoding::UI.

Referenced by ct(), enhanced_ct(), enhanced_mr(), invalid(), large(), mr(), patient_journey(), unicode(), us(), us_cine(), with_private_tags(), xa(), and xa_cine().

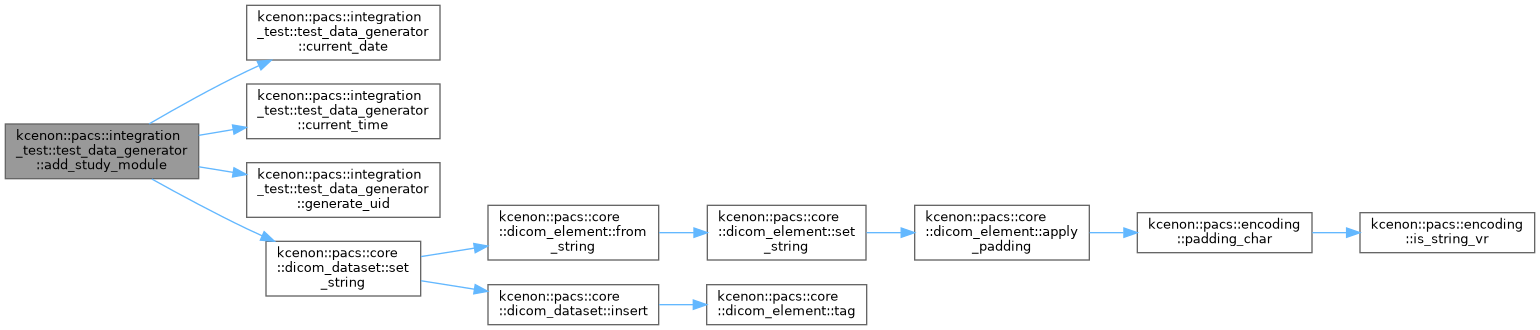

Here is the call graph for this function:

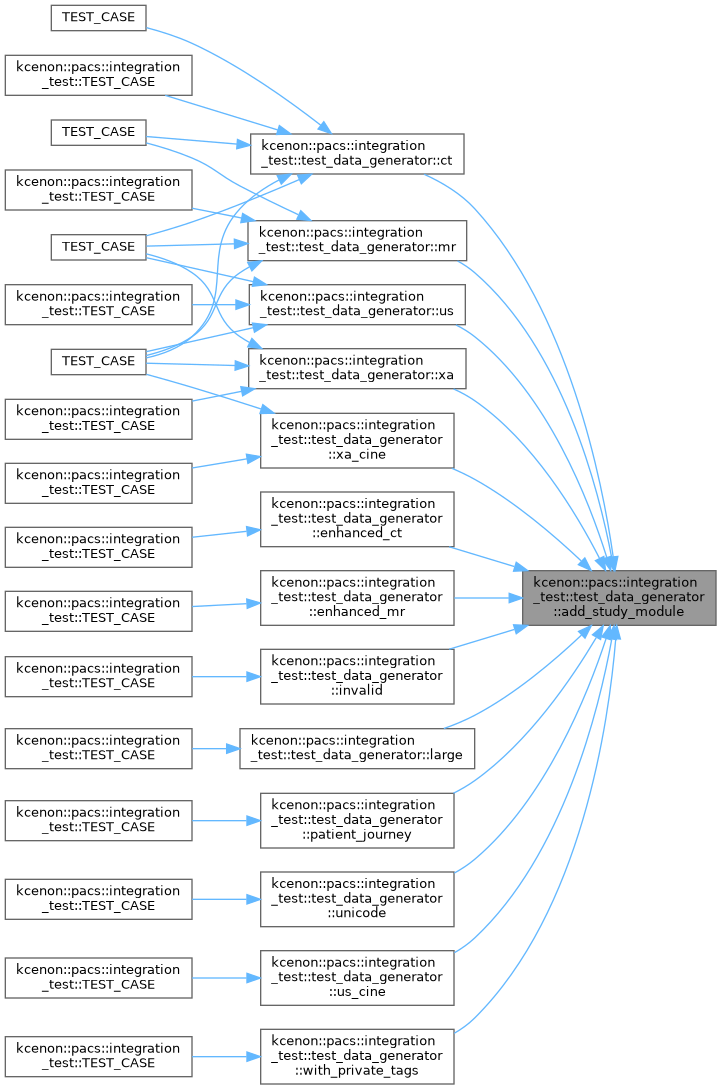

Here is the caller graph for this function:

ct()

core::dicom_dataset kcenon::pacs::integration_test::test_data_generator::ct ( const std::string & study_uid = "" )

staticnodiscard

Generate a CT Image dataset.

Parameters

study_uid

Study Instance UID (auto-generated if empty)

Returns

DICOM dataset for CT Image Storage

Definition at line 229 of file test_data_generator.cpp.

                                                                    {
    core::dicom_dataset ds;

    add_patient_module(ds, "TEST^CT^PATIENT", "TESTCT001", "19800101", "M");
    add_study_module(ds, study_uid, "ACCCT001", "STUDYCT001", "CT Integration Test");
    add_series_module(ds, "", "CT", "1", "CT Test Series");

    // SOP Common
    ds.set_string(core::tags::sop_class_uid, encoding::vr_type::UI,
                  "1.2.840.10008.5.1.4.1.1.2");  // CT Image Storage
    ds.set_string(core::tags::sop_instance_uid, encoding::vr_type::UI, generate_uid());

    // Image Pixel Module
    add_image_pixel_module(ds, 64, 64, 16, 12);
    add_pixel_data(ds, 64, 64, 16, 1, 512);

    return ds;
}

References add_image_pixel_module(), add_patient_module(), add_pixel_data(), add_series_module(), add_study_module(), generate_uid(), kcenon::pacs::core::dicom_dataset::set_string(), kcenon::pacs::core::tags::sop_class_uid, kcenon::pacs::core::tags::sop_instance_uid, and kcenon::pacs::encoding::UI.

Referenced by kcenon::pacs::integration_test::TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), and TEST_CASE().

Here is the call graph for this function:

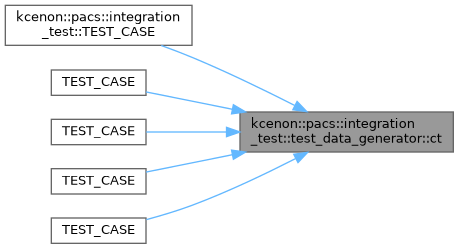

Here is the caller graph for this function:

current_date()

std::string kcenon::pacs::integration_test::test_data_generator::current_date ( )

staticnodiscard

Get current date in DICOM DA format (YYYYMMDD)

Returns

Date string

Definition at line 62 of file test_data_generator.cpp.

                                            {
    auto now = std::chrono::system_clock::now();
    auto time_t_now = std::chrono::system_clock::to_time_t(now);
    std::tm tm_now{};
#ifdef _WIN32
    localtime_s(&tm_now, &time_t_now);
#else
    localtime_r(&time_t_now, &tm_now);
#endif

    std::ostringstream oss;
    oss << std::put_time(&tm_now, "%Y%m%d");
    return oss.str();
}

Referenced by add_study_module(), kcenon::pacs::integration_test::TEST_CASE(), and worklist().

Here is the caller graph for this function:

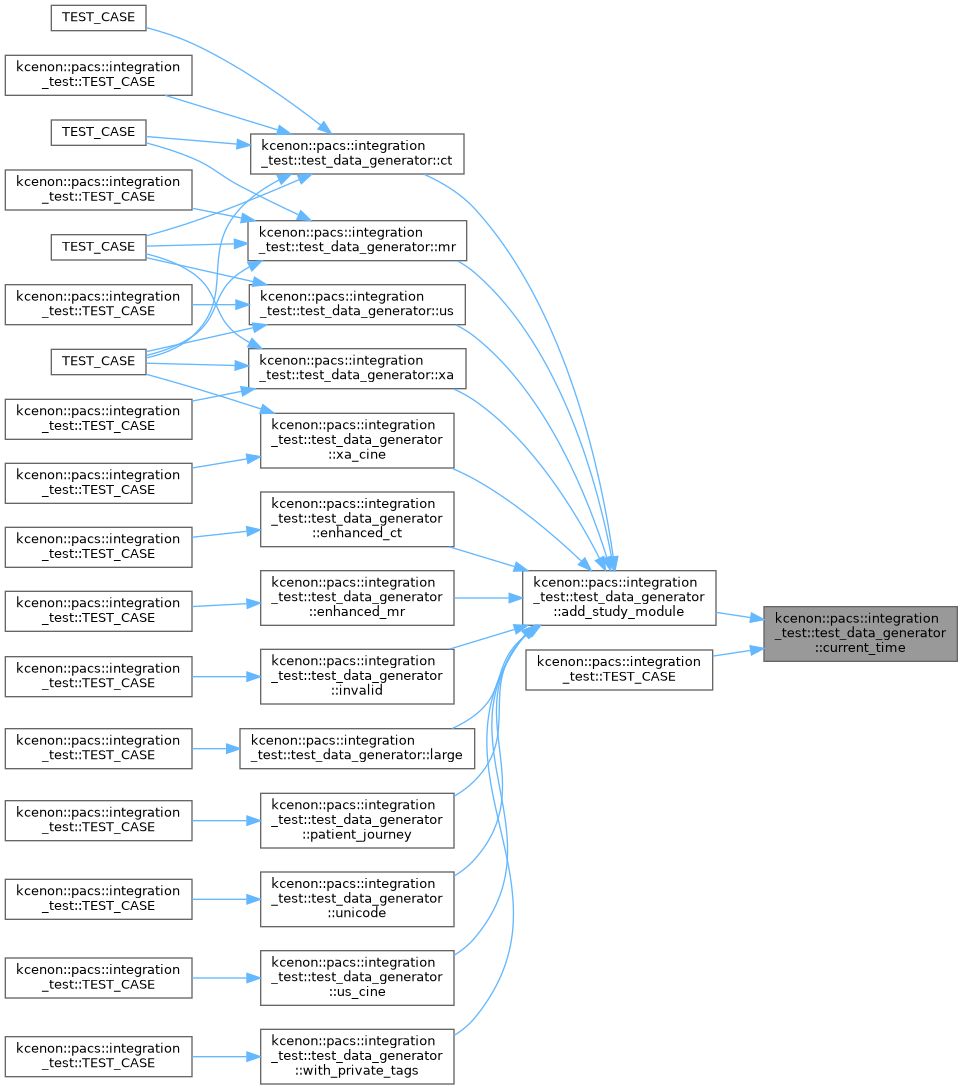

current_time()

std::string kcenon::pacs::integration_test::test_data_generator::current_time ( )

staticnodiscard

Get current time in DICOM TM format (HHMMSS)

Returns

Time string

Definition at line 77 of file test_data_generator.cpp.

                                            {
    auto now = std::chrono::system_clock::now();
    auto time_t_now = std::chrono::system_clock::to_time_t(now);
    std::tm tm_now{};
#ifdef _WIN32
    localtime_s(&tm_now, &time_t_now);
#else
    localtime_r(&time_t_now, &tm_now);
#endif

    std::ostringstream oss;
    oss << std::put_time(&tm_now, "%H%M%S");
    return oss.str();
}

Referenced by add_study_module(), and kcenon::pacs::integration_test::TEST_CASE().

Here is the caller graph for this function:

enhanced_ct()

core::dicom_dataset kcenon::pacs::integration_test::test_data_generator::enhanced_ct ( uint32_t frames = 100, const std::string & study_uid = "" )

staticnodiscard

Generate an Enhanced CT multi-frame dataset.

Parameters

frames	Number of frames (default: 100)
study_uid	Study Instance UID (auto-generated if empty)

Returns

DICOM dataset for Enhanced CT Image Storage

Definition at line 378 of file test_data_generator.cpp.

                                                                                              {
    core::dicom_dataset ds;

    add_patient_module(ds, "TEST^ENHCT^PATIENT", "TESTENHCT001", "19650110", "M");
    add_study_module(ds, study_uid, "ACCENHCT001", "STUDYENHCT001", "Enhanced CT Test");
    add_series_module(ds, "", "CT", "1", "Enhanced CT Volume");

    // SOP Common - Enhanced CT Image Storage
    ds.set_string(core::tags::sop_class_uid, encoding::vr_type::UI,
                  "1.2.840.10008.5.1.4.1.1.2.1");  // Enhanced CT
    ds.set_string(core::tags::sop_instance_uid, encoding::vr_type::UI, generate_uid());

    // Image Pixel Module (use smaller size for enhanced multi-frame)
    add_image_pixel_module(ds, 128, 128, 16, 12);

    // Enhanced-specific: Image Type
    ds.set_string(core::tags::image_type, encoding::vr_type::CS,
                  "ORIGINAL\\PRIMARY\\VOLUME\\NONE");

    add_multiframe_pixel_data(ds, 128, 128, 16, frames);

    return ds;
}

References add_image_pixel_module(), add_multiframe_pixel_data(), add_patient_module(), add_series_module(), add_study_module(), kcenon::pacs::encoding::CS, generate_uid(), kcenon::pacs::core::tags::image_type, kcenon::pacs::core::dicom_dataset::set_string(), kcenon::pacs::core::tags::sop_class_uid, kcenon::pacs::core::tags::sop_instance_uid, and kcenon::pacs::encoding::UI.

Referenced by kcenon::pacs::integration_test::TEST_CASE().

Here is the call graph for this function:

Here is the caller graph for this function:

enhanced_mr()

core::dicom_dataset kcenon::pacs::integration_test::test_data_generator::enhanced_mr ( uint32_t frames = 50, const std::string & study_uid = "" )

staticnodiscard

Generate an Enhanced MR multi-frame dataset.

Parameters

frames	Number of frames (default: 50)
study_uid	Study Instance UID (auto-generated if empty)

Returns

DICOM dataset for Enhanced MR Image Storage

Definition at line 402 of file test_data_generator.cpp.

                                                                                              {
    core::dicom_dataset ds;

    add_patient_module(ds, "TEST^ENHMR^PATIENT", "TESTENHMR001", "19720520", "F");
    add_study_module(ds, study_uid, "ACCENHMR001", "STUDYENHMR001", "Enhanced MR Test");
    add_series_module(ds, "", "MR", "1", "Enhanced MR Volume");

    // SOP Common - Enhanced MR Image Storage
    ds.set_string(core::tags::sop_class_uid, encoding::vr_type::UI,
                  "1.2.840.10008.5.1.4.1.1.4.1");  // Enhanced MR
    ds.set_string(core::tags::sop_instance_uid, encoding::vr_type::UI, generate_uid());

    // Image Pixel Module (use smaller size for enhanced multi-frame)
    add_image_pixel_module(ds, 128, 128, 16, 12);

    // Enhanced-specific: Image Type
    ds.set_string(core::tags::image_type, encoding::vr_type::CS,
                  "ORIGINAL\\PRIMARY\\VOLUME\\NONE");

    add_multiframe_pixel_data(ds, 128, 128, 16, frames);

    return ds;
}

References add_image_pixel_module(), add_multiframe_pixel_data(), add_patient_module(), add_series_module(), add_study_module(), kcenon::pacs::encoding::CS, generate_uid(), kcenon::pacs::core::tags::image_type, kcenon::pacs::core::dicom_dataset::set_string(), kcenon::pacs::core::tags::sop_class_uid, kcenon::pacs::core::tags::sop_instance_uid, and kcenon::pacs::encoding::UI.

Referenced by kcenon::pacs::integration_test::TEST_CASE().

Here is the call graph for this function:

Here is the caller graph for this function:

generate_uid()

std::string kcenon::pacs::integration_test::test_data_generator::generate_uid ( const std::string & root = "1.2.826.0.1.3680043.9.9999" )

staticnodiscard

Generate a unique UID for testing.

Parameters

root	Root UID prefix (default: test UID root)

Returns

Unique UID string

Definition at line 53 of file test_data_generator.cpp.

                                                                 {
    static std::atomic<uint64_t> counter{0};
    auto now = std::chrono::system_clock::now();
    auto timestamp = std::chrono::duration_cast<std::chrono::milliseconds>(
        now.time_since_epoch()).count();

    return root + "." + std::to_string(timestamp) + "." + std::to_string(++counter);
}

Referenced by add_series_module(), add_study_module(), ct(), enhanced_ct(), enhanced_mr(), invalid(), large(), mr(), patient_journey(), kcenon::pacs::integration_test::TEST_CASE(), unicode(), us(), us_cine(), with_private_tags(), worklist(), xa(), and xa_cine().

Here is the caller graph for this function:

invalid()

core::dicom_dataset kcenon::pacs::integration_test::test_data_generator::invalid ( invalid_dataset_type type )

staticnodiscard

Generate an intentionally invalid dataset.

Creates datasets with specific types of errors for testing error handling and validation logic.

Parameters

type	Type of invalidity to introduce

Returns

Invalid DICOM dataset

Definition at line 596 of file test_data_generator.cpp.

                                                                        {
    core::dicom_dataset ds;

    // Start with a valid base dataset
    add_patient_module(ds, "TEST^INVALID^DATASET", "TESTINVALID001", "19901010", "M");
    add_study_module(ds, "", "ACCINVALID001", "STUDYINVALID001", "Invalid Dataset Test");
    add_series_module(ds, "", "OT", "1", "Invalid Series");

    // Set SOP Common (will be modified based on type)
    ds.set_string(core::tags::sop_class_uid, encoding::vr_type::UI,
                  "1.2.840.10008.5.1.4.1.1.7");
    ds.set_string(core::tags::sop_instance_uid, encoding::vr_type::UI, generate_uid());

    add_image_pixel_module(ds, 64, 64, 8, 8);
    add_pixel_data(ds, 64, 64, 8);

    // Now introduce the specific invalidity
    switch (type) {
        case invalid_dataset_type::missing_sop_class_uid:
            ds.remove(core::tags::sop_class_uid);
            break;

        case invalid_dataset_type::missing_sop_instance_uid:
            ds.remove(core::tags::sop_instance_uid);
            break;

        case invalid_dataset_type::missing_patient_id:
            ds.remove(core::tags::patient_id);
            break;

        case invalid_dataset_type::missing_study_instance_uid:
            ds.remove(core::tags::study_instance_uid);
            break;

        case invalid_dataset_type::invalid_vr:
            // Set a numeric value where UI is expected
            ds.set_numeric<uint16_t>(core::tags::sop_class_uid, encoding::vr_type::US, 12345);
            break;

        case invalid_dataset_type::corrupted_pixel_data: {
            // Remove proper pixel data and add truncated data
            ds.remove(core::tags::pixel_data);
            std::vector<uint8_t> corrupted(100, 0xFF);  // Way too small
            core::dicom_element pixel_elem(core::tags::pixel_data, encoding::vr_type::OB);
            pixel_elem.set_value(std::span<const uint8_t>(corrupted.data(), corrupted.size()));
            ds.insert(std::move(pixel_elem));
            break;
        }

        case invalid_dataset_type::oversized_value:
            // SH VR has max 16 characters - exceed it
            ds.set_string(core::tags::accession_number, encoding::vr_type::SH,
                          "THIS_ACCESSION_NUMBER_IS_WAY_TOO_LONG_FOR_SH_VR");
            break;
    }

    return ds;
}

References kcenon::pacs::core::tags::accession_number, add_image_pixel_module(), add_patient_module(), add_pixel_data(), add_series_module(), add_study_module(), kcenon::pacs::integration_test::corrupted_pixel_data, generate_uid(), kcenon::pacs::core::dicom_dataset::insert(), kcenon::pacs::integration_test::invalid_vr, kcenon::pacs::integration_test::missing_patient_id, kcenon::pacs::integration_test::missing_sop_class_uid, kcenon::pacs::integration_test::missing_sop_instance_uid, kcenon::pacs::integration_test::missing_study_instance_uid, kcenon::pacs::encoding::OB, kcenon::pacs::integration_test::oversized_value, kcenon::pacs::core::tags::patient_id, kcenon::pacs::core::tags::pixel_data, kcenon::pacs::core::dicom_dataset::remove(), kcenon::pacs::core::dicom_dataset::set_numeric(), kcenon::pacs::core::dicom_dataset::set_string(), kcenon::pacs::core::dicom_element::set_value(), kcenon::pacs::encoding::SH, kcenon::pacs::core::tags::sop_class_uid, kcenon::pacs::core::tags::sop_instance_uid, kcenon::pacs::core::tags::study_instance_uid, kcenon::pacs::encoding::UI, and kcenon::pacs::encoding::US.

Referenced by kcenon::pacs::integration_test::TEST_CASE().

Here is the call graph for this function:

Here is the caller graph for this function:

large()

core::dicom_dataset kcenon::pacs::integration_test::test_data_generator::large ( size_t target_size_mb )

staticnodiscard

Generate a large dataset for stress testing.

Creates a dataset with pixel data approaching the target size. Useful for testing memory handling and transfer performance.

Parameters

target_size_mb

Target size in megabytes

Returns

DICOM dataset with large pixel data

Definition at line 515 of file test_data_generator.cpp.

                                                                  {
    core::dicom_dataset ds;

    add_patient_module(ds, "TEST^LARGE^DATASET", "TESTLARGE001", "19700101", "M");
    add_study_module(ds, "", "ACCLARGE001", "STUDYLARGE001", "Large Dataset Test");
    add_series_module(ds, "", "OT", "1", "Large Test Series");

    // SOP Common - Secondary Capture
    ds.set_string(core::tags::sop_class_uid, encoding::vr_type::UI,
                  "1.2.840.10008.5.1.4.1.1.7");
    ds.set_string(core::tags::sop_instance_uid, encoding::vr_type::UI, generate_uid());

    // Calculate dimensions to achieve target size
    // target_size_mb * 1024 * 1024 = rows * columns * 2 (16-bit)
    size_t total_bytes = target_size_mb * 1024 * 1024;
    size_t total_pixels = total_bytes / 2;

    // Use square dimensions
    uint16_t dimension = static_cast<uint16_t>(std::sqrt(static_cast<double>(total_pixels)));
    dimension = (std::min)(dimension, static_cast<uint16_t>(4096));  // Cap at 4096x4096

    add_image_pixel_module(ds, dimension, dimension, 16, 12);
    add_pixel_data(ds, dimension, dimension, 16, 1, 1024);

    return ds;
}

References add_image_pixel_module(), add_patient_module(), add_pixel_data(), add_series_module(), add_study_module(), generate_uid(), kcenon::pacs::core::dicom_dataset::set_string(), kcenon::pacs::core::tags::sop_class_uid, kcenon::pacs::core::tags::sop_instance_uid, and kcenon::pacs::encoding::UI.

Referenced by kcenon::pacs::integration_test::TEST_CASE().

Here is the call graph for this function:

Here is the caller graph for this function:

mr()

core::dicom_dataset kcenon::pacs::integration_test::test_data_generator::mr ( const std::string & study_uid = "" )

staticnodiscard

Generate an MR Image dataset.

Parameters

study_uid

Study Instance UID (auto-generated if empty)

Returns

DICOM dataset for MR Image Storage

Definition at line 248 of file test_data_generator.cpp.

                                                                    {
    core::dicom_dataset ds;

    add_patient_module(ds, "TEST^MR^PATIENT", "TESTMR001", "19900215", "F");
    add_study_module(ds, study_uid, "ACCMR001", "STUDYMR001", "MR Integration Test");
    add_series_module(ds, "", "MR", "1", "T1 FLAIR");

    // SOP Common
    ds.set_string(core::tags::sop_class_uid, encoding::vr_type::UI,
                  "1.2.840.10008.5.1.4.1.1.4");  // MR Image Storage
    ds.set_string(core::tags::sop_instance_uid, encoding::vr_type::UI, generate_uid());

    // Image Pixel Module
    add_image_pixel_module(ds, 64, 64, 16, 12);
    add_pixel_data(ds, 64, 64, 16, 1, 256);

    return ds;
}

References add_image_pixel_module(), add_patient_module(), add_pixel_data(), add_series_module(), add_study_module(), generate_uid(), kcenon::pacs::core::dicom_dataset::set_string(), kcenon::pacs::core::tags::sop_class_uid, kcenon::pacs::core::tags::sop_instance_uid, and kcenon::pacs::encoding::UI.

Referenced by kcenon::pacs::integration_test::TEST_CASE(), TEST_CASE(), TEST_CASE(), and TEST_CASE().

Here is the call graph for this function:

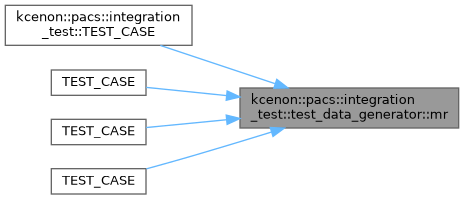

Here is the caller graph for this function:

patient_journey()

multi_modal_study kcenon::pacs::integration_test::test_data_generator::patient_journey ( const std::string & patient_id, const std::vector< std::string > & modalities = {"CT", "MR", "XA"} )

staticnodiscard

Generate a complete multi-modal patient study.

Creates a realistic patient study with multiple modalities, all sharing the same Study Instance UID and patient information.

Parameters

patient_id	Patient identifier
modalities	List of modality codes (e.g., {"CT", "MR", "XA"})

Returns

Multi-modal study containing all generated datasets

Definition at line 430 of file test_data_generator.cpp.

                                            {

    multi_modal_study study;
    study.patient_id = patient_id.empty() ? "PATJOURNEY001" : patient_id;
    study.patient_name = "TEST^MULTIMODAL^PATIENT";
    study.study_uid = generate_uid();

    for (const auto& modality : modalities) {
        core::dicom_dataset ds;

        add_patient_module(ds, study.patient_name, study.patient_id, "19750101", "M");
        add_study_module(ds, study.study_uid, "ACCMULTI001", "STUDYMULTI001",
                         "Multi-Modal Patient Journey");

        std::string series_desc = modality + " Series";
        add_series_module(ds, "", modality, std::to_string(study.datasets.size() + 1), series_desc);

        // Set SOP Class based on modality
        std::string sop_class_uid;
        uint16_t rows = 64, columns = 64, bits = 16;

        if (modality == "CT") {
            sop_class_uid = "1.2.840.10008.5.1.4.1.1.2";
        } else if (modality == "MR") {
            sop_class_uid = "1.2.840.10008.5.1.4.1.1.4";
        } else if (modality == "XA") {
            sop_class_uid = std::string(services::sop_classes::xa_image_storage_uid);
            rows = 512;
            columns = 512;
        } else if (modality == "US") {
            sop_class_uid = std::string(services::sop_classes::us_image_storage_uid);
            rows = 480;
            columns = 640;
            bits = 8;
        } else {
            // Default to Secondary Capture for unknown modalities
            sop_class_uid = "1.2.840.10008.5.1.4.1.1.7";
        }

        ds.set_string(core::tags::sop_class_uid, encoding::vr_type::UI, sop_class_uid);
        ds.set_string(core::tags::sop_instance_uid, encoding::vr_type::UI, generate_uid());

        add_image_pixel_module(ds, rows, columns, bits, static_cast<uint16_t>(bits - 4));
        add_pixel_data(ds, rows, columns, bits);

        study.datasets.push_back(std::move(ds));
    }

    return study;
}

References add_image_pixel_module(), add_patient_module(), add_pixel_data(), add_series_module(), add_study_module(), generate_uid(), kcenon::pacs::core::dicom_dataset::set_string(), kcenon::pacs::core::tags::sop_class_uid, kcenon::pacs::core::tags::sop_instance_uid, kcenon::pacs::encoding::UI, kcenon::pacs::services::sop_classes::us_image_storage_uid, and kcenon::pacs::services::sop_classes::xa_image_storage_uid.

Referenced by kcenon::pacs::integration_test::TEST_CASE().

Here is the call graph for this function:

Here is the caller graph for this function:

unicode()

core::dicom_dataset kcenon::pacs::integration_test::test_data_generator::unicode ( )

staticnodiscard

Generate a dataset with Unicode patient names.

Tests character set handling with international characters including CJK, Arabic, Hebrew, and special symbols.

Returns

DICOM dataset with Unicode patient information

Definition at line 542 of file test_data_generator.cpp.

                                               {
    core::dicom_dataset ds;

    // Set specific character set for Unicode
    ds.set_string(core::tags::specific_character_set, encoding::vr_type::CS, "ISO 2022 IR 149");

    // Unicode patient names (Korean, Japanese, Chinese examples)
    add_patient_module(ds, "홍^길동", "TESTUNICODE001", "19801225", "M");
    add_study_module(ds, "", "ACCUNICODE001", "STUDYUNICODE001",
                     "Unicode Test Study - 유니코드 테스트");
    add_series_module(ds, "", "OT", "1", "Unicode Series - 한글 시리즈");

    // SOP Common - Secondary Capture
    ds.set_string(core::tags::sop_class_uid, encoding::vr_type::UI,
                  "1.2.840.10008.5.1.4.1.1.7");
    ds.set_string(core::tags::sop_instance_uid, encoding::vr_type::UI, generate_uid());

    add_image_pixel_module(ds, 64, 64, 8, 8);
    add_pixel_data(ds, 64, 64, 8);

    return ds;
}

References add_image_pixel_module(), add_patient_module(), add_pixel_data(), add_series_module(), add_study_module(), kcenon::pacs::encoding::CS, generate_uid(), kcenon::pacs::core::dicom_dataset::set_string(), kcenon::pacs::core::tags::sop_class_uid, kcenon::pacs::core::tags::sop_instance_uid, kcenon::pacs::core::tags::specific_character_set, and kcenon::pacs::encoding::UI.

Referenced by kcenon::pacs::integration_test::TEST_CASE().

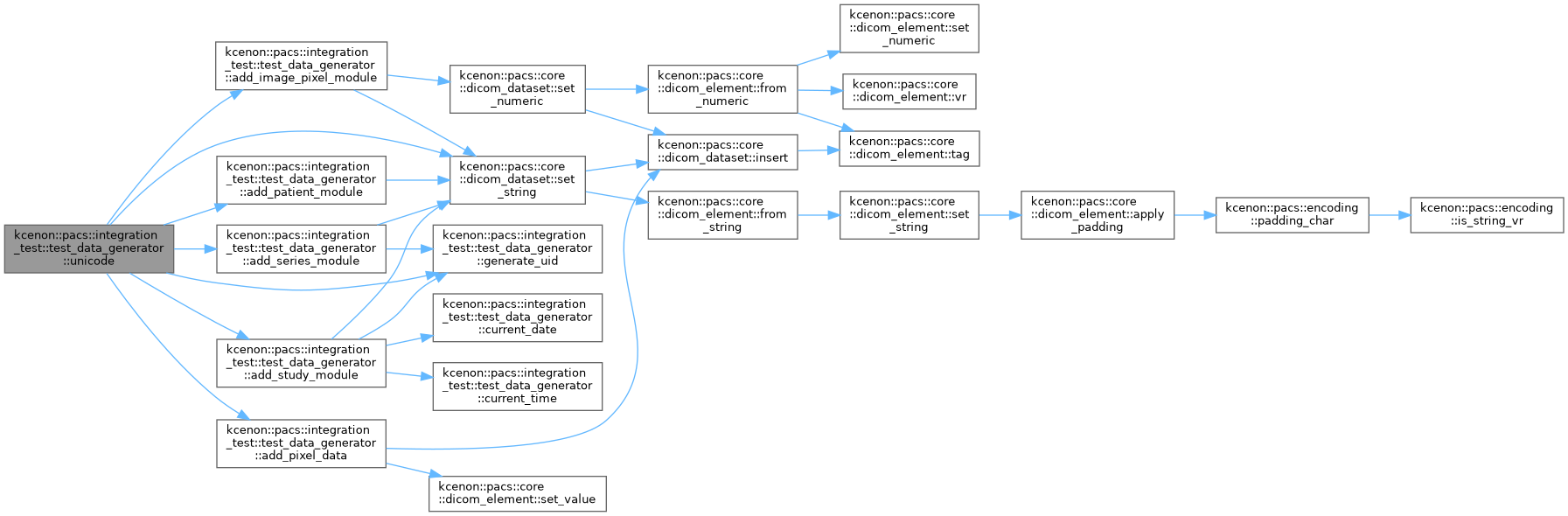

Here is the call graph for this function:

Here is the caller graph for this function:

us()

core::dicom_dataset kcenon::pacs::integration_test::test_data_generator::us ( const std::string & study_uid = "" )

staticnodiscard

Generate a single-frame US Image dataset.

Parameters

study_uid

Study Instance UID (auto-generated if empty)

Returns

DICOM dataset for US Image Storage

Definition at line 300 of file test_data_generator.cpp.

                                                                    {
    core::dicom_dataset ds;

    add_patient_module(ds, "TEST^US^PATIENT", "TESTUS001", "19850305", "M");
    add_study_module(ds, study_uid, "ACCUS001", "STUDYUS001", "US Integration Test");
    add_series_module(ds, "", "US", "1", "Cardiac Echo");

    // SOP Common
    ds.set_string(core::tags::sop_class_uid, encoding::vr_type::UI,
                  std::string(services::sop_classes::us_image_storage_uid));
    ds.set_string(core::tags::sop_instance_uid, encoding::vr_type::UI, generate_uid());

    // Image Pixel Module (640x480 typical for US)
    add_image_pixel_module(ds, 480, 640, 8, 8);
    add_pixel_data(ds, 480, 640, 8, 1, 64);

    return ds;
}

References add_image_pixel_module(), add_patient_module(), add_pixel_data(), add_series_module(), add_study_module(), generate_uid(), kcenon::pacs::core::dicom_dataset::set_string(), kcenon::pacs::core::tags::sop_class_uid, kcenon::pacs::core::tags::sop_instance_uid, kcenon::pacs::encoding::UI, and kcenon::pacs::services::sop_classes::us_image_storage_uid.

Referenced by kcenon::pacs::integration_test::TEST_CASE(), TEST_CASE(), and TEST_CASE().

Here is the call graph for this function:

Here is the caller graph for this function:

us_cine()

core::dicom_dataset kcenon::pacs::integration_test::test_data_generator::us_cine ( uint32_t frames = 60, const std::string & study_uid = "" )

staticnodiscard

Generate a multi-frame US cine dataset.

Parameters

frames	Number of frames (default: 60)
study_uid	Study Instance UID (auto-generated if empty)

Returns

DICOM dataset for multi-frame US Image Storage

Definition at line 354 of file test_data_generator.cpp.

                                                                                          {
    core::dicom_dataset ds;

    add_patient_module(ds, "TEST^USCINE^PATIENT", "TESTUSCINE001", "19880422", "F");
    add_study_module(ds, study_uid, "ACCUSCINE001", "STUDYUSCINE001", "US Cine Test");
    add_series_module(ds, "", "US", "1", "Cardiac Cine Loop");

    // SOP Common - US Multi-frame Image Storage
    ds.set_string(core::tags::sop_class_uid, encoding::vr_type::UI,
                  std::string(services::sop_classes::us_multiframe_image_storage_uid));
    ds.set_string(core::tags::sop_instance_uid, encoding::vr_type::UI, generate_uid());

    // Image Pixel Module (640x480 typical for US)
    add_image_pixel_module(ds, 480, 640, 8, 8);

    // US-specific attributes
    constexpr core::dicom_tag frame_time{0x0018, 0x1063};
    ds.set_string(frame_time, encoding::vr_type::DS, "33.33");  // ~30 fps

    add_multiframe_pixel_data(ds, 480, 640, 8, frames);

    return ds;
}

References add_image_pixel_module(), add_multiframe_pixel_data(), add_patient_module(), add_series_module(), add_study_module(), kcenon::pacs::encoding::DS, generate_uid(), kcenon::pacs::core::dicom_dataset::set_string(), kcenon::pacs::core::tags::sop_class_uid, kcenon::pacs::core::tags::sop_instance_uid, kcenon::pacs::encoding::UI, and kcenon::pacs::services::sop_classes::us_multiframe_image_storage_uid.

Referenced by kcenon::pacs::integration_test::TEST_CASE().

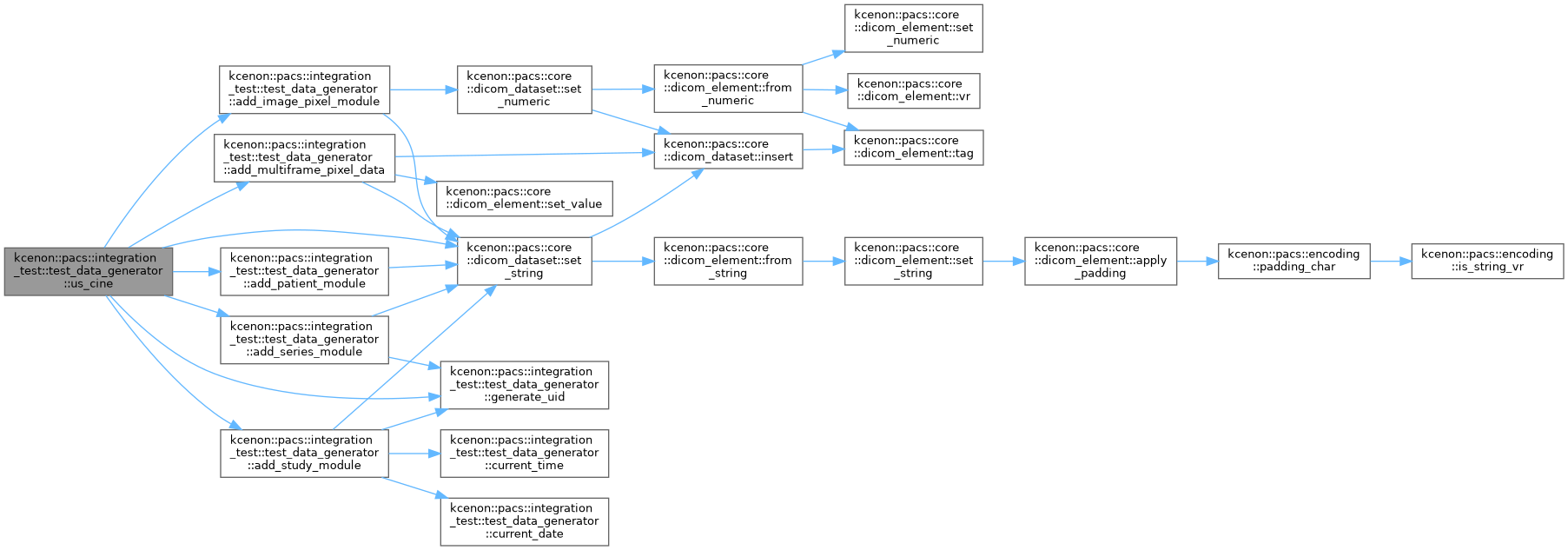

Here is the call graph for this function:

Here is the caller graph for this function:

with_private_tags()

core::dicom_dataset kcenon::pacs::integration_test::test_data_generator::with_private_tags ( const std::string & creator_id = "TEST PRIVATE CREATOR" )

staticnodiscard

Generate a dataset with private tags.

Creates a dataset containing custom private tags for testing private tag preservation during storage and retrieval.

Parameters

creator_id

Private creator identifier

Returns

DICOM dataset with private tags

Definition at line 565 of file test_data_generator.cpp.

                                                                                    {
    core::dicom_dataset ds;

    add_patient_module(ds, "TEST^PRIVATE^TAGS", "TESTPRIVATE001", "19851231", "F");
    add_study_module(ds, "", "ACCPRIVATE001", "STUDYPRIVATE001", "Private Tags Test");
    add_series_module(ds, "", "OT", "1", "Private Tags Series");

    // SOP Common - Secondary Capture
    ds.set_string(core::tags::sop_class_uid, encoding::vr_type::UI,
                  "1.2.840.10008.5.1.4.1.1.7");
    ds.set_string(core::tags::sop_instance_uid, encoding::vr_type::UI, generate_uid());

    // Add private creator identification
    constexpr core::dicom_tag private_creator_tag{0x0011, 0x0010};
    ds.set_string(private_creator_tag, encoding::vr_type::LO, creator_id);

    // Add private data elements
    constexpr core::dicom_tag private_data_tag_1{0x0011, 0x1001};
    constexpr core::dicom_tag private_data_tag_2{0x0011, 0x1002};
    constexpr core::dicom_tag private_data_tag_3{0x0011, 0x1003};

    ds.set_string(private_data_tag_1, encoding::vr_type::LO, "Private String Value");
    ds.set_string(private_data_tag_2, encoding::vr_type::DS, "123.456");
    ds.set_string(private_data_tag_3, encoding::vr_type::IS, "42");

    add_image_pixel_module(ds, 64, 64, 8, 8);
    add_pixel_data(ds, 64, 64, 8);

    return ds;
}

References add_image_pixel_module(), add_patient_module(), add_pixel_data(), add_series_module(), add_study_module(), kcenon::pacs::encoding::DS, generate_uid(), kcenon::pacs::encoding::IS, kcenon::pacs::encoding::LO, kcenon::pacs::core::dicom_dataset::set_string(), kcenon::pacs::core::tags::sop_class_uid, kcenon::pacs::core::tags::sop_instance_uid, and kcenon::pacs::encoding::UI.

Referenced by kcenon::pacs::integration_test::TEST_CASE().

Here is the call graph for this function:

Here is the caller graph for this function:

worklist()

core::dicom_dataset kcenon::pacs::integration_test::test_data_generator::worklist ( const std::string & patient_id = "", const std::string & modality = "CT" )

staticnodiscard

Generate a worklist item dataset.

Parameters

patient_id	Patient identifier (auto-generated if empty)
modality	Scheduled modality (default: "CT")

Returns

DICOM dataset for Modality Worklist

Definition at line 483 of file test_data_generator.cpp.

                               {

    core::dicom_dataset ds;

    std::string pid = patient_id.empty() ? "TESTWL001" : patient_id;
    add_patient_module(ds, "WORKLIST^TEST^PATIENT", pid, "19850520", "M");

    // Scheduled Procedure Step
    ds.set_string(core::tags::scheduled_procedure_step_start_date, encoding::vr_type::DA,
                  current_date());
    ds.set_string(core::tags::scheduled_procedure_step_start_time, encoding::vr_type::TM,
                  "090000");
    ds.set_string(core::tags::modality, encoding::vr_type::CS, modality);
    ds.set_string(core::tags::scheduled_station_ae_title, encoding::vr_type::AE,
                  modality + "_SCANNER");
    ds.set_string(core::tags::scheduled_procedure_step_description, encoding::vr_type::LO,
                  modality + " Examination");

    // Requested Procedure
    ds.set_string(core::tags::requested_procedure_id, encoding::vr_type::SH, "RP001");
    ds.set_string(core::tags::accession_number, encoding::vr_type::SH, "WLACC001");
    ds.set_string(core::tags::study_instance_uid, encoding::vr_type::UI, generate_uid());

    return ds;
}

References kcenon::pacs::core::tags::accession_number, add_patient_module(), kcenon::pacs::encoding::AE, kcenon::pacs::encoding::CS, current_date(), kcenon::pacs::encoding::DA, generate_uid(), kcenon::pacs::encoding::LO, kcenon::pacs::core::tags::modality, kcenon::pacs::core::tags::requested_procedure_id, kcenon::pacs::core::tags::scheduled_procedure_step_description, kcenon::pacs::core::tags::scheduled_procedure_step_start_date, kcenon::pacs::core::tags::scheduled_procedure_step_start_time, kcenon::pacs::core::tags::scheduled_station_ae_title, kcenon::pacs::core::dicom_dataset::set_string(), kcenon::pacs::encoding::SH, kcenon::pacs::core::tags::study_instance_uid, kcenon::pacs::encoding::TM, and kcenon::pacs::encoding::UI.

Referenced by kcenon::pacs::integration_test::TEST_CASE(), TEST_CASE(), and TEST_CASE().

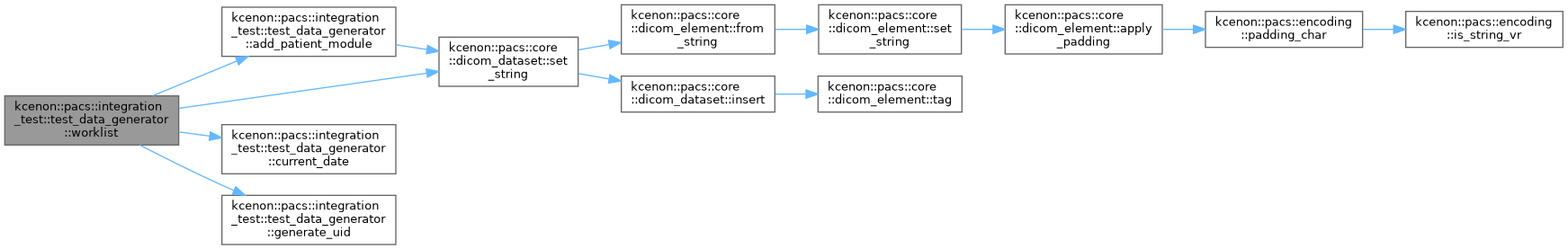

Here is the call graph for this function:

Here is the caller graph for this function:

xa()

core::dicom_dataset kcenon::pacs::integration_test::test_data_generator::xa ( const std::string & study_uid = "" )

staticnodiscard

Generate a single-frame XA Image dataset.

Parameters

study_uid

Study Instance UID (auto-generated if empty)

Returns

DICOM dataset for XA Image Storage

Definition at line 267 of file test_data_generator.cpp.

                                                                    {
    core::dicom_dataset ds;

    add_patient_module(ds, "TEST^XA^PATIENT", "TESTXA001", "19750610", "F");
    add_study_module(ds, study_uid, "ACCXA001", "STUDYXA001", "XA Integration Test");
    add_series_module(ds, "", "XA", "1", "Coronary Angio");

    // SOP Common
    ds.set_string(core::tags::sop_class_uid, encoding::vr_type::UI,
                  std::string(services::sop_classes::xa_image_storage_uid));
    ds.set_string(core::tags::sop_instance_uid, encoding::vr_type::UI, generate_uid());

    // Image Pixel Module (512x512 for XA)
    add_image_pixel_module(ds, 512, 512, 16, 12);

    // XA-specific attributes
    constexpr core::dicom_tag positioner_primary_angle{0x0018, 0x1510};
    constexpr core::dicom_tag positioner_secondary_angle{0x0018, 0x1511};
    constexpr core::dicom_tag kvp{0x0018, 0x0060};
    constexpr core::dicom_tag xray_tube_current{0x0018, 0x1151};
    constexpr core::dicom_tag exposure_time{0x0018, 0x1150};

    ds.set_string(positioner_primary_angle, encoding::vr_type::DS, "0");
    ds.set_string(positioner_secondary_angle, encoding::vr_type::DS, "0");
    ds.set_string(kvp, encoding::vr_type::DS, "80");
    ds.set_string(xray_tube_current, encoding::vr_type::IS, "500");
    ds.set_string(exposure_time, encoding::vr_type::IS, "100");

    add_pixel_data(ds, 512, 512, 16, 1, 128);

    return ds;
}

References add_image_pixel_module(), add_patient_module(), add_pixel_data(), add_series_module(), add_study_module(), kcenon::pacs::encoding::DS, generate_uid(), kcenon::pacs::encoding::IS, kcenon::pacs::core::dicom_dataset::set_string(), kcenon::pacs::core::tags::sop_class_uid, kcenon::pacs::core::tags::sop_instance_uid, kcenon::pacs::encoding::UI, and kcenon::pacs::services::sop_classes::xa_image_storage_uid.

Referenced by kcenon::pacs::integration_test::TEST_CASE(), TEST_CASE(), and TEST_CASE().

Here is the call graph for this function:

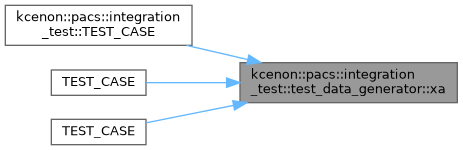

Here is the caller graph for this function:

xa_cine()

core::dicom_dataset kcenon::pacs::integration_test::test_data_generator::xa_cine ( uint32_t frames = 30, const std::string & study_uid = "" )

staticnodiscard

Generate a multi-frame XA cine dataset.

Parameters

frames	Number of frames (default: 30)
study_uid	Study Instance UID (auto-generated if empty)

Returns

DICOM dataset for multi-frame XA Image Storage

Definition at line 323 of file test_data_generator.cpp.

                                                                                          {
    core::dicom_dataset ds;

    add_patient_module(ds, "TEST^XACINE^PATIENT", "TESTXACINE001", "19700815", "M");
    add_study_module(ds, study_uid, "ACCXACINE001", "STUDYXACINE001", "XA Cine Test");
    add_series_module(ds, "", "XA", "1", "Coronary Cine Run");

    // SOP Common - use standard XA (supports multiframe)
    ds.set_string(core::tags::sop_class_uid, encoding::vr_type::UI,
                  std::string(services::sop_classes::xa_image_storage_uid));
    ds.set_string(core::tags::sop_instance_uid, encoding::vr_type::UI, generate_uid());

    // Image Pixel Module (512x512 for XA)
    add_image_pixel_module(ds, 512, 512, 16, 12);

    // XA-specific attributes
    constexpr core::dicom_tag positioner_primary_angle{0x0018, 0x1510};
    constexpr core::dicom_tag positioner_secondary_angle{0x0018, 0x1511};
    constexpr core::dicom_tag cine_rate{0x0018, 0x0040};
    constexpr core::dicom_tag frame_time{0x0018, 0x1063};

    ds.set_string(positioner_primary_angle, encoding::vr_type::DS, "30");
    ds.set_string(positioner_secondary_angle, encoding::vr_type::DS, "-15");
    ds.set_string(cine_rate, encoding::vr_type::IS, "15");  // 15 fps
    ds.set_string(frame_time, encoding::vr_type::DS, "66.67");  // ~15 fps

    add_multiframe_pixel_data(ds, 512, 512, 16, frames);

    return ds;
}

References add_image_pixel_module(), add_multiframe_pixel_data(), add_patient_module(), add_series_module(), add_study_module(), kcenon::pacs::encoding::DS, generate_uid(), kcenon::pacs::encoding::IS, kcenon::pacs::core::dicom_dataset::set_string(), kcenon::pacs::core::tags::sop_class_uid, kcenon::pacs::core::tags::sop_instance_uid, kcenon::pacs::encoding::UI, and kcenon::pacs::services::sop_classes::xa_image_storage_uid.

Referenced by kcenon::pacs::integration_test::TEST_CASE(), and TEST_CASE().

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• examples/integration_tests/test_data_generator.h
• examples/integration_tests/test_data_generator.cpp
