kcenon::pacs::di::IDicomNetwork Class Reference

Network service interface for DICOM communication. More...

#include <service_interfaces.h>

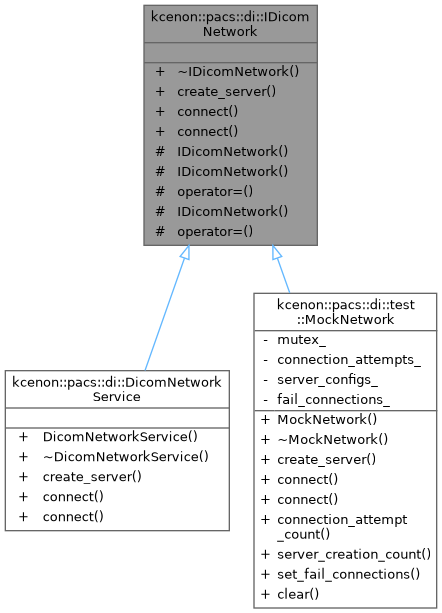

Inheritance diagram for kcenon::pacs::di::IDicomNetwork:

Collaboration diagram for kcenon::pacs::di::IDicomNetwork:

Public Member Functions
virtual	~IDicomNetwork ()=default
virtual std::unique_ptr< network::dicom_server >	create_server (const network::server_config &config, const integration::tls_config &tls_cfg={})=0
	Create a DICOM server.
virtual integration::Result< integration::network_adapter::session_ptr >	connect (const integration::connection_config &config)=0
	Connect to a remote DICOM peer.
virtual integration::Result< integration::network_adapter::session_ptr >	connect (const std::string &host, uint16_t port, std::chrono::milliseconds timeout=std::chrono::seconds{30})=0
	Connect to a remote DICOM peer (simplified)

Protected Member Functions
	IDicomNetwork ()=default
	IDicomNetwork (const IDicomNetwork &)=default
IDicomNetwork &	operator= (const IDicomNetwork &)=default
	IDicomNetwork (IDicomNetwork &&)=default
IDicomNetwork &	operator= (IDicomNetwork &&)=default

Detailed Description

Network service interface for DICOM communication.

Abstract interface for DICOM network operations including server creation and client connections. This interface provides dependency injection support for network functionality.

Thread Safety:

• All methods must be thread-safe in concrete implementations
• Server/client instances should be managed independently

Definition at line 75 of file service_interfaces.h.

Constructor & Destructor Documentation

~IDicomNetwork()

virtual kcenon::pacs::di::IDicomNetwork::~IDicomNetwork ( )

virtualdefault

IDicomNetwork() [1/3]

kcenon::pacs::di::IDicomNetwork::IDicomNetwork ( )

protecteddefault

IDicomNetwork() [2/3]

kcenon::pacs::di::IDicomNetwork::IDicomNetwork ( const IDicomNetwork & )

protecteddefault

IDicomNetwork() [3/3]

kcenon::pacs::di::IDicomNetwork::IDicomNetwork ( IDicomNetwork && )

protecteddefault

Member Function Documentation

connect() [1/2]

virtual integration::Result< integration::network_adapter::session_ptr > kcenon::pacs::di::IDicomNetwork::connect ( const integration::connection_config & config )

nodiscardpure virtual

Connect to a remote DICOM peer.

Parameters

config

Connection configuration

Returns

Result containing session on success, or error message

Implemented in kcenon::pacs::di::DicomNetworkService, and kcenon::pacs::di::test::MockNetwork.

connect() [2/2]

virtual integration::Result< integration::network_adapter::session_ptr > kcenon::pacs::di::IDicomNetwork::connect ( const std::string & host, uint16_t port, std::chrono::milliseconds timeout = std::chrono::seconds{30} )

nodiscardpure virtual

Connect to a remote DICOM peer (simplified)

Parameters

host	Remote host address
port	Remote port
timeout	Connection timeout

Returns

Result containing session on success, or error message

Implemented in kcenon::pacs::di::DicomNetworkService, and kcenon::pacs::di::test::MockNetwork.

create_server()

virtual std::unique_ptr< network::dicom_server > kcenon::pacs::di::IDicomNetwork::create_server ( const network::server_config & config, const integration::tls_config & tls_cfg = {} )

nodiscardpure virtual

Create a DICOM server.

Parameters

config	Server configuration
tls_cfg	Optional TLS configuration

Returns

Unique pointer to dicom_server, or nullptr on failure

Implemented in kcenon::pacs::di::DicomNetworkService, and kcenon::pacs::di::test::MockNetwork.

operator=() [1/2]

IDicomNetwork & kcenon::pacs::di::IDicomNetwork::operator= ( const IDicomNetwork & )

protecteddefault

operator=() [2/2]

IDicomNetwork & kcenon::pacs::di::IDicomNetwork::operator= ( IDicomNetwork && )

protecteddefault

---

The documentation for this class was generated from the following file:

• include/kcenon/pacs/di/service_interfaces.h
