Configuration for TLS/SSL secure transport. More...

#include <network_adapter.h>

Collaboration diagram for kcenon::pacs::integration::tls_config:

Public Types
enum class	tls_version { v1_2 , v1_3 }
	Minimum TLS version (1.2 recommended for DICOM) More...

Public Member Functions
bool	is_valid () const noexcept
	Check if TLS configuration is valid.

Public Attributes
bool	enabled = false
	Enable TLS for connections.

std::filesystem::path	cert_path
	Path to certificate file (PEM format)

std::filesystem::path	key_path
	Path to private key file (PEM format)

std::filesystem::path	ca_path
	Path to CA certificate file for verification (optional)

bool	verify_peer = true
	Verify peer certificate.

enum kcenon::pacs::integration::tls_config::tls_version	min_version = tls_version::v1_2

Detailed Description

Configuration for TLS/SSL secure transport.

DICOM supports TLS 1.2/1.3 for secure communication as defined in DICOM PS3.15 (Security and System Management Profiles).

Definition at line 126 of file network_adapter.h.

Member Enumeration Documentation

◆ tls_version

enum class kcenon::pacs::integration::tls_config::tls_version

strong

Minimum TLS version (1.2 recommended for DICOM)

Enumerator
v1_2
v1_3

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/network_adapter.h.

Definition at line 143 of file network_adapter.h.

143{ v1_2, v1_3 } min_version = tls_version::v1_2;

kcenon::pacs::integration::tls_config::min_version

enum kcenon::pacs::integration::tls_config::tls_version min_version

kcenon::pacs::integration::tls_config::tls_version::v1_2

@ v1_2

kcenon::pacs::integration::tls_config::tls_version::v1_3

@ v1_3

Member Function Documentation

◆ is_valid()

bool kcenon::pacs::integration::tls_config::is_valid ( ) const

inlinenodiscardnoexcept

Check if TLS configuration is valid.

Returns: true if all required paths are set when enabled

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/network_adapter.h.

Definition at line 149 of file network_adapter.h.

                                                 {
        if (!enabled) return true;
        return !cert_path.empty() && !key_path.empty();
    }

References cert_path, enabled, and key_path.

Referenced by kcenon::pacs::integration::network_adapter::connect(), kcenon::pacs::integration::network_adapter::create_server(), and TEST_CASE().

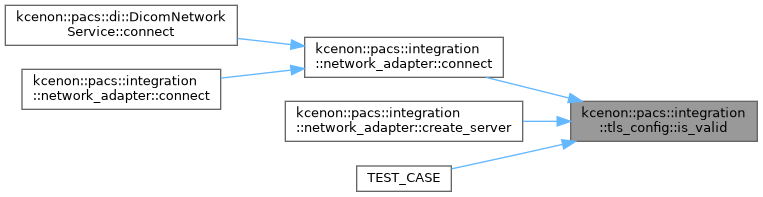

Here is the caller graph for this function:

Member Data Documentation

◆ ca_path

std::filesystem::path kcenon::pacs::integration::tls_config::ca_path

Path to CA certificate file for verification (optional)

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/network_adapter.h.

Definition at line 137 of file network_adapter.h.

Referenced by kcenon::pacs::integration::network_adapter::configure_tls(), kcenon::pacs::integration::network_adapter::connect(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), and TEST_CASE().

◆ cert_path

std::filesystem::path kcenon::pacs::integration::tls_config::cert_path

Path to certificate file (PEM format)

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/network_adapter.h.

Definition at line 131 of file network_adapter.h.

Referenced by kcenon::pacs::integration::network_adapter::configure_tls(), is_valid(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), and TEST_CASE().

◆ enabled

bool kcenon::pacs::integration::tls_config::enabled = false

Enable TLS for connections.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/network_adapter.h.

Definition at line 128 of file network_adapter.h.

Referenced by kcenon::pacs::integration::network_adapter::configure_tls(), kcenon::pacs::integration::network_adapter::connect(), kcenon::pacs::integration::network_adapter::create_server(), is_valid(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), and TEST_CASE().

◆ key_path

std::filesystem::path kcenon::pacs::integration::tls_config::key_path

Path to private key file (PEM format)

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/network_adapter.h.

Definition at line 134 of file network_adapter.h.

Referenced by kcenon::pacs::integration::network_adapter::configure_tls(), is_valid(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), and TEST_CASE().

◆ min_version

enum kcenon::pacs::integration::tls_config::tls_version kcenon::pacs::integration::tls_config::min_version = tls_version::v1_2

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/network_adapter.h.

Referenced by kcenon::pacs::integration::network_adapter::configure_tls(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), and TEST_CASE().

◆ verify_peer

bool kcenon::pacs::integration::tls_config::verify_peer = true

Verify peer certificate.

Examples: /home/runner/work/pacs_system/pacs_system/include/kcenon/pacs/integration/network_adapter.h.

Definition at line 140 of file network_adapter.h.

Referenced by kcenon::pacs::integration::network_adapter::connect(), TEST_CASE(), TEST_CASE(), TEST_CASE(), TEST_CASE(), and TEST_CASE().

The documentation for this struct was generated from the following file:

include/kcenon/pacs/integration/network_adapter.h
