kcenon::pacs::network::server_config Struct Reference

#include <server_config.h>

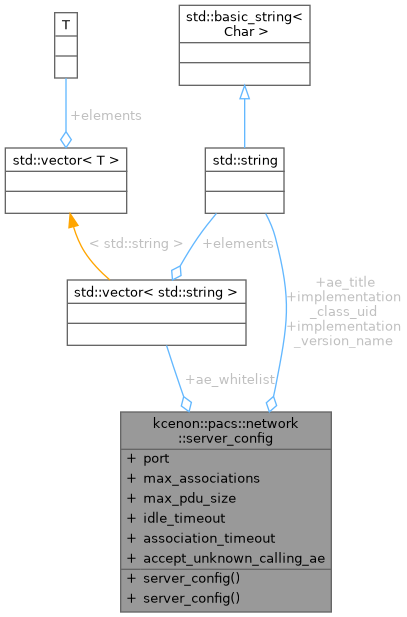

Collaboration diagram for kcenon::pacs::network::server_config:

Public Member Functions
	server_config ()=default
	Default constructor with sensible defaults.
	server_config (std::string ae, uint16_t listen_port)
	Construct with minimal required parameters.

Public Attributes
std::string	ae_title {"PACS_SCP"}
	Application Entity Title for this server (16 chars max)
uint16_t	port {11112}
	Port to listen on (default: 11112, standard alternate DICOM port)
size_t	max_associations {20}
	Maximum concurrent associations (0 = unlimited)
uint32_t	max_pdu_size {DEFAULT_MAX_PDU_LENGTH}
	Maximum PDU size for data transfer.
std::chrono::seconds	idle_timeout {300}
	Idle timeout for associations (0 = no timeout)
std::chrono::seconds	association_timeout {30}
	Timeout for association negotiation.
std::vector< std::string >	ae_whitelist
	AE Title whitelist (empty = accept all)
std::string	implementation_class_uid {"1.2.826.0.1.3680043.2.1545.1"}
	Implementation Class UID.
std::string	implementation_version_name {"PACS_SYSTEM_001"}
	Implementation Version Name.
bool	accept_unknown_calling_ae {false}
	Accept unknown calling AE titles (when whitelist is non-empty)

Detailed Description

Definition at line 45 of file server_config.h.

Constructor & Destructor Documentation

server_config() [1/2]

kcenon::pacs::network::server_config::server_config ( )

default

Default constructor with sensible defaults.

server_config() [2/2]

kcenon::pacs::network::server_config::server_config ( std::string ae, uint16_t listen_port )

inline

Construct with minimal required parameters.

Parameters

ae	AE Title for the server
listen_port	Port to listen on

Definition at line 86 of file server_config.h.

        : ae_title(std::move(ae))
        , port(listen_port) {}

Member Data Documentation

accept_unknown_calling_ae

bool kcenon::pacs::network::server_config::accept_unknown_calling_ae {false}

Accept unknown calling AE titles (when whitelist is non-empty)

Definition at line 74 of file server_config.h.

{false};

Referenced by kcenon::pacs::network::v2::dicom_association_handler::handle_associate_rq(), and kcenon::pacs::network::dicom_server::validate_calling_ae().

ae_title

std::string kcenon::pacs::network::server_config::ae_title {"PACS_SCP"}

Application Entity Title for this server (16 chars max)

Definition at line 47 of file server_config.h.

{"PACS_SCP"};

Referenced by kcenon::pacs::integration::network_adapter::create_server(), kcenon::pacs::network::v2::dicom_association_handler::handle_associate_rq(), kcenon::pacs::example::pacs_server_app::setup_server(), kcenon::pacs::network::dicom_server::simulate_association_request(), kcenon::pacs::network::dicom_server::start(), kcenon::pacs::network::v2::dicom_server_v2::start(), kcenon::pacs::integration_test::test_server::test_server(), and kcenon::pacs::network::dicom_server::validate_called_ae().

ae_whitelist

std::vector<std::string> kcenon::pacs::network::server_config::ae_whitelist

AE Title whitelist (empty = accept all)

Definition at line 65 of file server_config.h.

Referenced by kcenon::pacs::network::v2::dicom_association_handler::handle_associate_rq(), and kcenon::pacs::network::dicom_server::validate_calling_ae().

association_timeout

std::chrono::seconds kcenon::pacs::network::server_config::association_timeout {30}

Timeout for association negotiation.

Definition at line 62 of file server_config.h.

{30};

idle_timeout

std::chrono::seconds kcenon::pacs::network::server_config::idle_timeout {300}

Idle timeout for associations (0 = no timeout)

Definition at line 59 of file server_config.h.

{300};

Referenced by kcenon::pacs::network::dicom_server::check_idle_timeouts(), kcenon::pacs::network::v2::dicom_server_v2::check_idle_timeouts(), kcenon::pacs::network::dicom_server::message_loop(), and kcenon::pacs::integration_test::test_server::test_server().

implementation_class_uid

std::string kcenon::pacs::network::server_config::implementation_class_uid {"1.2.826.0.1.3680043.2.1545.1"}

Implementation Class UID.

Definition at line 68 of file server_config.h.

{"1.2.826.0.1.3680043.2.1545.1"};

Referenced by kcenon::pacs::network::v2::dicom_association_handler::handle_associate_rq(), kcenon::pacs::network::dicom_server::simulate_association_request(), and kcenon::pacs::integration_test::test_server::test_server().

implementation_version_name

std::string kcenon::pacs::network::server_config::implementation_version_name {"PACS_SYSTEM_001"}

Implementation Version Name.

Definition at line 71 of file server_config.h.

{"PACS_SYSTEM_001"};

Referenced by kcenon::pacs::network::v2::dicom_association_handler::handle_associate_rq(), kcenon::pacs::network::dicom_server::simulate_association_request(), and kcenon::pacs::integration_test::test_server::test_server().

max_associations

size_t kcenon::pacs::network::server_config::max_associations {20}

Maximum concurrent associations (0 = unlimited)

Definition at line 53 of file server_config.h.

{20};

Referenced by kcenon::pacs::network::dicom_server::handle_association(), kcenon::pacs::network::v2::dicom_server_v2::on_connection(), and kcenon::pacs::integration_test::test_server::test_server().

max_pdu_size

uint32_t kcenon::pacs::network::server_config::max_pdu_size {DEFAULT_MAX_PDU_LENGTH}

Maximum PDU size for data transfer.

Definition at line 56 of file server_config.h.

{DEFAULT_MAX_PDU_LENGTH};

Referenced by kcenon::pacs::network::v2::dicom_association_handler::handle_associate_rq(), and kcenon::pacs::network::dicom_server::simulate_association_request().

port

uint16_t kcenon::pacs::network::server_config::port {11112}

Port to listen on (default: 11112, standard alternate DICOM port)

Definition at line 50 of file server_config.h.

{11112};

Referenced by kcenon::pacs::integration::network_adapter::create_server(), kcenon::pacs::network::dicom_server::handle_association(), kcenon::pacs::network::dicom_server::start(), kcenon::pacs::network::v2::dicom_server_v2::start(), kcenon::pacs::network::dicom_server::stop(), and kcenon::pacs::integration_test::test_server::test_server().

---

The documentation for this struct was generated from the following file:

• include/kcenon/pacs/network/server_config.h
