character_set.h File Reference

DICOM Character Set registry, ISO 2022 parser, and string decoder. More...

#include <cstdint>
#include <optional>
#include <string>
#include <string_view>
#include <vector>

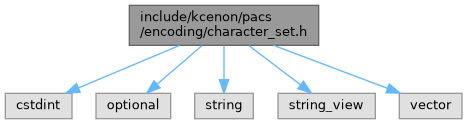

Include dependency graph for character_set.h:

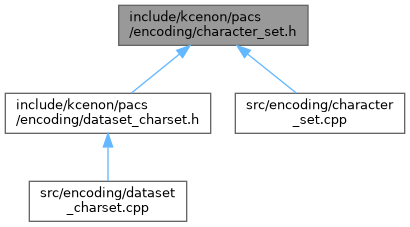

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	kcenon::pacs::encoding::character_set_info
	Information about a DICOM character set. More...
struct	kcenon::pacs::encoding::specific_character_set
	Parsed representation of a multi-valued Specific Character Set. More...
struct	kcenon::pacs::encoding::text_segment
	A text segment with its associated character set. More...

Namespaces
namespace	kcenon
namespace	kcenon::pacs
namespace	kcenon::pacs::encoding

Functions
Character Set Registry
const character_set_info *	kcenon::pacs::encoding::find_character_set (std::string_view defined_term) noexcept
	Look up character set info by DICOM Defined Term.
const character_set_info *	kcenon::pacs::encoding::find_character_set_by_ir (int iso_ir_number) noexcept
	Look up character set info by ISO-IR number.
const character_set_info &	kcenon::pacs::encoding::default_character_set () noexcept
	Get the default character set (ISO-IR 6, ASCII).
std::vector< const character_set_info * >	kcenon::pacs::encoding::all_character_sets () noexcept
	Get all registered character sets.
Specific Character Set Parsing
specific_character_set	kcenon::pacs::encoding::parse_specific_character_set (std::string_view value)
	Parse a Specific Character Set (0008,0005) value.
ISO 2022 Escape Sequence Detection
std::vector< text_segment >	kcenon::pacs::encoding::split_by_escape_sequences (std::string_view text, const specific_character_set &scs)
	Split a string into segments by ISO 2022 escape sequences.
String Decoding
std::string	kcenon::pacs::encoding::decode_to_utf8 (std::string_view text, const specific_character_set &scs)
	Decode a DICOM string to UTF-8 using the given character set.
std::string	kcenon::pacs::encoding::convert_to_utf8 (std::string_view text, const character_set_info &charset)
	Decode a single segment from a specific encoding to UTF-8.
std::string	kcenon::pacs::encoding::decode_person_name (std::string_view pn_value, const specific_character_set &scs)
	Decode a Person Name (PN) value to UTF-8.
std::string	kcenon::pacs::encoding::encode_from_utf8 (std::string_view utf8_text, const specific_character_set &scs)
	Encode a UTF-8 string to the target character set encoding.
std::string	kcenon::pacs::encoding::convert_from_utf8 (std::string_view utf8_text, const character_set_info &charset)
	Encode a single UTF-8 segment to a specific character set.

Detailed Description

DICOM Character Set registry, ISO 2022 parser, and string decoder.

Provides support for decoding DICOM strings encoded with international character sets using ISO 2022 escape sequence-based code extensions as specified in DICOM PS3.5 Section 6.1 and PS3.3 Annex C.12.1.1.2.

Supported character sets:

• ISO-IR 6 (ASCII, default repertoire)
• ISO-IR 100 (Latin-1, Western European)
• ISO-IR 101 (Latin-2, Central European)
• ISO-IR 126 (Greek)
• ISO-IR 127 (Arabic)
• ISO-IR 138 (Hebrew)
• ISO-IR 144 (Cyrillic)
• ISO-IR 166 (Thai, TIS 620-2533)
• ISO-IR 192 (UTF-8, Unicode)
• ISO-IR 149 (Korean, KS X 1001 / EUC-KR)
• ISO-IR 87 (Japanese Kanji, JIS X 0208)
• ISO-IR 13 (Japanese Katakana, JIS X 0201)
• ISO-IR 58 (Chinese, GB2312)
• GB18030 (Chinese, full character set)

See also

DICOM PS3.5 Section 6.1 - Support of Character Repertoires

DICOM PS3.3 Section C.12.1.1.2 - Specific Character Set

Author

kcenon

Since

1.0.0

Definition in file character_set.h.
